ClearOne COLLABORATE SD PTZ, COLLABORATE SD 910-401-190, COLLABORATE SD 910-401-192 Specification Sheet

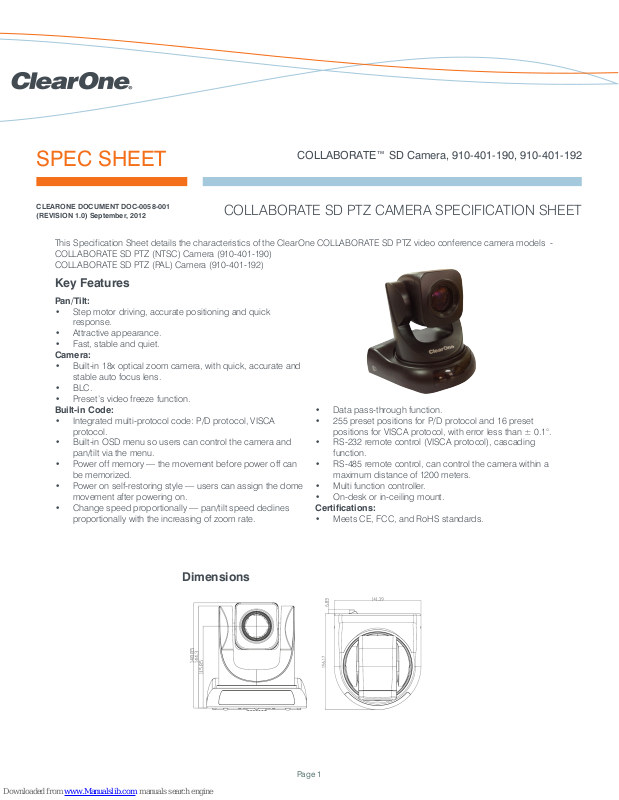

SPEC SHEET
COLLABORATE™ SD Camera, 910-401-190, 910-401-192
CLEARONE DOCUMENT DOC-0058-001
(REVISION 1.0) September, 2012
This Specification Sheet details the characteristics of the ClearOne COLLABORATE SD PTZ video conference camera models -
COLLABORATE SD PTZ (NTSC) Camera (910-401-190)
COLLABORATE SD PTZ (PAL) Camera (910-401-192)
COLLABORATE SD PTZ CAMERA SPECIFICATION SHEET
Key Features
Pan/Tilt:
• Step motor driving, accurate positioning and quick
response.
• Attractive appearance.
• Fast, stable and quiet.
Camera:
• Built-in 18x optical zoom camera, with quick, accurate and
stable auto focus lens.
• BLC.
• Preset’s video freeze function.
Built-in Code:
• Integrated multi-protocol code: P/D protocol, VISCA
protocol.
• Built-in OSD menu so users can control the camera and
pan/tilt via the menu.
• Power off memory — the movement before power off can
be memorized.
• Power on self-restoring style — users can assign the dome
movement after powering on.
• Change speed proportionally — pan/tilt speed declines
proportionally with the increasing of zoom rate.
• Data pass-through function.
• 255 preset positions for P/D protocol and 16 preset
positions for VISCA protocol, with error less than ± 0.1°.
• RS-232 remote control (VISCA protocol), cascading
function.
• RS-485 remote control, can control the camera within a
maximum distance of 1200 meters.
• Multi function controller.
• On-desk or in-ceiling mount.
Certifications:
• Meets CE, FCC, and RoHS standards.
Dimensions
Page 1
Technical Parameters
Camera
Sensor 1/4 inch high quality EXVIEW HAD CCD sensor
Video Signal 1.0±0.1VP-P (75Ω, compound)
Zoom 18x optical zoom; f=4.1 - 73.8mm, F1.4 - 3.0
View Angle 2.8° (distance) - 48° (close)
Minimum LUX 1.0 LUX (Color): 0.01 LUX (B/W)
White Balance Auto/ Sunlight/ Cloudy/ Darkness/ Fluorescence
Focus Auto/ Manual
Iris Auto/ Manual
Electronic shutter Auto
BLC Open/Close
S/N Ratio >50dB
Pan/Tilt
Pan Rotation 360°
Tilt Rotation -30° ~+90°
Pan Control Speed 0.5-80°/sec.
Tilt Control Speed 0.5-40°/sec.
Preset Running Speed Pan:80°/sec. Tilt:40°/sec.
Preset Position 255 preset positions
Input/Output Interface
Compound Video Interface RCA jack, Compound video 1Vp-p,75Ω none balance
S-Video Output 4-pin mini DIN(1)
Control Signal Interface 8 mini DIN
Control Signal Format Start bit: 1; Data bit: 8; Stop bit: 1; Baud Rate: 9600bps
Power Interface HEC3800 Power Jack
Electronic
Power Adaptor 110VAC - 220VAC to 12VDC/2A
Input voltage 12VDC
Consumption 12W
Structure
Material All-alloy, PC plastic
Weight 2KG
Color Black
Dimension 156.17mm x 141.39mm x 148.85mm
Packing Carton and EPE
Page 2
Environment
Working temperature 0°C ~ 45°C
Storage temperature -10°C ~ 60°C
Working humidity 20%~80%
Storage humidity 20%~70%
Application For indoor use
Protection
Protection IP40, With surge and lightning protector
Meeting CE,FCC standards and has ROHS Certification
