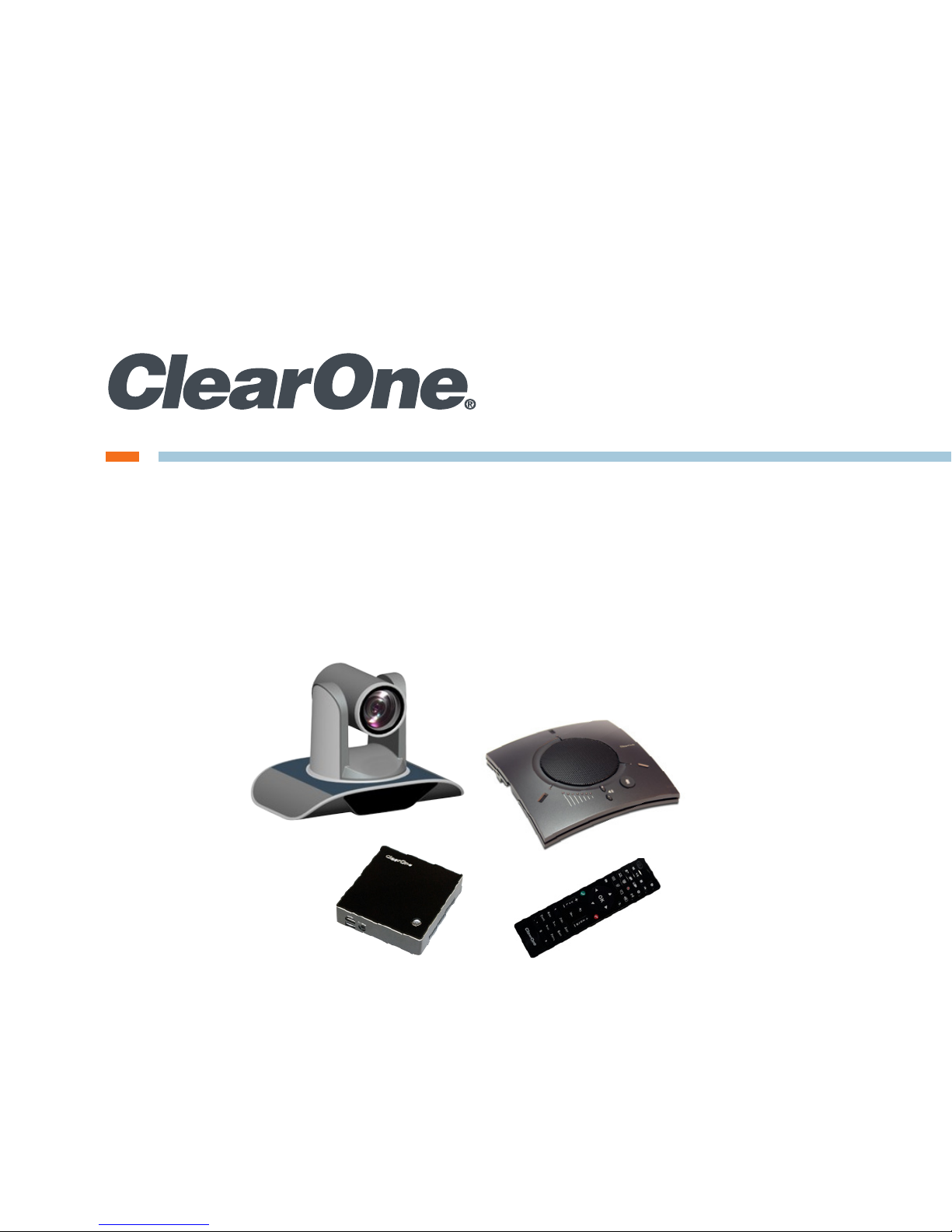

Page 1
COLLABORATE® Pro 300
Quick-Start Guide
Page 2
COLLABORATE PRO 300
2
COMPONENTS INCLUDED
The COLLABORATE Pro 300 with COLLABORATE Speakerphone
bundle.
COLLABORATE Pro 300
COLLABORATE
Pro 300 codec with
power supply, VESA
Mounting Plate, and
COLLABORATE
Remote Control with
USB dongle
910-2100-001
UNITE 100 PTZ
camera, power supply,
USB 3.0 cable
910-401-205
COLLABORATE
Speakerphone with
USB cable
Page 3
QUICK-START GUIDE
3
CONNECTING PERIPHERALS
Connect the COLLABORATE Speakerphone, Unite Camera, monitor(s),
and network to the COLLABORATE Pro 300 codec as shown.
HDMI 1080P or 720P
Video/Audio Out (for
Primary Monitor)
Mini Display Port
(for 2nd Monitor)
Ethernet
Connection
to Network
DC In
USB 3.0 Port for
UNITE Camera
USB 3.0 Port for
COLLABORATE
Speakerphone
DC In
Page 4
COLLABORATE PRO 300
4
Plug dongle into USB Port
CONNECTING REMOTE CONTROL DONGLE
Install batteries in the remote control and plug in the USB dongle into the
codec.
Note: To maximize range of the remote, verify that the dongle and the
UNITE camera USB are plugged into opposite sides of the codec.
Page 5
QUICK-START GUIDE
5
CONFIGURING DISPLAY SETTINGS
After all peripherals are connected to the unit, turn the unit on.
Once COLLABORATE Pro is loaded – you will see your local camera
video on your screen.
Using the remote control, navigate io the display settings:
Settings > System > Display
The COLLABORATE Pro 300 default output resolution is 1280x720.
According to your monitor capabilities, set the desired resolution. If 2
monitors are connected to the unit, the display mode is automatically
changed to dual mode and you can set both monitors’ resolutions.
Page 6
COLLABORATE PRO 300
6
CONFIGURING AUDIO SETTINGS
The COLLABORATE Pro 300 audio input and output are set to the
COLLABORATE Speakerphone.
Verify this in COLLABORATE Settings > System > Audio
Page 7
QUICK-START GUIDE
7
CONFIGURING NETWORK SETTINGS
Using your remote control, navigate into the network settings:
Settings > Advanced > IP
Clearone.com
The COLLABORATE Pro 300 obtains its IP automatically by default from
the DHCP server.
Uncheck the DHCP checkbox in order to manually configure network
settings.
Page 8
COLLABORATE PRO 300
8
CLEARONE CONTACTS
Europe & Oceana
Tel: +44.1454.616.977
e-mail: global@clearone.com
Asia Pacific
Tel: +852.3590.4526
e-mail: global@clearone.com
HEADQUARTERS:
Salt Lake City, UT USA
5225 Wiley Post Way
Suite 500
Salt Lake City, UT 84116
Sales: 800-707-6694
Toll Free: 800.945.7730
Fax: 801.303.5711
e-mail: sales@clearone.com
TechSales
Tel: 800.707.6694
e-mail: techsales@clearone.com
Technical Support
Tel: +800.283.5936
e-mail: collaborate.support@clearone.com
Latin America
Tel: +801.974.3621
e-mail: global@clearone.com
Middle East
Tel: +852.3590.4526
e-mail: global@clearone.com
© 2015 ClearOne, Inc. All rights reserved - http://www.clearone.com/.
Information in this document is subject to change without notice. DOC-0020-001 Revision 1.0, August, 2015
