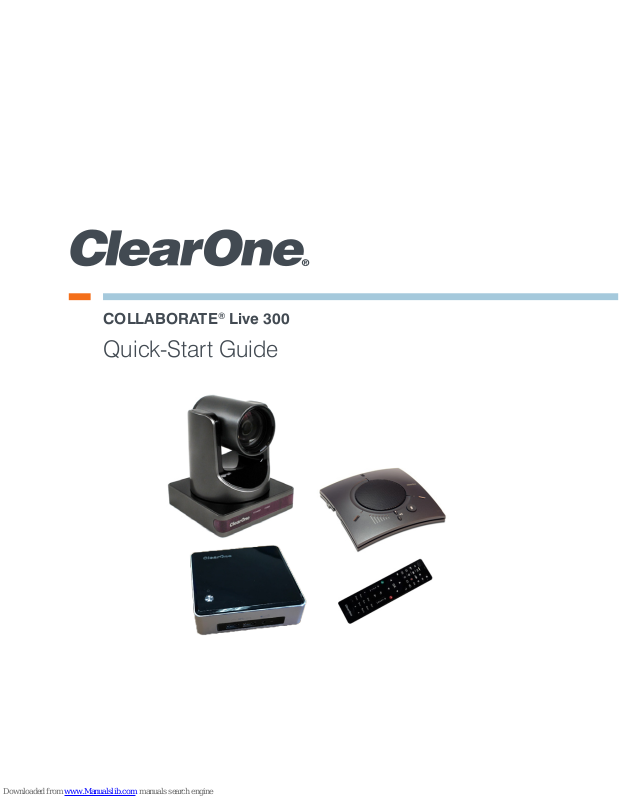

Page 1
COLLABORATE® Live 300
Quick-Start Guide
Page 2
COLLABORATE LIVE 300
2
COMPONENTS INCLUDED
COLLABORATE Live 300
COLLABORATE
Live 300 codec with
power supply, VESA
Mounting Plate, and
COLLABORATE
Remote Control with
USB dongle
910-2100-004
UNITE 150 PTZ
camera, power supply,
USB cable
Note: The remote control
inside the camera box
is only for any advanced
configuration in the
camera, if required.
For the camera’s control,
use the COLLABORATE
Codec Appliance’s remote
control.
910-3001-200
CHAT 150C with USB
cable
Page 3
QUICK-START GUIDE
3
CONNECTING PERIPHERALS
Connect the CHAT 150C, UNITE Camera, monitor(s), and network to the
COLLABORATE Live 300 codec as shown.
HDMI 1080P or 720P
Video/Audio Out (for
Primary Monitor)
Mini Display
Port (for 2nd
Monitor)
Ethernet
Connection
to Network
DC In
USB Port for
UNITE Camera
USB 3.0 Port for
CHAT 150C
DC In
CONNECTING REMOTE CONTROL DONGLE
Install batteries in the remote control and plug in the USB dongle into the
codec.
Note: To maximize range of the remote, verify that the dongle and the
UNITE camera USB are plugged into opposite sides of the codec.
Page 4
COLLABORATE LIVE 300
4
SECURITY
A lock support feature allows you to secure your codec.
SD Card Slot
(Do Not Use)
Lock Support
7.1 digital L+R
audio output jack
Remote control
dongle only
Page 5
QUICK-START GUIDE
5
CONFIGURING DISPLAY SETTINGS
After all peripherals are connected to the unit, turn the unit on.
Once COLLABORATE Live is loaded, the Setup Wizard appears. The
Setup Wizard lets you configure the system name, time, and network,
proxy, and COLLABORATE Space settings. After the Setup Wizard is
complete, using the remote control, navigate to the display settings:
Settings > Advanced > Display
According to your monitor capabilities, set to the maximum supported
resolution. If 2 monitors are connected to the unit, the display mode is
automatically changed to dual mode and you can set both monitors’
resolutions.
Page 6
COLLABORATE LIVE 300
6
CONFIGURING AUDIO SETTINGS
The COLLABORATE Live 300 audio input and output are set to the CHAT
150C.
Verify this in COLLABORATE Settings > Audio & Video
Page 7
QUICK-START GUIDE
7
CONFIGURING NETWORK SETTINGS
Using your remote control, navigate into the network settings:
Settings > Advanced > Network
The COLLABORATE Live 300 obtains its IP automatically by default from
a DHCP server.
Set “Obtain Address From DHCP” to “Disabled” to manually configure
network settings.
Page 8
COLLABORATE LIVE 300
8
CLEARONE CONTACTS
US & Canada
Tel: 801.975.7200
TollFree: 800.945.7730
Fax: 801.303.5711
TechSupport
Tel: 801.974.3760
e-mail: collaborate.support@clearone.com
Headquarters
5225 Wiley Post Way
Suite 500
Salt Lake City, UT 84116
Sales
Tel: 801.975.7200
e-mail: sales@clearone.com
International
Tel: +1.801.975.7200
e-mail: global@clearone.com
Website
www.clearone.com
© 2019 ClearOne, Inc. All rights reserved.
Information in this document is subject to change without notice. QSG-0073-001 Revision 1.0 February 2019
