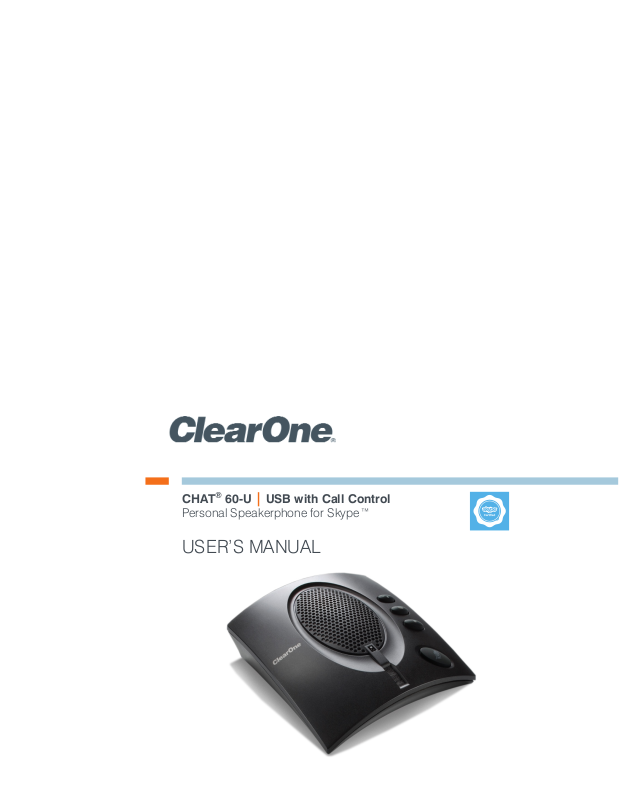

CHAT® 60-U | USB with Call Control

Personal Speakerphone for Skype™

USER’S MANUAL

Telephone [phone]

1.801.974.3760

FAX [phone]

E-mail [e-mail]
On the Web www.ClearOne.com

CHAT 60-U USER’S MANUAL

CLEARONE PART NO. 800-156-256. October 2011 (REV. 1.2)

© 2011 ClearOne All rights reserved. No part of this document may be
reproduced in any form or by any means without written permission
from ClearOne. ClearOne reserves specific privileges.

Information in this document is subject to change without notice.

U.S. PATENTS: D545,295; D545,805; D545,806;
D545,807; D545,808.

OTHER PATENTS PENDING.

Ta b l e o f Co n T e n T s

CHAPTER 1: INTRODUCTION

PRODUCT OVERVIEW .................................................................. 1

Service and Support ................................................................. 1

Technical Support ..................................................................... 1

Sales and Customer Service .................................................... 1

Product Returns ........................................................................ 1

PACKAGE CONTENTS..................................................................1

REPLACEMENT PARTS & ACCESSORIES ................................... 1

CHAPTER 2: GETTING STARTED

CHAT 60-U CONTROLS ................................................................ 3

Po w e r LeD In D I c a t o r .................................................................. 3

ca L L co n t r o L Bu t t o n ................................................................. 3

Vo L u m e a n D mu t e Bu t t o n s ........................................................... 3

CONNECTING THE CHAT 60-U TO A PC .................................... 4

CHAPTER 3: CONFIGURING THE CHAT 60-U

INSTALLING THE CHAT SOFTWARE FOR WINDOWS ................ 5

USING A 3rd-Party APPLICATION ................................................ 5

USING THE CHAT APPLICATION ................................................. 6

ch e c k f o r fI r m w a r e uP D a t e s ....................................................... 6

ma n u a L uP D a t e s .......................................................................... 7

HELP ............................................................................................. 8

ADVANCED SETTINGS ................................................................. 9

aD V a n c e D se t t I n g s : au D I o se t t I n g s .............................................. 9

CHAPTER 4: MAINTENANCE

CARING FOR YOUR CHAT 60-U ................................................ 10

TROUBLESHOOTING POOR SOUND QUALITY ........................ 10

INTERRUPTED FIRMWARE UPDATE RECOVERY ..................... 11

CHAPTER 5: APPENDIX

SPECIFICATIONS ........................................................................ 12

sy s t e m re q u I r e m e n t s ................................................................ 12

co n n e c t I o n s ............................................................................. 12

co n t r o L s .................................................................................. 12

au D I o ........................................................................................ 12

Pr o c e s s I n g ............................................................................... 12

Po w e r ....................................................................................... 12

en V I r o n m e n t a L ........................................................................... 12

me c h a n I c a L ............................................................................... 12

co m P L I a n c e ............................................................................... 12

mo D e L nu m B e r s ........................................................................ 12

EUROPEAN COMPLIANCE ........................................................ 13

WWW.CLEARONE.COM/RESOURCES/EURODOC.PHP ..........13

FCC PART 15/ICES-003 COMPLIANCE...................................... 13

FCC PART 15.19(A) (3) COMPLIANCE ....................................... 13

WARRANTY ................................................................................. 13

CHAPTER 1: INTRODUCTION

PRODUCT OVERVIEW

Thank you for purchasing the ClearOne CHAT 60-U (USB with Call Control function) Personal Speakerphone.

The CHAT 60-U is a portable audio peripheral that provides rich audio for hands-free calls with Skype™, the popular
Internet communication program, now with a Call Control feature. The CHAT 60-U is completely full-duplex and contains
HDConference®, the suite of high performance audio processing technologies that include Echo Cancellation, Noise
Reduction and Automatic Level Controls, producing crystal clear conversations.

Though designed specifically to be used with Skype, the CHAT 60-U can also be used with other devices such as enterprise
telephones and other applications such as VoIP softphones, web conferencing, instant messaging and PC-based gaming.
This manual will provide instructions on using the CHAT 60-U with Skype, as well as with these additional devices and
applications.

Service and Support

If you need assistance setting up or operating your CHAT 60-U Personal Speakerphone, please contact us. We welcome
your comments so we can continue to improve our products and better meet your needs.

Technical Support

Telephone: [phone] (USA), 1.801.974.3760

Fax: [phone]

E-mail: [e-mail]

Web site: www.ClearOne.com

Sales and Customer Service

Telephone: [phone] (USA) or 1.801.975.7200

Fax: [phone] (USA) or 1.801.977.0087

E-mail: [e-mail]

Product Returns

All product returns require a Return Material Authorization (RMA) number. Contact ClearOne Technical Support before
returning your product. Make sure you return all the items and packing materials that originally shipped with your
product.

PACKAGE CONTENTS

The illustration below shows the parts that ship in the box with each model of the CHAT 60-U

Contact your dealer for replacement parts and accessories.

> NOTE: ClearOne is not responsible for product damage incurred during shipment. You must make

claims directly with the carrier. Inspect your shipment carefully for obvious signs of damage. If the
shipment appears damaged, retain the original boxes and packing material for inspection by the carrier.
Contact your carrier immediately.

REPLACEMENT PARTS & ACCESSORIES

Contact your Dealer or ClearOne directly for replacement parts and accessories.

Chapter 1: Introduction 1

IMPORTANT SAFETY INFORMATION

AVIS: RISQUE DE CHOC

ELECTRIQUE - NE PAS OUVRIR

Read the safety instructions before using this product. This personal speakerphone is not designed for making
emergency telephone calls when the power fails. You must make alternative arrangements for telephone access to
emergency services.

Read and understand all instructions. Follow all warnings marked on the product.•

Unplug the product from the outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use only a damp •
cloth for cleaning.

Do not use this product in or near water, for example, near a bathtub, kitchen sink, or swimming pool.•

Place this product on a flat, level, dry surface for ongoing operation.•

Never place product near heat radiators or registers. Allow adequate ventilation for heat dissipation.•

This product should only be operated using a power source specified on the product label. If you are not sure about •
the power source at your location, consult your dealer or local power company.

Do not overload wall outlets and extension cords; this can cause fires or electric shock.•

Never spill liquid on or into the product.•

Do not disassemble this product. Opening or removing covers can expose you to dangerous voltages and other •
risks. Incorrect reassembly can cause electric shock during subsequent use. Disassembly voids the warranty.

Unplug the product from the outlet and contact a qualified service technician under the following conditions:•

When the power supply cord or plug is damaged or frayed.a.
If liquid has been spilled into the product.b.
If the product does not operate normally by following the operating instructions.c.
If the product has been dropped or damaged.d.
If the product exhibits a distinct change in performance.e.

Avoid telephones during an electrical storm. There is a risk of electric shock from lightning.•

Do not use this product to report a gas leak in the vicinity of the leak.•

Do not use this product near intensive care medical equipment or by persons with pacemakers.•

This product can interfere with electrical equipment such as answering machines, TV sets, radios, computers and •
microwave ovens. Do not place the product in close proximity to any of these devices.

2 Technical Support: 800.283.5936

Save these instructions
