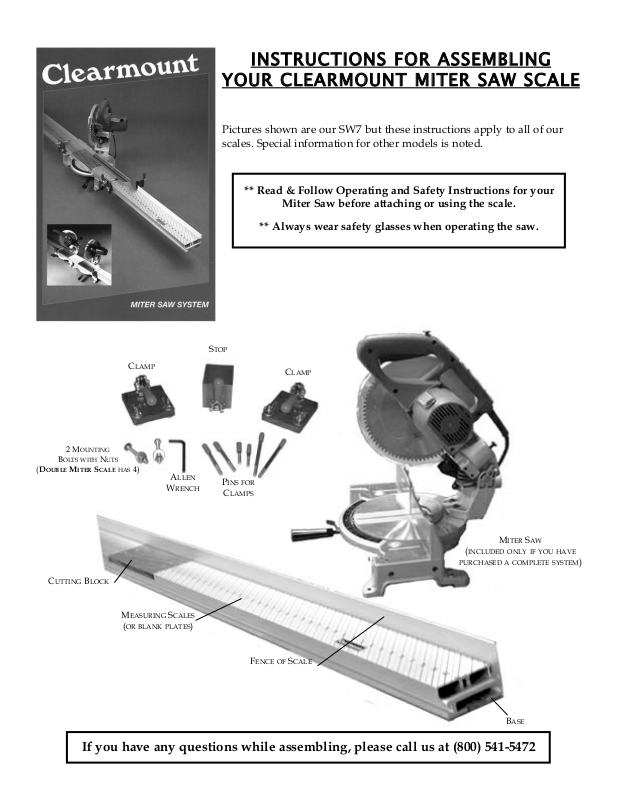

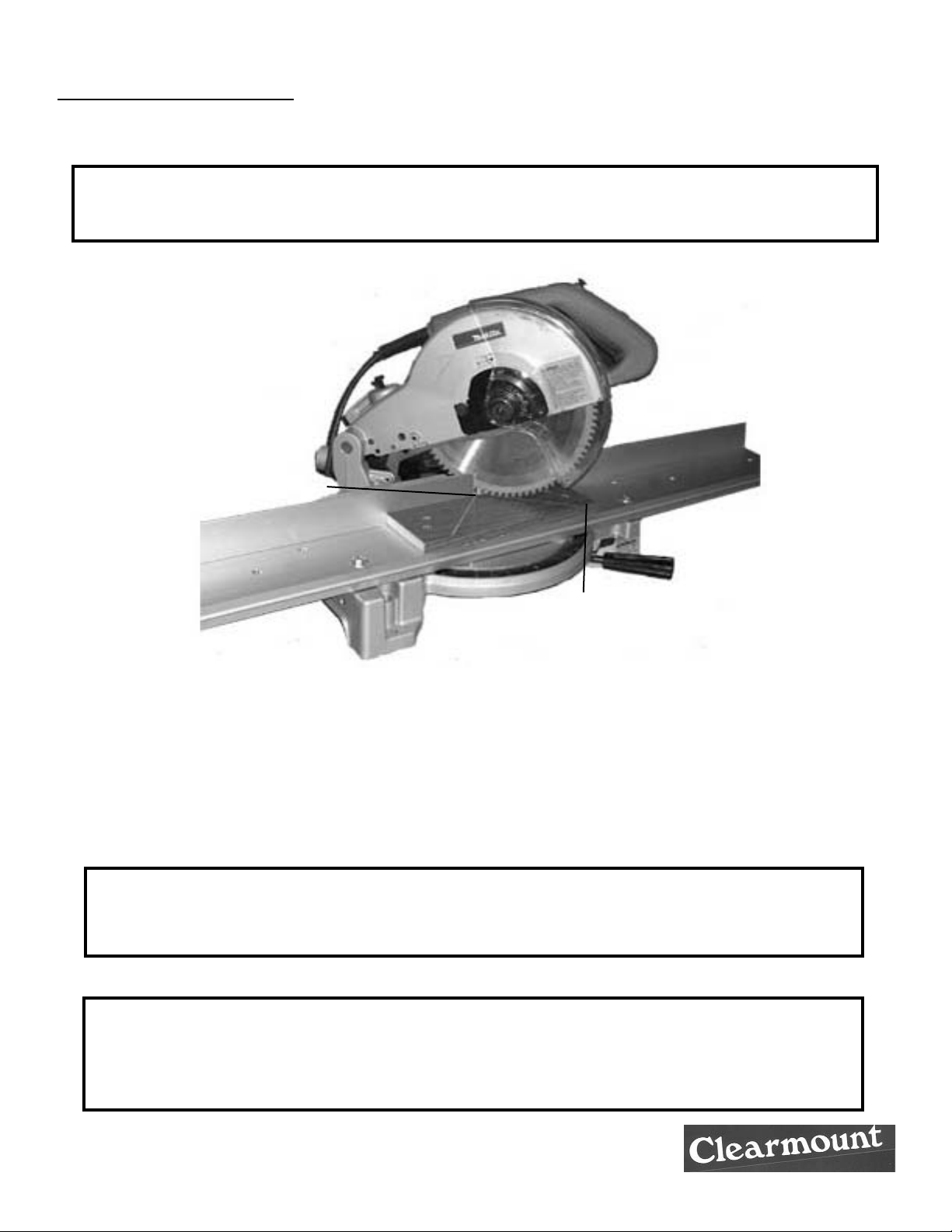

Clearmount SW7 Instructions For Assembling

INSTRUCTIONS FFOR AASSEMBLING

YOUR CCLEARMOUNT MMITER SSAW SSCALE

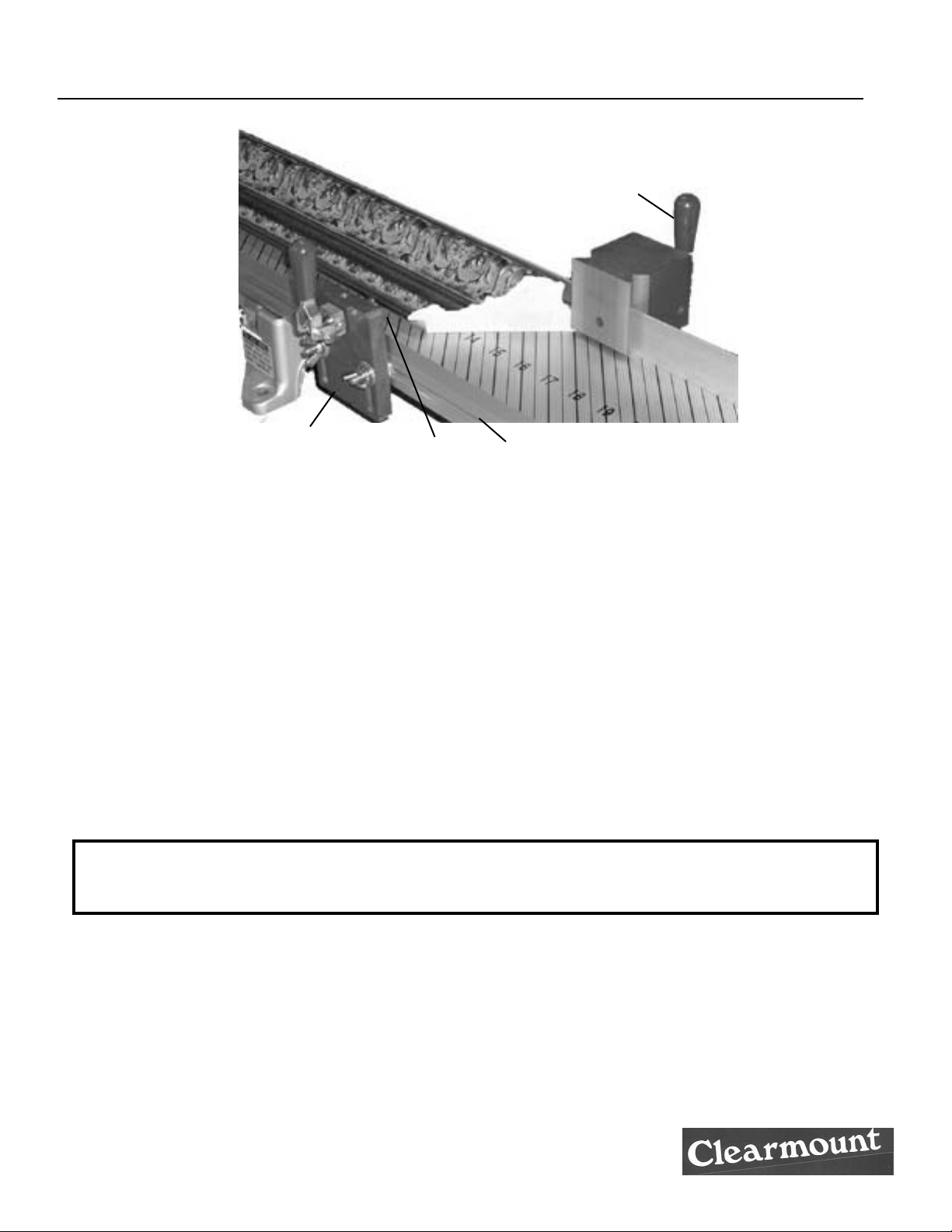

CLAMP

CLAMP

S

TOP

PINS FOR

CLAMPS

ALLEN

WRENCH

2 MOUNTING

BOLTS WITH NUTS

(D

OUBLE MITER

SCALE HAS

4)

CUTTING BLOCK

FENCE OF SCALE

BASE

MEASURING SCALES

(

OR BLANK PLATES)

M

ITER SAW

(

INCLUDED ONLY IF YOU HAVE

PURCHASED A COMPLETE SYSTEM)

** Read & Follow Operating and Safety Instructions for your

Miter Saw before attaching or using the scale.

** Always wear safety glasses when operating the saw.

If you have any questions while assembling, please call us at [phone]

Pictures shown are our SW7 but these instructions apply to all of our
scales. Special information for other models is noted.

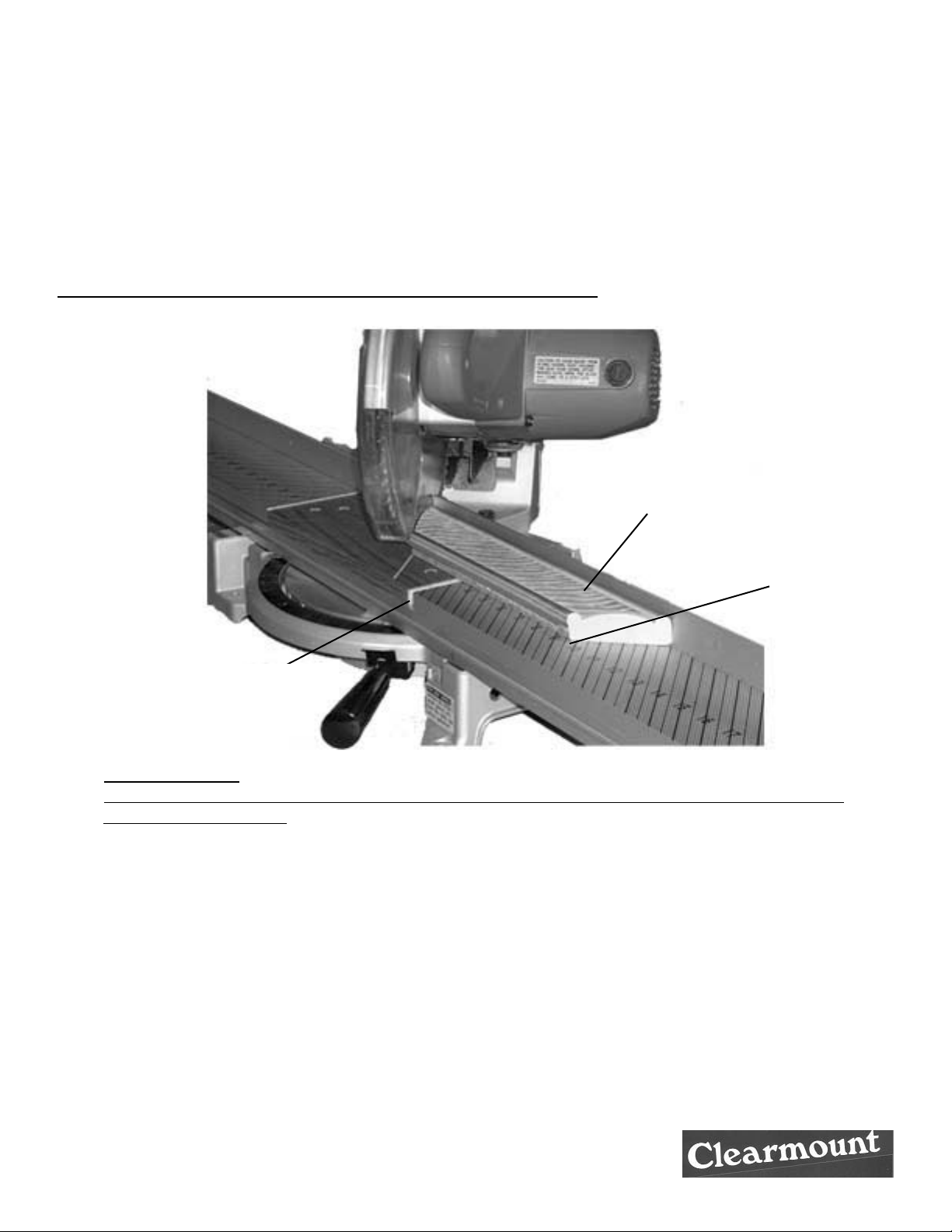

page 2

• Turn scale over & using allen wrench, loosen and remove black
bolts (with washers)

• Lift off measuring scales from base (Double Miter Scale ­remove all scales and flat unmarked plates from base)

BOLTS HOLDING SCALES TO BASE

• Turn upright

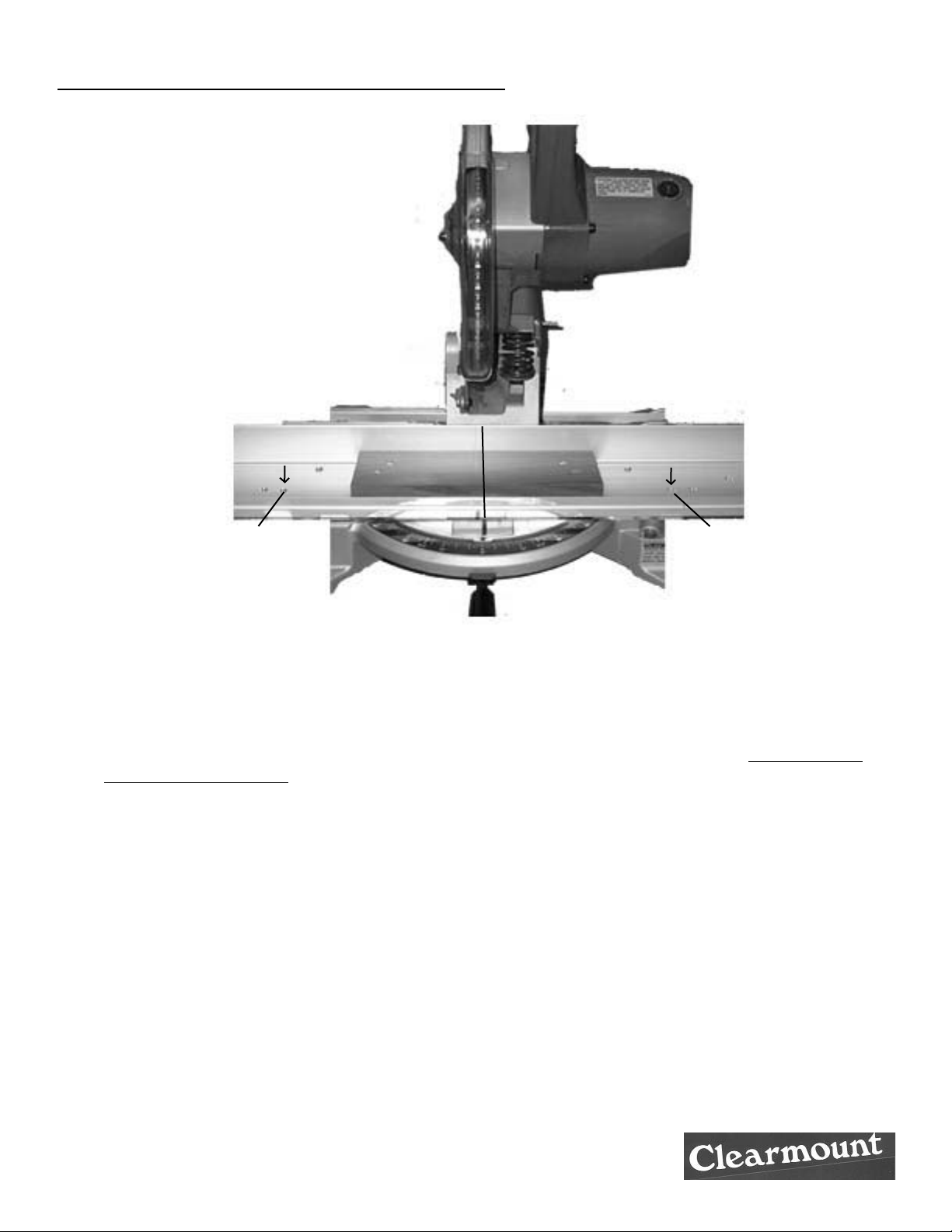

• Pilot holes (# could vary from 1-5 on each side of the cutting block, depending on your saw) will
be marked. You will only be using 1 pilot hole on each side.

P

ILOT HOLES FOR MOUNTING TO SAW

PILOT HOLES FOR MOUNTING TO SAW

PPRREEPPAARRIINNGG TTHHEE BBAASSEE ::
