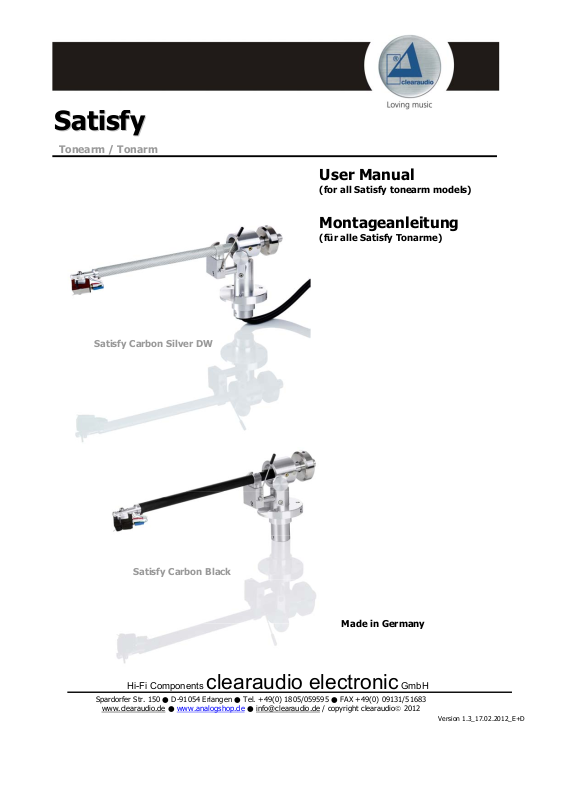

SSaattiissffyy
Tonearm / Tonarm
Satisfy Carbon Silver DW
User Manual
(for all Satisfy tonearm models)
Montageanleitung
(für alle Satisfy Tonarme)
Spardorfer Str. 150 ● D-91054 Erlangen ● Tel. +49(0) 1805/059595 ● FAX +49(0) 09131/51683
www.clearaudio.de ● www.analogshop.de ● info@clearaudio.de / copyright clearaudio 2012
Satisfy Carbon Black
Made in Germany
Hi-Fi Components clearaudio electronic GmbH
Version 1.3_17.02.2012_E+D
Dear audio enthusiast,
Thank you for your decision to purchase a
This tonearm is manufactured to the highest degree of tolerance and quality.
Please take a moment to read this owner’s manual to ensure correct set up, to avoid any
possible damage and to learn how proper care of your clearaudio
will give you many years of musical enjoyment and pleasure.
Your clearaudio team
Do not expose the equipment to rain or moisture.
Do not remove the cover from the equipment.
Do not insert anything into the equipment through the ventilation holes.
Do not handle the mains lead with wet hands.
No naked flame sources, such as lighted candles, should be placed on the equipment.
Satisfy
Warnings
tonearm from clearaudio.
Satisfy
User manual / Bedienungsanleitung
Satisfy
tonearm which
CE-MARKING
COPYRIGHT
Recording and playback of any material may require consent. For further information refer to
the following:
- Copyright Act 1956
- Dramatic and Musical Performers Act 1958
- Performers Protection Acts 1963 and 1972
- Any subsequent statutory enactments and orders
Page / Seite 2 clearaudio electronic GmbH 2012
Satisfy
User manual / Bedienungsanleitung
User manual 4 – 10
Montageanleitung 11 - 19
Contents
1. Package contents 4
2. Satisfy - tonearm mounting 5
3. Service 9
5. Technical Data 10
Warranty information 20
Page / Seite 3 clearaudio electronic GmbH 2012
Satisfy
User manual / Bedienungsanleitung
1. Package contents
The clearaudio
safe transport. Please check the contents as shown in picture below and in the list at the
bottom of this page:
Satisfy
Tonearm is delivered in specially designed packaging to ensure its
3
1 2
1. Satisfy tonearm with Direct Wire cable or
RCA junction box
2. clearaudio tonearm base 7. Paper tonearm alignment gauge
3. Satisfy counterweight 8. clearaudio user manual, Quality
4. Allen wrench
- 3 mm
- 2,5 mm
- 1,5 mm
Screwdriver
5. Screws:
- 3 x cylinder head screw M4 x 10
- 2 x grub screw M6 x 8
certificate, Warranty card and sales
return paper
Page / Seite 4 clearaudio electronic GmbH 2012
Satisfy
User manual / Bedienungsanleitung
2. Satisfy – tonearm mounting
To mount the tonearm base on your armboard, please use the delivered screws (M4 x 10),
as you can see in Pic.1.
Picture 1: Mount tonearm base
Please put careful the cables and the tonearm through the armboard, pay attention that no
wire will be damaged! Now fix the tonearm with the 2 screws on the right and the left side,
not to much, so that you can adjust it in the next steps!
Picture 2: Putting the tonearm through the armboard
Page / Seite 5 clearaudio electronic GmbH 2012
Insure that the distance from the spindle to the pivot point of the tonearm is exactly 222
mm. Moving the armboard in one direction or another will allow you to locate the correct
position. Once located, tighten the armboard down. Shown in the picture below. You can also
use the optional clearaudio cartridge alignment gauge (Art. NO: AC 005 www.analogshop.de
).
For the exact adjustments should be the cartridge mounted!
Picture 3: Distance from pivot to stylus
VTA adjustments are accomplished by loosening the two lock screws an the side of the
armboard base (shown in picture 4 and 5). Once loose, you can move the arm up or down to
achieve the desired VTA. Tighten both screws when finished. Re-check tracking force after
adjusting VTA. Please adjust the tonearm tube parallel to the turntable chassis!
Satisfy
User manual / Bedienungsanleitung
Picture 4: VTA-adjustment Picture 5: VTA-adjustment
Page / Seite 6 clearaudio electronic GmbH 2012
