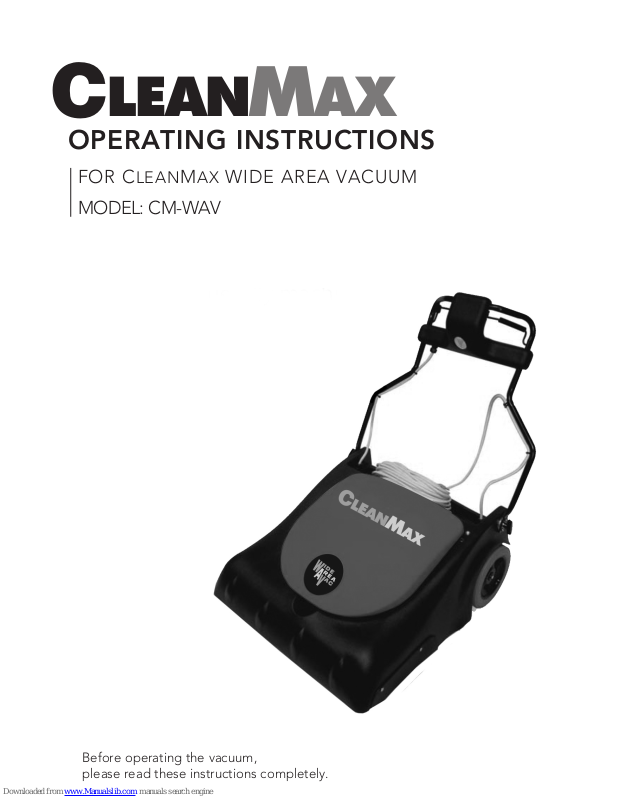

OPERATING INSTRUCTIONS
LEANMA
X
C
FOR C
MODEL: CM-WAV
LEANMAX
WIDE AREA VACUUM
Before operating the vacuum,
please read these instructions completely.
Index
Important Safety and Grounding Instructions � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �3
How to Assemble and Operate the Vacuum � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �4
How to Replace the Vacuum Bag � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �4
Brush Height Adjustment � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �4
How to Replace the Filter � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �5
How to Replace the Vacuum Belt � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �5
Circuit Breaker Protection � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �6
For Best Performance � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �6
Technical Specifications � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �7
Replacement Bags and Filters � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �7
Troubleshooting � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �7
Customer’s Record
The model and serial numbers of this product may be found on the back side of the unit� You should complete
the enclosed warranty card and mail it back to us as soon as possible for your protection� Also, note the model
and serial numbers of your unit in the spaces provided below, and retain this book as a permanent record of
your purchase�
Model Number: ____________________________________________________________________________________
Serial Number: _____________________________________________________________________________________
Date Purchased: ____________________________________________________________________________________
Your CleanMax vacuum cleaner is a product of high quality materials and superior workmanship� We urge
you to read these operating instructions carefully before you use this vacuum cleaner, in order to obtain the full
performance and satisfaction it can offer you�
Save These Instructions
Before you plug in your CleanMax vacuum cleaner, make sure the voltage indicated on the rating plate located
on the back of the vacuum cleaner is the same as your local supply�
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE
*When using an electrical wide area vacuum cleaner, basic precautions should be followed.
*Read all instructions before using vacuum cleaner.
SAFETY PRECAUTIONS
WARNING
When using an electrical wide area vacuum cleaner, basic precautions should be followed.
Read all instructions before using vacuum cleaner.
IMPORTANT SAFETY INSTRUCTIONS:
WARNING: To reduce the risk of fire, electric shock or injury:
FOR COMMERCIAL USE ONLY.
Do not leave machine unattended when plugged in. Unplug from
outlet when not in use and before changing bags or attempting any
maintenance or adjustment.
To avoid electrical shock, use indoors only. Do not use outdoors and do
not expose to rain.
Use only as described in this manual. Use only manufacturer’s
recommended attachments.
Do not use with damaged cord or plug.
If machine is not working as it should, has been dropped, damaged,
left outdoors, or dropped into water, return it to a service center.
Do not pull or carry by cord, use cord as a handle, close a door on
cord, or pull cord around sharp edges or corners. Do not run machine
over cord. Keep cord away from heated surfaces. Do not unplug by
pulling on cord. To unplug, grasp the plug not the cord. Do not handle
plug or machine with wet hands.
Keep hair, loose clothing, fingers, and all parts of body away from
openings and moving parts.
Turn off all controls before unplugging.
Connect to a properly grounded outlet only. See Grounding
Instructions.
Do not put hands under base as the rotating parts could cause injury.
Always keep hands, feet and loose fitting clothing away from moving
parts to prevent possible injuries. Use care to keep electrical supply
cable from contacting moving parts, such as floor brushes.
Risk of explosion: Use this machine only in a well ventilated area,
free from any flame or match. Do not use machine in areas where
flammable and/or explosive vapors or dust are present.
BEFORE OPERATING MACHINE
WARNING: Failure to adhere to these instructions could result in
serious bodily injury or property damage.
Read this manual completely before attempting to operate machine.
This manual has important information for the use and safe operation
of the machine. Keep this manual on file and handy.
GROUNDING INSTRUCTIONS
WARNING: Improper connection of the equipment-grounding
conductor can result in a risk of electric shock. Check with a qualified
electrician or service person if you are in doubt as to whether the
outlet is properly grounded. Do not modify the plug provided with the
appliance. If it will not fit the outlet, have a proper outlet installed by a
qualified electrician.
This appliance must be grounded. If it should malfunction or
breakdown, grounding provides a path of least resistance for electric
current to reduce the risk of electric shock. This machine is equipped
with a cord having an equipment-grounding conductor and grounding
plug. The plug must be inserted into an appropriate outlet that is
properly installed and grounded in accordance with all local codes and
ordinances. This appliance is for use on a nominal 120-volt circuit, and
has a grounding plug that looks like the plug illustrated in Sketch A.
NOTE: In Canada, the use of a temporary adapter is not permitted by
the Canadian Electrical Code.
EXTENSION CORD
If an extension cord is used, use only a three wire, 12 gauge extension
cord that has a three prong grounding type plug and a three prong
receptacle that accepts the machine’s plug. This machine is equipped
with a 14 gauge power cord. Replace or repair all damaged cords.
WHEN THE MACHINE IS DELIVERED
If machine is damaged, notify the carrier immediately and request an
inspection. Be sure to keep the carton, packing inserts, packing lists,
and carrier’s receipt until the inspector has verified your claim.
Make sure voltage and frequency at the wall power receptacle
correspond with that indicated on name plate before plugging in
machine. A 20 amp circuit is recommended.
Never use a device to lock the switch lever in the ON position.
Use only a 12 gauge, three-wire extension cable which has a 3-prong
grounding type plug and a 3-prong receptacle that accept the
machine’s plug.
Sketch A
3
How to Assemble and Operate the Vacuum
1� Loosen handle pivot knobs and adjust handle to comfortable
operation height�
2� Tighten knobs to lock handle in place�
3� Depress the main power switch located on the handle�
4� To operate brush, squeeze trigger bar�
5� Adjust brush height for proper pick-up�
How to Change the Vacuum Bag
1� Open wide area vacuum lid�
2� Unzip cloth bag and install paper bag inside�
3� Attach both bag openings together onto vacuum intake housing�
4� Make sure bag is properly installed inside machine housing�
5� Completely close zipper on cloth bag and close lid of machine�
Brush Height Adjustment
1� This machine has 5 brush adjustment levels�
2� To raise brush height level, lift up height adjustment bar until
desired brush height is attained�
3� To lower brush height level, push down on height adjustment bar
until desired brush height is attained�
4
How to Replace the Filter
1� Remove filter cover screws at back of machine�
2� Remove the two nuts holding filter onto machine�
3� Replace filter in proper position and tighten nuts�
4� Reinstall filter cover�
How to Replace the Vacuum Belt
1� Remove belt cover on left side of machine�
2� Loosen the two motor belt adjusting screws on motor bracket�
3� Remove belt�
4� Install new belt and eliminate excess slack by adjusting the set
screw on the motor mount�
5� Once proper tension is set, tighten motor adjusting screws�
6� Replace belt cover on side of machine�
5
Circuit Breaker Protection
Your CleanMax vacuum cleaner comes equipped with a manual reset circuit breaker for each motor� The breakers
are designed to protect your vacuum cleaner from overheating due to a cutoff in airflow (i�e� clogged hose,
operating the vacuum without a bag)� Should this situation occur, the circuit breaker protector will safely shut off
your vacuum cleaner to avoid any potential damage�
To reset the breaker(s):
1� Unplug the vacuum cleaner�
2� Check for problem (over-filled bag, clog in hose, clogged filters, etc�)�
3� Correct problem�
4� Locate “tripped” breaker(s) — one or both of the small buttons located on the handle to the right of the power
switch�
5� Push the reset button(s) that is tripped�
6� Plug vacuum cleaner in and begin using�
For Best Performance
• Keep machine and all accessories clean and in good operating condition.
• Change vacuum bags and filters as recommended to maintain optimum cleaning efficiency.
• Always use genuine bags, filters and parts, as use of other products may result in poor cleaning or filtration
performance� CleanMax filtration products are designed for maximum performance�
• Have machine checked periodically by the retailer where you purchased your CleanMax vacuum�
• Store machine carefully in dry area.
• For optimum cleaning performance and safety, follow your owner’s manual.
6
Technical Specifications
Model Wide Area Vac
Voltage 120V
Vac motor 2 x 1000W
Vacuum lift 63”
Sound pressure level 70 dB(A)
Size ( L x W x H) 20” x 30” x 36”
Cord length 75’
Weight empty 95 lbs.
Brush width 28”
Brush Motor 1800 rpm
Brush height adjustment 5 pile settings
Drive belt 6 groove Poly-V
Filtration 4 stage Clean -Air
Warranty 1 year
Replacement Bags and Filters
Part Part no Description
Disposable Paper Filter Bags
(10 bags per pack)
Outer Cloth Bag 19816 Outer Clean Air - Cloth Bag
Exhaust Filter 19855 Exhaust Filter
Motor Filter
(2 required)
CM-WAV10 Pack of 10 Paper Bags
19834 Vacuum Inlet Filter Vacuum
Motor Exhaust Filter
Trouble Shooting
Problem Reason Remedy
The vacuum does not turn on • Power failure • Check the main fuse, the power supply
cord and the plug.
• Check the power switch located on handle.
The vacuum is on, but the
brush does not rotate
• Trigger bar is not squeezed
• Obstructions present
• Squeeze trigger bar.
• Remove obstruction.
• Damaged belt
• Remove belt cover, check belt and replace
as necessary.
7
CleanMax Vacuum Cleaners
LEANMA
X
C
PO Box 730
Fenton, MO 63026
cleanmaxvacuums�com
©2010 CleanMax Vacuum Cleaners�
