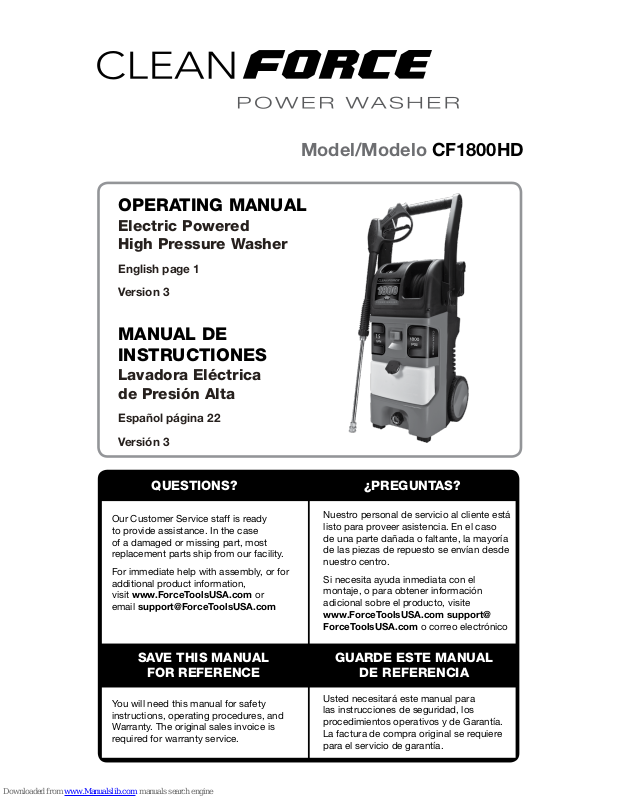

CleanForce CF1800HD Operating Manual
QUESTIONS? ¿PREGUNTAS?
SAVE THIS MANUAL
FOR REFERENCE
GUARDE ESTE MANUAL
DE REFERENCIA
OPERATING MANUAL
MANUAL DE
INSTRUCTIONES
Model/Modelo CF1800HD
Our Customer Service staff is ready
to provide assistance. In the case
of a damaged or missing part, most
replacement parts ship from our facility.
For immediate help with assembly, or for
additional product information,
visit www.ForceToolsUSA.com or
email support@ForceToolsUSA.com
Nuestro personal de servicio al cliente está
listo para proveer asistencia. En el caso
de una parte dañada o faltante, la mayoría
de las piezas de repuesto se envían desde
nuestro centro.
Si necesita ayuda inmediata con el
montaje, o para obtener información
adicional sobre el producto, visite
www.ForceToolsUSA.com support@
ForceToolsUSA.com o correo electrónico
You will need this manual for safety
instructions, operating procedures, and
Warranty. The original sales invoice is
required for warranty service.
Usted necesitará este manual para
las instrucciones de seguridad, los
procedimientos operativos y de Garantía.
La factura de compra original se requiere
para el servicio de garantía.
Electric Powered
High Pressure Washer
English page 1
Version 3
Lavadora Eléctrica
de Presión Alta
Español página 22
Versión 3
1
TABLE OF CONTENTS
Important safety instructions 1
Safety features 4
Parts and diagram list 6
Assembly and operation instructions 7
Machine assembly 7
Operation instruction 9
Shutting down and storage 14
Cleaning and maintenance 15
Troubleshooting 16
Technical data 20
Warranty 21
Please read all of the safety precautions before operating this machine every time.
Please pay particular attention to all sections with following symbols.
Warning
Could cause injury or death if not followed
CaUTiOn
Could damage machine if not followed
Warning
When using this product, basic precautions should always be
followed, including:
1. Read all instructions before using the product.
2. To reduce the risk of injury, do not operate the machine near children.
3. Learn how to stop this product and release pressure quickly. Be thoroughly familiar
with the controls.
CF1800HD Operating Manual
IMPORTANT SAFETY INSTRUCTIONS
2
4. Stay alert - watch what you are doing.
5. Do not operate this product when fatigued or under the inuence of alcohol or drugs.
6. Keep operating area clear of all people and pets.
7. Do not stand on unstable surfaces. Do not overreach or stand on unstable support
Keep good footing and balance at all times.
8. Follow the maintenance instructions specied in the manual.
9. This product is provided with a Ground Fault Circuit Interrupter (GFCI) built into
the power cord. If replacement of the plug or cord is needed, use only identical
replacement parts.
10. This product or its power cord contains lead, a chemical known to cause cancer, birth
defects or other reproductive harm. Wash hands after handling.
Warning
Risk of injury
Injection Hazard
• Equipment can cause serious injury if the spray penetrates the skin.
• Do not point the gun at anyone or any part of the body. In case of penetration,
seek medical aid immediately.
Warning
Risk of injury
Do Not direct discharge stream at self or other persons.
• High-pressure jet can be dangerous if misused.
• The jet must not be directed at persons, animals, electrical devices, or the unit
itself.
Warning
Risk of Explosion - Do not spray flammable liquids
• Do not use acids, alkaline, solvents or any ammable material in this product.
These products can cause physical injuries to the operator and irreversible
damage to the machine.
Warning
Risk of Electric Shock
• Inspect cord before using - do not use if cord is damaged.
• Keep all connections dry and off the ground.
• Do not touch plug with wet hands.
CaUTiOn
Gun Kick Back
• Hold with both hands.
• The trigger gun safety lock prevents the trigger from being engaged
accidentally.
•The safety feature DOES NOT lock trigger in the ON position.
IMPORTANT SAFETY INSTRUCTIONS
3
GENERAL SAFETY RULES
1. Never operate the machine without all components properly connected to the
machine (handle, gun/wand assembly, nozzle, etc.).
2. Never operate pressure washer with broken or missing parts. Check equipment
regularly and repair or replace worn or damaged parts immediately.
3. Never put hand or ngers over the nozzle or spray tip while operating the unit.
4. Never spray ammable liquids or use pressure washer in areas containing
combustible dust, liquids or vapors. An electric spark could cause an explosion.
5. Never leave the wand unattended while the machine is running or switched on.
6. Never disconnect the high pressure discharge hose from the machine while the
system is pressurized. To depressurize machine, turn power and water supply off,
then depress gun trigger 2-3 times.
7. Never cover the pressure washer during operation to allow free air cooling.
8. Always wear safety glasses or goggles when operating or performing maintenance.
9. Always move switch on unit to “OFF” position before connecting or disconnecting
cord to electrical outlets.
10. Always turn water supply “on” before turning pressure washer “on” unless draining
for storage. Running pump dry causes serious damage.
11. Always hold gun and wand rmly when starting and operating the machine.
12. Always follow detergent manufacturer’s label recommendations for proper use of
detergents. Always protect eyes, skin and respiratory system from detergent if used.
13. Always lock the trigger of spray gun in the safety position when not in use.
14. Do not use pressure that exceeds the operating pressure of any of the parts (hoses,
ttings, etc.) in the pressurized system. Never use with any other manufacturer’s
accessories or components.
15. Do not spray electrical apparatus and wiring or the machine itself.
16. Do not operate the pressure washer with the inlet water lter screen removed. Keep
lter clear of debris and sediment.
17. Discharge residual pressure by depressing the trigger until no more water comes out
of the nozzle.
18. Keep clear of nozzle. Never direct high pressure spray at any person, animal or self.
19. To minimize the amount of water getting into the pressure washer, the unit should be
placed as far as possible from the cleaning site during operation.
GROUND FAULT CIRCUIT INTERRUPTER PROTECTION
This pressure washer is provided with a Ground Fault Circuit Interrupter (GFCI) built into
the power supply cord. This device provides additional protection from the risk of electrical
shock. Should replacement of the plug or cord become necessary, use only identical
replacement parts that include GFCI protection. See Page 4 for testing procedure.
IMPORTANT SAFETY INSTRUCTIONS
4
Warning
Connect directly to outlet. Extension cords are not recommended, the use
of an extension cord will override the GFCI built into the plug of the power
supply cord resulting in the risk of electrical shock.
DOUBLE-INSULATION INSTRUCTION
In a double-insulation product, two systems of insulation are provided instead of
grounding. No grounding is provided on a double-insulated product, nor should
a means for grounding be added to the product.
Servicing a double-insulated product requires extreme care and knowledge of
the system, and should be done only by qualied service personnel. Replacement parts of a double-insulated product must be identical to the parts they
replace. A double-insulated product is marked with the words “DOUBLE-INSU-
LATION” or “DOUBLE-INSULATED”. The symbol “
” may also be marked on
the product.
SaVE THESE inSTrUCTiOnS
IMPORTANT SAFETY INSTRUCTIONS
SAFETY FEATURES
TOTAL STOP SYSTEM (TSS)
The pressure washer is equipped with a total stop system (TSS) that will sense when the
trigger on the gun is depressed or released. It will open the power circuit to the motor, and
cause the pressure washer motor to stop. The motor will start again when the trigger is
depressed.
Warning
The pressure washer is also equipped with a main power “ON/OFF” switch
located on the unit. It should always be moved to the “OFF” position
when the pressure washer is not being used to prevent possible injury or
damage.
Ground Fault Circuit
Interrupter Protection
This device provides additional
protection from the risk of electrical
shock. Plug the Ground Fault Circuit
Interrupter (GFCI) into a power outlet.
Indicator should turn red. TEST
BEFORE EACH USE. Press the
“TEST” button. Red indicator should
disappear. Press “RESET” button
again for use. Do not use if above test
fails.
5
SAFETY FEATURES
EXTENSION CORDS
If possible, do not use extension cords with this product. However, if you must use one,
observe all of the warnings and instructions listed below:
Warning
Extension cords are not recommended unless they are plugged into a ground
fault circuit-interrupter (GFCI) found in circuit boxes or protected receptacles.
Use a sufficient gauge:
Maximum extension cord length: 50’ (15.2 m). Only use 12 or 14 AWG rated
extension cords.
• Use only extension cords that are intended for outdoor use. These
extension cords are identied by a marking that reads “Acceptable for use
with outdoor appliances; store indoors while not in use.”
• Use only extension cords having an electrical rating not less than the rating
of the product.
• Do not use damaged extension cords. Examine extension cord before using
and replace if damaged. Do not abuse extension cord and do not yank on
any cord to disconnect.
• Keep cord away from heat and sharp edges.
• Always disconnect the extension cord from the receptacle before
disconnecting the product from the extension cord.
• To reduce the risk of electric shock, keep all connections dry and off the
ground. Do not touch plug with wet hands.
CaUTiOn
This machine has been designed for use with detergents that are
specifically approved for pressure washer use. The use of other cleaning
detergents may affect the operation of the machine and void the warranty.
6

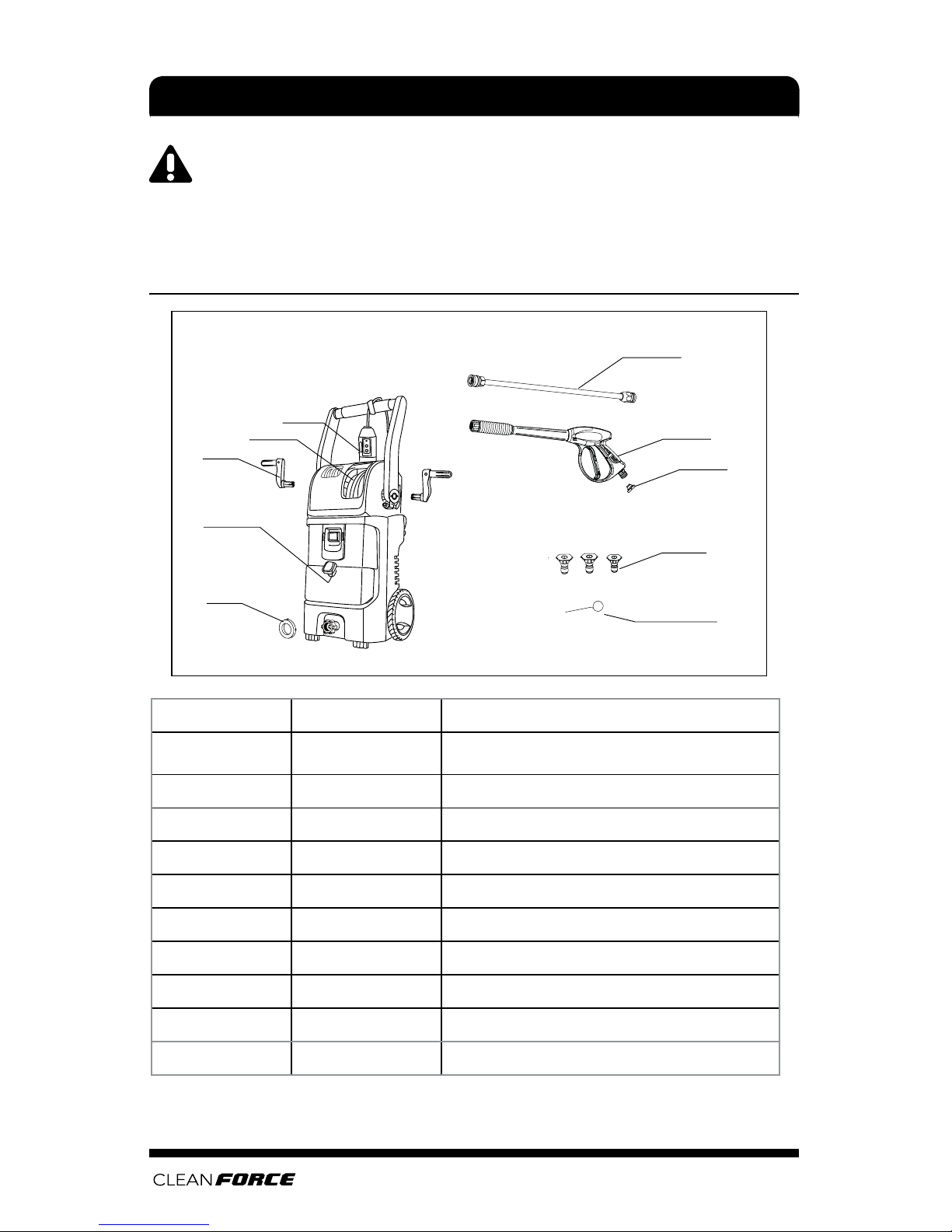

PARTS AND DIAGRAM LIST
Item No. Quantity Part Name
A 1 Ground Fault Circuit Interrupter (GFCI)
B 1 High-pressure hose
C 2 Hand crank
D 1 Detergent tank
*E 1 Water lter
F 1 Quick-connect wand
G 1 Gun wand
H 1 Water lter screen for wand
I 3 Spray tips
J 1 Needle (for nozzle cleaning)
* Water lter come pre-attached on the water inlet, located on the front of the
pressure washer.
PARTS AND DIAGRAM LIST
E
F
G
I
H
A
B
C
D
J
7
Surface Preparation
Before starting any cleaning task, it is important to inspect the area for objects that could
create a hazard. Remove any objects from the work area that could be tripped over, such
as toys or outdoor furniture. Ensure that all doors and windows are closed tightly.
Water Supply (Cold Water Only)
Only draw water through the unit. For use with cold water supply only. Garden hose must
be at least a 1/2” (13 mm) in diameter. Flow rate of water supply must not fall below 2
GPM (gallons per minute) [9.1 LPM (liters per minute)]. Flow rate can be determined by
running the water for one minute into an empty 5-gallon (19 L) container. The water supply
temperature must not exceed 104°F (40°C).
CaUTiOn
• Never use the pressure washer to draw in water contaminated with solvents (e.g.
paint thinners, gasoline, oil, etc.).
• Dirt in the water inlet will damage the unit. To avoid this risk, we recommend checking
the water lter (located inside the water inlet. To clean it out, see Maintenance
section).
• Always prevent debris from being drawn into the unit by using a clean water source
and an additional accessory water lter if required.
• To prolong the life of the unit, rest the unit for 5 minutes after every 30 minutes of use.

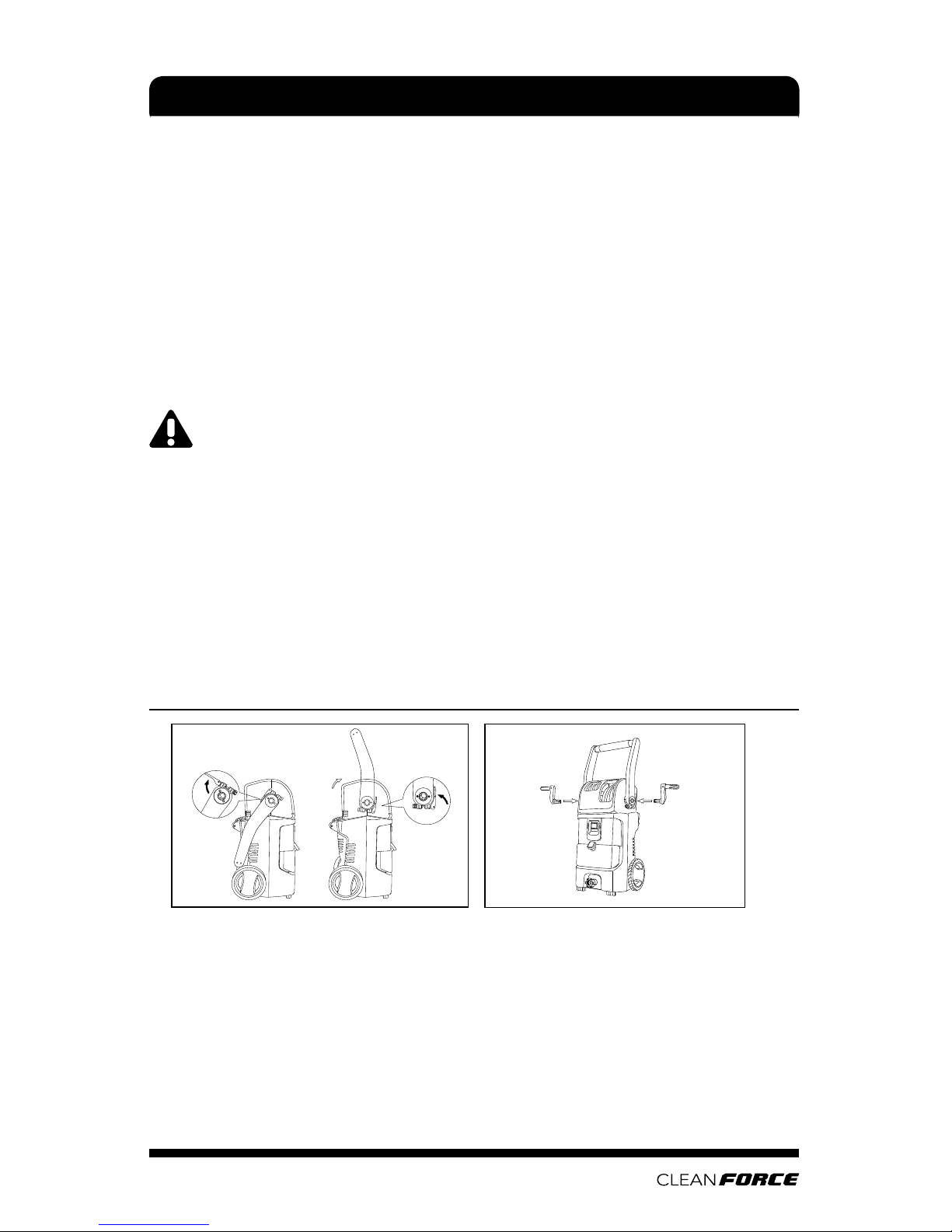

MACHINE ASSEMBLY
Raise handle to upright position and
x the position by cam – lock.
Attach hand cranks onto the hose reel
and cord reel on both sides.
ASSEMBLY AND OPERATION INSTRUCTIONS
8
ASSEMBLY AND OPERATION INSTRUCTIONS

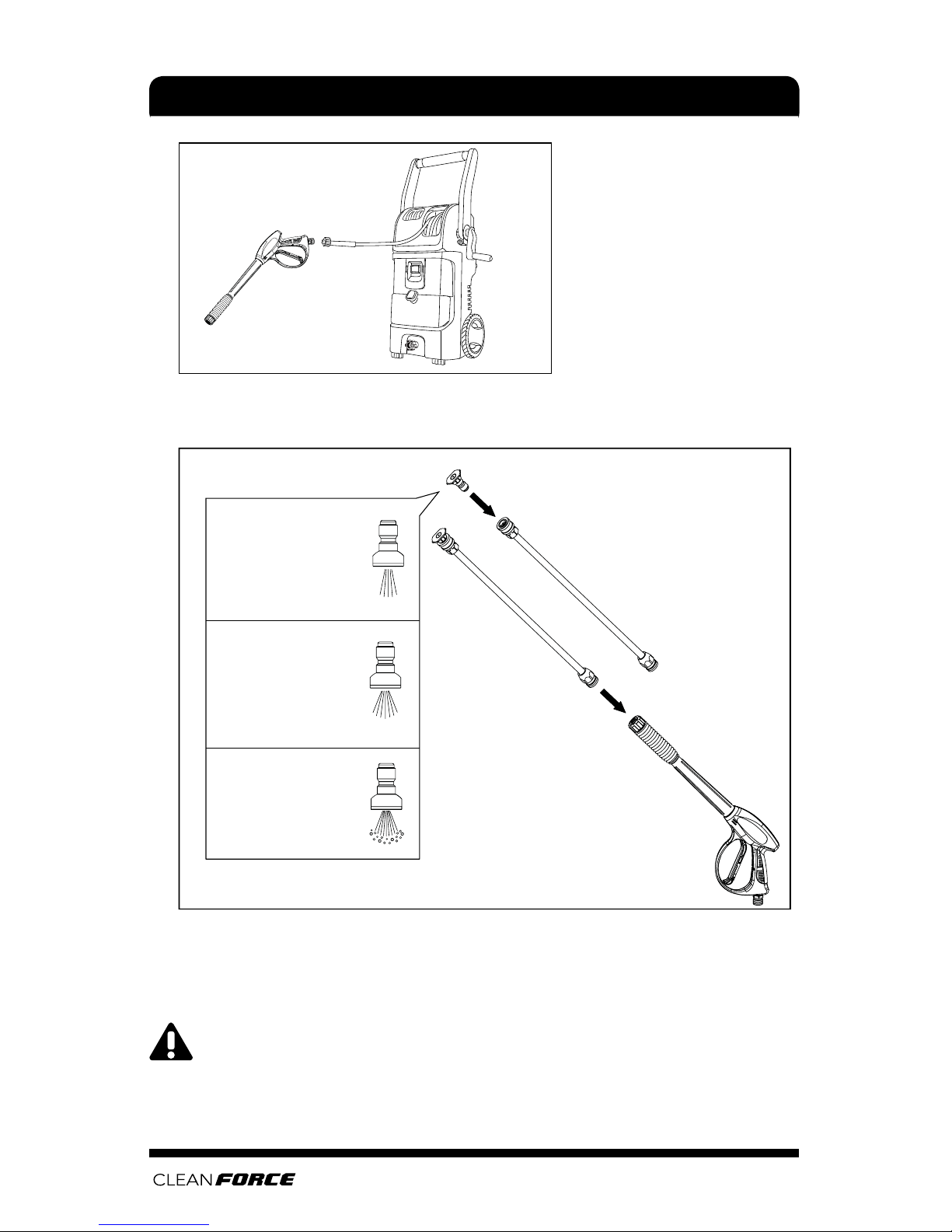

Attach high pressure hose from hose reel to the gun wand, hand tighten until
two parts are locked.

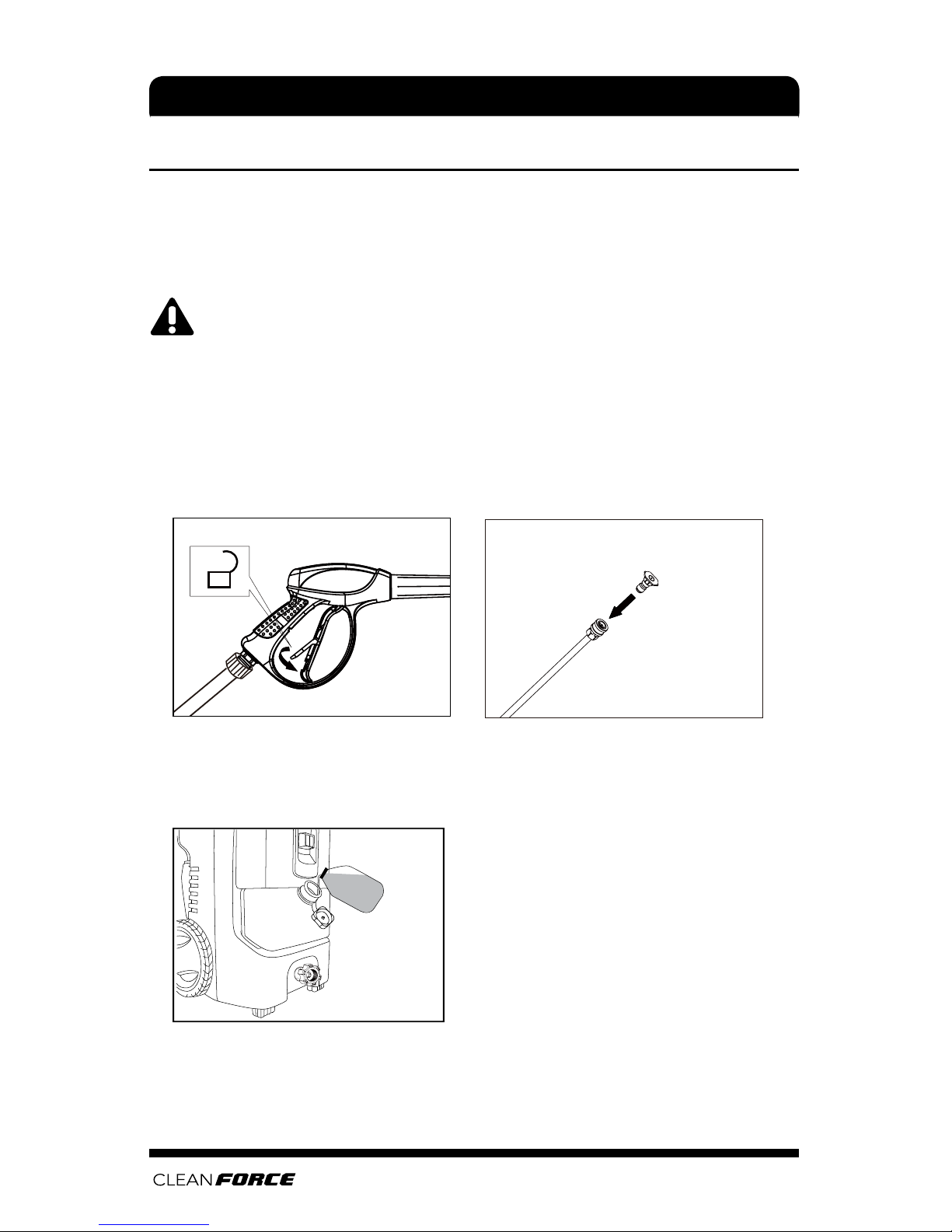

Attach desired color coded spray tip to quick - connect wand by pushing
to ensure it is clicked in securely. Insert quick – connect wand into the gun
wand, hand tighten until two parts are locked.
CaUTiOn
Placing any spray tip too close to a surface can result in permanent
damage to the surface being sprayed. Maintain at least a 24” distance
between the tip and the surface being sprayed until you have determined it
is safe to move the tip closer to the surface.
Recommendation for spray tip
usage:
Yellow
15°
Can be used to clean
concrete.
White
40°
Can be used to clean
wide areas faster than
the 15 degree nozzle.
Black
Low pressure
To apply detergent
9

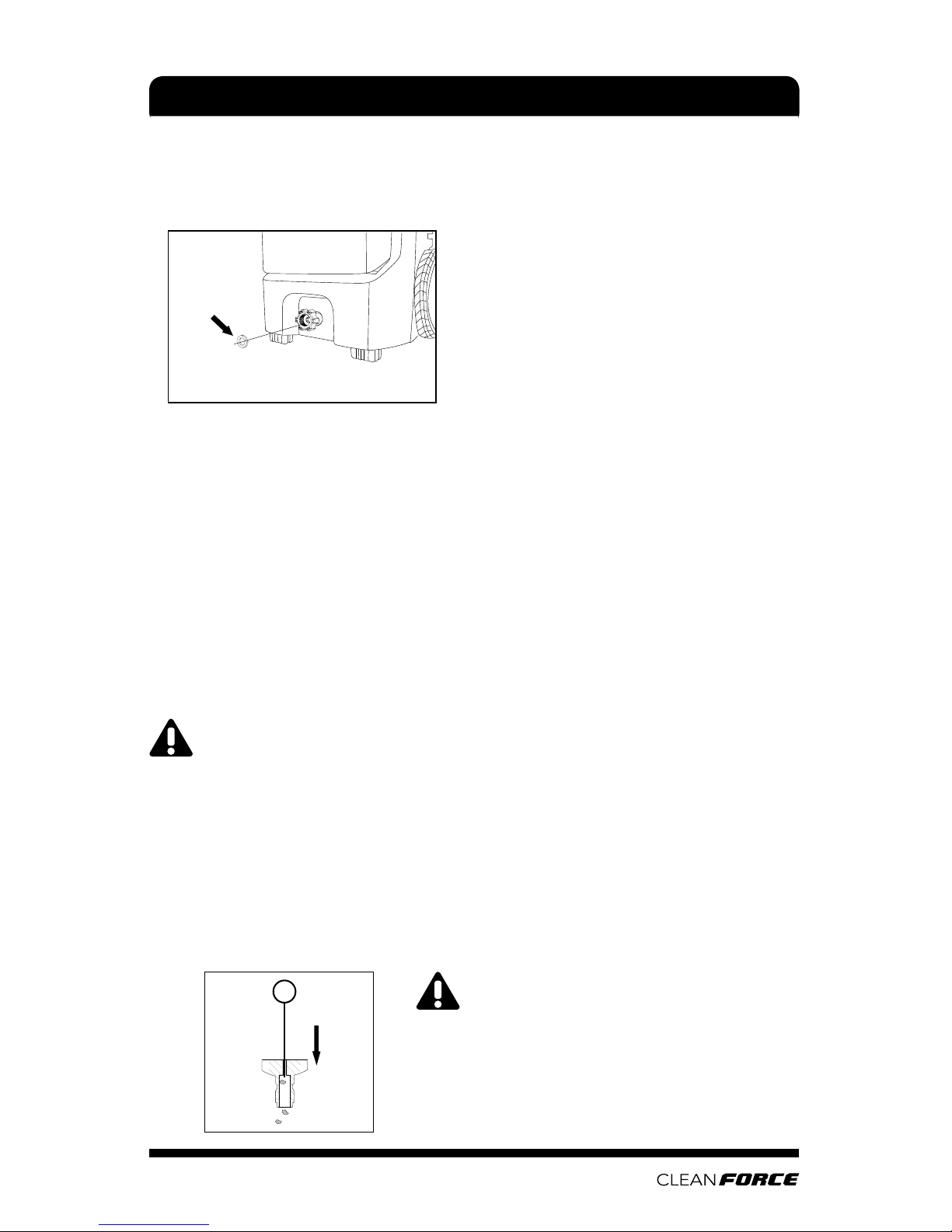

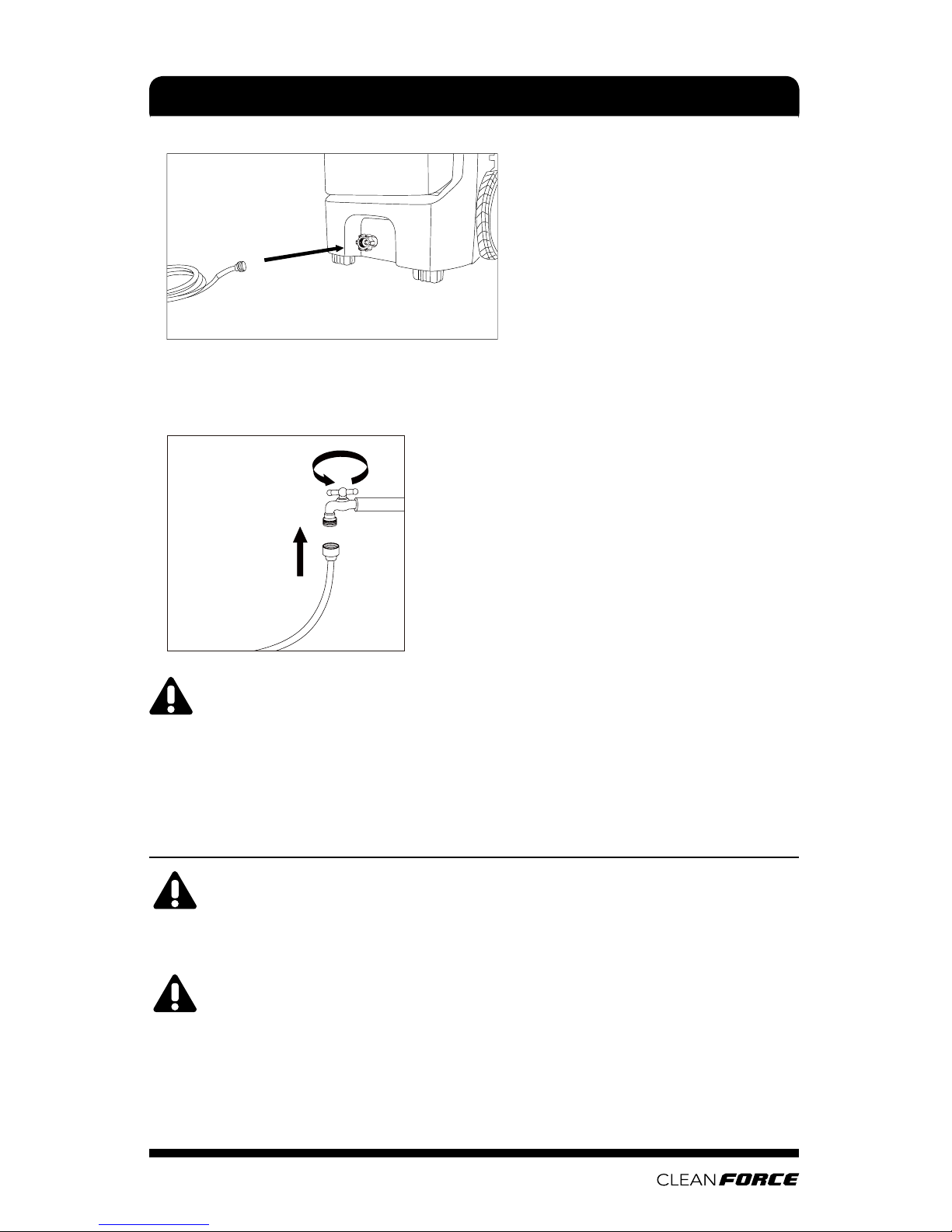

Attach the garden hose to the water
inlet (hand tighten only).
Attach garden hose to water supply and
turn water valve on to the fall on position.
The water temperature must not exceed
40oC(104oF) and the supply pressure
must be between 40 to 80 PSI.
CaUTiOn
The pressure washer must only be used with clean water. Use of unltered water
or corrosive chemicals will damage the pressure washer.
This pressure washer is not intended to pump hot water. Never connect it to a hot
water supply as it will signicantly reduce the life of the pump.
OPERATION INSTRUCTIONS
Warning
Risk of injury, Do Not Direct discharge stream at self or other
persons.
Warning
Before cleaning any surface, an inconspicuous area should be
cleaned to test spray pattern and distance for maximum cleaning
results.
ASSEMBLY AND OPERATION INSTRUCTIONS
1
2
10
ASSEMBLY AND OPERATION INSTRUCTIONS

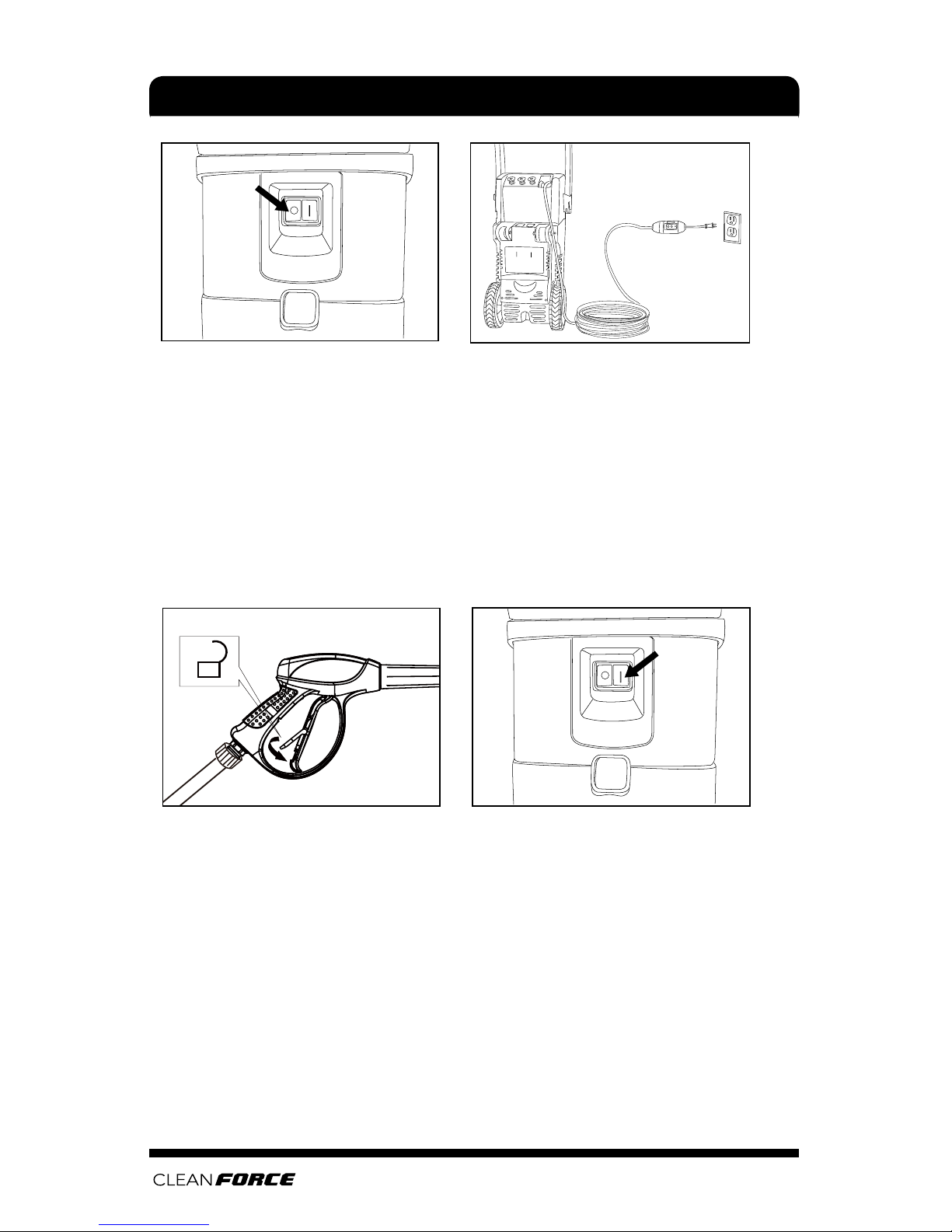

Make sure the ON/OFF switch is on
the OFF position before plugging in
the unit, press the switch button with
mark “ O ” to ensure it is off.

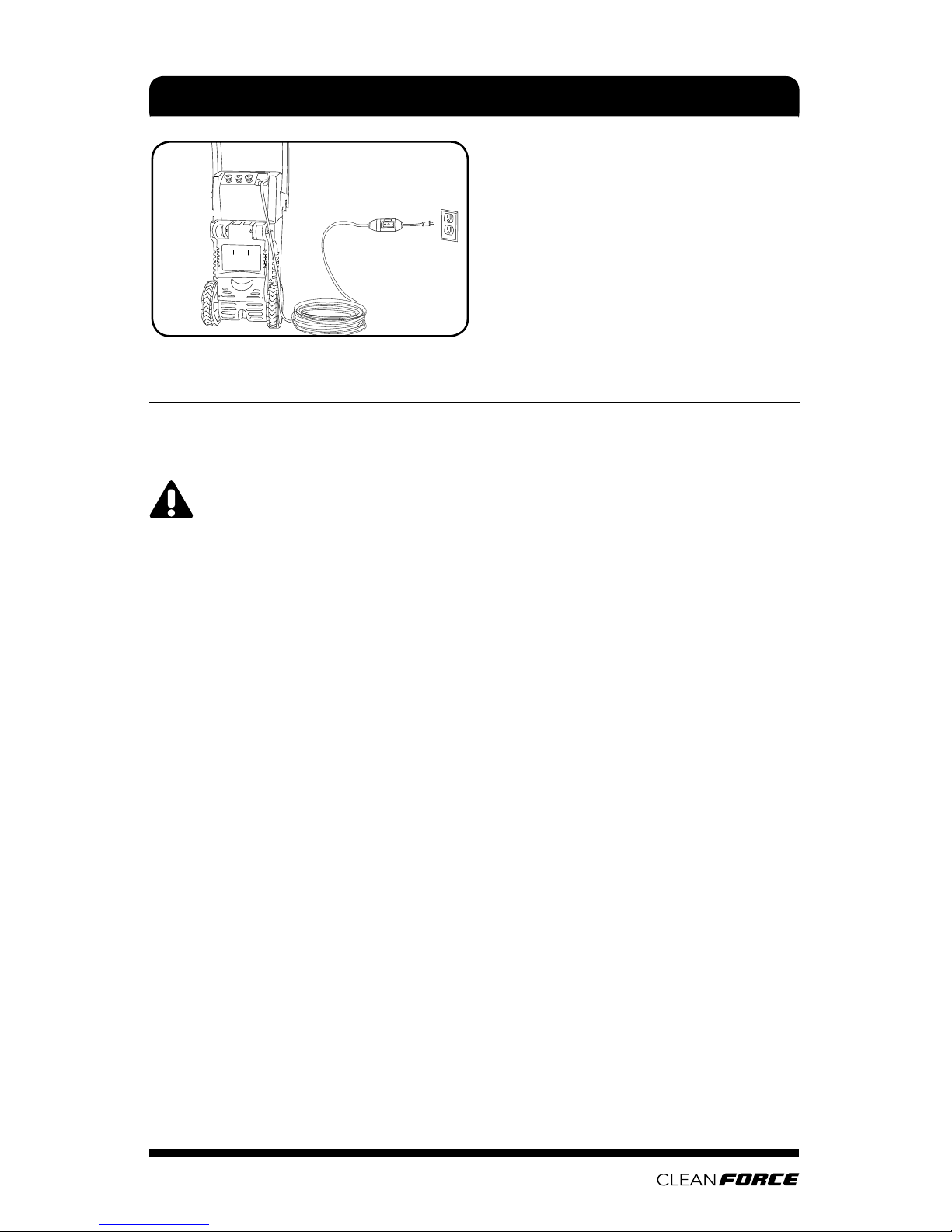

Completely unwind power cord by
pulling and plug the Ground Fault
Circuit Interrupter (GFCI) into a power
outlet. Indicator should turn red. TEST
BEFORE EACH USE. Press the
“TEST” button. Red indicator should
disappear. Press “RESET” button
again for use. Do not use if above test
fails.
OFF
ON

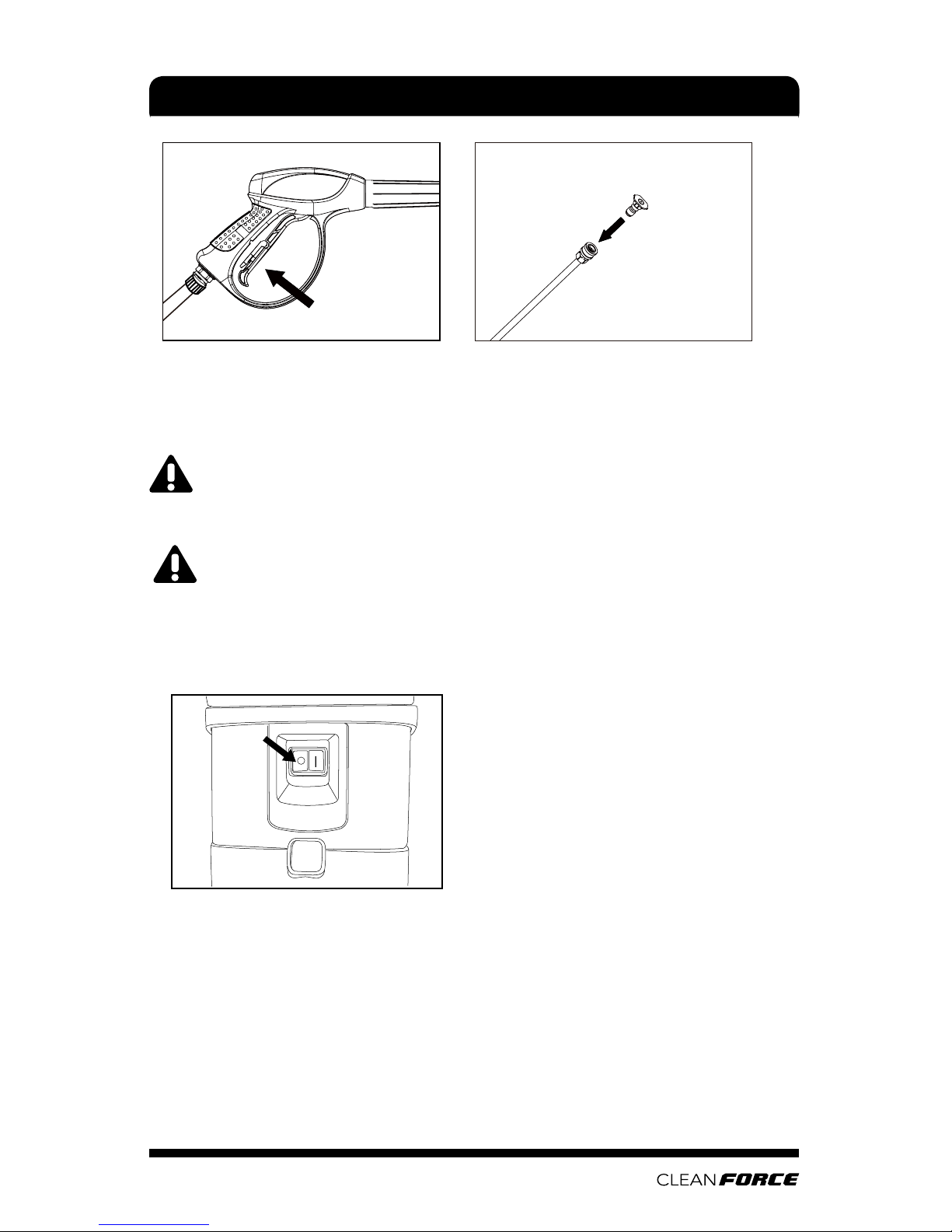

Ensure the gun safety latch is
released by pushing it down and
engage the trigger for a few seconds
to discharge the residual pressure in
the high pressure hose.
Turn ON the pressure washer by pressing the button with mark “ I ”. The unit
will run for a few seconds to build up
pressure, then will stop on the function
of total stop system (TSS).
Depress the gun trigger until there is a steady stream of water. Change the
spray tip as per the recommendation above if necessary. Before changing
spray tip, switch the machine off, depress trigger to release pressure and
activate gun safety latch.
11
CaUTiOn
Make sure spray tip and wand is well locked. Do not move the spray tip while
trigger is depressed.
CaUTiOn
If painted surfaces are peeling or chipping, use extreme caution as pressure
washer may remove the loose paint from the surface.
For most cleaning applications, a twenty degree (20o) spray angle be
recommended to avoid damage to the surface being sprayed.
The pressure of spray on the surface will increase when you move the wand closer
to the surface.

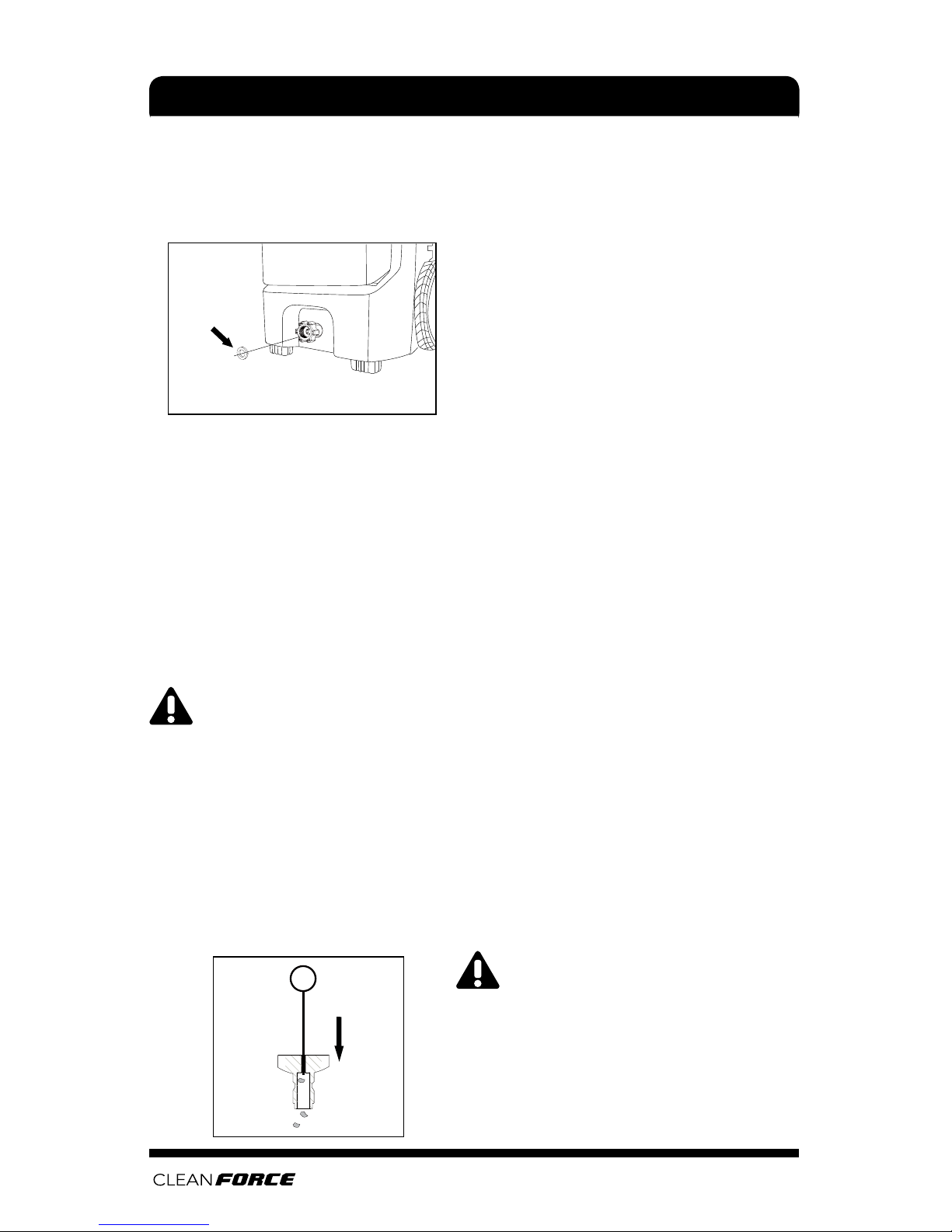

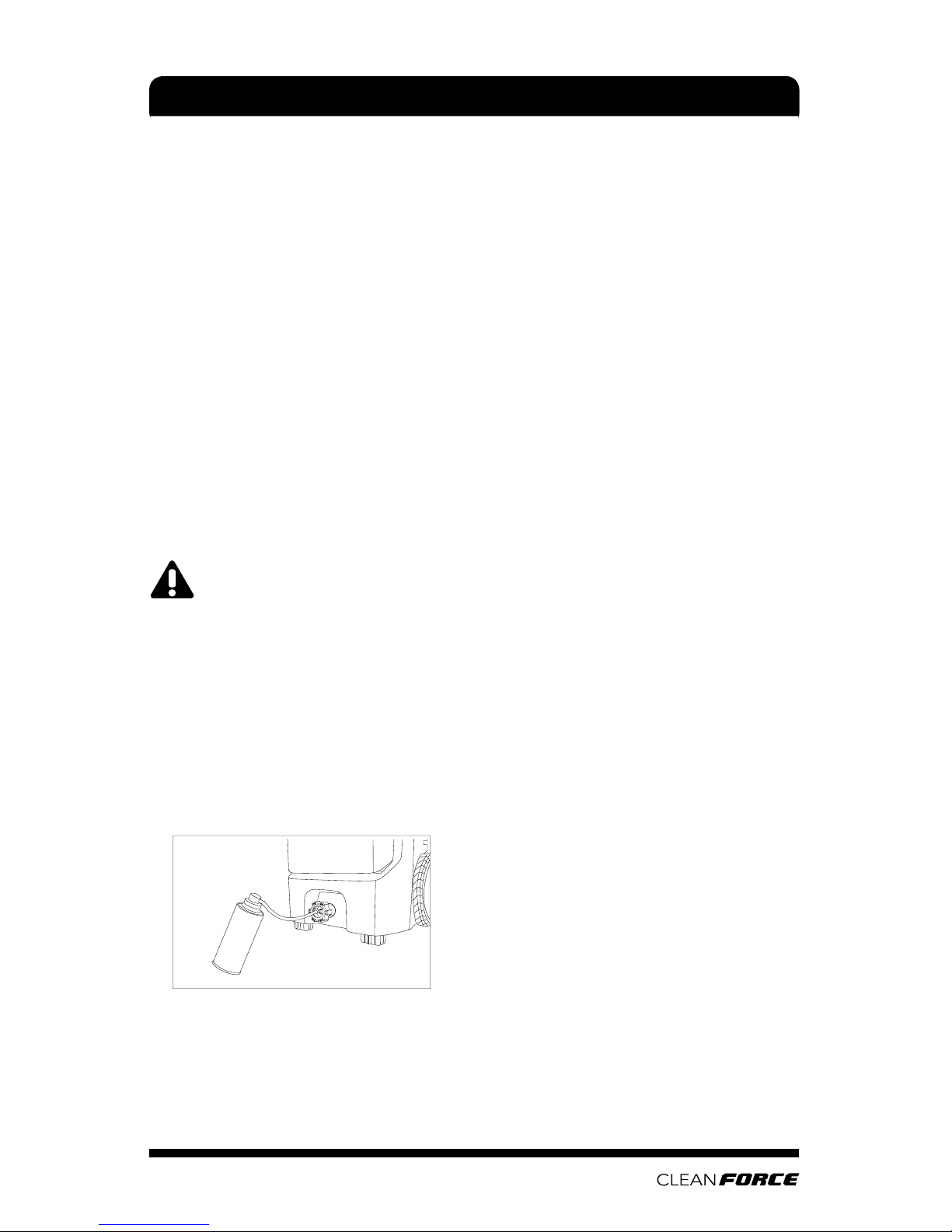

Turn off the pressure washer by
pressing the switch button with mark
“ O ”, activate the safety latch for a
break. For storage, drain machine
after use by removing water connection, turning ON the machine for
a few seconds and depressing gun
trigger to release remaining water in
the pump. Turn OFF immediately.
ASSEMBLY AND OPERATION INSTRUCTIONS
OFF
12
CLEANING DETERGENTS DISPENSER
Only use cleaning detergents recommended for pressure washers.
Always follow detergent manufacturer’s label recommendations for proper use of
detergents or soap. Always protect eyes, skin and respiratory system from detergent if
used.
CaUTiOn
Working with detergent ensures a quick soaking of the dirt, and allows the highpressure water to penetrate and remove the dirt more effectively. Always spray
detergent on a dry surface, do not pre-soak area. Wetting the surface rst dilutes
the detergent and reduces its cleaning ability.
To apply detergents you must be operating at low pressure. This provides a gentle
application of detergent, with the pressure equivalent to the lowest garden hose.
The high-pressure setting is used for cleaning, you cannot apply detergents
when working at high pressure.
Always test detergent in an inconspicuous area before use.
NO BLEACH
ASSEMBLY AND OPERATION INSTRUCTIONS
1 Engage gun safety lock. 2 Attach the low-pressure spray tip
(black) for soap or detergent application. Detergent application will only
work with low pressure spray tip.
3 Lift up to remove the cap of deter-
gent tank, ll tank with detergent
or soap and replace the cap. Apply detergent as instructed by the
detergent manufacturer.
Loading...
