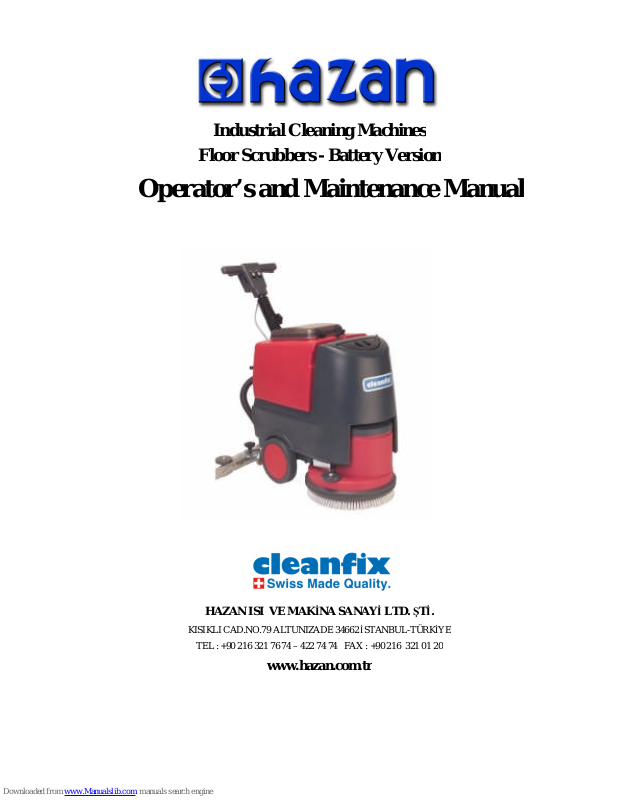

Cleanfix RA 431B Operator's Manual

Industrial CleaningMachines

Floor Scrubbers

-

Battery Version

Operator’s and Maintenance Manual

HAZANISI VE MAKİNA SANAYİ LTD. ŞTİ.

KISIKLI CAD.NO.79 ALTUNIZADE 34662 İSTANBUL

-

TÜRKİYE

TEL :

+90

216 321 76 74

–

422 74 74

FAX :

+90 216

321 01 20

www.hazan.com.tr

Page

1

DEFINITIONS RA 431B BATTERY VERSION

1

-

Brush On / Off switch

2

-

Water On / Off switch

3

-

Vacuum Unit On / Off switch

4

-

Battery warning light

(

only for

RA 431

B )

5

-

Emerg

e

ncy stop switch

6

-

Handle adjustment

7

-

Dirty water tank

8

-

Clean water tank

9

-

Brush

10

-

Closing handle

(

only for

RA 430B

)

11

-

Rubber blades

12

-

Dirty water discharge hose

13

-

Vacuum unit hose

14

-

Water adjustment bu

t

ton

15

-

Clean water discharge

16

-

Electrical cable

(

only for

RA 43

1Eelectrical version

)

17

-

Rubber blades lifting handle

18

-

Brush motor fuse switch

Page

2

RESPONSIBILITIES

It is essential to read through the operating manual before commissioning the machine. The manual provides you

with all information that you need for proper, safe and correct use and maintenance of the product. It must be kept

handy for the operator at

all times.

The operator is responsible for the following:



All operators have read and understood the operating manual before using the machine.



In particular, all operators know the safety regulations and what they mean.



All operators have received training specific to the product in the use/handling of the machine



Conducting periodic examinations of operators and their handling of the machine.



Ensuring adherence to the acknowledged rules for occupational safety.



Ensuring

adherence to any additional statutory or company regulations.



Clearly defining responsibilities for operation, maintenance and repair of the machine and ensuring that these

responsibilities are maintained.



Immediate notification of breakdowns and damage t

o the service agency.

Further mandatory requirements:



During work, operator must be mindful of other persons, especially of children



Sturdy footwear must be worn to prevent injury.

When changing or dismantling operating elements or parts, always remove th

e key

-

operated main switch or mains

plug for cleaning and maintenance of the machine.



When leaving the machine, secure against unintentional motion, and remove the key

-

operated main switch or mains

plug for cleaning and maintenance of the machine.



When lea

ving the machine, secure against unintentional motion, and remove the key

-

operated main switch and isolate

from the mains.

This equipment is not intended to be used by persons (including children) with restricted physical, sensory or mental

abilities or w

ho have no experience and/or knowledge of its use, unless supervised by a person who is responsible for

their safety, or they have received instructions from this person on how to use the equipment.

Children should be monitored in order to ensure that they

do not play with the equipment.

CLEANING AGENTS



Use only cleaning agents approved by the manufacturer.



Take note of manufacturer’s information on the hazards posed by cleaning

–

and care agents; if necessary, wear

protective goggles and protective cloth

ingExpress reference is made to the hazards when using highly inflammable, combustible, toxic, health

-

threatening,

corrosive or irritant substances

ACCESSORIES AND SPARE PARTS



Use only original operating elements, spare parts and accessories.

GENERA

L

Emergencies :



Immediately exercise first aid or seek assistance .



Remove mains plug ( E

-

Version) or key

-

operated main switch (B

-

Version)



After any incidents, do not reactivate the machine until manufacturer has inspected the machine.

TECHNICAL IMPROVEMENTS

The machine is designed in line with current technology and in conformity with recognized safety regulations. It has

undergone inspection of electrical systems and conforms with European safety standards ( CE) It has various circuit

breakers that act as protection systems. Hazards can nevertheless arise, chiefly through improper use or infringements

of safety regulations and instructions set out in the operating manual. We reserve the right at any time to make

technical modifications

to the machine in addition to consumables and accessories. For this reason, discrepancies may

exist between certain details about the machine and what is set down in the operating manual.

Page

3

PROPER USE



This machine is designed for indust

rial floor cleaning of hard floor coverings in interior areas in adherence this

operating manual.



Only use consumable and accessories recommended by the manufacturer. Only original brushes and pad plates may

be used.



Safety regulations is mandatory.

IMPROPER USE



It is forbidden to operate the machine if when it is technically in sound or if the following safety regulations and

hazards information are disregarded



Protective guards must not be dismantled nor bypassed



Conversions and modifications to th

e product are not permitted without the manufacturer’s authorization

MAINTENANCE

Page

4Where damage occurs resulting from dis regarding this operating manual as well as improper treatment or using the

machine other than for its intended purpose, then claims under the guara

ntee will be void. No liability will be accepted

for consequential damage.



The machine must not be used in the open air in wet conditions or stored under such conditions.

The machine must not be used for the following purposes because of the associated

hazards:



As a towing vehicle, means of transport, or toy.



For cleaning textile floor coverings ( the exception to this is single

-

disc machines designed for this purpose with the

proper accessories.)

TYPES OF DUST AND LIQUIDS THAT ARE POTENTIALLY HARMFUL

TO HEALTH

The machine must not be used for the following purposes because of the associated hazards:



For absorption or removal of dust that is harmful to health and combustible materials.



For vacuum cleaning of flammable, toxic, corrosive, irritating, radi

oactive materials or materials harmful to health.



For cleaning of floors near flammable or explosive substances.

COMMISSIONING

Before commissioning / Initial commissioning



Delivery, or instructions on safety regulations, handling and maintenance, in ad

dition to initial commissioning, are

normally undertaken by an approved expert ıf this is not the case, the operating company is responsible for instructing

the operator.



Items of jewellery, such as rings and chains, must be removed.



With mains

-

operated m

odels, check the mains cable regularly for damage, such as splitting or ageing; if damage,

such as splitting or ageing; if damage is detected, have the mains cable replaced by an expert before further use.



Replace the mains cable only according to the type

/ dimensions specified in the instructions for use



All panels and covers must be in their correct positions before commissioning.

During operation



When machine is stopped, the brush set must be switched off immediately to prevent any damage to floor co

verings.



Attach brushes, pads and other accessories only as directed by the illustrated operating manual.

Machine and parts in motion



Travelling motion and area in vicinity of rotating brushes/pads pose a risk of injury



Do not grasp brush/pads or wheels

with your hands or place your feet in this zone.



Do allow machine to come into contact with items of clothing, jewellery or hair.

SAFETY INFORMATION FOR MAINS

-

OPERATED CLEANING MECHINES

Voltage / Current

–

attention : potentially fatal



The machine must

not be used if the condition of the mains cable is unsound.



Before repair work on defective electrical installations, the machine must not be connected to the mains.



The mains cable must not be squeezed or damaged.



There is a risk of the mains cable becomi

ng entangled whilst brushes/pads are rotating.



The voltage indicated on the type plate must correspond with the voltage in the building (+/5%)

Contact with current or voltage involves the risk of electric shock, which could result in injuries such as burns

or even

fatality. Damaged mains cables must never be touched and must be changed without delay.

Defective mains cables may only be replaced by a conductor cross

-

section of 3×1.5 mm2 according to

DIN 58281 / VDE 0281



Connections of mains cables must be p

rotected against spray water according to IP54 protection.



The machine must be protected by a Type H power switch with a rated current of 15A or a 15A fuse.

SAFETY INFORMATION FOR BATTERY

-

OPERATED CLEANING MACHINES



Batteries contain corrosive sulfuric ac

id. Not to be taken internally! Avoid contact with skin and eyes without fail.



During wet

-

cell charging, the battery compartment must be open without fail, otherwise there is a danger of explosion

by electrolytic gas. A danger of serious injury exists.



Use

only a suitable charging appliance for charging maintenance

-

free and wet

-

cell batteries.

Page

5Do not have a naked flamer or glowing objects near batteries.



Do not generate sparks near batteries.



Strictly no smoking.



Do not open maintenance

–

free batteries. Do

not top up with distilled water.



Never touch the battery terminals with your hand or hands.



The contacts must be covered to prevent short circuiting by metal jumpers (e.g.hybrid connections)



For cleaning and maintenance, or when changing accessories and sp

ares, always isolate the machine from the battery

by detaching the battery

-

charging plug.



The machine must not be cleaned using high

-

pressure or steam cleaners or liquid sprays.

PREVENTING TOTAL DISCHARGE OF BATTERIES

Before periods of prolong non

-

use,

the battery must be fully charged to protect it from total discharge, and thereafter

the electrical components from the battery must be isolated by pılling the charging plug from the battery. Discharges

of more than 80% of the nominal capacity,

i.e. when t

he battery charge is 20% or less, are regarded as total discharges. The outcome is a shortened battery life or

complete destruction of the battery. Claims under guarantee involving flat batteries can therefore not be validated.

MAINTENANCE AND REPAIR

Our products have been inspected for safety at the factory. To ensure their operational safety and to maintain their

value, a service must be carried out once every twelve months or after 400 hours of operation. Service may only be

performed by our service

department or by approved experts.

TRANSPORTATION AND STORAGE

When transporting and storing, the temperature must not exceed 50°C At temperatures below 0°C the water system

must be enriched with anti

-

freeze.

When machine is transported, it must be prope

rly packed and secured. If the machine is stored, the fresh water and

dirty water must be emptied and the tank cleaned.

CORRECT DISPOSAL



Packaging, unused cleaning agents and dirty water must be disposed of in accordance with regulations in force at

nat

ional level.



Return batteries unopened to the manufacturer for professional disposal.



The machine must be disposed of after decommissioning in accordance with regulations in force at national level.

GUARANTEE



The valid guarantee conditions can be found e

ither on the current price list, offer, invoice and/or can be enquired at

your sales agency.



Where damage occurs as a result of disregarding these instructions as well as improper treatment or using machine

other than for its intended purpose, then claims

under the guarantee will be void. No liability will be accepted for

consequential damage arising therefrom.



Damage resulting from naturel wear, overloading or improper handling are likewise not covered by the guarantee.



Complaints will only be acknowledged

if the machine has been repaired each time by an approved service agency.
