Clay Paky MYTHOS User Manual

ENGLISH

MYTHOS

C61391

INSTRUCTION MANUAL

INDEX

Page Contents

2 Safety Information
4 Informazioni di sicurezza
6 Consignes de sécurité

EN

IT

FR

8 Informationen zur Sicherheit

10 Informaciones de suguridad

12 Unpacking and preparation

13 Installation and start-up

14 Control panel

16 Menu setting

24 Maintenance

30 Technical information

31 Cause and solution of problems

32 Channel functions

ES

DE

Congratulations on choosing a Clay Paky product!
We thank you for your custom.
Please note that this product, as all the others in the rich Clay
Paky range, has been designed and made with total quality to
ensure excellent performance and best meet your expectations
and requirements.

1

470W

18

EN

SAFETY INFORMATION

Carefully read this instruction manual in its entirety and keep it safe for future reference. It is essential to know the
information and comply with the instructions given in this manual to ensure the fitting is installed, used and serviced
correctly and safely. CLAY PAKY S.p.A. disclaims all liability for damage to the fitting or to other property or persons
deriving from installation, use and maintenance that have not been carried out in conformity with this instruction
manual, which must always accompany the fitting. CLAY PAKY S.p.A. reserves the right to modify the
characteristics stated in this instruction manual at any time and without prior notice.

• Installation

Make sure all parts for fixing the projector are in a good state of repair.
Make sure the point of anchorage is stable before positioning the projector.
The safety chain must be properly hooked onto the fitting and secured to the framework, so that, if the primary
support system fails, the fitting falls as little as possible.
If the safety chain gets used, it needs to be replaced with a genuine spare.

• MINIMUM DISTANCE OF ILLUMINATED OBJECTS
The projector needs to be positioned so that the objects hit by the beam of light are at least 18 metres
(59’1”) from the lens of the projector.

• Minimum distance from flammable materials

The projector must be positioned so that any flammable materials are at least 0.20 metres (8") from every point on
the surface of the fitting.

• Maximum ambient temperature

Do not operate the fixture if the ambient temperature (Ta) exceeds 40° C (104° F).

IP20

tc100°C

• IP20 protection rating

The fitting is protected against penetration by solid bodies of over 12mm (0.47”) in diameter (first digit 2), but not
against dripping water, rain, splashes or jets of water (second digit 0).

• Protection against electrical shock

Connection must be made to a power supply system fitted with efficient earthing (Class I appliance according to
standard EN 60598-1).
It is, moreover, recommended to protect the supply lines of the projectors from indirect contact and/or shorting to
earth by using appropriately sized residual current devices.

• Connection to mains supply

Connection to the electricity mains must be carried out by a qualified electrical installer.
Check that the mains frequency and voltage correspond to those for which the projector is designed as given on
the electrical data label.
This label also gives the input power to which you need to refer to evaluate the maximum number of fittings to
connect to the electricity line, in order to avoid overloading.

• Temperature of the external surface

The maximum temperature that can be reached on the external surface of the fitting, in a thermally steady state, is
100°C (212°F).

• Maintenance

Before starting any maintenance work or cleaning the projector, cut off power from the mains supply.
After switching off, do not remove any parts of the fitting, to avoid getting burnt for at least 35 minutes. After this
time the likelihood of the lamp exploding is virtually nill.
The fitting is designed to hold in any splinters produced by a lamp exploding. The lenses must be mounted and, if
visibly damaged, they have to be replaced with genuine spares.

MYTHOS

Risk Group 1

According to

EN 62471

• Lamp

The fitting mounts a high-pressure lamp that needs an external igniter. This igniter is fitted onto the apparatus.

- Carefully read the "operating instructions" provided by the lamp manufacturer.

- Immediately replace the lamp if damaged or deformed by heat.

• Photobiological Safety

CAUTION. Do not look directly at the light source.
Do not look at the light beam with optical devices or any other tool that could cause light convergence.
The fixture must be positioned so that the minimum distance between the front lens and human eye is at least 3
metres to prevent personal photobiological risks.

2

LiFePO4

Pb

This product is intended for the following areas of application:
studios, stages, theaters, exhibitions, trade fairs, events, theme parks, entertainment venues, architectural lighting
and similar.

Not suitable for household illumination

Not for residential use

• Battery

This product contains a rechargeable lead-acid or lithium iron tetraphosphate battery. To preserve the environment,
please dispose the battery at the end of its life according to the regulation in force.

Disposing

This product is supplied in compliance with European Directive 2012/19/EU - Waste Electrical and Electronic
Equipment (WEEE). To preserve the environment please dispose/recycle this product at the end of its life according
to the local regulation.

The products to which this manual refers comply with the European Directives pursuant to:

• 2006/95/EC - Safety of electrical equipment supplied at low voltage (LVD)

• 2004/108/EC - Electromagnetic Compatibility (EMC)

• 2011/65/EU - Restriction of the use of certain hazardous substances (RoHS)

• 2009/125/EC - EcoDesign requirements for Energy-related Products (ErP)

MYTHOS

3

470W

18

IT

Leggere attentamente in tutte le sue parti il presente manuale d’istruzioni e conservarlo accuratamente per
riferimenti futuri. La conoscenza delle informazioni ed il rispetto delle prescrizioni contenute in questa pubblicazione
sono essenziali per garantire la correttezza e la sicurezza delle operazioni di installazione, uso e manutenzione
dell’apparecchio.
CLAY PAKY S.p.A. declina ogni responsabilità per danni all’apparecchio o ad altre cose o persone, derivanti da
installazione, uso e manutenzione effettuate non in conformità con quanto riportato sul presente manuale di
istruzioni, che deve sempre accompagnare l’apparecchio. CLAY PAKY S.p.A. si riserva la facoltà di modificare, in
qualunque momento e senza preavviso, le caratteristiche menzionate nel presente manuale di istruzioni.

• Installazione

Assicurarsi che tutte le parti per il fissaggio del proiettore siano in buona condizione.
Assicurarsi della stabilità del punto di ancoraggio prima di posizionare il proiettore.
La fune di sicurezza, debitamente agganciata all’apparecchio e fissata alla struttura di sostegno, deve essere
installata in modo che, in caso di cedimento del sistema di supporto primario, si abbia la minor caduta possibile
dell’apparecchio. Dopo un eventuale intervento la fune di sicurezza deve essere sostituita con il ricambio originale.

• DISTANZA MINIMA DEGLI OGGETTI ILLUMINATI
Il proiettore deve essere posizionato in modo tale che gli oggetti colpiti dal fascio luminoso siano distanti
almeno 18 metri dall’obiettivo del proiettore stesso.

• Distanza minima dei materiali infiammabili

Il proiettore deve essere posizionato in modo tale che i materiali infiammabili siano distanti almeno 0,20 metri da
ogni punto della superficie dell’apparecchio.

INFORMAZIONI DI SICUREZZA

IP20

tc100°C

• Massima temperatura ambiente

Non utilizzare il proiettiore se la temperatura ambiente (Ta) supera i 40°C.

• Grado di protezione IP20

L’apparecchio è protetto contro la penetrazione di corpi solidi di dimensione superiore a 12mm (prima cifra 2),
mentre teme lo stillicidio, la pioggia, gli spruzzi e i getti d’acqua (seconda cifra 0).

• Protezione contro la scossa elettrica

È obbligatorio effettuare il collegamento ad un impianto di alimentazione dotato di un’efficiente messa a terra
(apparecchio di Classe I secondo la norma EN 60598-1).
Si raccomanda, inoltre, di proteggere le linee di alimentazione dei proiettori dai contatti indiretti e/o cortocircuiti
verso massa tramite l’uso di interruttori differenziali opportunamente dimensionati.

• Collegamento alla rete di alimentazione

Le operazioni di collegamento alla rete di distribuzione dell’energia elettrica devono essere effettuate da un
installatore elettrico qualificato. Verificare che frequenza e tensione della rete corrispondano alla frequenza ed alla
tensione per cui il proiettore è predisposto ed indicate sulla targhetta dei dati elettrici. Sulla medesima targhetta è
pure indicata la potenza assorbita. Fare riferimento a quest’ultima per valutare il numero massimo di apparecchi da
collegare alla linea elettrica, al fine di evitare sovraccarichi.

• Temperatura della superficie esterna

La temperatura massima raggiungibile sulla superficie esterna dell’apparecchio, in condizioni di regime termico, è
di 100°C.

• Manutenzione

Prima di iniziare qualsiasi operazione di manutenzione o pulizia sul proiettore togliere la tensione dalla rete di
alimentazione. Dopo lo spegnimento non rimuovere alcuna parte dell’apparecchio per 10 minuti. Trascorso tale
tempo la probabilità di esplosione della lampada è praticamente nulla. Se è necessario sostituire la lampada,
aspettare ulteriori 20 minuti per evitare scottature. L’apparecchio è progettato in modo da trattenere le schegge
prodotte dall’eventuale scoppio della lampada. Le lenti devono essere obbligatoriamente montate; devono inoltre,
se visibilmente danneggiate, essere sostituite con ricambi originali.

MYTHOS

• Lampada

L’apparecchio monta una lampada ad alta pressione che richiede un accenditore esterno.
Tale accenditore è incorporato nell’apparecchio.

- Leggere attentamente le “istruzioni d’uso” fornite dal costruttore della lampada.

- Sostituire immediatamente la lampada se danneggiata o deformata dal calore.

4

isk Group 1

R

According to

N 62471

E

LiFePO4

Pb

• Sicurezza fotobiologica

ATTENZIONE. Non guardare direttamente la sorgente di luce.
Non guardare il fascio di luce con strumenti ottici o altri strumenti che potrebbero causare convergenza di luce.
Il proiettore deve essere posizionato in modo tale che la minima distanza della lente del proiettore dall’occhio
umano sia di almeno 3 metri per prevenire rischi fotobiologici alla persona.

Il prodotto è concepito per essere utilizzato nei seguenti ambiti:
studi, palchi, teatri, esposizioni, fiere, eventi, parchi a tema, locali di intrattenimento, illuminazione architetturale e simili.

Non adatto all'illuminazione domestica

Non per uso residenziale

• Batteria

Questo prodotto contiene una batteria ricaricabile piombo-acido o Litio Ferro Tetrafosfato. A tutela dell'ambiente si
prega di smaltire la batteria a fine vita in conformità alla normativa vigente.

Smaltimento

Questo dispositivo è conforme alla Direttiva Europea 2012/19/UE - Rifiuti di apparecchiature elettriche ed elettro­niche (RAEE). Nel rispetto dell'ambiente, smaltire/riciclare il prodotto al termine del suo ciclo di vita secondo le
disposizioni di legge locali.

I prodotti a cui questo manuale si riferisce sono conformi alle Direttive Europee di cui sono oggetto:

• 2006/95/CE - Sicurezza delle apparecchiature alimentate in Bassa Tensione (LVD)

• 2004/108/CE - Compatibilità Elettromagnetica (EMC)

• 2011/65/UE - Restrizione d’uso di determinate sostanze pericolose (RoHS)

• 2009/125/CE - Specifiche per la progettazione ecocompatibile dei prodotti connessi all’energia (ErP)

MYTHOS

5

470W

18

FR

Lisez avec attention ce manuel d’instructions dans son intégralité et conservez-le pour toute consultation future. La
connaissance des informations et le respect des prescriptions contenues dans ce manuel sont indispensables pour
garantir l’exécution correcte et en sécurité des opérations d’installation, utilisation et entretien de l’appareil.
CLAY PAKY S.p.A. décline toute responsabilité pour les dommages à l’appareil ou à d’autres choses ou personnes
dérivant d’une installation, d’une utilisation et d’un entretien effectués de manière non conforme aux indications de ce
manuel d’instructions, qui doit toujours accompagner l’appareil. CLAY PAKY S.p.A. se réserve la faculté de modifier, à
tout moment et sans aucun préavis, les caractéristiques reportées dans ce manuel.

• Installation

S’assurer que toutes les pièces pour la fixation du projecteur sont en bon état.
S’assurer de la stabilité du point d’ancrage avant de positionner le projecteur.
Le câble de sécurité, à fixer correctement à l’appareil et à la structure de support, doit être installé de façon à ce que, en
cas de rupture du système de support principal, la chute de l’appareil soit la plus limitée possible. Après une éventuelle
intervention du câble de sécurité suite à une chute, il faut le remplacer par une pièce de rechange d’origine.

• DISTANCE MINIMUM DES OBJETS ECLAIRES
Le projecteur doit être positionné de façon à ce que les objets éclairés par le faisceau lumineux soient à
une distance d’au moins 18 mètres de l’objectif du projecteur.

• Distance minimum des substances inflammables

Le projecteur doit être positionné de façon à ce qu’il y ait une distance d’au moins 0,20 mètre entre toute substance
inflammable et tout point de sa surface.

CONSIGNES DE SÉCURITÉ

IP20

tc100°C

• Température ambiante maximum

Ne pas utiliser le projecteur quand la température ambiante (Ta) dépasse 40°C.

• Degré de protection IP20

L’appareil est protégé contre la pénétration de corps solides de dimension supérieure à 12 mm (premier chiffre 2), tandis qu’il
craint les gouttes d’eau, la pluie et les projections d’eau (deuxième chiffre 0).

• Protection contre l’électrisation

L’appareil doit obligatoirement être branché à une installation d’alimentation équipée d’une mise à la terre efficace
(appareil de Classe I selon la norme EN 60598-1).
Nous recommandons également de protéger les lignes d’alimentation des projecteurs contre les contacts indirects et/ou
les courts-circuits vers la masse en utilisant des interrupteurs différentiels de sensibilité adéquate.

• Branchement au réseau d’alimentation

Les opérations de branchement au réseau de distribution de l’énergie électrique doivent être exécutées par un installateur
électrique qualifié. Contrôler que la fréquence et la tension de réseau correspondent à la fréquence et à la tension pour
lesquelles le projecteur est prévu ; ces données sont indiquées sur la plaquette des données électriques. Cette même
plaquette reporte également la puissance absorbée. Afin d’éviter des surcharges, se référer à celle-ci pour évaluer le
nombre maximum d’appareils à brancher à la ligne électrique.

• Température de la surface extérieure

La température maximum qui peut être atteinte sur la surface extérieure de l’appareil, en conditions de régime thermique,
est de 100°C.

• Entretien

Avant de procéder à toute opération d’entretien ou de nettoyage sur le projecteur, couper la tension d’alimentation. Après
avoir éteint le projecteur, ne démonter aucun élément de l’appareil pendant les 10 minutes qui suivent. Une fois ce temps
écoulé, la probabilité d’explosion de la lampe est quasiment nulle. S’il faut remplacer la lampe, attendre encore 20 minutes
afin d’éviter tout risque de brûlures.
L’appareil a été conçu de façon à retenir les éclats produits en cas d’explosion de la lampe. Les lentilles doivent
obligatoirement être montées sur l’appareil et doivent être remplacées par des pièces d’origine dès qu’elles sont
visiblement endommagées.

MYTHOS

• Lampe

L’appareil fonctionne avec une lampe haute pression avec ballast externe.
Ce dernier est incorporé dans l’appareil.

- Lire avec attention les « instructions d’utilisation » fournies par le fabricant de la lampe.

- Remplacer la lampe dès qu’elle est endommagée ou déformée par la chaleur

6

isk Group 1

R

According to

N 62471

E

LiFePO4

Pb

• Sécurité photobiologique

ATTENTION. Ne pas regarder directement la source de lumière.
Ne pas regarder le faisceau de lumière avec des instruments optiques ou d’autres instruments qui pourraient provo­quer une convergence lumineuse.
Le projecteur doit être positionné de sorte que la distance minimum par rapport à l’œil humain de la lentille du
projecteur soit de 3 mètres minimum pour prévenir des dangers photo-biologiques à la personne.

Le produit est conçu pour être utilisé dans les milieux suivants :
studios, scènes, théâtres, expositions, salons, événements, parcs à thème, lieux de divertissement, éclairage architec­tural et similaires.

Non adapté à l’éclairage domestique

Non indiqué pour un utilization résidentiel

• Batteria

Questo prodotto contiene una batteria ricaricabile piombo-acido o Litio Ferro Tetrafosfato. A tutela dell'ambiente si
prega di smaltire la batteria a fine vita in conformità alla normativa vigente.

Élimination

Ce dispositif est conforme à la Directive Européenne 2012/19/UE – Déchets d’équipements électriques et électro­niques (DEEE). Dans le respect de l’environnement, écouler/recycler le produit à la fin de son cycle de vie selon
les dispositions légales locales.

The products to which this manual refers comply with the European Directives pursuant to:

• 2006/95/EC - Safety of electrical equipment supplied at low voltage (LVD)

• 2004/108/EC - Electromagnetic Compatibility (EMC)

• 2011/65/EU - Restriction of the use of certain hazardous substances (RoHS)

• 2009/125/EC - EcoDesign requirements for Energy-related Products (ErP)

MYTHOS

7

470W

18

DE

Lesen Sie diese Bedienungsanleitung bitte ganz durch und bewahren Sie sie für späteres Nachschlagen sorgfältig
auf. Die Kenntnis der darin enthaltenen Informationen und die strikte Befolgung der Anweisungen ist die
Voraussetzung für eine korrekte und sichere Installation, Benutzung und Wartung des Geräts. Diese
Bedienungsanleitung muss das Gerät stets begleiten. Die Firma CLAY PAKY S.p.A. übernimmt keine Haftung für
Schäden an dem Gerät bzw. sonstige Sach- und Personenschäden, die durch eine nicht mit den Anweisungen
dieser Bedienungsanleitung konforme Installation, Benutzung und Wartung verursacht werden. Die Firma CLAY
PAKY S.p.A. behält sich das Recht vor, die in der vorliegenden Bedienungsanleitung enthaltenen Daten jederzeit
und ohne vorherige Benachrichtigung zu ändern.

• Installation

Sicherstellen, dass alle Teile für die Befestigung des Projektors in einwandfreiem Zustand sind.
Vor der Installation des Projektors die Stabilität der Verankerungsstelle überprüfen.
Das korrekt am Gerät eingehakte und an der Haltestruktur befestigte Sicherheitsseil muss so installiert werden,
dass bei einem Nachgeben der Haupthalterung die Fallhöhe des Gerätes so gering wie möglich ist. Nach einem
eventuellen Einsatz muss das Sicherheitsseil durch ein Originalersatzteil ersetzt werden.

• MINDESTABSTAND ZU BELEUCHTETEN OBJEKTEN
Der Projektor muss so installiert werden, dass der Abstand zwischen den vom Lichtstrahl beleuchteten
Objekten und dem Objektiv des Projektors mindestens 18 Meter beträgt.

• Mindestabstand zu entzündbaren Materialien

Der Projektor muss so installiert werden, dass entzündbare Materialien mindestens 0,20 Meter von jedem Punkt
der Geräteoberfläche entfernt sind.

INFORMATIONEN ZUR SICHERHEIT

IP20

tc100°C

• Max. Raumtemperatur

Den Projektor nicht verwenden, wenn die Raumtemperatur (RT) 40°C überschreitet.

• Schutzart IP20

Das Gerät ist gegen das Eindringen von festen Fremdkörpern mit Durchmesser über 12 mm (erste Kennziffer 2)
geschützt, während es gegen Tropf,- Regen- und Spritzwasser sowie Wasserstrahlen (zweite Kennziffer 0)
empfindlich ist.

• Schutz gegen Stromschlag

Es ist Pflicht, das Gerät an eine Stromversorgungsanlage anzuschließen, die mit einer leistungsfähigen Erdung
ausgestattet ist (Gerät der Klasse I gemäß Richtlinie EN 60598-1).
Darüber hinaus wird empfohlen, die Zuleitungen der Projektoren mit korrekt bemessenen
Fehlerstromschutzschaltern vor indirekten Kontakten und/oder Kurzschlüssen zu schützen.

• Netzanschluss

Der Anschluss an das Stromnetz muss von einem kompetenten Elektroinstallateur ausgeführt werden.
Vergewissern Sie sich, dass Spannung und Frequenz der Netzversorgung mit den Werten übereinstimmen, für die
der Projektor ausgelegt ist und die auf dem Typenschild angegeben sind. Ebenfalls auf dem Typenschild ist die
Leistungsaufnahme angegeben. Um zu beurteilen, wie viele Geräte maximal an die Stromleitung angeschlossen
werden können, ist auf diese Angaben Bezug zu nehmen, damit Überlastungen vermieden werden.

• Temperatur der Außenfläche

Die Außenfläche des Geräts kann im Wärmebetrieb eine Höchsttemperatur von 100°C erreichen.

• Wartung

Vor Beginn von Wartungs- oder Reinigungsarbeiten am Projektor stets die Stromversorgung abschalten. Nach dem
Abschalten 10 Minuten lang keine Geräteteile abnehmen. Nach Ablauf dieser Zeit besteht praktisch keine Gefahr
mehr, dass die Lampe birst. Falls die Lampe ersetzt werden muss, weitere 20 Minuten warten, um
Verbrennungsgefahr zu vermeiden.
Das Gerät wurde so konzipiert, dass es die Splitter bei einem eventuellen Bersten der Lampe zurückhält. Die
Montage der Linsen ist obligatorisch vorgeschrieben; des Weiteren müssen sie bei sichtbarer Beschädigung durch
Originalersatzteile ersetzt werden.

MYTHOS

• Lampe

Das Gerät ist mit einer Hochdrucklampe bestückt, die eine externe Zündeinheit verlangt.
Diese Zündeinheit ist in das Gerät eingebaut.

- Lesen Sie die vom Lampenhersteller gelieferte "Bedienungsanleitung" aufmerksam durch.

- Eine beschädigte oder von der Hitze verformte Lampe muss sofort ersetzt werden.

8

Risk Group 1

ccording to

A

EN 62471

LiFePO4

Pb

• Photobiologische Sicherheit

ACHTUNG. Nicht direkt in die Lichtquelle blicken.
Den Lichtstrahl nicht mit optischen Geräten oder anderen Instrumenten anschauen, die Lichtkonvergenz
verursachen könnten.
Der Projektor muss so positioniert werden, dass der Mindestabstand der Projektorlinse vom menschlichen Auge
mindestens 3 Meter beträgt, um einer fotobiologischen Gefährdung der Person vorzubeugen

Das Produkt wurde für die Verwendung in den folgenden Bereichen entwickelt:
Studios, Bühnen, Theater, Ausstellungen, Messen, Veranstaltungen, Themenparks, Unterhaltungslokale,
Architekturbeleuchtung oder ähnliches.

Nicht für Haushaltsbeleuchtung geeignet

Nicht für den häuslichen Gebrauch

• Batterie

Dieses Produkt enthält eine wiederaufladbare Blei-Säure-Batterie oder Lithium-Eisen-tetraphosphat. Zum
Schutz der Umwelt bitten wir Sie, diese Batterie, nachdem sie verbraucht ist, gemäß den geltenden
Vorschriften zu entsorgen.

Entsorgung

Diese Vorrichtung entspricht der Europäischen Richtlinie 2012/19/UE - Abfall von elektrischen und elektronischen
Gerätschaften (RAEE). Das Produkt am Ende seines Lebenszyklus unter Berücksichtigung der Umwelt nach den
lokalen Gesetzesvorschriften entsorgen/recyceln.

The products to which this manual refers comply with the European Directives pursuant to:

• 2006/95/EC - Safety of electrical equipment supplied at low voltage (LVD)

• 2004/108/EC - Electromagnetic Compatibility (EMC)

• 2011/65/EU - Restriction of the use of certain hazardous substances (RoHS)

• 2009/125/EC - EcoDesign requirements for Energy-related Products (ErP)

MYTHOS

9

470W

18

ES

Lea atentamente todas las partes del presente manual de instrucciones y consérvelo cuidadosamente para futuras
consultas. El conocimiento de las informaciones y el respeto de las prescripciones contenidas en esta publicación
son esenciales para garantizar la integridad y la seguridad de las operaciones de instalación, uso y mantenimiento
del aparato. CLAY PAKY S.p.A declina toda responsabilidad por daños al aparato u otras cosas o personas, que
derivan de su instalación, uso y mantenimiento efectuados no conformes a lo indicado en el presente manual de
instrucciones, que deberá siempre acompañar al aparato. CLAY PAKY S.p.A. se reserva la facultad de modificar,
en cualquier momento y sin previo aviso, las características mencionadas en el presente manual de instrucciones.

• Instalación

Asegúrese de que todos los elementos de fijación del proyector estén en buenas condiciones.
Controle la estabilidad del punto de anclaje antes de instalar el proyector.
La cuerda de seguridad, correctamente enganchada al aparato y fijada a la estructura de soporte, debe colocarse
de modo que, si el soporte principal cede, el aparato sufra la menor caída posible. En caso de desgaste de la
cuerda de seguridad, sustitúyala por el recambio original.

• DISTANCIA MINIMA DE LOS OBJETOS ILUMINADOS
El proyector debe ser posicionado de modo tal que los objetos tocados por el haz luminoso tengan una
distancia de al menos 18 metros del objetivo del mismo proyector.

• Distancia mínima de los materiales inflamables

El proyector debe ser posicionado de modo tal que los materiales inflamables tengan una distancia de al menos
0,20 metros de cada punto de la superficie del aparato.

INFORMACIONES DE SEGURIDAD

IP20

tc100°C

• Máxima temperatura ambiente

No utilice el proyector si la temperatura ambiente (ta) supera los 40°C.

• Grado de protección IP20

El aparato está protegido contra la penetración de cuerpos sólidos de dimensiones superiores a 12 mm (primer
dígito 2), pero no contra el goteo, la lluvia, las salpicaduras y los chorros de agua (segundo dígito 0).

• Protección contra descargas eléctricas

Es obligatorio efectuar la conexión a una instalación de alimentación dotada de una eficiente puesta a tierra
(aparato de Clase I según la norma EN 60598-1).
Además, se recomienda proteger las líneas de alimentación de los proyectores de los contactos indirectos y/o
cortocircuitos hacia masa, mediante el uso de interruptores diferenciales dimensionados oportunamente.

• Conexión a la red de alimentación

Las operaciones de conexión a la red de distribución de la energía eléctrica deben ser efectuadas por un instalador
eléctrico cualificado. Constate que los valores de frecuencia y tensión de la red sean iguales a los que figuran en
la placa de los datos eléctricos del proyector. En la misma placa está indicada la potencia absorbida. Hacer
referencia a esta última para valorar el número máximo de aparatos que conectar a la línea eléctrica, con el fin de
evitar sobrecargas.

• Temperatura de la superficie externa

La temperatura máxima que puede alcanzar la superficie externa del aparato, en condiciones de régimen térmico,
es de 100°C.

• Mantenimiento

Antes de iniciar cualquier operación de mantenimiento o limpieza del proyector desconecte el aparato de la
alimentación eléctrica. Después del apagado no extraiga ninguna parte del aparato durante 10 minutos.
Transcurrido dicho tiempo la probabilidad de que la lámpara explote es prácticamente nula. Si fuera necesario
cambiar la lámpara, espere 20 minutos más para evitar quemarse.
El aparato está proyectado para retener las astillas producidas por el posible estallido de la lámpara. Las lentes
deben montarse obligatoriamente; además, si estuvieran dañadas, deberán ser sustituidas por recambios
originales.

MYTHOS

• Lámpara

El aparato utiliza una lámpara de alta presión que requiere un arrancador externo.
Dicho arrancador está incorporado en el aparato.

- Leer atentamente las "instrucciones de uso" suministradas por el fabricante de la lámpara.

- Sustituir la lámpara inmediatamente si estuviera dañada o deformada por el calor.

10

isk Group 1

R

According to

N 62471

E

LiFePO4

Pb

• Seguridad fotobiológica

ATENCIÓN. No mire directamente a la fuente de luz.
No mire el haz de luz con instrumentos ópticos u otros instrumentos que puedan causar convergencia de luz.
El proyector debe ser posicionado de manera que la mínima distancia de la lente del proyector desde ojo humano
sea al menos 3 metros para prevenir riesgos fotobiológicos a la persona.

El producto es concebido para ser utilizado en los siguientes ambientes:
estudios, palcos, teatros, exposiciones, ferias, eventos, parques temáticos locales de entretenimiento, iluminación de
arquitecturas y similares

No es apropiado para la iluminación doméstica

No para uso residencial

• Batería

Este producto contiene una batería recargable plomo-ácido o de litio tetrafosfato Hierro. Para proteger el ambiente
se ruega eliminar la batería conforme a la normativa vigente.

Eliminación

Este dispositivo es conforme a la Directiva Europea 2012/19/UE - Residuos de equipos eléctricos y electrónicos
(RAEE). Con el fin de respetar el ambiente, eliminar/reciclar el producto al final de su ciclo de vida según las
disposiciones de ley locales

The products to which this manual refers comply with the European Directives pursuant to:

• 2006/95/EC - Safety of electrical equipment supplied at low voltage (LVD)

• 2004/108/EC - Electromagnetic Compatibility (EMC)

• 2011/65/EU - Restriction of the use of certain hazardous substances (RoHS)

• 2009/125/EC - EcoDesign requirements for Energy-related Products (ErP)

MYTHOS

11

1

M

Y

T

H

OS

C

6

1

3

9

0

®

I

N

S

T

R

U

C

T

I

O

N

M

A

N

U

A

L

C

o

n

g

r

a

t

u

l

a

t

i

o

n

s

o

n

c

h

o

o

s

i

n

g

a

C

l

a

y

P

a

k

y

p

r

o

d

u

c

t

!

W

e

t

h

a

n

k

y

o

u

f

o

r

y

o

u

r

c

u

s

t

o

m

.

P

l

e

a

s

e

n

o

t

e

t

h

a

t

t

h

i

s

p

r

o

d

u

c

t

,

a

s

a

l

l

t

h

e

o

t

h

e

r

s

i

n

t

h

e

r

i

c

h

C

l

a

y

P

a

k

y

r

a

n

g

e

,

h

a

s

b

e

e

n

d

e

s

i

g

n

e

d

a

n

d

m

a

d

e

w

i

t

h

t

o

t

a

l

q

u

a

l

i

t

y

t

o

e

n

s

u

r

e

e

x

c

e

l

l

e

n

t

p

e

r

f

o

r

m

a

n

c

e

a

n

d

b

e

s

t

m

e

e

t

y

o

u

r

e

x

p

e

c

t

a

t

i

o

n

s

a

n

d

r

e

q

u

i

r

e

m

e

n

t

s

.

C

a

r

e

f

u

l

l

y

r

e

a

d

t

h

i

s

i

n

s

t

r

u

c

t

i

o

n

m

a

n

u

a

l

i

n

i

t

s

e

n

t

i

r

e

t

y

a

n

d

k

e

e

p

i

t

s

a

f

e

f

o

r

f

u

t

u

r

e

r

e

f

e

r

e

n

c

e

.

I

t

i

s

e

s

s

e

n

t

i

a

l

t

o

k

n

o

w

t

h

e

i

n

f

o

r

m

a

t

i

o

n

a

n

d

c

o

m

p

l

y

w

i

t

h

t

h

e

i

n

s

t

r

u

c

t

i

o

n

s

g

i

v

e

n

i

n

t

h

i

s

m

a

n

u

a

l

t

o

e

n

s

u

r

e

t

h

e

f

i

t

t

i

n

g

i

s

i

n

s

t

a

l

l

e

d

,

u

s

e

d

a

n

d

s

e

r

v

i

c

e

d

c

o

r

r

e

c

t

l

y

a

n

d

s

a

f

e

l

y

.

C

L

A

Y

P

A

K

Y

S

.

p

.

A

.

d

i

s

c

l

a

i

m

s

a

l

l

l

i

a

b

i

l

i

t

y

f

o

r

d

a

m

a

g

e

t

o

t

h

e

f

i

t

t

i

n

g

o

r

t

o

o

t

h

e

r

p

r

o

p

e

r

t

y

o

r

p

e

r

s

o

n

s

d

e

r

i

v

i

n

g

f

r

o

m

i

n

s

t

a

l

l

a

t

i

o

n

,

u

s

e

a

n

d

m

a

i

n

t

e

n

a

n

c

e

t

h

a

t

h

a

v

e

n

o

t

b

e

e

n

c

a

r

r

i

e

d

o

u

t

i

n

c

o

n

f

o

r

m

i

t

y

w

i

t

h

t

h

i

s

i

n

s

t

r

u

c

t

i

o

n

m

a

n

u

a

l

,

w

h

i

c

h

m

u

s

t

a

l

w

a

y

s

a

c

c

o

m

p

a

n

y

t

h

e

f

i

t

t

i

n

g

.

C

L

A

Y

P

A

K

Y

S

.

p

.

A

.

r

e

s

e

r

v

e

s

t

h

e

r

i

g

h

t

t

o

m

o

d

i

f

y

t

h

e

c

h

a

r

a

c

t

e

r

i

s

t

i

c

s

s

t

a

t

e

d

i

n

t

h

i

s

i

n

s

t

r

u

c

t

i

o

n

m

a

n

u

a

l

a

t

a

n

y

t

i

m

e

a

n

d

w

i

t

h

o

u

t

p

r

i

o

r

n

o

t

i

c

e

.

E

N

G

L

I

S

H

P

R

E

L

I

M

I

N

A

R

Y

I

N

D

E

X

P

a

g

e

C

o

n

t

e

n

t

s

2

S

a

f

e

t

y

i

n

f

o

r

m

a

t

i

o

n

3

U

n

p

a

c

k

i

n

g

a

n

d

p

r

e

p

a

r

a

t

i

o

n

4

I

n

s

t

a

l

l

a

t

i

o

n

a

n

d

s

t

a

r

t

-

u

p

5

C

o

n

t

r

o

l

p

a

n

e

l

7

M

e

n

u

s

e

t

t

i

n

g

1

6

M

a

i

n

t

e

n

a

n

c

e

1

9

T

e

c

h

n

i

c

a

l

i

n

f

o

r

m

a

t

i

o

n

1

9

C

a

u

s

e

a

n

d

s

o

l

u

t

i

o

n

o

f

p

r

o

b

l

e

m

s

2

0

C

h

a

n

n

e

l

f

u

n

c

t

i

o

n

s

1

UNLOCKED

9

0

°

9

0

°

9

0

°

9

0

°

LOCKED

LOCKED

UNLOCKED

4

5

°

4

5

°

4

5

°

4

5

°

4

5

°

UNPACKING AND PREPARATION

IST00L/001

2 x 183102/805

Packing contents - Fig. 1

2 3

PAN Mechanism Lock and Release (every 90°) - Fig. 2

TILT Mechanism Lock and Release (every 45°) - Fig. 3

MYTHOS

12

4

2

1

1

2

3

INSTALLATION AND START-UP

Installing the projector - Fig. 4

The projector can be installed on the floor resting on special rubber feet, on a truss or on the ceiling or wall.

WARNING: with the exception of when the projector is positioned on the floor, the safety cable must be fitted. (Cod. 105041/003 available on request).
This must be securely fixed to the support structure of the projector and then connected to the fixing point at the centre of the base.

5

Connecting and disconnecting power cable - Fig. 5

MYTHOS

13

CONTROL PANEL

1

2

Dmx Address

Warning Message

Fixture ID

18m

SIGN

AL

SC

R

EEN

D

MX

5

1

2

5

PI

N

1

2

3

4

5

SIGN

AL

6

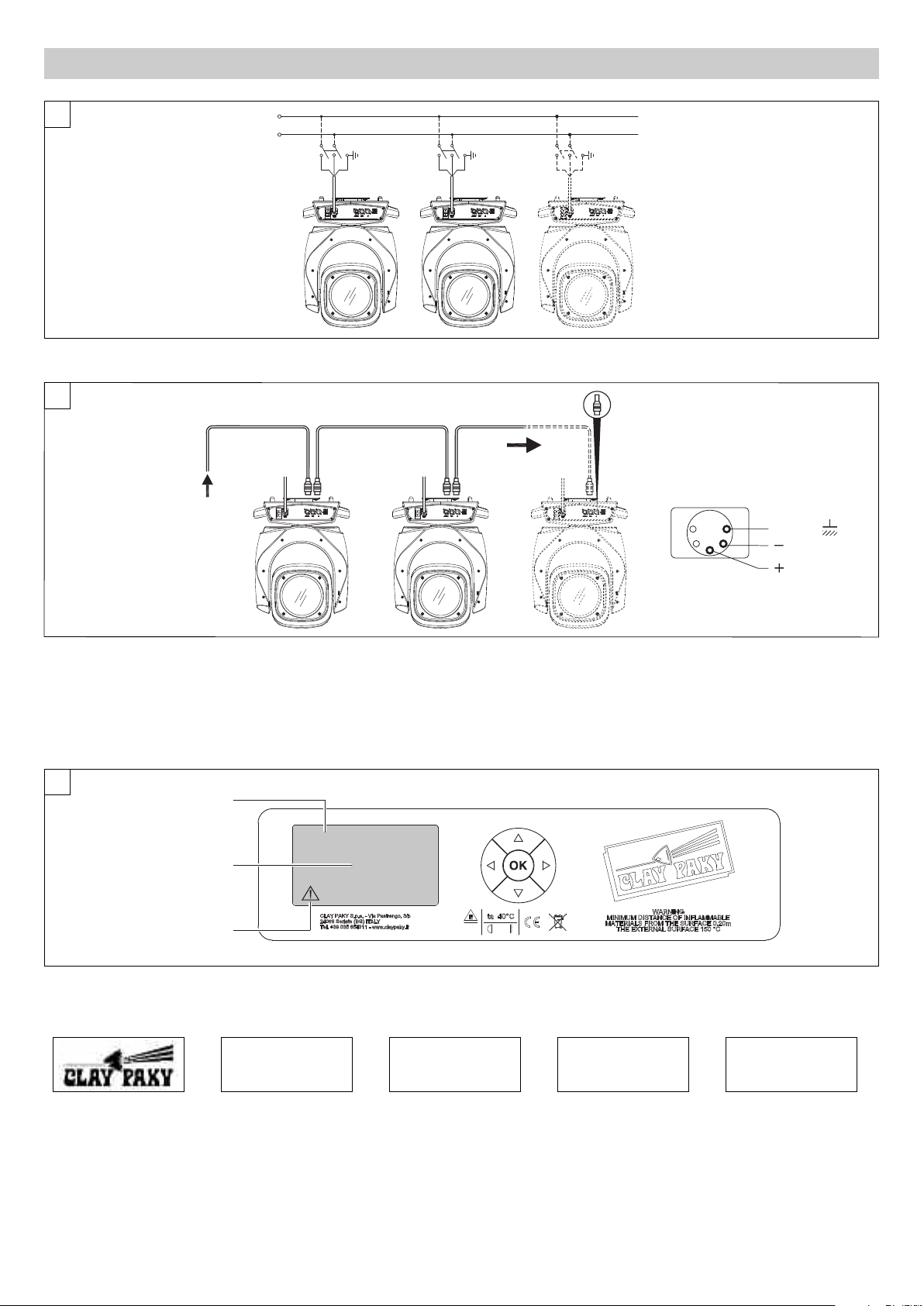

Connecting to the mains supply - Fig. 6

Mains

7

Connecting to the control signal line (DMX) - Fig. 7
Use a cable conforming to specifications EIA RS-485: 2-pole twisted, shielded, 120Ohm characteristic impedance, 22-24 AWG, low capacity. Do not use
microphone cable or other cable with characteristics differing from those specified. The end connections must be made using XLR type 5-pin male/female
connectors. A terminating plug must be inserted into the last projector with a resistance of 120Ohm (minimum 1/4 W) between terminals 2 and 3.
IMPORTANT: The wires must not make contact with each other or with the metal casing of the connectors. The casing itself must be connected to the
shield braid and to pin 1 of the connectors.

8

Switching on the projector - Fig. 8
Press the switch. The projector starts resetting the effects. At the same time, the following information scrolls on the display:

Model Firmware xxx (Fixture ID) System errors

MYTHOS Version X.X.X Dmx Address xxx E: .........................

Date - Hour W: .........................

On conclusion of resetting in case of absence of the dmx signal, Pan and Tilt move to the “Home” position (Pan 50% - Tilt 50%). The control panel
(Fig. 8) has a display and buttons for the complete programming and management of the projector menu. The display can be in one of two
conditions: rest status and setting status. When it is in the rest status, the display shows the projector’s DMX address and the Fixture ID address
(if set).
During menu setting status, after a wait time (about 30 seconds) without any key having been pressed, the display automatically returns to rest status.
It should be noted than when this condition occurs, any possible value that has been modified but not yet confirmed with the

MYTHOS

14

key will be cancelled.

F

28

28

9

Reversal of the display - Fig. 9
To activate this function, press UP
maintained even for the next time it will be switched on. To return to the initial state, repeat the operation all over again.

etting the projector starting address

S

On each projector, the starting address must be set for the control signal (addresses from 1 to 512).
The address can also be set with the projector switched off.

Setting the projector Fixture ID

On each projector, the Fixture ID address must be set for an easy identification of the fixtures in an installation (ID from 1 to 255).
The Fixture ID address can be set with the projector switched off.

and DOWN Ckeys simultaneously while the display is in the rest mode. This status will be memorised and

B

Functions of the buttons - Using the menu

F

C

DOWN

B

D

LEFT

E

RIGHT

USING THE MENU:

1) Press

2) Use the UP

• Setup (Setup Menu): To set the setting options.

• Option (Option Menu): To set the operating options

• Informations (Informations Menu): To read the counters, software version and other information.

• Manual Control (Manual control Menu): To trigger the test and manual control functions.

• Test (Test Menu): To check the proper functionning of effects

• Advanced (Advanced Menu): Access to the "Advanced menu" is recommended for a trained technical personnel.
To enable the "Advanced" see pag.16.

3) Press

4) Use the UP

once – “Main Menu” appears on the display.

F

and DOWN Ckeys to select the menu to be used:

B

to display the first item in the selected menu.

F

and DOWN Ckeys to select the MENU items.

B

Confirms the displayed value, or activates the displayed function, or enters the successive
menu.

Decreases the value displayed (with auto-repetitions) or passes to the next item in the menu.

Increases the value displayed (with auto-repetitions) or passes to the previous item in a menu.

UP

Return to the top level

Commute from units, tens, hundreds, in the "Address", "Fixture ID" and "Calibration" menù.

Setting addresses and options with the projector disconnected

The projector’s DMX address, as well as other possible operating options, can also be set when the appliance is disconnected from the electricity supply.
All that is needed is to press
the display will switch off again after a wait time of 30 seconds.

MYTHOS

to momentarily activate the display and thus access the settings. Once the required operations have been carried out,

F

15

MENU SETTING

Main Menu Level 1 Level 2 Level 3 Choices / Values

SET UP

DMX Address

Æ Æ

001-512

C

hannel Mode

Æ Æ

Standard

Vector

Fixture ID

Æ Æ

000-255

Ethernet Interface

Control Protocol

Æ

Disabled

Art-net IP 2.x.x.x.

Art-net IP 10.x.x.x.

Art-net Custom IP

Repeat on DMX

Æ

Disabled

Enabled on primary

Universe

Æ

000-255

Custom IP Address

IP address byte 1
IP address byte 2
IP address byte 3
IP address byte 4

000-255
000-255
000-255
000-255

Custom IP Mask

IP mask byte 1
IP mask byte 2
IP mask byte 3
IP mask byte 4

000-255
000-255
000-255
000-255

OPTIONS

Lamp DMX

Æ Æ

On / Off

Safety Black Out

Æ Æ

On / Off

Pan / Tilt

Invert Pan

Æ

On / Off

Invert Tilt

Æ

On / Off

Swap Pan-Tilt

Æ

On / Off

Encoder Pan-Tilt

Æ

On / Off

P/T Homing mode

Æ

Standard

Sequenced

Pan Home Def Pos

Æ

0 degree

90 degrees
180 degrees
270 degrees

Tilt Sensor

Æ

On / Off

Shutter Shutter On Error

Æ

On / Off

Dimmer Filter Type

Æ Æ

DMX follower

Position dependent

Macro Effects

Macro group size

Æ

02-15

Macro fixture ID

Æ

Auto by DMX Addr.

Fixed to 1-15

Silent Mode

Æ Æ

Standard

Quiet

Display

Æ Æ

On / Off

Safety Beam

Æ Æ

On / Off

Settings

Default Preset

Æ

Reset To Default

Go Back

User Preset 1

Æ

Load preset 1

Save to preset 1

User Preset 2

Æ

Load preset 2

Save to preset 2

User Preset 3

Æ

Load preset 3

Save to preset 3

MYTHOS

16

Main Menu Level 1 Level 2 Level 3 Choices / Values

INFORMATION

System Errors

Æ Æ

Read / Reset

Fixture Hours

T

otal Hours

Æ

R

ead

Partial Hours

Æ

Read / Reset

Lamp Hours

Total Hours

Æ

Read

Partial Hours

Æ

Read / Reset

Lamp Strikes

Total Strikes

Æ

Read

Partial Strikes

Æ

Read / Reset

System Version

CPU brd

Æ

Fw.rev. / Hw.rev.

com.dev

Æ

Fw.rev.

0:PT-3f

Æ

Fw.rev. / Hw.rev.

1:8-Ch

Æ

Fw.rev. / Hw.rev.

2:8-Ch

Æ

Fw.rev. / Hw.rev.

Board Diagnostic

0:PT-3f

Æ

Status / Err%

1:8-Ch

Æ

Status / Err%

2:8-Ch

Æ

Status / Err%

DMX Monitor Channels

Æ

Value / Percentage

Fans Monitor

PwrSp

Æ

Speed (RPM)

PwrSp

Æ

Speed (RPM)

Lamp

Æ

Speed (RPM)

Lamp

Æ

Speed (RPM)

Lamp

Æ

Speed (RPM)

Head Position

Æ Æ

X
Y
Z

Good Pkt

Bad Pkt
Uart Err

Ballast Fw Version

Æ Æ

xxxxx

Sensor status Channels

Æ

n.a / On / Off

Rot Gobs Indexing

Æ Æ

---

Network parameters

IP Address

Æ

---

IP Mask

Æ

---

MAC Address

Æ

---

MANUAL

C

ONTROL

Lamp

Æ Æ

On / Off

Reset

Æ Æ

Yes / No

Channels

Æ Æ

Value / Percentage

TEST

Pan / Tilt

Æ Æ

n.a.

Colour

Æ Æ

n.a.

Beam

Æ Æ

n.a.

Gobo

Æ Æ

n.a.

All

Æ Æ

n.a.

ADVANCED Access Code 1234

Service Mode

Æ

On / Off

Upload Firmware

Æ

Yes / No

Setup Model

Æ

Yes / No

Calibration Channels 000 - 255

Rot. Gobo Indexing

Æ

Yes / No

MYTHOS

17

Continue

➔

S

ET UP MENU

DMX ADDRESS

PLEASE NOTE: Without the DMX input signal, the displayed address (DMX Address) blinks.

It lets you select the address (DMX Address) for the control signal. A DMX address between 001 and 512 can be
s

elected.

CHANNEL MODE

This lets you select the projector operating mode, selecting one of the two available modes:

• Standard (30 DMX channels occupied, see Channel Function)

• Vector (34 DMX channels occupied, see Channel Function)

FIXTURE ID

It lets you set the “Fixture ID” to be assigned to the projector. An “ID” between 000 and 255 can be assigned.

ETHERNET INTERFACE

It lets you set Ethernet settings to be assigned to the projector as indicated below:

Control Protocol

It lets you select the “Control Protocol” Art-net to be assigned according to the control unit used; the options available are
the following:

• Disabled:

• Art-net on IP 2

• Art-net on IP 10

• Art-net Custom IP

If the Control Protocol option is set on Disabled, when an IP address (IP2, IP10 or IP Custom) is selected, the projector
immediately initializes the IP address that was just selected.
If the Control Protocol option is enabled (IP2, IP10 or IP Custom) and a new one is selected that is different from the
previous one, the projector must be restarted so that it will be correctly initialized.

Repeat on DMX

It lets you enable/disable the transmission of the Ethernet protocol by DMX signal to all the connected projectors.

• Disabled: DMX transmission disabled.

• Enabled on primary: DMX transmission enabled.

Universe

It lets you set the “DMX Universe” to be assigned to a series of projectors with values between 000 and 255.

Custom IP Address

It lets you to set the select the “IP Address” Art-net to be assigned, according to the control unit used, with values
between 000 and 255.

Custom IP Mask

It lets you to set the select the “IP Mask” Art-net to be assigned, according to the control unit used, with values between
000 and 255.

MYTHOS

18

O

PTIONS MENU

LAMP DMX

It lets you enable (ON) the lamp remote control channel. Select OFF to turn off or disable this option.

SAFETY BLACK OUT

This allows the Dimmer's automatic lock option to be activated (ON) after 3 seconds with no incoming DMX signal. Select
OFF to turn off or disable this option.

P

AN / TILT

Invert Pan

It lets you enable (ON) Pan reverse movement. Select OFF to turn off or disable this option.

Invert Tilt

It lets you enable (ON) Tilt reverse movement. Select OFF to turn off or disable this option.

Swap Pan-Tilt

It lets you enable (ON) Pan and Tilt channel inversion (and simultaneously Pan fine and Tilt fine). Select OFF to turn off or
disable this option.

Encoder Pan-Tilt

It lets you enable (ON) or disable (OFF) Pan and Tilt Encoder operations.

You can quickly disable the Pan and Tilt Encoder by simultaneously pressing the UP (Ĺ) and DOWN(Ļ) keys in the
''Main Menu''.

P/T Homing Mode

It lets you set the initial Pan and Tilt Reset mode.

• Standard: Pan & Tilt are simultaneously reset.

• Sequenced: Tilt is reset first followed by Pan.

Pan Home Def Pos

It lets you assign the Pan channel “home” position at the end of Reset (without a DMX input signal), selecting one from
the 4 available positions:

• 0 degree

• 90 degrees

• 180 degrees

• 270 degrees (default)

TILT SENSOR

Allows you to enable (ON)/disable(OFF) the vertical test sensor of Tilt position.

SHUTTER
Shutter on error

It lets you activate (ON) automatic "Stopper/Strobe" closing in the event of Pan/Tilt positioning error. Select OFF to turn
off or disable this option.

DIMMER FILTER TYPE

It lets you best optimise the "Dimmer curve" according to that set on the control panel. One of the following 2 options can
be selected:

DMX follower
Dimmer movement speed/linearity follows the DMX values set by the panel.
Position dependent

Dimmer movement speed follows the DMX values set by the panel taking into account the physical Dimmer starting
position.

MYTHOS

19

Continue

➔

MACRO EFFECTS

It allows you to select one of the 2 following options:

Macro Group size: Lets you select the number of projectors (minimum 2 and maximum 15) to be included in the “Macro
Effects” channel operation.

M

acro fixture ID: It lets you attribute an ID address to the projector for the phase displacement for the scene’s starting

time in Macro Effects channel.

• Fixed to 1-15: (to assign to all the projectors to be included in the Macro Effects operation).

•

Auto by DMX Address: According to the DMX address, it automatically detects the starting sequence of the scene

i

n the Macro mode (to assign to all the projectors to be included in the Macro Effects channel operation).

SILENT MODE

Allows you to set the preferred mode of the 2 available:

Standard

Maximum speed and thus maximum noise effects.

Quiet

It handles the speed of some effects (Pan, Tilt, Focus), reducing the noise level.

DISPLAY

It lets you activate (ON) display brightness reduction after about 30 seconds in idle status. Select OFF to turn off or
disable this option.

SAFETY BEAM

It lets you turn ON a light beam temperature reduction when Focus movement is 50% over its stroke, if no CMY colour
wheels are inserted, Soft Filter is automatically inserted on the Cyan wheel.

SETTINGS

Used to save 3 different settings of the items in the option menu and relevant submenus.

• Default preset (*)

• User preset 1

• User preset 2

• User Preset 3

- Load preset 'X’ is used to recall a previously stored configuration.

- Save to preset ‘X’ is used to save the current configuration.

(*) DEFAULT PRESET
It lets you restore default values on all option menu items and relevant submenus.

Press the left and right arrows/keys simultaneously in the "main menu” to quickly restore default values
(DEFAULT PRESET).

MYTHOS

20

INFORMATION MENU

S

YSTEM ERRORS

It displays a list of errors that occurred when the projector was turned on.
To reset the SYSTEM ERRORS list, press OK. A confirmation message appears (Are you sure you want to clear error
list?). Select YES to confirm reset.

FIXTURE HOURS

It lets you view projector working hours (total and partial).

T

otal counter

It counts the number of projector working life hours (from construction to date).

Partial counter

It counts the number of projector partial working life hours from the last reset to date.

Press OK to reset the partial counter. A confirmation message appears on the display (Are you sure ?)
Select YES to confirm reset.

LAMP HOURS

It lets you view lamp working hours (total and partial).

Total counter

It counts the number of projector working hours with the lamp on (from construction to date).

Partial counter

It counts the number of lamp partial working hours from the last reset to date.

Press OK to reset the partial counter. A confirmation message appears on the display (Are you sure ?)
Select YES to confirm reset.

LAMP STRIKES

It lets you view how many times the lamp was turned on (total and partial).

Total counter

It counts the number of times the lamp was turned on (from construction to date).

Partial counter

It counts the number of times the lamp was turned on from the last reset to date.

Press OK to reset the partial counter. A confirmation message appears on the display (Are you sure ?)
Select YES to confirm reset.

SYSTEM VERSION

It lets you view the hardware and software versions for each electronic board in the projector.

• CPU brd (CPU board)

• 0: PT-3f (Pan / Tilt

board)

• 1: 8-Ch (8-channel board)

• 2: 8-Ch (8-channel board)

BOARD DIAGNOSTIC

It lets you view the percent errors for each electronic board installed in the projector

• 0: PT-3f (Pan / Tilt board)

• 1: 8-Ch (8-channel board)

• 2: 8-Ch (8-channel board)

DMX MONITOR

It lets you view the level of projector DMX channels in bit (Val) and in percent.

MYTHOS

21

Continue

➔

FANS MONITOR

It lets you view the speed of each fan installed in the projector:

•

Lamp (lamp cooling fan)

• Pwr.Sup (PSU cooling fan)

HEAD POSITION

It lets you view the projector head position with reference to the X, Y and Z axes. It also provides further information on:

•

Good pkt: number of correctly received signal packets

• Bad pkt: number of incorrectly received signal packets

• Uart Err.: UART reception errors

BALLAST FIRMWARE VERSION

It lets you view the firmware versions of the Ballast inside the fixture.

SENSOR STATUS

It lets you check the correct operations of each "sensor” installed in the projector, each channel is associated with one of
the following three parameters:

• n.a.= sensor not available

• ON= sensor working

• OFF= sensor defective

ROT GOBOS INDEXING

It lets you check whether the rotating gobo wheel gobo indexing procedure should be run, if indexed, "Indexing Active"
appears on the display, otherwise "Indexing required!” appears

If necessary, indexing should be activated from the Advanced menu.

NETWORK PARAMS

Lets you view the projector "Network" parameters meaning:

IP address: Internet Protocol address (two projectors must not have the same IP address)
IP mask: 255.0.0.0
Mac address: Media Access Control; the projector’s Ethernet Address.

MYTHOS

22

M

ANUAL CONTROL

LAMP

It lets you turn the lamp on (ON) or off (OFF) from the projector control panel.

RESET

It lets you reset the projector from the projector control panel.

CHANNEL

It lets you set the channel DMX levels from the projector control panel (value between 0 and 255 bit or between 0% and
100%).

TEST MENU

It lets you test the correct operations of effects using saved Tests.

ADVANCED MENU

To open the “Advanced Menu”, enter the code (1234)

SERVICE MODE

It lets you disable (ON) the projector Beam operating mode.

UP LOAD FIRMWARE

It lets you transfer "firmware" from one projector to all other connected projectors. A confirmation message appears on
the display (Are you sure ?) Select YES to confirm or NO to abort this operation.

SETUP MODEL

It lets you change the projector model (operation probably necessary after replacing the CPU during repairs). A
confirmation message (Are you sure ?)

appears on the display Select YES to confirm (the list of available and selectable

projectors appears) or NO to abort this operation.

CALIBRATION

It lets you make small mechanical adjustments on some effects to perfectly align projectors from the control panel.

Factory default

It lets you restore default "Calibration” values (128 bit) on all channels.

ROT GOBOS INDEXING

It lets you run the rotating gobo wheel gobo indexing procedure. This operation may be necessary after projector
maintenance/cleaning.

MYTHOS

23

2

1

1/4 Turn

1

4

1/4 Turn

3

2

MAINTENANCE

10 11

Locking and releasing Pan and Tilt movements - Refer to the instructions in the UNPACKING AND PREPARATION section.
Opening the head covers - Fig. 10.

Closing the head covers - Fig. 11.

MYTHOS

24

Lower Side

Lower Side Lower Side

Upper Side

1

2

NOTE: keep a careful
cleaning of the ''CMY/colour
filters assembly'' to prevent
rapid deterioration.

Periodical cleaning - Fig. 12

To ensure optimal operation and performance for a long time it is essential to periodically clean the parts subject to dust and grease deposits. The
frequency with which the following operations are to be carried out depends on various factors, such as the amount of the effects and the quality of the
working environment (air humidity, presence of dust, salinity, etc.).
Use a soft cloth dampened with any detergent liquid for cleaning glass to remove the dirt from the reflectors, from the lenses and filters. It is recommended
that the projector undergoes an annual service by a qualified technician for special maintenance involving at least the following operations:

• General cleaning of internal parts.

• Restoring lubrication of all parts subject to friction, using lubricants specifically supplied by Clay Paky.

• General visual check of the internal components, cabling, mechanical parts, etc.

• Electrical, photometric and functional checks; eventual repairs.
NOTE: keep a careful cleaning of the ''CMY/colour filters assembly'' to prevent rapid deterioration.

Continue

MYTHOS

25

➔

1

4

3

2

1

3

Cleaning of the filters - Fig. 13.

MYTHOS

26

L

ower Side

1

2

1

3

2

1

2

1

45°

14

remove the fan

r

emove the lamp

contacts protection

unscrew a bit the 4 nuts

to facilitate the lamp

replacement

15

pay attention to the

right position of the

lamp contacts
(see pictures)

pay attention to the

right position of the

lamp contacts
(see pictures)

Lamp change - Fig 14.
Take the new lamp out of its package and insert in the fitting.

WARNING: do not touch the lamp’s envelope with bare hands. Should this happen, clean the bulb with a cloth soaked in alcohol and dry it
with a clean, dry cloth.

Lamp regulation - Fig. 15
To centre the lamp, turn the adjusting screw as shown in the figure.

WARNING: The lamp must be adjusted with the projector switched off. After adjusting, close the effects covers, switch on the projector and check
that the adjustment has been correctly made. If necessary, switch off the projector, remove the effects covers and repeat lamp adjustment.

REMARK:

- Lifetime of the lamp will be influenced by the switching cycle.

- After a successful starting, attempt to keep the lamp burning for at least 15 minutes in order to complete the chemical cycle of the

- Before switch off the fixture, is necessary to keep closed the dimmer channel for at least 5 seconds, this is to ensure a better working

WARNING:

• The projector needs to be positioned so that the objects hit by the beam of light are at least 18 metres (59’1”) from the lens of the projector.

MYTHOS

lamp to secure the lifetime.

/ reliability of the lamp itself (it is recommended to turn off the lamp when it is dimmed).

A “Soft filter” is available on the Supersharpy (Channel 4 - Colour1 - DMX bit=50) when this ''Soft Filter'' is into the beam, the
projector can be used at a minimum distance of 12 metres from illuminated objects.

27

Continue

➔

G

OD007-004

GOD007-005

G

OD007-002

GOD007-001

G

OD007-003

GOD007-006

G

obo 5

Gobo 6

Gobo 4

Gobo 3

Gobo 2

Gobo 1

1

5

Rotating gobo wheel - Fig. 15.
ATTENTION:

- Before use custom gobos contact Clay Paky;

- The original gobos have a special coating designed specifically to resist to the high temperatures in the Prima Supersharpy;

- The rotating gobo wheel only use dichroic glass gobos (it is not possible to use metal gobos);

- For more information contact Clay Paky.

MYTHOS

28

2

1

6

3

4

5

16

Battery removal - Fig. 16

This product contains a rechargeable lead-acid or lithium iron tetraphosphate battery. To preserve the environment, please dispose the battery
at the end of its life according to the regulation in force.

LiFePO4

Pb

MYTHOS

29

TECHNICAL INFORMATION

380

(14.96")

4

20

(16.53")

396

(15.59")

L

ens IN

611 (24.05")

Lens OUT

628 (24.72")

5

70

(22.44")

Lens OUT

427 (16.81")

L

ens IN

408 (16.06")

Lens IN&OUT

4

55 (17.91")

Power supplies

• 115/230V 50/60 Hz

• Automatic Power supply switching

Input power

700VA at 230V 50Hz

Total lumen output

Max 24.000 lumens

Light source

470W discharge lamp

- Type: Philips MSD Platinum 20R

- Color Temperature: 7.800 K

- Life: 1,500hrs

- Luminoux flux: 23.000 lm

- Cap by faston TM 250 (6.35 mm)

Motors

20 stepper motors, operating with microsteps,
totally microprocessor controlled.

Channels

30/34 control channels.

Inputs

• DMX 512

• Ethernet

Moving body

Automatic repositioning of PAN and TILT after
accidental movement not controlled by control unit.

PAN

• Angle Rotation: 540°

• Fast speed: 3.517 sec

• Normal Speed: 4.038 sec

• Resolution PAN: 2.11°

• Resolution PAN FINE: 0.008°
Accuracy:
Resolution ± 0,3° (Range 0,6°)

TILT

• Angle Rotation: 244°

• Fast speed: 2.180 sec

• Normal Speed: 2.274 sec

• Resolution TILT: 0.96°

• Resolution TILT FINE: 0.004°
Accuracy:
Resolution ± 0,3° (Range 0,6°)

MYTHOS

Noise level

50 dBA

Weight

32 Kg (70.54 lbs)

IP rating

• IP20

• Protected against the entry of solid bodies
larger than 12mm (0.47”).

• No protection against the entry of liquids.

Safety devices

• Bipolar circuit breaker with thermal protection.

• Automatic break in power supply in case of
overheating or failed operation of cooling
system.

Cooling

Forced ventilation with fans.

Body

• Aluminium structure with plastic cover.

• Two side handles for transportation.

• Device locking PAN and TILT mechanisms for
transportation and maintenance.

Working position

• Any Working Position

• Hanging system: with fast-lock omega clamps
(1/4 turn) on the base

Optics

• 157mm diam. front lens

• Electronic focusing for a perfectly sharp light
beam along its entire length

• Zoom ranging from 4,5° to 30,8° for fixed
gobos sharp focusing

• Zoom range from 6,5° to 47,3° for rotating
gobos sharp focusing

• BEAM mode with 2,5° aperture and “pipe”
effect

Color system

• CMY color system based on 3 gradually fading
color wheels

• 11 color filters on three wheels

• 2 CT0 filters (3,200K and 2,500K) + 1 CTB
filter

30

Effects section

• 2 gobo wheels

• Wheel with 6 HQ dichroic, indexable and
interchangeable rotating gobos.

• Interchangeable and variable rotation wheel
with 18+1 fixed metal gobos (including 6 beam
reducers).

• Selectable gobo-shake function

• Advanced Visual Effect Disc (Animation disc)

• 2 indexable and interchangeable rotating
prisms (8-facet and linear prism)

• Frost unit to soften the beam edge

• 0-100% Mechanical dimmer

• Mechanical shutter and adjustable speed
strobe effect

Control and programming

• 30/34 DMX 512 control channels

• DMX protocol signal: USITT DMX 512

• Display: Graphic LCD backlit b/w Display

• Pan/Tilt Resolution: 16 bit

• Gobo Indexing Resolution: 16 bit

• Focus Indexing Resolution: 16 bit

• Dimmer Resolution: 16 bit

• Movement control: vectorial

• DMX signal connection: 3 and 5 pole XLR input
and output

• Software upload through DMX input

Electronics

• Long life self-charging buffer battery.

• Pre-set macros.

• Function reset from control unit

• ON/OFF lamp control from the lighting desk.

• Function reset from the lighting desk.

• "AUTOTEST" function from menù

• ETHERNET Ready.

• Electronic monitoring with status error

• Cooling system monitoring

• DMX level monitoring on all channels

• Internal data transmission diagnostics

• Firmware Upgrade with no power

• Firmware upload from another fixture

THE PROJECTOR WILL NOT SWITCH ON

ELECTRONICS NON-OPERATIONAL

DEFECTIVE PROJECTION

REDUCED LUMINOSITY

POSSIBLE CAUSES CHECKS AND REMEDIES

No mains supply.
Lamp exhausted or defective.
Signal transmission cable faulty or disconnected.
Incorrect addressing.
Fault in the electronic circuits.
Lenses or reflector broken
Dust or grease deposited.

CAUSE AND SOLUTION OF PROBLEMS

Check the power supply voltage.
Replace the lamp. (See instructions).
Replace the cables.
Check addresses (see instructions).
Call an authorised technician.
Call an authorised technician.
Clean (see instructions).

P

ROBLEMS

MYTHOS

31

CHANNEL FUNCTION

CHANNEL

CHANNEL MODE

STANDARD VECTOR

1 CYAN COLOUR WHEEL CYAN COLOUR WHEEL
2 MAGENTA COLOUR WHEEL MAGENTA COLOUR WHEEL
3 YELLOW COLOUR WHEEL YELLOW COLOUR WHEEL
4 COLOUR 1 COLOUR 1
5 COLOUR 2 COLOUR 2
6 COLOUR 3 COLOUR 3
7 STOPPER / STROBE STOPPER / STROBE
8 DIMMER DIMMER

9 DIMMER FINE DIMMER FINE
10 STATIC GOBO CHANGE STATIC GOBO CHANGE
11 ANIMATION DISK INSERTION ANIMATION DISK INSERTION
12 ANIMATION DISK ROTATION ANIMATION DISK ROTATION
13 ROTATING GOBO SELECT ROTATING GOBO SELECT
14 GOBO ROTATION GOBO ROTATION
15 FINE GOBO ROTATION FINE GOBO ROTATION
16 PRISMS INSERTION PRISMS INSERTION
17 PRISMS ROTATION PRISMS ROTATION
18 FROST FROST
19 ZOOM ZOOM
20 FOCUS FOCUS
21 FOCUS FINE FOCUS FINE
22 BEAM MODE BEAM MODE
23 PAN PAN
24 FINE PAN FINE PAN
25 TILT TILT
26 FINE TILT FINE TILT
27 FUNCTION FUNCTION
28 RESET RESET
29 LAMP CONTROL LAMP CONTROL
30 MACRO EFFECTS MACRO EFFECTS
31 - PAN-TILT TIME
32 - COLOUR TIME
33 - BEAM TIME
34 - GOBO TIME

NB: To prevent accidental breakage of the effects,

MYTHOS

which could collide with each other during transport,
before switching the projector OFF check that all the
projector Channels have been excluded (DMX level = 0%).

MYTHOS

32

Channel Mode

DMX

Value

Function

S

tandard

V

ector

CYAN COLOUR WHEEL

0 - 255 Linear Cyan movement

MAGENTA COLOUR WHEEL

0

- 255 Linear Magenta movement

YELLOW COLOUR WHEEL

0 - 255 Linear Yellow movement

COLOUR 1

0 Empty position

28 Empty + Soft Filte

r

50 Soft Filte

r

80 Soft Filter + Lavende

r

100 Lavende

r

129 Lavender + CTO 3200K
150 CTO 3200K
181 CTO 3200K + CTO 2500K
204 CTO 2500K
235 CTO 2500K + Blue Wood (UV Filter)
255 Blue Wood (UV Filter)

COLOUR 2

0 Empty position
28 Empty + Dark Green
50 Dark Green
75 Dark Green + CTB

100 CTB
129 CTB + Dark Blue
150 Dark Blue
178 Dark Blue + H.M.Green
200 H.M.Green
235 H.M.Green + Dark Red
255 Dark Red

MYTHOS

Continue

33

➔

C

hannel Mode

DMX

Value

Function

Standard Vector

C

OLOUR 3

0

Empty position
28 Empty + Light Green
50 Light Green
77 Light Green + Pink

100 Pink
129 Pink + Aquamarine
150 Aquamarine
181 Aquamarine + Dark Orange
200 Dark Orange
231 Dark Orange + Light Orange
255 Light Orange

STOPPER / STROBE

0 - 3 Light OFF

4 - 103

Strobe at linearly variable frequency

from low (1 flash/sec) to high (12 flashes/sec)

104 - 107 Light ON

108 - 207

Pulsation at linearly variable speed

from slow (0.5 flash/sec) to fast (12 flashes/sec)

208 - 212 Light ON
213 - 225 Random Strobe at low frequency
226 - 238 Random Strobe at medium frequency
239 - 251 Random Strobe at high frequency
252 - 255 Light ON

DIMMER

0 - 255

Light output linearly increase from no-light to maximum brightness.

Dimmer blades move from totally closed to totally open in 0.02 seconds at

maximum speed.

DIMMER FINE

0 - 255 Fine Dimmer positioning

MYTHOS

34

C

hannel Mode

DMX

Value

Function

Standard Vector

S

TATIC GOBO CHANGE

0

Empty position

4 Gobo 1

8 Gobo 2
12 Gobo 3
16 Gobo 4
19 Gobo 5
23 Gobo 6
27 Gobo 7
31 Gobo 8
35 Gobo 9
38 Gobo 10
42 Gobo 11
46 Gobo 12
50 Gobo 13
54 Gobo 14
57 Gobo 15
61 Gobo 16
65 Gobo 17
69 Gobo 18

72 - 113

Continuous gobo wheel clockwise rotation at linearly variable speed
from fast (60 rpm) to slow (5 rpm)

114 - 117 Stop rotation

118 - 159

Continuous gobo wheel counter-clockwise rotation at linearly variable

speed from slow (5 rpm) to fast (60 rpm)
160 - 165 Gobo 1 shakes at variable speed from slow (24 bpm) to fast (600 bpm)
166 - 170 Gobo 2 shakes at variable speed from slow (24 bpm) to fast (600 bpm)
171 - 175 Gobo 3 shakes at variable speed from slow (24 bpm) to fast (600 bpm)
176 - 181 Gobo 4 shakes …
182 - 186 Gobo 5 shakes …
187 - 191 Gobo 6 shakes …
192 - 197 Gobo 7 shakes …
198 - 202 Gobo 8 shakes …
203 - 207 Gobo 9 shakes …
208 - 214 Gobo 10 shakes …
215 - 218 Gobo 11 shakes …
219 - 223 Gobo 12 shakes …
224 - 229 Gobo 13 shakes …
230 - 234 Gobo 14 shakes …
235 - 239 Gobo 15 shakes …
240 - 245 Gobo 16 shakes …
246 - 250 Gobo 17 shakes …
251 - 255 Gobo 18 shakes …

MYTHOS

35

Continue

➔

C

hannel Mode

DMX

Value

Function

Standard Vector

A

NIMATION DISK INSERTION

0

- 255 Linear Animation Disk Insertion

ANIMATION DISK ROTATION

0

- 124

Continuous animation disk clockwise rotation at linearly variable speed

from fast (120 rpm) to slow (4.4 rph)
125 - 130 Stop rotation

131 - 255

Continuous animation disk counter-clockwise rotation at linearly

variable speed from slow (4.4 rph) to fast (120 rpm)

ROTATING GOBO SELECT

0 - 18 Empty position
19 - 37 Gobo 1
38 - 56 Gobo 2
57 - 74 Gobo 3
75 - 92 Gobo 4

93 - 111 Gobo 5
112 - 129 Gobo 6
130 - 150 Gobo 1 shakes at variable speed from slow (xx bpm) to fast (xx bpm)
151 - 171 Gobo 2 shakes at variable speed from slow (xx bpm) to fast (xx bpm)
172 - 192 Gobo 3 shakes …
193 - 213 Gobo 4 shakes …
214 - 234 Gobo 5 shakes …
235 - 255 Gobo 6 shakes …

GOBOCHANGE effect disabled if BEAM MODE is working

GOBO ROTATION

0 - 21 Gobo indexing: 0° to 90° range
21 - 42 Gobo indexing: 90° to 180° range
42 - 63 Gobo indexing: 180° to 270° range
63 - 84 Gobo indexing: 270° to 360° range

84 - 105 Gobo indexing: 360° to 450° range

105 - 127 Gobo indexing: 450° to 540° range

128 - 190

Continuous gobo rotation at linearly variable speed from fast (180 rpm)
to slow (2.2 rph)

191 - 192 Stop rotation

193 - 255

Continuous gobo rotation at linearly variable speed from slow (2.2 rpm)
to fast (180 rpm)

ROTATING GOBO effect disabled if BEAM MODE is working

FINE GOBO ROTATION

0 - 255 Fine Gobo Indexing

PRISM INSERTION

0 - 10 Prism out

11 - 132 Prism 1 into the light beam

133 - 255 Prism 2 into the light beam

PRISMeffect disabled if BEAM MODE is workin

g

MYTHOS

36

Channel Mode

D

MX

Value

F

unction

Standard Vector

PRISMS ROTATION

0 - 21 Prism indexing: 0° to 90° range
21 - 42 Prism indexing: 90° to 180° range
42 - 63 Prism indexing: 180° to 270° range
63 - 84 Prism indexing: 270° to 360° range

84 - 105 Prism indexing: 360° to 450° range

105 - 127 Prism indexing: 450° to 540° range

128 - 190

Continuous prism rotation at linearly variable speed from fast (43 rpm)
to slow (1.1 rph)

191 - 192 Stop rotation

193 - 255

Continuous prism rotation at linearly variable speed from slow
(1.1 rpm) to fast (43 rpm)

PRISM effect disabled if BEAM MODE is workin

g

FROST

0 - 255

Frost moves linearly into the light beam

Frost blades move from no-diffusion to maximum diffusion in 0.02 seconds at
maximum speed.

ZOOM

0 - 255 Zoom linearly moves from narrow to wide beam

FOCUS

0 - 255

Focus moves linearly from far to near position.

Focus lenses move from farest to nearest position in 1.11 seconds at
maximum speed.

FOCUS FINE

0 - 255 Fine Focus positioning

BEAM MODE

0 - 127 Zoom / Autofocus mode

128 - 255 Beam Mode

ROTATING and CHANGE GOBO / PRISM / ZOOM effec

t

s disabled if

BEAM MODE is working

PAN

0 - 255

Pan movement/positioning from 0° to 540°

• Fast Speed: 3.517 sec

• Normal Speed: 4.038 sec

FINE PAN

0 - 255 Fine Pan positioning

TILT

0 - 255

Tilt movement/positioning from 0° to 244°

• Fast Speed: 2.180 sec

• Normal Speed: 2.274 sec

FINE TILT

0 - 255 Fine Tilt positioning

MYTHOS

Continue

37

➔

Channel Mode

D

MX

V

alue

F

unction

Standard Vector

FUNCTION

0

- 11 Unused range
12 - 24 Fast Pan / Tilt speed (default)
25 - 37 Normal Pan / Tilt speed
63 - 75 CMY Full Range (default)
76 - 87 CMY Limited range

88 - 101 CMY shortcut ON (default)
102 - 114 CMY shortcut OFF
115 - 255 Unused range

T

he functions are activated/selected passing through the unused levels range

and staying in the necessary range for 5 seconds.

RESET

0 - 25 Unused range

26 - 76

Zoom Reset

Zoom Reset sequence is activated passing through the unused levels range
and staying in this range for 5 seconds

77 - 127

Pan / Tilt Reset

Pan/Tilt Reset sequence passing through the unused levels range and staying
in this range for 5 seconds.

128 - 255

Complete Reset

All-effects Reset sequence passing through the unused levels range and
staying in this range for 5 seconds.

LAMP CONTROL

0 - 25 Unused range

26 - 100

Lamp OFF

Lamp switch-off passing through the unused levels range and staying in this
range for 5 seconds.

101 - 255

Lamp ON

Lamp switch-on passing through the unused levels range and staying in this
range for 5 seconds.

MACRO EFFECTS

0 – 7 Macro OFF

8 – 11 Standby
12 – 15 Standby black
16 – 45 Zoom IN Faded
46 – 75 Zoom OUT Faded

76 – 105 Zoom IN OUT
106 – 135 Standby Black 1
136 – 165 Zoom IN Faded Random
166 –

195 Zoom OUT Faded Random

196 – 225 Zoom IN OUT Random

226 - 255 Standby Black 2

PAN-TILT TIME

Pan - Fine Pan - Tilt - Fine Tilt

COLOUR TIME

Cyan - Magenta –Yellow

BEAM TIME

Dimmer - Frost - Prism –Focus - Zoom

GOBO TIME

Static Gobo –Rotating Gobo

MYTHOS

38

TIME TABLE

BIT Seconds

0 Full

1 0.2
2 0.4
3 0.6

4 0.8
5 1
6 1.2
7 1.4
8 1.6
9 1.8
10 2
11 2.2
12 2.4
13 2.6
14 2.8
15 3
16 3.2
17 3.4
18 3.6
19 3.8
20 4
21 4.2
22 4.4
23 4.6
24 4.8
25 5
26 5.2
27 5.4
28 5.6
29 5.8
30 6
31 6.2
32 6.4
33 6.6
34 6.8
35 7
36 7.2
37 7.4
38 7.6
39 7.8
40 8
41 8.2
42 8.4

BIT Seconds

43 8.6

44 8.8
45 9
46 9.2

47 9.4
48 9.6
49 9.8
50 10
51 10.2
52 10.4
53 10.6
54
55
56
57
58
59

11

12

13

60
61 14
62
63
64

15

65
66 16
67
68
69

17

70
71 18
72
73
74

19

75
76 20
77
78
79 21
80
81
82

22

83
84 23
85

BIT Seconds

86

87

24

88
89 25

90
91
92

26

93
94 27
95
96
97

28

98
99 29
100
101
102 30
103
104
105

31

106
107 32
108
109
110

33

111
112 34
113
114
115

35

116
117 36
118
119
120

37

121
122 38
123
124
125 39
126
127
128

40

BIT Seconds

129

130 41
131
132

133

2

4

134
135 43
136
137
138

44

139
140 45
141
142
143

46

144
145 47
146
147
148

48

149
150 49
151
152
153 50
154
155
156

51

157
158 52
159
160
161

53

162
163 54
164
165
166

55

167
168 56
169
170
171

57

BIT Seconds

172
173 58
174
175
176 59
177
178
179

0

6

180
181 65
182
183
184

70

185
186 75
187
188
189

80

190
191 85
192
193
194

90

195
196 95
197
198
199

100

200
201 110
202
203
204 120
205
206
207

130

208
209 140
210
211
212

150

213
214 160
215

BIT Seconds

216

217

170

218
219 180

220
221
222

190

223
224 200
225
226
227 210
228
229
230

220

231
232 230
233
234
235

240

236
237 250
238
239
240

260

241
242 270
243
244
245

280

246
247 290
248
249
250

300

251
252
253

310

254

Follow cue

255
Data

MYTHOS

39

CLAY PAKY S.p.A. - Via Pastrengo, 3/b - 24068 Seriate (BG) Italy - Tel. [phone] - Fax [phone] - www.claypaky.it

IST00L/001 – EN - Rev.0 04/2015
