• Drip - tight, positive seating

• Service without removal from line

• Screwed or flanged ends

• Globe or angle pattern

• Every valve factory-tested

The Cla-Val Model 100S/2100S Seawater Service Hytrol Valve
is a hydraulically operated, diaphragm actuated, globe or
angle pattern valve. It consists of three major components:
body, diaphragm assembly and cover. The diaphragm assem­bly is the only moving part.

The body (ductile iron or cast steel) is epoxy coated and contains
a removable seat insert. The diaphragm assembly is guided top
and bottom by a precision machined stem. It utilizes a non-wick­ing diaphragm of nylon fabric bonded with synthetic rubber. A
resilient synthetic rubber disc retained on three and one half sides
by a disc retainer forms a drip-tight seal with the renewable seat
when pressure is applied above the diaphragm.

The Model 100S/2100S Seawater Service Hytrol Valve is the
basic valve used for seawater applications. It is the valve of
choice for system applications requiring deluge, pressure regu­lation, pressure relief, solenoid operation, rate of flow control, liq­uid level control or check valve operation. The rugged simplicity
of design and packless construction assure a long life of
dependable, trouble-free operation. It is available in various
materials and in a full range of sizes, with either screwed or
flanged ends. Its applications are unlimited.

Modulating Action

The valve holds any intermediate position
when operating pressures are equal above
and below the diaphragm. A Cla-Val “modu­lating” pilot control will allow the
valve to auto matically compen­sate for line pressure changes.

Principle of Operation

Full Open Operation

When pressure in the

cover chamber
is relieved to a zone of lower pres­sure, the line pressure at the valve
inlet opens the valve, allowing full flow.

Tight Closing Operation

When pressure from the valve inlet
is applied to the cover chamber, the
valve closes drip-tight.

Seawater Service Hytrol Valve

100S

2100S

MODEL

On-Off Control

Modulating

Control

On-Off Control

Specifications

2" Globe,100S

4" Globe,100S

4" Angle, 2100S

When Ordering, Please Specify:

1. Model No. 100S or No. 2100S

2. Valve Size

3. Pattern - Globe or Angle

4. Pressure Class

5. Screwed or Flanged

6. Temperature and fluid to be handled.

7. Static and Flowing Line Pressure.

8. Body & Trim Material

9. Desired Options

10. When Vertically Installed

Purchase Specifications

The Model 100S/2100S shall be a hydraulically operated, diaphragm-actuated, globe or
angle pattern valve. It shall contain a resilient, synthetic rubber disc, having a rectangular
cross-section, contained on three and one-half sides by a disc retainer and disc guide,
forming a tight seal against a single removable seat insert. The diaphragm assembly, con­taining a valve stem, shall be fully guided at both ends by a bearing in the valve cover and
an integral bearing in the valve seat. This diaphragm assembly shall be the only moving
part and shall form a sealed chamber in the upper portion of the valve, separating operat­ing pressure from line pressure. The diaphragm shall consist of nylon fabric bonded with
synthetic rubber and shall not be used as a seating surface. Packing glands or stuffing
boxes are not permitted and there shall be no pistons operating the valve or its pilot con­trols. All necessary repairs shall be possible without removing the valve from the line. All
materials shall be compatible with seawater.
Valve shall be Model 100S/2100S manufactured by Cla-Val, Newport Beach, CA 92659-0325

For assistance in selecting appropriate valve
options or valves manufactured with special
design requirements, please contact our
Regional Sales Office or Factory.

Available Sizes

Pattern Threaded Flanged Grooved End

Globe3⁄8" - 3" 11⁄2" - 36" 11⁄2"-2"- 3"- 4"- 6"

Angle 11⁄4" - 3" 2" - 16" 2" - 3" - 4"

Operating Temp. Range

Fluids

-40° to 180° F

Pressure Ratings (Recommended Maximum Pressure - psi)

Valve Body & Cover

Pressure Class

Flanged Threaded

Material

Material

Specifications

ANSI

Standards**

150 Lb. 300 Lb.

End***
Details

Ductile Iron* ASTM-A536 B16.42 250 400 400

Cast Steel* ASTM A216 B16.5 285 400 400

Naval Bronze ASTM B61 B16.24 225 400 400

Stainless Steel
Type 316

ASTM A743-CF-8M B16.5 285 400 400

NI.AL.Bronze ASTM B148 B.16.24 225 400 400

Super Duplex
Stainless Steel

B16.5 285 400 400

Note: *Fusion Bonded Epoxy Coated Internal and External.

**ANSI Standards are for flanged dimensions only.

Flanged Valves are available faced but not drilled

***End Details machined to ANSI B2.1 specifications

Model 100S/2100S Flow Chart (Based on normal flow through a wide open valve)

K =

894d

4

C

2

v

L =

K
12 f

K Factor (Resistance Coefficient)

The Value of K is calculated from the formula:
(U.S. system units)

Equivalent Length of Pipe

Equivalent lengths of pipe (L) are determined from the formula:
(U.S. system units)

Fluid Velocity

Fluid velocity can be calculated from the following formula:
(U.S. system units)

d

V =

.4085 Q

2

d

C

V

Factor

Formulas for computing C Factor, Flow (Q) and Pressure Drop

V

( P):

C

V

=

Q

P

C

V

=

Q

P

C

V

=

Q

P

2

V

Where:

U.S. (gpm) @ 1 psi differential at 60 F water

(l/s) @ 1 bar (14.5 PSIG) differential

or

at 15 C water

inside pipe diameter of Schedule 40 Steel Pipe (inches)

friction factor for clean, new Schedule 40 pipe

(dimensionless) (from Cameron Hydraulic Data,

18th Edition, P 3-119)

Resistance Coefficient (calculated)

Equivalent Length of Pipe (feet)

Flow Rate in U.S. (gpm) or (l/s)

Fluid Velocity (feet per second) or (meters per second)

Pressure Drop in (psi) or (bar)

=

=

=

=

=

=

=

=

=

P

V

Q

L

K

f

d

C

Functional Data Model 100S/2100S

*Estimated

Valve Size

Inches

3⁄81⁄23

⁄4 1 11⁄4 11⁄2 2 21⁄2 3 4 6 8 10 12 14 16 24 36

mm.

10 15 20 25 32 40 50 65 80 100 150 200 250 300 350 400 600 900

C

V

Factor

Globe

Pattern

Gal./Min. (gpm.)

1.8 6 8.5 13.3 30 32 54 85 115 200 440 770 1245 1725 2300 2940 7655 13320

Litres/Sec. (l/s.)

.43 1.44 2.04 3.2 7.2 7.7 13 20.4 27.6 48 105.6 184.8 299 414 552 706 1837 3200

Angle

Pattern

Gal./Min. (gpm.)

— — — — 27 29 61 101 139 240 541 990 1575 2500* 3060* 4200* — —

Litres/Sec. (l/s.)

— — — — 6.5 7 14.6 24.2 33.4 58 130 238 378 600 734.4 1008 — —

Equivalent

Length

of

Pipe

Globe

Pattern

Feet (ft.)

25 7 16 23 19 37 51 53 85 11 6 211 291 347 467 422 503 628 1866

Meters (m.)

7.6 2.2 4.8 7.1 5.7 11 .4 15.5 16.0 25.9 35.3 64.2 88.6 105.8 142.4 128.6 153.6 191.6 569

Angle

Pattern

Feet (ft.)

— — — — 28 46 40 37 58 80 139 176 217 222* 238* 247* — —

Meters (m.)

— — — — 8.7 13.9 12.1 11.4 17.8 24.5 42.5 53.6 66.1 67.8 72.7 75.2 — —

K

Factor

Globe Pattern

16.3 3.7 5.7 6.1 3.6 5.9 5.6 4.6 6.0 5.9 6.2 6.1 5.8 6.1 5.0 5.2 4.0 7.1

Angle Pattern

— — — — 4.4 7.1 4.4 3.3 4.1 4.1 4.1 3.7 3.6 2.9 2.8 2.6 — —

Liquid Displaced from

Cover Chamber When

Valve Opens

Fl. Oz

.12 .34 .34 .70 — — — — — — — — — — — — — —

U.S. Gal.

— — — — .02 .02 .03 .04 .08 .17 .53 1.26 2.51 4.0 6.5 9.6 29 42

ml

3.5 10.1 10.1 20.7 75.7 75.7 121 163 303 643 — — — — — — — —

Litres

— — — — — — — — — — 2.0 4.8 9.5 15.1 24.6 36.2 109.8 159

1/2 1

2

34

6

810

12

12

24

3/4

11/2

21/2

11/2

23

46810

14

16

16

1

1/4

21/2

14

3630

20

11/4

10 20 30 40 60 80 100 200 500 1000 2000 5000 10,000 20,000 50,000

1

2

3

4

6

8

10

20

30

40

60

80

100

5 3

Angle Valve Sizes (Inches)

Globe Valve Sizes (Inches)

Pressure Drop — psi

Flow Rate gpm (water)

1

100,000

(MAX)

GGGG

DDDD

OUTLET

INLET

J

100S (Globe) 2100S (Angle) 100S Grooved (Globe) 2100S Grooved (Angle)

Dimensions

Model 100S

CLA-VAL

Copyright Cla-Val 2008 Printed in USA Specifications subject to change without notice.

P.O. Box 1325 • Newport Beach, CA 92659-0325 • Phone: [phone] • Fax: [phone] • E-mail: [e-mail] • Website cla-val.com

©

E-100S/2100S (R-11/06)

Cla-Val Control Valves operate with maximum efficiency when mounted in horizontal piping with the main valve cover UP, however, other positions are acceptable. Due to
component size and weight of 8 inch and larger valves, installation with cover UP is advisable. We recommend isolation valves be installed on inlet and outlet for maintenance.
Adequate space above and around the valve for service personnel should be considered essential. A regular maintenance program should be established based on the specific
application data. However, we recommend a thorough inspection be done at least once a year. Consult factory for specific recommendations.

*11⁄2"Size Only

*40mm Size Only

Valve Size (Inches)

3⁄81

⁄2 - 3⁄4 1 11⁄4-11⁄2 2 21⁄2 3 4 6 8 10 12 14 16 24 36

A Threaded

2.75 3.50 5.12 7.25 9.38 11.00 12.50 — — — — — — — — —

AA 150 ANSI

— — — 8.50* 9.38 11.00 12.00 15.00 20.00 25.38 29.75 34.00 39.00 41.38 61.50 76.00

AAA 300 ANSI

— — — 9.00* 10.00 11.62 13.25 15.62 21.00 26.38 31.12 35.50 40.50 43.50 63.24 78.00

AAAA Grooved End

— — — 8.50 9.00 11.00 12.50 15.00 20.00 25.38 — — — — — —

B Dia.

2.50 3.12 4.38 5.62 6.62 8.00 9.12 11.50 15.75 20.00 23.62 28.00 32.75 35.50 53.16 66.00

C Max.

2.00 3.00 2.75 5.50 6.50 7.56 8.19 10.62 13.38 16.00 17.12 20.88 24.19 25.00 43.93 61.50

CC Max. Grooved End

— — — 4.75 5.75 6.88 7.25 9.62 12.12 14.62 — — — — — —

D Threaded

— — — 3.25 4.75 5.50 6.25 — — — — — — — — —

DD 150 ANSI

— — — 4.00* 4.75 5.50 6.00 7.50 10.00 12.75 14.88 17.00 19.50 20.81 — —

DDD 300 ANSI

— — — 4.25* 5.00 5.88 6.38 7.88 10.50 13.25 15.56 17.75 20.25 21.62 — —

DDDD Grooved End

— — — — 4.75 — 6.00 7.50 — — — — — — — —

E

1.25 0.88 1.63 1.12 1.50 1.69 2.56 3.19 4.31 5.31 9.25 10.75 12.62 15.50 17.75 24.56

EE Grooved End

— — — 2.00 2.50 2.88 3.12 4.25 6.00 7.56 — — — — — —

F 150 ANSI

— — — 2.50 3.00 3.50 3.75 4.50 5.50 6.75 8.00 9.50 10.50 11.75 19.25 28.00

FF 300 ANSI

— — — 3.06 3.25 3.75 4.13 5.00 6.25 7.50 8.75 10.25 11.50 12.75 — —

G Threaded

— — — 1.88 3.25 4.00 4.50 — — — — — — — — —

GG 150 ANSI

— — — 4.00* 3.25 4.00 4.00 5.00 6.00 8.00 8.62 13.75 14.88 15.69 — —

GGG 300 ANSI

— — — 4.25* 3.50 4.31 4.38 5.31 6.50 8.50 9.31 14.50 15.62 16.50 — —

GGGG Grooved End

— — — — 3.25 — 4.25 5.00 — —

— — — — — —

H NPT Body Tapping

—

1

⁄8

1

⁄4

3

⁄8

3

⁄8

1

⁄2

1

⁄2

3

⁄4

3

⁄4

1 1 1 1 1 1 2

J NPT Cover Center Plug

1

⁄8

1

⁄8

1

⁄4

1

⁄4

1

⁄2

1

⁄2

1

⁄2

3

⁄4

3

⁄4

1 1

1

1

⁄4 11⁄2

2

1

1

⁄2

2

K NPT Cover Tapping

—

1

⁄8

1

⁄4

3

⁄8

3

⁄8

1

⁄2

1

⁄2

3

⁄4

3

⁄4

1 1 1 1 1 1 2
Valve Stem Internal
Thread UNF

— — — 10-32 10-32 10-321⁄4-281⁄4-283⁄8-243⁄8-243⁄8-243⁄8-243⁄8-241⁄2-203⁄4-163⁄4-16

Stem Travel

— — —

0.4 0.6 0.7 0.8 1.1 1.7 2.3 2.8 3.4 4.0 4.5 6.75 10.12

Approx. Ship Wt. Lbs.

3 3 8 15 35 50 70 140 285 500 780 1165 1600 2265 6200 11470

Valve Size (mm) 10 15-20 25 32-40 50 65 80 100 150 200 250 300 350 400 600 900
A Threaded

70 89 130 184 238 279 318 — — — — — — — — —

AA 150 ANSI

— — — 216* 238 279 305 381 508 645 756 864 991 1051 1562 1930

AAA 300 ANSI

— — — 229* 254 295 337 397 533 670 790 902 1029 1105 1606 1981

AAAA Grooved End

— — — 216 228 279 318 381 508 645 — — — — — —

B Dia.

64 80 111 143 168 203 232 292 400 508 600 711 832 902 1350 1676

C Max.

51 76 70 140 165 192 208 270 340 406 435 530 614 635 111 6 1562

CC Max. Grooved End

— — — 120 146 175 184 244 308 371 — — — — — —

D Threaded

— — — 83 121 140 159 — — — — — — — — —

DD 150 ANSI

— — — 102* 121 140 152 191 254 324 378 432 495 528 — —

DDD 300 ANSI

— — — 108* 127 149 162 200 267 337 395 451 514 549 — —

DDDD Grooved End

— — — — 121 — 152 191 — — — — — — — —

E

32 23 42 29 38 43 65 81 110 135 235 273 321 394 451 624

EE Grooved End

— — — 52 64 73 79 108 152 192 — — — — — —

F 150 ANSI

— — — 64 76 89 95 11 4 140 171 203 241 267 298 489 711

FF 300 ANSI

— — — 78 83 95 105 127 159 191 222 260 292 324 — —

G Threaded

— — — 48 83 102 11 4 — — — — — — — — —

GG 150 ANSI

— — — 102* 83 102 102 127 152 203 219 349 378 399 — —

GGG 300 ANSI

— — — 102* 89 11 0 111 135 165 216 236 368 397 419 — —

GGGG Grooved End

— — — — 83 — 108 127 — — — — — — — —

H NPT Body Tapping

—

1

⁄8

1

⁄4

3

⁄8

3

⁄8

1

⁄2

1

⁄2

3

⁄4

3

⁄4

1 1 1 1 1 1 2

J NPT Cover Center Plug

1

⁄8

1

⁄8

1

⁄4

1

⁄4

1

⁄2

1

⁄2

1

⁄2

3

⁄4

3

⁄4

1 1

1

1

⁄4 11⁄2

2

1

1

⁄2

2

K NPT Cover Tapping

—

1

⁄8

1

⁄4

3

⁄8

3

⁄8

1

⁄2

1

⁄2

3

⁄4

3

⁄4

1 1 1 1 1 1 2
Valve Stem Internal
Thread UNF

— — — 10-32 10-32 10-321⁄4-281⁄4-283⁄8-243⁄8-243⁄8-243⁄8-243⁄8-241⁄2-203⁄4-163⁄4-16

Stem Travel

— — —

10 15 18 20 28 43 58 71 86 102 11 4 171 257

Approx. Ship Wt. Kgs.

1.4 1.4 4 7 16 23 32 64 129 227 354 528 726 1027 2812 5200

This page was intentionally left blank!

DESCRIPTION

The Cla-Val Model CRD Pressure Reducing Control automatically reduces
a higher inlet pressure to a lower outlet pressure. It is a direct acting,
spring loaded, diaphragm type control that operates hydraulically or pneu­matically. It may be used as a self-contained valve or as a pilot control for
a Cla-Val main valve. It will hold a constant downstream pressure within
very close pressure limits.

OPERATION

The CRD Pressure Reducing Control is normally held open by the force of
the compression spring above the diaphragm; and delivery pressure acts
on the underside of the diaphragm. Flow through the valve responds to
changes in downstream demand to maintain a pressure.

INSTALLATION

The CRD Pressure Reducing Control may be installed in any position.
There is one inlet port and two outlets, for either straight or angle installa­tion. The second outlet port can be used for a gage connection. A flow
arrow is marked on the body casting.

ADJUSTMENT PROCEDURE

The CRD Pressure Reducing Control can be adjusted to provide a deliv­ery pressure range as specified on the nameplate.

Pressure adjustment is made by turning the adjustment screw to vary the
spring pressure on the diaphragm. The greater the compression on the
spring the higher the pressure setting.

1. Turn the adjustment screw in (clockwise) to increase
delivery pressure.

2. Turn the adjustment screw out (counter-clockwise) to
decrease the delivery pressure.

3. When pressure adjustment is completed tighten jam nut on
adjusting screw and replace protective cap.

4. When this control is used, as a pilot control on a
Cla-Val main valve, the adjustment should be made
under flowing conditions. The flow rate is not critical,
but generally should be somewhat lower than normal
in order to provide an inlet pressure several psi higher
than the desired setting

CRD

MAINTENANCE

Disassembly

To disassemble follow the sequence of the item numbers assigned to
parts in the sectional illustration.

Reassembly

Reassembly is the reverse of disassembly. Caution must be taken to
avoid having the yoke (17) drag on the inlet nozzle of the body (18).
Follow this procedure:

1. Place yoke (17) in body and screw the disc retainer
assembly (16) until it bottoms.

2. Install gasket (14) and spring (19) for 2-30 and 2-6.5 psi

range onto plug (13) and fasten into body. Disc retainer
must enter guide hole in plug as it is assembled. Screw
the plug in by hand. Use wrench to tighten only.

3. Place diaphragm (12) diaphragm washer (11) and belleville
washer (20) on yoke. Screw on hex nut (10).

4. Hold the diaphragm so that the screw holes in the
diaphragm and body align. Tighten diaphragm nut with
a wrench. At the final tightening release the diaphragm
and permit it to rotate 5° to 10°. The diaphragm holes
should now be properly aligned with the body holes.

To check for proper alignment proceed as follows:

Rotate diaphragm clockwise and counterclockwise as far as possible.
Diaphragm screw holes should rotate equal distance on either side of
body screw holes ±1/8".

Repeat assembly procedure until diaphragm and yoke are properly
aligned. There must be no contact between yoke and body nozzle
during its normal movement. To simulate this movement hold body
and diaphragm holes aligned. Move yoke to open and closed posi­tions. There must be no evidence of contact or dragging.

5. Install spring (9) with spring guide (8).

6. Install cover (5), adjusting screw (2) and nut (3), then cap (1).

Pressure Reducing Control

The approximate minimum flow rates given in the table are for the main valve
on which the CRD is installed.

Valve Size

Minimum Flow GPM

1 1/4" -3" 4"-8" 10"-16"

15-30 50-200 300-650

MODEL

INSTALLATION / OPERATION / MAINTENANCE

CLA-VAL

Copyright Cla-Val 2009 Printed in USA Specifications subject to change without notice.

P.O. Box 1325 • Newport Beach, CA 92659-0325 • Phone: [phone] • Fax: [phone] • E-mail: [e-mail] • Website cla-val.com

©

N-CRD (R-3/09)

SYMPTOM PROBABLE CAUSE REMEDY

Fails to open

when deliver pres-

sure lowers

No spring compression Tighten adjusting screw

Damaged spring Disassemble and replace

Spring guide (8) is not in place Assemble properly

Yoke dragging on inlet nozzle

Disassemble and reassemble

properly (refer to Reassembly)

Fails to close
when delivery
pressure rises

Spring compressed solid Back off adjusting screw

Mechanical obstruction

Disassemble and reassemble

properly (refer to Reassembly)

Worn disc

Disassemble remove and

replace disc retainer assembly

Yoke dragging on inlet nozzle

Disassemble and reassemble

properly (refer to Reassembly)

Leakage from

cover vent hole

Damaged diaphragm Disassemble and replace

Loose diaphragm nut Remove cover and tighten nut

Pressure Reducing Control

*SUGGESTED REPAIR PARTS

CRD

3 1/8

PRESSURE SETTING
ADJUSTING SCREW
(TURN CLOCKWISE
TO INCREASE SETTING

SECTION A-A
OPEN POSTION
FOR HIGH PRESSURE CONTROL

5 3/8

1 13/16

inlet

B

13

14

16

18

17

12

11

10

9

8

5

3

1

2

cover vent

B

3/8" NPT

16

19

Body and Disc
Retainer Detail

for Low Pressure

Control

SECTION B-B

CLOSED POSITION

20

18

17

15

4

A

A

67

When ordering parts specify:

• All nameplate data

• Item Description

• Item number

CLA-VAL

Copyright Cla-Val 2008 Printed in USA Specifications subject to change without notice.

P.O. Box 1325 • Newport Beach, CA 92659-0325 • Phone: [phone] • Fax: [phone] • E-mail: [e-mail] • Website cla-val.com

©

PL-CRD (R-1/08)

PARTS LIST

Size

(inch)

Stock

Number

Adjustment Range

psi Ft of Water
3/8 71943-07A 2 - 6.5 4.5 - 15
3/8 71943-08J 2 - 30 4.5 - 69
3/8 71943-03K 15 - 75 35 - 173
3/8 71943-11C 20 - 105 46 - 242
3/8 71943-04H 30 - 300 69 - 692

Factory Set Pressure

PSI per Turn*

2 - 6.5 set @ 3.5 psi .61

2 - 30 set @ 10 psi 3.0

15 - 75 set @ 20 psi 9.0
20 - 105 set @ 60 psi 12.0
30 - 300 set @ 60 psi 27.0

*Approximate-Final Adjustment should be

with a pressure gauge and with flow.

Item Description Material Part Number List Price

1 Cap PL 67628J

2 Adjusting Screw BRS 7188201D

3 Jam Nut (3/8-16) SS 6780106J

4* Machine Screw (Fil.Hd.) 8 Req'd 303 6757821B

5 Cover BRS C2544K

6 Nameplate Screw SS 67999D

7 Nameplate BRS C0022001G

8 Spring Guide 302 71881H

Spring Guide (20 - 105 psi) 303 205620F

9 Spring (15-75 psi) CHR/VAN 71884B

Spring (2 - 6.5 psi) SS 82575C

Spring (2 - 30 psi) SS 81594E

Spring (20 - 105 psi) 316 20632101E

Spring (30 - 300 psi) CHR/VAN 71885J

10 Hex Nut 303 71883D

11 Diaphragm Washer 302 71891G

12* Diaphragm NBR C6936D

13 Plug, Body BRS V5653A

14* Gasket Fiber 40174F

15 Plug BRS 6766003F

16* Disc Retainer Assy. (15 - 75 psi) BZ/Rub C5256H

Disc Retainer Assy. (2 - 30 psi) BZ/Rub C5255K

Disc Retainer Assy. (20 - 105 psi) BZ/Rub C5256H

Disc Retainer Assy. (30 - 300 psi) BZ/Rub C5256H

17 Yo ke VBZ V6951H

18 Body & 1/4" Seat Assy BR/SS 8339702G

19* Bucking Spring (2 - 6.5 psi)(2 - 30psi) 302 V0558G

20 Belleville Washer STL 7055007E

* Repair Kit (No Bucking Spring)

Buna®-N

9170003K

* Repair Kit (with Bucking Spring)

Buna®-N

9170002B

Pressure Reducing Control

*SUGGESTED REPAIR PARTS

CRD

3 1/8

PRESSURE SETTING
ADJUSTING SCREW
(TURN CLOCKWISE
TO INCREASE SETTING

SECTION A-A
OPEN POSTION
FOR HIGH PRESSURE CONTROL

5 3/8

1 13/16

inlet

B

13

14

16

18

17

12

11

10

9

8

5

3

1

2

cover vent

B

3/8" NPT

16

19

Body and Disc
Retainer Detail

for Low Pressure

Control

SECTION B-B

CLOSED POSITION

20

18

17

15

4

A

A

67

When ordering parts specify:

• All nameplate data

• Item Description

• Item number

CLA-VAL

Copyright Cla-Val 2008 Printed in USA Specifications subject to change without notice.

P.O. Box 1325 • Newport Beach, CA 92659-0325 • Phone: [phone] • Fax: [phone] • E-mail: [e-mail] • Website cla-val.com

©

PL-CRD (R-1/08)

PARTS LIST

Size

(inch)

Stock

Number

Adjustment Range

psi Ft of Water
3/8 71943-07A 2 - 6.5 4.5 - 15
3/8 71943-08J 2 - 30 4.5 - 69
3/8 71943-03K 15 - 75 35 - 173
3/8 71943-11C 20 - 105 46 - 242
3/8 71943-04H 30 - 300 69 - 692

Factory Set Pressure

PSI per Turn*

2 - 6.5 set @ 3.5 psi .61

2 - 30 set @ 10 psi 3.0

15 - 75 set @ 20 psi 9.0
20 - 105 set @ 60 psi 12.0
30 - 300 set @ 60 psi 27.0

*Approximate-Final Adjustment should be

with a pressure gauge and with flow.

Item Description Material Part Number List Price

1 Cap PL 67628J

2 Adjusting Screw BRS 7188201D

3 Jam Nut (3/8-16) SS 6780106J

4* Machine Screw (Fil.Hd.) 8 Req'd 303 6757821B

5 Cover BRS C2544K

6 Nameplate Screw SS 67999D

7 Nameplate BRS C0022001G

8 Spring Guide 302 71881H

Spring Guide (20 - 105 psi) 303 205620F

9 Spring (15-75 psi) CHR/VAN 71884B

Spring (2 - 6.5 psi) SS 82575C

Spring (2 - 30 psi) SS 81594E

Spring (20 - 105 psi) 316 20632101E

Spring (30 - 300 psi) CHR/VAN 71885J

10 Hex Nut 303 71883D

11 Diaphragm Washer 302 71891G

12* Diaphragm NBR C6936D

13 Plug, Body BRS V5653A

14* Gasket Fiber 40174F

15 Plug BRS 6766003F

16* Disc Retainer Assy. (15 - 75 psi) BZ/Rub C5256H

Disc Retainer Assy. (2 - 30 psi) BZ/Rub C5255K

Disc Retainer Assy. (20 - 105 psi) BZ/Rub C5256H

Disc Retainer Assy. (30 - 300 psi) BZ/Rub C5256H

17 Yo ke VBZ V6951H

18 Body & 1/4" Seat Assy BR/SS 8339702G

19* Bucking Spring (2 - 6.5 psi)(2 - 30psi) 302 V0558G

20 Belleville Washer STL 7055007E

* Repair Kit (No Bucking Spring)

Buna®-N

9170003K

* Repair Kit (with Bucking Spring)

Buna®-N

9170002B

This page was intentionally left blank!

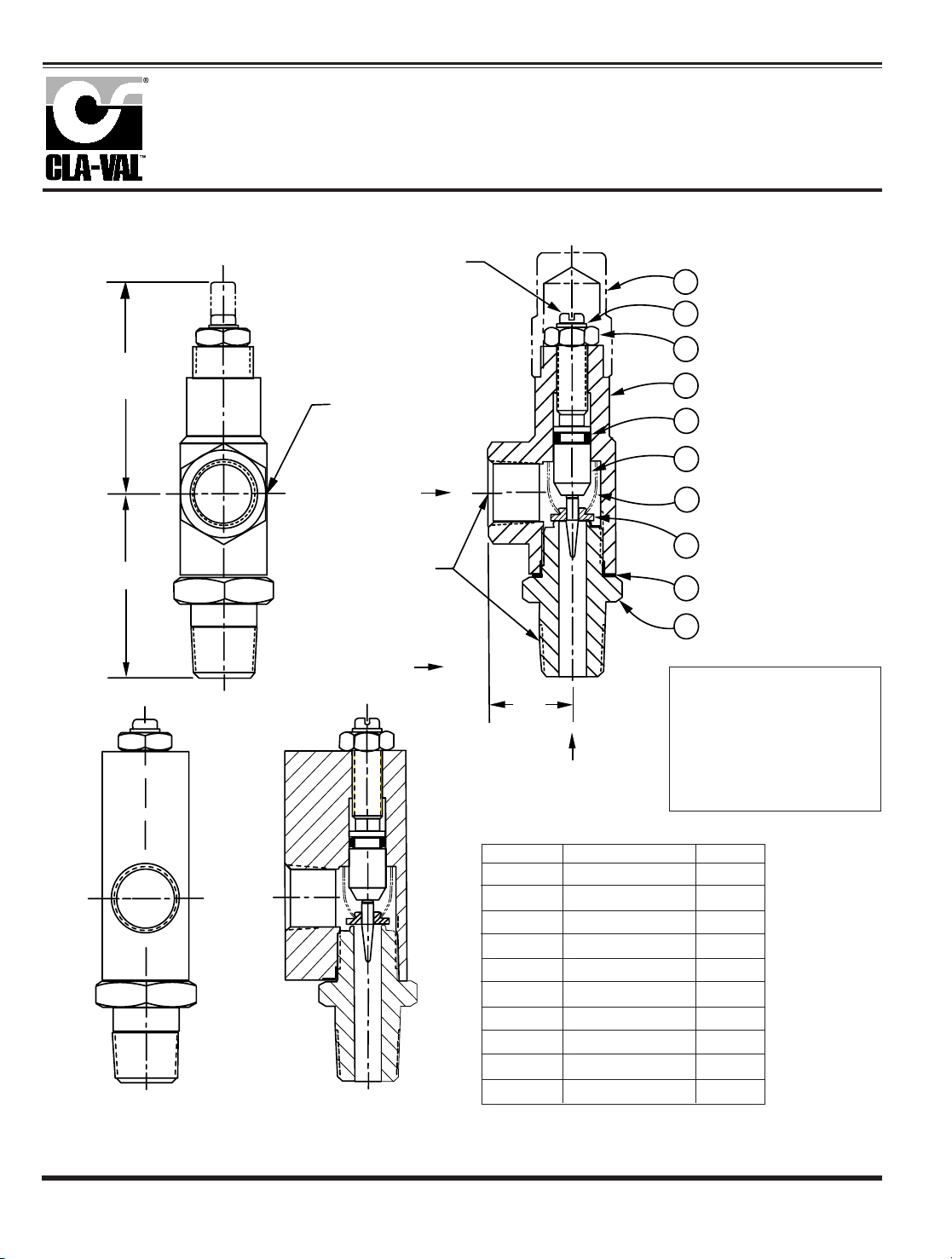

The strainer is designed for use in conjunction with a Cla-Val
Main Valve, but can be installed in any piping system where
there is a moving fluid stream to keep it clean. When it is used
with the Cla-Val Valve, it is threaded into the upstream body port
provided for it on the side of the valve. It projects through the
side of the Main Valve into the flow stream. All liquid shunted to
the pilot control system and to the cover chamber of the Main
Valve passes through the X46 Flow Clean Strainer.

C

Male

Pipe

SAE

H

D

E

B

I

G

Male

Pipe

B

I

Width Across Flats

Female

Pipe

A

D

E

F

• Self Scrubbing Cleaning Action

• Straight Type or Angle Type

The Cla-Val Model X46 Strainer is designed to prevent passage of
foreign particles larger than .015". It is especially effective against
such contaminant as algae, mud, scale, wood pulp, moss, and root
fibers. There is a model for every Cla-Val. valve.

The X46 Flow Clean strainer operates on a velocity principle utiliz­ing the circular "air foil" section to make it self cleaning. Impingement
of particles is on the "leading edge" only. The low pressure area on
the downstream side of the screen prevents foreign particles from
clogging the screen. There is also a scouring action, due to eddy
currents, which keeps most of the screen area clean.

Dimensions

(In Inches)

INSTALLATION

X46 Angle Type B (In Inches)

B

(NPT)C(SAE)

DEH I

1/8 1/4 1-3/8 5/8 7/8 1/4

1/4 1/4 1-3/4 3/4 1 3/8

3/8 1/4 2 7/8 1 1/2

3/8 3/8 1-7/8 7/8 1 1/2

1/2 3/8 2-3/8 1 1-1/4 5/8

X46A Straight

X46B Angle

X46A Straight Type A (In Inches)

A B D E F G I

1/8 1/8 1-3/4 3/4 1/2 1/2 1/4

1/4 1/4 2-1/4 1 3/4 3/4 3/8

3/8 3/8 2-1/2 1 7/8 7/8 1/2

3/8 1/2 2-1/2 1-1/4 1/2 7/8 3/4

1/2 1/2 3 1-1/4 1 1-1/8 3/4

3/8 3/4 3-3/8 2 1/2 1 7/8

3/4 3/4 4 2 1 1-1/2 7/8

3/8 1 4-1/4 2-3/4 1/2 1-3/8 7/8

1 1 4-1/2 2-3/4 1-1/4 1-3/4 7/8

1/2 1 4-1/4 2-3/4 1/2 1-3/8 7/8

Flow Clean Strainer

X46

INSPECTION

Inspect internal and external threads for damage or evidence
of cross-threading. Check inner and outer screens for clogging,
embedded foreign particles, breaks, cracks, corrosion, fatigue,
and other signs of damage.

CLEANING

After inspection, cleaning of the X46 can begin. Water service usually will produce
mineral or lime deposits on metal parts in contact with water. These deposits can
be cleaned by dipping X46 in a 5-percent muriatic acid solution just long enough
for deposit to dissolve. This will remove most of the common types of deposits.
Caution: use extreme care when handling acid. If the deposit is not removed
by acid, then a fine grit (400) wet or dry sandpaper can be used with water.
Rinse parts in water before handling. An appropriate solvent can clean parts used
in fueling service. Dry with compressed air or a clean, lint-free cloth.
Protect from damage and dust until reassembled.

REPLACEMENT

If there is any sign of damage, or if there is the slightest doubt that the Model X46
Flow Clean Strainer may not afford completely satisfactory operation, replace it.
Use Inspection steps as a guide. Neither inner screen, outer screen, nor housing is
furnished as a replacement part. Replace Model X46 Flow Clean Strainer as a com­plete unit.

When ordering replacement Flow-Clean Strainers, it is important to determine pipe
size of the tapped hole into which the strainer will be inserted (refer to column A or
F), and the size of the external connection (refer to column B or G).

When Ordering,
Please Specify:

• Catalog Number X46

• Straight Type or Angle Type

• Size Inserted Into and Size Connection

• Materials

DISASSEMBLY

Do not attempt to remove the screens from the strainer housing.

MODEL

INSTALLATION / OPERATION / MAINTENANCE

CLA-VAL

Copyright Cla-Val 2008 Printed in USA Specifications subject to change without notice.

P.O. Box 1325 • Newport Beach, CA 92659-0325 • Phone: [phone] • Fax: [phone] • E-mail: [e-mail] • Website cla-val.com

©

N-X46 (R-1/08)

(NPT) (NPT)

X46B

X46A

This page was intentionally left blank!

CLA-VAL

Copyright Cla-Val 2008 Printed in USA Specifications subject to change without notice.

P.O. Box 1325 • Newport Beach, CA 92659-0325 • Phone: [phone] • Fax: [phone] • E-mail: [e-mail] • Website cla-val.com

©

PL-CK2 (R-1/08)

This page was intentionally left blank!

CLA-VAL

Copyright Cla-Val 2009 Printed in USA Specifications subject to change without notice.

P.O. Box 1325 • Newport Beach, CA 92659-0325 • Phone: [phone] • Fax: [phone] • E-mail: [e-mail] • Website cla-val.com

©

INSTALLATION / OPERATION / MAINTENANCE

Flow Control

CV

MODEL

N-CV (R-1/09)

DESCRIPTION

The Cla-Val Model CV Flow Control is a simply-designed,
spring-loaded check valve. Rate of flow is full flow in one direc­tion and restricted in other direction. Flow is adjustable in the
restricted direction. It is intended for use in conjunction with a
pilot control system on a Cla-Val Automatic Control Valve.

OPERATION

The CV Flow Control permits full flow from port A to B, and
restricted flow in the reverse direction. Flow from port A to B
lifts the disc from seat, permitting full flow. Flow in the reverse
direction seats the disc, causing fluid to pass through the clear­ance between the stem and the disc. This clearance can be
increased, thereby increasing the restricted flow, by screwing
the stem out, or counter-clockwise. Turning the stem in, or
clockwise reduces the clearance between the stem and the
disc, thereby reducing the restricted flow.’

INSTALLATION

Install the CV Flow Control as shown in the valve schematic
All connections must be tight to prevent leakage.

DISASSEMBLY

Follow the sequence of the item numbers assigned to the
parts in the cross sectional illustration for recommended
order of disassembly.

Use a scriber, or similar sharp-pointed tool to remove O-ring
from the stem.

INSPECTION

Inspect all threads for damage or evidence of cross­threading. Check mating surface of seat and valve disc for
excessive scoring or embedded foreign particles. Check
spring for visible distortion, cracks and breaks. Inspect all
parts for damage, corrosion and cleanliness.

CLEANING

After disassembly and inspection, cleaning of the parts can
begin. Water service usually will produce mineral or lime
deposits on metal parts in contact with water. These
deposits can be cleaned by dipping the parts in a 5-percent
muriatic acid solution just long enough for deposits to dis­solve. This will remove most of the common types of
deposits. Caution: use extreme care when handling
acid. If the deposit is not removed by acid, then a fine grit
(400) wet or dry sandpaper can be used with water. Rinse
parts in water before handling. An appropriate solvent can
clean parts used in fueling service. Dry with compressed air
or a clean, lint-free cloth. Protect from damage and dust
until reassembled.

REPAIR AND REPLACEMENT

Minor nicks and scratches may be polished out using a fine
grade of emery or crocus cloth; replace parts if scratches
cannot be removed.

Replace O-ring packing and gasket each time CV Flow
Control is overhauled.

Replace all parts which are defective. Replace any parts
which create the slightest doubt that they will not afford com­pletely satisfactory operation. Use Inspection steps as a
guide.

REASSEMBLY

Reassembly is the reverse of disassembly; no special tools
are required.

TEST PROCEDURE

No testing of the flow Control is required prior to reassembly
to the pilot control system on Cla-Val Main Valve.

3/8" Flow Control

CV

2.12
MAX

STAMP PART NO. ON
SMOOTH SURFACE

RESTRICTED

FLOW

3/8 - 18 NPT

1.84

ADJUSTING STEM
(TURN CLOCKWISE TO
INCREASE RESTRICTION)

1

7

2

10

9

8

6

5

4

3

.85

FREE FLOW

BAR STOCK

CONFIGURATION

When ordering parts,

please specify:

• Number Stamped on Side

• Description (CV Flow Control)

• Part Description

• Material

ITEM DESCRIPTION QTY

1 Cap (SS only) 1

2 Nut, Jam 1

3 Seat 1

4 Gasket 1

5 Disc 1

6 Spring 1

7 Ring, Retaining 1

8 Stem 1

9 O-Ring 1

10 Housing 1

CLA-VAL

Copyright Cla-Val 2009 Printed in USA Specifications subject to change without notice.

P.O. Box 1325 • Newport Beach, CA 92659-0325 • Phone: [phone] • Fax: [phone] • E-mail: [e-mail] • Website cla-val.com

©

PL-CV (R-1/09)

PARTS LIST

ITEM DESCRIPTION MATERIAL

1 Pipe Plug Steel

2 Strainer Plug Brass

3 Gasket Copper

4 Screen SST

5 Body Brass

1

2

3

4

5

3/8 NPT

2.06

2.72

SIZE STOCK NUMBER

3/8 x 3/8 33450J

Strainer

X43

No parts available. Rreplacement assembly only.

Standard 60 mesh pilot system strainer for fluid service.

CLA-VAL

Copyright Cla-Val 2008 Printed in USA Specifications subject to change without notice.

P.O. Box 1325 • Newport Beach, CA 92659-0325 • Phone: [phone] • Fax: [phone] • E-mail: [e-mail] • Website cla-val.com

©

PL- X43 (R-1/08)

PARTS LIST

This page was intentionally left blank!

Cla-Val Product

Identification

Proper Identification

For ordering repair kits, replacement parts, or for
inquiries concerning valve operation, it is important to
properly identify Cla-Val products already in service
by including all nameplate data with your inquiry.
Pertinent product data includes valve function, size,
material, pressure rating, end details, type of pilot
controls used and control adjustment ranges.

Identification Plates

For product identification, cast-in body markings are
supplemented by identification plates as illustrated on
this page. The plates, depending on type and size of
product, are mounted in the most practical position. It

is extremely important that these identification
plates are not painted over, removed, or in any
other way rendered illegible.

INLET
EINTRITT
ENTREE
ENTRADA

SIZE &
CAT NO.

STOCK
NO.

CODE

MFD. BY CLA-VAL
NEWPORT BEACH, CALIF, U.S.A.

RESERVOIR

END

I

N

L

E

T

I

N

L

E

T

SIZE &
CAT NO.

STOCK
NO.

FLOW

MFD. BY CLA-VAL NEWPORT BEACH, CALIF. U.S.A.

CODE

C

®

™

SIZE &
CAT NO.

STOCK
NO.

SPRING
RANGE

MFD. BY CLA-VAL NEWPORT BEACH, CALIF. U.S.A.

SIZE &
CAT NO.

STOCK
NO.

CODE

MFD. BY CLA-VAL

NEWPORT BEACH, CALIF.

U.S.A.

C

®

™

DO NOT REMOVE

THIS VALVE HAS BEEN MODIFIED
SINCE ORIGINAL SHIPMENT FROM
FACTORY. WHEN ORDERING PARTS
AND/ OR SERVICE SUPPLY DATA FROM
THIS PLATE & ALL OTHER PLATES ON
ORIGINAL VALVE.

REDUCED PRESSURE BACKFLOW PREVENTION DEVICE

STK.
NO.

SER.
NO.

CAT.

NO.

RP

-4

CLA-VAL

NEWPORT BEACH, CA.

This brass plate appears on valves sized 21/2" and larger

and is located on the top of the inlet flange.

These two brass plates appear on 3/8", 1/2", and 3/4" size

valves and are located on the valve cover.

These two brass plates appear on threaded valves

1" through 3" size or flanged valves 1" through 2".

It is located on only one side of the valve body.

This brass plate appears on altitude valves only and is

found on top of the outlet flange.

This brass plate is used to identify pilot control valves.

The adjustment range is stamped into the plate.

This tag is affixed to the cover of the pilot control valve.

The adjustment range appears in the spring range section.

This aluminum plate is included in pilot system

modification kits and is to be wired to the new pilot

control system after installation.

This brass plate is used on our backflow prevention

assemblies. It is located on the side of the Number Two

check (2" through 10"). The serial number of the

assembly is also stamped on the top of the inlet flange of

the Number One check.

How to Order

HOW TO ORDER

Because of the vast number of possible configurations and
combinations available, many valves and controls are not
shown in published product and price lists. For ordering
information, price and availability on product that are not listed,
please contact your local Cla-Val office or our factory office
located at:

SPECIFY WHEN ORDERING

• Model Number • Valve Size

• Globe or Angle Pattern • Threaded or Flanged

• Adjustment Range • Body and Trim Materials
(As Applicable) • Optional Features

• Pressure Class

UNLESS OTHERWISE SPECIFIED

• Globe or angle pattern are the same price

• Ductile iron body and bronze trim are standard

• X46 Flow Clean Strainer or X43 “Y” Strainer are included

• CK2 Isolation Valves are included in price on 4" and larger
valve sizes (6" and larger on 600 Series)

P. O. Box 1325

Newport Beach, California 92659-0325

[phone]

FAX [phone]

LIMITED WARRANTY

Automatic valves and controls as manufactured by Cla-Val are warranted
for three years from date of shipment against manufacturing defects in
material and workmanship that develop in the service for which they are
designed, provided the products are installed and used in accordance
with all applicable instructions and limitations issued by Cla-Val.
Electronic components manufactured by Cla-Val are warranted for one
year from the date of shipment.

We will repair or replace defective material, free of charge, that is returned
to our factory, transportation charges prepaid, if upon inspection, the
material is found to have been defective at time of original shipment. This
warranty is expressly conditioned on the purchaser’s providing written
notification to Cla-Val immediate upon discovery of the defect.

Components used by Cla-Val but manufactured by others, are warranted
only to the extent of that manufacturer’s guarantee.

This warranty shall not apply if the product has been altered or repaired by
others, Cla-Val shall make no allowance or credit for such repairs or
alterations unless authorized in writing by Cla-Val.

DISCLAIMER OF WARRANTIES AND
LIMITATIONS OF LIABILITY

The foregoing warranty is exclusive and in lieu of all other
warranties and representations, whether expressed, implied, oral or
written, including but not limited to any implied warranties or
merchantability or fitness for a particular purpose. All such other
warranties and representations are hereby cancelled.

Cla-Val shall not be liable for any incidental or consequential loss,
damage or expense arising directly or indirectly from the use of the
product. Cla-Val shall not be liable for any damages or charges for
labor or expense in making repairs or adjustments to the product.
Cla-Val shall not be liable for any damages or charges sustained in
the adaptation or use of its engineering data and services. No
representative of Cla-Val may change any of the foregoing or
assume any additional liability or responsibility in connection with
the product. The liability of Cla-Val is limited to material
replacements F.O.B. Newport Beach, California.

TERMS OF SALE

ACCEPTANCE OF ORDERS

All orders are subject to acceptance by our main office at Newport Beach, California.

CREDIT TERMS

Credit terms are net thirty (30) days from date of invoice.

PURCHASE ORDER FORMS

Orders submitted on customer’s own purchase order forms will be accepted only
with the express understanding that no statements, clauses, or conditions contained
in said order form will be binding on the Seller if they in any way modify the Seller’s
own terms and conditions of sales.

PRODUCT CHANGES

The right is reserved to make changes in pattern, design or materials when deemed
necessary, without prior notice.

PRICES

All prices are F.O.B. Newport Beach, California unless expressly stated otherwise on
our acknowledgement of the order. Prices are subject to change without notice. The
prices at which any order is accepted are subject to adjustment to the Seller’s price
in effect at the time of shipment. Prices do not include sales, excise, municipal, state
or any other Government taxes. Minimum order charge $75.00.

RESPONSIBILITY

We will not be responsible for delays resulting from strikes, accidents, negligence of
carriers, or other causes beyond our control. Also, we will not be liable for any
unauthorized product alterations or charges accruing there from.

RISK

All goods are shipped at the risk of the purchaser after they have been delivered by
us to the carrier. Claims for error, shortages, etc., must be made upon receipt of
goods.

EXPORT SHIPMENTS

Export shipments are subject to an additional charge for export packing.

RETURNED GOODS

1. Customers must obtain written approval from Cla-Val prior to returning any
material.

2. Cla-Val reserves the right to refuse the return of any products.

3. Products more than six (6) months old cannot be returned for credit.

4. Specially produced, non-standard models cannot be returned for credit.

5. Rubber goods such as diaphragms, discs, o-rings, etc., cannot be returned for
credit, unless as part of an unopened vacuum sealed repair kit which is less
than six months old.

6. Goods authorized for return are subject to a 35% ($75 minimum) restocking
charge and a service charge for inspection, reconditioning, replacement of
rubber parts, retesting, repainting and repackaging as required.

7. Authorized returned goods must be packaged and shipped prepaid to Cla-Val,
1701 Placentia Avenue, Costa Mesa, California 92627.

PO Box 1325 Newport Beach CA 92659-0325

Phone: [phone] Fax: [phone]

C

LA-VAL

CLA-VAL CANADA CLA-VAL EUROPE

4687 Christie Drive
Beamsville, Ontario
Canada LOR 1B4
Phone: [phone]
Fax: [phone]

Chemin dés Mesanges 1
CH-1032 Romanel/
Lausanne, Switzerland
Phone: [phone]
Fax: [phone]

©COPYRIGHT CLA-VAL 2007 Printed in USA

Specifications subject to change without notice.

www.cla-val.com

E-Product I.D. (R-12//07)

Represented By:

Complete Replacement Diaphragm Assemblies for 100-01 and 100-20 Hytrol Main Valves

For: Hytrol Main Valves with Ductile Iron, Bronze Trim Materials—125/150 Pressure Class Only.
FACTORY ASSEMBLED
Includes: Stem, Disc Guide, Disc, Disc Retainer, Spacer Washers, Diaphragm, Diaphragm Washer
and Stem Nut.

3/8"

1/2" - 3/4"

1"

1 1/4"-1 1/2"

2"

2 1/2"

3"
4"

(Also 81-01 )
(Also 81-01 )

N/A
N/A
N/A
N/A
N/A
N/A

C2524B

C2525J

6"

8"
10"
12"
14"
16"
20"
24"

40456G
45276D

81752J

85533J
89067D
89068B

N/A
N/A

33273E
40456G
45276D

81752J

N/A

85533J
89068B
89068B

Valve

Size

Valve

Size

49097K
C2518D
C2520K
C2522 F
C2524B
C2523D

C2525J

33273E

100-01 100-20

Diaphragm Assembly

Stock Number

100-01 100-20

Diaphragm Assembly

Stock Number

3/8"

1/2" - 3/4"

1"

1 1/4" - 1 1/2"

2"

2 1/2"

3"
4"
6"

8"
10"
12"
14"
16"
20"
24"

(Also 81-01 )
(Also 81-01 )

N/A
N/A
N/A
N/A
N/A

N/A
9169805A
9169812G
9169813E
9169815K
9817901D
9817902B

N/A
9817903K
9817905E
9817905E

3/8"

1/2" - 3/4"

1"

1 1/4” - 1 1/2"

2"

2 1/2"

3"
4"
6"
8"

9169806J
9169807G
9169808E
9169809C
9169810A
9169817F
9169818D
9169819B
9169820K
9169834A

N/A
N/A
N/A
N/A
N/A

N/A
9169810A
9169818D
9169819B
9169820K

Valve

Size

Valve

Size

9169801K
9169802H
9169803F
9169804D
9169805A
9169811J
9169812G
9169813E
9169815K
9817901D
9817902B
9817903K
9817904H
9817905E

N/A

9817906C

100-01 100-20

Repair Kit

Stock Number

100-01 100-20

Repair Kit

Stock Number

Repair Kits for 100-01/100-20 Hytrol Valves

For: Hytrol Main Valves—125/150 Pressure Class Only.
Includes: Diaphragm, Disc (or Disc Assembly) and spare Spacer Washers.

(Also 81-01 )
(Also 81-01 )

REPAIR KITS

When ordering, please give complete nameplate data of the valve and/or control being repaired.

MINIMUM ORDER CHARGE APPLIES.

Buna-N®Standard Material

Viton (For KB Valves)

MODEL

INSTALLATION / OPERATION / MAINTENANCE

Repair Kits for 100-04/100-23 Hy-Check Main Valves

For: Hy-Check Main Valves—125/150 Pressure Class Only
Includes: Diaphragm, Disc and O-Rings and full set of spare Spacer Washers.

Larger Sizes: Consult Factory.

Repair Kits for 100-02/100-21 Powertrol and 100-03/100-22 Powercheck Main Valves

For: Powertrol and Powercheck Main Valves—125/150 Pressure Class Only
Includes: Diaphragm, Disc (or Disc Assembly) and O-rings and full set of spare Spacer Washers.

Repair Kits for Pilot Control Valves (In Standard Materials Only)

Includes: Diaphragm, Disc (or Disc Assembly), O-Rings, Gaskets or spare Screws as appropriate.

Repair Assemblies (In Standard Materials Only)

CLA-VAL

Copyright Cla-Val 2009 Printed in USA Specifications subject to change without notice.

P.O. Box 1325 • Newport Beach, CA 92659-0325 • Phone: [phone] • Fax: [phone] • E-mail: [e-mail] • Website cla-val.com

©

N-RK (R-4/09)

Valve

Size

Kit Stock Number

100-02

Valve

Size

Kit Stock Number

100-02 & 100-03 100-21 & 100-22

3

⁄8”

9169901H

2

1

⁄2”

9169910J N/A

1

⁄2” &3⁄4”

9169902F

3”

9169911G 9169905J

1” 9169903D

4”

9169912E 9169911G

1

1

⁄4” &11⁄2”

9169904B

6”

9169913C 9169912E

2” 9169905J

8”

99116G 9169913C

10”

9169939H 99116G

12"

9169937B 9169939H

Valve

Size

Kit Stock Number

Valve

Size

Kit Stock Number

100-04 100-23 100-04 100-23

4” 20210901B N/A 12” 20210905H 20210904J
6” 20210902A 20210901B 14” 20210906G N/A
8” 20210903K 20210902A 16” 20210907F 20210905H

10” 20210904J 20210903K 20” N/A 20210907F

24” N/A 20210907F

BUNA-N

®

(Standard Material)

VITON (For KB Controls)

Pilot

Control

Kit

Stock

Number

Pilot

Control

Kit

Stock

Number

Pilot

Control

Kit

Stock

Number
CDB 9170006C CFM-7 1263901K CDB-KB 9170012A
CDB-30 9170023H CFM-7A 1263901K CRA-KB N/A
CDB-31 9170024F CFM-9 12223E

CRD-KB (w/bucking spring)

9170008J

CDB-7 9170017K

CRA (w/bucking spring)

9170001D CRL-KB 9170013J

CDH-2 18225D

CRD (w/bucking spring)

9170002B CDHS-2BKB 9170010E

CDHS-2 44607A

CRD (no bucking spring)

9170003K CDHS-2FKB 9170011C
CDHS-2B 9170004H CRD-18 20275401K CDHS-18KB (no bucking spring) 9170009G
CDHS-2F 9170005E CRD-22 98923G

102C-KB

1726202D
CDHS-3C-A2 24657K CRL (55F, 55L) 9170007A
CDHS-8A 2666901A CRL-4A 43413E
CDHS-18 9170003K CRL-5 (55B) 65755B
CDS-4 9170014G CRL-5A (55G) 20666E
CDS-5 14200A CRL-18 20309801C
CDS-6 20119301A CV 9170019F

Buna-N

®

CDS-6A 20349401C X105L (O-ring) 00951E
CFCM-M1 1222301C 102B-1 1502201F CRD Disc Ret. (Solid) C5256H
CFM-2 12223E 102C-2 1726201F CRD Disc Ret. (Spring) C5255K

102C-3 1726201F

Control Description Stock Number

CF1-C1 Pilot Assembly Only 89541H
CF1-Cl Complete Float Control less Ball and Rod 89016A
CFC2-C1 Disc, Distributor and Seals 2674701E
CSM 11-A2-2 Mechanical Parts Assembly 97544B
CSM 11-A2-2 Pilot Assembly Only 18053K
33A 1" Complete Internal Assembly and Seal 2036030B
33A 2" Complete Internal Assembly and Seal 2040830J

When ordering, please give complete nameplate data of the valve and/or control being repaired. MINIMUM ORDER CHARGE APPLIES

Larger Sizes: Consult Factory.
