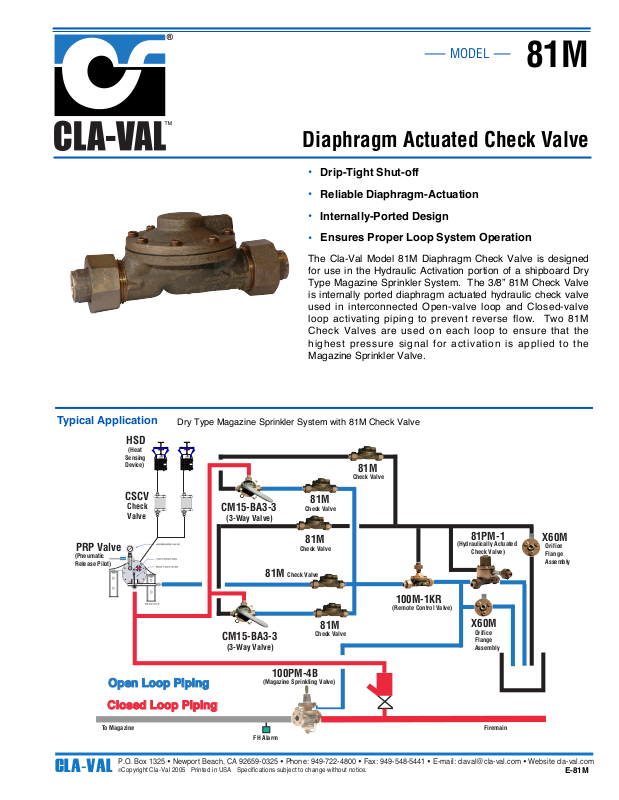

MODEL

81M

Diaphragm Actuated Check Valve

Drip-Tight Shut-off

•

Reliable Diaphragm-Actuation

•

Internally-Ported Design

•

Ensures Proper Loop System Operation

•

The Cla-Val Model 81M Diaphragm Check Valve is designed
for use in the Hydraulic Activation portion of a shipboard Dry
Type Magazine Sprinkler System. The 3/8” 81M Check Valve
is internally ported diaphragm actuated hydraulic check valve
used in interconnected Open-valve loop and Closed-valve
loop activating piping to prevent reverse flow. Two 81M
Check Valves are used on each loop to ensure that the
highest pressure signal for activation is applied to the
Magazine Sprinkler Valve.

Typical Application

HSD

(Heat
Sensing
Device)

CSCV

Check
Valve

PRP Valve

(Pneumatic
Release Pilot)

Open Loop Piping

Closed Loop Piping

Dry Type Magazine Sprinkler System with 81M Check Valve

81M

Check Valve

81M

CM15-BA3-3

(3-Way Valve)

Check Valve

81M

Check Valve

81M Check Valve

100M-1KR

(Remote Control Valve)

81M

CM15-BA3-3

(3-Way Valve)

100PM-4B

(Magazine Sprinkling Valve)

Check Valve

81PM-1

(Hydraulically Actuated

Check Valve)

X60M

Orifice
Flange
Assembly

X60M

Orifice
Flange
Assembly

To Magazine

CLA-VAL

P.O. Box 1325 • Newport Beach, CA 92659-0325 • Phone: [phone] • Fax: [phone] • E-mail: [e-mail] • Website cla-val.com

©

Copyright Cla-Val 2005 Printed in USA Specifications subject to change without notice.

Firemain

FH Alarm

E-81M
