Principle of Operation

Powertrol Valve

100-02

DESCRIPTION

This manual contains information for installation, operation and main­tenance of the Cla-Val Co. 100-02 Powertrol, an automatic valve
designed for use where independent operating pressure is desired,or
when line fluid is unsuitable as an operating medium.

This valve is a hydraulically operated, diaphragm type, globe or angle
pattern valve. it is single seated and incorporates into its design two
operating chambers sealed from one another by a flexible synthetic
rubber diaphragm. Pressure applied to the upper chamber closes the
valve; when applied to the lower chamber, it opens the valve.

With proper pilot controls, the valve can be held in any intermediate
position between fully open and tightly closed.

INSTALLATION

Allow sufficient room around the valve assembly to make adjustments
and for disassembly.

NOTE: BEFORE THE VALVE IS INSTALLED, PIPE LINES
SHOULD BE FLUSHED OF ALL CHIPS, SCALE AND FOREIGN
MATTER.

It is recommended that gate or block valves be installed on both the
upstream and downstream sides of the 100-02 to facilitate isolating
the valve for preventative maintenance.
Place the valve in the line with flow through the valve in the direction
indicated on the inlet name plate or by flow arrows.
Cla-Val Powertrol Valves operate with maximum efficiency when
mounted in horizontal piping with cover "UP,' however, other positions
are acceptable. Due to the size and weight of the cover and internal
assembly of 4" and larger valves, installation with the cover "UP" is
advisable. This makes periodic inspection of internal parts readily
accessible.
When a pilot control system is installed on the Powertrol Valve, use
care to prevent damage. If it is necessary to remove fittings or com­ponents, be sure they are kept clean and replaced in the exact order
of removal.
After the valve is installed and the system is first pressurized, vent air
from the cover chamber and tubing by loosening fit" sings at all high
points.

Full Open Operation

When operating pressure below the
diaphragm is applied and operating, pressure
is relieved from the cover chamber, the valve
is held open, allowing full flow.

Modulating Action

The valve holds any intermediate position
when operating pressure is equal above and
below the diaphragm. A Cla-Val four-way pilot
control with "lock" position can maintain this
balance by stopping flow in the pilot control
system.

Tight Closing Operation

When pressure below the diaphragm is
relieved and operating pressure is applied to
the cover chamber, the valve closes drip-tight.

4 - Way Control

→

4 - Way Control

→

4 - Way Control with lock

→

TROUBLE SHOOTING

The following trouble shooting information deals strictly with the
Powertrol Valve; however some 'impossible causes" will refer to compo­nents that may exist in the variety of control systems available for the
valve. All trouble shooting is possible without removing the valve from
the line.

CAUTION: Extreme care should be taken when servicing the valve.
Gate or line block valves must be closed upstream and downstream of
the valve before starting disassembly. When there are no block or gate
valves to isolate the Powertrol Valve it should be realized that the valve
cannot be serviced under pressure. Steps must be taken to remedy this
situation before proceeding.

1.

2.

3.

4.

5.

6.

MODEL

INSTALLATION / OPERATION / MAINTENANCE

(Full Internal Port)

FREEDOM OF MOVEMENT

The following procedures can be used to determine if the
valve opens and closes fully. During this test the diaphragm
can be checked for damage.

1.The Powertrol Valve will have a control to open and close
the valve. Position the control so that pressure is applied to
the cover chamber (above the valve diaphragm). This will
close the Powertrol Valve. Check the drain from the control
that discharges to atmosphere.

Once the liquid from the lower diaphragm chamber is drained
the discharge should stop. If the discharge continues after the
normal time it takes to drain then the diaphragm is damaged,
or the stem nut is loose, or the stem o-ring is leaking. If the
discharge is continuous from both chambers then there is a
possibility that the diaphragm or the pilot control is damaged.

If the valve is equipped with a "Dry Drain" (control drain piped
to downstream end of the valve) then same procedure is fol­lowed except the CK2 Shutoff Cock on the downstream end
of the valve must be closed and the drain line disconnected
and drained to atmosphere. It can then be checked as above.

Measurement of the vertical travel of the stem (diaphragm
assembly) will make it possible to determine if the travel, or
stroke is restricted. The following chart provides this mea­surement. It is necessary to have either the X101 Valve
Position Indicator or X105 Limit Switch Assembly installed on
the valve to visually check the travel.

Mark the position of the stem on the X101 or X105 when the
valve is closed. Reposition the control so that pressure is
applied below the diaphragm and the cover chamber is
drained. Determine the extent of the stem travel. Check this
movement with the stem travel chart. If the stroke is different
than listed (5% to 10%) then there is good reason to believe
something is mechanically restricting the stroke of the valve
at one end of its travel. If it is determined that flow does not
stop through the valve when in the indicated "closed" position,
the obstruction probably is between the disc and the seat, or
in the power unit chamber below the diaphragm. If the flow
stops, the obstruction is likely in the cover chamber above the

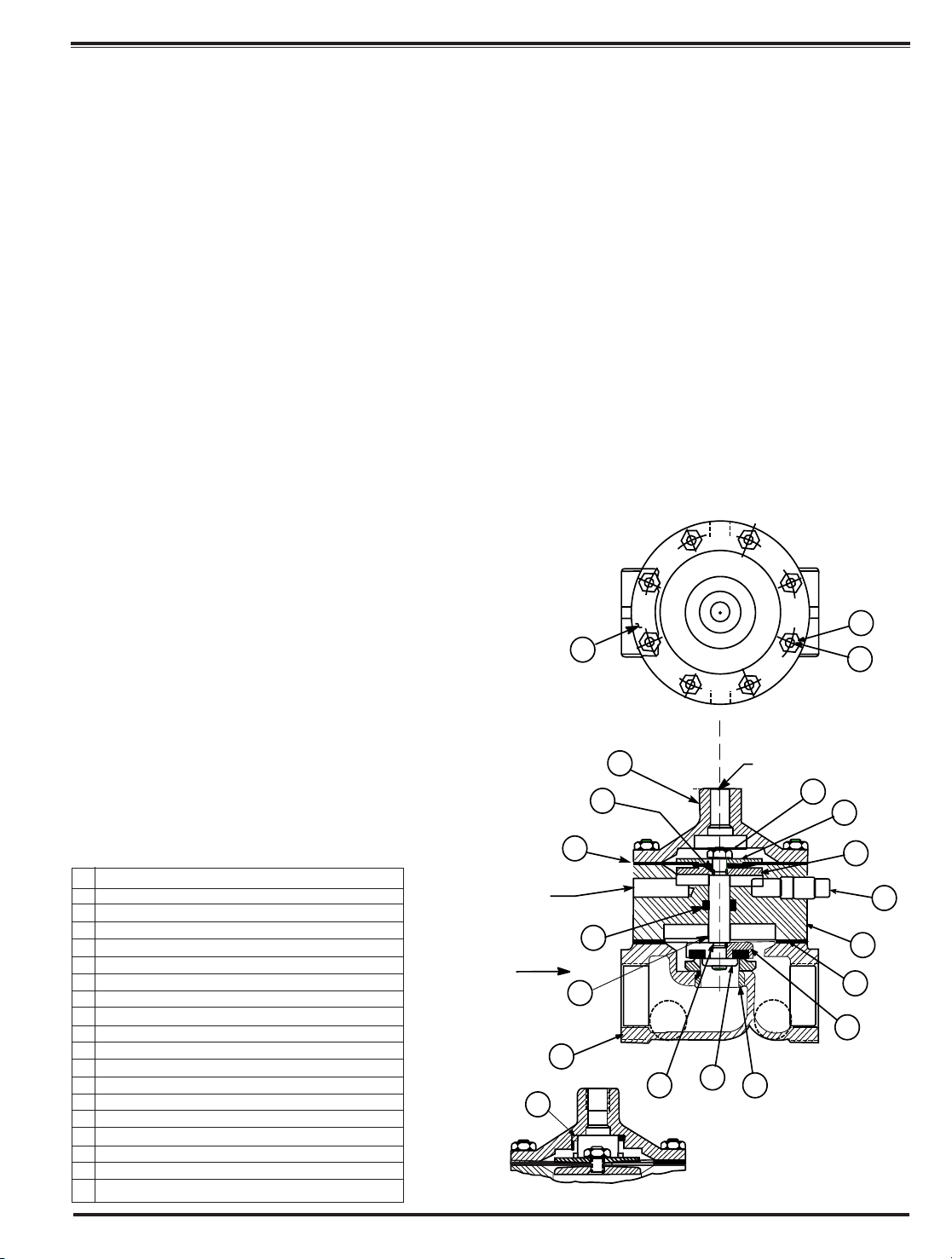

diaphragm or possibly above the disc retainer. Refer to the
sectional view under Principle of Operation.

If operation of the valve a few times does not dislodge the for­eign object obstructing the diaphragm assembly (stem) move­ment then the valve must be disassembled and the problem
located and corrected. See disassembly instructions.

INCHES

1
1 1/4
1 1/2
2
2 1/2
3
4
6
8
10
12
14
16

MM

25
32
40
50
65

80
100
150
200
250
300
350
400

INCHES

0.3

0.4

0.4

0.6

0.7

0.8

1.1

1.7

2.3

2.8

3.4

3.9

4.5

MM

8
10
10
15
18
20
23
43
58
71
86
99

114

SYMPTOM

Valve fails to
close.

Valve fails to
open.

Valve closes but
leakage occurs.

O-Ring failure

*POSSIBLE
CAUSE

Stem stuck in open position.

Worn diaphragm
or loose upper
stem nut

Foreign object on
valve seat.

Pressure not being
released from power
unit chamber.

Operating
pressure not
getting into valve
cover.

Insufficient
line pressure.

Stem stuck in
closed or semi­open position.

Worn diaphragm
or loose upper
stem nut.

Foreign object on
top of disc retainer

Pressure not being
released from
cover chamber.

Operating pressure not
applied into power
unit chamber.

Worn disc or seat.

Mineral deposits
on stem cause
abrasion on ring.

TEST
PROCEDURE

Vent power unit cham­ber. Apply pressure to
cover chamber. Valve
should close.

Apply pressure in
power unit chamber
and vent cover.
Continuous flow from
cover indicates this
trouble.

Valve opens okay but
only closes part way.

Make sure
pressure is being
released by opening a
fitting into the cham­ber. If valve then clos­es refer to remedy.

Use pressure gauge
or loosen cover plug
to check for pressure.

Check line pressure.

Vent cover. Apply
pressure to power unit
chamber.

Apply pressure in
power unit chamber
and vent cover.
Continuous flow from
cover indicates this
pro bleary.

Valve closed okay
but won't open all
the way.

Open a fitting or
remove a plug from
cover chamber if
cover chamber vents
and valve opens, see
remedy.

Loosen a fitting in this
chamber to check for
pressure at this point.

The best procedure
here is to disassemble
the valve and inspect
these parts.

Remove pressure
from both cover and
power unit chambers
and apply line pres­sure to valve. Open
line from power unit
chamber and observe
continuos flow.

REMEDY

Disassemble, examine
all internal parts for
cause of the sticking
condition and clean off
scale deposits.

Disassemble and
replace diaphragm or
tighten the valve stem
nut.

Try operating valve a
few times. This might
dislodge the object. If
this fails, disassemble
and remove the
obstruction.

Check control
system. Tube line or
nipple might be plugged
up.

Clean tubing or pipe fit­tings into cover cham­ber. Open CK2 Isolation
Valve in control lines.

Establish line pressure.

Disassemble, examine
all internal parts for
cause of the sticking
pro bleary, and clean off
scale deposits.

Disassemble and
replace diaphragm or
tighten valve stem nut.

Try operating valve a
few times. This might
dislodge the object. if
this fails disassemble
and remove the
obstruction.

Check control system.
Check lines or pipe fit­tings. Clean out any
plugged lines.

Clean tubing or pipe fit­tings into power unit
chamber.

Replace worn parts.

Disassemble and
replace O-ring.

*Assuming control system is functioning properly.

STEM TRAVEL

(Fully open to fully closed)

VALVE SIZE VALVE SIZE

When block and tackle or a power hoist is to be used to lift the valve cover
insert a proper size eye bolt in place of the center cover plug. Pull cover
straight up to keep from damaging the power unit stem bearing and upper
stem.

On valves 1" and larger remove the power unit retaining nuts. The power
unit body can now be lifted from the valve body. The stem with diaphragm
assembly and disc retainer assembly will be removed with the power unit
body.

CAUTION: During service performed on the stem assembly, the stem sur­faces must not be damaged. If a vice or other holding device is used to grip
the stem, soft jaws of brass or copper must be used to protect the precision
ground surface of the stainless steel stem. If the stem is marred no amount
of careful dressing can restore the stem to its original condition.

REASSEMBLY

To reassemble, reverse the order of disassembly.

1. If the disc has been removed, it is important that correct pressure be
on the disc from the disc guide when the lower stem nut is tight. Use suf­ficient spacer washers to obtain slight pressure (by visual indentation) on
the disc. This applies to 1" through 16" valves. Refer to seat and disc
detail drawings for location of spacer washers for various valve sizes.

Note: New discs will usually require a different number of spacer wash­ers to obtain the right amount of 'grip (slight indentation) on the disc.

6. Inspect the threads on the stem. Mineral deposits that prevent the
nuts from turning must be cleaned from the threads A 5C.h solution of
muriatic acid will soften mineral or scale deposits to assist in removal of
nuts and general cleaning of parts. Flush the parts thoroughly with water
immediately after cleaning.

Care must always be exercised when handling acid. Read the warning
label on the acid container to be sure of correct method of use and dis­posal after use.

7. Remove the upper stem nut, upper diaphragm washer, diaphragm
and lower diaphragm washer. The stem with the disc retainer assembly
can now be removed from the power unit body

8. Hold the stem in a vice with soft jaws and remove the lower stem nut.

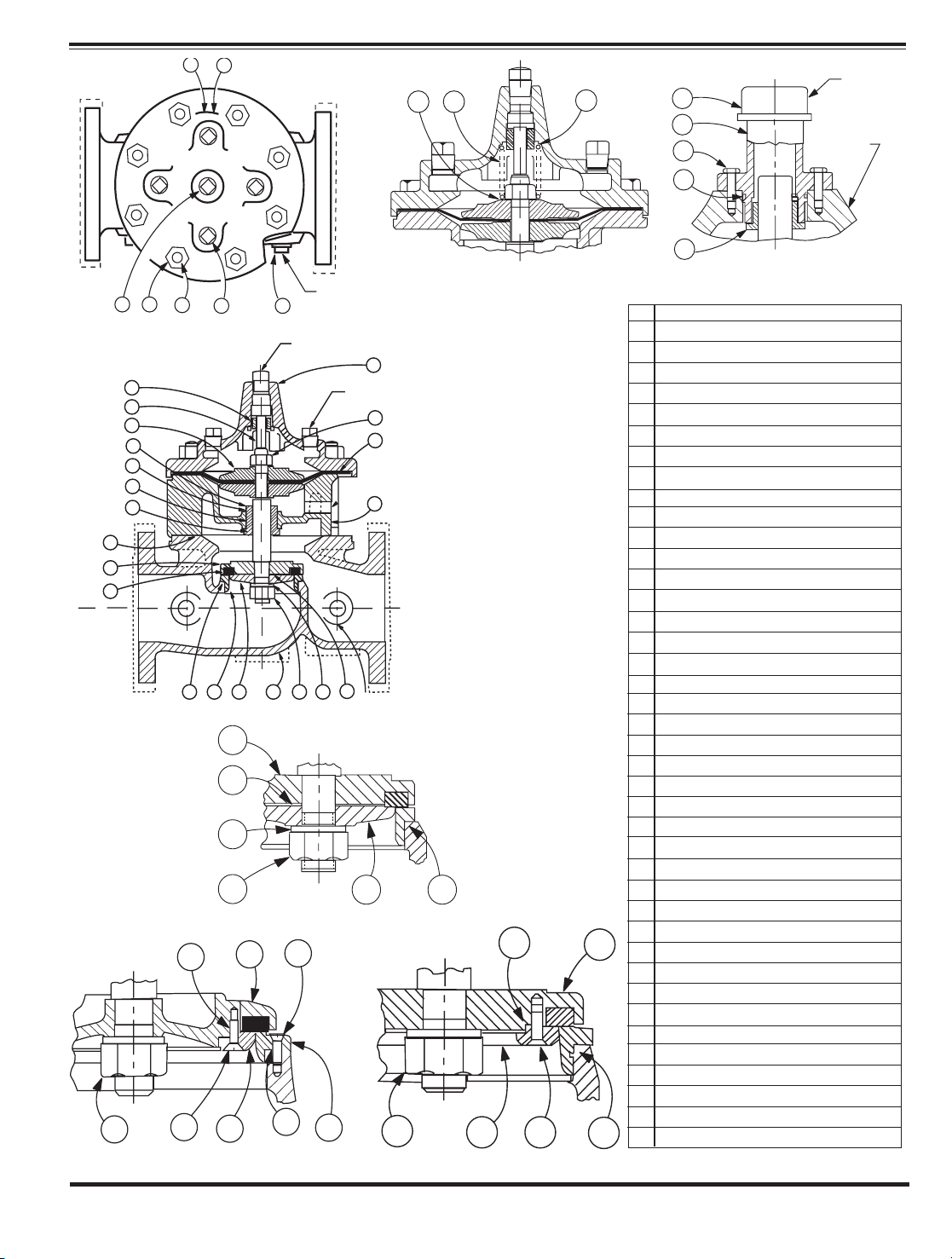

Remove the lock washer, disc retainer, space washer(s) and disc Refer
to the sectional view of the valve size being serviced. This will assist in
the disassembly procedure outlined above. The reassembly instructions
outlining proper procedure and quantity of space washers. This is espe­cially important if the disc is replaced.

Inspection of Parts

1. Returning to the valve body in the line, the seat should now be
inspected for damage. if the seat requires removal use the following
tools. Seats in valve sizes 1/2" and 3/4" can be removed with a hex sock­et wrench. Seats in valve sizes 1" through 6" should be removed with
accessory X-109 Seat Removing Tool available from the factory. Seats
in valve sizes 3" through 16" may be removed with a screw driver. If upon
removal of the screws the seat cannot be lifted out, it will be necessary
to use a hard rubber mallet and tap the seat loose.

2. Any buildup of mineral or scale should be cleaned from the valve body
at this time. Inspection of the cover and power unit body surfaces that
contact the diaphragm is important. Clean and smooth, with wet or dry
emery paper, any roughness that could damage the diaphragm. Inspect
and recondition the surface on the upper and lower diaphragm washers.
The perimeter of the diaphragm washers is the most likely area to cause
diaphragm wear if the surface is not smooth. Take extra care to make
this a smooth finish.

3. Inspect the power unit body bearing insert o-ring that is in contact with
the stem. If it is worn, nicked or cut, replace it.

4. Inspect the diaphragm for cracks or chafing. Replace the diaphragm
if damaged.

Inspect the disc and replace if the surface is damaged or worn. If a new
disc is not available, the existing disc can be turned over, exposing the
unused surface for contact with the seat.

6. The disc guide should be checked and cleaned of scales and mineral
deposits. Due to the close tolerance between the outer periphery of the
disc guide and the inner area of the valve seat, no scale or mineral
deposits should be overlooked.

Valve Cover

Hammer

Dull Cold Chisel

(Angle upward as
much as possible)

MAINTENANCE

Preventative Maintenance

The Cla-Val Co Powertrol Valves require no lubrication or packing
and a minimum of maintenance. However, a periodic inspection
schedule should be established to determine how the fluid velocity
as well as the substances occurring in natural waters are affecting
the valve These substances can be dissolved minerals. colloidal
and suspended particles. Effect of these actions or substances must
be determined by inspection.

DISASSEMBLY

1. First mark the side of the valve cover, power unit body and valve body so
that reassembly of these parts will be exactly as removed.

2. The Powertrol Valve inspection or maintenance can be accomplished
without removal of the valve body from the line. Shut off pressure to the
valve, both inlet, outlet and independent operating pressure when used.

WARNING: Maintenance personnel can be injured and equipment and prop­erty damaged if disassembly is attempted with pressure in the system.

3. After pressure has been released from the valve control system and oper­ating chambers of the valve, remove the controls and tubing. Obtain a
schematic of the assembly or note and sketch position of tubing and controls
for reassembly. Replacing tubing into the control ports exactly as removed is
necessary. Failure to reassemble properly will cause the valve to malfunc­tion and possibly cause serious damage.

4. Remove cover nuts and cover. if the valve has been in service for any
length of time, chances are the cover will have to be loosened by driving
upward along the edge of the cover with a dull cold chisel. See Figure 1.

INLET

INLET

1/8 NPT (THESE
TAPPED HOLES ARE
SHOWN 90" FROM
TRUE POSITION)

INLET

MODELS 100-02KH 100-02KHR, 100-02KHX

16

19

2

17

6

11

8

15

17

9

18

10

12

3

14

7

5

4

13

1

1/8 NPT

1. If the disc has been removed, it is important that correct
pressure be on the disc from the disc guide when the lower
stem nut is tight. Use sufficient spacer washers to obtain
slight pressure (by visual indention) on the disc. Indention
should be slight and no looseness evident. This adjust­ment applies to 1 " through 16". Refer to seat and disc
detail drawings for location of spacer washers for various
valve sizes.

NOTE: New discs will usually require a different number of
spacer washers to obtain the right amount of "grip'' on the
disc.

2. The stem, with the disc assembly, can now be inserted
through the power unit body. Note sectional view for cor­rect position of the power unit body and stem assembly

3. Install on the cover end of the stem the lower diaphragm
washer,the diaphragm, the upper diaphragm washer, then
screw on the upper stem nut.

4. Tighten the upper stem nut securely so the diaphragm
and upper and lower diaphragm washer cannot be turned
on the stem. During the tightening of the upper stem nut
the lower stem nut can be held in a vice, or with a second
wrench.

5. Replace the gasket on the body. If an o-ring seal is used
as a gasket, valve size 4" through 16", a light coating of
grease can be applied to the power unit body groove to
hold the o-ring in place while installing on the body. The
power unit body must be replaced so that the index marks
applied in Disassembly Step 1 align. The control tubing will
then be able to be reassembled without difficulty.

6. Replace cover chamber spring on the upper diaphragm
washer. NOTE: Some valves may not have a cover cham­ber spring.

7. Place the cover on the power unit body aligning the
index marks. Secure the cover with 8 stud nuts. Tighten
the nuts firmly with a cross-over pattern until all nuts are
tight:

8. Reinstall the control system and tubing exactly as it was
before disassembly.

9.The Powertrol Valve can be tested for tight closure as well as
the tightness of the seal across the diaphragm.

a.The downstream or outlet shutoff valve remains closed

b. If the control system has a pilot or control that can position the
valve to a closed position, put the control in a position to close
the Powertrol. Lacking a control, inlet pressure must be tubed to
the Powertrol cover.

c. Open upstream gate or line block valve just enough to allow
flow.

d. Have the power unit body, center section, open to atmosphere
The power unit body will be atmospheric if the control is being
used.

e. Partially disconnect a fitting on the discharge side of the valve.
Do not remove fully unless there is no pressure.

f. After the valve is in the closed position for a few minutes, all
draining of the power unit body should stop. This will indicate a
good seal across the valve seat and the diaphragm.

100-02 POWERTROL

VALVE SIZES 1/2" & 3/4"

1 HEX NUT 10-32 (8)
2 COVER
3 POWER UNIT BODY
4 HEX NUT 1/4-28-NF-2 A.S.F. JAM
5 DIAPHRAGM WASHER (UPPER)
6 DIAPHRAGM
7 DIAPHRAGM WASHER (LOWER)
8 STEM
9 DISC GUIDE
10 DISC RETAINER ASSEMBLY
11 "O" RING
12 BODY TO BODY GASKET
13 STUD 10-32 (8)
14 PIPE PLUG 1/8 NPT
15 BODY
16 SPRING (USED ON 100-02KHR & 100-02 KHX
17 "O" RING
18 SEAT
19 NAMEPLATE

ITEM

NO.

DESCRIPTION

1 CENTER COVER PLUG

2 COVER PLUG

3 STUD NUT

7 PLUG, PIPE, BODY

10 * GASKET "O" RING

14 NAMEPLATE

15 * O-RING, STEM

16 RETAINER BEARING (1”-3” ONLY)

19 BOLT, HEX HD. (1”-3” ONLY)

20 POWERUNIT BODY

21 LOWER STEM NUT

22 SPACER WASHER

24 DISC GUIDE

25 DISC RETAINER

30 BODY

31 SPRING (100-02KH/100PAKH ONLY)

32 LOCK WASHER - SPRING

33 * SEAT O-RING

34 * GASKET BEARING GASKET (1”-3" ONLY)

35 Screw Fil. HD. (1’-2 1⁄2”) / BOLT HEX. (3”)

36 UPPER WASHER SPRING (100PKCH)

37 LOWER WASHER SPRING (100PAKCH)

38 DRIVE SCREW

USEFUL INFORMATION OR HINTS

1. The approximate volume of liquid discharged from
the chamber above the diaphragm when the valve
moves from the fully closed positions to the fully open
is as follows:

1/2"
3/4"
1"
1 1/4"
1 1/2"
2"
2 1/2"
3"
4"
6"
8'
10"
12"
14"
16"

0.340 Fl. Oz

0.340 Fl. Oz.

0.700 Fl. Oz.

0.020 Gal.

0.020 Gal.

0.032 Gal.
0 043 Gal

0.080 Gal

0.169 Gal.
0 531 Gal.

1.260 Gal

2.510 Gal.

4.000 Gal.

6.500 Gal.

9.570 Gal.

.01 Liters
.01 Liters
.02 Liters
.10 Liters
.10 Liters
.10 Liters
.20 Liters
.30 Liters
.60 Liters

2.00 Liters

4.75 Liters

9.50 Liters

15.14 Liters

24.60 Liters

36.20 Liters

VALVE SIZE DISPLACEMENT

100-02 POWERTROL

VALVE SIZES 1" - 3"

13 2

7

19

14

38

NPT

J

16

19

34

19

10

30

35

15

20

37

31

36

25

22

32

21

24

33

Model 100-02KH

Seat & Disc Details

ITEM

NO.

PART DESCRIPTION

* RECOMMENDED SPARE PARTS

ITEM

NO.

PART DESCRIPTION

CLA-VAL

Copyright Cla-Val 2009 Printed in USA Specifications subject to change without notice.

P.O. Box 1325 • Newport Beach, CA 92659-0325 • Phone: [phone] • Fax: [phone] • E-mail: [e-mail] • Website cla-val.com

©

N-100-02 (R-4/09)

37

31

36

6

39

8

9

4

COVER

G

NPT

13 2

7

19

14

38

NPT

J

4

27

12

17

16

18

15

10

33

29

24

20

13

11

5

30

21

32

22

25

26

J

K

NPT

NPT

INLET

OUTLET

H

NPT

25

22

32

21

24

33

22

21

25

24

23

33

29

33

24

23

21

25

28

22

* RECOMMENDED SPARE PARTS

1 CENTER COVER PLUG

2 COVER PLUG

3 STUD NUT

4 COVER BEARING

5 COVER

6 PIPE CAP (16" ONLY)

7 PLUG, PIPE, BODY

8 BOLT HEX HD (16" ONLY)

9 * O-RING (16" ONLY)

10 * GASKET "O" RING

11 UPPER STEM NUT

12 UPPER DlAPHRAGM WASHER

13 * DIAPHRAGM

14 NAMEPLATE

15 * O-RING, STEM

16 RETAINER BEARING (1”-3” ONLY)

RING RETAINER BEARING (4”-16” ONLY)

17 POWERUNIT BEARING

18 * O-RING BEARING (4”-16” ONLY)

19 BOLT, HEX HD. (1”-3” ONLY)

STUD (4”-16” ONLY

20 POWERUNIT BODY

21 LOWER STEM NUT

22 SPACER WASHER

23 DISC GUIDE SCREW (6" - 16" ONLY)

24 DISC GUIDE

25 DISC RETAINER

26 * DISC

27 STEM

28 SEAT SCREW (8”-16” ONLY)

29 SEAT

30 BODY

31 SPRING (100-02KH/100PAKH ONLY)

32 LOCK WASHER - SPRING

33 * SEAT O-RING

34 * GASKET BEARING GASKET (1”-3" ONLY)

35 Screw Fil. HD. (1’-2 1⁄2”) / BOLT HEX. (3”)

36 UPPER WASHER SPRING (100PKCH)

37 LOWER WASHER SPRING (100PAKCH)

38 DRIVE SCREW

39 COVER BEARING HOUSING (16" ONLY)

Full Open Operation

When operating pressure below the
diaphragm is greater than the
pressure in the cover chamber, the
valve is held open, allowing full
flow.

Tight Closing Operation

When pressure below the
diaphragm is relieved and operating
pressure is applied to the cover
chamber, the valve closes
drip-tight.

• Reduced Cavitation Design

• Drip-tight, Positive Seating

• Service Without Removal From Line

• Globe or Angle Pattern

• Every Valve Factory-Tested

600 Series

Powertrol Valve

The Cla-Val Model 100-21 is a hydraulically operated,
diaphragm actuated, globe or angle pattern valve. It consists
of four major components: the body, intermediate chamber,
diaphragm assembly and cover. The diaphragm assembly is
the only moving part.

The diaphragm assembly, which is guided top and center by
a precision machined stem, utilizes a non-wicking diaphragm
of nylon fabric bonded with synthetic rubber. The diaphragm
forms a seal between the cover chamber and intermediate
chamber. A synthetic rubber disc retained on three and one­half sides forms a drip-tight seal with the renewable seat
when pressure is applied above the diaphragm. As pressure
above the diaphragm is relieved and pressure is applied
below the diaphragm, the valve opens wide for full flow. The
rate of closing or opening can be controlled by modulating
the pressure above or below the diaphragm.

The Model 100-21 is recommended where independent
operating pressure is desired. The valve's packless
construction and simplicity of design assures a long life and
dependable operation. Available in various materials and in
a wide range of sizes. It's applications are many and varied.

100-21

Principle of Operation

The valve holds any intermediate
position when operating pressure is
equal above and below the
diaphragm. A Cla-Val four-way pilot
control with "lock" position can
maintain this balance by
stopping flow in the pilot
control system.

Modulating Action

4 - Way Control

4 - Way Control

4 - Way Control with lock

MODEL

(Reduced Internal Port)

Specifications

4" Globe, Flanged

6" Globe, Flanged

6" Angle, Flanged

Options

Epoxy Coating - suffix KC

An FDA approved fusion bonded epoxy
coating for use with cast iron, ductile iron
or steel valves. This coating is resistant to
various water conditions, certain acids,
chemicals, solvents and alkalies. Epoxy
coatings are applied in accordance with
AWWA coating specifications C116-03.
Do not use with temperatures above 175°F.

Viton®Rubber Parts- suffix KB

Optional diaphragm, disc and o-ring
fabricated with Viton®synthetic rubber.
Viton®is well suited for use with mineral
acids, salt solutions, chlorinated
hydrocarbons, and petroleum oils; and is
primarily used in high temperature
applications up to 250° F. Do not use with
epoxy coating above 175°F.

Heavy Spring

-

suffix KH

The heavy spring option is used in
applications where there is low differential
pressure across the valve, and the
additional spring force is needed to help
the valve close. This option is best suited
for valves used in on-off (non-modulating)
service.

Low Temperature Diaphragm - suffix KA

This single ply diaphragm uses Buna-N

®

Synthetic Rubber, formulated for low
temperature applications to -65° F.
Operating pressures in excess of 125 psi
are not recommended.

For assistance in selecting appropriate
valve options or valves manufactured
with special design requirements,
please contact our Regional Sales
Office or Factory.

Model 100 -21

Operating Temp. Range

Fluids

-40° to 180° F

Component Standard Material Combinations

Body & Cover Ductile Iron Cast Steel Bronze

Available Sizes 3" - 30" 3" - 16" 3" - 16"

Disc Retainer &
Diaphragm Washer

Cast Iron Cast Steel Bronze

Trim: Disc Guide,
Seat & Cover Bearing

Bronze is Standard

Stainless Steel is optional

Disc Buna-N®Rubber

Diaphragm Nylon Reinforced Buna-N®Rubber

Stem, Nut & Spring Stainless Steel

For material options on sizes not listed, consult factory.
Cla-Val manufactures valves in more than 50 different alloys.

Materials

Available Sizes

Pattern Flanged

Globe 3", 4", 6", 8", 10", 12", 14", 16", 18", 20", 24", 30"

Angle 4", 6", 8"

Pressure Ratings

(Recommended Maximum Pressure - psi)

Valve Body & Cover

Pressure Class

Flanged

Grade Material

ANSI

Standards*

150

Class

300†

Class

ASTM A536 Ductile Iron B16.42 250 640

ASTM A216-WCB Cast Steel B16.5 285 720

ASTM B62 Bronze B16.24 225 500

Note: * ANSI standards are for flange dimensions only.

Flanged valves are available faced but not drilled.

† Consult factory when Maximum Operating Pressure Differential

(MOPD) is greater than 400 PSID

Model 100-21 Flow Chart (Based on normal flow through a wide open valve)

K =

894d

4

C

2

v

L =

K
12 f

K Factor (Resistance Coefficient)

The Value of K is calculated from the formula:
(U.S. system units)

Equivalent Length of Pipe

Equivalent lengths of pipe (L) are determined from the formula:
(U.S. system units)

Fluid Velocity

Fluid velocity can be calculated from the following formula:
(U.S. system units)

d

V =

.4085 Q

2

d

C

V

Factor

Formulas for computing C Factor, Flow (Q) and Pressure Drop

V

( P):

C

V

=

Q

P

C

V

=

Q

P

C

V

=

Q

P

2

V

Where:

U.S. (gpm) @ 1 psi differential at 60 F water

(l/s) @ 1 bar (14.5 PSIG) differential

or

at 15 C water

inside pipe diameter of Schedule 40 Steel Pipe (inches)

friction factor for clean, new Schedule 40 pipe

(dimensionless) (from Cameron Hydraulic Data,

18th Edition, P 3-119)

Resistance Coefficient (calculated)

Equivalent Length of Pipe (feet)

Flow Rate in U.S. (gpm) or (l/s)

Fluid Velocity (feet per second) or (meters per second)

Pressure Drop in (psi) or (bar)

=

=

=

=

=

=

=

=

=

P

V

Q

L

K

f

d

C

3

80

62

15

—

—

293

89.3

—

—

20.6

—

—

.032

—

.12

4

100

136

32.5

135

32

251

76.4

254

77.6

12.7

12.9

—

.08

—

.30

6

150

229

55

233

56

777

237.1

751

229

23.1

22.3

—

.17

—

.64

8

200

480

115

545

132

748

228.1

580

176.9

15.7

12.2

—

.53

—

2.0

10

250

930

223

—

—

621

189.5

—

—

10.4

—

—

1.26

—

4.8

12

300

1458

350

—

—

654

199.4

—

—

8.5

—

—

2.51

—

9.5

14

350

1725

414

—

—

750

228.7

—

—

8.9

—

—

4

—

15.1

16

400

2110

506

—

—

977

298.1

—

—

10.2

—

—

4

—

15.1

18

460

2940

705

—

—

983

299.9

—

—

8.4

—

—

9.6

—

36.2

20

510

3400*

816

—

—

1125

343.2

—

—

8.8

—

—

9.6

—

36.2

24

610

3500*

840

—

—

3005

916.6

—

—

19.1

—

—

9.6

—

36.2

30

750

7900*

1895

—

—

2130

649.6

—

—

10.5

—

—

29.0

—

110

Globe

Pattern

Angle

Pattern

Globe

Pattern

Angle

Pattern

Equivalent

Length

of

Pipe

C

V

Factor

Functional Data Model 100-21

*Estimated

Valve Size

Liquid Displaced
from Diaphragm

Chamber When

Valve Opens

K

Factor

mm.

Gal./Min. (gpm.)

Litres/Sec. (l/s.)

Gal./Min. (gpm.)

Litres/Sec. (l/s.)

Feet (ft.)

Meters (m.)

Feet (ft.)

Meters (m.)

Fl. Oz

U.S. Gal.

ml

Litres

Inches

Globe Pattern

Angle Pattern

H

K

INLET

OUTLET

D

DD

J

C

E

EE

B

100-21 (Angle)

B

H

INLET

K

A

AA

J

C

FF

F

OUTLET

Dimensions

100-21 (Globe)

Service and Installation

Cla-Val Control Valves operate with maximum efficiency when mounted in horizontal piping with the main valve cover UP, however, other
positions are acceptable. Due to component size and weight of 10 inch and larger valves, installation with cover UP is advisable. We recommend
isolation valves be installed on inlet and outlet for maintenance. Adequate space above and around the valve for service personnel should be
considered essential. A regular maintenance program should be established based on the specific application data. However, we recommend a
thorough inspection be done at least once a year. Consult factory for specific recommendations.

Model 100-21

PO Box 1325 Newport Beach CA 92659-0325

Phone: [phone] Fax: [phone]

C

LA-VAL

CLA-VAL CANADA CLA-VAL EUROPE

4687 Christie Drive
Beamsville, Ontario
Canada L0R 1B4
Phone: [phone]
Fax: [phone]

Chemin dés Mesanges 1
CH-1032 Romanel/
Lausanne, Switzerland
Phone: [phone]
Fax: [phone]

©COPYRIGHT CLA-VAL 2009 Printed in USA

Specifications subject to change without notice.

www.cla-val.com

E-100-21 (R-11/09)

Represented By:

Valve Size (Inches)

3 4 6 8 10 12 14 16 18 20 24 30

A 150 ANSI

10.25 13.88 17.75 21.38 26.00 30.00 34.25 35.00 42.12 48.00 48.00 63.25

AA 300 ANSI

11.00 14.50 18.62 22.38 27.38 31.50 — 36.62 43.62 49.62 49.75 —

B Dia.

6.62 9.12 11.50 15.75 20.00 23.62 28.00 28.00 35.44 35.44 35.44 53.19

C Max.

9.25 11.75 15.25 20.25 23.75 27.25 29.31 34.12 35.00 40.25 40.25 56.50

D 150 ANSI

— 6.94 8.88 10.69 — — — — — — — —

DD 300 ANSI

— 7.25 9.38 11.19 — — — — — — — —

E 150 ANSI

— 5.50 6.75 7.25 — — — — — — — —

EE 300 ANSI

— 5.81 7.25 7.75 — — — — — — — —

F 150 ANSI

3.25 4.50 5.50 6.75 8.00 9.50 11.00 11.75 15.88 14.56 17.00 19.88

FF 300 ANSI

4.12 5.00 6.25 7.50 8.75 10.25 — 12.75 15.88 16.06 19.00 —

H NPT Body Tapping

3

⁄8

1

⁄2

3

⁄4

1

3

⁄4

1 1 1 1 1 1 1 1

J NPT Cover Center Plug

1

⁄2

1

⁄2

3

⁄4

3

⁄4

1 1

1

1

⁄4 11⁄4

2 2 2 2

K NPT Cover Tapping

3

⁄8

1

⁄2

3

⁄4

3

⁄4

1 1 1 1 1 1 1 1

Valve Stem Internal
Thread UNF

10-321⁄4-281⁄4-283⁄8-243⁄8-243⁄8-243⁄8-243⁄8-241⁄2-201⁄2-201⁄2-203⁄4-16

Stem Travel

0.6 0.8 1.1 1.7 2.3 2.8 3.4 3.4 3.4 4.5 4.5 6.5

Approx. Ship Wt. Lbs.

70 135 230 480 785 1410 2215 2215 2300 3400 3600 7700

Valve Size (mm)

80 100 150 200 250 300 350 400 450 500 600 750

A 150 ANSI

260 353 451 543 660 762 870 889 1070 1219 1219 1607

AA 300 ANSI

279 368 473 568 695 800 — 930 1108 1260 1264 —

B Dia.

168 232 292 400 508 600 711 711 900 900 900 1351

C Max.

235 298 387 514 603 692 744 867 889 1022 1022 1435

D 150 ANSI

— 176 226 272 — — — — — — — —

DD 300 ANSI

— 184 238 284 — — — — — — — —

E 150 ANSI

— 140 171 184 — — — — — — — —

EE 300 ANSI

— 148 184 197 — — — — — — — —

F 150 ANSI

95 114 140 171 203 241 279 298 403 370 432 505

FF 300 ANSI

105 127 159 191 222 260 — 324 403 408 483 —

H NPT Body Tapping

3

⁄8

1

⁄2

3

⁄4

1

3

⁄4

1 1 1 1 1 1 1 1

J NPT Cover Center Plug

1

⁄2

1

⁄2

3

⁄4

3

⁄4

1 1

1

1

⁄4 11⁄4

2 2 2 2

K NPT Cover Tapping

3

⁄8

1

⁄2

3

⁄4

3

⁄4

1 1 1 1 1 1 1 1

Valve Stem Internal
Thread UNF

10-321⁄4-281⁄4-283⁄8-243⁄8-243⁄8-243⁄8-243⁄8-241⁄2-201⁄2-201⁄2-203⁄4-16

Stem Travel

15 20 28 43 58 71 86 86 86 114 114 165

Approx. Ship Wt. Kgs

32 61 104 218 356 640 1006 1006 1044 1544 1634 3496

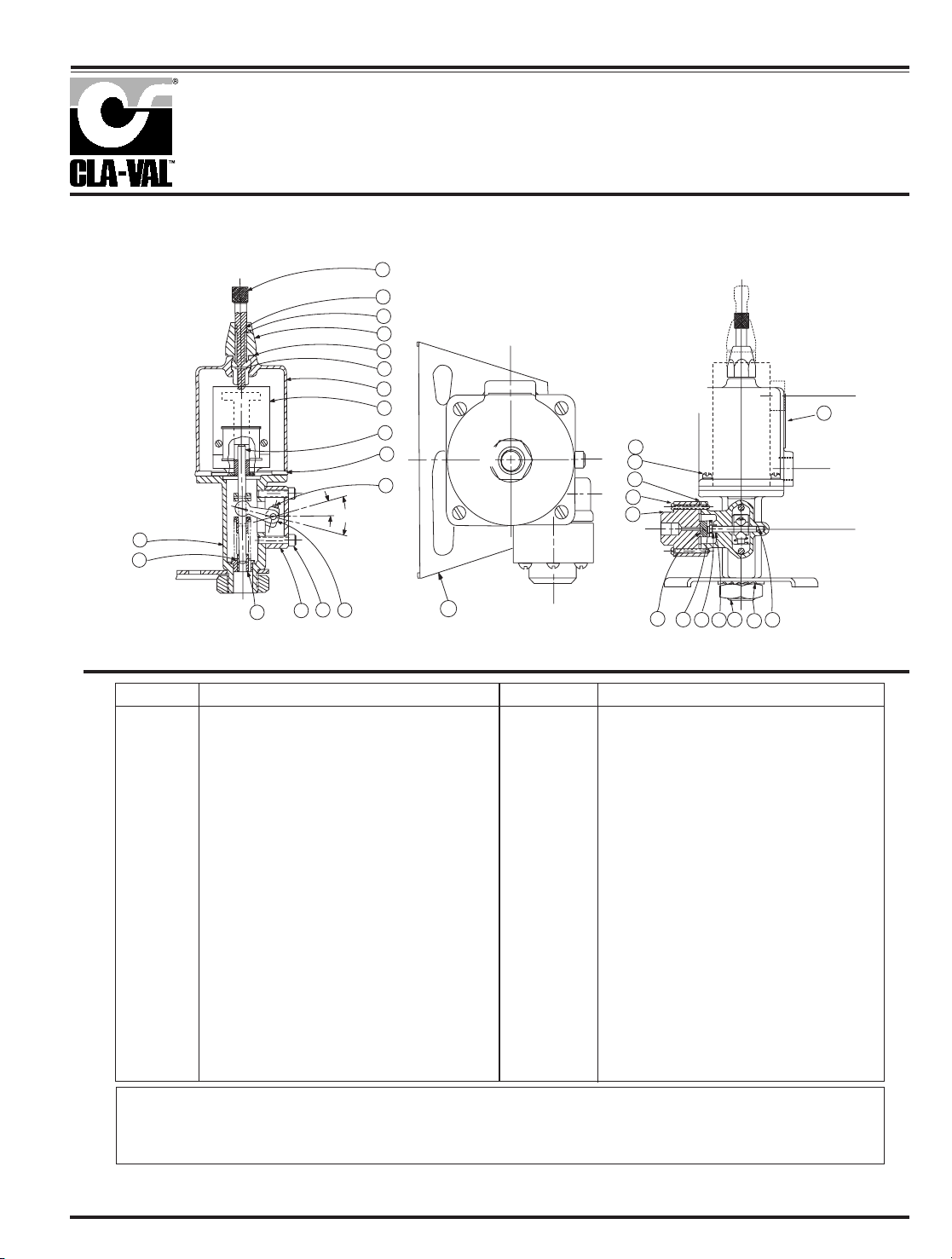

When ordering parts, please specify:

• All Nameplate Data • Description • Recommended Spare Parts

• Item Number • Material

ITEM DESCRIPTION

1 Mounting Bracket

5 Mechinal Parts Assy.
5-2 Housing
5-3 Spring
5-4 Guide
5-5 Side Housing
5-6 Cap Screw 1/4'
5-7 Lever Arm
5-8 Lever Screw
5-9 Stem assy. (Solenoid)
5-10 Distributor Gasket
5-11 Machine Screw, RDH

(6/32 x 1 1/4 - 6 reqd.)
5-12 Distributor (CSM11-A2-2)
5-13 Disc Assy.

5-14 Spring (Disc Assy.)
5-15 Thrust Washer
5-16 "O"- Ring
5-17 Stem Assy. (Pilot)
6 Spacer Gasket (A.C. only)

ITEM DESCRIPTION

7 Solenoid Assy.

(See table other side)
8 Cover (A.C. only)
9 Manual operator assy
9-1 Housing, Manual Operator
9-2 Plunger
9-3 Pin, groove-3/8"
9-4 "O"- Ring
9-5 Spring, Manual Operator
9-6 Gasket, Manual Operator
10 Machine Screw Fil. Hd.

(A.C. Only 10/32 x 5/8-4 reqd.)

(4 reqd.)
11 Lockwasher
12 Machine Screw Fil. Hd.

(D.C. Only) 10/32 x 7/16 (4 required)
13 Lockwasher
14 Coil only: (See table other side)
15 Nameplate
16 Hex Nut, Jam 1-14 UNS

Solenoid Control

CSM-11

15º

30º

TRAVEL

5-8

5-7

5-6

5-5

5-4

5-3

5-4

5-9

6

7

8

9-3

9-6

9-1

9-5

9-4

9-2

1

5-13

5-14

5-15

5-16

16

13

5-17

10

11

5-12

5-11

5-12

15

PARTS LIST

24/60 Hz
115/60 Hz
120/60 Hz
208/60 Hz
230/60 Hz
240/60 Hz
440/60 Hz
460/60 Hz
480/60 Hz
110/50 Hz
220/50 Hz
240/50 Hz

12 VDC
24 VDC
28 VDC
32 VDC

48 VDC
115 VDC
125 VDC
250 VDC

10023-01J
10023-02G
10023-02G

10023-03E
10023-04C
10023-04C

10023-09B

10023-05K

10023-05K
10023-06H

10023-07F
10023-08D
10024-01G

10024-02E
10024-03C

10024-04A
10024-05H

10024-06F
10024-07D

10024-08B

—
10046-01K
10046-01K

—

—

—

—

—

—

—

—

—
10045-01B
10045-02K

—

—

—

—

—

—

10031-01B
10031-02K
10031-02K
10031-03H
10031-04F
10031-04F
10031-09E
10031-05C
10031-05C
10031-06A

10031-07J

10031-08G

—
—
—
—
—
—
—
—

10039-01E
10039-02C
10039-02C
10039-03A
10039-04J
10039-04J
10039-09H
10039-05F
10039-05F
10039-06D
10039-07B
10039-08K
10040-01C
10040-02A
10040-03J

10040-04G

10040-05D
10040-06B
10040-07K
10040-08H

10038-01G
10038-02E
10038-02E
10038-03C

—
10038-04A
10038-09K

—
10038-05H
10038-06K
10038-07D
10038-08B

—

—

—

—

—

—

—

—

87573-01A

—

87573-02J

87573-03G

—
87573-04E
87573-09D

—
87573-05B
87573-06K
87573-07H

87573-08F
98297-01D
98297-02B
98297-03K
98297-04H
98297-05E
98297-06C
98297-07A

98297-08J

73342J

—

73343G

73344E

—
73345B
82542C

—
73346K
73347H
73348F
73349D

2.98
—

.575

.33

—

.288
.156

—

.143

.48
.24
.22

1.0
.603
.629
.500
.293
.122
.119
.072

25.4
—

5.1

2.93
—

2.54

1.38
—

1.27

4.6

2.3

2.1

40.0

24.0

15.6

18.6

10.8

4.42

4.44

2.45

VOLTAGE

STOCK No.

STANDARD

CSMII-A2-2

CSMII CONTROL ASSEMBLY SOLENOID ASSEMBLY & COILS

STANDARD

CSMII-N2-4 CSMII-CZ2-4 CSMII-CQ2-4

STANDARD STANDARDSEA-WATER

SERVICE

STOCK No. STOCK No. STOCK No. STOCK No.

SOLENOID

PART No.

COIL

PART No.

HOLDING

AMPS

INRUSH

NOTE: Cover, solenoid and coil of the D.C. model is
supplied as a complete unit and is not sold separately.
For all other parts see other side.

CLA-VAL

Copyright Cla-Val 2008 Printed in USA Specifications subject to change without notice.

P.O. Box 1325 • Newport Beach, CA 92659-0325 • Phone: [phone] • Fax: [phone] • E-mail: [e-mail] • Website cla-val.com

©

PL- CSM-11 (R-1/08)

CLA-VAL

Copyright Cla-Val 2009 Printed in USA Specifications subject to change without notice.

P.O. Box 1325 • Newport Beach, CA 92659-0325 • Phone: [phone] • Fax: [phone] • E-mail: [e-mail] • Website cla-val.com

©

INSTALLATION / OPERATION / MAINTENANCE

Flow Control

CV

MODEL

N-CV (R-1/09)

DESCRIPTION

The Cla-Val Model CV Flow Control is a simply-designed,
spring-loaded check valve. Rate of flow is full flow in one direc­tion and restricted in other direction. Flow is adjustable in the
restricted direction. It is intended for use in conjunction with a
pilot control system on a Cla-Val Automatic Control Valve.

OPERATION

The CV Flow Control permits full flow from port A to B, and
restricted flow in the reverse direction. Flow from port A to B
lifts the disc from seat, permitting full flow. Flow in the reverse
direction seats the disc, causing fluid to pass through the clear­ance between the stem and the disc. This clearance can be
increased, thereby increasing the restricted flow, by screwing
the stem out, or counter-clockwise. Turning the stem in, or
clockwise reduces the clearance between the stem and the
disc, thereby reducing the restricted flow.’

INSTALLATION

Install the CV Flow Control as shown in the valve schematic
All connections must be tight to prevent leakage.

DISASSEMBLY

Follow the sequence of the item numbers assigned to the
parts in the cross sectional illustration for recommended
order of disassembly.

Use a scriber, or similar sharp-pointed tool to remove O-ring
from the stem.

INSPECTION

Inspect all threads for damage or evidence of cross­threading. Check mating surface of seat and valve disc for
excessive scoring or embedded foreign particles. Check
spring for visible distortion, cracks and breaks. Inspect all
parts for damage, corrosion and cleanliness.

CLEANING

After disassembly and inspection, cleaning of the parts can
begin. Water service usually will produce mineral or lime
deposits on metal parts in contact with water. These
deposits can be cleaned by dipping the parts in a 5-percent
muriatic acid solution just long enough for deposits to dis­solve. This will remove most of the common types of
deposits. Caution: use extreme care when handling
acid. If the deposit is not removed by acid, then a fine grit
(400) wet or dry sandpaper can be used with water. Rinse
parts in water before handling. An appropriate solvent can
clean parts used in fueling service. Dry with compressed air
or a clean, lint-free cloth. Protect from damage and dust
until reassembled.

REPAIR AND REPLACEMENT

Minor nicks and scratches may be polished out using a fine
grade of emery or crocus cloth; replace parts if scratches
cannot be removed.

Replace O-ring packing and gasket each time CV Flow
Control is overhauled.

Replace all parts which are defective. Replace any parts
which create the slightest doubt that they will not afford com­pletely satisfactory operation. Use Inspection steps as a
guide.

REASSEMBLY

Reassembly is the reverse of disassembly; no special tools
are required.

TEST PROCEDURE

No testing of the flow Control is required prior to reassembly
to the pilot control system on Cla-Val Main Valve.

3/8" Flow Control

CV

2.12
MAX

STAMP PART NO. ON
SMOOTH SURFACE

RESTRICTED

FLOW

3/8 - 18 NPT

1.84

ADJUSTING STEM
(TURN CLOCKWISE TO
INCREASE RESTRICTION)

1

7

2

10

9

8

6

5

4

3

.85

FREE FLOW

BAR STOCK

CONFIGURATION

When ordering parts,

please specify:

• Number Stamped on Side

• Description (CV Flow Control)

• Part Description

• Material

ITEM DESCRIPTION QTY

1 Cap (SS only) 1

2 Nut, Jam 1

3 Seat 1

4 Gasket 1

5 Disc 1

6 Spring 1

7 Ring, Retaining 1

8 Stem 1

9 O-Ring 1

10 Housing 1

CLA-VAL

Copyright Cla-Val 2009 Printed in USA Specifications subject to change without notice.

P.O. Box 1325 • Newport Beach, CA 92659-0325 • Phone: [phone] • Fax: [phone] • E-mail: [e-mail] • Website cla-val.com

©

PL-CV (R-1/09)

PARTS LIST

Limit Switch Assemblies

Switches shown in
unactivated position.

CLA-VAL

124-02/624-02

Float Valve

Annunciator
Alarm

Stilling Well

Tank

Supply

Double Pole Double Throw Switch

Single Pole Double Throw Switch

Installation

Typical Application

Actuating Collar Adjustment

Minimum Setting

When adjusting actuating collar for proper switch
action, a clearance of at least 1/16" (1/8” for 24”
valve) must be provided between the collar and
the bushing gland nut when valve is in the fully
closed position.

Used for any electrical operation which can be
performed by either opening or closing a switch;
such as alarm systems, process control, pump
control, motor starting or stopping, etc. Readily
attached to most Cla-Val Valves.

1. Remove plug in top of
valve cover.

2. Screw actuating stem
into main valve stem.

3. Slip adapter down
over stem and screw
into place on valve
cover.

4. Attach micro switch
housing and bracket to
adapter with jam nut.

5. Bring electrical supply
circuit into unit through
the 1/2" tapping in
micro switch housing.

6. Adjust switch collars.
(Set collar to trip
switch after valve is
positioned fully open
or fully closed)

• UL Listed Switches

• Positive Action

• Rugged and Dependable

• Weather Proof or Explosion Proof

• Easy To Adjust

The Cla-Val Model X105L/X105L2 Limit Switch Assembly is a
rugged, dependable and positive acting switch assembly actuated
by the opening or closing of a Cla-Val control valve on which it is
mounted. The single pole, double throw micro switch can be
connected either to open or to close an electrical circuit when
actuated. By loosening the allen screw on the actuating collar and
raising or lowering the collar on the stem, the X105L is easily
adjusted to signal that the valve has fully reached the desired
position (open or closed).

X105L

X105L2

MODEL

COM

N.C.

N.O.

Circuit Diagram
of Single Pole
Double Throw
Switch

Common
Lug

Normally

Closed
Normally
Open

N.C.

N.C.

N.O.

COM

COM

Circut Diagram
of Single Pole
Double Throw
Switch

Normally
Closed

Normally
Open

Common Lug

N.O.

Stem

Bushing Gland Nut

Jam Nut

Bracket

Switch Actuating Collar

Adapter

Min.
1/16"

Switch only

Annunciator
Alarm

X105 Series Dimensions

(In Inches)

1. Valve Size and Basic Valve Model Number

2. Catalog Number from Table Below

3. All Valve Name Plate Data

4. Select Single or Double Pole Switch

5. Explosion Proof or Weather
Proof Type Enclosure

6. Amperes and Voltage, AC or DC

7. Actuating Position (Valve Open or Closed)

CATALOG ACTUATION SWITCH

NO. POSITION ENCLOSURE

X105LCW Valve Weather Proof

Closed

X105LCX Valve Explosion Proof

Closed

X105LOW Valve Weather Proof

Open

X105LOX Valve Explosion Proof

Open

X105L2W Dual Weather Proof

X105L2X Dual Explosion Proof

Specifications

Materials: Aluminum switch housing

Steel bracket and brass adapter
Stainless steel stem

Electrical: 1/2" Conduit connection

Switch Type: SPDT UL, File No. E12252,

CSA Certified, File No. LR57325
Weather proof
NEMA 1,3,4, and13

Switch Rating: UL/CSA rating: L96

15 amp. 125, 250, or 480 volts AC
1/2 amp. 125 volts DC
1/4 amp. 250 volts DC

Switch Options: DPDT switches available on request

UL/CSA Rating: L59, 10 amps

Explosion proof micro switches are
NEMA 1,7, and 9
UL Listed, File No. E14274 and CSA
Certified, File No. LR57324: Class I,
Group C and D and Class II, Group
E, F and G.

A

Fig. 1

Valve Size

1 1/4" Thru 8"

X105L2W

X105L2X

1/2-14 N.P.S.M. Thread
(Conduit Connections)

.13

2.44

1.70

3.00

.86

3.13

2.00

C (Typical)

Fig. 2

Valve Size

1 1/4" Thru 24"

X105LCW

X105LCX

A

Fig. 4

Valve Size

10" Thru 24"

X105LOW

X105LOX

A

B

Fig. 3
Valve Size
1 1/4" Thru 8"
X105LOW
X105LOX

A

Fig. 5

Valve Size

10" Thru 24"

X105L2W

X105L2X

B

A

E-X105L/X105L2 (R-3/09)

BasicValve 100-01 1 1⁄4 1 1⁄2 2 2 1⁄2 3 4 6 8 10 12 14 16 18 20 24 30 36* 42* 48*

Dimension "A" 10.19 10.19 7.16 7.16 7.34 7.00 6.69 6.91 9.88 9.59 9.16 10.78 10.78 CF* 11.30 CF* CF* CF* CF*

Dimension "B" 1.69 2.44 2.94 2.94 2.94 2.94 CF* 5.19 CF* CF* CF* CF*

C (NPT) 1/4 1/4 1/2 1/2 1/2 3/4 3/4 1 1 1 1/4 1 1/2 2 2 CF* 1CF*CF* CF* CF*

BasicValve 100-20 3 4 6 8 10 12 14 16 18 20 24 30 36* 42* 48*

Dimension "A" 7.16 7.34 7.00 6.69 6.91 9.88 9.59 9.59 10.78 10.78 10.78 11.30 CF* CF* CF*

Dimension "B" 1.69 2.44 2.94 2.94 2.94 2.94 2.94 5.19 CF* CF* CF*

C (NPT) 1/2 1/2 3/4 3/4 1 1 1 1/4 1 1/4 2 2 2 1 CF* CF* CF*

PO Box 1325 Newport Beach CA 92659-0325

Phone: [phone] Fax: [phone]

C

LA-VAL

CLA-VAL CANADA CLA-VAL EUROPE

4687 Christie Drive
Beamsville, Ontario
Canada L0R 1B4
Phone: [phone]
Fax: [phone]

Chemin dés Mesanges 1
CH-1032 Romanel/
Lausanne, Switzerland
Phone: [phone]
Fax: [phone]

©COPYRIGHT CLA-VAL 2009 Printed in USA

Specifications subject to change without notice.

www.cla-val.com

Represented By:

When Ordering, Please Specify

*Consult Factory

Limit Switch Assembly

11

10

1

2

5

7

6

8

4

3

9

12

VALV E

COVER

13

When ordering parts,
please specify:

• Item Number

• Description

• Part Number

Collar W/Set Screw
Screw, Machine (2)
Washer, Lock (2)
Switch Assembly,
Weather Proof
Switch Assembly,
Explosion Proof
Bracket
Switch Mounting
Nut, Jam
Plate, Mounting
Adapter
Adapter
Bushing, Gland
O-Ring (2)
Bushing
Bushing
Bushing
Bell Reducer
Stem, Actuating
Stem, Actuating
Stem, Actuating
Stem, Actuating
Stem, Actuating
Fiber Wshr
Screw 8-32 x 3/

8

All
All
All
All

All

10" thru 16"

All
All

2" thru 3"

4" thru 16"

All
All

8" and 10"

12"
14"
16"

2"-2 1/2"

3"-4"
6"-8"

10"-12"-14"

16"

All
All

ITEM

PAR T

NUMBER

DESCRIPTION

VALVE SIZES

USED ON

1-2

3
4
5

6

7
8
9

10
11
12

13

15
16

20441701E
67578-21B
67584-23F
34637K

34633J

64310G

67815-06J
63674G
2838201J
2838202G
63398C
00951E
67644-17K
67644-18H
67644-19F
67656-91J
89701-01F
89701-02D
89701-03B
89701-04K
89701-05G
6551201H
6824421K

X105L

CLA-VAL

Copyright Cla-Val 2009 Printed in USA Specifications subject to change without notice.

P.O. Box 1325 • Newport Beach, CA 92659-0325 • Phone: [phone] • Fax: [phone] • E-mail: [e-mail] • Website cla-val.com

©

PL- X105L (R-4/09)

PARTS LIST

COVER

12

9

15

16

This page was intentionally left blank!

CLA-VAL

Copyright Cla-Val 2009 Printed in USA Specifications subject to change without notice.

P.O. Box 1325 • Newport Beach, CA 92659-0325 • Phone: [phone] • Fax: [phone] • E-mail: [e-mail] • Website cla-val.com

©

PL-CK2 (R-9/09)

This page was intentionally left blank!

ITEM DESCRIPTION MATERIAL

1 Pipe Plug Steel

2 Strainer Plug Brass

3 Gasket Copper

4 Screen SST

5 Body Brass

1

2

3

4

5

3/8 NPT

2.06

2.72

SIZE STOCK NUMBER

3/8 x 3/8 33450J

Strainer

X43

No parts available. Rreplacement assembly only.

Standard 60 mesh pilot system strainer for fluid service.

CLA-VAL

Copyright Cla-Val 2009 Printed in USA Specifications subject to change without notice.

P.O. Box 1325 • Newport Beach, CA 92659-0325 • Phone: [phone] • Fax: [phone] • E-mail: [e-mail] • Website cla-val.com

©

PL- X43 (R-4/09)

PARTS LIST

This page was intentionally left blank!

Cla-Val Product

Identification

Proper Identification

For ordering repair kits, replacement parts, or for
inquiries concerning valve operation, it is important to
properly identify Cla-Val products already in service
by including all nameplate data with your inquiry.
Pertinent product data includes valve function, size,
material, pressure rating, end details, type of pilot
controls used and control adjustment ranges.

Identification Plates

For product identification, cast-in body markings are
supplemented by identification plates as illustrated on
this page. The plates, depending on type and size of
product, are mounted in the most practical position. It

is extremely important that these identification
plates are not painted over, removed, or in any
other way rendered illegible.

INLET
EINTRITT
ENTREE
ENTRADA

SIZE &
CAT NO.

STOCK
NO.

CODE

MFD. BY CLA-VAL
NEWPORT BEACH, CALIF, U.S.A.

RESERVOIR

END

I

N

L

E

T

I

N

L

E

T

SIZE &
CAT NO.

STOCK
NO.

FLOW

MFD. BY CLA-VAL NEWPORT BEACH, CALIF. U.S.A.

CODE

C

¤

“

SIZE &
CAT NO.

STOCK
NO.

SPRING
RANGE

MFD. BY CLA-VAL NEWPORT BEACH, CALIF. U.S.A.

SIZE &
CAT NO.

STOCK
NO.

CODE

MFD. BY CLA-VAL

NEWPORT BEACH, CALIF.

U.S.A.

C

¤

“

DO NOT REMOVE

THIS VALVE HAS BEEN MODIFIED
SINCE ORIGINAL SHIPMENT FROM
FACTORY. WHEN ORDERING PARTS
AND/ OR SERVICE SUPPLY DATA FROM
THIS PLATE & ALL OTHER PLATES ON
ORIGINAL VALVE.

REDUCED PRESSURE BACKFLOW PREVENTION DEVICE

STK.
NO.

SER.
NO.

CAT.

NO.

RP

-4

CLA-VAL

NEWPORT BEACH, CA.

This brass plate appears on valves sized 21/2" and larger

and is located on the top of the inlet flange.

These two brass plates appear on 3/8", 1/2", and 3/4" size

valves and are located on the valve cover.

These two brass plates appear on threaded valves

1" through 3" size or flanged valves 1" through 2".

It is located on only one side of the valve body.

This brass plate appears on altitude valves only and is

found on top of the outlet flange.

This brass plate is used to identify pilot control valves.

The adjustment range is stamped into the plate.

This tag is affixed to the cover of the pilot control valve.

The adjustment range appears in the spring range section.

This aluminum plate is included in pilot system

modification kits and is to be wired to the new pilot

control system after installation.

This brass plate is used on our backflow prevention

assemblies. It is located on the side of the Number Two

check (2" through 10"). The serial number of the

assembly is also stamped on the top of the inlet flange of

the Number One check.

How to Order

HOW TO ORDER

Because of the vast number of possible configurations and
combinations available, many valves and controls are not
shown in published product and price lists. For ordering
information, price and availability on product that are not listed,
please contact your local Cla-Val office or our factory office
located at:

SPECIFY WHEN ORDERING

• Model Number • Valve Size

• Globe or Angle Pattern • Threaded or Flanged

• Adjustment Range • Body and Trim Materials
(As Applicable) • Optional Features

• Pressure Class

UNLESS OTHERWISE SPECIFIED

• Globe or angle pattern are the same price

• Ductile iron body and bronze trim are standard

• X46 Flow Clean Strainer or X43 “Y” Strainer are included

• CK2 Isolation Valves are included in price on 4" and larger
valve sizes (6" and larger on 600 Series)

P. O. Box 1325

Newport Beach, California 92659-0325

[phone]

FAX [phone]

LIMITED WARRANTY

Automatic valves and controls as manufactured by Cla-Val are warranted
for three years from date of shipment against manufacturing defects in
material and workmanship that develop in the service for which they are
designed, provided the products are installed and used in accordance
with all applicable instructions and limitations issued by Cla-Val.
Electronic components manufactured by Cla-Val are warranted for one
year from the date of shipment.

We will repair or replace defective material, free of charge, that is returned
to our factory, transportation charges prepaid, if upon inspection, the
material is found to have been defective at time of original shipment. This
warranty is expressly conditioned on the purchaser’s providing written
notification to Cla-Val immediate upon discovery of the defect.

Components used by Cla-Val but manufactured by others, are warranted
only to the extent of that manufacturer’s guarantee.

This warranty shall not apply if the product has been altered or repaired by
others, Cla-Val shall make no allowance or credit for such repairs or
alterations unless authorized in writing by Cla-Val.

DISCLAIMER OF WARRANTIES AND
LIMITATIONS OF LIABILITY

The foregoing warranty is exclusive and in lieu of all other
warranties and representations, whether expressed, implied, oral or
written, including but not limited to any implied warranties or
merchantability or fitness for a particular purpose. All such other
warranties and representations are hereby cancelled.

Cla-Val shall not be liable for any incidental or consequential loss,
damage or expense arising directly or indirectly from the use of the
product. Cla-Val shall not be liable for any damages or charges for
labor or expense in making repairs or adjustments to the product.
Cla-Val shall not be liable for any damages or charges sustained in
the adaptation or use of its engineering data and services. No
representative of Cla-Val may change any of the foregoing or
assume any additional liability or responsibility in connection with
the product. The liability of Cla-Val is limited to material
replacements F.O.B. Newport Beach, California.

TERMS OF SALE

ACCEPTANCE OF ORDERS

All orders are subject to acceptance by our main office at Newport Beach, California.

CREDIT TERMS

Credit terms are net thirty (30) days from date of invoice.

PURCHASE ORDER FORMS

Orders submitted on customer’s own purchase order forms will be accepted only
with the express understanding that no statements, clauses, or conditions contained
in said order form will be binding on the Seller if they in any way modify the Seller’s
own terms and conditions of sales.

PRODUCT CHANGES

The right is reserved to make changes in pattern, design or materials when deemed
necessary, without prior notice.

PRICES

All prices are F.O.B. Newport Beach, California unless expressly stated otherwise on
our acknowledgement of the order. Prices are subject to change without notice. The
prices at which any order is accepted are subject to adjustment to the Seller’s price
in effect at the time of shipment. Prices do not include sales, excise, municipal, state
or any other Government taxes. Minimum order charge $75.00.

RESPONSIBILITY

We will not be responsible for delays resulting from strikes, accidents, negligence of
carriers, or other causes beyond our control. Also, we will not be liable for any
unauthorized product alterations or charges accruing there from.

RISK

All goods are shipped at the risk of the purchaser after they have been delivered by
us to the carrier. Claims for error, shortages, etc., must be made upon receipt of
goods.

EXPORT SHIPMENTS

Export shipments are subject to an additional charge for export packing.

RETURNED GOODS

1. Customers must obtain written approval from Cla-Val prior to returning any
material.

2. Cla-Val reserves the right to refuse the return of any products.

3. Products more than six (6) months old cannot be returned for credit.

4. Specially produced, non-standard models cannot be returned for credit.

5. Rubber goods such as diaphragms, discs, o-rings, etc., cannot be returned for
credit, unless as part of an unopened vacuum sealed repair kit which is less
than six months old.

6. Goods authorized for return are subject to a 35% ($75 minimum) restocking
charge and a service charge for inspection, reconditioning, replacement of
rubber parts, retesting, repainting and repackaging as required.

7. Authorized returned goods must be packaged and shipped prepaid to Cla-Val,
1701 Placentia Avenue, Costa Mesa, California 92627.

PO Box 1325 Newport Beach CA 92659-0325

Phone: [phone] Fax: [phone]

C

LA-VAL

CLA-VAL CANADA CLA-VAL EUROPE

4687 Christie Drive
Beamsville, Ontario
Canada L0R 1B4
Phone: [phone]
Fax: [phone]

Chemin dés Mesanges 1
CH-1032 Romanel/
Lausanne, Switzerland
Phone: [phone]
Fax: [phone]

©COPYRIGHT CLA-VAL 2009 Printed in USA

Specifications subject to change without notice.

www.cla-val.com

E-Product I.D. (R-3/09)

Represented By:

Complete Replacement Diaphragm Assemblies for 100-01 and 100-20 Hytrol Main Valves

For: Hytrol Main Valves with Ductile Iron, Bronze Trim Materials—125/150 Pressure Class Only.
FACTORY ASSEMBLED
Includes: Stem, Disc Guide, Disc, Disc Retainer, Spacer Washers, Diaphragm, Diaphragm Washer
and Stem Nut.

3/8"

1/2" - 3/4"

1"

1 1/4"-1 1/2"

2"

2 1/2"

3"
4"

(Also 81-01 )
(Also 81-01 )

N/A
N/A
N/A
N/A
N/A

N/A
C2524B
C2525J

6"

8"
10"
12"
14"
16"
20"
24"

40456G
45276D

81752J

85533J
89067D
89068B

N/A
N/A

33273E
40456G
45276D

81752J

N/A

85533J
89068B
89068B

Valve

Size

Valve

Size

49097K
C2518D
C2520K

C2522 F

C2524B
C2523D

C2525J

33273E

100-01 100-20

Diaphragm Assembly

Stock Number

100-01 100-20

Diaphragm Assembly

Stock Number

3/8"

1/2" - 3/4"

1"

1 1/4" - 1 1/2"

2"

2 1/2"

3"
4"
6"

8"
10"
12"
14"
16"
20"
24"

(Also 81-01 )
(Also 81-01 )

N/A
N/A
N/A
N/A
N/A

N/A
9169805A
9169812G
9169813E
9169815K
9817901D
9817902B

N/A
9817903K
9817905E
9817905E

3/8"

1/2" - 3/4"

1"

1 1/4” - 1 1/2"

2"

2 1/2"

3"
4"
6"
8"

9169806J
9169807G
9169808E
9169809C
9169810A

9169817F
9169818D
9169819B
9169820K
9169834A

N/A
N/A
N/A
N/A
N/A

N/A
9169810A
9169818D
9169819B
9169820K

Valve

Size

Valve

Size

9169801K
9169802H
9169803F
9169804D
9169805A
9169811J
9169812G
9169813E
9169815K
9817901D
9817902B
9817903K
9817904H
9817905E

N/A

9817906C

100-01 100-20

Repair Kit

Stock Number

100-01 100-20

Repair Kit

Stock Number

Repair Kits for 100-01/100-20 Hytrol Valves

For: Hytrol Main Valves—125/150 Pressure Class Only.
Includes: Diaphragm, Disc (or Disc Assembly) and spare Spacer Washers.

(Also 81-01 )
(Also 81-01 )

REPAIR KITS

When ordering, please give complete nameplate data of the valve and/or control being repaired.

MINIMUM ORDER CHARGE APPLIES.

Buna-N®Standard Material

Viton (For KB Valves)

MODEL

INSTALLATION / OPERATION / MAINTENANCE

Repair Kits for 100-04/100-23 Hy-Check Main Valves

For: Hy-Check Main Valves—125/150 Pressure Class Only
Includes: Diaphragm, Disc and O-Rings and full set of spare Spacer Washers.

Larger Sizes: Consult Factory.

Repair Kits for 100-02/100-21 Powertrol and 100-03/100-22 Powercheck Main Valves

For: Powertrol and Powercheck Main Valves—125/150 Pressure Class Only
Includes: Diaphragm, Disc (or Disc Assembly) and O-rings and full set of spare Spacer Washers.

Repair Kits for Pilot Control Valves (In Standard Materials Only)

Includes: Diaphragm, Disc (or Disc Assembly), O-Rings, Gaskets or spare Screws as appropriate.

Repair Assemblies (In Standard Materials Only)

CLA-VAL

Copyright Cla-Val 2009 Printed in USA Specifications subject to change without notice.

P.O. Box 1325 • Newport Beach, CA 92659-0325 • Phone: [phone] • Fax: [phone] • E-mail: [e-mail] • Website cla-val.com

©

N-RK (R-4/09)

Valve

Size

Kit Stock Number

100-02

Valve

Size

Kit Stock Number

100-02 & 100-03 100-21 & 100-22

3

⁄8”

9169901H

2

1

⁄2”

9169910J N/A

1

⁄2” &3⁄4”

9169902F

3”

9169911G 9169905J

1” 9169903D

4”

9169912E 9169911G

1

1

⁄4” &11⁄2”

9169904B

6”

9169913C 9169912E

2” 9169905J

8”

99116G 9169913C

10”

9169939H 99116G

12"

9169937B 9169939H

Valve

Size

Kit Stock Number

Valve

Size

Kit Stock Number

100-04 100-23 100-04 100-23

4” 20210901B N/A 12” 20210905H 20210904J
6” 20210902A 20210901B 14” 20210906G N/A
8” 20210903K 20210902A 16” 20210907F 20210905H

10” 20210904J 20210903K 20” N/A 20210907F

24” N/A 20210907F

BUNA-N

®

(Standard Material)

VITON (For KB Controls)

Pilot

Control

Kit

Stock

Number

Pilot

Control

Kit

Stock

Number

Pilot

Control

Kit

Stock

Number
CDB 9170006C CFM-7 1263901K CDB-KB 9170012A
CDB-30 9170023H CFM-7A 1263901K CRA-KB N/A
CDB-31 9170024F CFM-9 12223E

CRD-KB (w/bucking spring)

9170008J

CDB-7 9170017K

CRA (w/bucking spring)

9170001D CRL-KB 9170013J

CDH-2 18225D

CRD (w/bucking spring)

9170002B CDHS-2BKB 9170010E

CDHS-2 44607A

CRD (no bucking spring)

9170003K CDHS-2FKB 9170011C
CDHS-2B 9170004H CRD-18 20275401K CDHS-18KB (no bucking spring) 9170009G
CDHS-2F 9170005E CRD-22 98923G

102C-KB

1726202D
CDHS-3C-A2 24657K CRL (55F, 55L) 9170007A
CDHS-8A 2666901A CRL-4A 43413E
CDHS-18 9170003K CRL-5 (55B) 65755B
CDS-4 9170014G CRL-5A (55G) 20666E
CDS-5 14200A CRL-18 20309801C
CDS-6 20119301A CV 9170019F

Buna-N

®

CDS-6A 20349401C X105L (O-ring) 00951E
CFCM-M1 1222301C 102B-1 1502201F CRD Disc Ret. (Solid) C5256H
CFM-2 12223E 102C-2 1726201F CRD Disc Ret. (Spring) C5255K

102C-3 1726201F

Control Description Stock Number

CF1-C1 Pilot Assembly Only 89541H
CF1-Cl Complete Float Control less Ball and Rod 89016A
CFC2-C1 Disc, Distributor and Seals 2674701E
CSM 11-A2-2 Mechanical Parts Assembly 97544B
CSM 11-A2-2 Pilot Assembly Only 18053K
33A 1" Complete Internal Assembly and Seal 2036030B
33A 2" Complete Internal Assembly and Seal 2040830J

When ordering, please give complete nameplate data of the valve and/or control being repaired. MINIMUM ORDER CHARGE APPLIES

Larger Sizes: Consult Factory.
