Page 1

User manual for your Classique

28L Built-in Microwave Oven

CLM 2 8 G K

NOTE: This user manual contains important information including safety & installation

points which will enable you to get the most out of your Classique appliance. Please

keep it in a safe place so that it is readily available for future reference.

Page 2

Page 3

CONTENTS

PRECAUTIONS……………………………………………………………………………….2-7 CLEANING………………………………………………………………………………….………8 MATERIALS YOU CAN USE IN MICROWAVE OVEN …………………….……….9 SETTING UP YOUR OVEN………………………………………………………………...10 INSTALLATION AND CONNECTION …………………………………………………11 INSTALLATION INSTRUCTIONS………………………………………………….…12-14 OPERATION INSTRUCTION…………………………………………………………14-19 TROUBLESHOOTING…………………………………………………………………….…20

Page 4

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

(a) Do not attempt to operate this oven with the door open since this can result in harmful exposure to microwave energy. It is important not to break or tamper with the safety interlocks.

(b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.

(c) WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.

ADDENDUM

If the apparatus is not maintained in a good state of cleanliness, its surface could be degraded and affect the lifespan of the apparatus and lead to a dangerous situation.

Specifications

Model:

Rated Voltage:

Rated Input Power (Microwave):

Rated Output Power (Microwave):

Rated Input Power (Grill):

Oven Capacity:

Turntable Diameter:

External Dimensions:

Net Weight:

Note: you can find the data plate on the front side of the microwave oven

cavity.

CLM28GK

240V~ 50Hz

230-

1 0 W

900 W

1100 W

28L

315 mm

595X400X388 mm Approx.1 kg

8.5

Page 5

IMPORTANT SAFETY INSTRUCTIONS WARNING

To reduce the risk of fire, electric shock, injury to

persons or exposure to excessive mi energy when using your appliance, follow basic precautions including the following:

1. Warning: Liquids and other foods must not be heated in sealed containers since they are liable to explode.

Warning: It is hazardous for anyone other than a

2. competent person to carry out any service or repair

operation that involves the removal of a cover which gives protection against exposure to microwave energy.

This appliance should only be used by children aged

3. from 8 years and above and persons with reduced

physical, sensory or mental capabilities or lack of experience and knowledge if they have been given s

upervision or instruction concerning use of the appliance

in a safe way and understand the hazards involved.

crowave oven

Children should not play with the appliance. Cleaning and user maintenance should not be conducted by children

unless they are older than 8 and are supervised.

Keep the appliance and its cord out of reach of

4. children less than 8 years.

Only use utensils that are suitable for use in the

microwave

oven.

6. The oven should be cleaned regularly and any food

deposits should be removed.

Read and follow the specific: "PRECAUTIONS TO AVOID

POSSIBLE EX

ENERGY" on page 2.

When heating food in plastic or paper containers,

POSURE TO EXCESSIVE MICROWAVE

keep an eye on the oven due to the possibility of ignition.

Page 6

9. If smoke is emitted, switch off or unplug the appliance

and keep the door closed in order to stifle any flames.

10. Do not overcook food.

11. Do not use the oven cavity for storage purposes.

Do not store items such as bread, cookies, etc.

ide the microwave oven.

ins

12. Remove wire twist-ties and metal handles from

paper or plastic containers/bags before placing them in the oven.

13. Install or locate this oven only in accordance with the

installation instructions provided.

14. Eggs in the shell and whole hard-boiled eggs should

not be heated in microwave ovens since they may explode, even after microwave heating has ended.

15.This appliance is intended to be used in household

and similar applications such as:

-staff kitchen areas in shops, offices and other working

environments;

-by clients in hotels, motels and other residential type

environments;

-farm houses;

-bed and breakfast type environments.

16. If the supply cord is damaged, it must be replaced by

the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

17. Do not store or use this appliance outdoors.

18. Do not use this oven near water, in a wet basement

or near a swimming pool.

19. The temperature of accessible surfaces may be high

when the appliance is operating. The surfaces are liable to get hot during use. Keep cord away from heated surfaces, and do not cover any vents on the oven.

Page 7

20.

Do not let cord hang over edge of a table or counter.

21.

Failure to maintain the microwave oven in a clean

condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.

22.The contents of feeding bottles and baby food jars should be stirred or shaken and the temperature checked before consumption, in order to avoid burns.

23.

Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container.

24.

Children should be supervised to ensure that they do

not play with the appliance.

The appliances are not intended to be operated by

25. means of an external timer or separate remote-control system.

Accessible parts may become hot during use.

26. Young children should be kept away. 2 A steam cleaner is not to be used.

7. During use the appliance becomes hot. Care should

28. be taken to avoid touching heating elements inside the oven.

29.

Only use the temperature probe recommended for

this oven(for ovens provided with a facility to use a temperature-sensing probe).

The microwave oven must be operated with the

3 decorative door open(for ovens with a decorative door)

The surface of the storage cabinet can get hot.

31.

Page 8

32.The microwave oven is intended for heating food and beverages.

33.You must NOT remove the wave guide cover.

34.You must remove the accessories before first us

35.

The interior light bulb can only be replaced by a

technician.

36.

ailure to clean the interior regularly could result

in irreversible damage to the interior surfaces that may not be covered by warranty.

any protective film/labels and wash

READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

Page 9

To Reduce the Risk of Injury to Persons Grounding Installation

DANGER

Electric Shock Hazard: Touching some of the internal components can cause serious personal injury or death. Do not disassemble this appliance.

WARNING

Electric Shock Hazard: Improper use of the grounding can result in electric shock. Do not plug into an outlet until appliance is properly installed and grounded.

This appliance must be grounded. In the event of an electrical short-circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.

Consult a qualified electrician or serviceman if the grounding instructions are not completely understood or if doubt exists as to whether the appliance is properly grounded. If it is necessary to use an extension cord, use only a 3-wire

1. A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord.

2. If a long cord set or extension cord is used:

1)The marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance.

2)The extension cord must be a grounding-type 3-wire cord.

3)The long cord should be arranged so that it will not drape over the counter top or tabletop where it can be pulled on by children or tripped over unintentionally.

extension cord.

Page 10

CLEANING

Be sure to unplug the

Clean the cavity of the microwave oven after use with a slightly

appliance from the power

wet cloth.

2. Clean the accessories in the usual way in soapy water.

3. The door frame and seal and neighbouring parts must be cleaned carefully with a damp cloth when they are dirty.

4. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.

5. Cleaning Tip---For easier cleaning of the cavity walls that the food cooked can touch: Place half a lemon in a bowl, add 300ml (1/2 pint) water and heat on 100% microwave power for 10 minutes. Wipe the oven clean using a soft, dry cloth.

The exterior of the microwave oven can only be cleaned

with mild detergent and warm water.

supply.

Page 11

UTENSILS

CAUTION

Personal Injury Hazard

It is hazardous for anyone other than a competent person to carry out any service or repair operation that

involves the removal of a cover which gives

protection against exposure to microwave energy.

See the instructions on "Materials you can use in microwave oven or to be avoided in microwave oven." There may be certain non-metallic utensils that are not safe to use for microwaving. If in doubt, you can test the utensil in question following the procedure below.

Utensil Test:

1. Fill a microwave-safe container with 1 cup of cold water (250ml) along with the utensil in question.

2. Cook on maximum power for 1 minute.

Carefully feel the utensil. If the empty utensil is warm, do not use it for microwave cooking.

Do not exceed

minute cooking time.

Materials you can use in microwave oven

Utensils

Aluminium foil

Browning

Dinnerware

Glass jars

Glassware

Oven bags

Paper plates and

Paper towels

Plastic

Plastic wrap

Thermometers Microwave-safe only (meat and candy thermometers).

*UHDVHSURRI SDSHU

cooking

cups

dish

Remarks

Shielding only. Small smooth pieces can be used to cover thin parts of

meat or poultry to prevent overcooking. Arcing can occur if foil is too close to oven walls. The foil should be at least 1 inch (2.5cm) away from microwave oven walls.

Follow manufacturer’s instructions. The bottom of browning dish must be at the

Microwave-safe only. Follow manufacturer's instructions. Do not use cracked

Always remove lid. Use only to heat food until just warm. Most glass jars are

Heat-resistant oven glassware only. Make sure there is no metallic trim. Do

Follow manufacturer’s instructions. Do not close with Make slits to

Use for short–term cooking/warming only. Do not leave oven unattended while cooking. Use to cover food for reheating and absorbing fat. Use with supervision

for short-term cooking only.

Microwave-safe only. Follow the manufacturer’s instructions. Should be labelled "Microwave Safe". Some plastic containers soften as food inside gets hot. "Boiling bags" and tightly closed plastic bags should be slit, pierced or vented as directed by package. Microwave-safe only. Use to cover food during cooking to retain moisture. Do not allow plastic wrap to touch food.

8VHDVDFRYHUWRSUHYHQWVSODWWHULQJUHWDLQPRLVWXUHRUDVDZUDSIRU VWHDPLQJ

least 3/16 inch (5mm) above the turntable. Incorrect usage may cause

turntable to break.

chipped dishes.

not heat resistant and may break.

not use cracked or chipped dishes.

allow steam to escape.

metal tie.

the

Page 12

Materialstobe

Utensils

Aluminium tray

Food carton with

avoidedinmicrowave

oven

Remarks May cause arcing. Transfer food into microwave-safe dish. May cause arcing. Transfer food into microwave-safe dish.

metal handle

Metal or metaltrimmed utensils

Metal twist ties Paper bags Plastic foam

Metal shields the food from microwave energy. Metal trim may cause arcing. May cause arcing and could cause a fire in the microwave oven. May cause a fire in the microwave oven.

Plastic foam may melt or contaminate the liquid inside when exposed to high temperature.

Wood

Wood will dry out when used in the microwave oven and may split or crack.

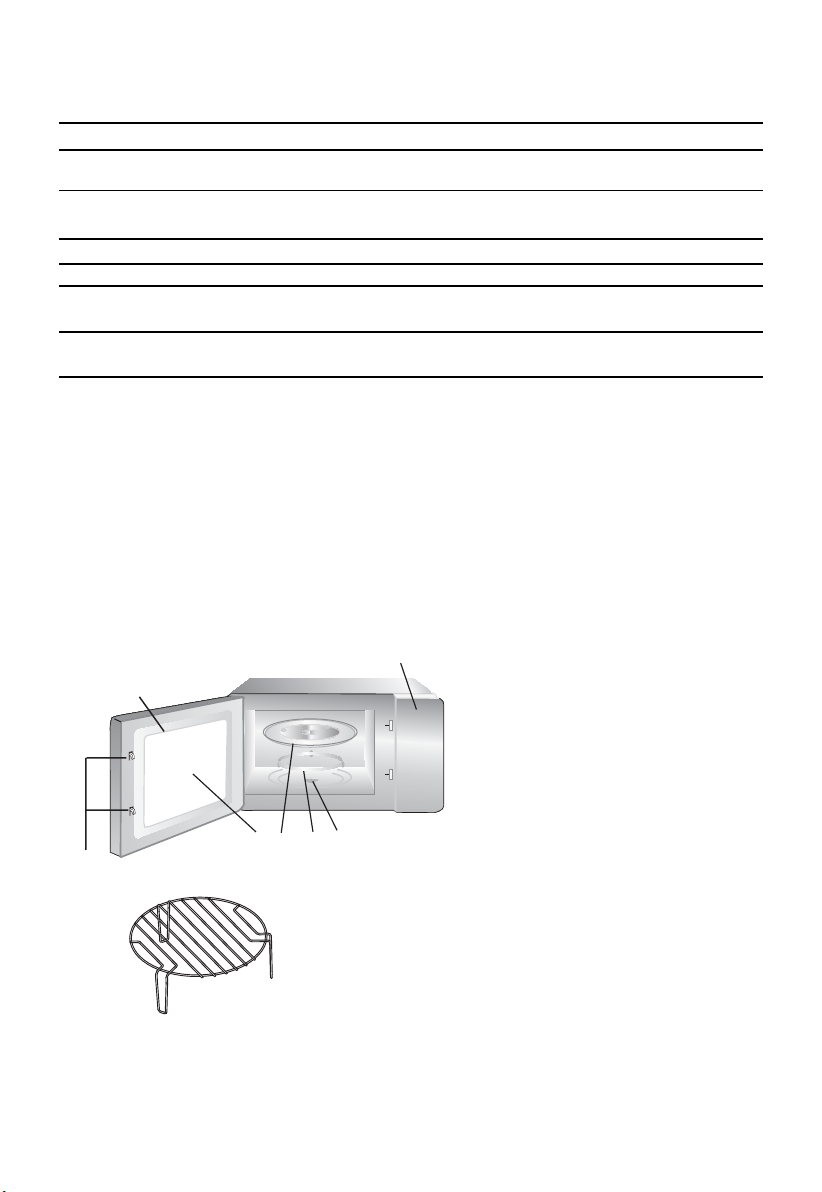

SETTING UP YOUR MICROWAVE OVEN

NamesofOven

Remove the oven and all materials from the carton and oven cavity. Your microwave oven comes with the following accessories: Glass tray 1 Turntable ring assembly 1 Instruction Manual 1

Parts

and

Accessories

Screw A 2 Screw B 1 Bracket 1

Grill Rack ( Only to be used in grill function and be placed on the glass tray )

C B

Control panel

A) B) Turntable shaft C) Turntable ring assembly D) Glass tray E) Observation window F) Door assembly G) Safety interlock system

Page 13

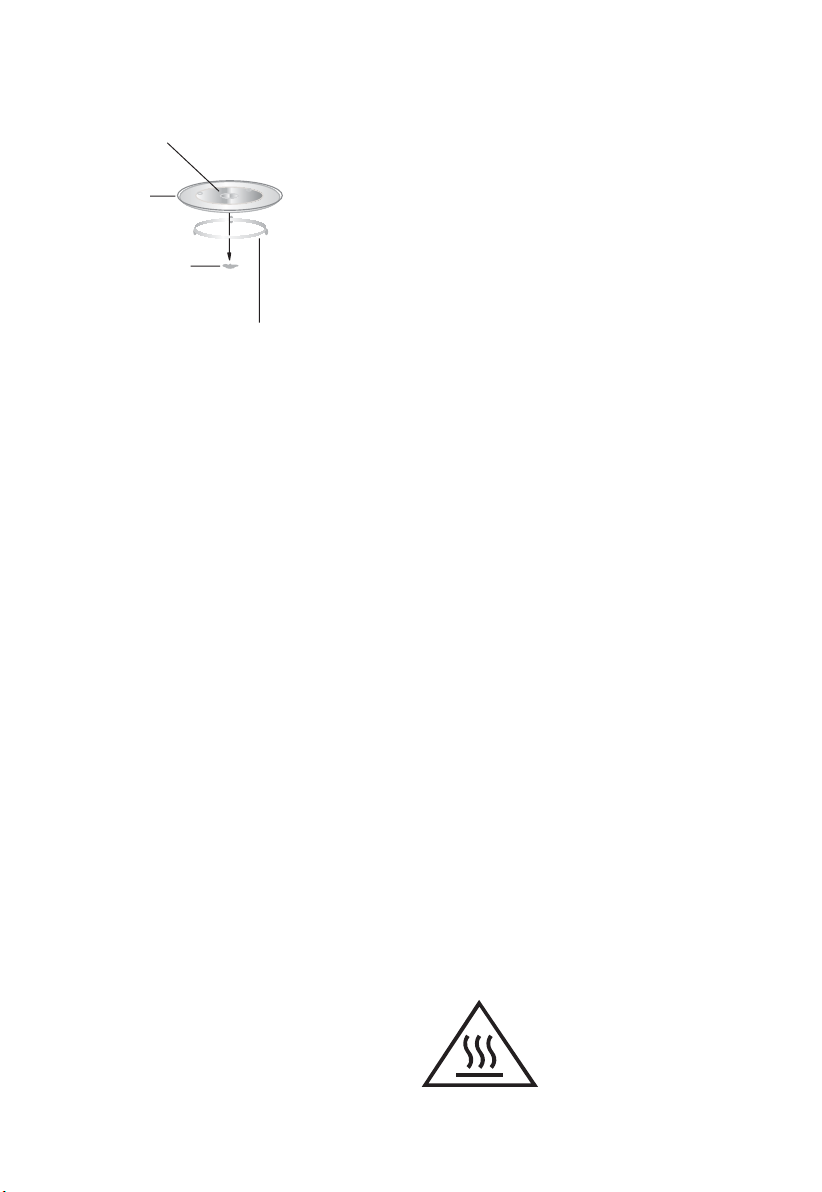

urntable

Hub (underside)

Glass tray

Turntable shaft

Installation

Turntable ring assembly

Never place the glass tray should never be restricted.

glass tray

Both always be used during cooking.

All food and containers of food must always be placed on the glass tray for cooking.

glass tray

If breaks, contact your nearest authorized service centre.

glass tray

and

turntable ring assembly

upside down. The

turntable ring assembly

cracks or

must

Installation and connection

1.This appliance is only intended for domestic use.

2.This oven is intended for built-in use only. It is not intended for counter-top use or for use inside a cupboard.

3. Please observe the special installation instructions.

4.The appliance can be installed in a 60cm wide wallmounted cupboard(at least 50cm deep and 85cm off the floor).

5.The appliance is fitted with a plug and must only be connected to a properly installed earthed socket.

6.The mains voltage must correspond to the voltage specified on the rating plate.

7.The socket must be installed and connecting cable must only be replaced by a qualified electrician. If the plug is no longer accessible following installation, an all-pole disconnecting device must be present on the installation side with a contact gap of at least 3mm.

8.Adapters, multi-way strips and extension leads must not be used. Overloading can result in a risk of fire.

The accessible surface may be hot during operation.

Page 14

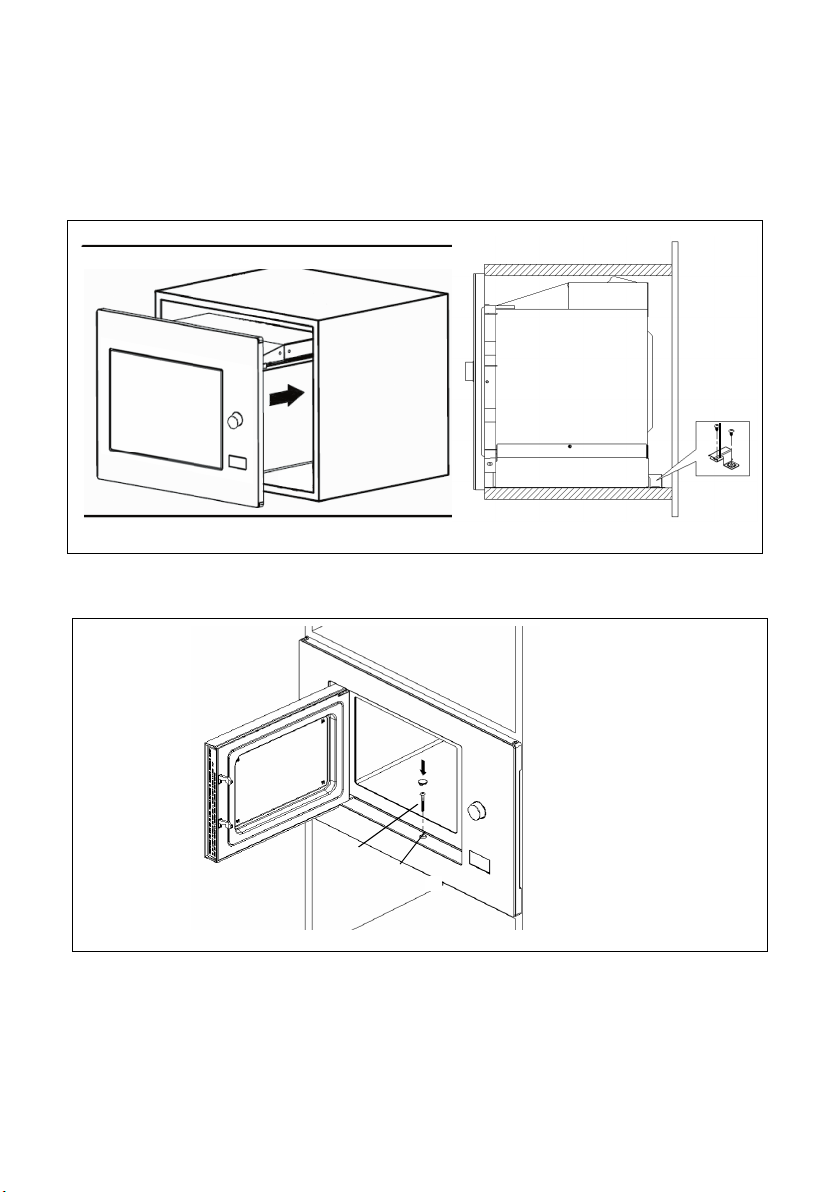

Installation Instructions

Please Read the Manual Carefully Before Installation

") $%*

ELECTRICAL CONNECTION

The oven is fitted with a plug and must only be connected to a properly installed

earthed socket. The socket must only be installed and the connecting cable must

only be replaced by a qualified electrician in accordance with the appropriate

regulations. If the plug is no longer accessible following installation, an all-pole

isolating switch must be present on the installation side with a contact gap of at least

3mm. The fitted cabinet must not have a back wall behind the appliance. Minimum

installation height: 85 cm

Note: Do not trap or bend the power cable.

Do not cover the ventilation slots and suction holes.

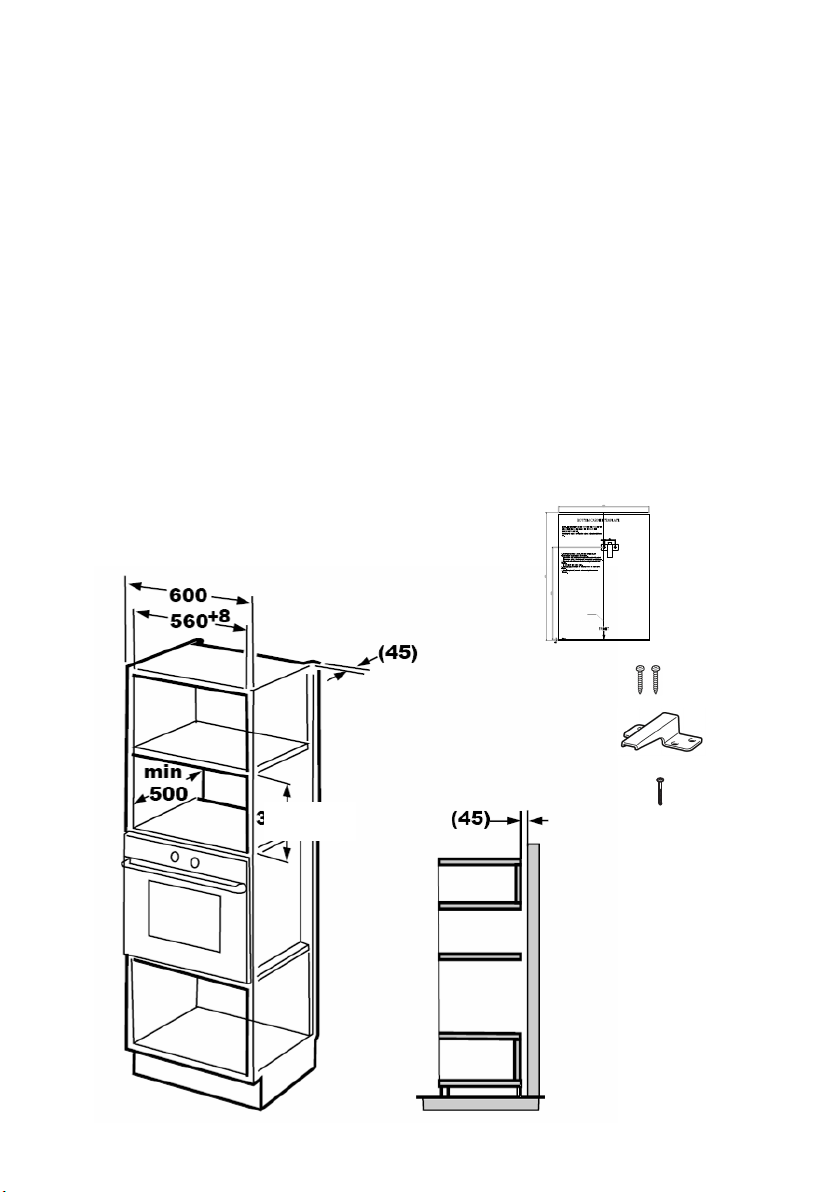

A. Built-in furniture

380+2

Packing list

LEFT EDGE

CENTER LINE

FRONT EDGE

Screw A

Bracket

Screw B

T EDGE RIGH

Page 15

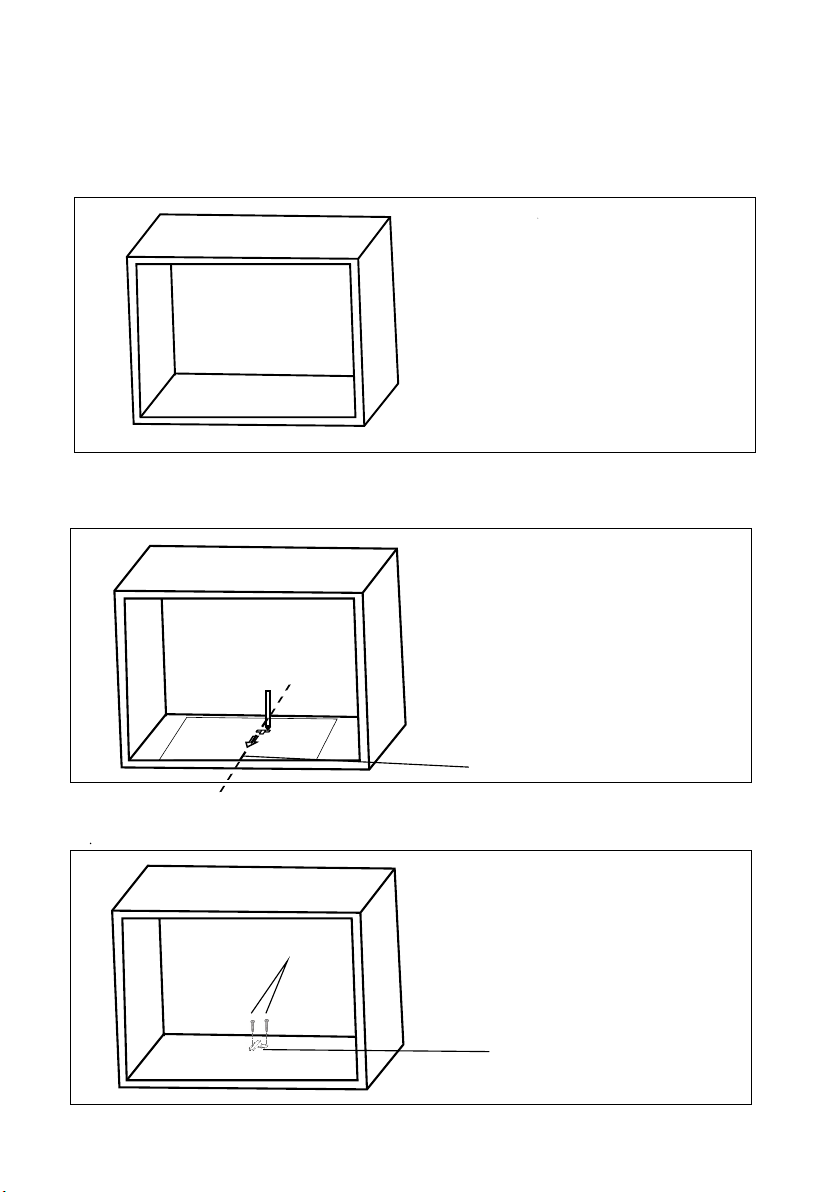

B. Prep are the cab inet

Read the instruction on the BOTTOM CABINET TEMPLATE,

put the template on the bottom plane of cabinet.

Make the marks on the bottom plane of cabinet according to marks "a" of the template

Centre line

3. Remove the bottom cabinet template and fix the bracket with screw A.

Screw A

Bracket

Page 16

. Install the microwave oven

Install the oven to the cabinet

- Make sure the back of the microwave oven is locked by bracket.

- Do not trap or kink the power cord.

bracket

5. Open the door

and fix the microwave oven to the cabinet with Screw B at the

installation hole.

Screw B

Installation Hole

OPERATION INSTRUCTION

This microwave oven uses modern electronic control to adjust cooking parameters to meet your needs for better cooking.

Page 17

Before first use

You should use a mild liquid detergent and a damp cloth on the internal area of the microwave oven before it is used for the first time. This will help to remove any residue from the manufacturing process. Also be sure to carefully inspect the appliance to remove any

packaging material from the interior and exterior before use.

1.Clock Setting

When the microwave oven is electrified, the oven will display "0:00", buzzer will ring once.

1) Press " " , the hour figure flash;

2) Turn " " to adjust the hour figures, the input time should be within 0--23.

3) Press " ", the minute figures will flash.

4) Turn " " to adjust the minute figures, the input time should be within 0--59.

5) Press " " to finish clock setting. ":" will flash. Note: 1)

2) During the process of clock setting, if no o ation in 1 minute, the microwave

twice s will

The clock function will not work if the clock is not set.

per

oven will go back to the previous status automatically.

2. Microwave Cooking

1) Press the " " key once, and "P100" displays.

2) Press " " for times or turn " " to select the microwave power "P100", "P80", "P50", "P30", "P10" will display in order.

3) Press " " to confirm.

4)Turn " " to adjust the cooking time. (The time setting should be 0:05- 95:00.)

5) Press " " to start cooking.

Microwave Power Chart

Microwave Power

Display

Note: the step quantities for the adjustment time of the coding switch are as follow : 0---1 min : 5 seconds

1---5 min : 10 seconds 5---10 min : 30 seconds

10---30 min : 1 minute

30---95 min : 5 minutes

P100 P80 P50 P30 P10

3.Grill Cooking

1) Press the "

2) Press " " for times or turn " " to select grill function.

3) Press "

4)Turn " " to adjust the grill time. (The

5) Press "

" key once, and " " displays.

" to confirm

" to start cooking.

80% 50%

P100

30%

"G" displays.

time setting should be 0:05- 95:00.)

10%100%

Page 18

Note: If half the grill time passes, the microwave oven sounds twice. This is normal. In order to

have a better effect of grilling food, you should open the door, turn the food over, close the

door and then press "

cycle will continue regardless.

the

then

" to continue cooking. If you do not do the above

4.Combination Cooking

1) Press the "

2) Press " " for times or turn " " to select the combination power "C-1(55%microwave+45%grill)" and "C-2(36%microwave+64%grill)" will display in order.

3) Press "

4)Turn " " to adjust the cooking time. (The time setting should be 0:05- 95:00.)

5) Press " " to start cooking.

" key once, and " " displays.

" to confirm.

P100

5. Speedy Cooking

1) In waiting state, press " " key to cook with 100% power level for 30 seconds. Each press on the same key can increase 30 seconds. The maximum cooking time

is 95 minutes.

2) During the microwave, grill and combination cooking and time defrost process,

press " " to increase the cooking time.

3) In waiting state, turn " " left to choose the cooking time directly. After choosing

the time, press " " to start cooking. The microwave power is 100%. Note: Under the states of auto menu and weight defrost, cooking time cannot be increased by pressing " "

6. Defrost By Weight

1) Press " " once, the screen will display "dEF1".

2) Turn " " to select the food weight. The range of weight is 100-2000g.

3) Press " " key to start defrosting.

Defrost By Time

This function activates the buzzer without stopping cooking

1) Press "

Turn " " to select the cooking time.

3) Press " " key to start defrosting.

Note: The default power level is P , and it cannot be changed.30

" twice, the screen will display "dEF2".

Page 19

8.Multi-Stage Cooking

Two stages can be maximumly set. If one stage is defrosting, it should be put in the first stage. The buzzer will ring once after each stage and the next stage will begin. Note: Auto menu cannot be set as one of the stages.

Example: if you want to defros 80%microwave power for 7 minutes, the steps are as follows:

1) Press " " twice, the screen will display "dEF2".

2) Turn " " to adjust the defrost time of 5 minutes;

3) Press " " once;

4) Turn " " to choose 80% microwave power till "P80" display ;

5) Press " " to confirm;

6) Turn " " to adjust the cooking time of 7 minutes;

7) Press " " to start cooking.

t the food for 5 minutes and then cook with

9. Kitchen Timer

Note: The Kitchen time is different from 24-hour system. Kitchen Timer is

a timer.

(1) Press " (2) Turn " " to enter the correct timer (the maximum cooking time is 95 minutes.) (3) Press " (4) When the kitchen time is reached, the clock indicator will go out. The buzzer will ring 5

times.

If the clock has been set (24-hour system), LED will display the current time.

" , LED will display 00:00.

once

" to confirm setting.

Page 20

10. Auto Menu

1) In waiting state, turn " " right to choose the menu from "A-1" to "A-8";

2) Press " " to confirm the menu you choose;

3) Turn " " to choose th food weight;

4) Press " " to start cooking;

5) After cooking finish , the buzzer sounds five times.

The menu chart:

A-1

Pizza

A-2

Meat

A-3

Vegetable

A-4

Pasta

A-5

Potato

A-6

Fish

A-7

Beverage

A-8

Popcorn

Weight

200 g 400 g 250 g 350 g 450 g 200 g 300 g 400 g

50g(with 450 ml cold water)

100g(with 800 ml cold water)

200 g 400 g 600 g 250 g 350 g 450 g

1 cup(120 ml)

2 cups(240 ml) 3 cups(360 ml)

50 g

85 g

100 g

Display

200 400 250 350 450 200 300 400

50 100 200 400 600 250 350 450

1 2

100

Page 21

11. Lock-out Function for Children

Lock: In waiting state, press " " for 3 seconds, there will be a long "beep"

denoting entering the child-lock state and the "child-lock" indicator will light. LED will display

the current time if the clock has been set. Otherwise, the screen will display " ". Lock quitting: In locked state, press " " for 3 seconds, there will be a long "beep" denoting that the lock is released.

12. Inquiring Function

1) In cooking states of microwave, grill and combination, press " ", the current power will be displayed for 3 seconds.

2) During cooking state, press " for 3 seconds.

" to check the current time. It will be displayed

Page 22

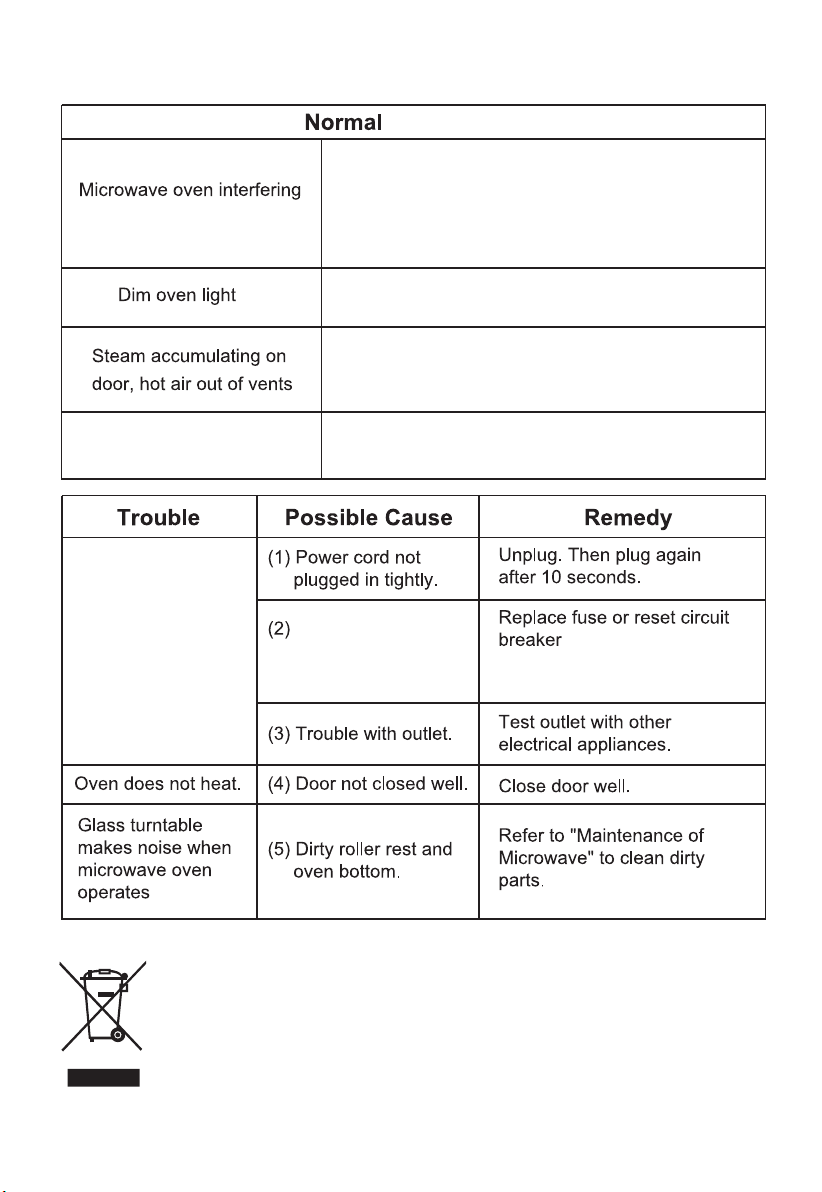

7URXEOHVKRRWLQJ

with TV reception

Radio and TV reception may be interfered when microwave oven is operating. It is similar to the interference of small electrical appliances, like a mixer, vacuum cleaner or electric fan. This is normal

During low power microwave cooking, oven light may become dim. This is normal

During cooking, steam may come out of food. Most will escape from vents, but some may accumulate on a cool place like the oven door. This is normal

Microwave oven started accidentally with no food inside

Microwave oven

can not be started.

It is forbidden to run the unit without any food inside. It is very dangerous.

Fuse blown or circuit breaker tripped

$FFRUGLQJWR:DVWHRI(OHFWULFDODQG(OHFWURQLF(TXLSPHQW :(((GLUHFWLYH:(((VKRXOGEHVHSDUDWHO\FROOHFWHGDQG WUHDWHG,IDWDQ\WLPHLQIXWXUH\RXQHHGWRGLVSRVHRIWKLV SURGXFWSOHDVHGR127GLVSRVHRIWKLVSURGXFWZLWKKRXVHKROG ZDVWH3OHDVHVHQGWKLVSURGXFWWR:(((FROOHFWLQJSRLQWV ZKHUHDYDLODEOH

Page 23

WARRANTY REGISTRATION CARD

Congratulations on your new appliance purchase! To help care for your investment, be sure to register your appliance online. Registration will help you if you need to arrange service in the future, and serves as a record of your purchase – including critical information like model number and serial number – that you can refer to at any time. Simply visit the below website, or ask your retailer for help:

www.classique.co.nz/register

WARRANTY:

These products are covered by a warranty for a period of 24 months from the date of purchase, subject to the following conditions*. The warranty covers rectiﬁcation free of charge of any fault arising from defective materials or components, or faulty workmanship or assembly.

* The conditions above mentioned are:

1. That the purchaser carefully follows all instructions packed with the product;

2. That the purchaser and/or installer carefully follows the installation instructions provided and complies with electrical wiring regulations, gas and/or plumbing codes;

3. That the purchaser carefully follows instructions provided in the owner’s handbook relating to the proper use and care of the product and does not use the product for any purpose other than the domestic use for which it has been designed;

4. Commercial use of the product for professional or industrial purposes will void this warranty.;

5. That the product was purchased and installed in New Zealand;

6. That this warranty does not extend to:

a) optional glass lids for hobs apart from claims which relate to mechanical or physical damage thereof at the date of purchase;

b) ‘consumable’ parts such as light bulbs or ﬁlters;

c) damage to ceramic glass caused by liquid or

solid spill-overs, lack of maintenance, or impact;

d) damage to surface coatings caused by cleaning or maintenance using products not recommended by the owner’s handbook;

e) defects caused by normal wear and tear, accident, negligence, alteration, misuse or incorrect installations;

f) a product dismantled, repaired or serviced by any

serviceman other than an authorised service agent;

g) a product not in possession of the original

purchaser;

h) damage caused by power outages or surges

i) damage caused by pests (eg. rats, cockroaches etc.)

7. That if the product is a freestanding microwave oven or small appliance it must be returned to the dealer/ retailer for servicing. These products, unless stated otherwise, have a 12 month warranty from original date of purchase with 24 months on the microwave magnetron; Waste disposers have a 12 month warranty.

8. The provision of service under this warranty is limited by a 25km boundary from the retailer where the product was purchased exept for microwaves. Such travelling outsideof these limits will incur commercial cost to be paid by you, regulated by the number of kilometres travelled beyond the 25km limit (50km return trip).Microwaves are to be delivered to the nearest authorised serviceagent by the customer.

Please refer to your user manual for any further conditions that may apply to your speciﬁc model.

Nothing herein contained shall be construed in any way as excluding or limiting your rights under the Consumer Guarantees Acts 1993.

For Service please visit www.classique.co.nz/service or contact the dealer/retailer from whom you purchased the product from or call the 0800 number listed below. If you are unable to establish the date of purchase, or the fault is not covered by this warranty, or if the product is found to be in working order, you will be required to bear all service call charges.

Registration of this warranty constitutes acceptance of the terms and conditions of this warranty.

Should you require any assistance, please call Customer Services on 0800 610 457.

Distributed by Applico Ltd. www.classique.co.nz

September 2015

After registering your appliance online, we recommend you ﬁll out the below information for your reference and keep this warranty card in a safe place.

PRODUCT: ................................................................................

RETAILER: .................................................................................

DATE OF PURCHASE: ..............................................................

INVOICE NO: .............................................................................

MODEL NO: ..............................................................................

*Please consult your user manual for guidance on ﬁnding the serial number.

SERIAL NO*: .............................................................................

REGISTRATION WEBSITE DETAILS FOR

www.classique.co.nz/register

WEBSITE USERNAME: ............................................................

WEBSITE PASSWORD: ............................................................

THIS WARRANTY IS VALID IN NEW ZEALAND ONLY.

Page 24

Imported by Applico Ltd.

Private Bag 92900

Onehunga, Auckland 1061,

New Zealand

Website

www.classique.co.nz

Phone

0800 M10 HLP

0800 610 457
