Quick operation guideQuick operation guide

For detailed operating method read the corresponding content on the instruction manual.

Switch on the appliance

Fill the detergent dispenser

Check the rinse aid level

Load the baskets

Select a program

Running the dishwasher

Open the door, press the On/Off button to switch on the appliance.

Compartment A:Compartment A: For each wash cycle. Compartment B:B: For programs with pre-wash only.

(Follow the user instructions)

Mechanical indicator C. Mechanical indicator C. Electric indicator on control panel (if provided).

Scrape off any large food particles. Soften remnants of burnt food in pans, then load the baskets. Refer to the dishwasher loading instructions.

Close the door,press the Program Button until the selected program lights up. ( See the section entitled Operation instruction )

T urn on the water tap and press the Start/Pause Button. The machine will start working after about 10 seconds.

Changing the program

Add forgotten dishes in the dishwasher.

If the appliance is switched off during a wash cycle.

Switch off the appliance

Turn off the water tap, unload the baskets

1. A running cycle can only be modified if it has been running for a short time. Otherwise the detergent may have already been released and the water already drained. If in this case, the detergent dispenser must be refilled.

2. Press the Start/Pause button, the machine will be in standby state, press the program button more than 3 seconds then you can change the program to the desired cycle setting.

3. Press the Start/Pause Button, the dishwasher will run after 10 seconds.

1.Press the Start/Pause Button to stop the washing.

2.Open the door a little.

3.After the spray arms stop working, you can open the door completely.

4.Add forgotten dishes.

5.Close the door.

6.Press the Start/Pause Button, the dishwasher will run after 10 seconds.

If the appliance is switched off during a wash cycle, when switched on again, please re-select the washing cycle and operate the dishwasher according to the original Power-on state ).

When the working cycle is finished, the buzzer of the dishwasher will sound 8 times, then stop. Turn off the appliance using the On/Off Button. If the appiance was under standby mode, it will be power off automaticly after 30 minutes without any operation.

Warning: wait a few minutes (about 15 minutes) before unloading the dishwasher to avoid scald,as the dishes and utensils are still hot and more susceptible to break. They could also dry better.Unload the appliance, starting from the lower basket.

WARNING!

Open the door carefully. Hot steam may escape when the door is opened!

Page 3

1) Safety Information.......................................... 11) Safety Information.......................................... 1

Read this Manual

Dear Customer,

Please carefully read this manual before using the dishwasher, it will help you to use and maintain the dishwasher properly. Keep it to refer to it at a later date.

Pass it on to any subsequent owner of the appliance.

This manual contains sections on safety Instructions, Operating Instructions, Installation Instructions and Troubleshooting Tips, etc.

Before Calling for Service

To review the section on troubleshooting Tips will help you to solve some common problems by yourself .

If you can not solve the problems by yourself , please ask for the help of professional technicians.

NOTE:

The manufacturer, following a policy of constant development and updating of the product, may make modifications without giving prior notice.

2) Operating Instructions.....................................22) Operating Instructions.....................................2

Control Panel.......................................................2

Dishwasher Features.................................... .......2

3) Prior to using for the first time............................33) Prior to using for the first time............................3

A. Rinse Aid Dispenser.........................................3

B. Detergent .......................................................4

4) Loading the Dishwasher Basket........................64) Loading the Dishwasher Basket........................6

Attention before or after loading the Dishwasher

Baskets..............................................................6

...............7The Method of Loading Normal Dishware

5) Starting a washing program..............................85) Starting a washing program..............................8

Wash Cycle Table.................................................8

Turning on the Appliance......................................8

Change the Program............................................9

At the End of the Wash Cycle.................................9

6) Maintenance and cleaning...............................106) Maintenance and cleaning...............................10

Filtering System..................................................10

Caring for the Dishwasher....................................11

7) Installation instruction.....................................127) Installation instruction...................... .............12..

Packing list........................................................12

Positioning the Appliance....................................12

About Power Connection.....................................12

Water Connection...............................................13

Cabinet installation.............................................14

Before first starting.............................................14

8) Troubleshooting Tips.......................................158) Troubleshooting Tips................................ .....15..

Before calling for service......................................15

Error codes........................................................16

Technical information..........................................17

9) Appendix 18

9) Appendix........................................................18

Loading the baskets according to (*AS/NZS 2007.1)

.........................................................................

........................................................

Page 4

1.IMPORTANT SAFETY INFORMATION

READ ALL OF THE INSTRUCTIONS BEFORE USING

WARNING! WARNING!

GROUNDING INSTRUCTIONS

This appliance must be grounded. In the event of a malfunction or breakdown, grounding will reduce the risk of an electric shock by providing a path of least resistance of electric current. This appliance is equipped with a cord having an equipmentgrounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is installed and grounded in accordance with all local codes and ordinances.

WARNING! PROPER USE

Installation and repair can only be carried out by a qualified technician.

Do not abuse, sit on, or stand on the door or dish rack of the dishwasher.

Do not touch the heating element during or immediately after use. (This instruction is only applicable to machines with a visual heating element.) Do not operate your dishwasher unless all enclosure panels are properly in place. Open the door very carefully if the dishwasher is operating, there is a risk of water squirting out. Do not place any heavy objects on or stand on the door when it is open. The appliance could tip forward. When loading items to be washed:

1) Locate sharp items so that they are not likely to damage the door seal;

2) Warning: Knives and other utensils with sharp points must be loaded in the basket with their points down or placed in a horizontal position.

When using your dishwasher, you should prevent plastic items from coming into contact with the heating element.(This instruction is only applicable to machines with a visual heating element.) Check that the detergent comparment is empty after completion of the wash cycle. Do not wash plastic items unless they are marked dishwasher safe or the equivalent. For plastic it ems nots

o m

recommendations. Use only detergent and rinse additives designed for an automatic dishwasher. Never use soap, laundry detergent, or hand washing detergent in your dishwasher. Keep these products out of the reach of children.

When using your dishwasher, follow the precautions listed below:

WARNING!

Improper connection of the equipment-grounding conductor can result in the risk of an electric shock. Check with a qualified electrician or service representative if you are in doubt whether the appliance is properly grounded. Do not modify the plug provided with the appliance; If it does not fit the outlet. Have a proper outlet installed by a qualified electrician.

Keep children away from detergent and rinse aid, keep children away from the open door of the dishwasher,

there could still be some detergent left inside. This appliance is not intended for use by persons (including children )with reduced physical, sensory or mental capabilities, or lack of experience and knowledge ,unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Dishwasher detergents are strongly alkaline, they can be extremely dangerous if swallowed. Avoid contact with skin and eyes and keep children away from the dishwasher when the door is open.

The door should not be left open, since this could increase the risk of tripping.

If the supply cord is damaged, it must be replaced

by the manufacturer or its service agent or a

similarly qualified person in order to avoid a

hazard.

Remove the door to the washing compartment when

removing an old dishwasher from service or discarding it.

Please dispose of packing materials properly.

Use the dishwasher only for its intended function.

During installation, the power supply must not

be excessively or dangerously bent or flattened.

Do not tamper with controls.

The appliance is to be connected to the water

mains using new hose sets and that old hose-sets

should not be reused.

The maximum number of place settings to be

washed is 10.

The maximum permissible inlet water pressure is

1Mpa.

The minimum permissible inlet water pressure is

0.04Mpa.

arked,c

heck th em

Children should be supervised to ensure that they do not play with the appliance.

anufacturer's

READ AND FOLLOW THIS SAFETY INFORMATION CAREFULLY KEEP THESE INSTRUCTIONS

Page 5

2.Operation Instruction2.Operation Instruction

IMPORTANTIMPORTANT

To get the best performance from your dishwasher, read all operating instructions before using it for the first time.

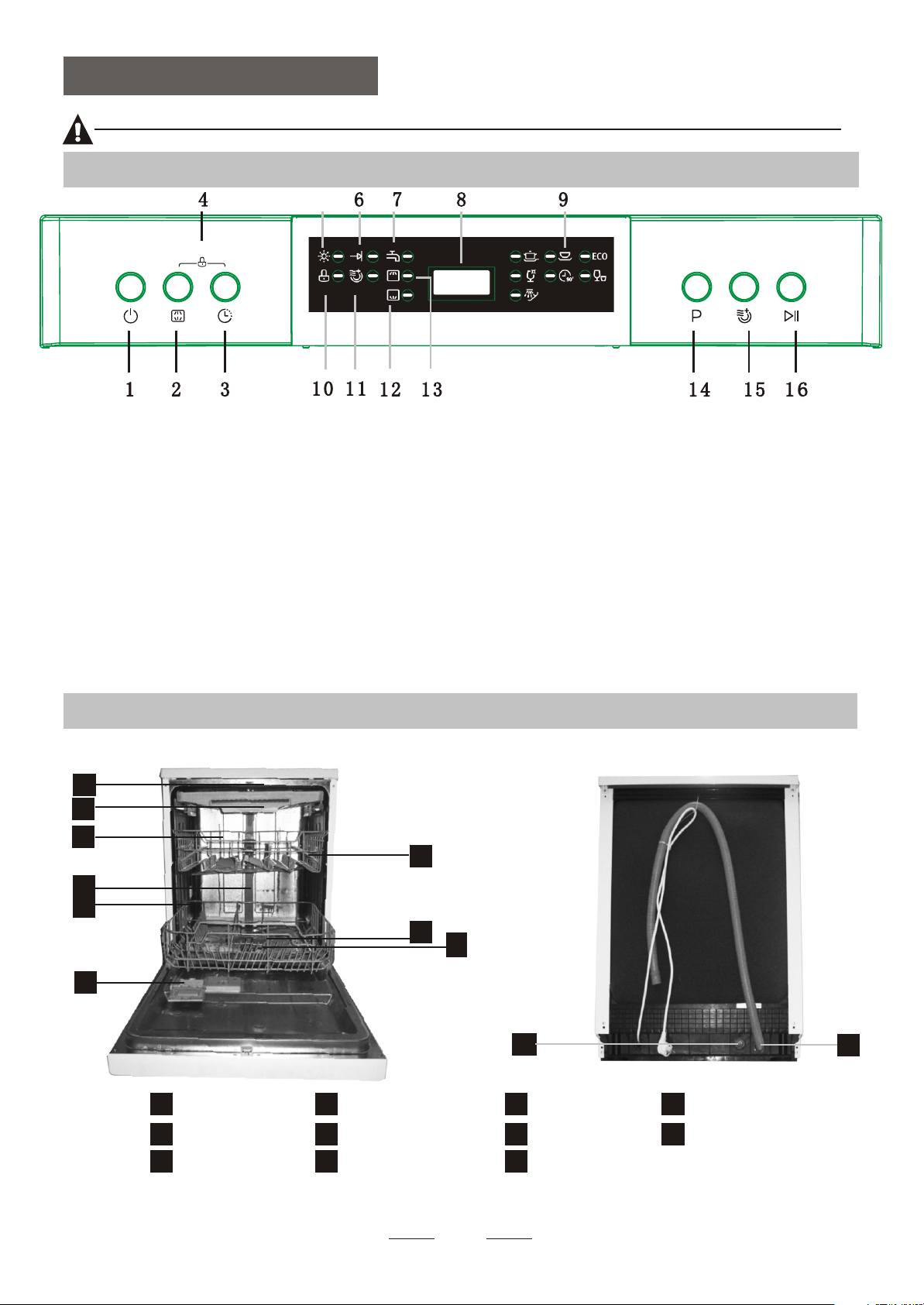

Control PanelControl Panel

1. On/Off Button: to switch On/Off the appliance;

2.Alt function Button: Dual zone wash function, press the button to select either upper basket or lower basket loaded, and the response indicators will light on.

3.Delay Button : Press the button to add the delay time;

4.Child lock function: press Delay button and Alt function Button simultaneously to lock the program;

5. Rinse Aid indicator: Indicates when the dispenser needs to be refilled

6. Program ending indicator:

7.water tap indicator:

8.Display window: display the remain time,delay time and error code.

9. Program indicator: display the program selected.

10.Child lock indicator;

11. Extra drying indicators;

12.Lower basket loaded indicators: To show lower basket loaded functionstarting up or not;

13.Upper basket loaded indicators: To show upper basket loaded functionstarting up or not;

14.Program Button : To Press the button to select

15.Extra drying Button : To select Extra drying function.

16.Start /Pause button: To start the selected washing program or pause the washing program when the machine is working starting up or not;

Dishwasher FeaturesDishwasher Features

Front view

4 5

Top spray arm

Cutlery rack

Upper basket

4 5

Inner pipe

Lower basket

Dispenser

Cup shelf

Spray arms

Filter assembly

Back View

Inlet pipe connector

Drain pipe

Page 6

3.Prior using for the first time3.Prior using for the first time

Before using your dishwasher for the first time:

A. Fill the rinse aid dispenser

B. Fill in detergent

A. Rinse Aid DispenserA. Rinse Aid Dispenser

Rinse Aid Dispenser

The rinse aid is released during the final rinse to prevent water from forming droplets on your dishes, which can leave spots and streaks. It also improves drying by allowing water to roll off the dishes. Your dishwasher is designed to use liquid rinse aids. The rinse aid dispenser is located inside the door next to the detergent dispenser. To fill the dispenser, open the cap and pour the rinse aid into the dispenser until the level indicator turns completely black. The volume of the rinse aid container is about 110ml.

Function of Rinse Aid

Rinse aid is automatically added during the last rinse, ensuring thorough rinsing, and spot and streak free drying.

Attention!

Only use branded rinse aid for dishwasher. Never fill the rinse aid dispenser with any other substances (e.g. Dishwasher cleaning agent, liquid detergent). This would damage the appliance.

When to Refill the Rinse Aid Dispenser

If there is no rinse-aid warning light in the control panel, you can judge the amount of rinse-aid by the color of the optical level indicator "C" located next to the cap. When the rinse-aid container is full, the whole indicator will be dark .As the rinse-aid diminishes, the size of the dark dot decreases. You should never let the rinse aid get below 1 / 4 full.

As the rinse aid diminishes, the size of the black dot on the rinse aid level indicator changes, as illustrated below. Full 3 / 4 fu ll 1 / 2 fu ll 1 / 4 full - Should refill to eliminate spotting Empty

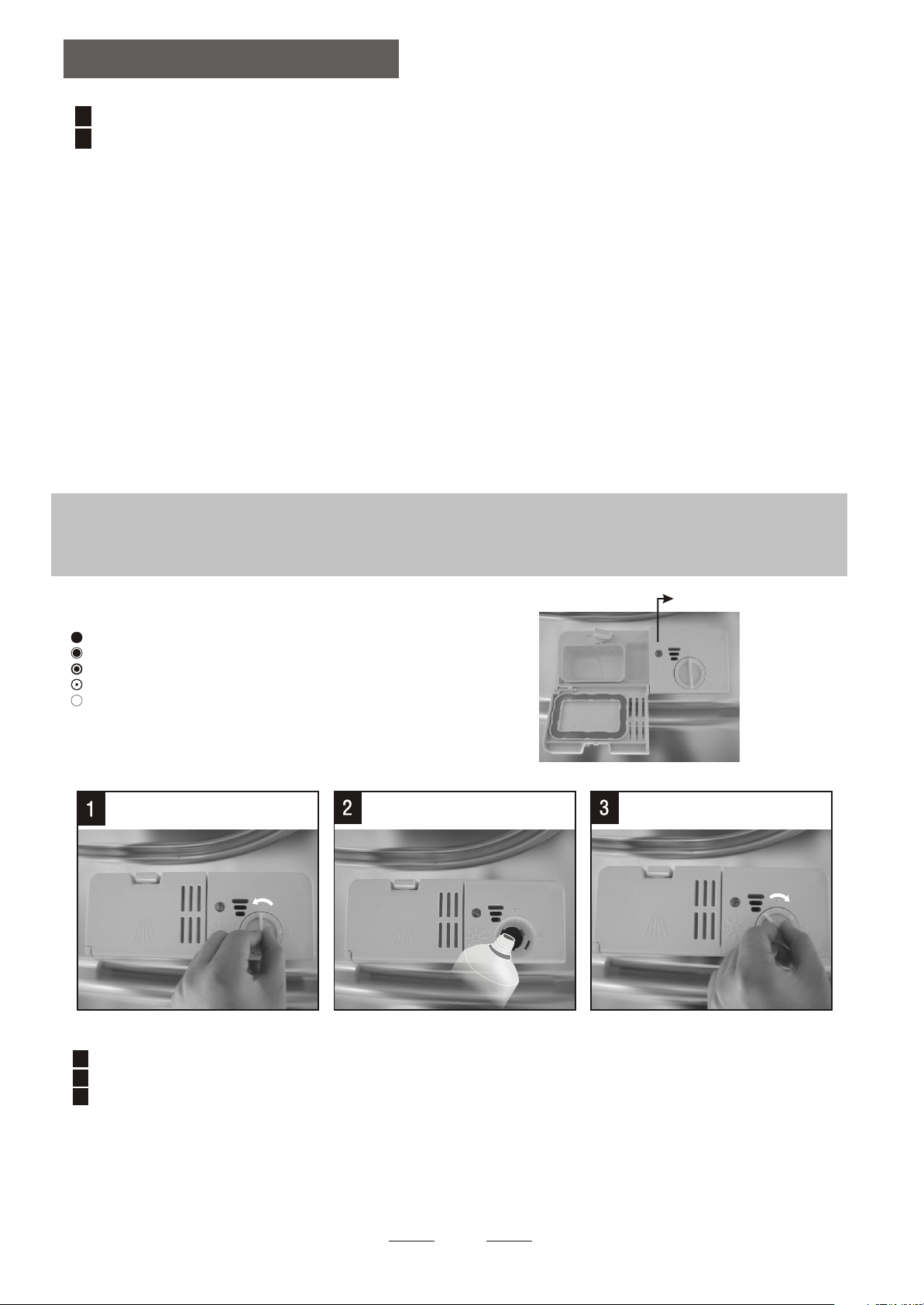

How to fill the Rinse Aid Dispenser

C (Rinse-Aid indicator)C

To open the dispenser, turn the cap to the "open" (left) arrow and lift it out.

Pour the rinse aid into the dispenser, being careful not to overfill.

Replace the cap by inserting it aligned with "open" arrow and turning it to the closed (right) arrow.

Be careful not to overfill the dispenser, because this could cause over sudsing. Wipe away any spills with a damp cloth. Don't forget to replace the cap before you close dishwasher door.

Attention! Clean up any rinse aid spill during filling with an absorbent cloth to avoid excess foaming during the next wash.

Page 7

NOTE:NOTE:

Clean up any rinse aid spilled while during filling with an absorbent cloth to avoid excessive foaming

during the next wash. Don't forget to replace the cap before you close dishwasher door.

Adjusting Rinse Aid Dispenser

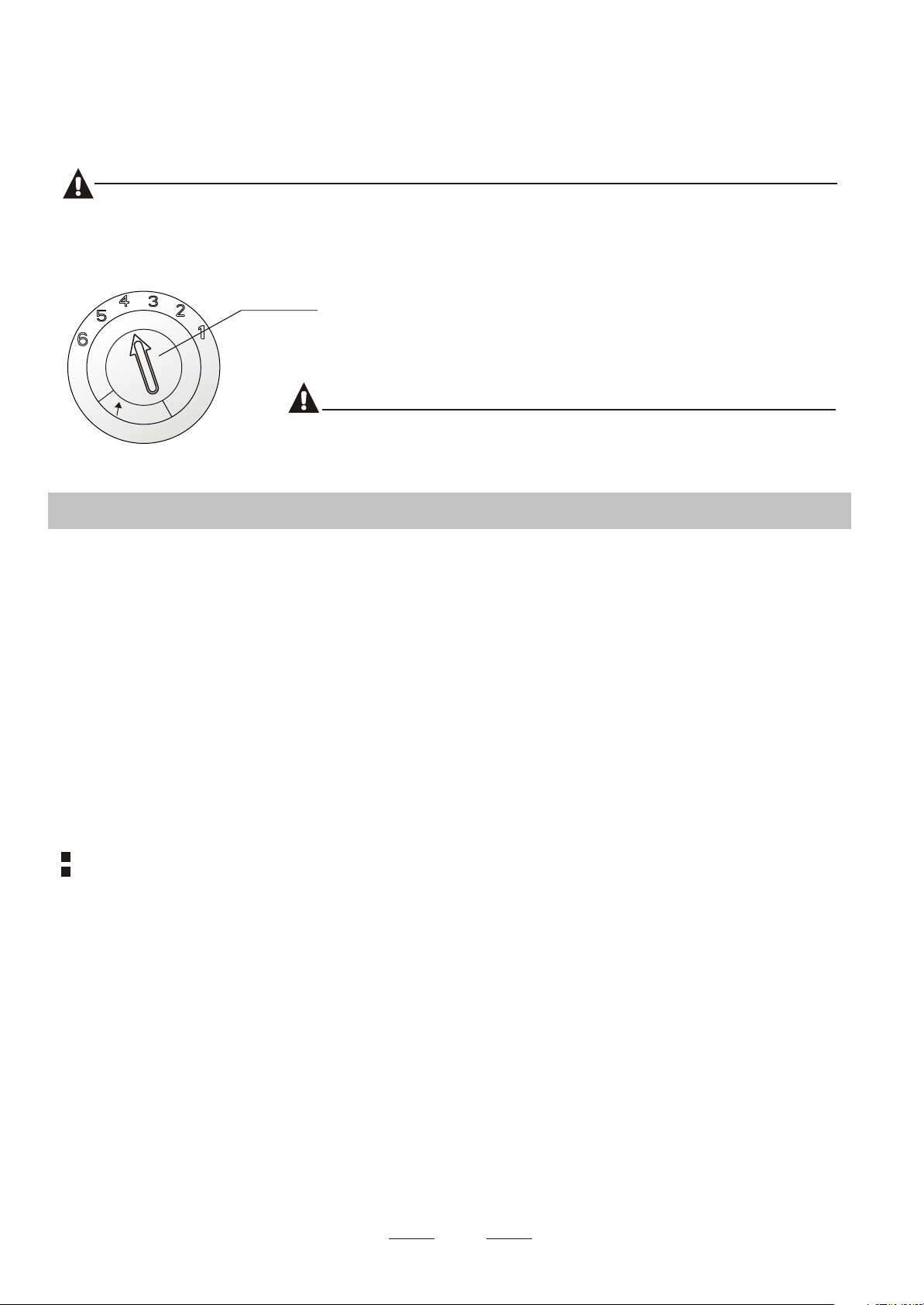

The rinse aid dispenser has six or four settings. Always start with the dispenser set on "4". If spots and poor drying are a problem, increase the amount of rinse aid dispensed by removing the dispenser lid and rotating the dial to "5". If the dishes still are not drying properly or are show spots, adjust the dial to the next higher lever until your dishes are spot-free. The recommended setting is "4". (Factory value is "4".)

NOTE:NOTE:

MAXMAX

Adjust lever

(Rinse)

Increase the dose if there are drops of water or lime spots on the dishes after washing. Reduce it if there are sticky whitish stains on your dishes or a bluish film on glassware or knife blades.

B. DetergentB. Detergent

Detergents with its chemical ingredients that are necessary to remove dirt, crush dirt and transport it out of the dishwasher.

Most of the commercial quality detergents are suitable for this purpose.

Detergents

There are 3 sorts of detergents

1.With phosphate and with chlorine

2.With phosphate and without chlorine

3.Without phosphate and without chlorine

Normally new pulverised detergent is without phosphate. Thus the water softener function of phosphate is not given. If detergents without phosphate are used in the case of hard water often white spots appear on dishes and glasses. In this case please add more detergent to reach better results. Detergents without chlorine do only bleach a little. Strong and coloured spots will not be removed completely. In this case please choose a program with a higher temperature.

Concentrated Detergent

Based on their chemical composition, detergents can be split in two basic types:

Conventional, alkaline detergents with caustic components Low alkaline concentrated detergents with natural enzymes

Detergent Tablets

Detergent tablets of different brands dissolve at different speeds. For this reason some detergent tablets cannot dissolve and develop their full cleaning power during short programs. Therefore please use long programs when using detergent tablets, to ensure the complete removal of detergent residuals.

Detergent Dispenser

The dispenser must be refilled before the start of each wash cycle following the instructions provided in the wash cycle table . Your dishwasher uses less detergent and rinse aid than Conventional dishwasher. Generally, only one tablespoon of detergent is needed for a normal wash load. More heavily soiled items need more detergent. Always add the detergent just before starting the dishwasher, otherwise it could get damp and will not dissolve properly.

Page 8

Amount of Detergent to Use

Push latch to openPush latch to open

WARNING! WARNING!

Proper Use of Detergent Use only detergent specifically made for the use in dishwashers. Keep your detergent fresh and dry. Don't put powdered detergent into the dispenser until you're ready to wash dishes.

Fill in Detergent

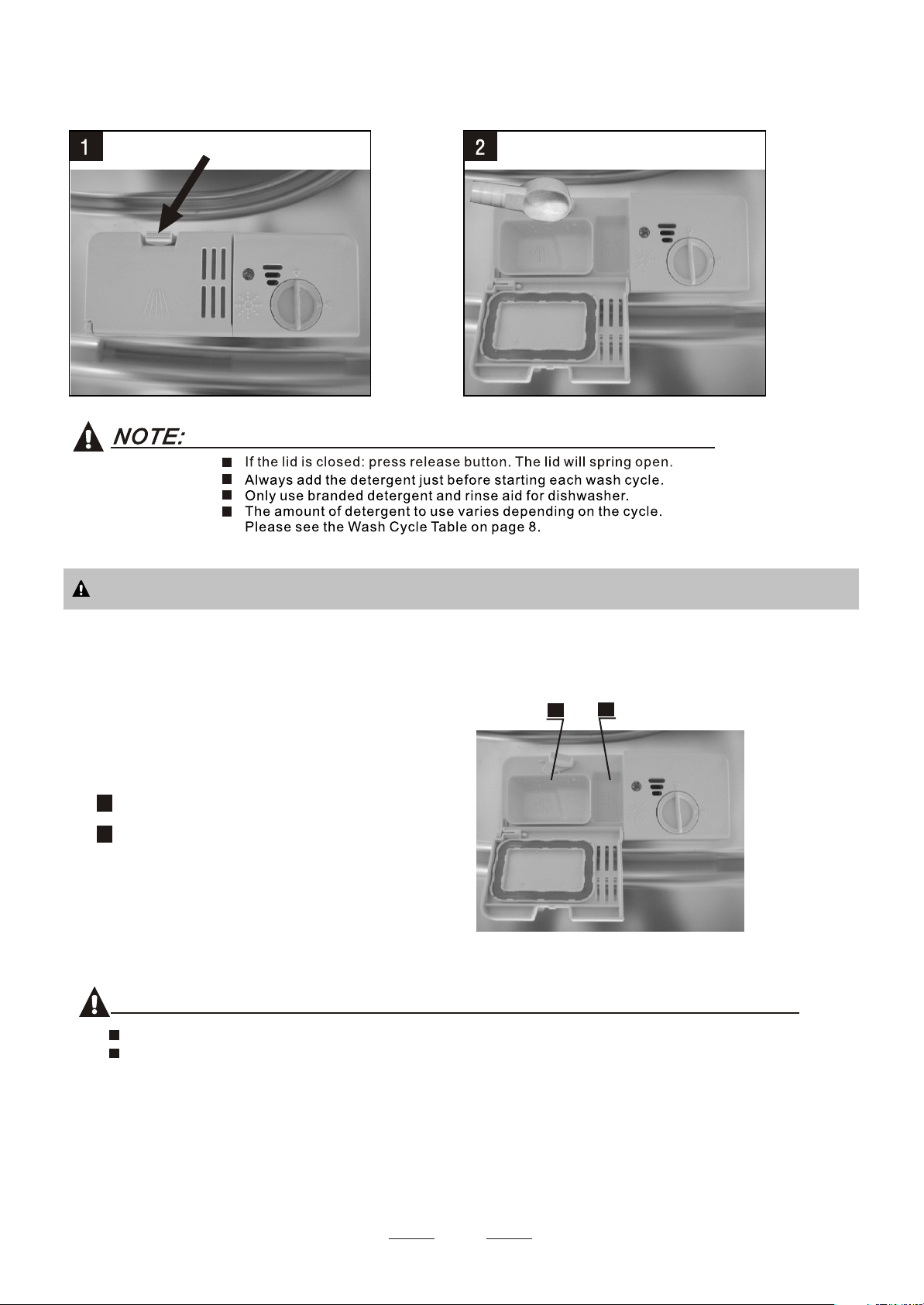

Fill the detergent dispenser with detergent. The marking indicates the dosing levels, as illustrated on the right:

The place of main wash cycle detergent placed.

The place of pre-wash cycle detergent placed.

Please observe the manufacturers dosing and storage Recommendations as stated on the detergent packaging.

Close the lid and press until it locks in place.

If the dishes are heavily soiled, place an additional detergent dose in the pre-wash detergent chamber. This detergent will take effect during the pre-wash phase.

Dishwasher detergent is corrosive! Take care to keep it out of reach of children.

NOTE:NOTE:

Please be aware that soiling levels and water hardness can effect wash results. Please observe the directions and recommendations found on the chosen detergent packaging.

Page 9

4.Loading the Dishwasher Baskets4.Loading the Dishwasher Baskets

RecommendationRecommendation

Consider buying utensils which are identified as dishwasher-proof. Use a mild detergent that is described as 'kind to dishes'. If necessary, seek further information from the detergent manufacturers. For particular items, select a program with as low a temperature as possible. To prevent damage, do not take glass and cutlery out of the dishwasher immediately after the programme has ended.

For washing in the dishwasher the following cutlery/dishesFor washing in the dishwasher the following cutlery/dishes

Are not suitable

Cutlery with wooden, horn china or mother-of-pearl handles Plastic items that are not heat resistant Older cutlery with glued parts that are not temperature resistant Bonded cutlery items or dishes Pewter or copper items Crystal glass Steel items subject to rusting Wooden platters Items made from synthetic fibres

Are of limited suitability

Some types of glasses can become dull after a large number of washes

Silver and aluminum parts have a tendency to discolour during washing

Glazed patterns may fade if machine washed frequently

Attention before or after loading the Dishwasher BasketsAttention before or after loading the Dishwasher Baskets

(For best performance of the dishwasher, follow these loading guidelines. Features and appearance of baskets and cutlery baskets may vary from your model.)

Scrape off any large amounts of leftover food. Soften remnants of burnt food in pans. It is not necessary to rinse the dishes under running water. Place objects in the dishwasher in following way:

1.Items such as cups, glasses, pots/pans, etc. are faced downwards.

2.Curved items, or ones with recesses, should be loaded aslant so that water can run off.

3.All utensils are stacked securely and can not tip over.

4.All utensils are placed in the way that the spray arms can rotate freely during washing.

NOTE:NOTE:

Very small items should not be washed in the dishwasher as they could easily fall out of the basket.

Load hollow items such as cups, glasses, pans etc. With the opening facing downwards so that water cannot collect in the container or a deep base.

Dishes and items of cutlery must not lie inside one another, or cover each other. To avoid damage to glasses, they must not touch. Load large items which are most difficult to clean into the lower basket. The upper basket is designed to hold more delicate and lighter dishware such as glasses, coffee and tea cups Long bladed knives stored in an upright position are a potential hazard! Long and/or sharp items of cutlery such as carving knives must be positioned horizontally in the upper basket. Please do not overload your dishwasher. This is important for good results and for reasonable consumption of energy.

Removing the DishesRemoving the Dishes

To prevent water dripping from the upper basket into the lower basket, we recommend that you empty the lower basket first and then the upper basket.

Page 10

The Method Loading Normal DishwareThe Method Loading Normal Dishware

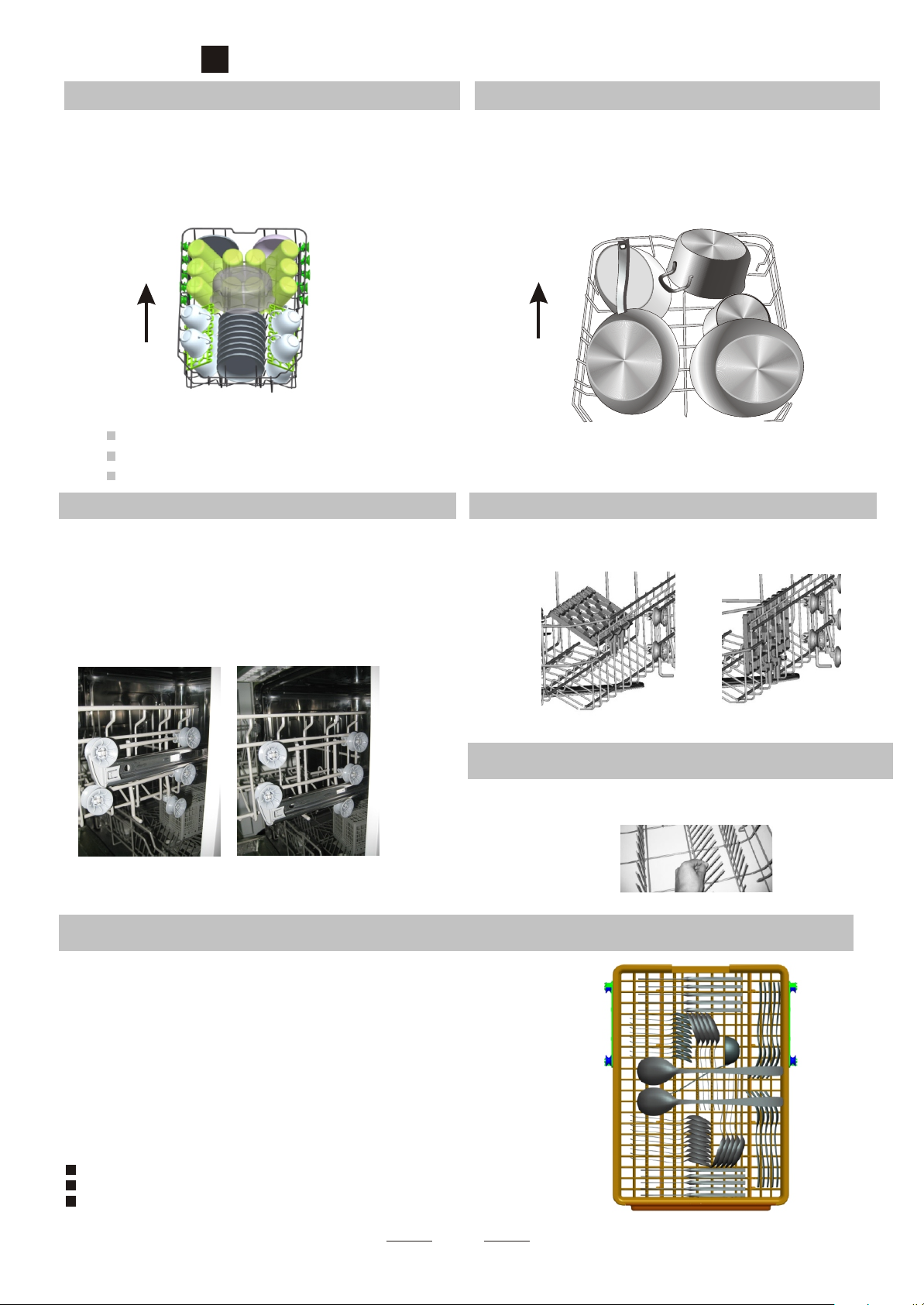

Loading the Upper BasketLoading the Upper Basket

The upper basket is designed to hold more delicate and lighter dishware such as glasses, coffee and tea cups and saucers, as well as plates, small bowls and shallow pans (as long as they are not too dirty). Position the dishes and cookware so that they will not get moved by the spray of water.

Please be reminded that:

Pots, serving bowls, etc, must always be placed top down. Deep pots should be slanted to allow water to flow out.

The Bottom Basket features folding spikes so that larger or more pots and pans can be loaded.

Adjusting the Upper Basket

The height of the upper basket can be adjusted in order to create more space for large utensils both for the upper /lower basket. The height of the upper basket can be adjusted by placing the wheels on different height of the rails. Long items, serving cutlery, salad servers and knives should be placed on the shelf so that they do not obstruct the rotation of the spray arms..

Lower positionLower position

Upper positionUpper position

Loading the Lower BasketLoading the Lower Basket

We suggest that you place large items and the most difficult to clean items are to be placed into the lower basket: such as pots, pans, lids, serving dishes and bowls, as shown in the figure below. It is preferable to place serving dishes and lids on the side of the racks in order to avoid blocking the rotation of the top spray arm.

Folding back the cup shelives

For better stacking of pots and pans, the spikes can be folded down as show in the picture right.

WheelsWheels

Cutlery BasketCutlery Basket

Cutlery should be placed in the cutlery rack separately from each other in the appropriate positions, and do make sure the utensils do not nest together, this may cause bad performance.

For a top quality cleaning, place the silverware in the basket

making sure that:

They do not nest together.They do not nest together. Silverware is placed with the male face up.Silverware is placed with the male face up. Long utensils in the middle. Long utensils in the middle.

Folding Spikes of Lower Basket

For better stacking of pots and pans, the spikes can be folded down as show in the picture right.

Page 11

5.Starting a washing program5.Starting a washing program

Wash Cycle TableWash Cycle Table

( )

NOTE:NOTE:

ProgramProgram

Intensive

Heavy

(*AS/NZS 2007.1)

Glass

90mims

For heaviest soiled crockery, and normally soiled pots pans dishes etc with dried on soiling.

For heavily soiled loads, such as pots, plates, glasses and lightly soiled pans.

This is standard programme, it is suitable to clean normally soiled tableware and it is the most efficient programme in terms of its combined energy and water consumption for that type of tableware.

For lightly soiled crockery and glass

For normally soiled loads that need quick wash.

Means: Rinse-aid dispenser needs to be filled.

Cycle Selection

Information

Description

of Cycle

Prewash 50 Wash 60 Rinse Rinse Rinse 70 Drying

Prewash(45 ) Wash (55 ) Rinse Rinse (65 ) Drying

Prewash Wash (45 ) Rinse(45 ) Drying

Pre-wash wash(40 ) Rinse Rinse(60 ) Drying

Wash 65 Rinse Rinse (65 ) Drying

Detergent

pre/main

5/22.5g

(1 piece)

5/22.5g

(1 piece)

5/22.5g (1 piece)

5/22.5g

(1 piece)

27g

(1 piece)

Running

time(min)

170

180

125

90 11. 51.15

Energy

(Kwh)

1.4

1.1

0.51

0.75

Water

(L)

15.5

Rinse

Aid

Rapid

Pre-wash

A shorter wash for lightly soiled loads that do not need drying.

To rinse dishes that you plan to wash later that day

Wash (45 ) Rinse(50 ) Rinse (55 )

Prewash

20g

15 0.02

0.7

NOTE:NOTE:

* : This program is the test cycle. The information for comparability test

in accordance with , as follows:

Capacity: 10 settings Position Upper basket: upper wheels on rails Rinse aid setting: 6 PI:0.49w;Po:0.45w

Turning On the ApplianceTurning On the Appliance

Starting a cycle wash

Draw out the lower and upper basket, load the dishes and push them back. It is commended to load the lower basket first, then the upper one (see the section entitled Loading the Dishwasher ).

Pour in the detergent (see the section entitled Detergent and Rinse Aid ).

Insert the plug into the socket. The power supply is 220-240 VAC /50 HZ, the specification of the socket is 10A 250VAC. Make sure that the water supply is turned on to full pressure.

Close the door, press the On/Off button to switch on the machine

Press the program button , the wash program will be changed as follows direction: ECO->Glass->90 Min->Rapid-> ->Intensive->Heavy->ECO;

If a program is selected, the light will light on. Then press the Start/Pause button, the dishwasher begins to start.

corresponding

Prewash

3.5

Page 12

NOTE:NOTE:

When you press the Start/Pause button to pause during washing, the LED display will stop blinking and the dishwasher will every minute unless you press the

Start/Pause button to start.

sound

Change the ProgramChange the Program

Premise:

A cycle that is underway can only be modified if it has only been running for a short time. Otherwise, the detergent may have already been released, and the appliance may have already drained the wash water. If this is the case, the detergent dispenser must be refilled (see the section entitled " Loading the Detergent " ).

Press the Start/Pause button , the machine will pause, press the program button more than 3s then you

can change the program to the desired cycle setting (see the section entitled " Starting a wash cycle" ).

NOTE:NOTE:

If you open the door during a wash cycle , the machine will pause. The LED display will stop blinking and the buzzer will every minute unless you close the door . After you close the door ,the machine will keep on working after 10 seconds.

sound

Forgot to Add a DishForgot to Add a Dish

A forgotten dish can be added any time before the detergent cup opens.

Press the Start/Pause Button to stop the washing.

Open the door a little .

After the spray arms stop working, you can open the door

completely.

Add forgotten dishes.

Close the door

Press the Start/Pause Button, the dishwasher will run

after 10 seconds.

At the End of the Wash CycleAt the End of the Wash Cycle

When the working cycle has finished, the buzzer of the dishwasher will sound for 8 seconds, then stop. Turn off the appliance using the ON/OFF button, shut off the water supply and open the door of the dishwasher. Wait for a few minutes before unloading the dishwasher to avoid handling the dishes and utensils while they are still hot and more susceptible to breakage. They will also dry better.

Switch Off the Dishwasher

The program light is on but is not blinking, only in this case the programme has ended.

1.Switch off the dishwasher by pressing the On/Off Button.

2.Turn off the water tap!

Open the door carefully.

Hot dishes are sensitive to knocks. The dishes should therefore be allowed to cool down around 15 minutes before removing from the appliance. Open the dishwasher's door, leave it ajar and wait a few minutes before removing the dishes. In this way they will be cooler and the drying will be improved.

Unloading the dishwasher

It is normal that the dishwasher is wet inside. Empty the lower basket first and then the upper one. This will avoid water dripping from the upper Basket onto the dishes in the lower one.

Page 13

6.Maintenance and Cleaning6.Maintenance and Cleaning

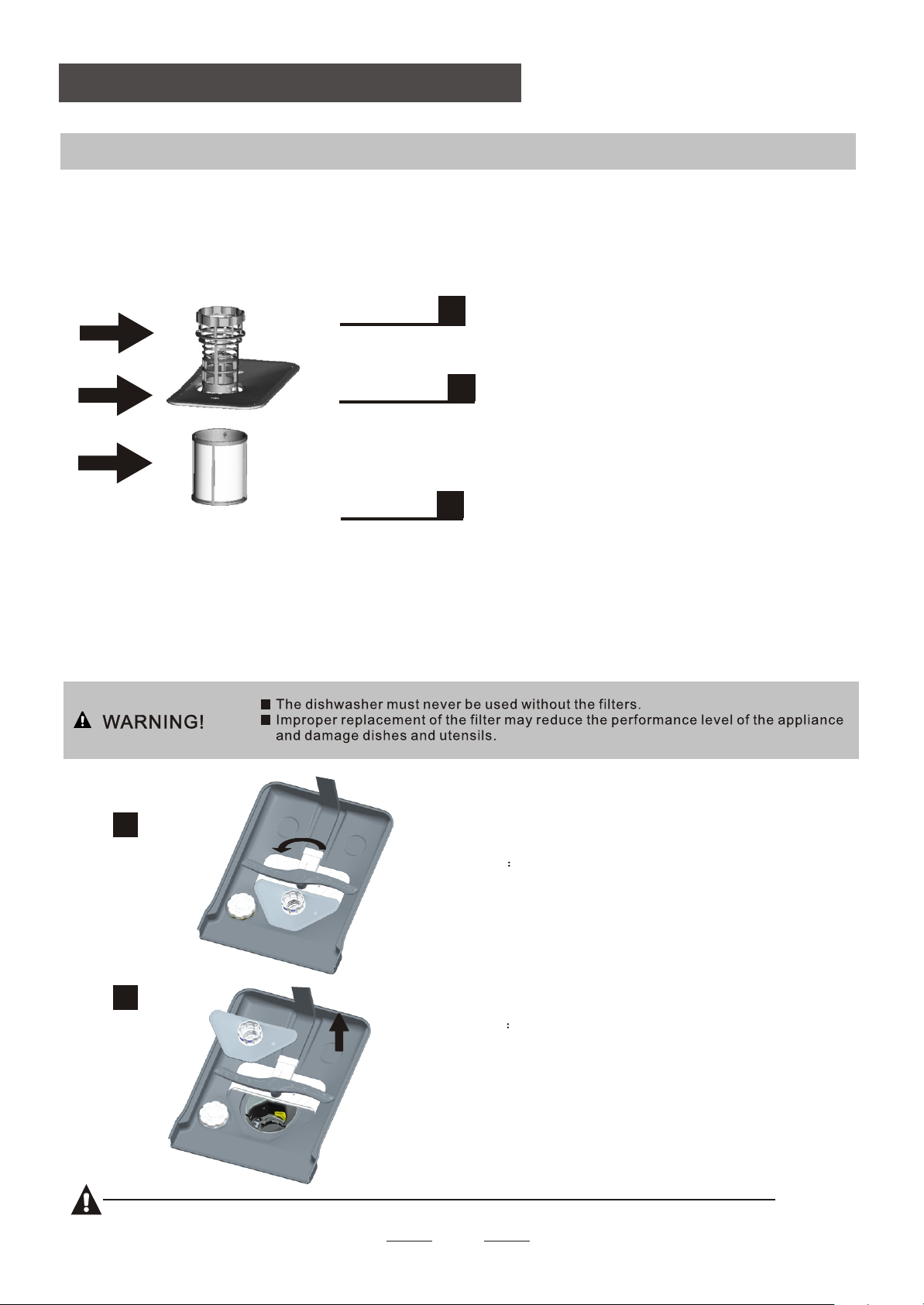

Filtering SystemFiltering System

The filter prevents larger remnants of food or other objects from getting inside the pump. The residues may block the filter, in this case they must be removed.

The filter system consists of a coarse filter,a flat (Main filter) And a microfilter(Fine filter).

Main filter

Food and soil particles trapped in this filter are pulverized by a special jet on the lower spray arm and washed down to drain.

Coarse filter

Larger items, such as pieces of bones or glass, that could block

the drain are trapped in the coarse filter. To remove the items

caught by the filter, gently squeeze the tap on the top of this

filter and lift out.

Fine filter

This filter holds soil and food residues in the sump area and

prevents it from being deposited on the dishes during wash cycle.

Filter assembly

The filter efficiently removes food particles from the wash water, allowing it to be recycled during the cycle. For best performance and results, the filter must be cleaned regularly. For this reason, it is a good idea to remove the larger food particles trapped in the filter after each wash cycle by rinsing the semicircular filter and cup under running water. To remove the filter device, pull the cup handle in the upward direction.

NOTE:NOTE:

OpenOpen

When following this procedure from step1 to step 2, the filter system will be removed; when following it from Step 2 to Step 1, the filter system will be installed.

Step 1 Turn the filter in anti-clockwise direction,

Step 2 lift the filter assy up

1010

Page 14

Remarks:

- Inspect the filters for blocking after every time the dishwasher has been used.

- By unscrewing the coarse filter, you can remove the filter system. Remove any food remnants and clean the filters under running water.

NOTE:NOTE:

The entire filter assembly should be cleaned once a week.

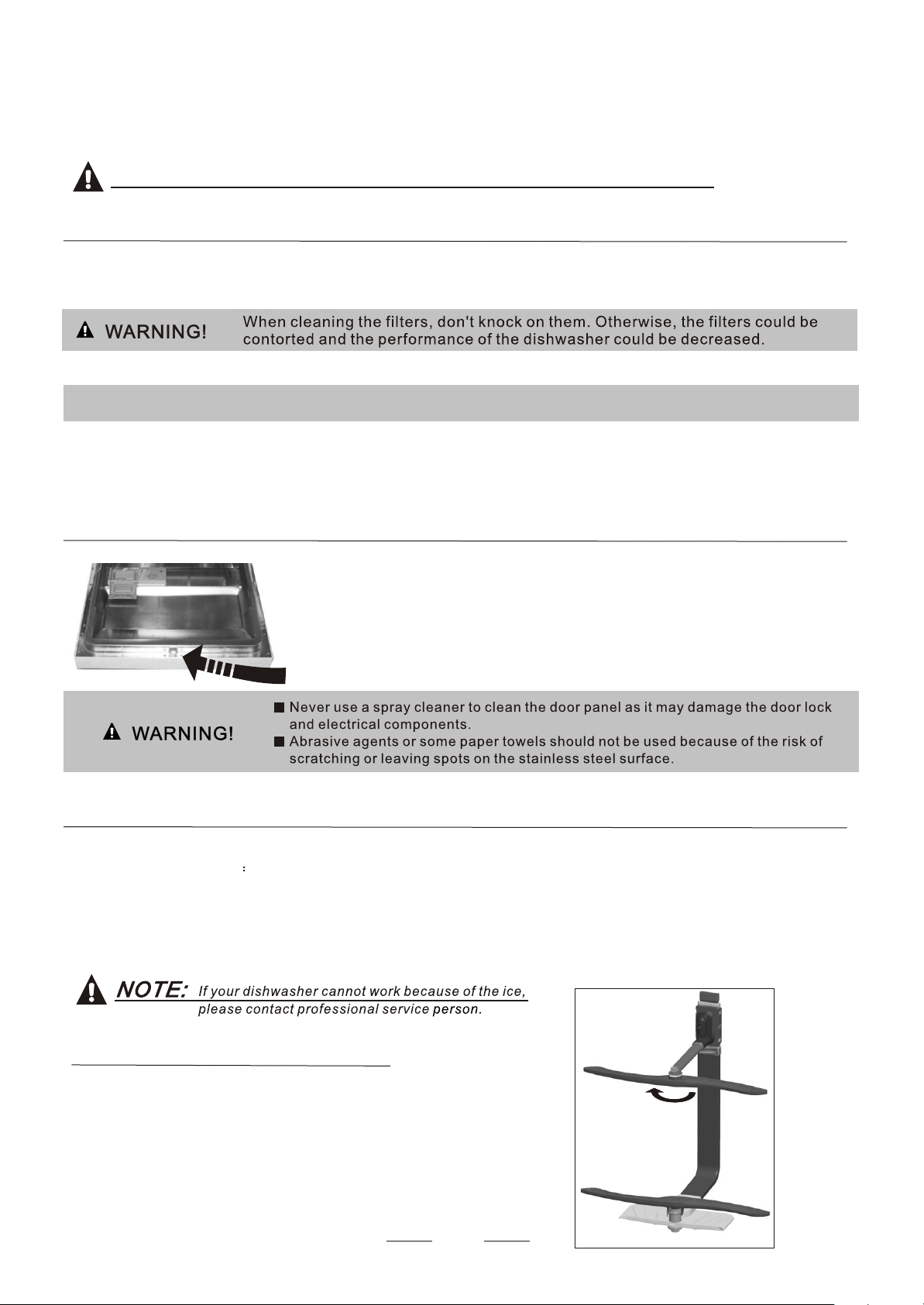

Cleaning the Filter

To clean the coarse filter and the fine filter, use a cleaning brush. Reassemble the filter parts as shown in the figures on the last page and reinsert the entire assembly in the dishwasher, positioning it in its seat and pressing downwards.

Caring for the DishwasherCaring for the Dishwasher

The control panel can be cleaned by using a lightly dampened cloth. After cleaning, make sure to dry it thoroughly.

The exterior can only be cleaned with mild detergent and warm water.

Never use sharp objects, scouring pads or harsh cleaners on any part of the dishwasher.

Cleaning the Door

To clean the edge around the door, you should use only a soft warm, damp cloth. To avoid penetration of water into the door lock and electrical components, do not use a spray cleaner of any kind.

Protect Against Freezing

Please take frost protection measures on the dishwasher in winter. Every time after washing cycles, please operate as follows

1.Cut off the electrical power to the dishwasher.

2.Turn off the water supply and disconnect the water inlet pipe from the water valve.

3.Drain the water from the inlet pipe and water valve. (Use a pan to gather the water)

4.Reconnect the water inlet pipe to the water valve.

5.Remove the filter at the bottom of the tub and use a sponge to soak up water in the sump.

Cleaning the Spray Arms

It is necessary to clean the spray arms regularly for hard water chemicals will clog the spray arm jets and bearings.

To remove the upper spray arm, hold the nut, rotate the arm clockwise to remove it.

To remove the lower spray arm, pull out the spray arm upward.

Wash the arms in soapy and warm water and use a soft brush to clean the jets. Replace them after rinsing them thoroughly.

1111

OpenOpen

Page 15

How to Keep Your Dishwasher in Shape

After Every Wash

After every wash, turn off the water supply to the appliance and leave the door slightly open so that moisture and odours are not trapped inside.

Remove the Plug

Before cleaning or performing maintenance, always remove the plug from the socket.

No Solvents or Abrasive Cleaning

To clean the exterior and rubber parts of the dishwasher, do not use solvents or abrasive cleaning products. Only use a cloth with warm soapy water. To remove spots or stains from the surface of the interior, use a cloth dampened with water an a little vinegar, or a cleaning product made specifically for dishwashers.

7.Installation instruction7.Installation instruction

Packing listPacking list

Open the carton box, you will find the following items:

1. Dishwasher unit with drain hose, power cord and plug: 1 pcs.

2. Upper basket: 1 Pcs

3. Lower Basket: 1 Pcs

4. Cutlery tray: 1 Pcs

5. Cup holder: 2 Pcs

Positioning the AppliancePositioning the Appliance

When not in Use for a LongTime

It is recommend that you run a wash cycle with the dishwasher empty and then remove the plug from the socket, turn off the water supply and leave the door of the appliance slightly open. This will help the door seals to last longer and prevent odours from forming within the appliance.

Moving the Appliance

If the appliance must be moved, try to keep it in the vertical position. If absolutely necessary, it can be positioned on its back.

Seals

One of the factors that cause odours to form in the dishwasher is food that remains trapped in the seals. Periodic cleaning with a damp sponge will prevent this from occurring.

se:

r inlet h

anu al: 1 P

card

1 Pcs

: 2 P

6. Wate

7. User M

8. Atten

9. Warranty card: 1P

tion

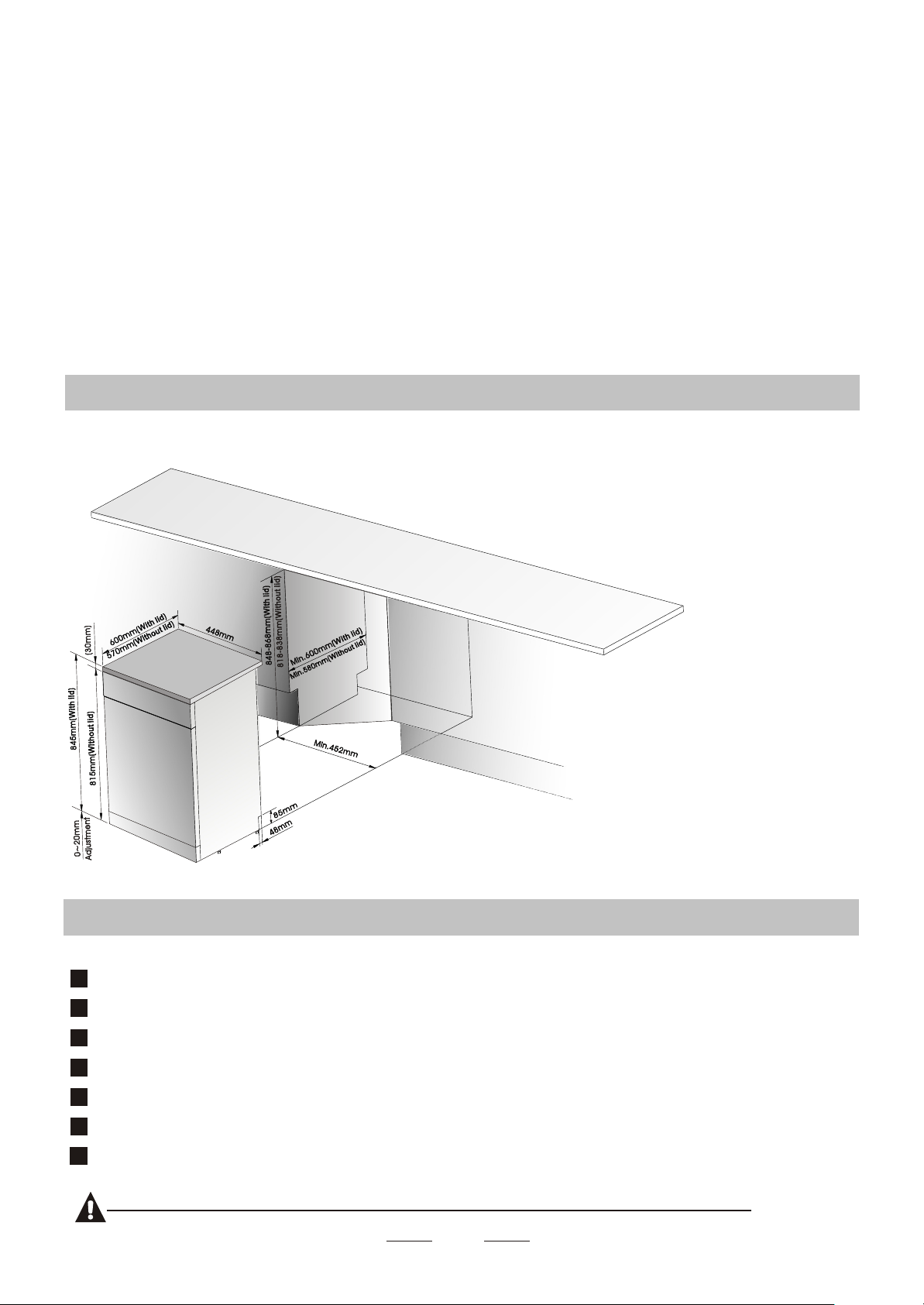

Position the appliance in the desired location. The back should rest against the wall behind it, and the sides, along the adjacent cabinets or walls. The dishwasher is equipped with water supply and drain hoses that can be positioned either to the right or the left sides to facilitate proper installation. You must not install a dishwasher underneath a cooktop unless there is no break in the kitchen benchtop such that no hazards are generated.

Levelling the Appliance

Once the appliance is positioned for levelling, the height of the dishwasher may be altered via adjustment of the screwing level of the feet. In any case, the appliance should not be inclined more than 2 .

Electrical Requirements

Please look at the rating label to know the rating voltage and connect the dishwasher to the appropriate power supply. Use the required fuse 10 amp, time delay fuse or circuit breaker recommended and provide separate circuit serving only this appliance.

Electrical Connection

Insure proper ground

exists before use

Ensure the voltage and frequency of the power being corresponds to those on the rating plate. Only insert the plug into an electrical socket which is earthed properly. If the electrical socket to which the appliance must be connected is not appropriate for the plug , replace the socket, rather than using a adaptors or the like as they could cause overheating and burns.

GROUNDING INSTRUCTIONS

This appliance must be earthed. In the event of a malfunction or breakdown, earthing will reduce the risk of electric shock by providing a path of least resistance for the electric current. This appliance is equipped with a cord having an equipment-earthing conductor and an earthing plug. The plug must be plugged into an appropriate outlet that is installed and earthed in accordance with all local standards and requirements.

1212

Page 16

Water ConnectionWater Connection

Cold Water Connection

Connect the cold water supply hose to a threaded 3/4(inch) connector and make sure that it is fastened tightly in place. If the water pipes are new or have not been used for an extended period of time, let the water run to make sure that the water is clear. This precaution is needed to avoid the risk of the water inlet to be blocked and damage the appliance.

WARNING! WARNING!

Please close the hydrant after using.

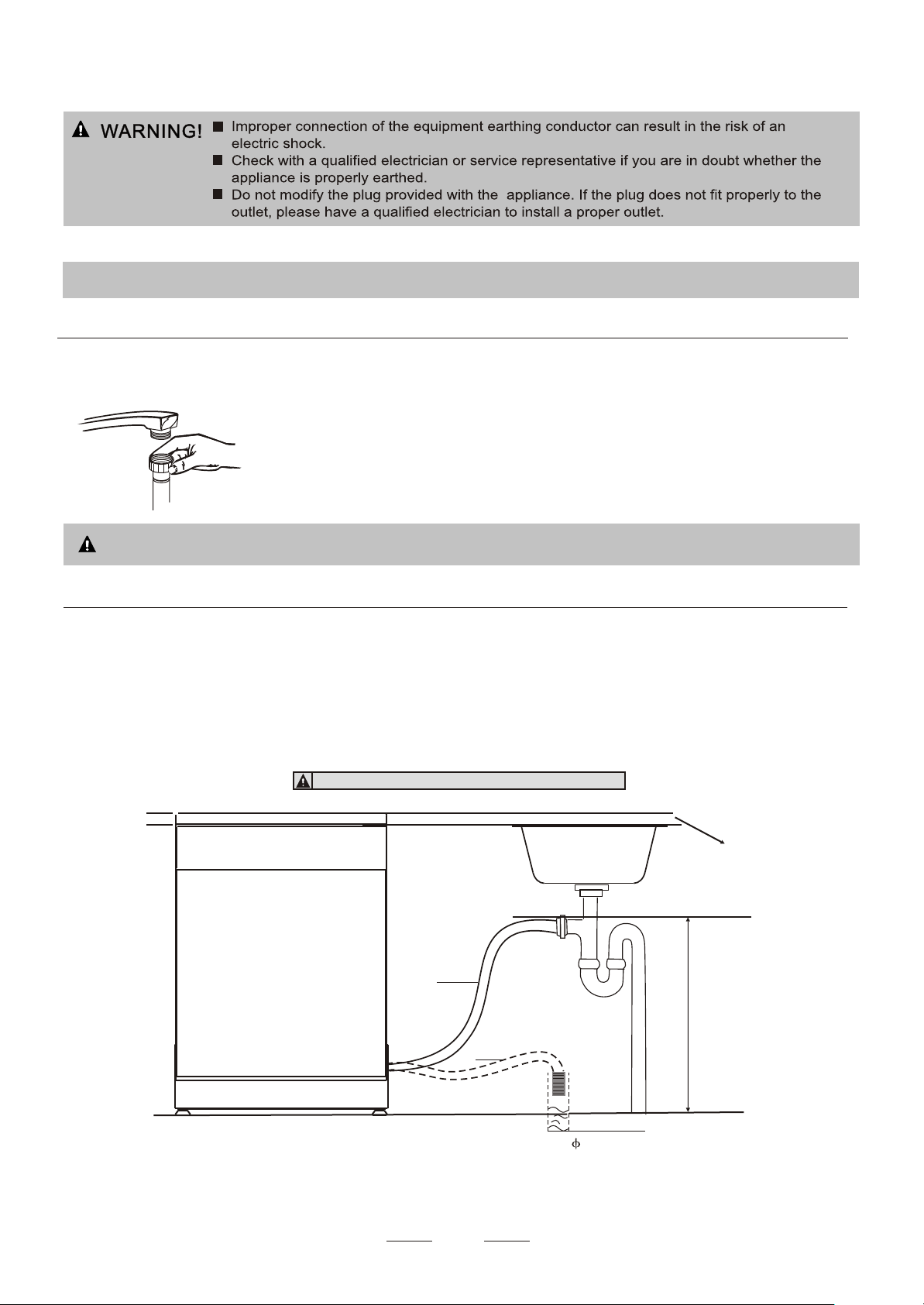

Drain hose Connection

Insert the drain hose into a drain pipe with a minimum diameter of 40mm, or let it run into the sink, making sure to avoid bending or crimping it. The top of the hose must be less than 1000mm.

PLEASE HANG UP THE DRAIN HOSE EITHER WAY OF A, BPLEASE HANG UP THE DRAIN HOSE EITHER WAY OF A, B

Front

NOTE The top of the hose must be less than 1000mm.

Counter

Drain pipe

1313

MAX 1000mm

40mm

Page 17

How to Drain Excess Water From Hoses

If the sink is 1000 higher from the floor, the excess water in hoses cannot be drained directly into the sink. It will be necessary to drain excess water from hoses into a bowl or suitable container that is held outside and lower than the sink.

Water Outlet

Connect the water drain hose. The drain hose must be correctly fitted to avoid water leaks. Ensure that the water drain hose is not kinked or squashed.

Extension Hose

If you need a drain hose extension, make sure to use a similar drain hose. It must be no longer than 4 metres; otherwise the cleaning effect of the dishwasher could be reduced.

Syphon Connection

The waste connection must be at a height less than 1000 mm (maximum) from the bottom of the dish. The water drain hose should be fixed .

Cabinet installation

When installing the dishwasher into cabinetry, be sure to observe the minimum space requirements as shown in the below diagram.

Start of Dishwasher Start of Dishwasher

The following things should be checked before starting the dishwasher.

1 The dishwasher is level and fixed properly 2 The inlet valve is open 3 Fill hose connections are fully tightened and not leaking 4 The wires are tightly connected 5 The power is switched on 6 The inlet and drain hoses are knotted 7 All packing materials and printings should be taken out from the dishwasher

Attention:Attention:

After installation, please make sure to keep this manual. The content of this manual is very helpful to the users.

1414

Page 18

8.Troubleshooting Tips8.Troubleshooting Tips

Before Calling for Service Before Calling for Service

Review the charts on the following pages may save you from calling for service.

Problem Possible Causes What to Do

Dishwasher doesn't

start

Fuse blown, or the circuit breaker acted

Power supply is not turned on

Replace fuse or reset circuit breaker. Remove any other appliances sharing the same circuit with the dishwasher

Make sure the dishwasher is turned on and the door is closed securely.

Make sure the power cord is properly plugged into the wall socket.

Technical problems

General problems

water not pumped

from dishwasher

Suds in the tub

Stained tub interior

White film on

inside surface

Water pressure is low

Door of dishwasher not properly closed.

Kink in drain hose

Filter clogged

Kitchen sink clogged

Improper detergent

Spilled rinse-aid

Detergent with colourant was used

Hard water minerals

Check that the water supply is connected properly and the water is turned on.

Make sure to close the door properly and latch it.

Check drain hose.

Check the coarse filter (see section titled " Cleaning The Filter ")

Check the kitchen sink to make sure it is draining well. If the problem is the kitchen sink not draining ,you may need a plumber rather than a serviceman for dishwashers.

Use only the special dishwasher detergent to avoid suds. If this occurs, open the dishwasher and let suds evaporate. Add 1 gallon of cold water to the tub. Close and latch the dishwasher, then select any cycle. Dishwasher will drain out the water at the first step.Open the door after draining is stop and check if the suds is disappeared. Repeat if necessary.

Always wipe up rinse-aid spills immediately.

Make sure that the detergent is the one without colourant.

To clean the interior, use a damp sponge with dishwasher detergent and wear rubber gloves. Never use any other cleaner than dishwasher detergent for the risk of foaming or suds.

Noise

There are rust

stains on cutlery

Knocking noise

in the wash cabinet

Rattling noise

in the wash cabinet

Knocking noise

in the water pipes

The affected items are not corrosion resistant.

A spray arm is knocking against an item in a basket

Items of crockery are loose in the wash cabinet

This may be caused by on-site installation or the cross-section of the piping.

1515

The items should be corrosion resistant.

Interrupt the programme, and rearrange the items which are obstructing the spray arm.

Interrupt the programme, and rearrange the items of crockery.

This has no influence on the dishwasher function. if in doubt, contact a suitably qualified plumber.

Page 19

Problem Possible Causes What to Do

The dishes

are not clean

The dishes were not loaded correctly.

The programme was not powerful enough.

Not enough detergent was dispensed.

Items are blocking the path of spray arms.

See notes in " Loading the Dishwasher Baskets ".

Select a more intensive programme. See" Wash Cycle Table ".

Use more detergent, or change your detergent.

Rearrange the items so that the spray can rotate freely.

Unsatis

-factory washing result

Unsatis

-factory drying result

Cloudiness

on glassware

Black or gray

marks on dishes

Detergent left in

dispenser cups

The dishes

are not drying

The filter combination in the base of wash cabinet is not clean or is not correctly fitted. This may cause the spray arm jets to get blocked.

Combination of soft water and too much detergent.

Aluminum utensils have rubbed against dishes.

Dishes block detergent cups.

Improper loading

Too little rinse-aid

Dishes are removed too soon

Wrong program has been selected

Use of cutlery with a low-quality coating

Clean and/or fit the filter combination correctly. Clean the spray arm jets. See "Cleaning the Spray Arms".

Use less detergent if you have soft water and select a shortest cycle to wash the glassware and to get them clean.

Use a mild abrasive cleaner to eliminate those marks.

Re-loading the dishes properly.

Load the dishwasher as suggested in the directions.

Increase the amount of rinse-aid/refill the rinse-aid dispenser.

Do not empty your dishwasher immediately after washing. Open the door slightly so that the steam can escape. Begin unloading the dishwasher only

dishes are

first. This prevents water form dropping off dishes in the upper basket.

In short program the washing temperature is lower. This also lowers cleaning performance. Choose a program with a long washing time.

Water drainage is more difficult with these items. Cutlery or dishes of this type are not suitable for washing in the dishwasher.

barely warm to touch. Empty the low basket

once the

Error CodesError Codes

In case of malfunctions,the appliance will display error codes to warn you:

Codes

Meanings

Longer inlet time.

Not reach the setting temperature.

Overflow.

Failure of orientation of distributary valve.

1616

Possible Causes

Faucet is not opened, or water intake is restricted, or water pressure is too low.

Malfunction of heat element

Some element of the dishwasher leaks

Circuit is open or broken distributary valve.

Page 20

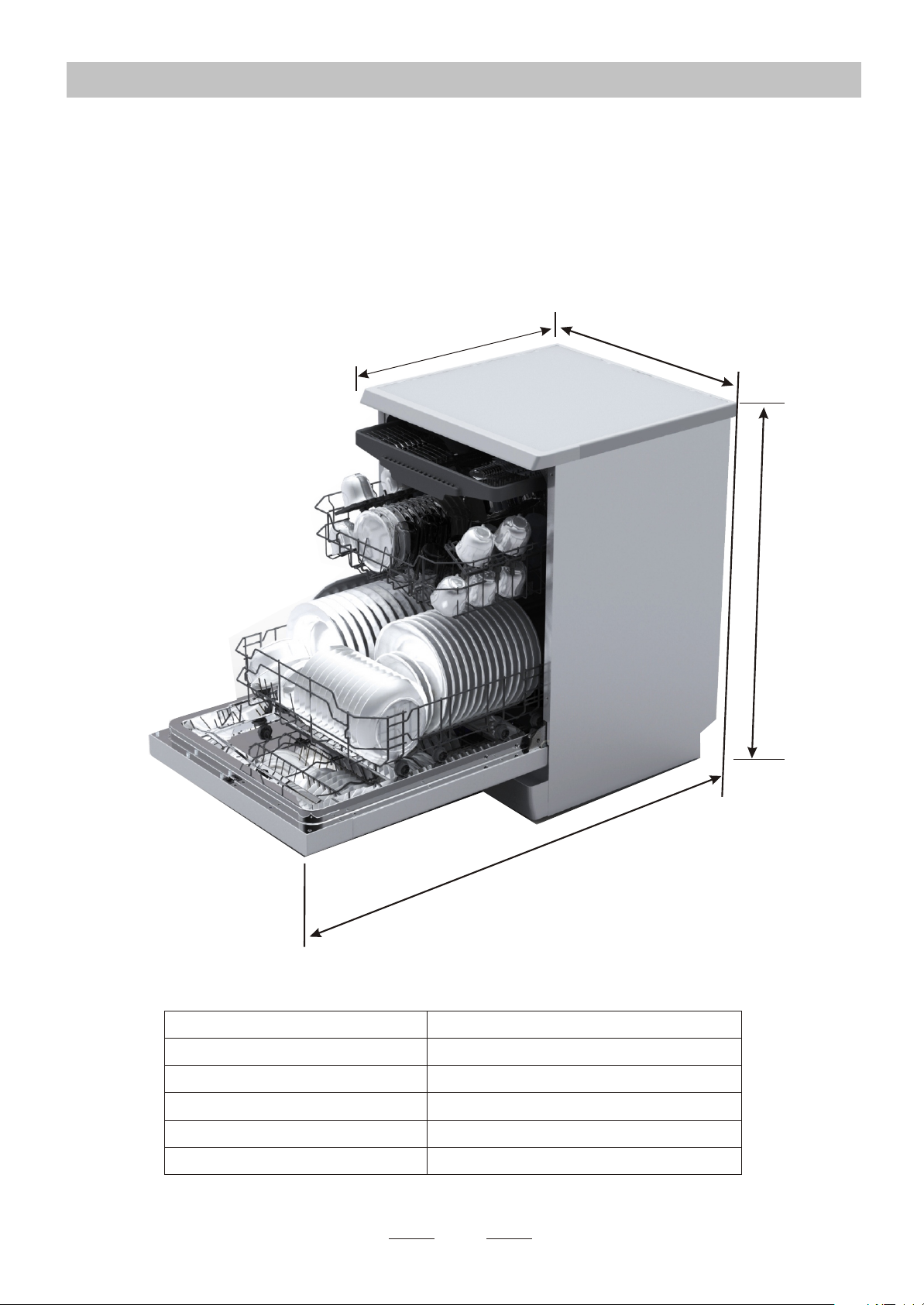

Technical InformationTechnical Information

or close

he d

ith

(

484

Height : 845mm

845845

Width : 448mm Depth : 600mm(with the door closed)

Water pressure: 0.04-1.0MPa Power supply: 1760-2100W Capacity: 10 place settings

1717

Page 21

et:

ask

.Cu

Dessert spoons

Soup spoons

Serving forks

Serving spoons

Forks

Gravy ladles

Teaspoons

Knives

Cups

Saucers

Glasses

Small serving bowl

et:2.Low

et:

Large serving bowl

Medium serving bowl

Dessert dishes

Dinner plates

0 1

Soup plates

Oval platter

Loading the baskets according to En50242: Loading the baskets according to En50242:

1.Upper basket:1.Upper basket:

2.Low

Page 22
