Classic tracker OBD-II, WIRED-Standard, WIRED-IP67 Installation Manual

Classic Tracker Installation Guide

v1.5 [FMA120/FMA204] 180123

1

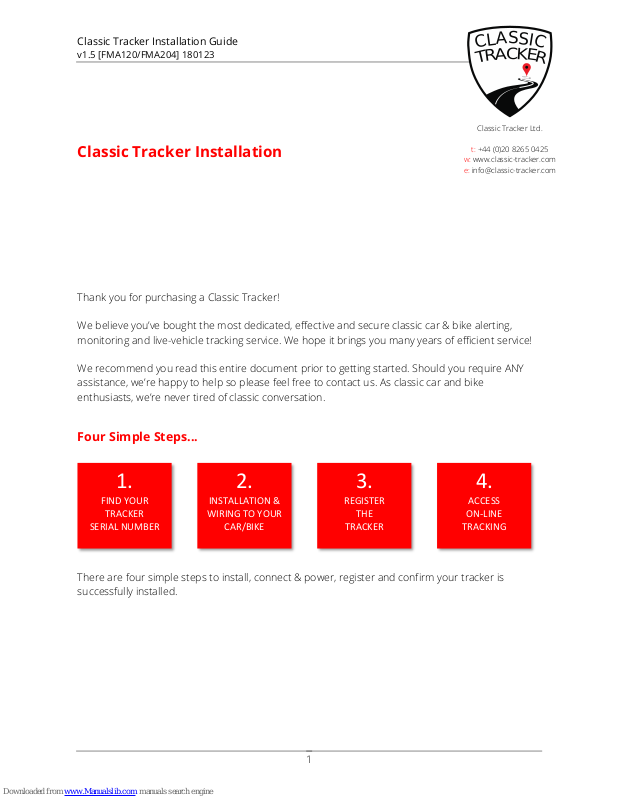

Classic Tracker Installation

Thank you for purchasing a Classic Tracker!

We believe you’ve bought the most dedicated, effective and secure classic car & bike alerting,
monitoring and live-vehicle tracking service. We hope it brings you many years of efficient service!

We recommend you read this entire document prior to getting started. Should you require ANY

assistance, we’re happy to help so please feel free to contact us. As classic car and bike
enthusiasts, we’re never tired of classic conversation.

Four Simple Steps...

There are four simple steps to install, connect & power, register and confirm your tracker is
successfully installed.

1.

FIND YOUR

TRACKER

SERIAL NUMBER

2.

INSTALLATION &

WIRING TO YOUR

CAR/BIKE

3.

REGISTER

THE

TRACKER

4.

ACCESS

ON-LINE

TRACKING

Classic Tracker Ltd.

t: [phone]
w: www.classic-tracker.com
e: [e-mail]

C

L

A

S

S

I

C

T

R

A

C

K

E

R

Classic Tracker Installation Guide

v1.5 [FMA120/FMA204] 180123

2

FIND YOUR TRACKER SERIAL NUMBER

Please make a note of the serial number, which is found on a label on top of the tracker. You will
need this later when registering your tracker on our website.

Tracker Serial Number:

INSTALLATION & WIRING TO YOUR CAR/BIKE

TRACKER-UNIT INSTALLATION:

Please consider ‘test-mounting’ the powered tracker prior to final fitment where you can see the
two LEDs (light-emitting diodes) on the device. Ensure the vehicle is outside with an unobstructed
view of the sky and that the vehicle ignition is on. Both GPS and GSM can take about 90 seconds to
acquire a signal.

There are three types of tracker available: OBD-II, WIRED-Standard and WIRED-IP67 (waterproof).
The first plugs in to the OBD-II port in your car (if you have an OBD-II port) and the other variants
use a wiring assembly.

The Classic Tracker has internal GPS and GSM antennae. The device should be mounted with the
sticker facing open sky.

OBD-II Tracker

The OBD-II type tracker requires no additional wiring unless there isn’t enough room to plug the
tracker in to the port in your car. If that’s the case an extension cable can be supplied. Please
contact us for details.

Wiring Assembly Tracker:

This type of Classic Tracker is supplied either as a two-part assembly (tracker & wiring loom) or
(single combined tracker/loom). The assembly is designed to be able to fit into your vehicle without
making significant changes to the vehicle-wiring loom. The WIRED-Standard has a plug that plugs
into the tracker unit itself. It is designed this way in case you wish to remove the tracker without
disturbing the supplied wiring loom following installation. The tracker unit should be installed
securely, ideally in a covert location with the ‘a view to the sky’.

1.

2.
