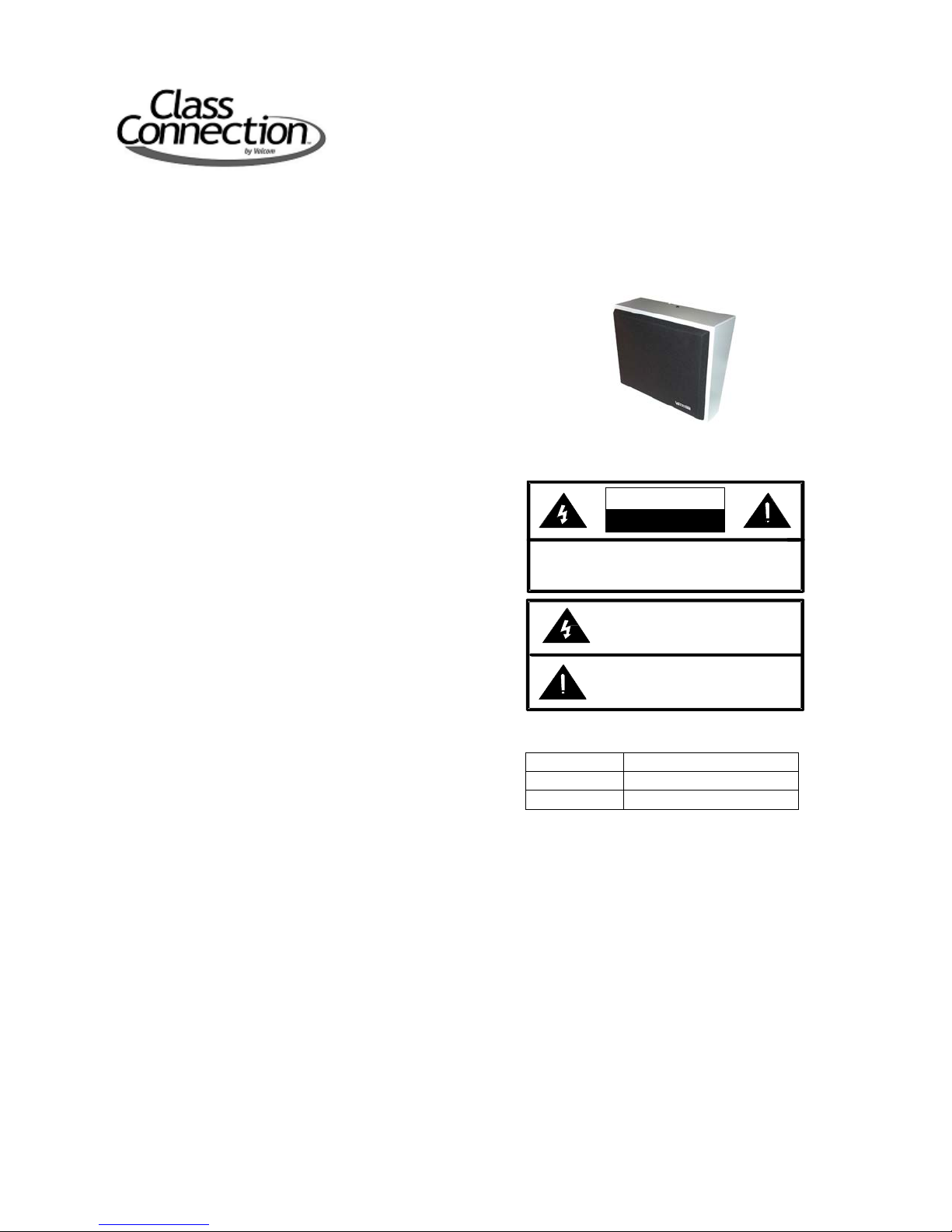

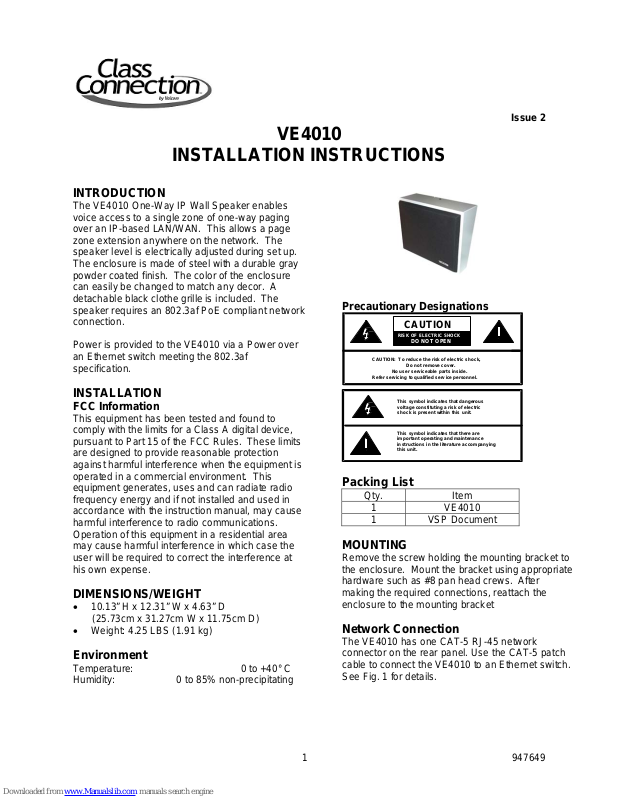

Page 1
Issue 2
VE4010
INSTALLATION INSTRUCTIONS
INTRODUCTION
The VE4010 One-Way IP Wall Speaker enables
voice access to a single zone of one-way paging
over an IP-based LAN/WAN. This allows a page
zone extension anywhere on the network. The
speaker level is electrically adjusted during set up.
The enclosure is made of steel with a durable gray
powder coated finish. The color of the enclosure
can easily be changed to match any decor. A
detachable black clothe grille is included. The
speaker requires an 802.3af PoE compliant network
connection.
Power is provided to the VE4010 via a Power over
an Ethernet switch meeting the 802.3af
specification.
INSTALLATION
FCC Information
This equipment has been tested and found to
comply with the limits for a Class A digital device,
pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection
against harmful interference when the equipment is
operated in a commercial environment. This
equipment generates, uses and can radiate radio
frequency energy and if not installed and used in
accordance with the instruction manual, may cause
harmful interference to radio communications.
Operation of this equipment in a residential area
may cause harmful interference in which case the
user will be required to correct the interference at
his own expense.
DIMENSIONS/WEIGHT
10.13” H x 12.31” W x 4.63” D
(25.73cm x 31.27cm W x 11.75cm D)
Weight: 4.25 LBS (1.91 kg)
Environment
Temperature: 0 to +40° C
Humidity: 0 to 85% non-precipitating
Precautionary Designations
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: To reduce the risk of electric shock,
Refer se rvic ing to qu alifie d serv ice pers onn e l.
Do not remove cover.
No user serviceable parts inside.
This symbol indicates that dangerous
voltage constituting a risk of electric
sho ck is pre s ent within this un it.
This symb o l indica tes that there are
imp o rtant op er ating a nd m a inte nance
instruction s in the lit erature accompanyin g
this unit.
Packing List
Qty. Item
1 VE4010
1 VSP Document
MOUNTING
Remove the screw holding the mounting bracket to
the enclosure. Mount the bracket using appropriate
hardware such as #8 pan head crews. After
making the required connections, reattach the
enclosure to the mounting bracket
Network Connection
The VE4010 has one CAT-5 RJ-45 network
connector on the rear panel. Use the CAT-5 patch
cable to connect the VE4010 to an Ethernet switch.
See Fig. 1 for details.
1 947649
Page 2
(
TECHNICAL ASSISTANCE
When trouble is reported, verify power is being
supplied to the unit and there are no broken
connections. If a spare unit is available, substitute
a spare unit for the suspected defective unit.
Assistance in troubleshooting is available from the
factory. Call (540) 563-2000 and ask for Class
Connection Technical Support.
Valcom equipment is not field repairable. Valcom,
Inc. maintains service facilities in Roanoke, VA.
Should repairs be necessary, attach a tag to the
unit clearly stating your company name, address,
phone number, contact person and the nature of

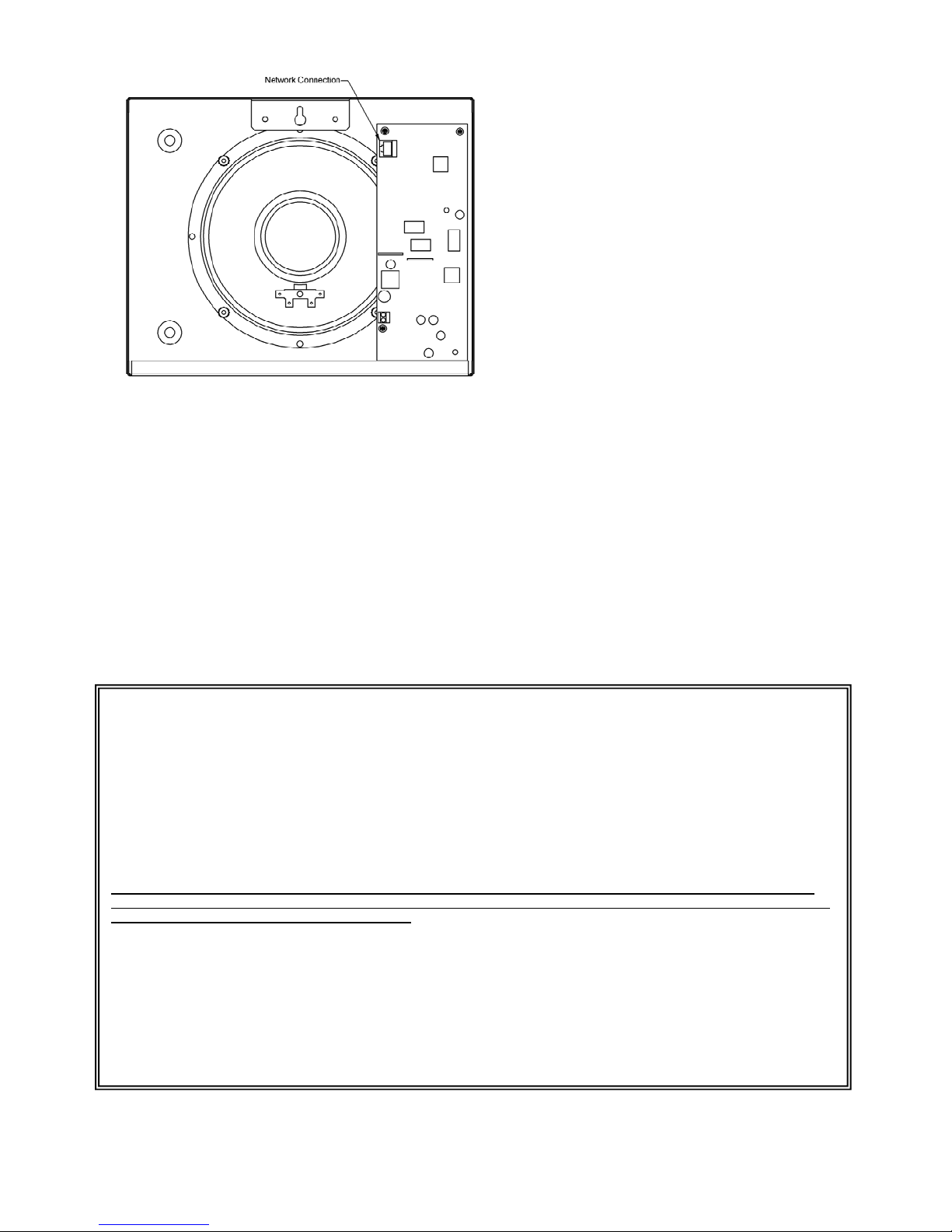

Figure 1. VE4010 Connections
Setup
Information specific to your application will need
the problem. Send the unit to:
Valcom, Inc.
Repair & Return Dept.
5614 Hollins Road
Roanoke, Va. 24019-5056
to be programmed into the VE4010 using a
computer. The PC used for programming should
be connected to the same subnet as the
VE4010. Setup will be done using the IP Solutions
Setup Tool. The IP Solutions Setup Tool may be
downloaded from the Valcom website at
www.valcom.com.
VALCOM LIMITED WARRANTY
Valcom, Inc. warrants its products to be free from defects in materials and workmanship under conditions of normal use and service
for a period of one year from the date of shipment. The obligation under this warranty shall be limited to the replacement, repair or
refund of any such defective device within the warranty period, provided that:
1. inspection by Valcom, Inc. indicates the validity of the claim;
2. the defect is not the result of damage, misuse or negligence after the original shipment;
3 the product has not been altered in any way or repaired by others and that factory sealed units are unopened (a service
charge plus parts and labor will be applied to units defaced or physically damaged);
4. freight charges for the return of products to Valcom are prepaid;
5 all units ‘out of warranty’ are subject to a service charge. The service charge will cover minor repairs (major repairs will
be subject to addition charges for parts and labor).
This warranty is in lieu of and excludes all other warranties, expressed or implied, and in no event shall Valcom, Inc. be
liable for any anticipated profits, consequential damages, loss of time or other losses incurred by the bu yer in connection
with the purchase, operation or use of the product.
This warranty specifically excludes damage incurred in shipment. In the event a product is received in damaged condition, the
carrier should be notified immediately. Claims for such damage should be filed with the carrier involved in accordance with the
F.O.B. point.
5614 Hollins Road
Roanoke,Va 24019-5056
Phone: (540) 563-2000
Fax:
.
Headquarters
Valcom, Inc.
540) 362-9800
2 947649
