Video Baby Monitor

Art. no 36-4120 Model JY339

Please read the entire instruction manual before using the product and save it
for future reference. We reserve the right for any errors in text or images and
any necessary changes made to technical data. If you have any questions
regarding technical problems please contact Customer Services.

Contents

Safety
Product description
Use
Care and maintenance
Troubleshooting guide
Disposal
Specifications

Safety

• Do not place the product where it could fall into water or other type of liquid.

• Do not open the casing. Repairs should only be carried out by a qualified tradesman.

• Do not overload wall sockets or extension cables since it may cause fire or

electric shocks.

• Only use the product with suitable batteries or with a recommended
AC/DC adaptor.

• The camera should only be used and stored in dust- and moisture-free
environments.

• Do not store the device in cold places. When the temperature returns to normal,
moisture can build up inside the casing and can damage the circuit boards.

• Do not store the device in hot places. High temperatures may shorten the
useful life of electronic products and melt or damage some plastics.

• Do not subject the device to heavy impacts.

• Remember that you are using common radio waves when the device is in full

use and that sound and picture can be transmitted to other 2.4 GHz receivers.
Conversations in nearby rooms might also be transmitted. To protect your personal
integrity you should always switch the camera off when it is not being used.

• This product must not be used by anyone (including children) suffering from
physical or mental impairment. This product should not be used by anyone that
has not read the instruction manual unless they have been instructed in its use by
someone who will take responsibility for their safety.

• Never let children play with the product.

English

3

Product description

+ +

+ +

−

−

VOL

This package contains

English

• Camera

• Monitor

• Two AC/DC adaptors

• Desk stand

• Instruction manual

1

+ +

−

2

3

Monitor

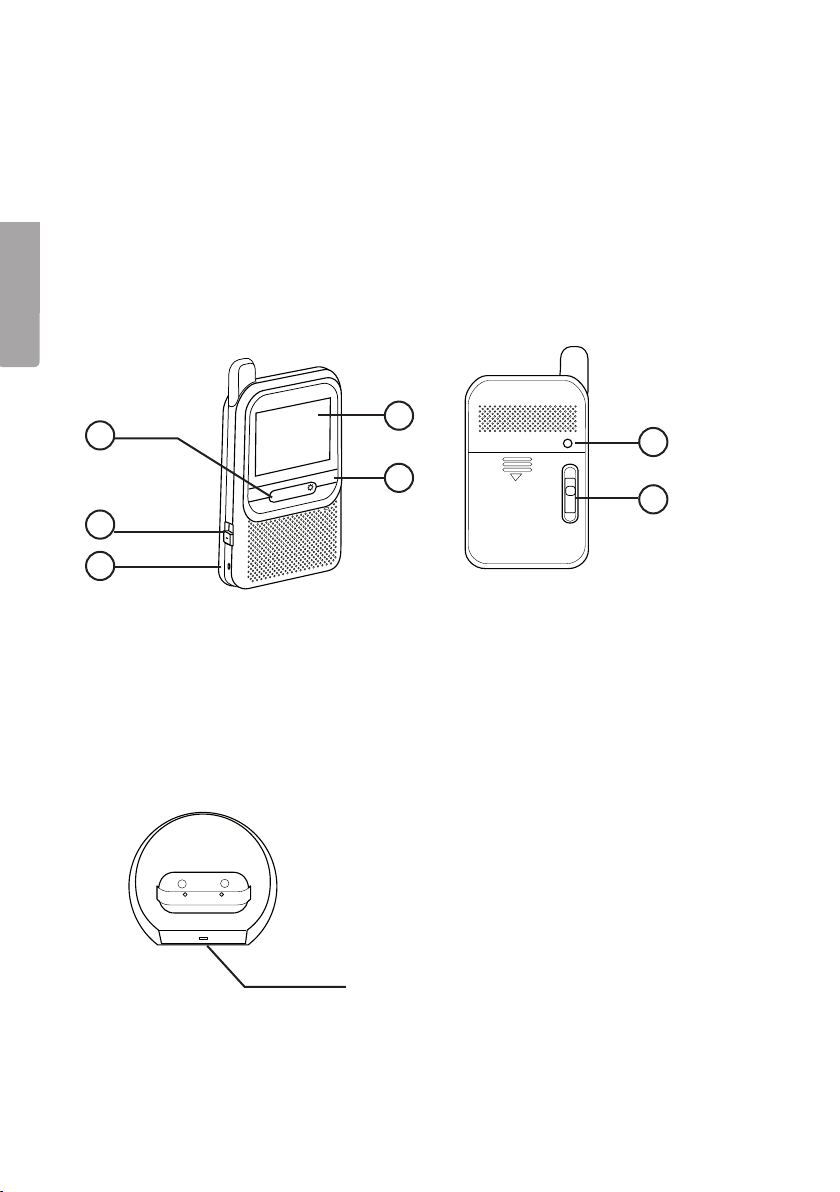

1. VOL (volume control)

2. Power switch

3. Adaptor connection

4. Display

−

VOL

4

6

5

7

5. Light control

6. RESET

7. Channel selector

Charging LED

4

Camera

+ +

−

−

VOL

+ +

−

−

VOL

+ +

−

−

VOL

+ +

−

−

VOL

OFF AUTO ON

NIGHT LIGHT

POWER

ON OFF

CAMERA AUTO

+ +

−

−

VOL

+ +

−

−

VOL

+ +

−

−

VOL

8 9

12

13

English

11

10

OFF AUTO ON

NIGHT LIGHT

14

POWER

ON OFF

CAMERA AUTO

15

16

17

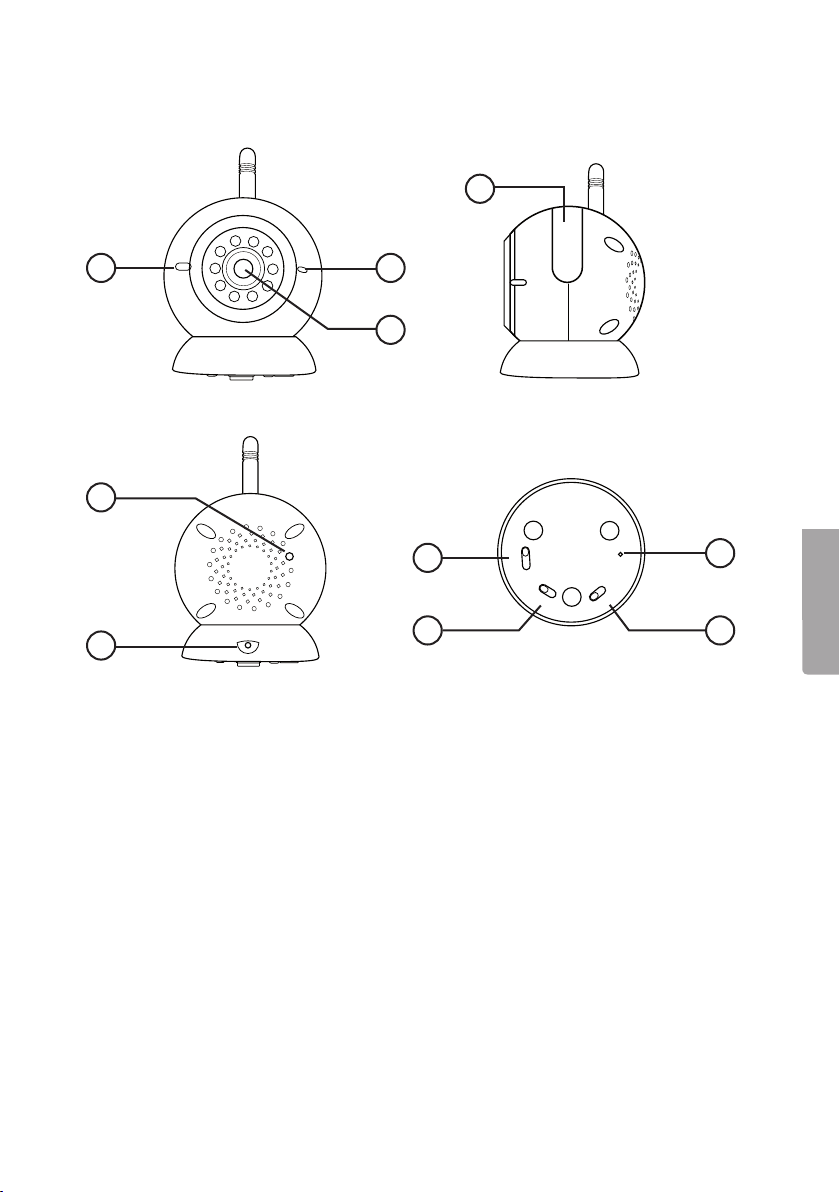

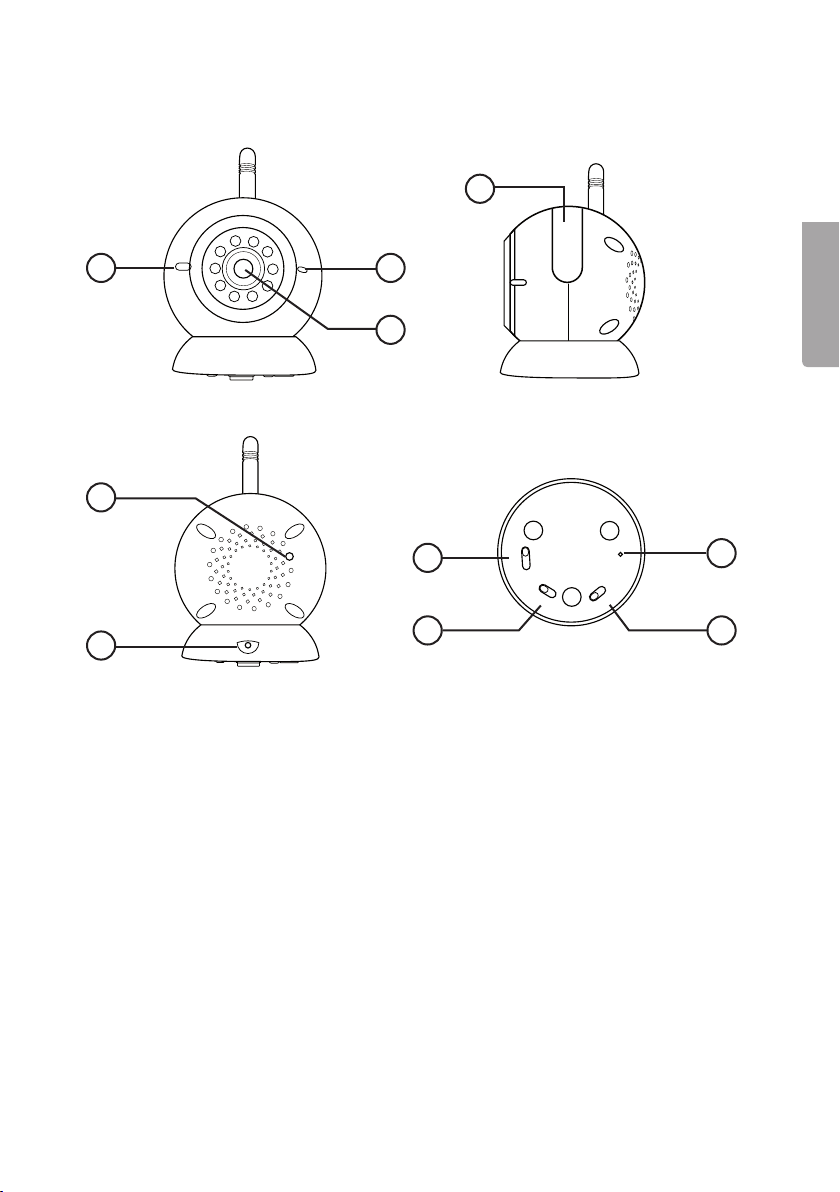

8. Microphone

9. Power Indicator light

10. Camera lens

11. Night light

12. Night-vision light sensor

13. Adaptor connection

14. NIGHT LIGHT switch

15. POWER (on/off switch)

16. Pairing button

17. CAMERA AUTO switch (camera, voice activation)

5

Use

Power supply

English

• The monitor stand/charger and the camera are each powered by their own mains

adaptor. Only use the supplied mains AC/DC adaptors.

• The monitor itself is powered by a rechargeable lithium ion battery, 3.7 V,

1200 mAh. Recharge the battery by placing the monitor into the desk stand.

The camera

Turn the camera on by setting the switch (15) to the ON position.

Voice activated camera

1. Activate the voice activation feature by setting the CAMERA AUTO switch (17)

to AUTO.

2. When the level of noise in the vicinity of the camera exceeds the preset level, the

camera will be activated. This will enable you to both see and hear your child.

3. When the noise level falls below the preset level, the camera ceases to transmit.

The monitor switches off.

4. The voice activation can be turned off by setting the CAMERA AUTO switch to

the CAMERA position. The audio and visual signals will then be sent to the monitor
all the time.

Night light

The baby unit also emits calming multicoloured light effects to comfort children when they
make noises (noise activated). Set the NIGHT LIGHT switch (14) to the AUTO position to
activate this feature. The night light can be switched off completely by setting the switch
to the OFF position or it can be left on all the time by sliding the switch to ON.

Night vision

The camera is equipped with 6 high intensity LEDs for viewing sharp images in dark
places. When the built-in photo sensor senses that the light is not sufficient, the LEDs
are automatically activated. Night vision images are in black and white only.

The monitor

1. Turn the monitor on by setting the switch (2) to the ON position.

2. Select the channel using the channel selector (7). The included camera has been

paired (at the factory) to the monitor on channel 1. Up to four cameras can be
paired to the monitor at the same time. Refer to the Pairing section, below, if you
wish to use more than on camera.

3. Set the desired volume level using the control (1).

4. Set the monitor light level using the light control switch (5).

5. If it is necessary to reset the monitor to the factory default settings, press the

RESET button (6).

6

Pairing (Synchronising)

This camera and monitor are already paired at the factory, so normally you will not
need to pair or synchronise the two units before using them. If, however, you need to
resynchronise the camera and monitor, or if you wish to use more than one camera;
follow these instructions:

1. Hold in the (+) button for the monitor light at the same time as you turn the monitor

on by switching the power switch (2) to ON. The display shows:

PAIR ID

1. Pair ID for Cam 1...

2. Use a pointed object to push the pairing button through the hole (16).

3. The LED light on the camera will start to flash.

4. When the pairing has been successful, the display shows:

PAIR ID

1. Pair ID for Cam 1...

Cam 1 OK!

English

5. If you wish to add another camera, change the channel using the selector (7)

and go through the above steps again.

6. The monitor needs to be restarted for the new settings to apply.

7

Care and maintenance

• Finger prints and dirt on the camera lens can decrease the camera’s performance
drastically. Do not touch the camera lens with your fingers.

English

• Should the lens get dirty, use a soft cloth to clean it.

Troubleshooting guide

If you get no signal at all:

• Check that both camera and monitor are turned on.

• Make sure that none of the connections are loose.

• Make sure that the monitor is set to the correct channel.

If the signal is poor or if there is interference.

• Make sure that the monitor is set to the correct channel.

• If there is a microwave oven between the camera and the monitor, shut it off

or move it.

• Make sure that the units are within range of each other.

Disposal

Follow local ordinances when disposing of this product. If you are unsure of how
to dispose of this product, please contact your municipality.

Specifications

AC/DC Adaptor

In 230 V AC, 50 Hz, 200 mA
Out 6 V, 800 mA

Battery 3.7 V, 1200 mAh, lithium ion
Frequency 2.4 GHz
Channels 4 channels
Modulation FM

8
