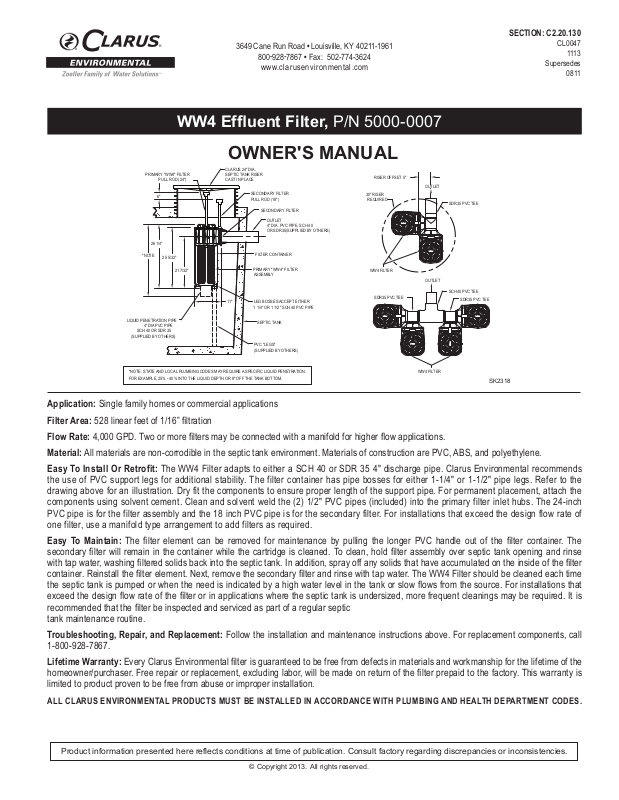

Clarus Environmental WW4 Effluent Filter User Manual
SECTION: C2.20.130
®
®
3649 Cane Run Road • Louisville, KY 40211-1961
800-928-7867 • Fax: 502-774-3624
www.clarusenvironmental.com
CL0047
1113
Supersedes
0811
WW4 Efuent Filter, P/N 5000-0007
OWNER'S MANUAL
PRIMARY "WW4" FILTER
PULL ROD (24")
6"
26 1/4"
*NOTE
25 5/32"
LIQUID PENETRATION PIPE
4" DIA PVC PIPE
SCH 40 OR SDR 35
(SUPPLIED BY OTHERS)
21 7/32"
CLARUS 24" DIA.
SEPTIC TANK RISER
CAST IN PLACE
SECONDARY FILTER
PULL ROD (18")
FILTER CONTAINER
PRIMARY "WW4" FILTER
ASSEMBLY
11"
LEG BOSSES ACCEPT EITHER
1 1/4" OR 1 1/2" SCH 40 PVC PIPE
SEPTIC TANK
PVC "LEGS"
(SUPPLIED BY OTHERS)
SECONDARY FILTER
OUTLET
4" DIA. PVC PIPE, SCH 40
OR SDR35(SUPPLIED BY OTHERS)
RISER OFFSET 5"
30" RISER
REQUIRED
WW4 FILTER
SDR35 PVC TEE
OUTLET
OUTLET
SDR35 PVC TEE
SCH40 PVC TEE
SDR35 PVC TEE
*NOTE: STATE AND LOCAL PLUMBING CODES MAY REQUIRE A SPECIFIC LIQUID PENETRATION.
FOR EXAMPLE, 25% - 40% INTO THE LIQUID DEPTH OR 9" OFF THE TANK BOTTOM.
WW4 FILTER
SK2318
Application: Single family homes or commercial applications
Filter Area: 528 linear feet of 1/16” ltration
Flow Rate: 4,000 GPD. Two or more lters may be connected with a manifold for higher ow applications.
Material: All materials are non-corrodible in the septic tank environment. Materials of construction are PVC, ABS, and polyethylene.
Easy To Install Or Retrofit: The WW4 Filter adapts to either a SCH 40 or SDR 35 4" discharge pipe. Clarus Environmental recommends
the use of PVC support legs for additional stability. The filter container has pipe bosses for either 1-1/4" or 1-1/2" pipe legs. Refer to the
drawing above for an illustration. Dry fit the components to ensure proper length of the support pipe. For permanent placement, attach the
components using solvent cement. Clean and solvent weld the (2) 1/2" PVC pipes (included) into the primary filter inlet hubs. The 24-inch
PVC pipe is for the filter assembly and the 18 inch PVC pipe is for the secondary filter. For installations that exceed the design flow rate of
one filter, use a manifold type arrangement to add filters as required.
Easy To Maintain: The lter element can be removed for maintenance by pulling the longer PVC handle out of the lter container. The
secondary lter will remain in the container while the cartridge is cleaned. To clean, hold lter assembly over septic tank opening and rinse
with tap water, washing ltered solids back into the septic tank. In addition, spray off any solids that have accumulated on the inside of the lter
container. Reinstall the lter element. Next, remove the secondary lter and rinse with tap water. The WW4 Filter should be cleaned each time
the septic tank is pumped or when the need is indicated by a high water level in the tank or slow ows from the source. For installations that
exceed the design ow rate of the lter or in applications where the septic tank is undersized, more frequent cleanings may be required. It is
recommended that the lter be inspected and serviced as part of a regular septic
tank maintenance routine.
Troubleshooting, Repair, and Replacement: Follow the installation and maintenance instructions above. For replacement components, call
1-800-928-7867.
Lifetime Warranty: Every Clarus Environmental lter is guaranteed to be free from defects in materials and workmanship for the lifetime of the
homeowner/purchaser. Free repair or replacement, excluding labor, will be made on return of the lter prepaid to the factory. This warranty is
limited to product proven to be free from abuse or improper installation.
ALL CLARUS ENVIRONMENTAL PRODUCTS MUST BE INSTALLED IN ACCORDANCE WITH PLUMBING AND HEALTH DEPARTMENT CODES.
Product information presented here reflects conditions at time of publication. Consult factory regarding discrepancies or inconsistencies.
© Copyright 2013. All rights reserved.
