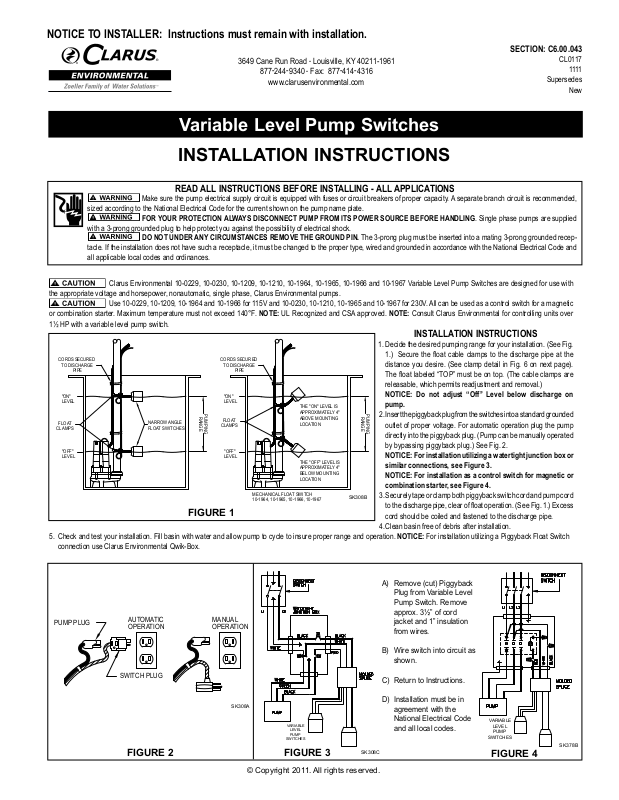

NOTICE TO INSTALLER: Instructions must remain with installation.
®
®
3649 Cane Run Road . Louisville, KY 40211-1961
877-244-9340 . Fax: 877-414-4316
www.clarusenvironmental.com
Variable Level Pump Switches
INSTALLATION INSTRUCTIONS
SECTION: C6.00.043
CL0117
1111
Supersedes
New
sized according to the National Electrical Code for the current shown on the pump name plate.
with a 3-prong grounded plug to help protect you against the possibility of electrical shock.
tacle. If the installation does not have such a receptacle, it must be changed to the proper type, wired and grounded in accordance with the National Electrical Code and
all applicable local codes and ordinances.
Clarus Environmental 10-0229, 10-0230, 10-1209, 10-1210, 10-1964, 10-1965, 10-1966 and 10-1967 Variable Level Pump Switches are designed for use with
the appropriate voltage and horsepower, nonautomatic, single phase, Clarus Environmental pumps.
Use 10-0229, 10-1209, 10-1964 and 10-1966 for 115V and 10-0230, 10-1210, 10-1965 and 10-1967 for 230V. All can be used as a control switch for a magnetic
or combination starter. Maximum temperature must not exceed 140°F. NOTE: UL Recognized and CSA approved. NOTE: Consult Clarus Environmental for controlling units over
1½ HP with a variable level pump switch.
Make sure the pump electrical supply circuit is equipped with fuses or circuit breakers of proper capacity. A separate branch circuit is recommended,
FOR YOUR PROTECTION ALWAYS DISCONNECT PUMP FROM ITS POWER SOURCE BEFORE HANDLING. Single phase pumps are supplied
DO NOT UNDER ANY CIRCUMSTANCES REMOVE THE GROUND PIN. The 3-prong plug must be inserted into a mating 3-prong grounded recep-
INSTALLATION INSTRUCTIONS
1. Decide the desired pumping range for your installation. (See Fig.
READ ALL INSTRUCTIONS BEFORE INSTALLING - ALL APPLICATIONS
1.) Secure the oat cable clamps to the discharge pipe at the
distance you desire. (See clamp detail in Fig. 6 on next page).
The oat labeled “TOP” must be on top. (The cable clamps are
releasable, which permits readjustment and removal.)
NOTICE: Do not adjust “Off’’ Level below discharge on
pump.
PUMPING
RANGE
2. Insert the piggyback plug from the switches into a standard grounded
outlet of proper voltage. For automatic operation plug the pump
directly into the piggyback plug. (Pump can be manually operated
by bypassing piggyback plug.) See Fig. 2.
NOTICE: For installation utilizing a watertight junction box or
similar connections, see Figure 3.
NOTICE: For installation as a control switch for magnetic or
combination starter, see Figure 4.
3. Securely tape or clamp both piggyback switch cord and pump cord
to the discharge pipe, clear of oat operation. (See Fig. 1.) Excess
cord should be coiled and fastened to the discharge pipe.
4. Clean basin free of debris after installation.
PUMPING
RANGE
CORDS SECURED
TO DISCHARGE
PIPE
"ON"
LEVEL
FLOAT
CLAMPS
"OFF"
LEVEL
MECHANICAL FLOAT SWITCH
10-1964, 10-1965, 10-1966, 10-1967
THE "ON" LEVEL IS
APPROXIMATELY 4"
ABOVE MOUNTING
LOCATION
THE "OFF" LEVEL IS
APPROXIMATELY 4"
BELOW MOUNTING
LOCATION
SK308B
CORDS SECURED
TO DISCHARGE
PIPE
"ON"
LEVEL
FLOAT
CLAMPS
"OFF"
LEVEL
NARROW ANGLE
FLOAT SWITCHES
FIGURE 1
5. Check and test your installation. Fill basin with water and allow pump to cycle to insure proper range and operation. NOTICE: For installation utilizing a Piggyback Float Switch
connection use Clarus Environmental Qwik-Box.
PUMP PLUG
AUTOMATIC
OPERATION
MANUAL
OPERATION
SWITCH PLUG
SK308A
VARIABLE
LEVEL
PUMP
SWITCHES
FIGURE 2 FIGURE 3
© Copyright 2011. All rights reserved.
A) Remove (cut) Piggyback
Plug from Variable Level
Pump Switch. Remove
approx. 3½” of cord
jacket and 1” insulation
from wires.
B) Wire switch into circuit as
shown.
C) Return to Instructions.
D) Installation must be in
agreement with the
National Electrical Code
and all local codes.
SK308C
VARIABLE
LEVEL
PUMP
SWITCHES
FIGURE 4
SK378B
CLARUS ENVIRONMENTAL VARIABLE LEVEL PUMP SWITCH
REFER TO OTHER SIDE FOR INSTRUCTIONS FOR ALL APPLICATIONS.
10-0055 - 115V/Max. ½ HP 13A 10’ cord*
10-0032 - 115V/Max. 1 HP 15A 15’ cord*
10-0033 - 230V/Max. 2 HP 15A 15’ cord*
10-0034 - 115V/Max. ½ HP 13A 15’ cord*
10-0035 - 230V/Max. 1 HP 13A 15’ cord*
*for EFFLUENT, SEWAGE and DEWATERING (120°F Maximum Liquid Temperature)
Clarus Environmental Variable Level Pump Switches are designed for use with the appropriate voltage and horsepower, nonautomatic, single phase, Clarus
Environmental pumps. Maximum liquid temperature must not exceed 120°F for 10-0748.
Clarus Environmental Variable Level Pump Switches can be used as a control switch for a magnetic or combination starter. Maximum temperature must not exceed
140° F. See gure 9.
Single Variable Level Pump Switches are recommended for use in 18” minimum diameter pits or basins.
NOTE: Consult Clarus Environmental for controlling units over 1½ HP with a variable level pump switch.
10-0063 - 115V/Max. ½ HP 13A 20’ cord*
10-0559 - 230V/Max. 2 HP 15A 20’ cord*
10-0705 - 115V/Max. ¾ HP 15A 20’ cord*
10-0706 - 230V/Max. 1 HP 13A 20’ cord*
10-0748 - 230V/Max. 3 HP 20A 25’ cord* (No Plug)
DISTANCE
CORDS SECURED TO
DISCHARGE PIPE
(B)
FROM MOUNTING
CLAMP TO FLOAT
IN INCHES
20
P/N 10-0748
15
25
"ON"
LEVEL
B
10
5
A
FIGURE 10
0
5
10
15 20
(A) PUMPING RANGE
"OFF"
LEVEL
IN INCHES
P/N 10-0055
P/N 10-0032
P/N 10-0033
P/N 10-0034
P/N 10-0035
P/N 10-0063
P/N 10-0559
P/N 10-0705
P/N 10-0706
35 30 25
40
SK1299
NOTE: Measurements as shown are approximate.
Exact measurements to be determined for each
individual installation.
INSTALLATION INSTRUCTIONS
1. Decide the desired pumping range for your installation instruction. (See Fig.5 and Figure 10.) (B) is the
FIGURE 5
3.5 INCH
TETHER LENGTH
FOR DOUBLE
FLOAT
3.5 INCH
MINIMUM
TETHER LENGTH
FOR PUMP
SWITCH
FIGURE 6
SK305B
distance between the mounting point of attachment and the oat. The distance (B), determines (A), the
desired pumping range.
2. At Distance (B), determined from Figure 10) place the cord into the clamp as shown in Fig. 6.
3. Position the oat to the desired “OFF” level and secure the clamp to the discharge pipe as shown in Fig.6.
See Fig. 5 noting water line. NOTE: Do not install cord under hose clamp.
4. Tighten hose clamp using a screw driver. NOTE: Do not over tighten. Over tightening may result in
damage to the plastic clamp. Make sure the oat cable is not allowed to touch the excess hose clamp
band during operation.
NOTICE: Do not adjust “Off’’ Level below discharge on pump.
5. Insert the piggyback plug from the switch into a standard grounded outlet of proper voltage. For automatic
operation, plug the pump directly into the piggyback plug. (See Fig. 7.) Pump can be manually operated
by bypassing the piggyback plug.
NOTICE: For installation utilizing watertight junction box or similar connections, see Figure 8.
NOTICE: For installation as a control switch for magnetic starter, see Figure 9.
6. Tape or clamp both piggyback switch and pump cords to the discharge pipe, clear of oat operation. (See
Fig. 5.) Excess cord should be coiled and fastened outside the basin.
7. Clean basin free of debris after installation.
SK1301D
8.
Check your installation. Fill basin with water and allow pump to cycle to insure proper range and operation.
A) Remove (cut) Piggyback
Plug from Variable Level
Pump Switch. Remove
approx. 3½” of cord
PUMP PLUG
AUTOMATIC
OPERATION
MANUAL
OPERATION
jacket and 1” insulation
from wires.
B) Wire switch into circuit as
shown.
SWITCH PLUG
C) Return to instructions.
D) Installation must be
SK308A
FIGURE 7 FIGURE 9
VARIABLE
LEVEL
PUMP SWITCH
FIGURE 8
in agreement with the
National Electrical Code
and all local codes.
SK306A
VARIABLE
LEVEL
PUMP
SWITCHES
All Clarus Environmental products must be installed and maintained in accordance with all applicable codes.
Product information presented here reflects conditions at time of publication. Consult factory regarding discrepancies or inconsistencies.
© Copyright 2011. All rights reserved.
SK378A
