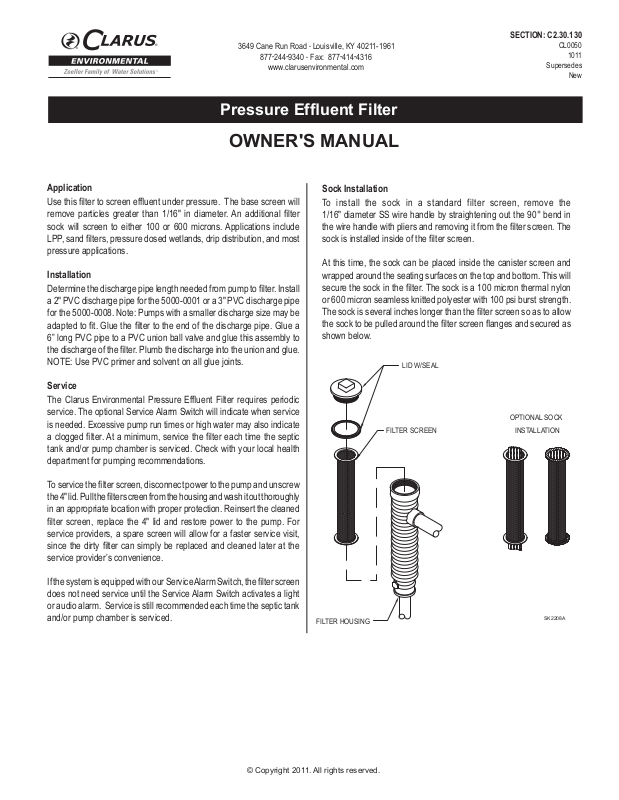

3649 Cane Run Road . Louisville, KY 40211-1961
877-244-9340 . Fax: 877-414-4316
www.clarusenvironmental.com
SECTION: C2.30.130
CL0050
1011
Supersedes
New
Pressure Efuent Filter
OWNER'S MANUAL
Application
Use this lter to screen efuent under pressure. The base screen will
remove particles greater than 1/16" in diameter. An additional lter
sock will screen to either 100 or 600 microns. Applications include
LPP, sand lters, pressure dosed wetlands, drip distribution, and most
pressure applications.
Installation
Determine the discharge pipe length needed from pump to lter. Install
a 2" PVC discharge pipe for the 5000-0001 or a 3" PVC discharge pipe
for the 5000-0008. Note: Pumps with a smaller discharge size may be
adapted to t. Glue the lter to the end of the discharge pipe. Glue a
6” long PVC pipe to a PVC union ball valve and glue this assembly to
the discharge of the lter. Plumb the discharge into the union and glue.
NOTE: Use PVC primer and solvent on all glue joints.
Service
The Clarus Environmental Pressure Efuent Filter requires periodic
service. The optional Service Alarm Switch will indicate when service
is needed. Excessive pump run times or high water may also indicate
a clogged lter. At a minimum, service the lter each time the septic
tank and/or pump chamber is serviced. Check with your local health
department for pumping recommendations.
Sock Installation
To install the sock in a standard filter screen, remove the
1/16" diameter SS wire handle by straightening out the 90° bend in
the wire handle with pliers and removing it from the lter screen. The
sock is installed inside of the lter screen.
At this time, the sock can be placed inside the canister screen and
wrapped around the seating surfaces on the top and bottom. This will
secure the sock in the lter. The sock is a 100 micron thermal nylon
or 600 micron seamless knitted polyester with 100 psi burst strength.
The sock is several inches longer than the lter screen so as to allow
the sock to be pulled around the lter screen anges and secured as
shown below.
LID W/SEAL
OPTIONAL SOCK
FILTER SCREEN
INSTALLATION
To service the lter screen, disconnect power to the pump and unscrew
the 4" lid. Pull the lter screen from the housing and wash it out thoroughly
in an appropriate location with proper protection. Reinsert the cleaned
lter screen, replace the 4" lid and restore power to the pump. For
service providers, a spare screen will allow for a faster service visit,
since the dirty lter can simply be replaced and cleaned later at the
service provider’s convenience.
If the system is equipped with our Service Alarm Switch, the lter screen
does not need service until the Service Alarm Switch activates a light
or audio alarm. Service is still recommended each time the septic tank
and/or pump chamber is serviced.
© Copyright 2011. All rights reserved.
FILTER HOUSING
SK2208A
Pressure Switch Installation P/N 5000-0006
1. Install the Pressure Switch in the upper part of the tank riser.
2. Attach the switch mount to the side of the riser. If the riser is plastic,
secure it with a SS screw. If the riser is cement, use a plastic anchor
and SS screw. Seal any holes through the riser.
3. Attach the switch
to the mount.
Secure with strap if
necessary.
4. Route the 1/4" tubing
down to the 1/4" port
on the lter or where
the pressure is to be
monitored. Remove
the plug. Apply Teon
tape to the male
threads on the 90°
tting. Install the 90°
tting in the 1/4" port.
Install the 1/4" tube
in the 90° tting and
tighten to seal.
Be sure the tubing
does not interfere
with moving parts,
oats, valves, etc.
1/4" TUBE
1/4" PORT
TO POWER
/ALARM
SK2208B
TO ALARM
5. Route the wire safely
PANEL
out of the tank with other
wires to the alarm. The
pressure switch can be
wired with a high level
PRESSURE
SWITCH
BLACK
WIRES
WHITE
WIRES
oat or on its own.
WATERTIGHT
JUNCTION BOX
SK2208C
HIGH WATER
ALARM FLOAT
6. To adjust the switch:
A. Remove the 1/8" plug on
top of the switch and insert
the 7/32" hex wrench.
INCREASE
B. Start the pump. Let it
DECREASE
run for one minute to
allow the pipes to ll. If
the alarm sounds, turn
the switch adjustment
screw clockwise one turn
to increase the switch
resistance pressure.
Reset the alarm and repeat
SK2208D
this step until no alarm is triggered by the switch.
C. With the pump running and the alarm reset, turn the wrench
counter-clockwise until the alarm sounds (or lights). This is the
running pressure.
D. Now turn the wrench one full turn clockwise . This is approximately
3 psi above the running pressure. If nuisance tripping of the alarm
occurs, increase the switch resistance pressure by turning the switch
adjustment screw clockwise by small degrees until it stops.
E. IMPORTANT! Replace the 1/8" plug after adjusting the switch.
Limited Warranty
Manufacturer warrants, to the purchaser and subsequent owner during the warranty
period, every new product to be free from defects in material and workmanship under
normal use and service, when properly used and maintained, for a period of one year
from date of purchase by the end user, or 18 months from date of original manufacture
of the product, whichever comes rst. Parts that fail within the warranty period, one
year from date of purchase by the end user, or 18 months from the date of original
manufacture of the product, whichever comes rst, that inspections determine to be
defective in material or workmanship, will be repaired, replaced or remanufactured at
manufacturer's option, provided however, that by so doing we will not be obligated to
replace an entire assembly, the entire mechanism or the complete unit. No allowance
will be made for shipping charges, damages, labor or other charges that may occur
due to product failure, repair or replacement.
This warranty does not apply to and there shall be no warranty for any material or
product that has been disassembled without prior approval of manufacturer, subjected
to misuse, misapplication, neglect, alteration, accident or act of God; that has not
been installed, operated or maintained in accordance with manufacturer's installation
instructions; that has been exposed to outside substances including but not limited to
the following: sand, gravel, cement, mud, tar, hydrocarbons, hydrocarbon derivatives
(oil, gasoline, solvents, etc.), or other abrasive or corrosive substances, wash towels
or feminine sanitary products, etc. in all pumping applications. The warranty set out
All Clarus Environmental products must be installed and maintained in accordance with all applicable codes.
Product information presented here reflects conditions at time of publication. Consult factory regarding discrepancies or inconsistencies.
© Copyright 2011. All rights reserved.
in the paragraph above is in lieu of all other warranties expressed or implied; and we
do not authorize any representative or other person to assume for us any other liability
in connection with our products.
Contact manufacturer at, 3649 Cane Run Road, Louisville, Kentucky 40211, Attention:
Customer Service Department to obtain any needed repair or replacement of part(s) or
additional information pertaining to our warranty.
MANUFACTURER EXPRESSLY DISCLAIMS LIABILITY FOR SPECIAL,
CONSEQUENTIAL OR INCIDENTAL DAMAGES OR BREACH OF EXPRESSED
OR IMPLIED WARRANTY; AND ANY IMPLIED WARRANTY OF FITNESS FOR A
PARTICULAR PURPOSE AND OF MERCHANTABILITY SHALL BE LIMITED TO THE
DURATION OF THE EXPRESSED WARRANTY.
Some states do not allow limitations on the duration of an implied warranty, so the above
limitation may not apply to you. Some states do not allow the exclusion or limitation
of incidental or consequential damages, so the above limitation or exclusion may not
apply to you.
This warranty gives you specic legal rights and you may also have other rights which
vary from state to state.
