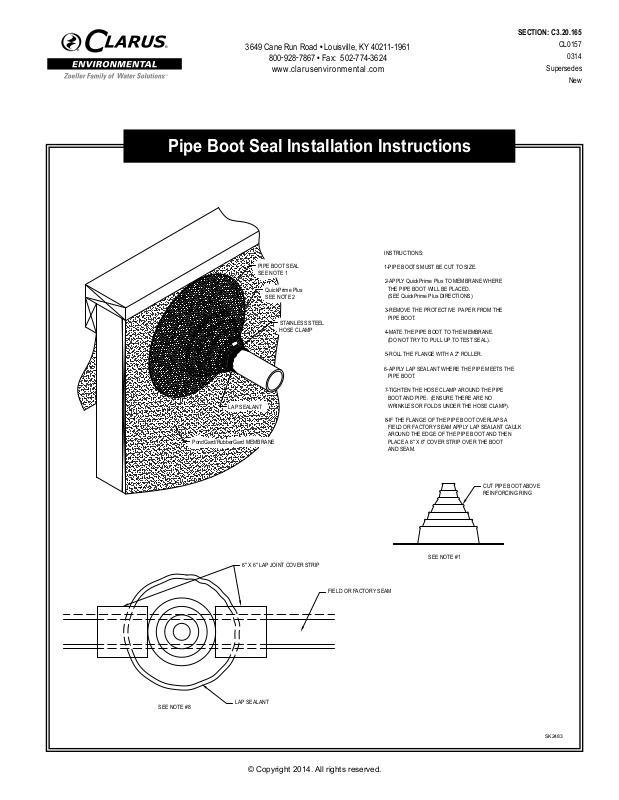

Pipe Boot Seal Installation Instructions

INSTRUCTIONS:

PIPE BOOT SEAL
SEE NOTE 1

QuickPrime Plus
SEE NOTE 2

STAINLESS STEEL
HOSE CLAMP

LAP SEALANT

PondGard/RubberGard MEMBRANE

1-PIPE BOOTS MUST BE CUT TO SIZE.

2-APPLY QuickPrime Plus TO MEMBRANE WHERE

THE PIPE BOOT WILL BE PLACED.
(SEE QuickPrime Plus DIRECTIONS)

3-REMOVE THE PROTECTIVE PAPER FROM THE

PIPE BOOT.

4-MATE THE PIPE BOOT TO THE MEMBRANE.

(DO NOT TRY TO PULL UP TO TEST SEAL).

5-ROLL THE FLANGE WITH A 2" ROLLER.

6-APPLY LAP SEALANT WHERE THE PIPE MEETS THE

PIPE BOOT.

7-TIGHTEN THE HOSE CLAMP AROUND THE PIPE

BOOT AND PIPE. (ENSURE THERE ARE NO
WRINKLES OR FOLDS UNDER THE HOSE CLAMP).

8-IF THE FLANGE OF THE PIPE BOOT OVERLAPS A

FIELD OR FACTORY SEAM APPLY LAP SEALANT CAULK
AROUND THE EDGE OF THE PIPE BOOT AND THEN
PLACE A 6" X 6" COVER STRIP OVER THE BOOT
AND SEAM.

SEE NOTE #8

6" X 6" LAP JOINT COVER STRIP

FIELD OR FACTORY SEAM

LAP SEALANT

© Copyright 2014. All rights reserved.

SEE NOTE #1

CUT PIPE BOOT ABOVE
REINFORCING RING

SK2483

QuickPrime Plus Installation Instructions

HEALTH HAZARD WARNINGS

DANGER! FLAMMABLE

• Inhalation of vapors may cause respiratory irritation, headaches, dizziness,
nausea and unconsciousness.

• Long-term excessive exposure may cause liver and kidney damage.

• Eye and skin contact can cause irritation and drying of the skin.

PRECAUTIONS

• Keep away from heat, sparks, motors and open ames.

• Extinguish pilot lights. Do not smoke.

• Keep container closed when not in use.

• Avoid prolonged inhalation and skin contact.

• Use only in a well-ventillated area.

• Use neoprene or nitrile gloves to prevent contact with skin.

• Wear eye protection with safety side shields.

• Vapors can form explosive mixtures with air; this could cause severe bodily

injury.

• When "empty" this package may contain explosive, ammable and harm-
ful vapor and residue. Do not reuse container or remove labels. Follow
label warning even when "empty." Disposal should be in accordance with
federal, state and local regulations.

FIRST AID PROCEDURES

EYE CONTACT: Flush with water for at least 15 minutes. Contact physician.
SKIN CONTACT: Wash with soap and water. Contact physician if irritation

persists.

INHALATION: Remove to fresh air; administer oxygen or articial respiration if

necessary. Contact physician.

SWALLOWING: Do not induce vomiting. Contact physician immediately.

THIS PACKAGE FOR PROFESSIONAL/INDUSTRIAL USE ONLY. User

determines suitability for intended use and assumes all risk and liability. All
purchases and uses are subject to warranty and exclusive remedy provisions
on Technical Information Sheet. If terms not acceptable, return product at once,
unopened.

• Read label carefully before use.

• Material Safety Data Sheet is available from manufacturer for detailed

information.

INGREDIENTS OTHER INGREDIENTS

HEPTANE 142-82-5 HYDROCARBON RESIN
TOLUENE 108-88-3 HALOGENATED BUTYL
METHYL ALCOHOL 67-56-1

DISPOSAL INFORMATION

User shall dispose of only "empty" containers. Disposal shall be in accordance
with federal, state and local regulations.

Maximum VOC content not to exceed 664 gm/L.

SEE MATERIAL SAFETY DATA SHEET

Firestone Building Products Co. Carmel, IN USA
Firestone Emergency Phone: [phone]

Preparation of Splicing Surfaces:

Splice surfaces must be clean, dry, free of foreign materials and excess dusting
agent. Clean with broom or rags to remove contaminates.

Method of Application:

Apply QuickPrime Plus at the rate of 200-250 square feet per gallon per side
to the splicing surfaces using the QuickScrubber Plus pad and handle. Use
back and forth strokes (four minimum) with heavy pressure along the length of
the splicing area, until membrane surfaces become dark gray in color with no
streaking or puddling. Additional scrubbing is required at: factory seams; areas
of excess dusting agent; or other contaminated areas of the RubberGuard
membrane.

When using the QuickScrubber or QuickScrubber Plus pad and handle, factory
seams require parallel as well as perpendicular application motions along the
factory seam. Bear down on the QuickScrubber Plus pad and handle system

during application so the pad holder attens to allow the total surface of the pad

to contact with the RubberGuard® membrane.

Allow the surfaces to dry completely (usually less than 10 minutes) before
applying QuickSeam® products or Splice Adhesive. Complete seaming proce-

dures per Firestone's current specications and details.

Stir thoroughly before and during use.

Shelf life of 12 months can be expected if this material is stored between 60°F
and 80°F. Should the primer be exposed to lower temperatures, restore at room
temperature 3 to 5 days prior to use.

NOTE: Use of neoprene or nitrile gloves and eye protection with side
shields is required during application.

These general instructions cover application of most industrial adhesives;

however, referral to the Firestone Technical Specications Manual or Firestone
Sales or Technical representative for specic use and application is manda-

tory. Because Firestone has no direct control over this product's methods of
application and conditions of use, the product is warranted only when applied

according to the Firestone Technical Specications Manual instructions. Under

no circumstances is Firestone responsible for any damages beyond the cost of
the product used.

Stir thoroughly before and during use

COVER TIGHTLY WHEN NOT IN USE

DO NOT THIN

DO NOT USE AS A SPLICE ADHESIVE

USE ONLY QUICKSCRUBBER OR

QUICKSCRUBBER PLUS

TO APPLY QUICKPRIME PLUS

WARNING! This product contains a chemical known to the State of

California to cause birth defects or other reproductive harm.

NOTE: Firestone QuickPrime Plus is designed to clean and prepare Rubber-

Guard® EPDM membrane to receive Firestone QuickSeam® tape products.
It may also be used to prepare RubberGuard

Firestone SA-1065 EPDM Splice Adhesive.

® EPDM membrane to receive

®
