Clarson PUBLIC III Operating And Installation Instructions

PUBLIC III

with CS60 DECT

Wireless Headset System

Operating and Installation

Instructions

Notes:

Clarson Apparatebau GmbH

Zeppelinstr. 4 78083 Dauchingen
Postfach 11 63 78080 Dauchingen

Tel.: [phone]

Fax: [phone]

Email: [e-mail]

Internet: http://www.clarson.de

Technical modifications reserved 05/2008

Central Unit

Ref. 40.054.311

patch cable with

RJ45 / RJ10 modular jack

(8-pole / 4-pole)

Ref. 40.054.378

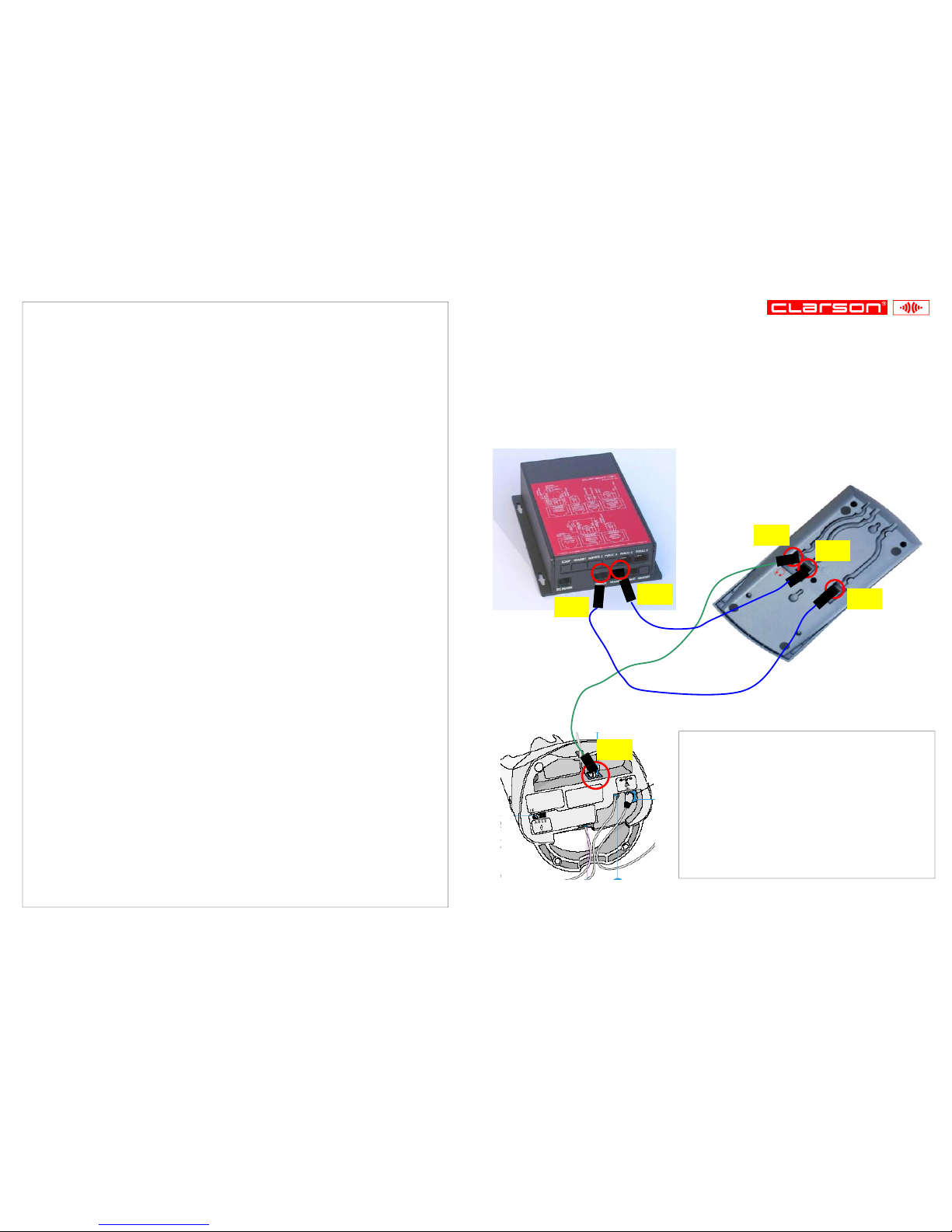

Connecting the CS60 Headset System

to the PUBLIC III Central Unit

2 7

Notes:

RJ45

8-pole

RJ10

4-pole

Mains Connection

CS60 Base Station

- bottom side -

CS60 Base Station
Ear-loop &
Over-the-hed style
Ref. 40.030.004

Login of One / Several Headset(s) at the CS60 Base Station

If one or several headset(s) are run at one CS60 base station, they are logged
in as follows:

1. Insert the headset into the charging station 12

2. Press and hold speech volume buttons + 3 and - 4 of the base unit
for at least 5 sec —> power voltage indicator flashes 16 .

3. Press and hold headset mute button 22 for at least 5 sec.
—> online indicator 23 is illuminated.

4. Login is finished if the power voltage indicator 16 is illuminated and
online indicator 23 goes out.

5. If login is not made within 2 minutes, the headset returns to original state.

Speech button

Configuration dial in position „1“

21 =
Adjusting the
listen volume

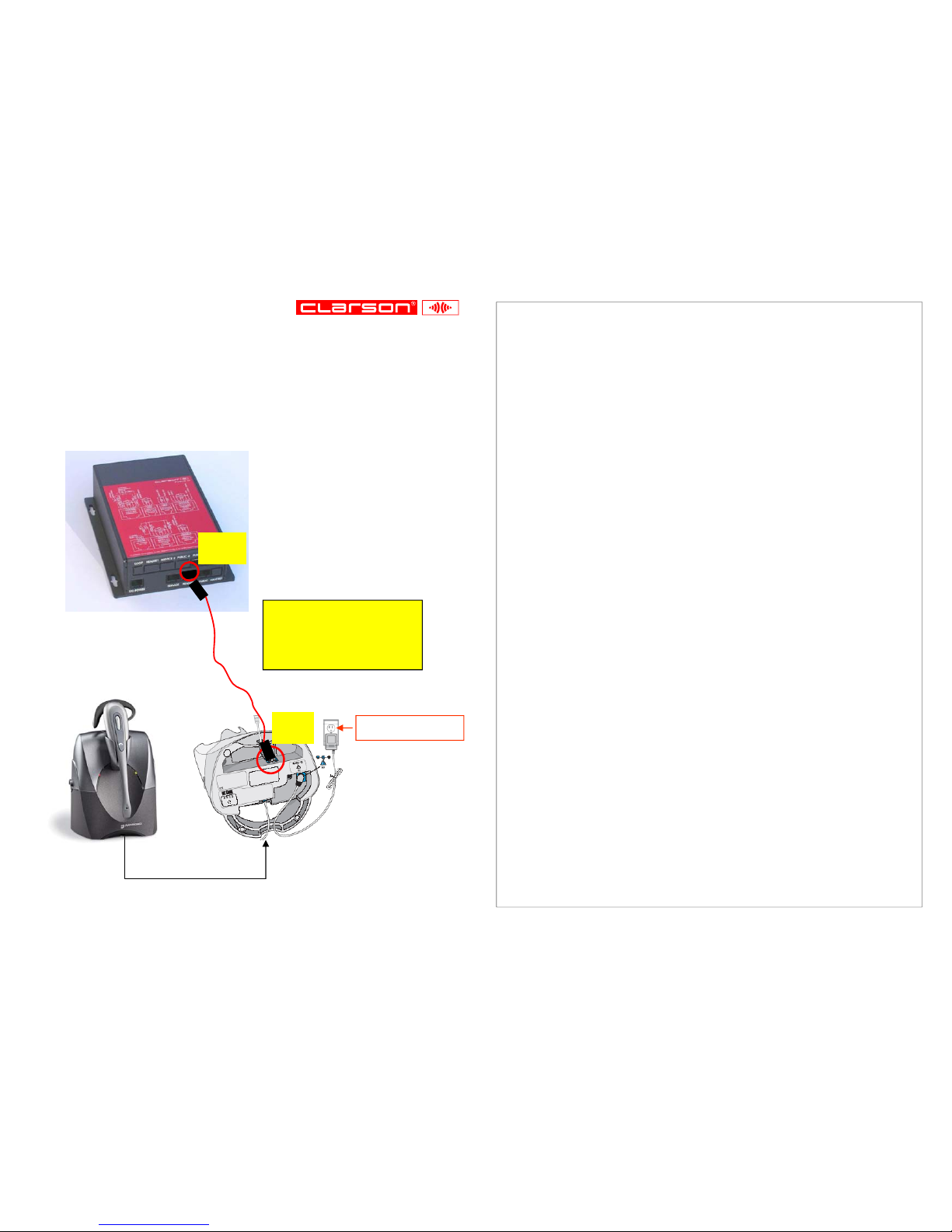

1. Connect jack  of the CS60 base station to the interface 
of the PUBLIC III microphone loudspeaker unit (page 3)

or directly to the PUBLIC III central unit HEADSET (page 2).

2. Connect CS60 base station to the mains (page 2).

3. Switch on PUBLIC III microphone loudspeaker unit ( ).

Press speech button (20, page 4) of the CS60 headset —>
led above button of the microphone loudspeaker unit flashes,
headset operation is activated.

4. Back to standard mode:

- Press speech button (20, page 4) of the CS60 headset.

- Switch the PUBLIC III system off and again on ( ).

5. For all other functions please refer to the PUBLIC III Operating and

Installation Instructions as well as to the CS60 Quickstart Guide.







4

Operating Instructions

5

CS60 DECT

Wireless Headset System
offering three wearing styles:

♦ Ear-loop
♦ Over-the-head
♦ Behind-the-neck *

* optional

Ear-loop

Over-the-head

Behind-the-neck

Central Unit
Ref. 40.054.311

RJ 10

4-pole

RJ 10

4-pole

RJ 45

8-pole

RJ 45
8-pole

RJ 45

8-pole

RJ 45

8-pole

Microphone Loudspeaker Unit

- bottom side ­Ref. 40.054.301

Ref. 40.054.327

Patch cable with RJ45 connector(8/8-pole), 3 m

Central unit <—> Microphone loudspeaker unit

Ref. 40.054.376

Patch cable with RJ10 connector (4/4-pole), 3 m

Microphone loudspeaker unit <—> CS60 Base station

Ref. 40.054.378

Patch cable with RJ45/RJ10 connector (8/4-pole), 3 m

Central unit <—> CS60 Base station

3 6

Notes:

Connecting the CS60 Headset System

to the PUBLIC III Microphone Loudspeaker Unit
