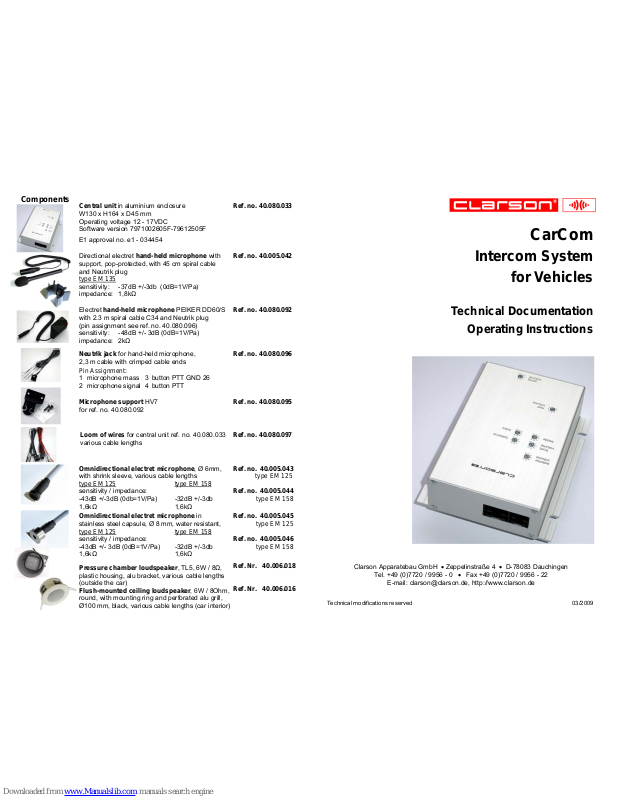

CarCom
Intercom System
for Vehicles
Technical Documentation
Operating Instructions
Clarson Apparatebau GmbH Zeppelinstraße 4 D-78083 Dauchingen
Tel. +49 (0)7720 / 9956 - 0 Fax +49 (0)7720 / 9956 - 22
E-mail: clarson@clarson.de, http://www.clarson.de
Technical modifications reserved 03/2009
Central unit in aluminium enclosure
W130 x H164 x D45 mm
Operating voltage 12 - 17VDC
Software version 7971002605F-79612505F
E1 approval no. e1 - 034454
Ref. no. 40.080.033
Loom of wires for central unit ref. no. 40.080.033
various cable lengths
Ref. no. 40.080.097
Electret hand-held microphone PEIKER DD60/S
with 2.3 m spiral cable C34 and Neutrik plug
(pin assignment see ref. no. 40.080.096)
sensitivity: -48dB +/- 3dB (0dB=1V/Pa)
impedance: 2kΩ
Ref. no. 40.080.092
Microphone support HV7
for ref. no. 40.080.092
Ref. no. 40.080.095
Neutrik jack for hand-held microphone,
2,3 m cable with crimped cable ends
Ref. no. 40.080.096
Pin Assignment:
1 microphone mass 3 button PTT GND 26
2 microphone signal 4 button PTT
Directional electret hand-held microphone with
support, pop-protected, with 45 cm spiral cable
and Neutrik plug
type EM 135
sensitivity: -37dB +/-3db (0dB=1V/Pa)
impedance: 1,8kΩ
Ref. no. 40.005.042
Omnidirectional electret microphone, Ø 6mm,
with shrink sleeve, various cable lengths
type EM 125
type EM 158
sensitivity / impedance:
-43dB +/-3dB (0db=1V/Pa) -32dB +/-3db
1,6kΩ 1,6kΩ
Ref. no. 40.005.043
type EM 125
Ref. no. 40.005.044
type EM 158

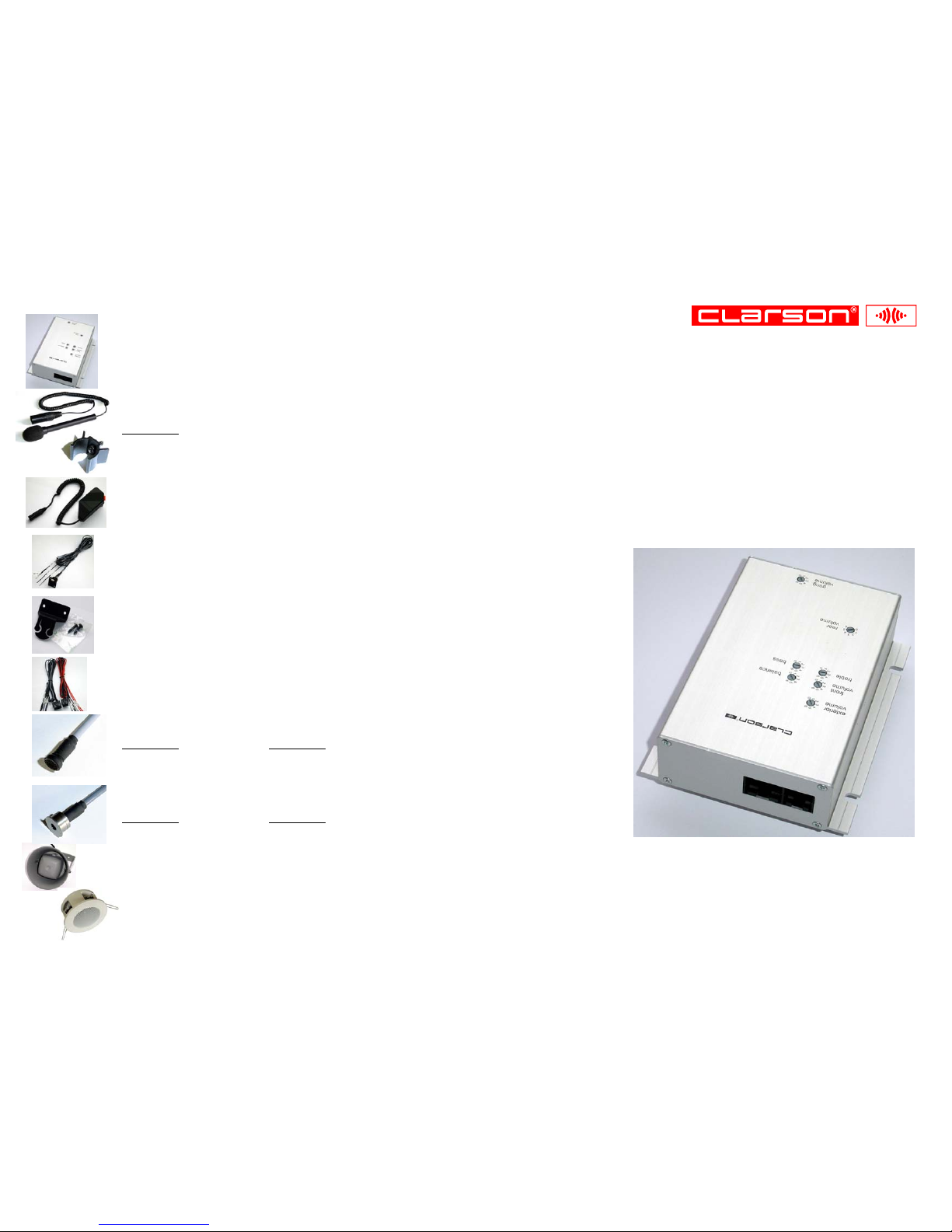

Components
Omnidirectional electret microphone in
stainless steel capsule, Ø 8 mm, water resistant,
type EM 125
type EM 158
sensitivity / impedance:
-43dB +/- 3dB (0dB=1V/Pa) -32dB +/-3db
1,6kΩ 1,6kΩ
Ref. no. 40.005.045
type EM 125
Ref. no. 40.005.046
type EM 158
Pressure chamber loudspeaker, TL5, 6W / 8Ω,
plastic housing, alu bracket, various cable lengths
(outside the car)
Flush-mounted ceiling loudspeaker, 6W / 8Ohm,
round, with mounting ring and perforated alu grill,
Ø100 mm, black, various cable lengths (car interior)
Ref. Nr. 40.006.018
Ref. Nr. 40.006.016
CarCom - Intercom System for all kinds of vehicles enabling communication
inside a vehicle as well as with a person outside.
28
27
19
4
9
5
13
14
25
17
18
24
26
22
20
21
23
8
3
7
12
16
2
11
15
6
1
10
+12V KL30
GND KL31
+12V KL15
PTT (press to talk)
call
siren
communication rear >< front
communication exterior > front and rear
communication rear >< exterior
rear LED
potentiometer 10k
w/o potentiometer bridge over 24 and 26
GND
communication front >< exterior
front LED
mute max. 900mA
rear
rear
front
front
exterior
exterior
AMP Multilock Connectors 040 Series
9
1 8
16
22 17
23 28
AMP 175062-1
AMP 174046-2 AMP 174045-2
28 23
17 22
16
8 1
9
Potentiometer set in factory
AMP 174979-2
rear volume
gong volume
exterior volume
front volume
treble
bass
Pin Assignment
balance
Version 797101
balance
Operating Instructions:
The desired function is switched on or off by pressing
the respective buttons.
The volume of a communication is adjusted via
external potentiometer.
Communication from front to exterior
Press button „communication front > < exterior“,
front LED is on.
Version 797101
Press button „communication front > < exterior“
or press and hold down button „PTT“.
Communication from rear to front
Press button „communication rear > < front“,
front and rear LEDs are on.
Communication from rear to exterior
Press button „communication rear > < exterior“,
rear LED is on.
Communication from exterior to front and rear
(listen)
Press button „communication exterior > rear and
front“, front and rear LEDs are flashing (500ms on 1s off).
Switching on the gong
Press „call“ button, front and rear LEDs are on
during the gong signal is heard, then they are
flashing (500ms on - 500ms off).
Switching the siren on
Press button „siren“
Switching the siren off
Wait at least 2s, then press and hold down „siren“
or any other button till the siren is switched off.
Starting the system:
Tune the external potentiometer to the maximum or
bridge over pins 24 and 26.
Press button „communication front > < exterior“,
or hold button down (version 797101).
Tune potentiometers „exterior volume“ and „front
volume“ for desired exterior and interior volume.
In case of „push to talk“ mode (potentiometer
„balance“ < 6) hold down button „PTT“ to adjust
the „exterior volume“. Tone colour can be modified
by tuning potentiometers „treble“ and „bass“.
Press button for „communication rear > < front“
Tune potentiometer „rear volume“ to reach desired
rear volume.
Press „call“ button
Tune potentiometer „gong“ for desired volume.
The position of the potentiometer „balance“ affects
front, exterior and rear volumes, depending on the
operating mode. Together with the „PTT“ button the
operating mode changes from open duplex to simplex.
Communication front > < exterior
Tune potentiometer „balance“ towards zero to
decrease the exterior volume, press and hold the
„PTT“ button to decrease front volume.
Communication rear > < front
Tune potentiometer „balance“ towards zero to
decrease front volume, press and hold the „PTT“
button to decrease rear volume.
If the „balance“ potentiometer is turned to the ultimate
right-hand position, volume can´t be influenced by
pressing the „PTT“ button.
FEATURES
Open duplex
Press-to-talk with volume increase
Siren
Gong
Communication between
Driver and passenger (VIP)
Driver and a person outside the vehicle
Passenger and a person outside the vehicle
COMPONENTS
Vehicle - interior
Central unit
Electret microphones
Loudspeakers
Various buttons
Vehicle - exterior
Pressure chamber loudspeaker
1 or 2 electret microphones
f.ex. fixed to exterior mirrors
12 -17 VDC
150 - 12500 Hz
6mA
< 100mA
max. 22W at 4Ω
min. 4Ω
max.5W at 8Ω
min. 8Ω
Technical Data
Central Unit
Operating voltage
Frequency response
Power consumption Standby
Power consumption Standby Version 797101
Output impedance front/exterior
Loudspeaker impedance front/exterior
Output impedance rear
Loudspeaker impedance rear
