Clarke-tech HD 5000C User Manual

English

1. Introduction ........................................................................................................... 2

1.1 Overview

1.2 Main Features

2. Safety/Precautions ............................................................................................... 3

2.1 Safety

2.2 Precautions

3. Points to Check before Use ................................................................................. 5

3.1 Accessories

4. Controls/Functions .............................................................................................. 6

4.1 Front Panel

4.2 Rear Panel

4.3 Remote controller

4.4 Front Display

5. How to Connect .................................................................................................. 11

6. Operation ............................................................................................................. 12

6.1 Getting Started

6.2 System Setting

6.3 Channels

6.4 Electronic Program Guide

6.5 Games

6.6 Storage

6.7 System Information

6.8 Common Interface

6.9 Conditional Access System

6.10 PVR

7. Troubleshooting ................................................................................................. 58

8. Specifications ..................................................................................................... 59

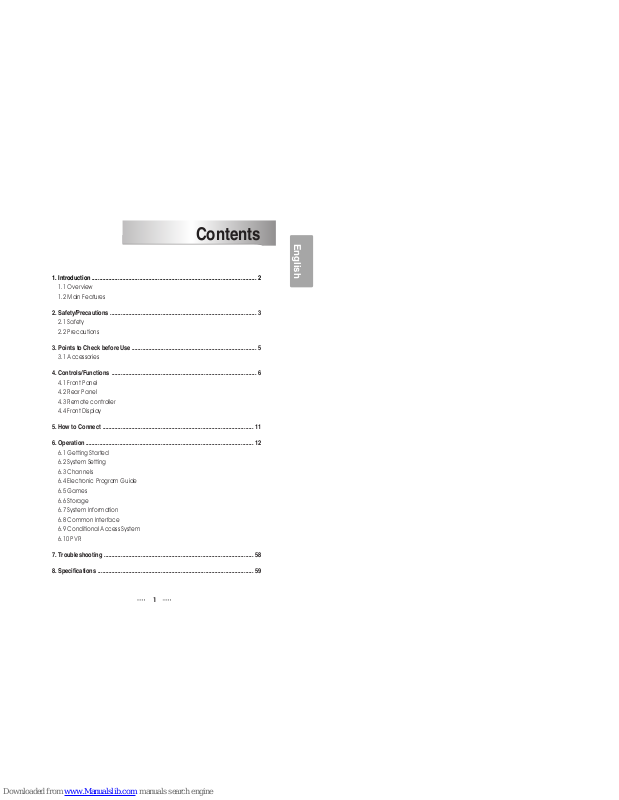

Contents

2 3

English

This satellite receiver is designed for the reception of free-to-air and encrypted channels. Depending on your location, enjoy the rich choice of up to 10,000 different channels broadcasting a large range of programs: culture, sports, cinema, news, events, etc. This receiver is assembled with highly qualified electronic parts.

Introduction

1.1 Overview

ᶀ

Compliant MPEG-II/ MPEG-IV/ H.264.

ᶀ

2 tuner combo (DVB-Satellite & DVB-Terrestrial)

ᶀ

Compliant DVB-S/ S2 satellite standard & DVB-T standard

ᶀ

Output resolution 576p & 576i, 720p, 1080i

ᶀ

1 HDMI output

ᶀ

Multisatellite search.

ᶀ

On-screen display with true color full resolution.

ᶀ

DiSEqC control version 1.0, 1.1, 1.2 and USALS compatible.

ᶀ

Enhanced 16 favorite channel groups.

ᶀ

Powerful channel control by favorites, lock, skip, move and delete function.

ᶀ

Channel sort by alphabet, transponder and CAS.

ᶀ

Multilingual GUI (OSG & Menu): English, Spanish, Portuguese, French, German, Italian, Turkish, Arabic, Persian, Russian, Greek, Czech, Romanian.

ᶀ

Installation wizard

ᶀ

Extended EPG and program reservation on EPG.

ᶀ

Teletext & Subtitle by OSD and VBI

ᶀ

Last channel memory function.

ᶀ

Total 10,000 channels programmable.

ᶀ

Preprogrammed channels (Optional)

ᶀ

Dolby digital audio output (S/PDIF)

ᶀ

S-Video

ᶀ

Component output (YPbPr)

ᶀ

Various games

ᶀ

Software & channel database upgrade via RS-232C: PC to STB/ STB to PC.

ᶀ

Parental lock / Installation lock / receiver lock.

ᶀ

Zoom in function on pause/ live channel

ᶀ

Multipicture display.

ᶀ

Video color adjustment function.

ᶀ

High speed software upgrade via USB 2.0

ᶀ

MP3 play and JPEG viewer

ᶀ

Support 2 USB Port on Front Panel & Rear Panel

ᶀ

eSATA (External SATA Interface, 7200RPM support only)

ᶀ

Lan 10/100Mbps Ethernet

ᶀ

Manufactured under license from Dolby Laboratories. “Dolby” and the double-D Symbol are trademarks of Dolby Laboratories.

1.2 Main Features



Be sure to read this user's manual before starting the operation of the unit.



Do not touch the power cord with wet hands as it may cause electric shock.



Never open the cover. It is very dangerous to touch the inside of the unit due to possible electric shock.



Place the unit in a well ventilated and no-heat environment.



When you do not use this unit for a long time, make sure that power cord is pulled out from the outlet. Also do not use a damaged power cord as it may cause fire or electric shock.



A professional installation is required. If reception is interrupted, contact your local service centre.

Safety/Precautions

2.1 Safety

DiSEqC is a trademark of EUTELSAT

4 5

English

When installing the unit

2.2 Precautions



Install the unit horizontally. An uneven installation may cause the unit to be damaged.



Do not put heavy items such as a TV set on the unit. That may damage the unit.

Do not leave the unit where the water drops or splashes.

Do not put water holding items such as vases on the unit.



Do not install the unit:

⍥Where it is subject to vibrations ⍥Where it is exposed to direct sunlight ⍥Where there is humidity ⍥Where the temperature is too high or too low. ⍥Where there is no ventilation



Moving the unit to a hot area from a cold one will cause condensation. Do not operate the unit for one or two hours or until it has dried completely.

User's manual : 1

User's manual

Remote control : 1

Batteries (AAA type) : 2 HDMI cable : 1

ᶀ If any of the above-listed

accessories is missing, contact your sales representative.

The accessories below are included with this receiver:

Points to Check before Use

3.1 Accessories

Your dish should be properly installed and azimuth and elevation must be precisely set up.

ᶀ

This unit supports DiSEqC 1.2 and can work with a compatible antenna positioner.

Ask your dealer for information.

ᶀ

The mains plug is used as the disconnect device. The disconnect device shall remain readily operable.

3.2 The Satellite dish

6 7

English

Controls/Functions

4.1 Front Panel

4.2 Rear Panel

Standby/Power on Indications Lamp : Flashes red light in “Standby” mode and

shows no light in “Power ON” mode.

Power : Switches the receiver between “Standby” and “Power ON” modes.

Menu : To enter or exit the main menu.

Select : To show the Channel List in non-menu mode and select on item or

confirm in menu mode.

- VOL

ȜȞ : To change the volume level in non-menu mode and modify

a setting in menu mode.

- CH ƌƊ : To switch channels or change the cursor position on the

application screen.

No. Name Connector Function

1 ANT IN IEC 169-2 FEMALE Input from terrestrial antenna

2 ANT OUT IEC 169-2 MALE Loop-through output from digital tuner

and Output to TV

3 LNB INPUT IEC 169-24 FEMALE IF input from LNB to digital tuner

4 LNB OUTPUT IEC 169-24 FEMALE IF loop-through output from digital tuner

5 USB USB A-type USB 2.0

6 VCR/AUX SCART SCART CVBS Video Output

CVBS, RGB Video Input

Audio Output

7 TV SCART SCART CVBS Video Output, Audio Output

8 eSATA E-SATA External SATA

9 HDMI HDMI Digital Video/Audio Output

10 RS-232C DB-9 Low speed serial port

11 LAN RJ-45 10/100Mbps Ethernet

12 S/PDIF Fiber Optic Digital audio output (Optical)

13 VIDEO RCA cinch Composite video output

14 AUDIO L RCA cinch Left audio output

15 AUDIO R RCA cinch Right audio output

16 Y RCA cinch Component video output(Y)

17 Pb RCA cinch Component video output(Pb)

18 Pr RCA cinch Component video output(Pr)

19 S-VIDEO MINI-DIN S-VHS Output

1 3 6

10 1314 16 17

1 3 4 5 6 7 8

2 4 5 87 9

11 12 15 18 19

8 9

English

4.3 Remote controller 4.3 Remote controller

POWER :To turn the receiver On/Off.

TV/RADIO: To switch between TV and

Radio.

MUTE: To turn the sound On/Off.

TEXT : To show the teletext contents if

teletext is transmitted. Used for special functions in menu mode.

SUBTITLE : To show the subtitle contents if subtitle is transmitted.

AUDIO : To show the Multi-language audio

track, the stereo-mono mode and subtitle information. Used for special functions in menu mode.

MOSAIC : To display multiple pictures.

SLEEP : To set the STB off after minutes.

FREEZE : To pause the video. Press again

to resume the video.

ZOOM : To zoom In/Out.

GUIDE : To show the TV/Radio program

guide.

INFO : To show information about the current program. Press twice to show detail.

RECALL :To move to the previous

channel. Used for special functions in menu mode.

GROUP:To change the channel

groups(Satellites or favorite groups).

MENU: To enter or exit the main menu.

EXIT:To exit from the present menu and

move to the previous menu.

- Vol Up & Down : To change the

volume level in non-menu mode.

1817

- Double arrow Up/Down : To move to

the next or previous page when many pages are available.

- Up & Down : To switch channels in

non-menu mode and move the cursor up/down in menu mode.

- Left & Right : To change the volume level in non-menu mode and modify a setting in menu mode.

OK: To show the Channel List in non-menu

mode and select an item or confirm in menu mode.

FILELIST :To display the filelist.

PLAY :Play Content.

STOP :Stop Playback.

RWD : Playback in rewind mode.

PAUSE : Pause playback.

FWD : Playback in forward mode.

ADVANCE : Go to live channel.

REC : Start recording.

SLOW : Playback in slow mode.

- Color Key : Select the option such as View List, Select Disk, Rename.

Numeric Keys (0-9) : To enter numerical settings (such as channel numbers) directly.

V.FORMAT : To switch the resolution of video output.

Wide : To select a TV aspect ratio with Pan Scan or Letter-Box(4:3) (Full screen or Pillar box(16:9).

3835

2423

2221

2019

4 6

19 24 20

26 27 29

30 32

1 Indicates Power (On/Off) mode

2 Lights when the signal comes in via satellite dish

3 Lights when the current channel is recording

4 Lights when Time-Shift Mode is set to enable

5 Lights when Time-Shift Mode is set to enable

6 Lights when a timer setting in standby mode

7 Lights when the signal is HD

8 Lights when USB devices is connected

9 Indicates the current channel is set to Lock mode

10 Lights when the current chanel is Dolby audio format

11 Lights when the current sound is set to Off

12 Feature not supported

13 Feature not supported

14 Ligths when Mp3 player is enabled

15 Lights when loop mode is setting in Mp3 player

16 Lights when the current channel is Radio mode

17 Lights when the current channel is TV mode

18 Lights when the signal comes in via TV Antenna

19 Indicates when the current playback mode in file list

20 Lights when Media & Recorded file is playing and revolving on

the outer circle

21 Indicates the resolution of video ouput

22 Indicates the Progressive or interlaced scanning mode

English

How to Connect

When Connecting the Receiver to a TV with RF connectors

4.4 Front Display

Connect the TV antenna to TV ANT IN

Connect the Video and Audio of the TV to Video and Audio: connect the red and white connectors to Audio R and Audio L, and the yellow connector to Video

Connect your satellite dish

1 2 3 4 5 6 7 8 9

10 11 12 13 14 15

1716 19 20 212218

English

6.1 Getting Started

⊼

Select the item that you want to edit, and set its parameters as desired. <Dish Setting>

- LNB Power : Select among ON/OFF/13V/18V.

- LNB Type : Select among Single/Universal/OCS.

- LNB Freq : Set the frequency of the LNB oscillator.

- 22KHz : When not AUTO, set the signal path from LNB or switch by selecting a control

signal among 0/22KHz.

- DiSEqC switch : Select DiSEqC protocol among OFF/1.0/1.1 as appropriate for your

configuration.

- Committed/Uncommitted : Select the DiSEqC port.

⊽

Select the item that you want to edit and set its parameters as desired. <Motorized Setting>

- Frequency : If the default TP frequency is not appropriate, you can select another TP

frequency at which to check for signal.

- DiSEqC Motor : Select DiSEqC protocol among OFF/1.2/USALS as appropriate for your

Motor.

3) Antenna Setup

⊹

Press the MENU button to display the main menu.

⊺

Use / and / to move in the menu.

⊻

Press on ‘Dish Setting’. The following window will appear. <Figure 6.1.3>

If you have a motorized dish, press on ‘Motorized Setting’. < Figure 6.1.4>

Note : Enter a 4-Digit password if need arise. The default password is ‘0000’.

VOL

Operation

6.1 Getting Started

After your receiver is powered on, proceed with installation as follows :

1) Menu Language Setting

⊹ Turn on your TV and receiver. ⊺ The pop-up menu for language selection will appear.<Figure 6.1.1>

Select one language and press to proceed.

2) Country Setting

⊹ Select a country and press the button on.

English

6.1 Getting Started

4) Satellite Scan

Through this function, the receiver searches for all the available channels and saves them in memory.

ᶀ

Auto Scan <Figure 6.1.5>

⊹

To select more than one satellite, press the RED button when the selection bar is positioned on the satellite.

⊺

Press on the names of the satellites that you want to scan under 'Satellite List'. Press the EXIT button to close the 'Satellite List'.

⊻

Press / and set the ‘Search Type’ and ‘Network Search’ parameters.

- Search Type : Decide for which channels to search (All channels/ Free channels

only/ TV channels only).

- Network Search : Set ON to find more transponders (frequencies) through a Network

Information Table (NIT) scan. That is, when the broadcaster is sending a NIT through a given transponder, the receiver will also scan for transponders listed in the NIT and not otherwise recognized. (this can happen when a transponder is new)

⊼ Press under ‘SCAN’ to scan the selected satellites. <Figure 6.1.6>

6.1 Getting Started

(

When the DiSEqC Motor parameter is set as 1.2

)

- Move : You can move the dish to the West/East.

- Limit : If you want to set limits, press .

- Disable Limit : You can disable the East and West limits.

- Goto Center : Move the dish to the initial 0 position.

- Set East / West Limit : Move the dish East or West using / .

Press to set East or West limit.

(

When the DiSEqC Motor parameter is set as USALS

)

- Sat Degree : Satellite location.

- Antenna Position : Press .

- Goto Reference : Move the dish to the reference 0 position.

- Antenna Longitude : Your longitude at present.

- Antenna Latitude : Your latitude at present.

Note : You need to know what LNB you are using to correctly set the L.O. (local

oscillator) frequency.

Note : You need to understand how your receiver is connected to properly set the

22KHz and DiSEqC.

⊾

When you are done, press the EXIT button.

VOL

English

6.1 Getting Started6.1 Getting Started

ᶀ

Blind Scan <Figure 6.1.7>

⊹

Select the satellites you want to search by pressing the button on the remote.

⊺

Press / to set the “Polarization” and “Scan Mode” options. - Polarization : Select Vertical / Horizontal / All.

- Scan Mode : Select Fast / Detail.

⊻

SCAN : Begin channel search of the selected satellites.

ᶀ

Manual Scan <Figure 6.1.8>

⊹

Select a transponder.

⊺

To change a transponder’s information (Frequency, Symbol Rate), use the NUMERIC buttons.

⊻

To add a new transponder, press the GREEN button.

⊼ To delete a transponder, press the YELLOW button with the cursor next to the

Frequency parameter.

⊽ To search a transponder, set its different parameters and press .

ᶀ

Package Identifier (PID) Scan <Figure 6.1.9>

⊹

Select a transponder.

⊺

To change a transponder’s information (Frequency, Symbol Rate), use the NUMERIC buttons.

⊻

To add a new transponder, press the GREEN button.

⊼ To delete a transponder, press the YELLOW button with the cursor next to the

Frequency parameter.

⊽ To search a transponder, set its different parameters and press / . You can

search a specific channel of the transponder by setting its PID data (Video, Audio and PCR).

Note : If you cannot access programs after correctly completing a scan procedure,

please contact your seller or your installer.

English

6.1 Getting Started

5) Terrestrial Scan

Through this function, the receiver searches for all the available channels and saves them in memory.

ᶀ

Auto Scan <Figure 6.1.12>

⊹

Press the YELLOW button when the selection bar is positioned on any item and “Scanning menu” will appear on the screen. <Figure 6.1.13>

ᶀ

Manual Scan <Figure 6.1.14>

⊹

Select the channel number or frequency you want to search for select the channel number by pressing CH ƌor CH Ɗ on the remote control, or specify a frequency by entering the frequency with the number keys. <Figure 6.1.15>

⊺

For the Bandwidth choose either 7 MHz or 8 MHz.

⊻

For the Search Type, select All Channel, FTA Only or TV Only.

⊼ For Network Search, select ON to find the most channels available.

The strength and quality of the signal from the selected channel is shown by the Level and Quality indicators near the bottom of the screen.

⊽ Press to begin the scan.

6.1 Getting Started

ᶀ

Fast Scan <Figure 6.1.10>

⊹

For Provider choose either Canal Digitaal or TV Vlaanderen.

⊺

For CHs Renumber select ON/OFF

⊻

Press the Red button.

English

6.1 Getting Started

7) Other Functions of the Remote Control

ᶀ

Volume Control

⊹

While watching a program, press or to control the volume.

⊺

You can press the MUTE button to remove the sound of the program: the mute icon will be displayed. Press the MUTE button again to turn the sound back on.

ᶀ

Channel Information

⊹

You can press the INFO button to display the information banner for a few seconds.

⊺

If you then press the INFO button again, a detailed banner will be displayed.

ᶀ

TV/ RADIO switching

You can press this key to change from a TV channel to a Radio channel or vice versa.

ᶀ

RECALL

Press to return to the previous channel.

ᶀ

Audio

Press to adjust the subtitle and/or audio status of the current channel:

- Audio Mode : Select between, Stereo ᵎ Mono-Left ᵎ Mono-Right

- Audio Track : Select between tracks available in this program

- Audio Level : Select between, High ᵎ Medium ᵎ Low

Note : These subtitle and audio parameters are workable only when the desired

channel supports these functions.

ᶀ

TEXT

The Teletext service is a text data service sometimes available from the Service Provider.

ᶀ

FREEZE

You can press this key to freeze the video. Press it again to resume the video.

ᶀ

GROUP

When watching TV or listening to Radio, you can press this button to view the list of satellites and/or favorite channel groups. Only registered satellites and favorite groups are displayed.

VOL

6.1 Getting Started

6) Channel Selection

You can use / to navigate between channels until you find the channel you want.

ᶀ

If you know the channel number, you can enter it with the NUMERIC buttons and wait 2 seconds until the channel is changed.

ᶀ

If you know the channel name or transponder or CAS, you can press to display the channel list <Figure 6.1.16>

⊹

In the left side of screen, detailed information about the selected channel will be displayed. (Satellite Name, Frequency(Polar) and Channel Name)

⊺

You can use the following buttons to navigate between channels:

- / : Moves one channel up/ down.

- / : Moves one page up / one page down.

- RED : Shows all channels in the current group.

- GREEN : Shows all channels sorted alphabetically.

- YELLOW : Shows all channels sorted by Transponder.

- BLUE : Shows all channels sorted by CAS system.

⊻

Press when the selection bar is positioned on the desired channel.

VOL

English

ᶀ

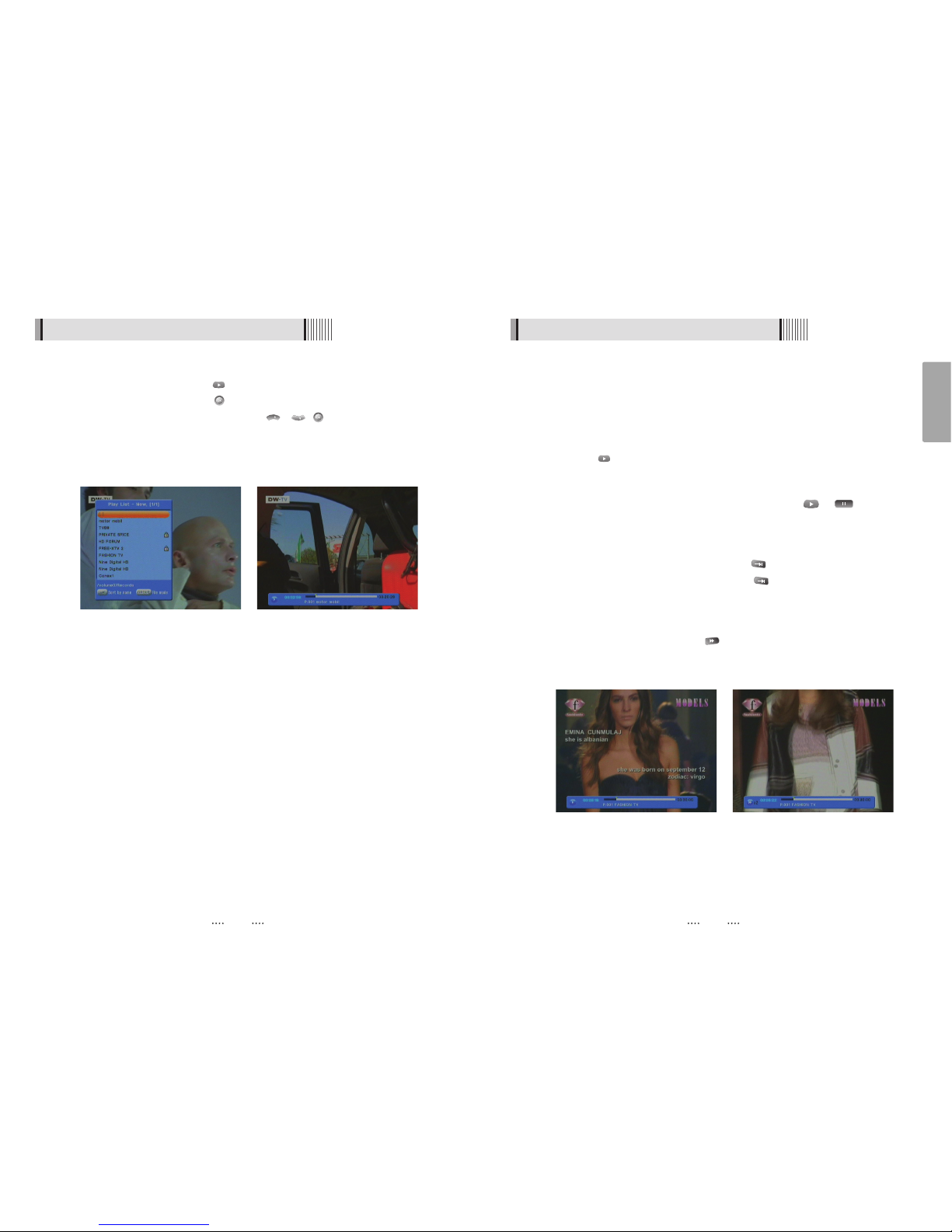

SUBTITLE <Figure 6.1.20>

You can press to select the subtitle language of current channel.

ᶀ

SLEEP <Figure 6.1.21>

You can set the your receiver to turn off after a few minutes. Press to set the sleep timer.

- To cancel the sleep timer, please press until you set time as “0 min”. (Disable, 10, 20, 30, 60, 100, 120 Minutes)

ᶀ

V.FORMAT <Figure 6.1.22>

You can press to change the video resoultion Select between, 1080i ᵎ 720p ᵎ 576p ᵎ 576i.

ᶀ

WIDE <Figure 6.1.23>

You can press to change the TV aspect ratio.

- 4:3 : Pan-Scan or Letter-Box

-16:9 : Full-Screen or Pillar-Box

6.1 Getting Started

6.1 Getting Started

ᶀ

Multi Picture Display <Figure 6.1.17>

You can press to display multiple pictures; you can choose the number of pictures such as 1X2, 2X2, 2X3 or 3X3.

ᶀ

ZOOM

You can press to zoom in the video. <Figure 6.1.18>

⊹

Press the PAUSE button and press . You can zoom in sections of Freezed Video <Figure 6.1.19>

⊺

While watching a program, press . You can zoom in sections of playing video.

⊻

To cancel the freeze status, please release the zoom status.

English

2) A/V Output Settings

This submenu allows you to specify the audio/video output. <Figure 6.2.2>

- Audio Language : Set the default audio language when selecting a channel.

- Subtitle Language : Set the default subtitle language.

- SCART : Select the SCART output.(CVBS/RGB)

- Screen Format : Select the screen format. (16:9 / 4:3)

- Display Format : Select the TV aspect ratio(Letter Box/Pan Scan, Full Screen/Pillar Box)

- Video Format : Select the Scanning type(Interaced, Progressive)

- Digital Audio : Select the Audio output type (Dolby/PCM)

PCM - Select this option only if the stereo system or amplifier cannot

decode Dolby

DOLBY DIGITAL - Select this option only if the stereo system or amplifier

can decode both Dolby Digital and Linear PCM signals.

- SPDIF Latency : Audio delay is adjustable as 10ms between 0 and 500ms(max.) at

optical output.

6.2 System Setting

6.2 System Setting

1) Time Settings

This submenu allows you to set your local time, wake up time, wake up channel and sleep time. <Figure 6.2.1>

- GMT Usage : Set this ON for the local time to be determined by adjusting the time

difference with the GMT (Greenwich Meantime) according to your location.

- Current Date : If GMT Usage is OFF, you can modify the date by pressing .

- Current Time : If GMT Usage is OFF, you can modify the time using the NUMERIC buttons.

- Summer Time : Select the period during which Summer Time is in force.

- Local Offset : If GMT Usage is ON, Local time is GMT time + Local Offset.

- Wake Up Mode : Select the wake up frequency. (Off/Once/Daily)

- Wake Up Time : Set the wake up time using the NUMERIC buttons.

- Wake Up Channel : Press to set the wake up channel.

- Sleep Mode : Select the Sleep frequency. (Off/Once/Daily)

- Sleep Time : Set the sleep time using the NUMERIC buttons.

English

5) Security Settings

This submenu allows you to set password options and to lock or unlock access to menus (Note : PIN code and password are the same). <Figure 6.2.5>

- Receiver Lock : Set ON to require entering a PIN code at powering on.

- Install Lock : Set ON to require entering a PIN code to access the installation menu.

- Channel Lock : Set ON to require entering a PIN code to access the channels menu.

- Lock Channel Confirm : Set ON to require entering a PIN code to access a locked

channel.

- Age Limit : Set to prevent children or unauthorized people from watching programs.

Select among (Free/ 8 above/12 above/15 above/18 above). When program information (age limit) is available from broadcaster and this age limit exceeds the selection, a PIN code is required to access the channel/program.

- Current Password : To change your password, first enter your current password.

- New Password : Enter the new password that you want to set.

- Verify Password : Enter the new password again for confirmation.

Note : The default password is ‘0000’.

6.2 System Setting

3) OSD Settings

This submenu allows you to set the menu language, OSD transparency and Information and Volume timeouts. <Figure 6.2.3>

- Menu Language : Select the desired language for the menu.

- Transparency : Set the OSD transparency of the menu. (1% ~100%)

- Information Timeout : Select the display duration of the information banner. (1, 2, 3, 5 or

10 seconds)

- Volume Timeout : Select the display duration of the volume box. (1, 2, 3, 5 or 10 seconds)

4) Front Display Setting

This submenu allows you to set the blue light, text moving & channel number on the front window.<Figure 6.2.4>

- Blue Light : Turn the blue light ON/OFF.

- Text Moving : Turn the text moving ON/OFF.

- Channel Number : Turn the channel number ON/OFF.

6.2 System Setting

English

7) IP Setting

If the Network supports DHCP , IP settings can be allocated automatically. If the Network does not support DHCP, the Addresses must enter manually (Static IP).<Figure 6.2.7>

- DHCP Usage : On/Off to receive IP settings automatically

- IP Address : Here enter the IP address

- Subnet Mask : Here enter Subnet Mask Number from your Network

- Gateway : Here enter IP address of Gateway (e.g. router)

- DNS : Here Enter IP address of main DNS Server

- Mac Address : Mac Address display

- Firmware update : Support download from a LAN.

 BLUE button, appear input target IP address.

 button to connect after input a target IP.

 Choose a update software and (OK)button for downloading.

Note : Have to run PC tool before connect PC.

6.2 System Setting

6) Database Reset

This submenu allows you to restore the factory set values (useful when encountering problems after changing settings). <Figure 6.2.6>

- Delete Radio Channels : Erase all radio channels in the database.

- Delete Scramble Channels : Erase all scramble channels in the database.

- Delete All Channels : Erase all channels.

- Factory Set : Erase all channels and restore the factory default settings.

6.2 System Setting

English

6.3 Channels

1) Set Favorites

This submenu allows you to set up favorite groups of channels. You can select TV or Radio channels in an alternative way by pressing the TV/RADIO button. The receiver supports 16 favorite groups.

⊹

Press on ‘Set Favorites’. The list of groups will be displayed. <Figure 6.3.1>

⊺

Press / and to choose a group. The following menu will be displayed.

<Figure 6.3.2> If you want to change the name of a favorite group, press the RED button.

⊻

Press to add (or remove if previously added) the selected channel to/from the favorite channel group.

⊼ Press the EXIT button to return to the previous menu.

8) Data Transfer

This submenu allows you to transfer the software from a receiver to another receiver. You can select and transfer Firmware/ Channel Data/ Games. <Figure 6.2.9>

- Firmware : Transfer the firmware of a receiver to another receiver.

- Channel Data : Transfer the channel data of a receiver to another receiver.

6.2 System Setting

English

6.3 Channels

3) Move Channels

This submenu allows you to move channels. You can select TV or Radio channels in an alternative way by pressing the TV/RADIO button. You can choose a channel list group by pressing the GROUP button.

⊹

Press on ‘Move Channels’. The following menu will be displayed.<Figure 6.3.4>

⊺

Press on the channel that you want to move; a ‘move’ icon will be displayed.

⊻

Use the / / / / NUMERIC buttons to move the selected channel.

⊼ Press again to place the channel.

⊽ Press the EXIT button to return to the previous menu.

VOL

6.3 Channels

2) Edit Channels

This submenu allows you to rename channels and input user PID. You can select TV or Radio channels in an alternative way by pressing the TV/RADIO button. You can choose a channel list group by pressing the GROUP button.

⊹

Press on ‘Edit Channels’. The following menu will be displayed. <Figure 6.3.3>

⊺

Press on the channel that you want to edit.

⊻

Press on ‘Edit Name’ to rename the channel; the keypad will be displayed.

⊼ Similarly, you can edit the PID data using the NUMERIC keys.

Note : The VIDEO PID, AUDIO PID and PCR PID are very important for optimal satellite

signal reception. We recommend you get professional advice where available.

English

5) Skip Channels

This submenu allows you to skip channels. Once a channel is set to be skipped, it will be whenever you navigate channels using / in non-menu mode. You can select TV or Radio channels in an alternative way by pressing the TV/RADIO button. You can choose a channel list group by pressing the GROUP button.

Note : You can still access a ‘skipped’ channel if you enter its number using the

NUMERIC buttons in non-menu mode.

⊹

Press on ‘Skip Channels’. The following menu will be displayed.<Figure 6.3.6>

⊺

Press on the channel that you want to skip/un-skip; the skip icon will be displayed / removed.

⊻

Press the EXIT button to return to the previous menu.

6.3 Channels

4) Lock Channels

This submenu allows you to lock channels to control access to them. Once a channel is locked, you will be asked to enter a password whenever you try to watch it. You can select TV or Radio channels in an alternative way by pressing the TV/RADIO button. You can choose a channel list group by pressing the GROUP button.

If you set ‘Lock Channel Confirm’ (refer to <6.2>security setting) to OFF, you will not be asked to enter a password even if the channel is locked.

⊹

Press on ‘Lock Channels’. The following menu will be displayed. <Figure 6.3.5>

⊺

Press on the channel that you want to lock/unlock; the lock icon will be displayed/removed.

⊻

Press the EXIT button to return to the previous menu.

6.3 Channels

English

6.4 Electronic Program Guide

1) EPG

This submenu allows you to access the electronic program guide when available.

⊹

Press the GUIDE button to display the guide menu. <Figure 6.4.1>

⊺

Press / to see the previous/next guide.

⊻

Press / / / to select another channel. <Figure 6.4.1>

⊼ Press to watch the selected channel and access its EPG data.

If you press in the right side of the screen (Event display list).

- If the current time EPG is selected, you will return to the previous menu and get signal

from the selected channel.

- If a future time (next) EPG is selected, the selected program will be reserved and the

event color will change.

⊽ You can select TV or Radio channels by pressing the TV/RADIO button

⊾ You can choose a channel list group by pressing the GROUP button.

⊿ You can access the timer menu by pressing the RED button. <Figure 6.4.2>

VOL

2) Timer

This sub menu allows you to set the on/off time of your receiver.

⊹

This submenu allows you to set on/off times of your receiver. To display the timer menu, press the RED button while in the guide menu. <Figure 6.4.2>

⊺

Press to select a timer’s parameter.

⊻

Press / to change the parameter.

- Timer No : Select the timer that you want to modify. (1- 8

)

- State : Select the timer frequency. (off/once/daily/weekly)

- Date : Press to display a Calendar pop-up; Select a date

- Start Time : Input the time for your receiver power-on; use the NUMERIC buttons

- End Time : Input the time for your receiver power-off; use the NUMERIC buttons

- Channel : Press to display a Channel list pop-up; Select a channel

6) Delete Channels

This submenu allows you to delete channels. You can select TV or Radio channels in an alternative way by pressing the TV/RADIO button. You can choose a channel list group by pressing the GROUP button.

Note : Be careful! If you delete a channel, you will not be able to access it again until you

rescan.

⊹

Press on ‘Delete Channels’. The following menu will be displayed. <Figure 6.3.7>

⊺

Press on the channel that you want to set/unset for deletion; the delete icon will be displayed/removed.

⊻

Press the INFO button to delete all channels in the current list; you will be asked to enter your password.

⊼ Press the EXIT button to return to the previous menu and confirm deletion.

6.3 Channels

English

1) Tetris

⊹

Press on ‘Tetris’. The following menu will be displayed. <Figure 6.5.1>

⊺

You can choose a skill level using / .

⊻

Press to start the game <Figure 6.5.2>, or press the EXIT button to return to the previous menu.

⊼

Press to rotate a block.

⊽

Press / to move a block.

⊾

Press to drop a block.

⊿

You can see the next block in the top-right small window.

⋀

Press the EXIT button to quit the game.

VOL

6.5 Games

- If you want to record a program in the right side of the screen, you can select a

program by using . The selected program will be reserved and the evnet color text will change to red. <Figure 6.4.3>.

- You can also see change the timer menu.<Figure 6.4.4>

6.4 Electronic Program Guide

English

4) Calculator

This submenu allows you to use a calculator on the screen. <Figure 6.5.7>

- You can switch between Hex (Hexadecimal) and Dec (Decimal) basis for arithmetic with the RED button of the remote control unit.

- Use the Numerical and the / / buttons on the remote control unit.

VOL

6.5 Games

3) Snake

⊹

Press on ‘Snake’. The following menu will be displayed. <Figure 6.5.5>

⊺

You can choose a skill level using / .

⊻

Press to start the game <Figure 6.5.6>, or press the EXIT button to return to the previous menu.

⊼

Press / / / to move.

⊽

Pass through the GREEN icon to increase your score; the length of the snake increases.

⊾

Pass through the RED icon to decrease the snake’s length.

⊿

Avoid the BLACK icons. If you hit a BLACK icon (block), the game ends.

⋀

Press the EXIT button to quit the game.

VOL

6.5 Games

2) Sokoban

How to play Sokoban: you have to push the balls to their correct positions. The balls can only be pushed, never pulled, so you have to be careful not to push them into a corner where you can’t get them out from. You can only push one ball at a time.

⊹

Press on ‘Sokoban’. The following menu will be displayed. <Figure 6.5.3>

⊺

You can choose a skill level using / .

⊻

Press to start the game <Figure 6.5.4>, or press the EXIT button to return to the previous menu.

⊼

Press / / / to move.

⊽

Press the RED button to undo the previous move. You can undo only one step.

⊾

Press the GREEN button to restart the game.

⊿

Press the YELLOW/BLUE buttons to jump to the previous/ next level. You can jump only between completed levels.

⋀

Press the EXIT button to quit the game.

VOL

English

6.6 Storage

2) JPG menu



Press / to select a picture. <Figure 6.6.3>



Press to show the picture you want to display.

- RED : Sets the time interval between slides.

- GREEN : Selects slide show.

- YELLOW : Choose the Hard disk volume or usb device with USB hub.

- FILELIST : Shows/Hides the JPEG file list.

3) Data Transfer menu



Select the software you want to download by using / in the list



Press to start software downloading

- RED : Upload the current CNDF(compressed dish and channel data file).

- YELLOW : Choose the Hard disk volume or usb device with USB hub.

Warning : Please do not switch off your receiver before software downloading is

completed.

CHCHCH

This submenu allows you to play various MP3 files, view JPG files or download a new software by connecting your USB flash drive.

1) MP3 menu



Select the MP3 file you want to play back by using / , in the file list. <Figure 6.6.1>



Press the EXIT button to hide the file list. You can then select an option using / ,



You can then change the volume by pressing / .



Press on to display the MP3 file list.



Press on to display information about the selected MP3 file.

- FILELIST : Shows/Hides the MP3 file list

- INFO : Shows information about the MP3 file you selected.

- YELLOW : Choose the Hard disk volume or usb device with USB hub.

VOL

6.6 Storage

English

6.6 Storage

4) Disk Manager

- Default Disk : Set the pvr disk.

Note : If External SATA is connected, External SATA can be captured in “volume0”.

Otherwise, one of other disks can be captured in “volume0”

- Disk Information : Choose the Hard disk volume or usb device with USB hub. You can

view a information of usb devices (used size, total size, free size) <Fig

6.6.5>

- Chek Disk : Choose the Hard disk volume or usb device with USB hub. You can check

the usb devices. <Fig 6.6.6>

- Format Disk : You can format the usb devices. <Fig 6.6.7>

6.6 Storage

5) File manager

 Press YELLOW button for connect PC.

 Press button after input IP address of PC.

 Press button after choose target.

Note : Have to run PC tool before connect PC.

 Press Right button and Press RED for chooses files.

 Press button to choose Copy/Move/NewFolder/Delete/Rename after press MENU

button.

 If select copy or move, press button to move target for paste.

 Press MENU button to paste taget.

 Select a Paste for Copying or Moving files.

English

2) The Status of the CAM

⊹

You can access detailed information about the CAM using the / keys in the Main Menu to select ‘CI’ and pressing . <Figure 6.8.2>

⊺

Proceed with further instructions displayed on the screen to check more detailed information depending on the CAM in use.

Note : Further detailed information is not mentioned in this manual since the information

depends on the CAM in use.

6.8 Common Interface6.7 System Information

You can check the current information about your receiver such as receiver model name, S/W (software) version, H/W (hardware) version, manufacturing date, etc. <Figure 6.7.1>

Note : This information is useful to download new software and/or repair the receiver.

6.8 Common Interface

1) CAM Initializing

To enjoy scrambled channels, you will need a Common Interface Conditional Access Module (CAM) and a Smart Card from the service provider (program distributor). If you are subscribing to services from more than one service provider, you will need a Smart Card from each one, and may even need different CAMs (depending on the DVB Common Interface standard each uses). Since a Smart Card is connected to a single service provider, a limited range of channels will be available via it.

Note : Without the CAM and the smart card, you can watch only Free-to-Air programs.

⊹

Insert a CAM into a receiver’s slot designed for it, and a Smart Card into the CAM.

⊺

The message ‘CAM Initializing’ will appear on the screen. <Figure 6.8.1>

⊻

After the message ‘CAM Initializing’ has disappeared, you can select the channel that you want to watch.

English

6.9 Conditional Access System

2) The Status of the Smart Card



You can access detailed information about the Smart Card using the / keys in the Main Menu to select ‘CA’ and pressing . <Figure 6.9.2>



Proceed with further instructions displayed on the screen to check more detailed

information depending on the Smart Card in use.

Note : Further detailed information is not mentioned in this manual since the

information depends on the Smart Card in use.

6.9 Conditional Access System

1) Card Initializing

To Enjoy CONAX CAS7 scrambled channels, you will need a Smart Card from the service provider (program distributor). If you are subscribing to services from more than one service provider, you will need a Smart Card from each one. Since a Smart Card is connected to a single service provider, a limited range of channels will be available via it.

Note : Without the Smart Card, you can watch only Free-To-Air programs.



Insert the Smart Card into the receiver’s slot designed for it.



The message ‘Smart Card Initializing’ will appear on the screen. <Figure 6.9.1>



After the message ‘Smart Card Initializing’ has disappeared, you will be able to watch the channels offered by the service provider.

English

ᶀ

Edit Menu

You will be asked to enter a password whenever you try to enter it. Press . The popup menu for selection will appear<Figure 6.10.3>.

Select the item that you want to edit, and set its parameters as desired

⊹

Normal Mode : Press on the file that you can see the preview of a selected file.

⊺

Lock Mode : Press on the file that you want to lock/unlock.



Delete Mode : Press on the file that you want to delete.

- GROUP : Select between, File Mode Ƒ Dir Mode

- ADVANCE : Shows all sorted files. Select between, Sort by name Ƒ Sort by time.

If you set ‘Channel Lock’ (refer to <Figure 6.2.4>security setting) to OFF, you will not be asked to enter a password even if the channel is locked.



You can use the following buttons to navigate between USB sub menu.(Feature not supported)

- GREEN : Jump to the Mp3 player menu.

- YELLOW : Jump to the Jpeg viewer menu.

- BLUE : Jump to the Data Transfer menu.

6.10 PVR

6.10 PVR

1) File List

ᶀ

File Playback

⊹

Press to show the file list. Select the file you want to play back by using /

, .

⊺

Press . In the left side of screen, detailed information about the selected file will be displayed. (Recorded Date/Time, Used size, Total Size) <Figure 6.10.1>

- To see a full screen, press once more. And then the following time-bar will appear. <Figure 6.10.2>

English

6.10 PVR

3) Trick Mode

You can operate the trick mode while you are playing the recording files. These functions are available in playback mode or time-shift mode powerfully.

ᶀ

PLAY

This button will display a time- banner. If you want to show the play list while playing the file by using .

ᶀ

PAUSE

This button will pause the playing file until you play again with or . <Figure

6.10.6>

ᶀ

ADVANCE

- If the time-shift mode is enabled, You can press to jump the live program.

- If the playback mode is enabled, You can press to stop the current playing file and then jumping the live program.

ᶀ

FF(Fast Forward)

- When playing the file, you can press to adjusting the playing speed.<Figure

6.10.7>

- The speed will change to x2, x4, x8 and x32.

6.10 PVR

2) Play List

⊹

While watching a program, press to show the play list. <Figure 6.10.4>

⊺

While recording a program, press to show the play list. <Figure 6.10.4>



Select the file you want to play back by using / , . And then the following time-banner will appear. <Figure 6.10.5>

- GROUP : Select between, File Mode ƍ Dir Mode

- ADVANCE : Shows all sorted files. Select between, Sort by name ƍ Sort by time

English

6.10 PVR

ᶀ

Bookmark

To mark a specific place in a file for later retrieval. <Figure 6.10.10>

- RED : Press this button and red small triangle cursor will be placed at that position. If

you want to delete the bookmarked position, press a this button once more when red small triangle cursor appear.

- GREEN : Press this button and the current position will jump to the next bookmarked

position and playback starts from this point.

- YELLOW : Press this button and the current position will jump to the pre-bookmarked

position and playback starts from this point.

Note : The maximum number of the bookmark is 20 in a file.

6.10 PVR

ᶀ

RWD(Rewind)

When playing the file, you can press to adjusting the playing speed. <Figure

6.10.8>

The speed will change to x2, x4, x8 and x32.

ᶀ

Slow(1/2x, 1/4x)

When playing the file, you can press to adjusting the playing speed. <Figure

6.10.9>

ᶀ

Jump

- You can locate the control position to the desired position by using the / .

- If you press this key continuosly, You can locate the control position to the desired position very quickly.

ᶀ

Skip

- You can skips and forward in 15 seconds using the

- You can skips and backward in 15 seconds using the

English

6.10 PVR

5) Timer Recording

This function is availabe when usb device is connected. You can choose a channel to record the Program Guide menu by using . (Refer to 6.4 Electric Program Guide,

2)Timer)

6) Time Shift

⊹

If you want to pause and resume live TV channel, press PAUSE button. The default time of Time-Shift is 30 min in your STB.<Fig 6.10.13>

⊺

If you want to resume live TV channel, press PLAY button. <Figure 6.10.14>



The trick-mode operations are provided. If you want to jump to live channel, please press .

6.10 PVR

Note : 1. Do not remove the USB device while recording a program.

2. You can’t change to another channel while recording a program.

4) Instant Recording

⊹

You can record a current channel by using . If you then press , a time-banner will be displayed.<Figure 6.10.11>

⊺

Press once more. The following picture shows that you can select item when you record a current channel. <Figure 6.10.12>

- Channel : It shows a current channel.

- Name : It shows a current recording name.

- Duration : You can change the duration of recording time by using the / . And

current recorded time appear.

- Stop : If you stop the recording, Press .

English

Specifications

IEC 169-24, female 950MHz ~ 2150MHz

-65dBm ~ -25dBm DC 13/18V, max 400mA 22KHz Ver 1.0/1.1/1.2/USALS Compatible DVB-S/S2 QPSK, 8PSK DVB-S : 2~45Msps DVB-S2 : 10~30Msps(QPSK) 10~30Msps(8PSK)

Auto conversion IEC 169-2, Female IEC 169-2, Male 170 ~ 230 MHz, 470 ~ 862MHz 75 Ohms Nominal 7,8MHz(-78dBm~-25dBm) switchable by software 7,8MHz(-3dB) switchable by software OFDM 2k and 8k hierarchical/non-hierarchical 1/2, 2/3, 3/4, 5/6, 7/8 1/4, 1/8, 1/16, 1/32 32bit processor (266MHz) 32Mbyte X 4 8Mbyte 256Kbit MPEG-2, MPEG-4, H.264 up to 15M bits/s 1920 X 1080i, 1280 X 720P, 720 X 576P/i PAL 4:3,16:9

Mono, Stereo, Joint Stereo 32, 44.1 and 48 KHz

Fully DVB compliant Connector Frequency range Signal level LNB supply LNB switch control DiSEqC Front end Symbol rate

SCPC and MCPC Capable Spectral inversion Input connector Loop-through out Frequency range Input impedance Signal level IF Bandwidth Waveform Carrier Mode Code Rate Guard Interval Processor DDR SDRAM FLASH EEPROM MPEG 2 Data Rate Resolution Video format Aspec Ratio DVB compliant MPEG 1 layer 1 &2 Type Sampling rates

System capabilities satellite LNB/Tuner input

Demodulator

TERRESTRIAL System capabilities Tuner & Channel Decoder

System resource

Video decoder

Teletext MPEG Audio

Problem

The LED light on the front panel does not light.

No Picture or sound.

Black-and-white screen or V-Hold.

The remote controller is not working.

Troubleshooting

There may be various reasons for the abnormal operation of the unit. Therefore, if the unit does not work properly, check it according to the procedures shown in the table below:

Remedy

Connect the power cord properly into the power socket.

Connect the two terminals correctly with RCA or RF cable(s), SCART or HDMI cable(s).

Connect the antenna cable correctly.

Adjust the direction of the antenna.

Check the cable connections, the LNB and other equipment connected between the LNB and the receiver, or adjust the antenna.

Type the setting values correctly.

Use a TV of the same mode.

Connect a NTSC/PAL converter between the receiver and the TV.

Change the batteries.

Switch off the light.

Aim the remote control at the receiver.

Possible causes

The AC power cord is disconnected.

Wrong connection of the video/audio output to the TV input terminal.

Wrong connection of the satellite antenna cable.

Wrong direction of the satellite antenna.

No signal or weak signal.

Wrong setting of channel information in the MENU screen.

Your TV mode (PAL/NTSC) is different from the satellite broadcasting mode.

Batteries are exhausted.

Fluorescent light is interfering with the remote controller.

Remote controller is incorrectly aimed.

9pin D-sub male, Max 115K bps NEC-IR up to 7 Meter DC 5V Max 500mA max 50W 100V ~ 250V 50Hz ~ 60Hz CVBS Video output, Loop-through RGB output Audio Out Video Out(CVBS) Video In(CVBS, RGB) Audio Out(L, R) 1 X RCA cinch 2 X RCA cinch 3 X RCA cinch 9pin D-sub IEC 169 - 24 IEC 169 - 24 IEC 169 - 2 IEC 169 - 2 Fiber Optic Digital Video/Audio Output USB A-type External SATA RJ-45

Connector Code Operating condition USB Supply(Front/Rear) Power consumption Supply voltage Supply frequency TV SCART

VCR SCART

Video Audio L/R Component(Y/Pb/Pr) Serial data Digital tuner input Loop-through Digital tuner Terrestrial ant input Terrestrial ant output S/PDIF HDMI USB SATA LAN

Serial data interface Remote control

USB Power supply

Rear Panel connectors

335 X 58.5 X 247(mm

)

3 Kg

Size (W X H X D

)

Weight (Net

)

Physical Specification

Disposal of Old Electrical & Electronic Equipment(Applicable in the European Union and other European Countries with separate collection systems)

This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipnent. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropirate waste handling of this product. The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Clarke-tech HD 5000C User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
