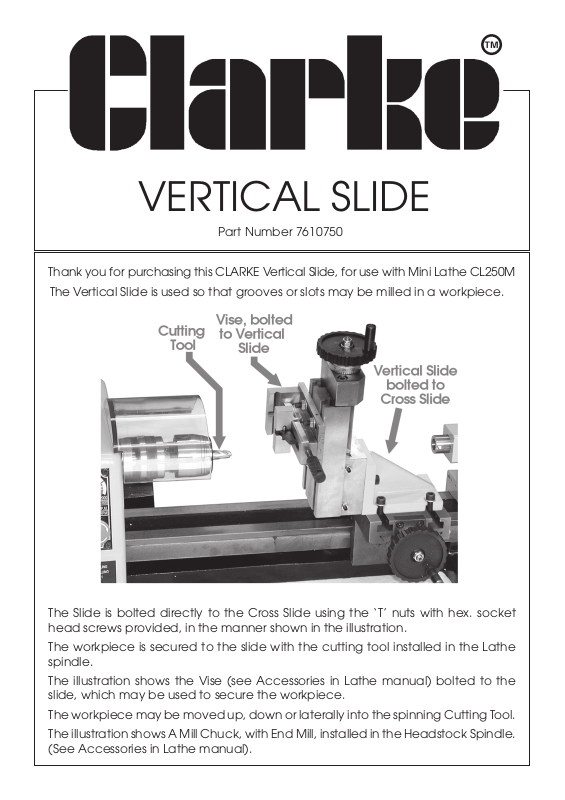

Clarke Vertical Slide, 7610750 User guide

VERTICAL SLIDE

Part Number 7610750

Thank you for purchasing this CLARKE Vertical Slide, for use with Mini Lathe CL250M

The Vertical Slide is used so that grooves or slots may be milled in a workpiece.

The Slide is bolted directly to the Cross Slide using the ‘T’ nuts with hex. socket
head screws provided, in the manner shown in the illustration.

The workpiece is secured to the slide with the cutting tool installed in the Lathe
spindle.

The illustration shows the Vise (see Accessories in Lathe manual) bolted to the
slide, which may be used to secure the workpiece.

The workpiece may be moved up, down or laterally into the spinning Cutting Tool.
The illustration shows A Mill Chuck, with End Mill, installed in the Headstock Spindle.

(See Accessories in Lathe manual).

GUARANTEE

This CLARKE product is guaranteed against faulty manufacture for a period
of 12 months from the date of purchase. Please keep your receipt as proof of
purchase.

This guarantee is invalid if the product is found to have been abused or
tampered with in any way, or not used for the purpose for which it was
intended.

Faulty goods should be returned to their place of purchase, no product can
be returned to us without prior permission.

This guarantee does not affect your statutory rights.

SPARE PARTS AND SERVICING

For Spare Parts or Servicing, please contact your nearest dealer,

or CLARKE International, on one of the following numbers.

PARTS & SERVICE TEL: [phone]

PARTS & SERVICE FAX: [phone]

or e-mail as follows:

PARTS: [email protected]

SERVICE: [email protected]
