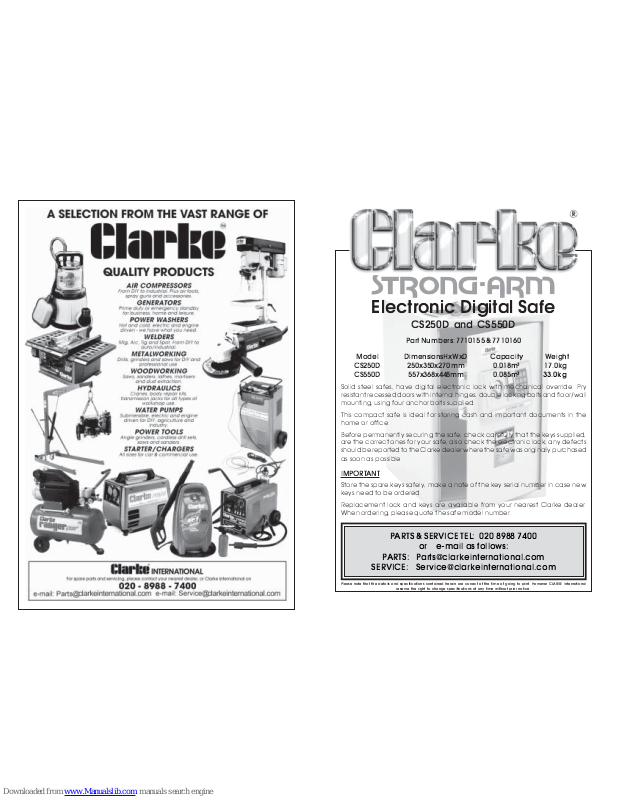

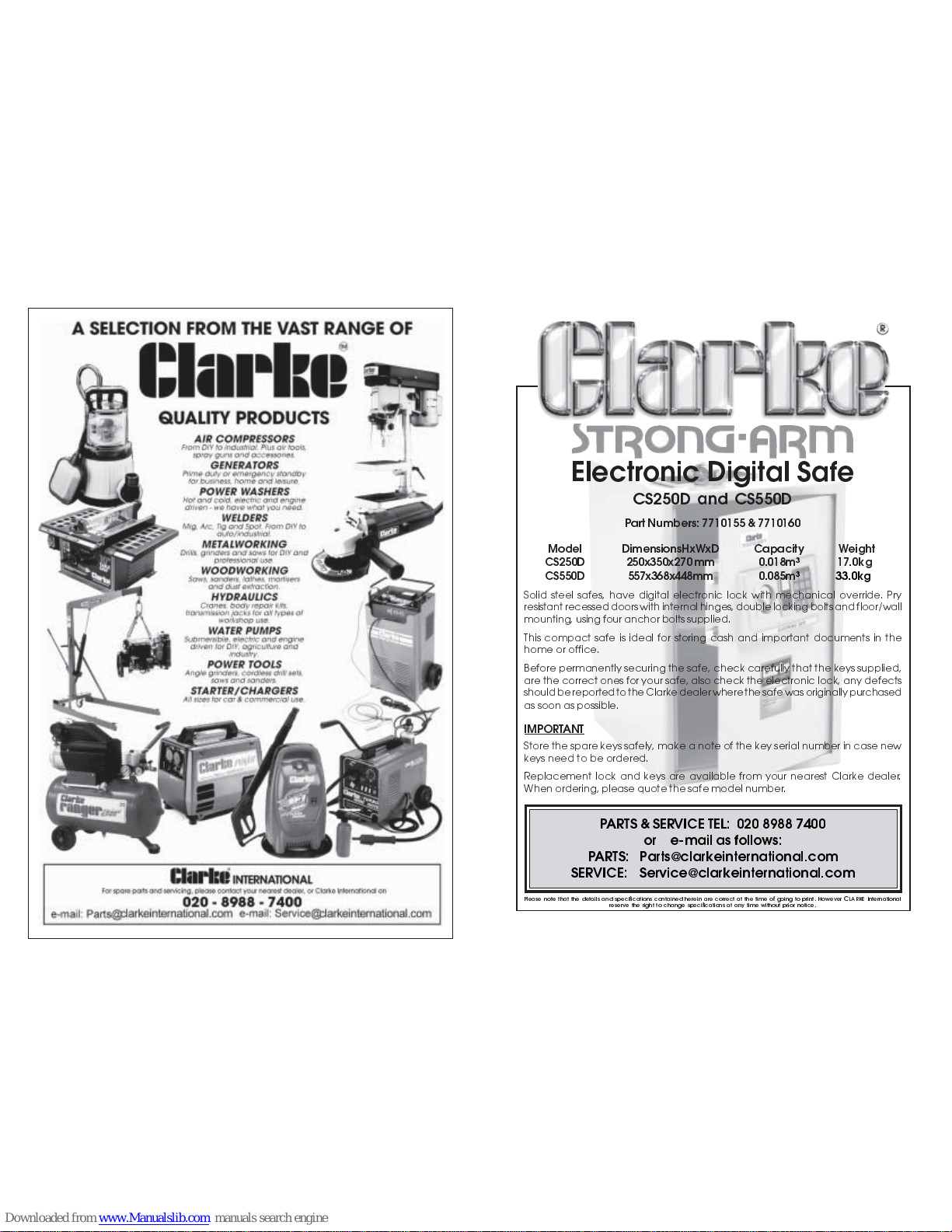

Clarke STRONG-ARM CS250D, STRONG-ARM CS550D Information

Please note that the details and specifications contained herein are correct at the time of going to print. However CLARKE International

reserve the right to change specifications at any time without prior notice.

Electronic Digital Safe

CS250D and CS550D

Part Numbers: 7710155 & 7710160

Model DimensionsHxWxD Capacity Weight
CS250D 250x350x270 mm 0.018m³ 17.0kg
CS550D 557x368x448mm 0.085m³ 33.0kg

Solid steel safes, have digital electronic lock with mechanical override. Pry
resistant recessed doors with internal hinges, double locking bolts and floor/wall
mounting, using four anchor bolts supplied.

This compact safe is ideal for storing cash and important documents in the
home or office.

Before permanently securing the safe, check carefully that the keys supplied,
are the correct ones for your safe, also check the electronic lock, any defects
should be reported to the Clarke dealer where the safe was originally purchased
as soon as possible.

IMPORTANT

Store the spare keys safely, make a note of the key serial number in case new
keys need to be ordered.

Replacement lock and keys are available from your nearest Clarke dealer.
When ordering, please quote the safe model number.

PARTS & SERVICE TEL: [phone]

or e-mail as follows:

PARTS: [e-mail]

SERVICE: [e-mail]

CLARKE GUARANTEE

This CLARKE product is guaranteed against faulty manufacture for a period of 12
months from the date of purchase. Please keep your receipt as proof of purchase.

This guarantee is invalid if the product is found to have been abused or tampered
with in any way, or not used for the purpose for which it was intended.

Faulty goods should be returned to their place of purchase, no product can be
returned to us without prior permission.

This guarantee does not effect your statutory rights.

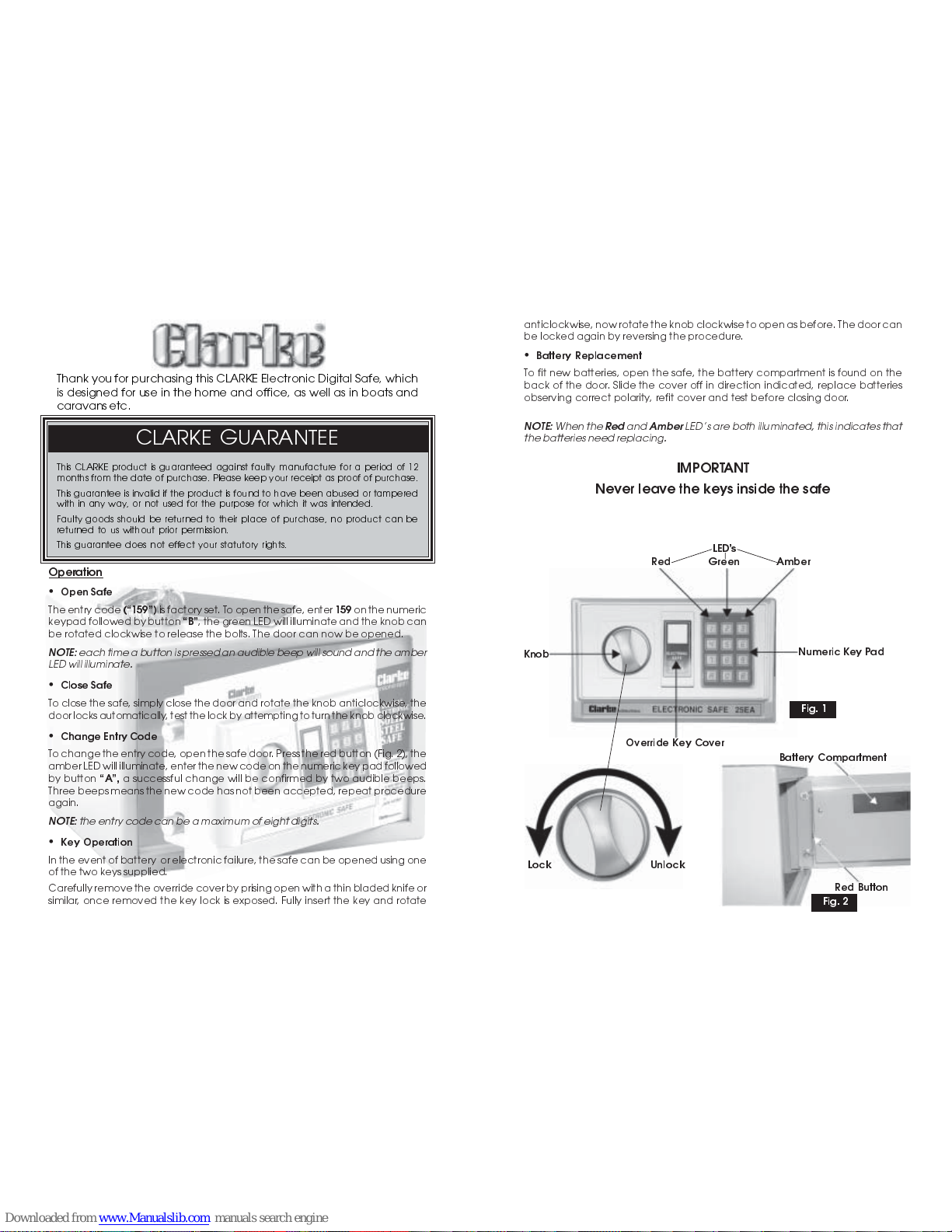

Thank you for purchasing this CLARKE Electronic Digital Safe, which
is designed for use in the home and office, as well as in boats and
caravans etc.

Operation



Open Safe

The entry code

(159)

is factory set. To open the safe, enter

159

on the numeric

keypad followed by button

B

, the green LED will illuminate and the knob can

be rotated clockwise to release the bolts. The door can now be opened.

NOTE:

each time a button is pressed an audible beep will sound and the amber

LED will illuminate.



Close Safe

To close the safe, simply close the door and rotate the knob anticlockwise, the
door locks automatically, test the lock by attempting to turn the knob clockwise.



Change Entry Code

To change the entry code, open the safe door. Press the red button (Fig. 2), the
amber LED will illuminate, enter the new code on the numeric key pad followed
by button

A,

a successful change will be confirmed by two audible beeps.
Three beeps means the new code has not been accepted, repeat procedure
again.

NOTE:

the entry code can be a maximum of eight digits.



Key Operation

In the event of battery or electronic failure, the safe can be opened using one
of the two keys supplied.

Carefully remove the override cover by prising open with a thin bladed knife or
similar, once removed the key lock is exposed. Fully insert the key and rotate

LEDs

Red

Green

Amber

Knob

Numeric Key Pad

Override Key Cover

anticlockwise, now rotate the knob clockwise to open as before. The door can
be locked again by reversing the procedure.



Battery Replacement

To fit new batteries, open the safe, the battery compartment is found on the
back of the door. Slide the cover off in direction indicated, replace batteries
observing correct polarity, refit cover and test before closing door.

NOTE:

When the

Red

and

Amber

LEDs are both illuminated, this indicates that

the batteries need replacing.

IMPORTANT

Never leave the keys inside the safe

Battery Compartment

Red Button

Fig. 1

Fig. 2

UnlockLock
