Clarke SMD5000/1 User guide

LED WORKLIGHT(110V)

MODEL NO: SMD5000/1

PART NO: 4003546

ASSEMBLY & USER

INSTRUCTIONS

ORIGINAL INSTRUCTIONS GC0625-Rev 1

INTRODUCTION

Thank you for purchasing this CLARKE portable LED worklight which can be used
either indoors or outdoors. Before attempting to use this product, please read this
manual thoroughly and follow the instructions carefully. In doing so you will ensure
the safety of yourself and that of others around you, and you can look forward to your
purchase giving you long and satisfactory service.

TECHNICAL INFORMATION

Model SMD5000/1

Dimensions (W x D x H) 670 x 520 x 1136 mm (opened)

Weight 3.65 kg

Tilt adjustment 135 degrees

Light Source SMD 2835 LED array

Operating Temperature

Ouput power 50 W

Light Output (luminous flux) 5000 @ 1m (lumens)

Fuse Rating 16 A

Power Supply 110V 50 Hz

Insulation Class Class II

IP Rating IP54

Energy Efficiency Class D

Efficacy 172 Lm/W

Colour Temperature 6000 K

-0oC to + 35oC

Weighted Energy Consumption 8 kWh/1000h

Life expectancy of LED 25,000 hours

2

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

SAFETY PRECAUTIONS

1. This worklight must NOT be immersed in water.

2. DO NOT look directly into the lamp when switched on as this can damage the
eyes.

3. If used with an extension cable always ensure that the extension cable is fully
unwound.

4. DO NOT use this worklight if it has a broken lens, casing or damaged cable.

5. ALWAYS unplug the worklight before moving it or performing maintenance. DO
NOT touch the lamp when your hands are wet.

6. DO NOT attempt to disassemble or repair the worklight.

7. DO NOT leave the worklight unattended when switched on. ALWAYS unplug the
worklight when it is not in use.

8. NEVER unplug by holding the cable. Unplug by holding the plug.

9. NEVER use the worklight if the cable or plug are damaged.

10. When erecting the tripod, ensure that the ground is level and firm.

11. Take extra care not to push or knock the tripod over when fully extended.

12. Ensure the lamp is a safe distance from other objects in the working space.

GUARANTEE

This product is guaranteed against faulty manufacture for a period of 12 months from
the date of purchase. Please keep your receipt which will be required as proof of
purchase.

This guarantee is invalid if the product is found to have been abused or tampered
with in any way, or not used for the purpose for which it was intended.

Faulty goods should be returned to their place of purchase, no product can be
returned to us without prior permission. This guarantee does not effect your statutory
rights.

ENVIRONMENTAL RECYCLING POLICY

Through purchase of this product, the customer is taking on the obligation
to deal with WEEE in accordance with the WEEE regulations in relation to
the treatment, recycling, recovery & environmentally sound disposal of the
WEEE.

This means that this product must not be disposed of with general household waste.
It must be disposed of according to the laws governing Waste Electrical and Electronic
Equipment (WEEE) at a recognised disposal facility

3

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

ELECTRICAL CONNECTIONS

WARNING! READ THESE ELECTRICAL SAFETY INSTRUCTIONS
THOROUGHLY BEFORE CONNECTING THE PRODUCT TO A
POWER SUPPLY.

This product can be connected to one of the following power supplies:

• 110V generator

• 110V isolating transformer

• 110V site supply

• 230V generator via a 110V transformer

Connecting it to any other power source may cause damage.

This product includes a fitted industrial plug to BS-EN
60309 and cable for use with a 110 volt supply. On no
account may a 230V/13amp (BS1363) plug be used.

If using a portable 110V transformer make sure it has a
rated capacity sufficient to take the load of the worklight.

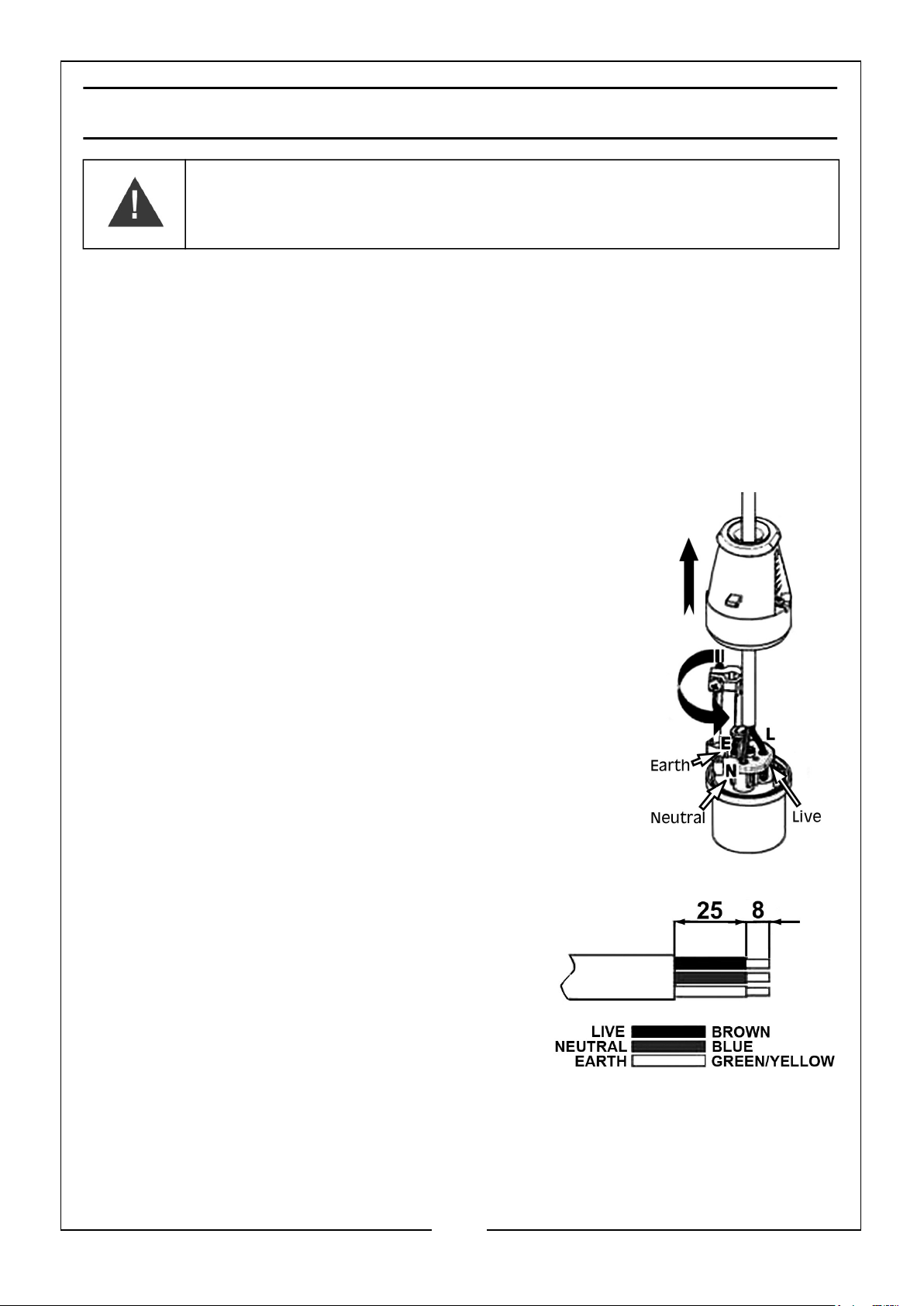

Should the plug need changing at any time, ensure that a
plug of identical specification is used and proceed as
follows:

1. Undo the socket screws & remove the rear section.

2. Rotate the cable clamp clear of the terminals.

3. Feed the cable through the rear gland in the plug.

4. Remove the cable sheath to the required lengths as
shown in the diagram.

5. Terminate the correct wires in the correct
terminal blocks as shown.

6. Remove the cable clamp screws. Clip the
cable clamp back into position and place the
clamp around the outer sheath of the cable.
Replace the screws and tighten until the
cable is securely held.

7. Replace the rear cover and tighten the cover
screws.

If in any doubt, consult a qualified electrician. DO NOT attempt any repairs yourself.

4

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

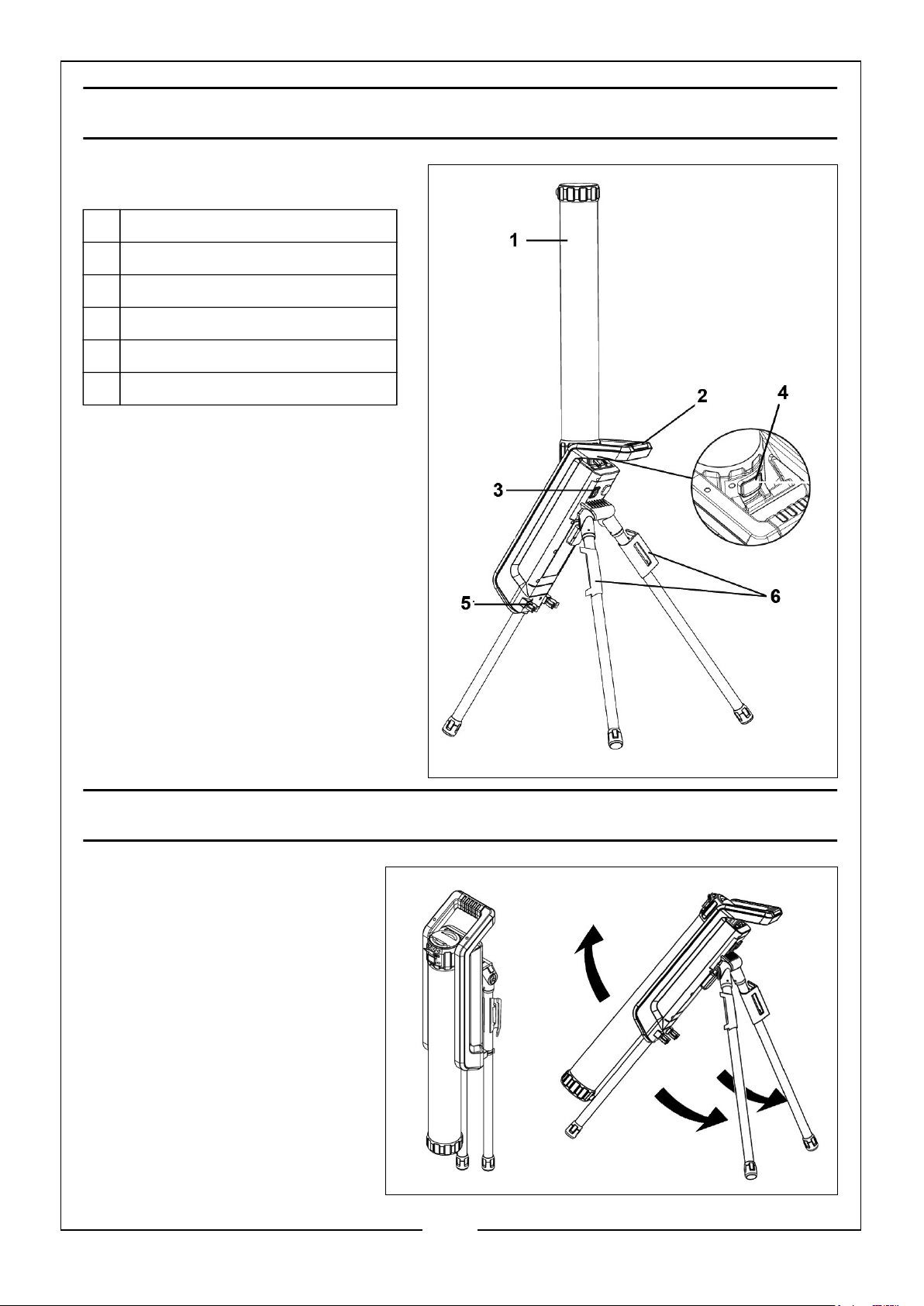

COMPONENT PARTS

1 Light Tube

2 Handle

3 On/Off Switch

4 Light tube release button

5 Tripod leg holder

6 Cable winder

ASSEMBLY & USE

Expand the tripod legs to the
maximum degree.

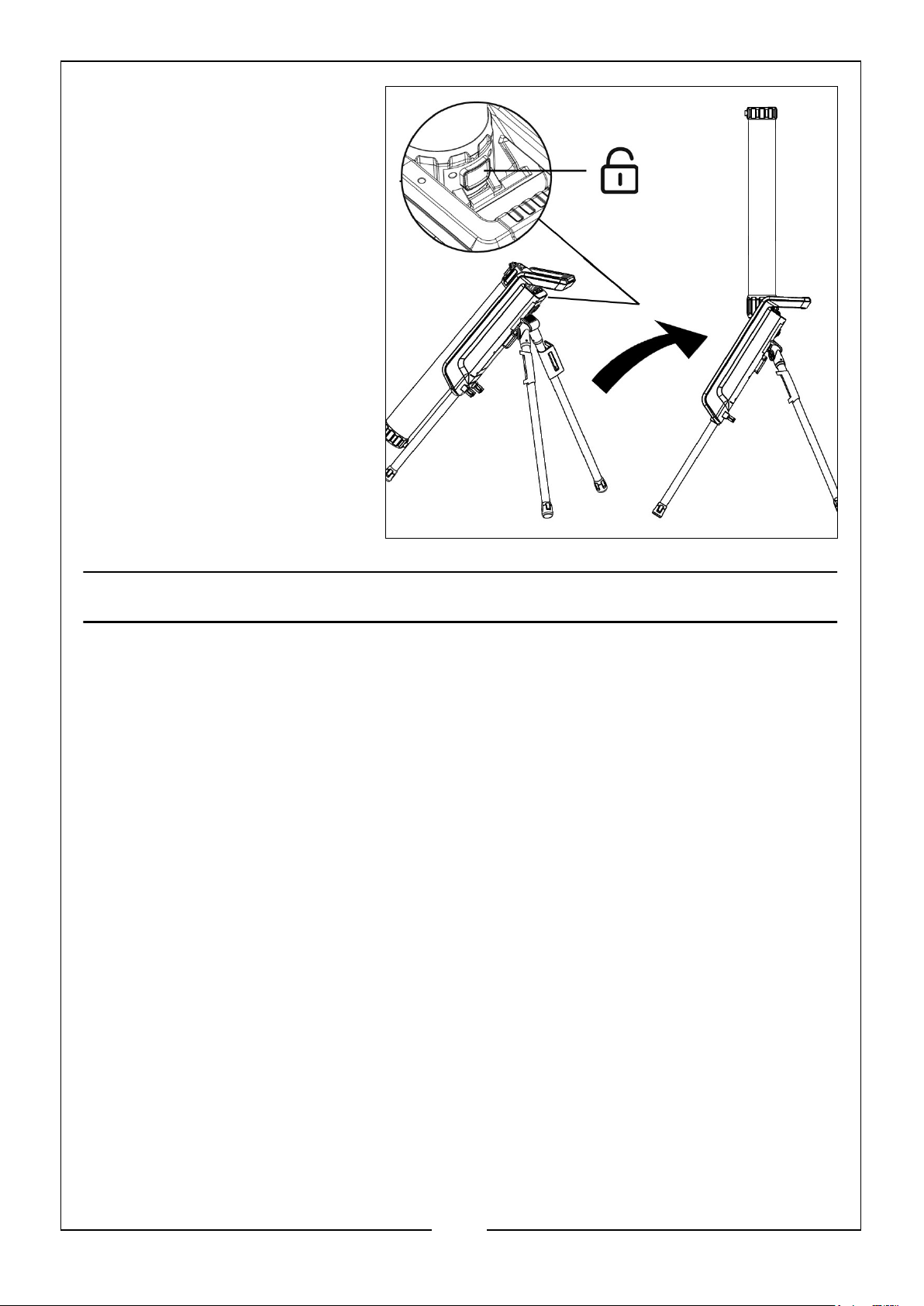

Flip the light tube over to the
vertical position, taking care
not to trap fingers.

5

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

The automatic locking secures
the light tube in this position.

To fold down the light tube,
press and hold the light tube
release button.

CARE & STORAGE

1. When not in use, switch off & unplug from the power supply. Coil the cable around
the storage hooks provided on the tripod for tidy storage.

2. Store this product in a secure, dry place, out of the reach of children. DO NOT
leave it exposed to the elements and avoid direct sunlight, direct heat, rain/
moisture etc.

3. Keep the external surfaces clean. Avoid impact damage & do not allow this
product to come into contact with abrasive or corrosive materials.

4. DO NOT use solvents, thinners or alcohol for cleaning, as these chemicals will
damage the finish. With the lamp unplugged from the power supply, use a dry
cloth to wipe over the lamp components.

5. Only use extension leads that are of an appropriate power rating and suitable for
the work environment. Inspect the extension lead regularly and replace if
damaged.

6. The LED light source cannot be replaced but has a life expectancy of
approximately 25000 hours.

7. NEVER use unauthorised accessories or attachments which can cause personal
injury or damage to the product.

8. DO NOT attempt to repair or modify this product or attempt any electrical repair
yourself. Consult the CLARKE Service Department on 020 8988 7400.

6

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

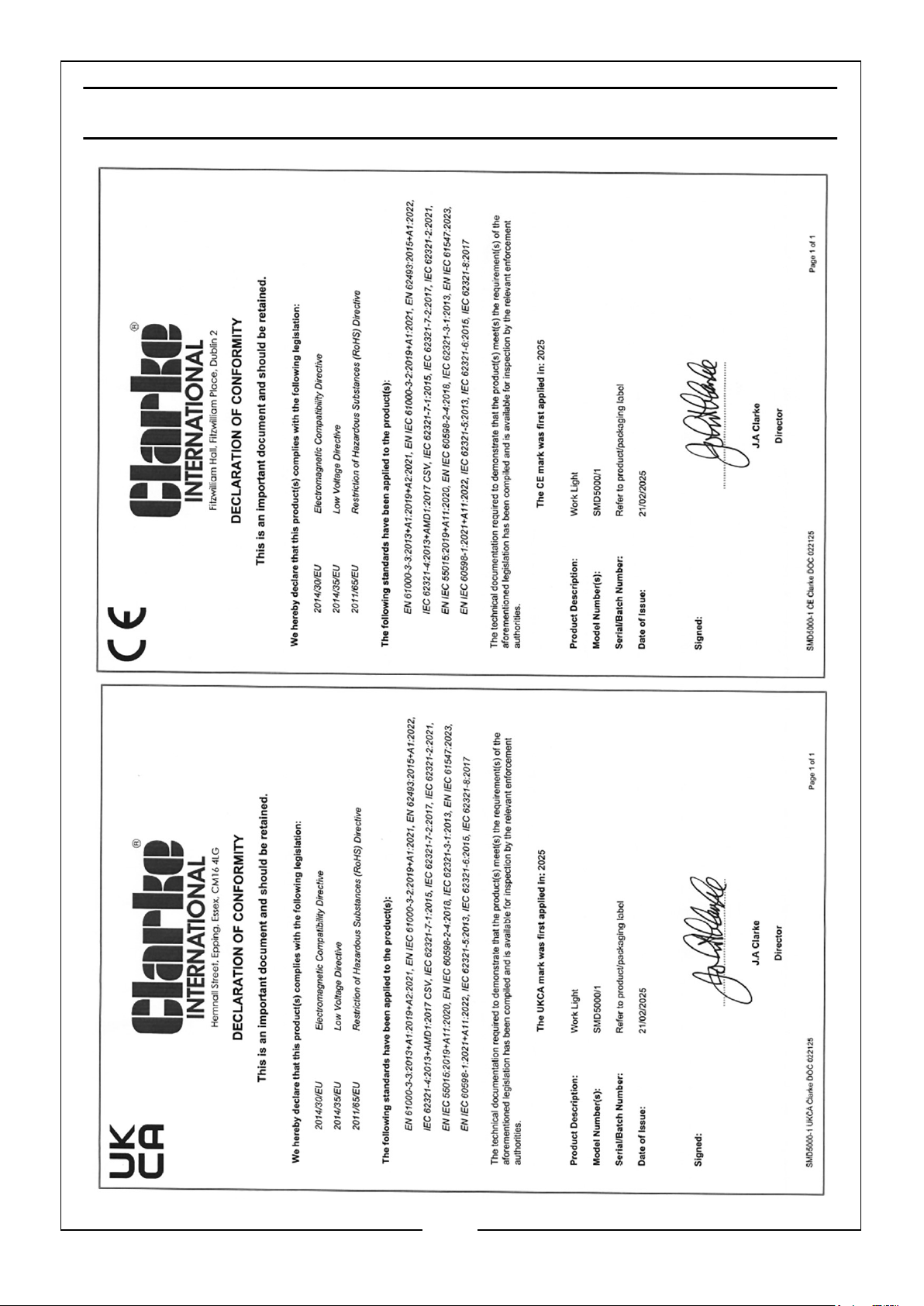

DECLARATIONS OF CONFORMITY

7
