Page 1
LED WORKLIGHT(230V)
MODEL NO: SMD5000
PART NO: 4003545
ASSEMBLY & USER
INSTRUCTIONS
ORIGINAL INSTRUCTIONS GC0724
Page 2
INTRODUCTION
Thank you for purchasing this CLARKE portable LED worklight which can be used
either indoors or outdoors. Before attempting to use this product, please read this
manual thoroughly and follow the instructions carefully. In doing so you will ensure
the safety of yourself and that of others around you, and you can look forward to your
purchase giving you long and satisfactory service.
TECHNICAL INFORMATION
Model SMD5000
Dimensions (W x D x H) 670 x 520 x 1136 mm (opened)
Weight 3.7 kg
Tilt adjustment 135 degrees
Light Source SMD 2835 LED array
Operating Temperature
Ouput power 50 W
Light Output (luminous flux) 5000 @ 1m (lumens)
Fuse Rating 13 A
Power Supply 230V 50 Hz
Insulation Class II (with socket earth only)
IP Rating IP54
Energy Efficiency Class D
Efficacy 172.5 Lm/W
Colour Temperature 6000 K
-0oC to + 35oC
Weighted Energy Consumption 8 kWh/1000h
Life expectancy of LED 25,000 hours
2
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 3
SAFETY PRECAUTIONS
1. This worklight must NOT be immersed in water.
2. DO NOT look directly into the lamp when switched on as this can damage the
eyes.
3. If used with an extension cable always ensure that the extension cable is fully
unwound.
4. DO NOT use this worklight if it has a broken lens, casing or damaged cable.
5. ALWAYS unplug the worklight before moving it or performing maintenance. DO
NOT touch the lamp when your hands are wet.
6. DO NOT attempt to disassemble or repair the worklight.
7. DO NOT leave the worklight unattended when switched on. ALWAYS unplug the
worklight when it is not in use.
8. NEVER unplug by holding the cable. Unplug by holding the plug.
9. NEVER use the worklight if the cable or plug are damaged.
10. When erectling the tripod, ensure that the ground is level and firm.
11. Take extra care not to push or knock the tripod over when fully extended.
12. Ensure the lamp is a safe distance from other objects in the working space.
GUARANTEE
This product is guaranteed against faulty manufacture for a period of 12 months from
the date of purchase. Please keep your receipt which will be required as proof of
purchase.
This guarantee is invalid if the product is found to have been abused or tampered
with in any way, or not used for the purpose for which it was intended.
Faulty goods should be returned to their place of purchase, no product can be
returned to us without prior permission. This guarantee does not effect your statutory
rights.
ENVIRONMENTAL RECYCLING POLICY
Through purchase of this product, the customer is taking on the obligation
to deal with the WEEE in accordance with the WEEE regulations in relation
to the treatment, recycling & recovery and environmentally sound disposal
of the WEEE.
In effect, this means that this product must not be disposed of with general
household waste. It must be disposed of according to the laws governing Waste
Electrical and Electronic Equipment (WEEE) at a recognised disposal facility.
3
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 4

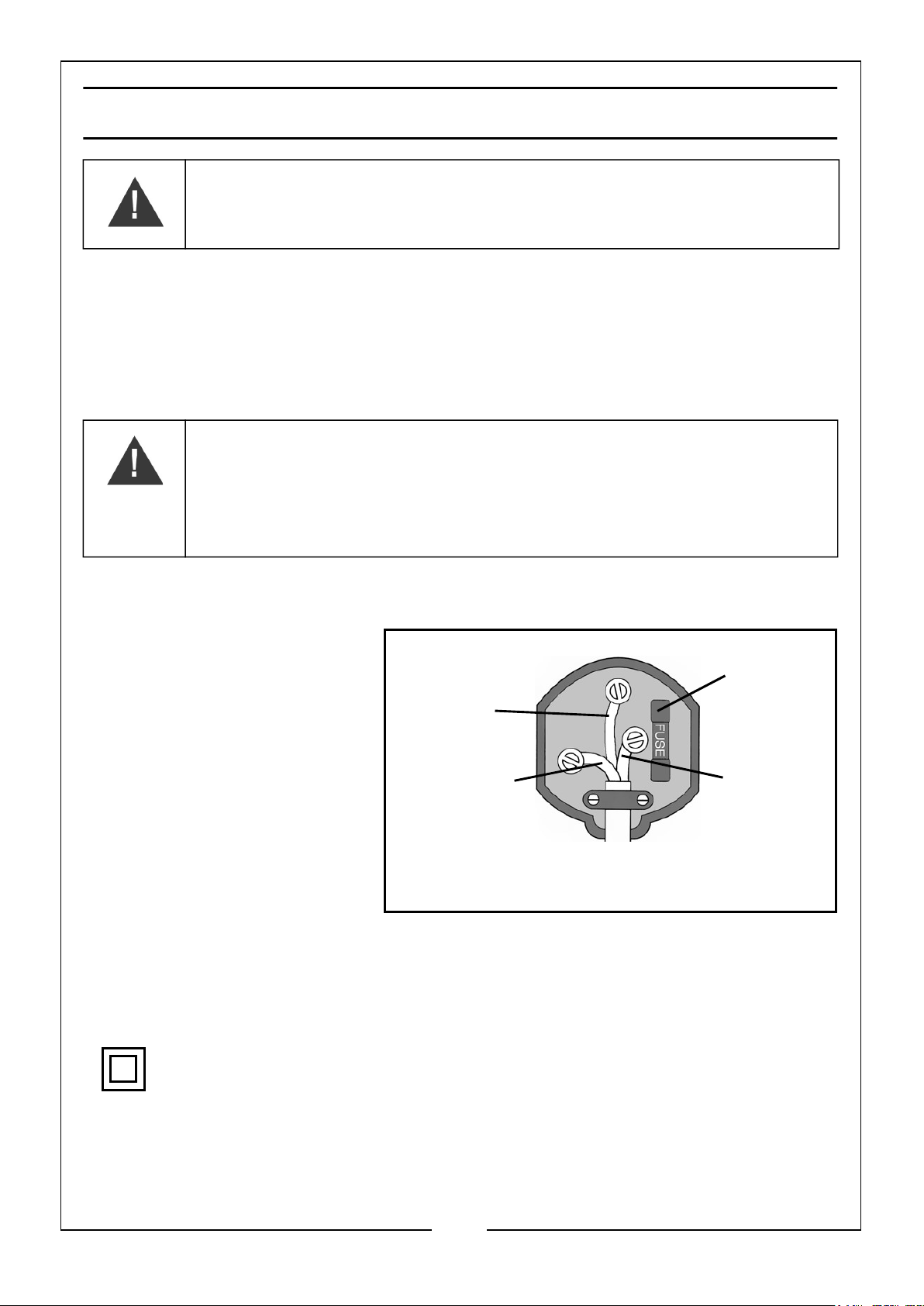

ELECTRICAL CONNECTIONS
WARNING! READ THESE ELECTRICAL SAFETY INSTRUCTIONS
THOROUGHLY BEFORE CONNECTING THE PRODUCT TO THE
MAINS POWER SUPPLY.
Connect the mains lead to a standard, 230 Volt (50Hz) electrical supply through an
approved BS 1363 plug, or a suitably fused isolator switch.
If the plug has to be changed because it is not suitable for your socket, or because of
damage, it must be removed and a replacement fitted, following the wiring
instructions shown below. The old plug must be discarded safely, as insertion into a
power socket could cause an electrical hazard.
WARNING: THE WIRES IN THE POWER CABLE OF THIS
PRODUCT ARE COLOURED IN ACCORDANCE WITH THE
FOLLOWING CODE:
BLUE = NEUTRAL BROWN = LIVE YELLOW AND GREEN =
EARTH
If the colours of the wires in the power cable do not agree with the markings on the
plug.
• The BLUE wire must be
connected to the
terminal marked N or
coloured black.
• The BROWN wire must
be connected to the
terminal marked L or
coloured red.
• The YELLOW AND
GREEN wire must be
connected to the
terminal marked E or
or coloured green.
We strongly recommend that this product is connected to the mains supply
through a Residual Current Device (RCD)
If in any doubt, consult a qualified electrician. DO NOT attempt any repairs yourself.
(Green and
Yellow)
Plug must be BS1363/A approved.
Earth
Neutral
(Blue)
Ensure that the outer sheath of
the cable is firmly held by the clamp
Always fit
a 13 Amp
fuse.
Live
(Brown)
This symbol indicates that the product is classified as a Class II
component and does not require an earth connection. However, the
3-pin power socket is earthed.
4
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 5

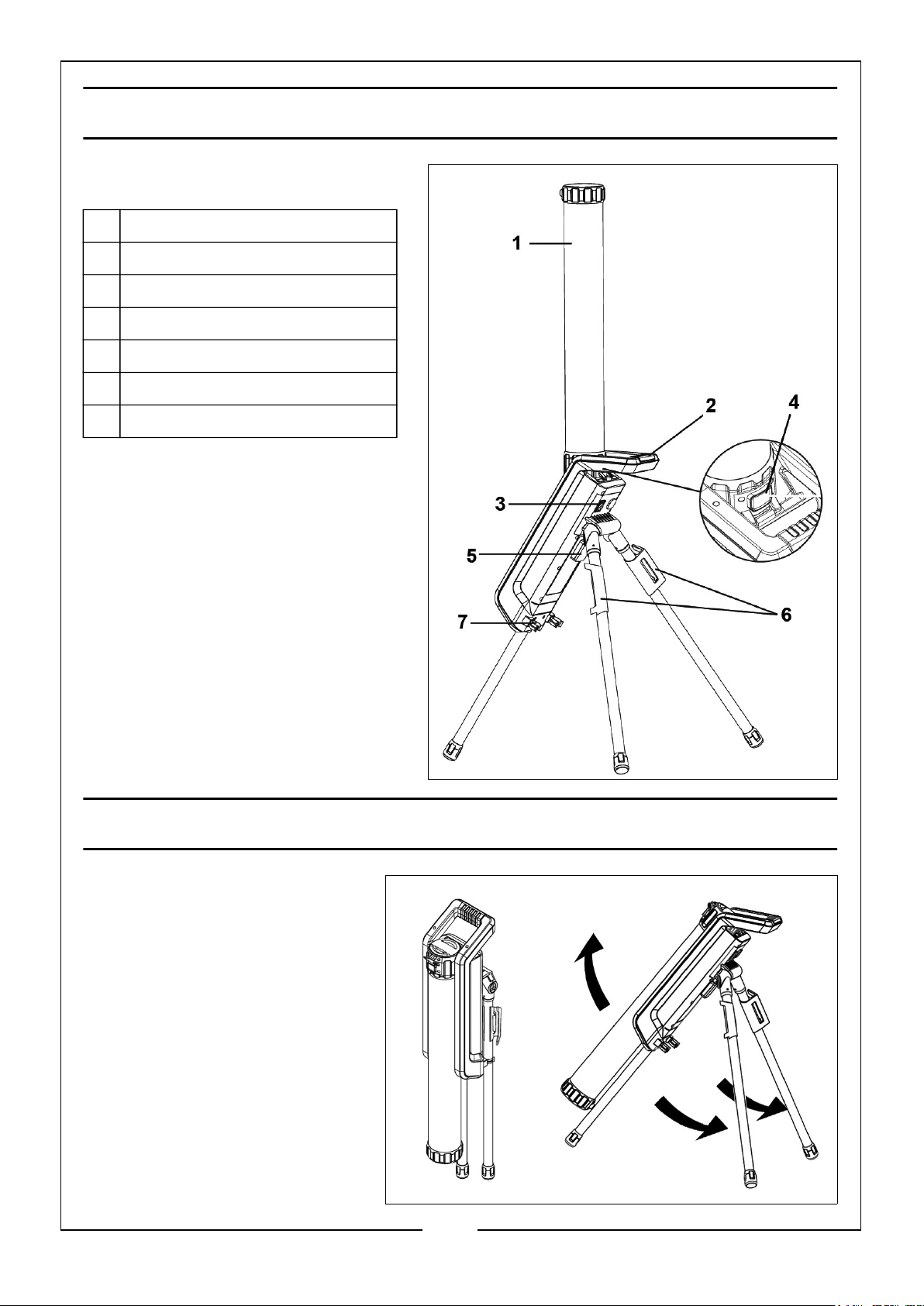

COMPONENT PARTS
1 Light Tube
2 Handle
3 On/Off Switch
4 Light tube release button
5 Power outlet
6 Cable winder
7 Tripod leg locker
ASSEMBLY & USE
Expand the tripod legs to the
maximum degree.
Flip the light tube over to the
vertical position.
5
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 6

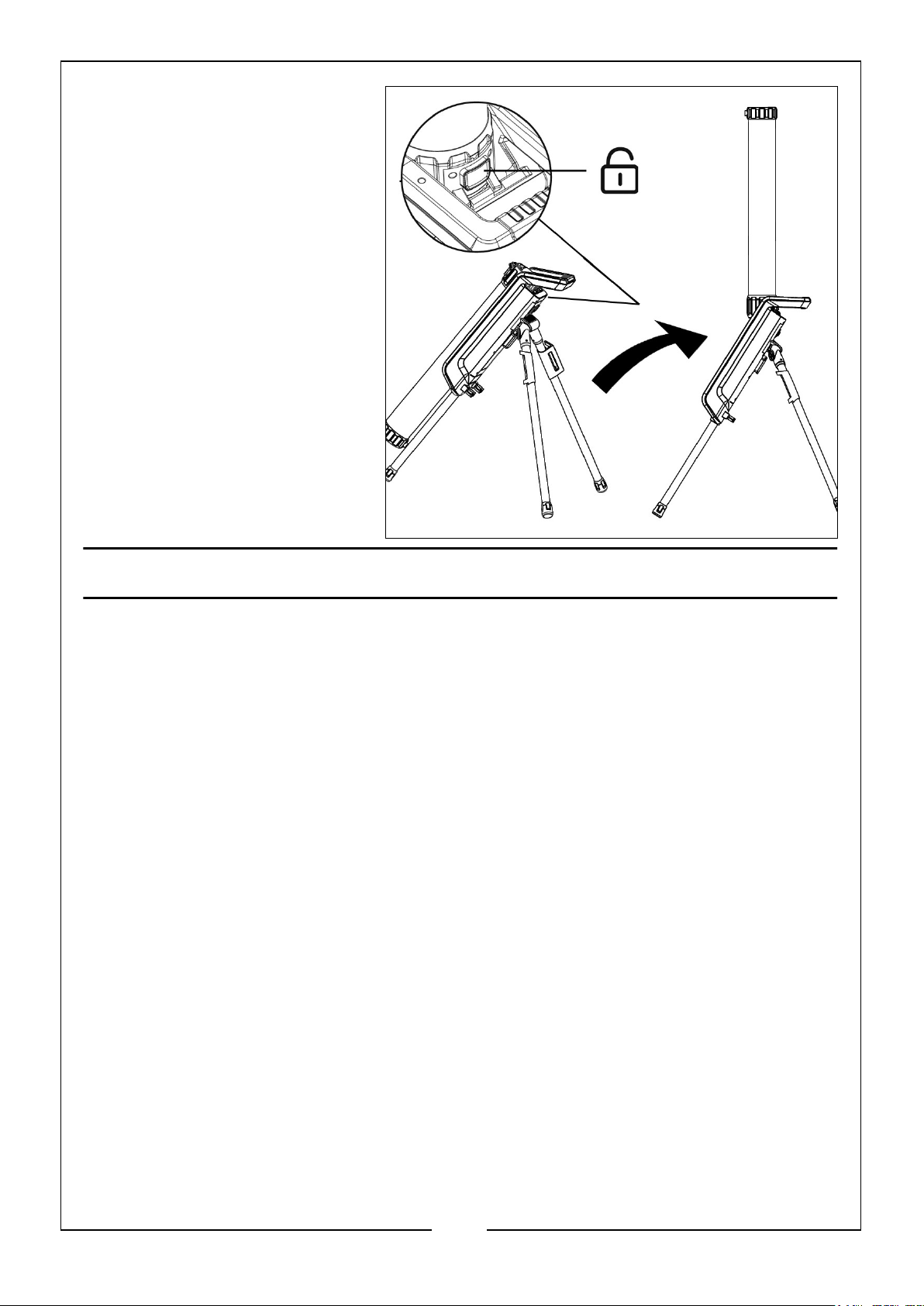

The automatic locking secures
the light tube in this position.
Press and hold the light tube
release button.
Fold down the light tube.
CARE & STORAGE
1. When not in use, switch off & unplug from the power supply. Coil the cable around
the storage hooks provided on the tripod for tidy storage.
2. Store this product in a secure, dry place, out of the reach of children. DO NOT
leave it exposed to the elements and avoid direct sunlight, direct heat, rain/
moisture etc.
3. Keep the external surfaces clean. Avoid impact damage & do not allow this
product to come into contact with abrasive or corrosive materials.
4. DO NOT use solvents, thinners or alcohol for cleaning, as these chemicals will
damage the finish. With the lamp unplugged from the power supply, use a dry
cloth to wipe over the lamp components.
5. Only use extension leads that are of an appropriate power rating and suitable for
the work environment. Inspect the extension lead regularly and replace if
damaged.
6. The LED light source cannot be replaced but has a life expectancy of
approximately 25000 hours.
7. NEVER use unauthorised accessories or attachments which can cause personal
injury or damage to the product.
8. DO NOT attempt to repair or modify this product or attempt any electrical repair
yourself. Consult the CLARKE Service Department on 020 8988 7400.
6
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 7

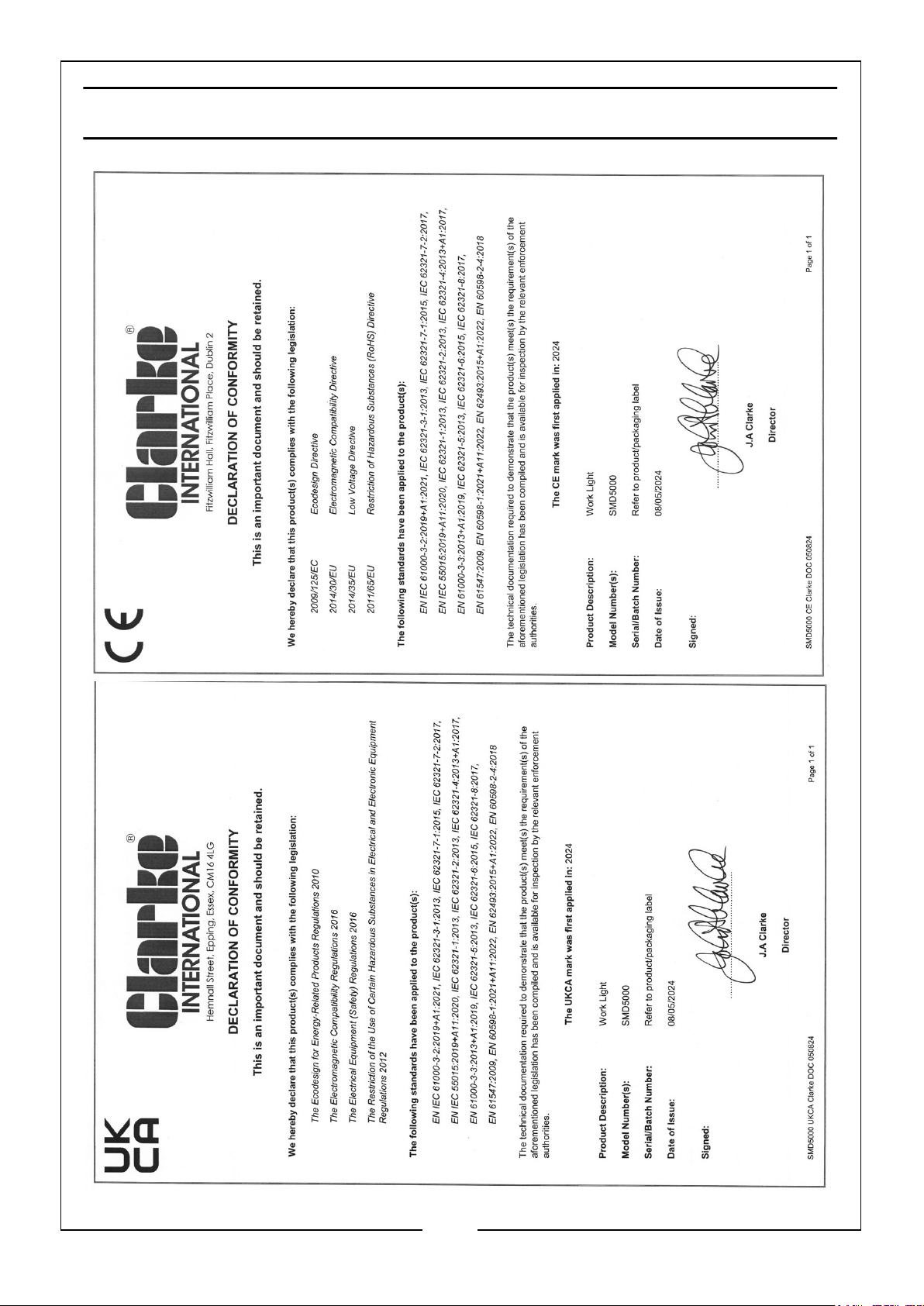

DECLARATIONS OF CONFORMITY
7
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
