Page 1

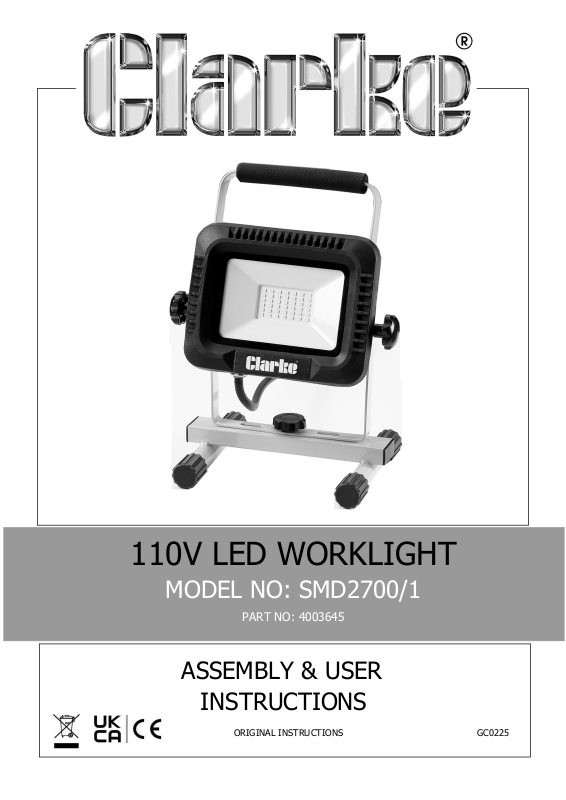

110V LED WORKLIGHT
MODEL NO: SMD2700/1
PART NO: 4003645
ASSEMBLY & USER
INSTRUCTIONS
ORIGINAL INSTRUCTIONS GC0225
Page 2
INTRODUCTION
Thank you for purchasing this CLARKE portable LED floorstanding floodlight, suitable
for both indoor and outdoor use.
Before attempting to use this product, please read this manual thoroughly and follow
the instructions carefully. In doing so you will ensure the safety of yourself and that of
others around you, and you can look forward to your purchase giving you long and
satisfactory service.
SPECIFICATIONS
Model SMD2700-1 (110v)
Dimensions (W x D x H) 210 x 140 x 275 mm
Weight 1.15 kg
Light Source SMD LED array
Operating Temperature -10 to +45oC
Input power 30 W
Light Output (luminous flux) 2700 @ 1m (lumen)
Power Supply 110V/ 50 HZ
Insulation Class Class 1
Ingress Protection Rating IP65
Energy Efficiency Class F
Colour Temperature 6500 K
Weighted Energy Consumption 30 kWh/1000h
Efficiency 90 Lm/W
Life Expectancy of LEDs 30,000 hours
2
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 3
SAFETY PRECAUTIONS
1. This worklight must not be immersed in water.
2. DO NOT look directly into the lamp when switched on as this can damage the
eyes.
3. DO NOT use this worklight if it has a broken lens, casing or damaged cable.
4. ALWAYS unplug the worklight before moving it or performing maintenance. Do
not touch the lamp when your hands are wet.
5. DO NOT attempt to disassemble or repair the worklight.
6. DO NOT leave the worklight unattended when switched on. Always unplug the
worklight when it is not in use.
7. ALWAYS unplug the worklight by holding the plug, NEVER only the cable.
8. NEVER use the worklight if the cable or plug are damaged.
9. Ensure the lamp is a safe distance from other objects in the workplace.
10. Never use unauthorized accessories or attachments which can cause personal
injury or damage to the product.
GUARANTEE
This product is guaranteed against faulty manufacture for a period of 12 months from
the date of purchase. Please keep your receipt which will be required as proof of
purchase.
This guarantee is invalid if the product is found to have been abused or tampered
with in any way, or not used for the purpose for which it was intended.
Faulty goods should be returned to their place of purchase, no product can be
returned to us without prior permission. This guarantee does not effect your statutory
rights.
ENVIRONMENTAL RECYCLING POLICY
Through purchase of this product, the customer is taking on the obligation to deal
with WEEE in accordance with the WEEE regulations in relation to the treatment,
recycling, recovery & environmentally sound disposal of the WEEE.
This means that this product must not be disposed of with general household waste.
It must be disposed of according to the laws governing Waste Electrical and Electronic
Equipment (WEEE) at a recognised disposal facility.
3
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 4
ELECTRICAL CONNECTIONS
WARNING! READ THESE ELECTRICAL SAFETY INSTRUCTIONS
THOROUGHLY BEFORE CONNECTING THE PRODUCT TO A
POWER SUPPLY.
This product can be connected to one of the following power supplies:
• 110V generator
• 110V isolating transformer
• 110V site supply
• 230V generator via a 110V transformer.
Connecting it to any other power source may cause damage.
This product includes a fitted industrial plug to BS-EN
60309 and cable for use with a 110 volt supply. On no
account may a 230V/13amp (BS1363) plug be used.
If using a portable 110V transformer make sure it has a
rated capacity sufficient to take the load of the worklight.

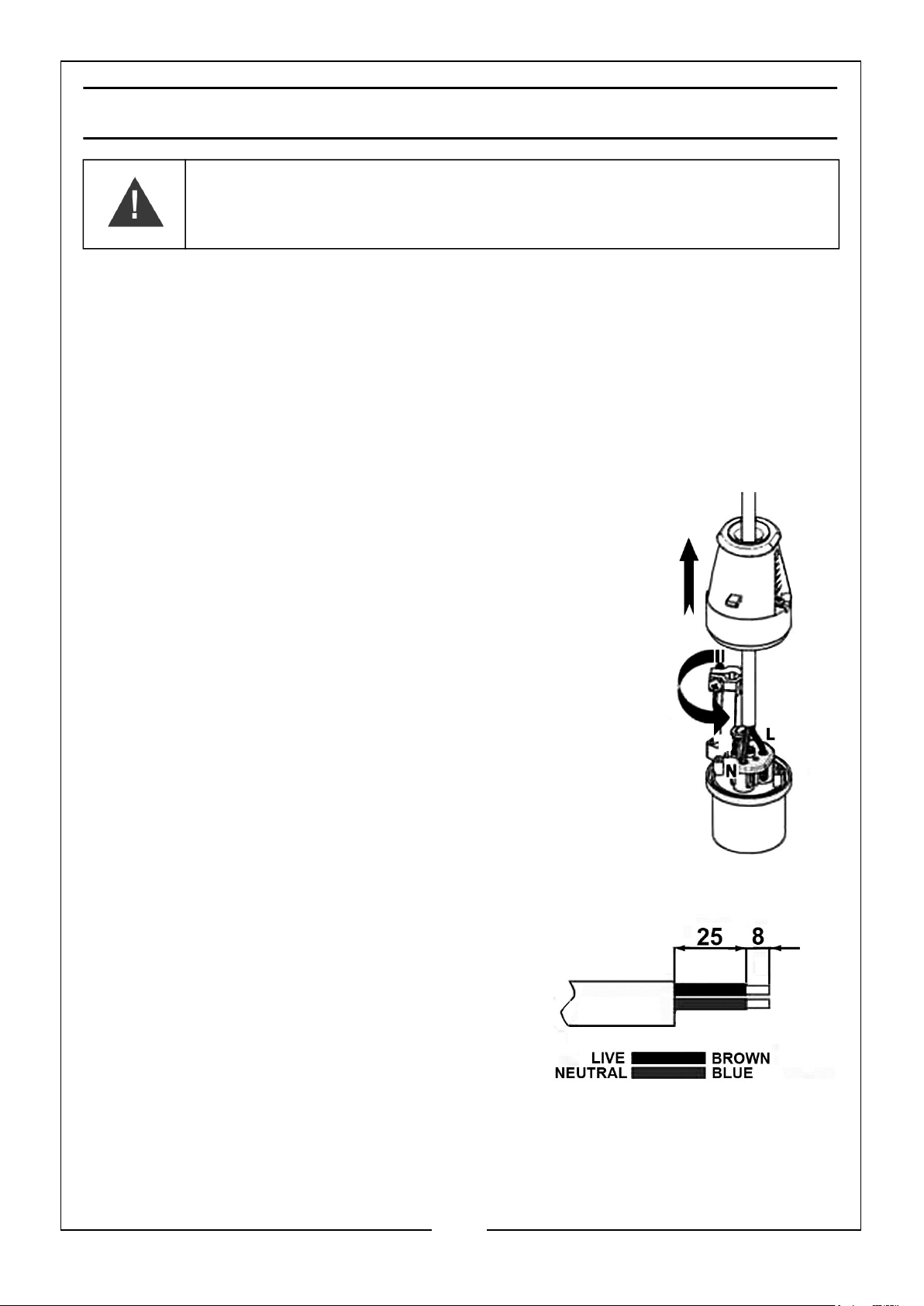

Should the plug need changing at any time, ensure a plug
of identical specification is used and proceed as follows:
1. Undo the socket screws & remove the rear section.
2. Rotate the cable clamp clear of the terminals.
3. Feed the cable through the rear gland in the plug.
4. Remove the cable sheath to the required lengths as
shown in the diagram.
5. Terminate the correct wires in the correct terminal
blocks as shown.
6. Remove the cable clamp screws. Clip the
cable clamp back into position and place the
clamp around the outer sheath of the cable.
Replace the screws and tighten until the
cable is securely held.
7. Replace the rear cover and tighten the cover
screws.
If in any doubt, consult a qualified electrician.
DO NOT attempt any repairs yourself. The user should purchase a suitable
connecting lead which is compatible with the appliance socket. The length should give
mobility to the worklight but without becoming a trip hazard.
4
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 5

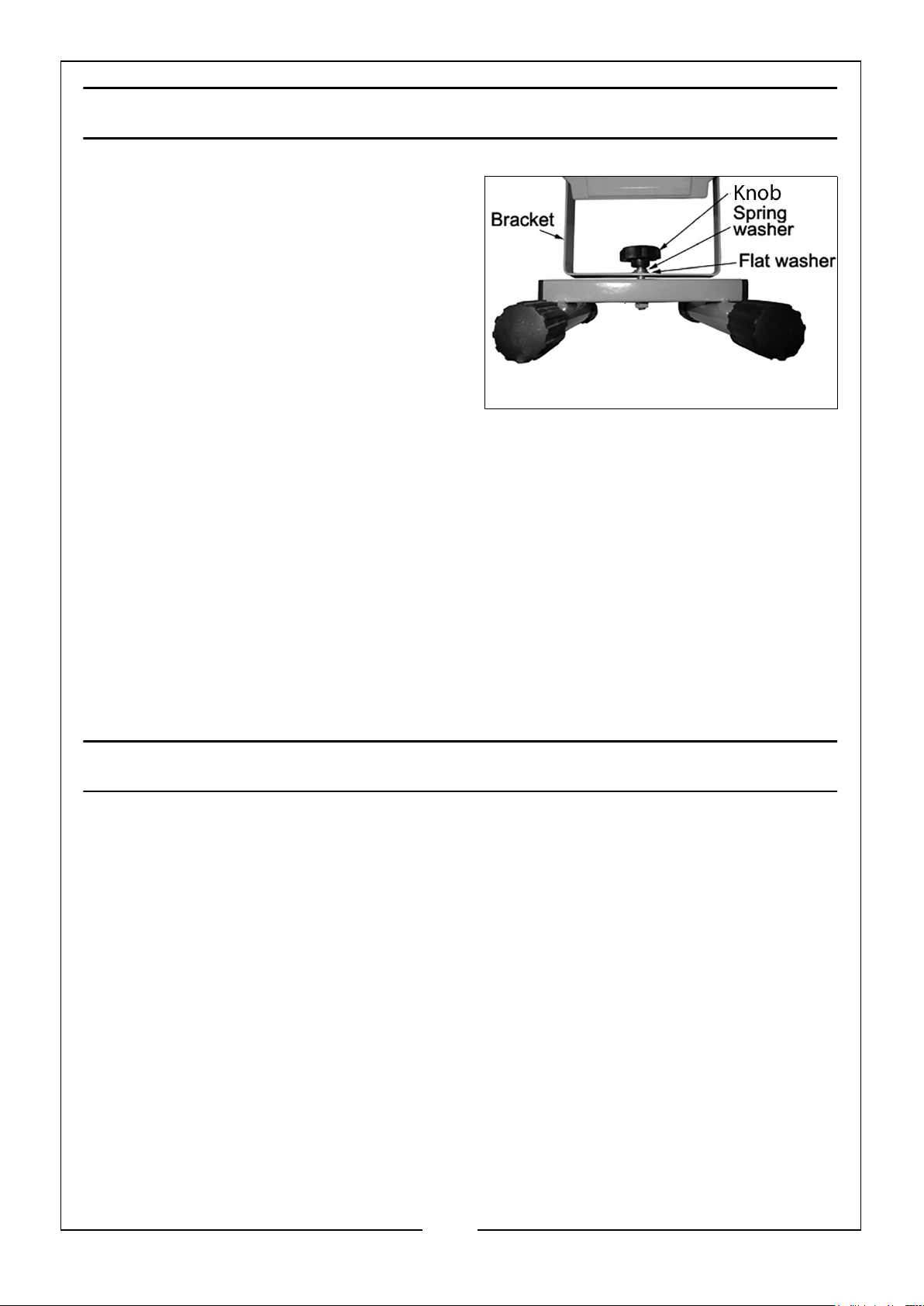

ASSEMBLY & MOUNTING
1. Place the stand on a flat surface.
2. Use the locking knob, flat washer and
spring washer to secure the bracket on
the bottom of the stand.
3. Turn the bracket to a suitable direction
and tighten the locking knob firmly.
ADJUSTING THE LIGHT DIRECTION
The work light head can be tilted vertically
up to 30° down or 90° up.
To adjust the light direction, adjust the work light head to the desired position.
TURN THE LED WORK LIGHT ON
Before working with the work light, check that the voltage shown on the light’s model
plate is the same as the mains voltage being used.
The work light head is NOT equipped with an ON/OFF
Connect the plug to the power supply, the work light can be light.
• The worklamp can be swivelled if required by loosening the screw knob.
Tighten the hinge bolts on either side to set the angle of elevation as required.
CARE & STORAGE
1. When not in use, switch off & unplug from the power supply.
2. Store in a secure, dry place, out of the reach of children. DO NOT leave it
exposed to the elements and avoid direct sunlight, direct heat, rain/moisture etc.
3. Keep the external surfaces clean. Avoid impact damage & DO NOT allow this
product to come into contact with abrasive or corrosive materials.
4. DO NOT use solvents, thinners or alcohol for cleaning, as these chemicals will
damage the finish. With the lamp unplugged from the power supply, use a dry
cloth to wipe over the lamp components.
5. The LED light source cannot be replaced but has a life expectancy of
approximately 30000 hours.
6. DO NOT attempt to repair or modify this product or attempt any electrical repair
yourself. Consult the Clarke Service Department on 020 8988 7400.
5
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 6

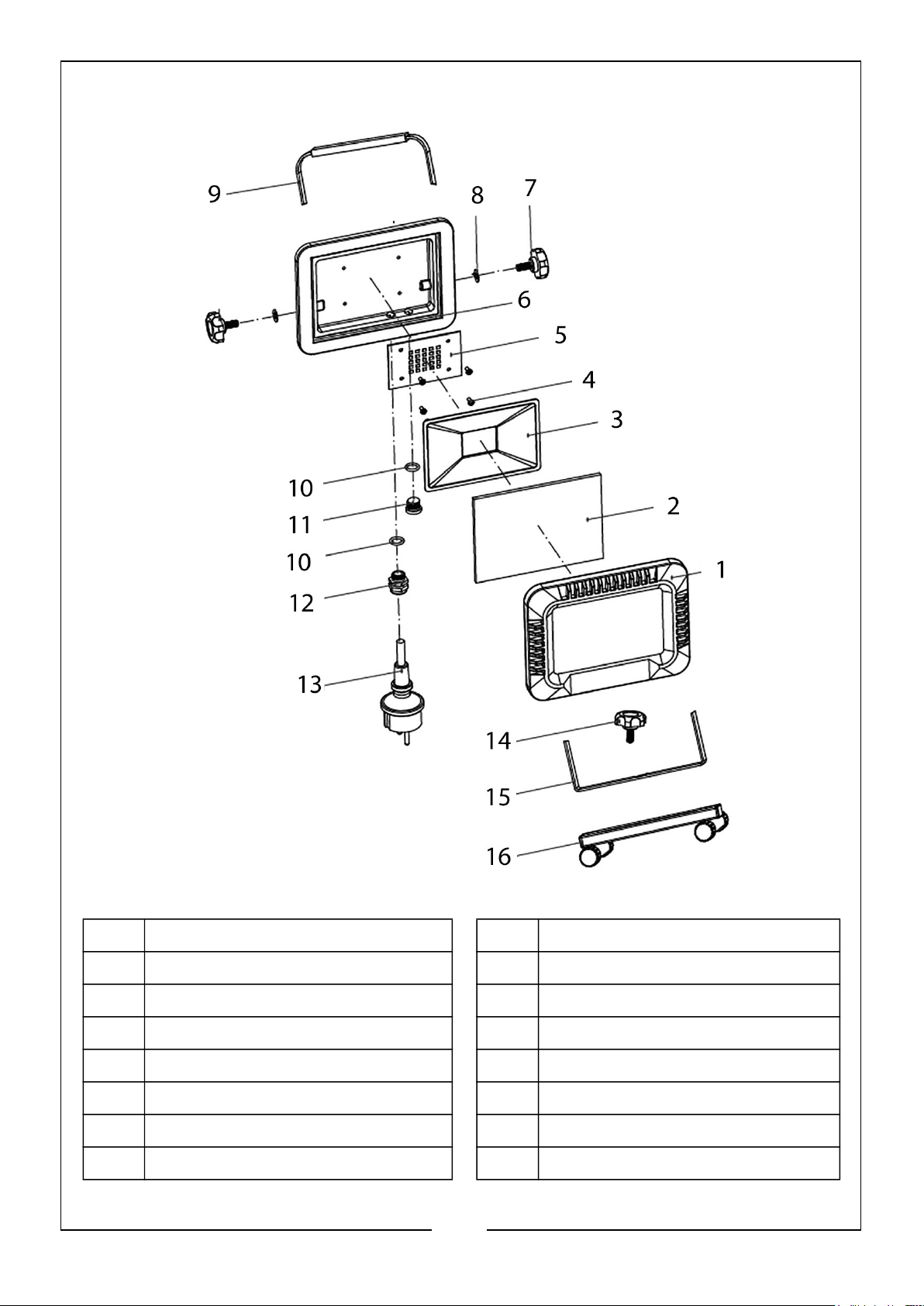

REPLACEMENT PARTS
1 Face frame 9 Carrying handle
2 Tempered glass 4mm 10 O-ring
3 Reflector 11 Waterproof end cap
4 Screws M3 x 6 12 Waterproof cable gland
5 LED panel 13 Cable with plug
6 Housing 14 Stand locking knob M6
7 Angle adjusting knob M6 15 Lower bracket
8 Washer M6 16 H-stand
6
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 7

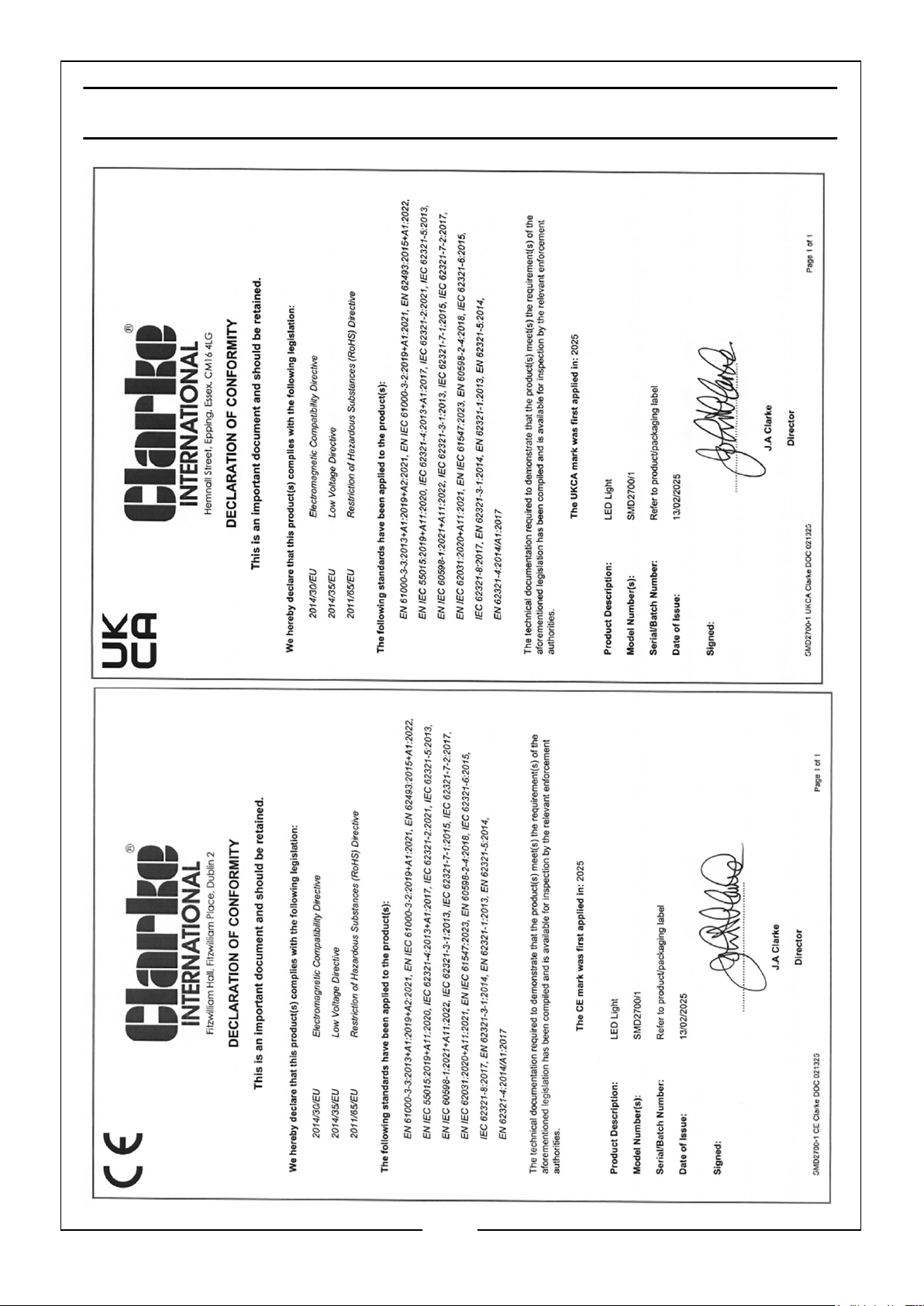

DECLARATIONS OF CONFORMITY
7
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
