RECHARGEABLE LED WORKLIGHT
MODEL NO: SMD2000R
PART NO: 4003644
USER INSTRUCTIONS
ORIGINAL INSTRUCTIONS GC-02/25
Page 2
INTRODUCTION
Thank you for purchasing this CLARKE portable worklight.
Before attempting to use this product, please read this manual thoroughly and follow
the instructions carefully. In doing so you will ensure the safety of yourself and that of
others around you, and you can look forward to your purchase giving you long and
satisfactory service.
TECHNICAL SPECIFICATIONS
Model SMD2000R
Charger input voltage 230V-50Hz
Operating voltages 5VDC - 2A
Charging cable length 1M
LED Wattage consumption 20W
Lithium battery 3.7V DC /8800 mAh
Efficiency 100 Lm/W
Lighting source SMD 40LED array
Light output (luminous flux) 2000 lumens
Colour temperature (rendering) 6500 K
Ingress Protection (IP rating) IP54
Operating temperatures
Dimension (L x W x H) 225 x 175 x 265 mm
Weight 1.2 Kg
0 to +45oC
GUARANTEE
This product is guaranteed against faulty manufacture for a period of 12 months from
the date of purchase. Please keep your receipt which will be required as proof of
purchase.
This guarantee is invalid if the product is found to have been abused or tampered
with in any way or not used for the purpose for which it was intended.
Faulty goods should be returned to their place of purchase, no product can be
returned to us without prior permission. This guarantee does not effect your
statutory rights.
2
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 3
SAFETY PRECAUTIONS
1. DO NOT look directly into the lamp when switched on as this can damage your
eyes.
2. DO NOT use this worklight if it has a damaged lens or casing.
3. DO NOT touch the lamp when your hands are wet.
4. DO NOT attempt to disassemble or repair the worklight.
5. DO NOT leave the worklight unattended when switched on.
6. NEVER aim the beam at any person or an object other than the work piece.
CHARGING USING THE USB CABLE
Charge the battery pack before using the lamp for the first time.

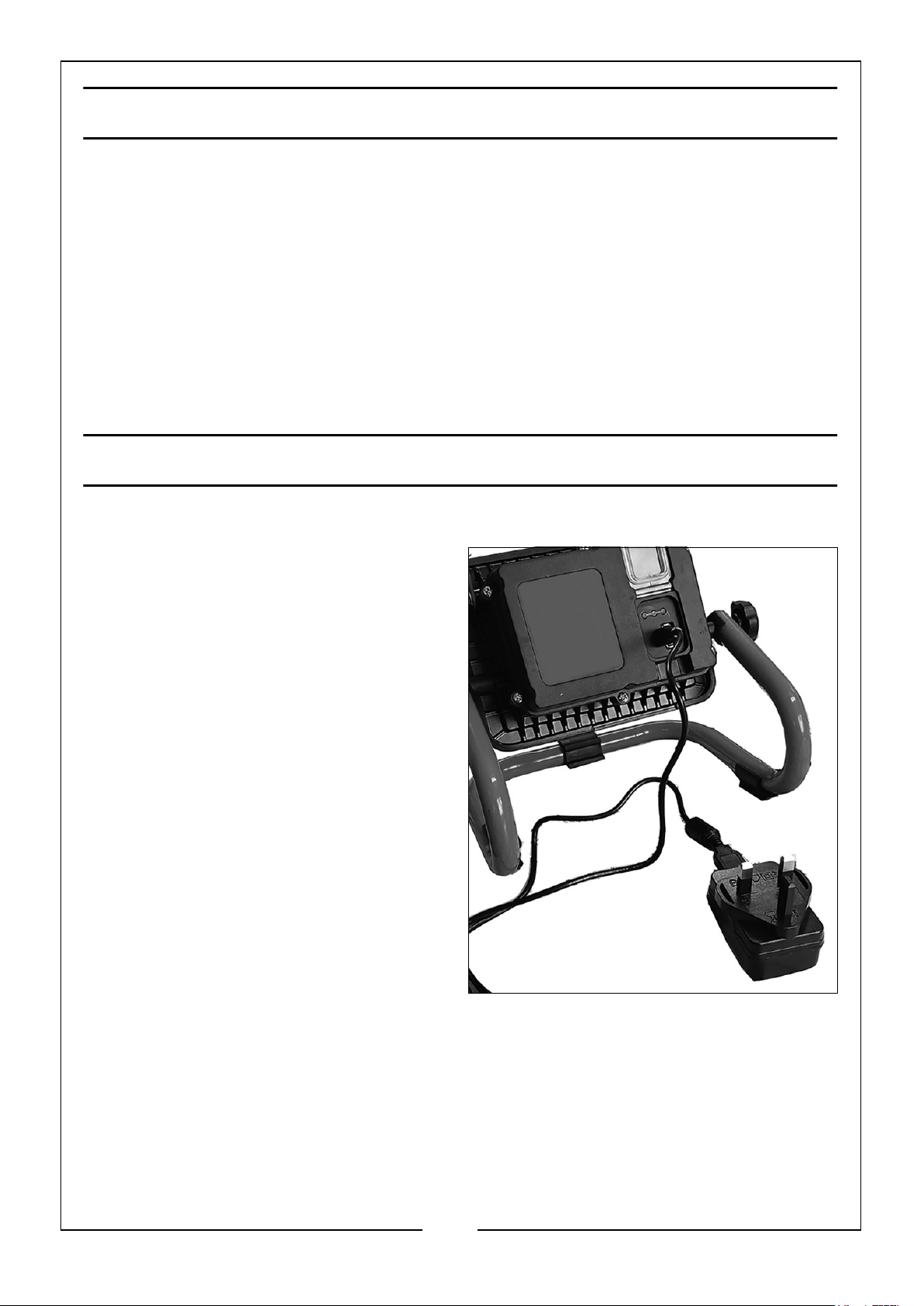

1. Open the protective cover and insert
the charging lead into the charging
socket and the other end into a
suitable USB socket or the 3-pin
mains adapter plug supplied.
2. Plug the adapter into a suitable
mains outlet and switch on.
When the battery is fully charged the
three LED indicators all illuminate (The
red light, yellow light and green light will
light up in sequence).
When charged, remove the charging
cable and close the protective cover to
protect from water.
NOTE: The LED indicators will show only
red when the battery pack is run down
and needs recharging.
• CHARGING TIME- 5-6 hours
To ensure maximum life from the battery, recharge after every use if possible and
thereafter, once every three months. ALWAYS avoid leaving the battery in a state of
discharge which would lead to reduced performance and to premature battery failure.
The worklight should not be used while using the charging cable.
NOTE: If the battery requires replacement take the unit to your CLARKE dealer.
3
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 4
ADJUSTMENT & USE
The LED work light’s stand is adjustable.
Loosen the locking knobs on both sides
and adjust the stand to the desired
position and re-tighten the knobs.
The worklight head can be tilted to the
required angle.
SWITCHING ON

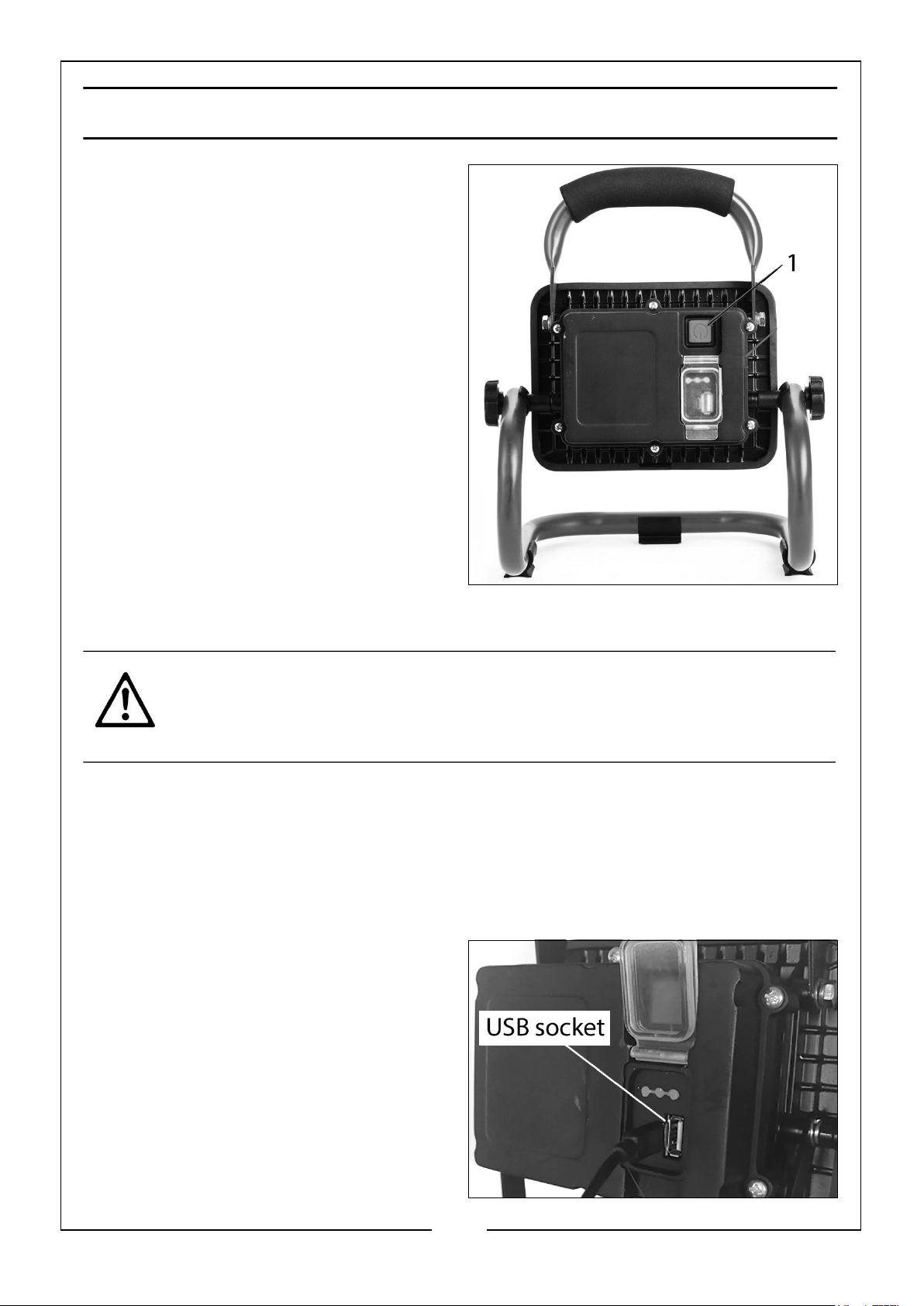

1. Press the red button (1) once to turn
on 100% brightness
1. Press a second time to turn on 50%
brightness
2. Press a third time to make the lamp
flash (S-o-S) continuously.
3. Press a fourth time to turn off.
4. Position the worklight near the work.
Adjust the stand to direct the light beam.
CAUTION: DO NOT LOOK DIRECTLY INTO THE LAMP WHEN SWITCHED ON
AS THIS CAN DAMAGE YOUR EYES.
DISCHARGING (RUNNING) TIME:
• About 3 hours at 100% brightness
• Approx 5 hours at 50% brightness
USB OUTPUT
The USB output socket can be used to
power all kinds of devices which can be
charged by a USB cable such as mobile
phones, MP3/MP4, Bluetooth headset
etc.
NOTE: The USB output will stop
automatically if the total working current
of the total connected devices exceeds
the permitted limit.
4
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 5
CARE & STORAGE
1. When not in use, switch off & unplug from the USB cable.
2. Store in a dry place, out of reach of children. DO NOT leave it exposed to the
elements & avoid direct sunlight, direct heat, rain/moisture etc.
3. Keep the external surfaces clean. Avoid impact damage & DO NOT allow this
product to come into contact with abrasive or corrosive materials such as solvents
which will damage the finish. Use a dry cloth to wipe over the lamp components.
4. The LED light source cannot be replaced but has a life expectancy of
approximately 30,000 hours.
5. DO NOT attempt to replace or change or the LEDs if the protective glass is
cracked or broken it must be replaced before the work light is used again.
6. DO NOT attempt to repair or modify this product or attempt any electrical repair
yourself. Consult the CLARKE Service Department.
BATTERY USE AND CARE
1. Recharge only with the charging cable supplied.
2. Under abusive conditions, liquid could be lost from the battery; avoid contact. If
contact accidentally occurs, flush with water. If liquid contacts eyes, additionally
seek medical help. Liquid ejected from the battery may cause irritation or burns.
ENVIRONMENTAL RECYCLING POLICY
Do not dispose of this product with general household waste. All tools,
accessories and packaging should be sorted, taken to a recycling centre and
disposed of according to the laws governing Waste Electrical and Electronic
Equipment.
Through purchase of this product, the customer is taking on the obligation to deal
with the WEEE in accordance with the WEEE regulations in relation to the treatment,
recycling & recovery and environmentally sound disposal of the WEEE.
In effect, this means that this product must not be disposed of with general
household waste. It must be disposed of according to the laws governing Waste
Electrical and Electronic Equipment (WEEE) at a recognised disposal facility.
The Lithium Ion battery falls under the Waste Batteries and Accumulators Regulations
2009 and should be disposed of in a controlled manner if necessary.
5
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 6
COMPONENT PARTS

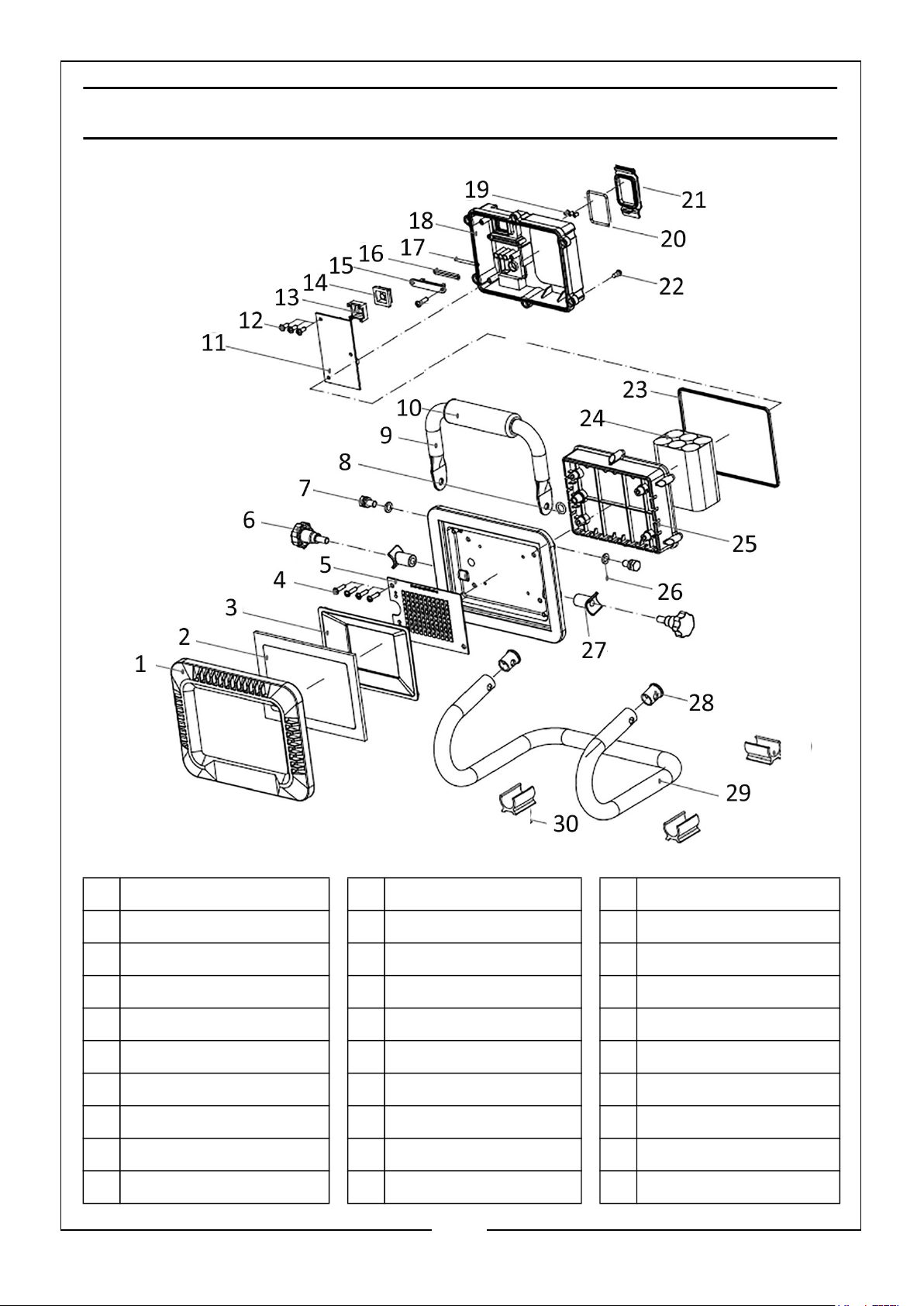

1 Face frame 11 PCB 21 Waterproof cap
2 Tempered glass 4mm 12 Screws ST3x8 22 Screws ST3.5x12
3 Reflector 13 Switch bracket 23 Sealing ring
4 Screw ST4 x 12 14 Switch cap 24 Battery pack
5 LED panel 15 Press plate 25 Battery box
6 Angle adjusting knob 16 Sealing ring 26 Flat washer 6
7 Nut M4x8 17 Roller pin 27 Connecting sleeve
8 Sealing washer 18 Rear housing 28 Pipe plug
9 Portable handle 19 Lamp guide 29 Stand
10 Handle sleeve 20 Sealing ring 30 Foot pad
6
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 7

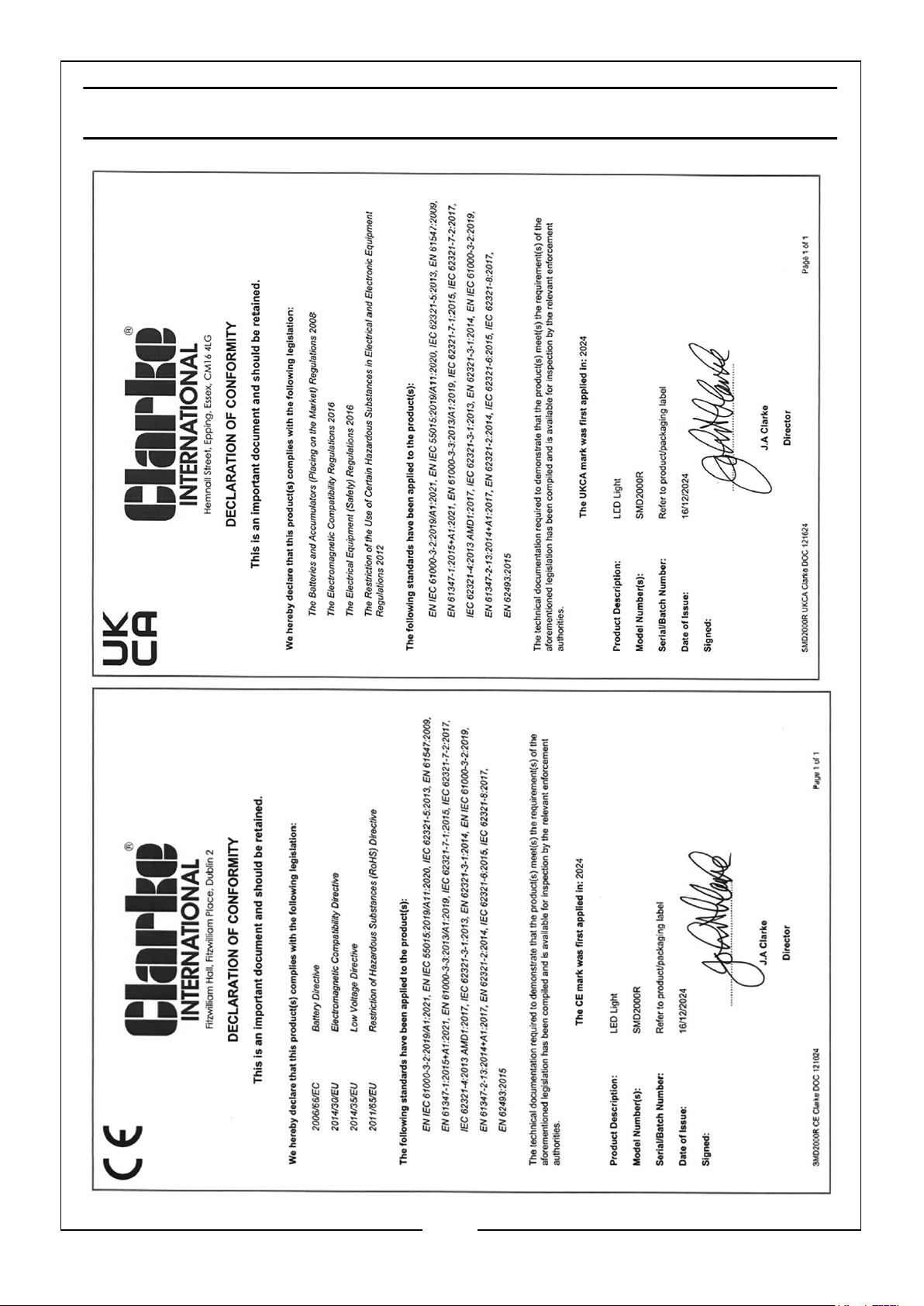

DECLARATIONS OF CONFORMITY
