Page 1
SAFETY HELMET
MODEL NO: SHY1(YELLOW)
PART NO: 8133824
USER INSTRUCTIONS
ORIGINAL INSTRUCTIONS DL0725 REV 2
Page 2
INTRODUCTION
Thank you for purchasing this CLARKE Safety Helmet. Before using this product,
please read this manual thoroughly and follow the instructions carefully. In doing so
you will ensure your safety and you can look forward to your purchase giving you long
and satisfactory service.
The SHW1/SHY1 (white/yellow) helmets have been designed to provide head
protection to meet the requirements of PPE Regulation (EU) 2016/425 and
EN397:2012+A1:2012.
The helmet is not suitable as PPE for climbing activities, fire fighting, sporting
activities such as cycling, skiing, equestrian, motorcycling etc. The helmet is not
designed to protect from heat hazards such as molten metal.
This helmet has been tested to withstand the following risks:
• Impact protection - maximum force transmitted up to 5kN, within a
temperature range of 50oC and -10oC
• Penetration by objects up to 3kg in weight, within a temperature range of
50oC and -10oC
MATERIALS DECLARATION
No parts of the helmet are made of materials that are known to cause skin irritation.
However, materials that come into contact with the skin can cause allergic reactions
to certain susceptible individuals.
GUARANTEE
This product is guaranteed against faulty manufacture for a period of 12 months from
the date of purchase. Please keep your receipt which will be required as proof of
purchase.
This guarantee is invalid if the product is found to have been abused or tampered
with in any way, or not used for the purpose for which it was intended.
Faulty goods should be returned to their place of purchase, no product can be
returned to us without prior permission.
This guarantee does not effect your statutory rights.
2
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 3
SAFETY PRECAUTIONS
The helmet should be checked each day before wearing to ensure that there are no
major surface defects such as crazing, cracks, deep scour marks, discolouration or
dents to the shell.
Never place this product on a hot surface.
FITTING AND ADJUSTMENT
For adequate protection the helmet must be adjusted to fit the user’s head correctly.
The helmet is adjustable for comfort and utility.
HEADBAND ADJUSTMENT
Horizontal headband adjustment is achieved by turning the adjuster.
Set the headband diameter with the
adjustment knob.
Twist clockwise to tighten and
counterclockwise to loosen
• The head band size is from 5066cm.
CHIN-STRAP ADJUSTMENT
1. Set the buckle on each side to adjust
the tension of the elastic chinstrap.
2. Take care to set both side equally.
3
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 4
PRODUCT CARE
CARE & MAINTENANCE
Inspect the helmet regularly to ensure optimum performance. Defects of the helmet/
headgear must result in immediate replacement. If the shell or headgear show any
defects, immediate disposal and replacement of the product is recommended. Give
particular attention to the harness attachment slots.
Significant impact to the helmet will result in reduced future protection, even if visual
physical deformation is not apparent. In any event, if any cracks are detected, the
helmet must be discarded immediately.
Do not apply tape, paint, solvents, adhesives or adhesive labels to the shell as such
application may reduce the effectiveness of the helmet.
CLEANING
The helmet can be wiped with soapy water or a household cleaning product when
dirty. Clean and/or disinfect all components regularly with a mild detergent or
disinfectant in luke warm water. Apply the cleaner with a clean cloth or paper towel.
Do not use solvents for cleaning and always dry the helmet away from bright sunlight
or direct heat.
STORAGE
The helmet should be transported and stored it its bag in cool, dry conditions out of
direct sunlight.
RECYCLING & THE ENVIRONMENT
If disposing of this product or any damaged components, do not dispose of with
general waste. This product contains re-usable raw materials. ABS plastic products
should be taken to your local civic amenity site for recycling into new products.
4
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 5
COMPONENT PARTS
1 Helmet shell
2 Central headstrap with attachments
3 Diagonal headstrap with attachments
4 Rear adjustable headband
5 Fixed headband with fabric sweatband
6 Chin piece
7 Chin-strap connector
8 Chin-strap elastic
9 Rear headband adjuster
5
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 6

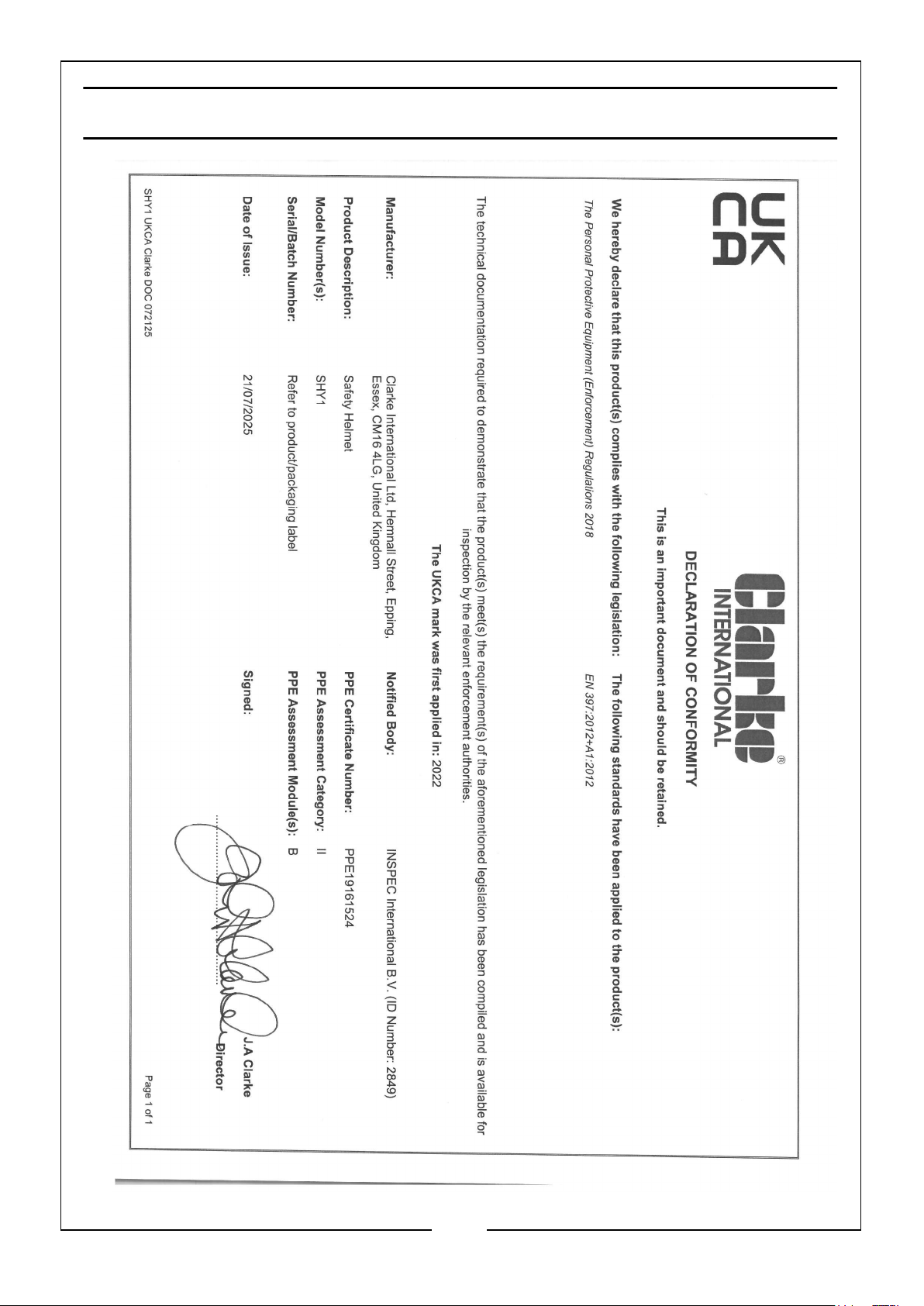

DECLARATION OF CONFORMITY - UKCA
6
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 7

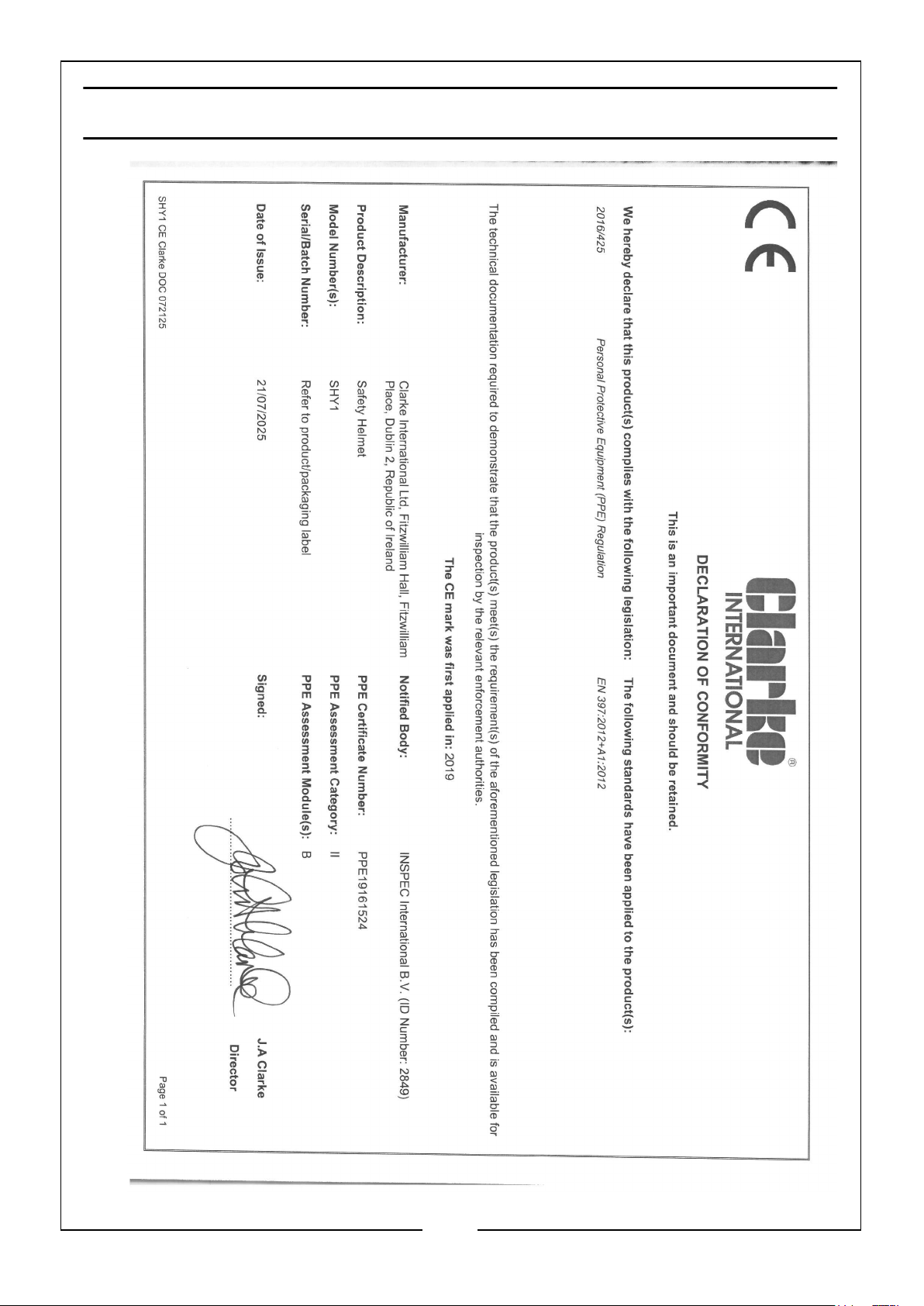

DECLARATION OF CONFORMITY - CE
7
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
