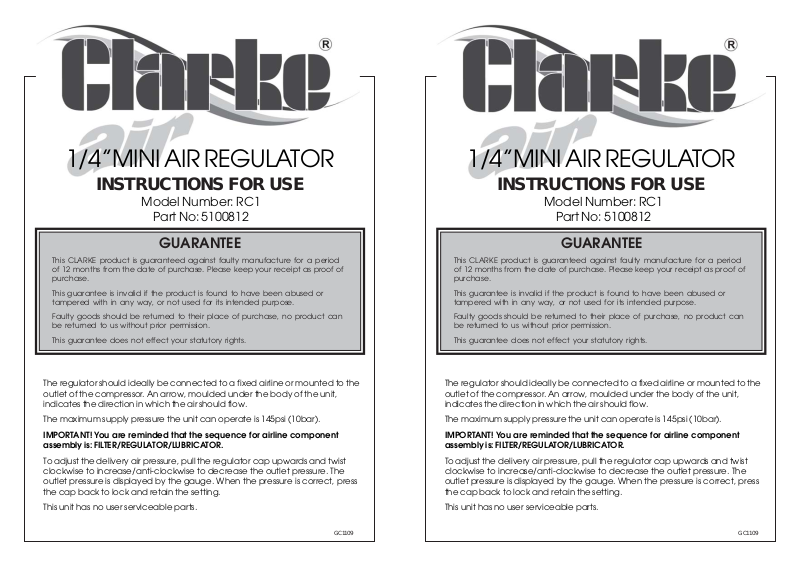

1/4”MINI AIR REGULATOR
1/4”MINI AIR REGULATOR
INSTRUCTIONS FOR USE
Model Number: RC1
Part No: 5100812
GUARANTEE
This CLARKE product is guaranteed against faulty manufacture for a period
of 12 months from the date of purchase. Please keep your receipt as proof of
purchase.
This guarantee is invalid if the product is found to have been abused or
tampered with in any way, or not used for its intended purpose.
Faulty goods should be returned to their place of purchase, no product can
be returned to us without prior permission.
This guarantee does not effect your statutory rights.
The regulator should ideally be connected to a fixed airline or mounted to the
outlet of the compressor. An arrow, moulded under the body of the unit,
indicates the direction in which the air should flow.
The maximum supply pressure the unit can operate is 145psi (10bar).
IMPORTANT! You are reminded that the sequence for airline component
assembly is: FILTER/REGULATOR/LUBRICATOR.
To adjust the delivery air pressure, pull the regulator cap upwards and twist
clockwise to increase/anti-clockwise to decrease the outlet pressure. The
outlet pressure is displayed by the gauge. When the pressure is correct, press
the cap back to lock and retain the setting.
This unit has no user serviceable parts.
INSTRUCTIONS FOR USE
Model Number: RC1
Part No: 5100812
GUARANTEE
This CLARKE product is guaranteed against faulty manufacture for a period
of 12 months from the date of purchase. Please keep your receipt as proof of
purchase.
This guarantee is invalid if the product is found to have been abused or
tampered with in any way, or not used for its intended purpose.
Faulty goods should be returned to their place of purchase, no product can
be returned to us without prior permission.
This guarantee does not effect your statutory rights.
The regulator should ideally be connected to a fixed airline or mounted to the
outlet of the compressor. An arrow, moulded under the body of the unit,
indicates the direction in which the air should flow.
The maximum supply pressure the unit can operate is 145psi (10bar).
IMPORTANT! You are reminded that the sequence for airline component
assembly is: FILTER/REGULATOR/LUBRICATOR.
To adjust the delivery air pressure, pull the regulator cap upwards and twist
clockwise to increase/anti-clockwise to decrease the outlet pressure. The
outlet pressure is displayed by the gauge. When the pressure is correct, press
the cap back to lock and retain the setting.
This unit has no user serviceable parts.
GC1109
GC1109
