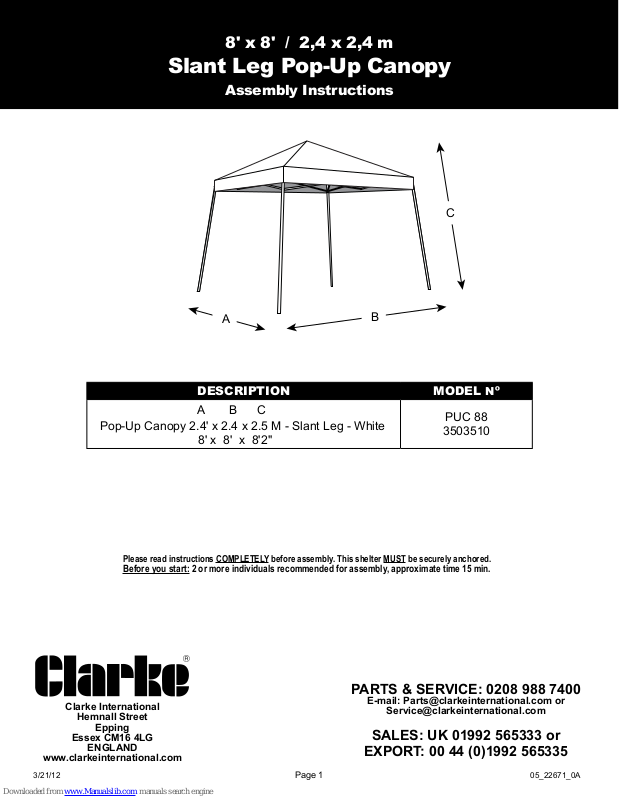

Page 1
8' x 8' / 2,4 x 2,4 m
Slant Leg Pop-Up Canopy
Assembly Instructions
C
A
B
DESCRIPTION MODEL Nº
A B C
Pop-Up Canopy 2.4' x 2.4 x 2.5 M - Slant Leg - White
8' x 8' x 8'2"
Please read instructions COMPLETELY before assembly. This shelter MUST be securely anchored.
Before you start: 2 or more individuals recommended for assembly, approximate time 15 min.
PUC 88
3503510
Clarke International
Hemnall Street
Epping
Essex CM16 4LG
ENGLAND
www.clarkeinternational.com
3/21/12
Page 1
PARTS & SERVICE: 0208 988 7400
E-mail: Parts@clarkeinternational.com or
Service@clarkeinternational.com
SALES: UK 01992 565333 or
EXPORT: 00 44 (0)1992 565335
05_22671_0A
Page 2
note: Please read instructions COMPLETELY before assembly.
AttentIon: This canopy product is primarily for seasonal shade. It is NOT snow, ice, or wind load rated.
This canopy must be properly and securely anchored.
CAUtIon: Use CAUTION when erecting the frame.
WArnInG: Choose the location of your canopy carefully. Check for overhead utility lines, tree branches or
other structures. DO NOT hang objects from the roof. DO NOT smoke or use open ame devices in or around the
canopy. DO NOT store ammable liquids (gasoline, kerosene, propane, etc.) under your canopy. Do not expose
top or legs of the canopy to open re or other ame source. DO NOT use grills, re pits, deep fryers or smokers
under the canopy.
CAre AnD CLeAnInG: A tight cover ensures longer life and performance. Always maintain a tight cover.
Loose fabric can accelerate deterioration of cover fabric. Immediately remove any accumulated debris from the
cover with a broom, mop or other soft-sided instrument. Use extreme caution when removing debris from cover.
Always remove from outside the structure. DO NOT use hard-edged tools or instruments like rakes or shovels to
remove debris. This could result in punctures to the cover. DO NOT use "Protect and Shine" products, bleach or
harsh abrasive products to clean the fabric cover. Cover is easily cleaned with mild soap and water.
Page 2
05_22671_0A
Page 3

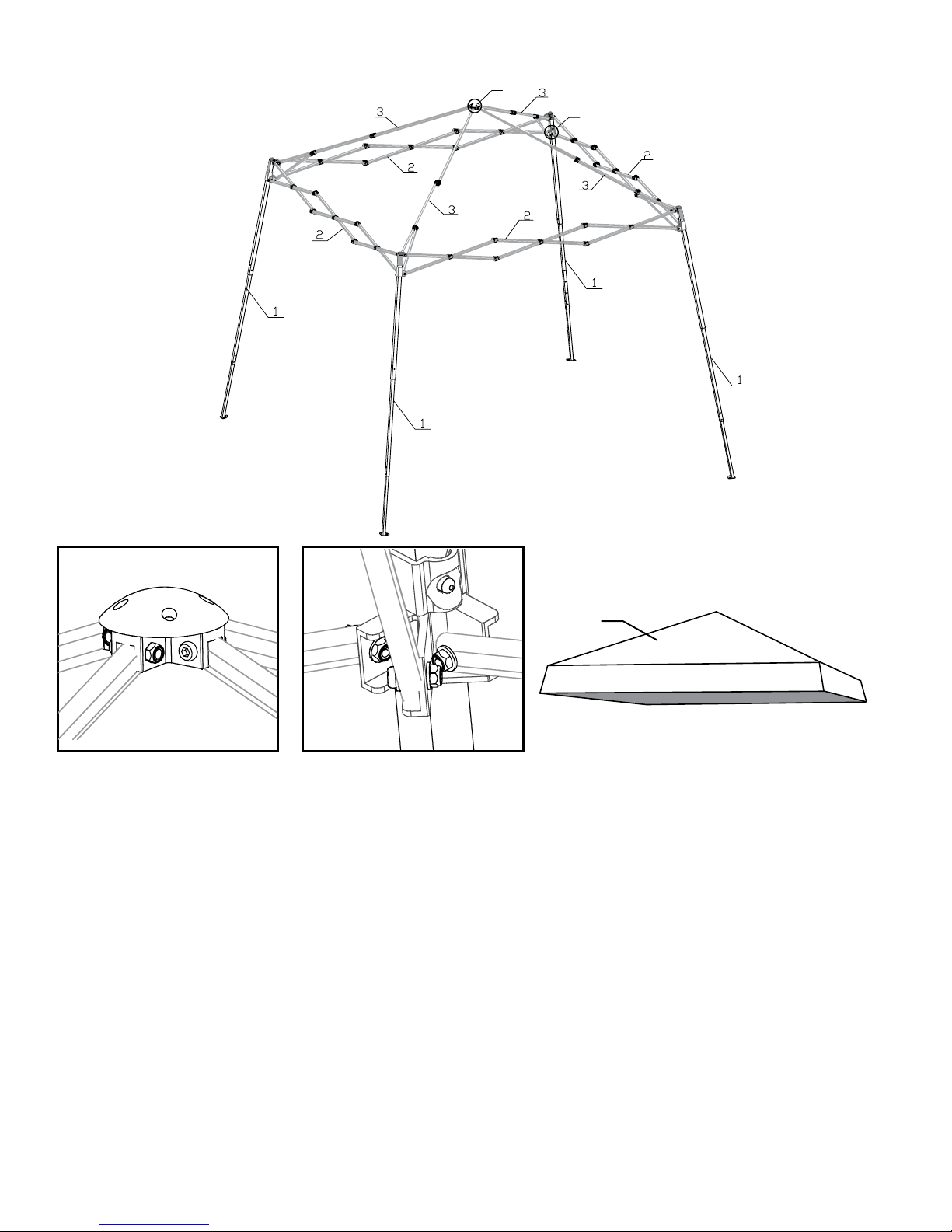

1
1
2
/
2
3
5
4
CLICK!
6
CLICK!
7
Page 3
NoTE: Replacement anchors are available from our
spare parts department. Please quote Part No. 18166
05_22671_0A
