SLIM POCKET RECHARGABLE
LED WORKLIGHT
MODEL NO: PL5R
PART NO: 4003624
USER INSTRUCTIONS
ORIGINAL INSTRUCTIONS DL0322 ISS 1
Page 2
PART NO:
PART NO: 4003624
INTRODUCTION
Thank you for purchasing this CLARKE LED Worklight.
The PL5R is a rechargable worklight and torch with lithium ion battery, dimmer
switch and USB powered input.
Before attempting to use this worklight, please read this manual thoroughly
and follow the instructions carefully.
ENVIRONMENTAL RECYCLING POLICY
Through purchase of this worklight, the customer is taking on the
obligation to deal with the WEEE in accordance with the WEEE
regulations in relation to the treatment, recycling & recovery and
environmentally sound disposal of the WEEE.
In effect, this means that this worklight must not be disposed of with general
household waste. It must be disposed of according to the laws governing
Waste Electrical and Electronic Equipment (WEEE) at a recognised disposal
facility.
GUARANTEE
This worklight is guaranteed against faulty manufacture for a period of 12
months from the date of purchase. Please keep your receipt which will be
required as proof of purchase.
This guarantee is invalid if the worklight is found to have been abused or
tampered with in any way, or not used for its intended purpose.
Faulty goods should be returned to their place of purchase, no worklight can
be returned to us without prior permission.
This guarantee does not effect your statutory rights.
2
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 3
SAFETY INSTRUCTIONS
1. Read these instructions carefully before use and keep them for future
reference.
2. DO NOT look directly into the worklight when it is switched on.
3. Keep the worklight out of the reach of children.
4. Charge the worklight in a dry indoor location.
5. DO NOT immerse in water or any other liquid.
6. ALWAYS fully charge before first use.
7. DO NOT turn on the light when charging.
8. DO NOT leave the worklight on charge for more than 24 hours.
9. DO NOT disassemble the worklight as there are no user changeable parts.
10. Recharge the worklight every six months.
11. This worklight utilise a rechargeable Lithium-ion battery that can rupture,
ignite and cause serious injury if being used incorrectly.
12. Please check the following safety rules:
• DO NOT place batteries and worklight in a fire or high temperature.
• DO NOT tamper with the battery or wiring.
• DO NOT puncture or damage the batteries.
• DO NOT dispose of the worklight in a fire or water.
13. Failure to heed these warning may result in personal injury or property
damage.
14. The light source contained in this worklight has a life expectancy of
approximately 50000 hours after which the worklight should be disposed of
according to the laws governing Waste Electrical and Electronic
Equipment (WEEE) at a recognised disposal facility.
3
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 4

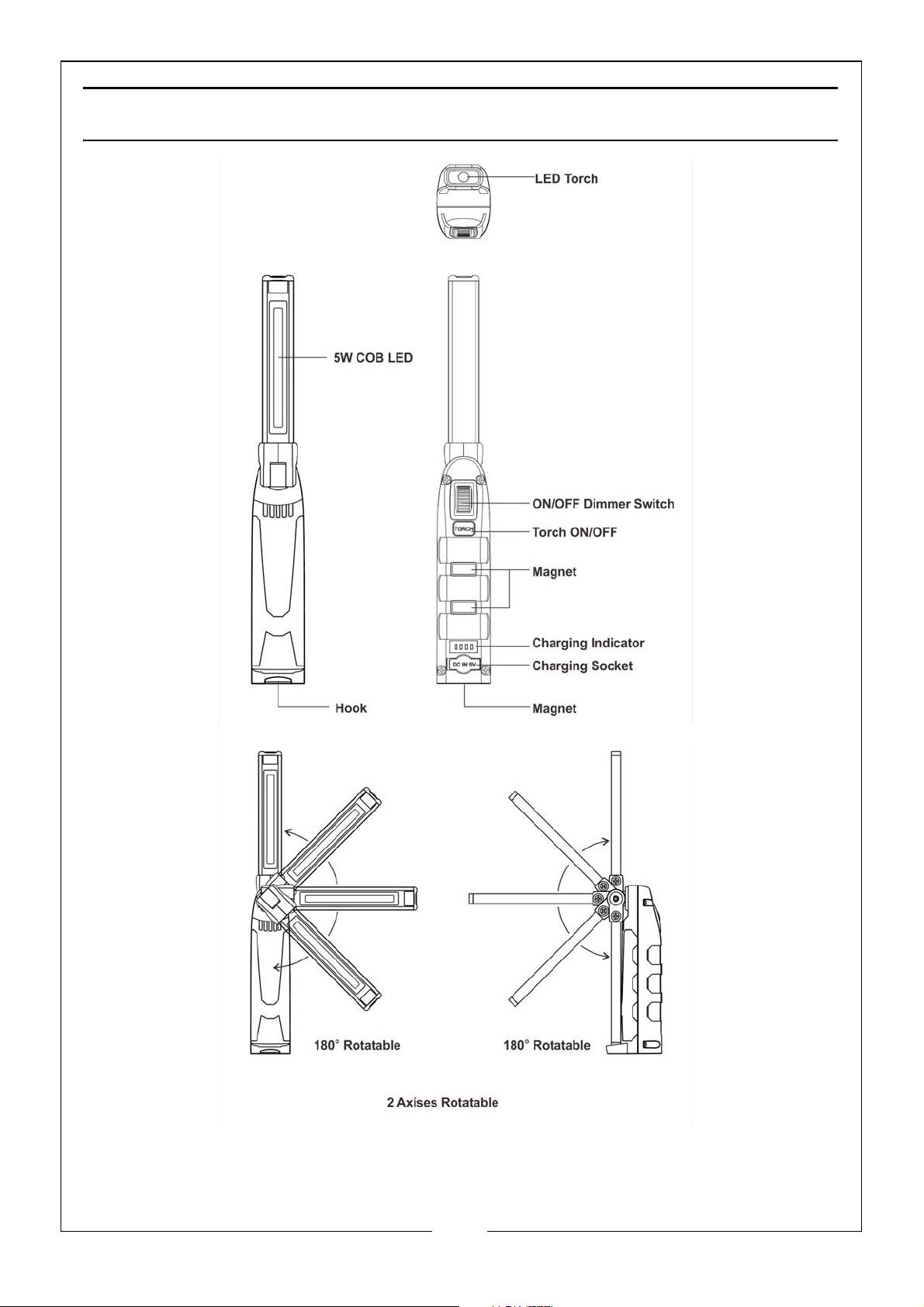

OVERVIEW
Note: Worklight also supplied with a USB plug adaptor and charging
cable (not shown).
4
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 5
CHARGING THE WORKLIGHT
NOTE: Charge the work light immediately after purchase, after each use
and at least every 6 months. Failure to do this will reduce the
battery’s capacity and may void the warranty.

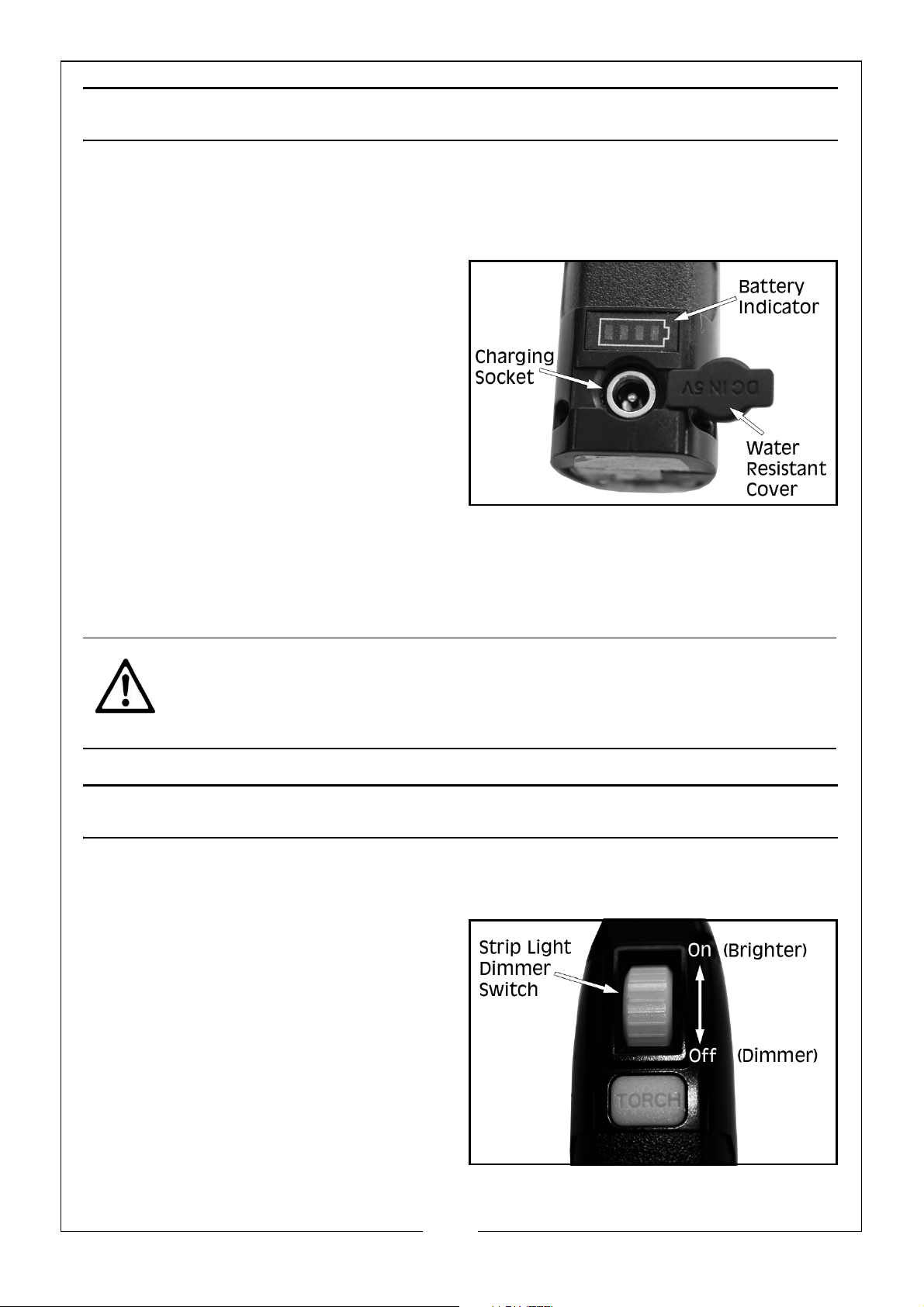

1. Open the water resistant cover of
the charging socket and connect
the USB charging cable supplied
to the worklight.
2. Connect the USB end of the cable
to the adaptor plug supplied or a
USB power supply port.
• The battery/charging status
indicator will flash during
charging. All 4 indicator lights will
stay on once fully charged.
• Charging will take approximately 3-4 hours depending on how much
power is still in the battery at the start of charging, age of the product and
temperature.
CAUTION: PLEASE MAKE SURE THE ADAPTER USED IS 5.0V/1.0A OR LESS
THAN 1.0A IN ORDER TO ENSURE THE WORKLIGHT IS NOT DAMAGED.
OPERATION
NOTE: Please check the worklight for damage before use.
STRIP LIGHT
1. To switch on, roll the dimmer
switch wheel upwards. You will
hear a click when the light
switches on.
2. Use the dimmer switch wheel to
select the required light output.
5
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 6
3. Adjust the light to the required position by rotating the light through 2 axises
of 180
o
each (see page 4)
4. The light can be positioned on or above the work area by either the hook
on the bottom, or magnets on the back and bottom of the light.
5. To switch off, roll the dimmer switch wheel downwards until you hear the
click sound.
TORCH

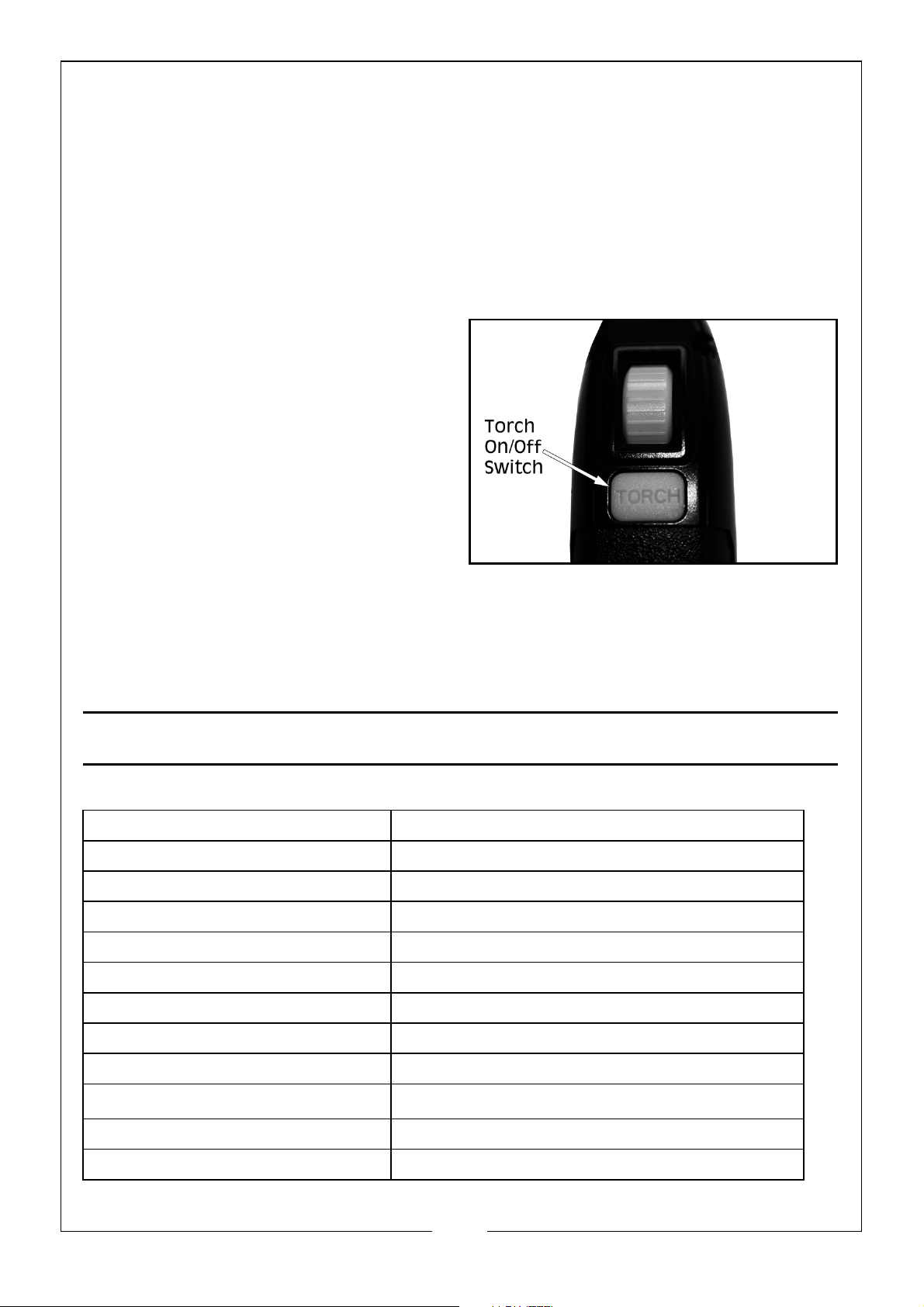

1. Press the Torch On/Off switch to
switch on.
2. Adjust the light to the required
position by rotating the light
through 2 axises of 180
page 4)
3. The light can be position on or
above the work area by either the
hook on the bottom, or magnets
on the back and bottom of the
light.
o
each (see
4. To switch off, press the Torch On/Off switch again.
NOTE: Both the strip light and torch can be on at the same time.
TECHNICAL INFORMATION
Model PL5R
Lithium Ion Battery 3.7v/2600mAh
Charger Input 100V~240V AC, 50-60Hz
Charger Output 5V DC, 1A, 1000mA
Lighting Source 5W COB LED (Strip Light), SMD LED (Torch)
Light Output 400 Lumens (Strip Light), 80 Lumens (Torch)
Ingress Protection (IP rating) IP20
Approximate Charging Time 3-4 Hrs
Approximate Run Time 3 Hrs (Both Strip Light & Torch on Full Power)
Operating Temperatures
Dimension (L x W X D) 130mm (235mm, Unfolded) x 30.5mm x 43mm
Weight 128g
o
C to +40oC
-10
6
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 7

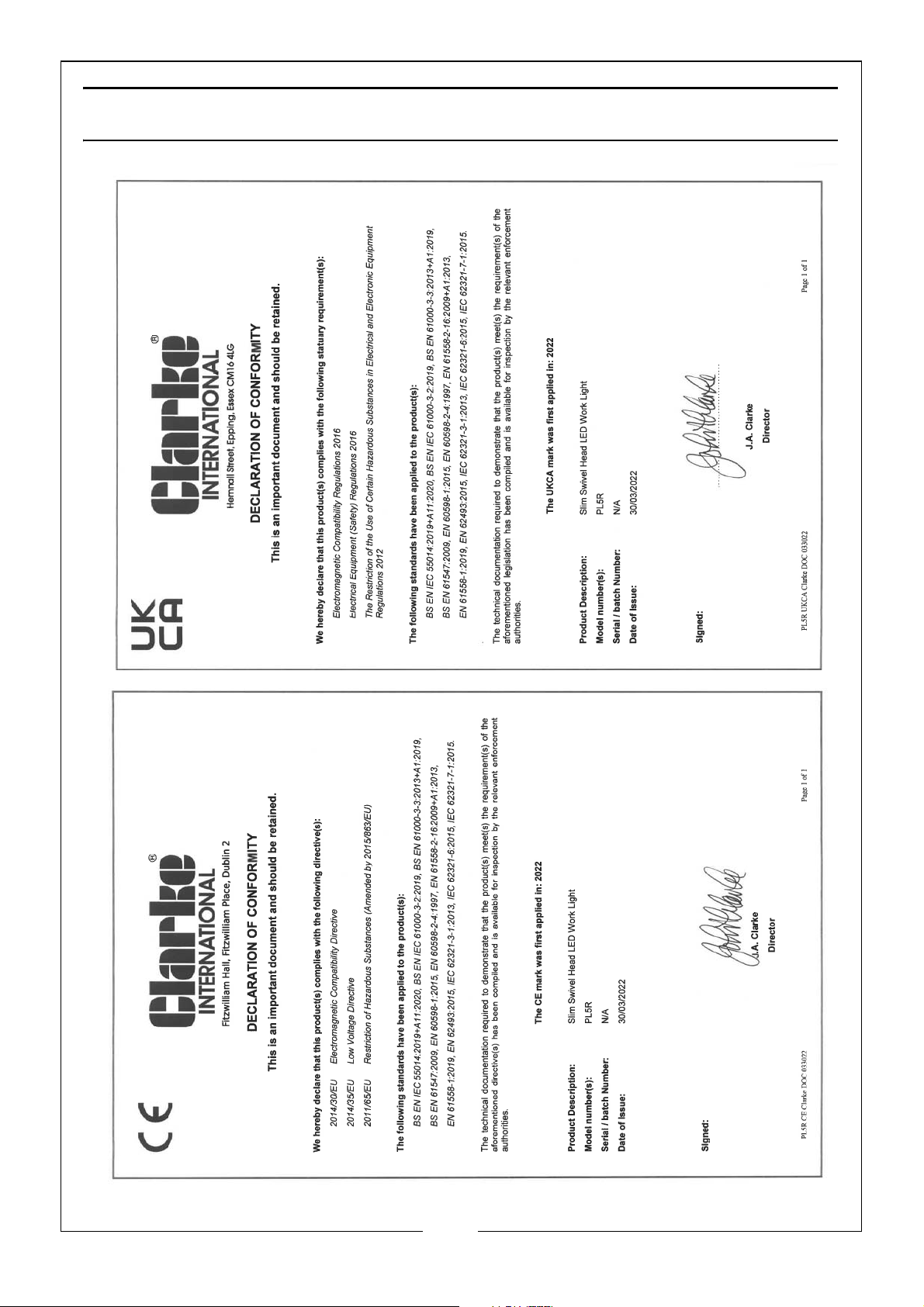

DECLARATION OF CONFORMITY - UKCA & EC
