Page 1
HAND SPRAYER
MODEL NO: PHS8
Part No: 3402267
OPERATING & MAINTENANCE
INSTRUCTIONS
GC0513
Page 2
INTRODUCTION
Thank you for purchasing this CLARKE Sprayer, designed for use with
insecticides or other water-based products only.
Before attempting to operate the product, it is essential that you read this
manual thoroughly and carefully follow all instructions given. In doing so you
will ensure the safety of yourself and that of others around you, and you can
also look forward to the product giving you long and satisfactory service.
GUARANTEE
This CLARKE product is guaranteed against faulty manufacture for a period of
12 months from the date of purchase. Please keep your receipt as proof of
purchase.
This guarantee is invalid if the product is found to have been abused or
tampered with in any way, or not used for its intended purpose.
Faulty goods should be returned to their place of purchase, no product can
be returned to us without prior permission. This guarantee does not effect
your statutory rights.
2
Page 3
GENERAL SAFETY PRECAUTIONS
1. Always thoroughly familiarise yourself with this product & its operation, and
always read and understand the instructions and warnings in this manual
before use.
2. Never use this sprayer to store or spray flammable solvent-based
chemicals.
3. Empty the contents if the sprayer is not to be used for long periods.
4. If insecticide is being sprayed, always wear a protective mask and gloves
to protect the skin and face. Never spray chemical products facing into
the wind.
5. Never spray pesticide in the direction of other people, animals or
foodstuffs.
6. Never use the sprayer for handling hot liquids and avoid operating in
excessively hot environments.
7. Always comply with any applicable insecticide manufacturers safety
instructions/directives before use.
8. Stop using the sprayer if the container or hose is found to be damaged.
3
Page 4

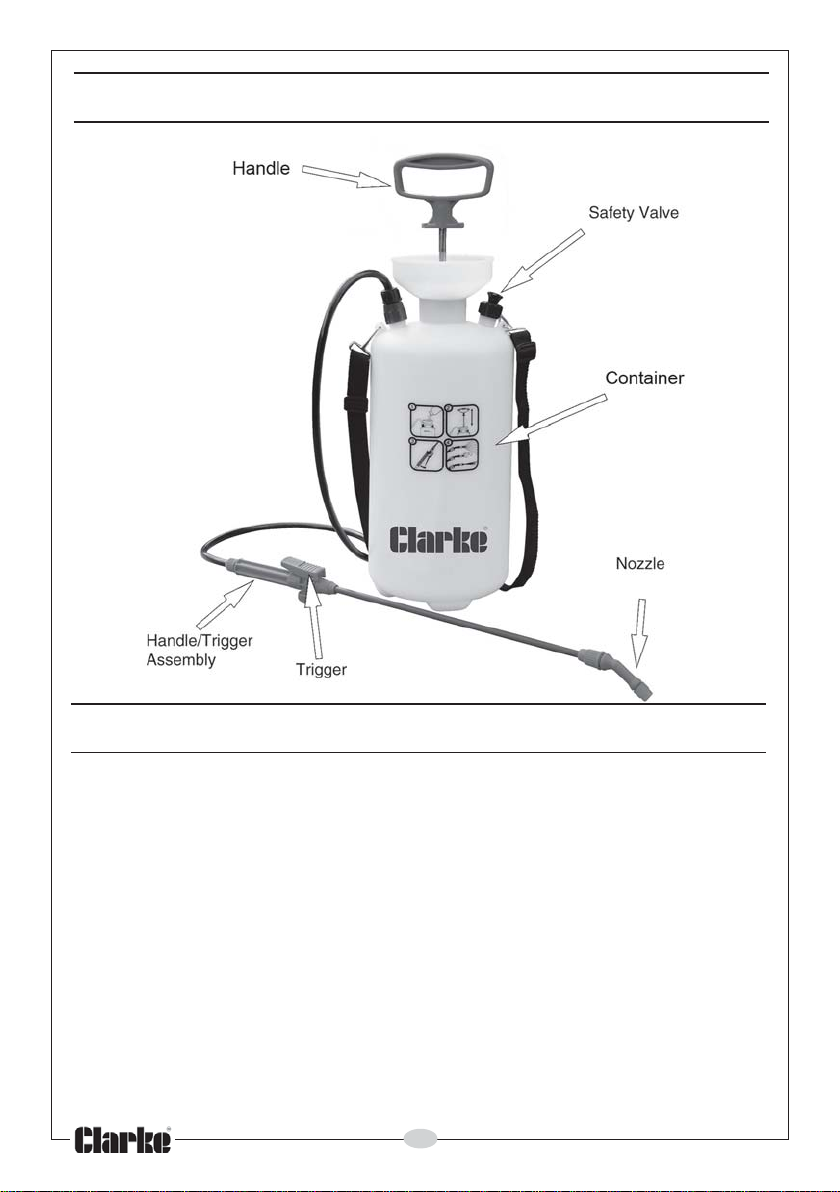

OVERVIEW
SPECIFICATIONS
Dimensions L x W x H 180 x 180 x 500 mm
Weight 1.25 kg
Volume 7L
Lance Length 580 mm
Hose Length 1220 mm
Piston material Metal
Operating Temperature -5oC to +40oC
Please note that the details and specifications contained herein, are correct
at the time of going to print. However, CLARKE International reserve the right
to change specifications at any time without prior notice.
4
Page 5
ASSEMBLY

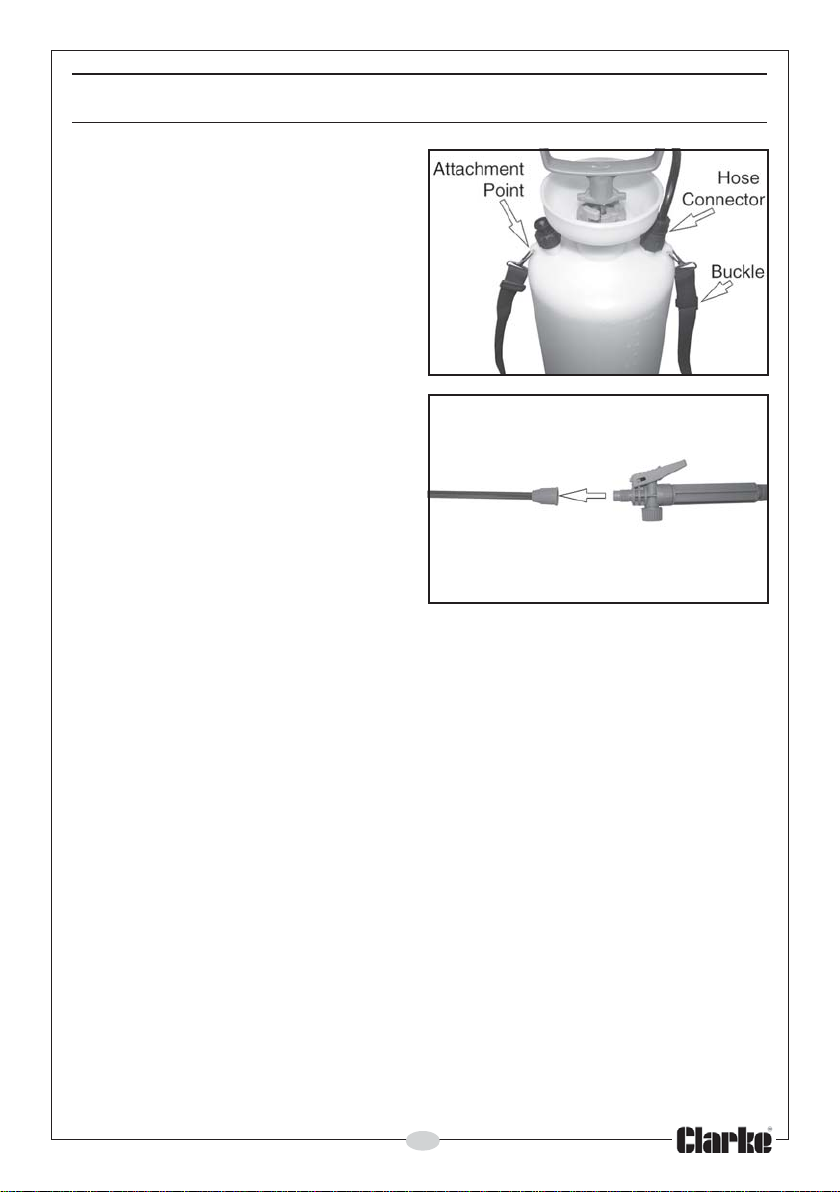

1. If not already fitted, clip the
shoulder strap to the attachment
points. Adjust the strap length as
required using the buckles.
2. Screw the hose/handle
assembly onto the trigger/lance
assembly.
• The other end of the hose should
already be connected to the
container.
3. Make sure that all connections
are fully hand tightened to
prevent leaks and loss of
pressure.
5
Page 6
OPERATION

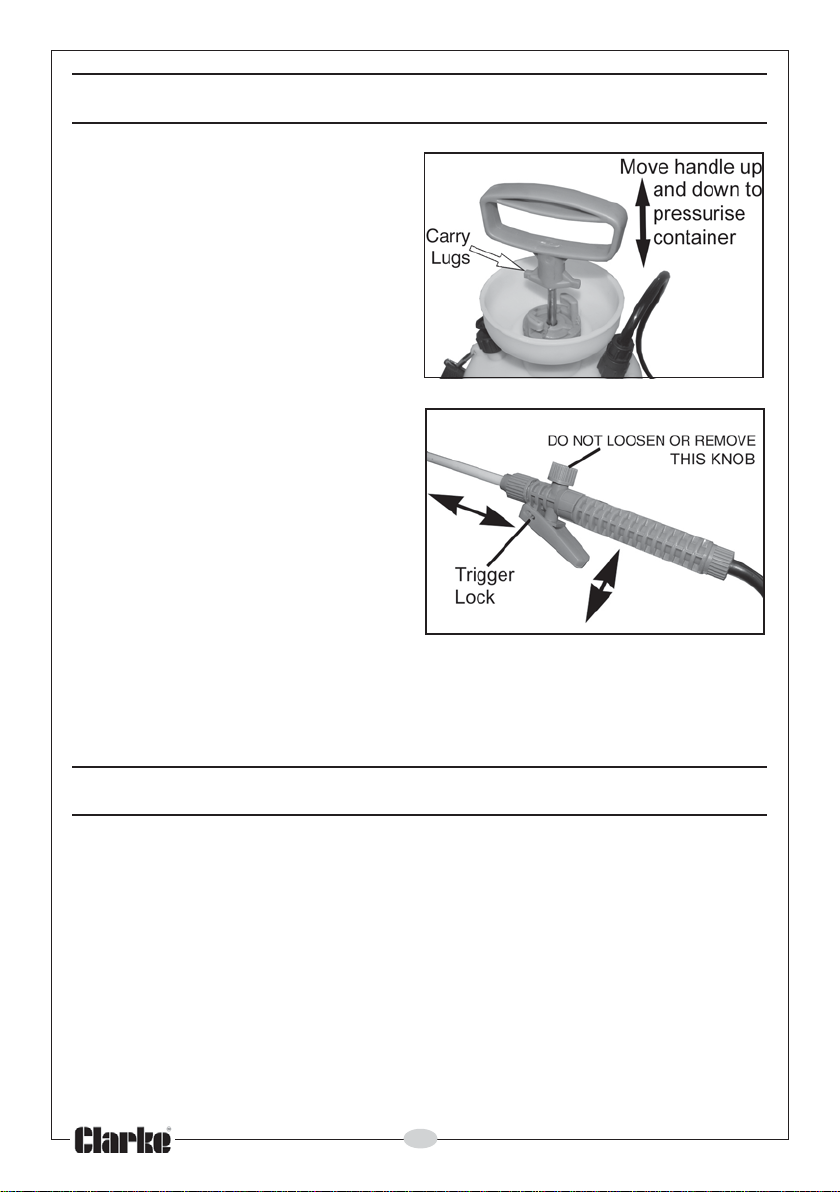

1. Unscrew the handle from the
carrying lugs of the pump body
by turning the handle
anticlockwise.
2. Fill the container with the desired
liquid and make sure the pump
assembly is screwed back on
firmly.
3. Pressurise the container by
pumping the handle on top of
the unit.
4. Squeeze the trigger to begin
spraying. When the spray
weakens, pump the handle to
maintain container pressure.
5. Push the trigger forward to lock in
position to maintain a constant
spray without needing to hold the
trigger. Slide the trigger lock back
to release.
6. Adjust the width of the spray by
twisting the tip of the nozzle.
7. If leaks or poor delivery are experienced, always check the connections.
8. Push the pump handle downward and twist to engage the carrying lugs in
the cap when lifting the unit.
AFTER USE
After use, the sprayer should be flushed thoroughly with clean water to avoid
the possibility of blockages from product residue, or any cross-contamination
between different products. Store in a cool place out of reach of children.
If not used for long periods or used continuously for several days, add a light
smear of vaseline to the sealing washer and moving parts to reduce wear
and assist free movement.
6
Page 7

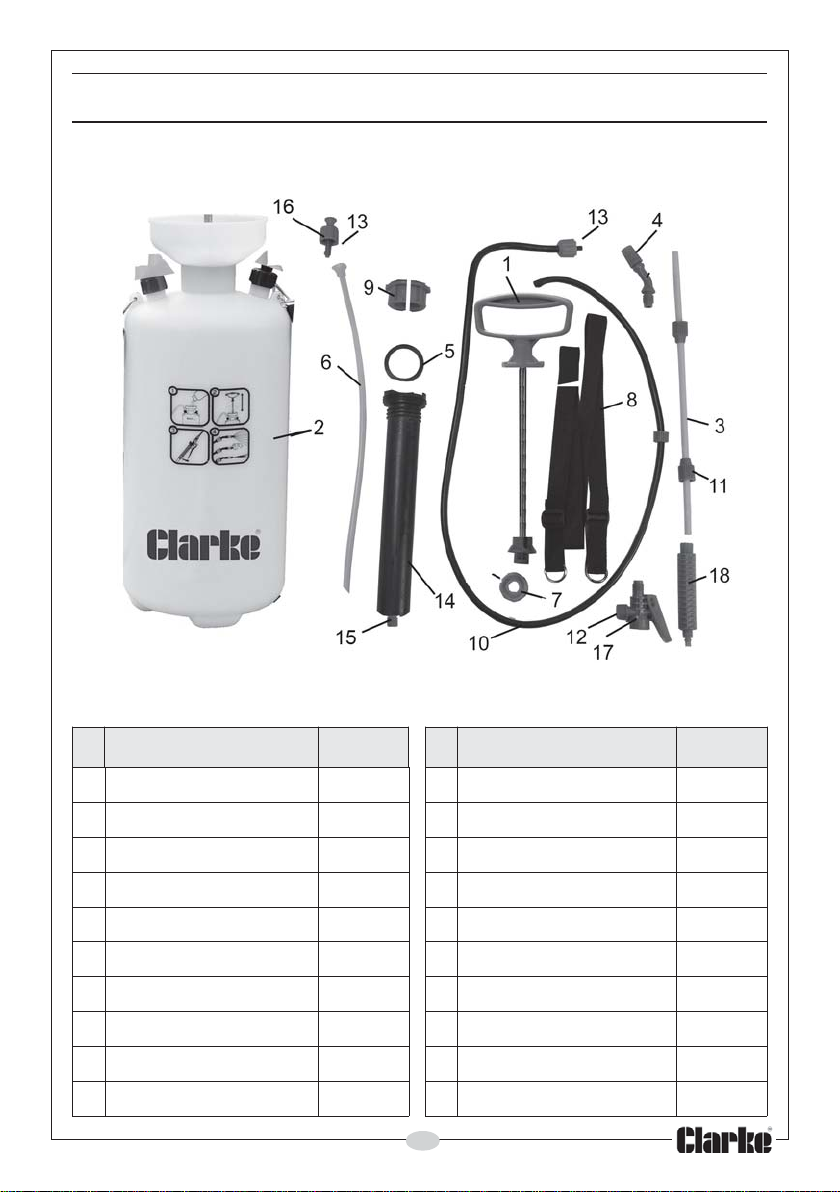

COMPONENT PARTS
oN noitpircseD oNtraP oN noipircseD oNtraP
1ylbmessAeldnaH108SHPZ01ylbmessAesoHyarpS018SHPZ
2reniatnoC208SHPZ11)mm51(gniR-OkcihT118SHPZ
3ecnaL308SHPZ21)mm
4ylbmessAelzzoN408SHPZ31ffo2-)mm02(gniR-O318SHPZ
5)mm05(gniR-O508SHPZ41rednilyC418SHPZ
6gnittiF
7laeSnotsiP708SHPZ61evlaVfeileR618SHPZ
8yssApartSredluohS808SHPZ71ylb
9)riap(sgnittiFpoT908SHPZ81pirGreggirT818SHPZ
/ebuTpu-kciP608SHPZ51ylbmessAgnittiFpiT518SHPZ
7
41(gnir-OnihT218SHPZ
messAreggirT718SHPZ
laesnotsip/sgnir-OfoteS918SHPZ
