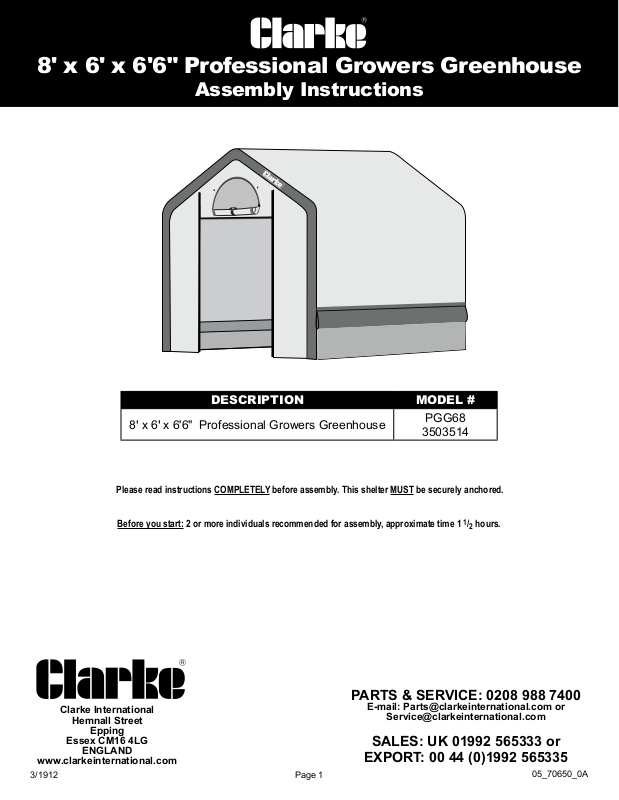

8' x 6' x 6'6" Professional Growers Greenhouse
Assembly Instructions
DESCRIPTION MODEL #
8' x 6' x 6'6" Professional Growers Greenhouse
Please read instructions COMPLETELY before assembly. This shelter MUST be securely anchored.
Before you start: 2 or more individuals recommended for assembly, approximate time 1 1/2 hours.
PGG68
3503514
Clarke International
Hemnall Street
Epping
Essex CM16 4LG
ENGLAND
www.clarkeinternational.com
PARTS & SERVICE: 0208 988 7400
E-mail: Parts@clarkeinternational.com or
Service@clarkeinternational.com
SALES: UK 01992 565333 or
EXPORT: 00 44 (0)1992 565335
Page 13/1912
05_70650_0A
Page 2
ATTENTION:
This greenhouse is manufactured with quality materials. It is designed to t the custom fabric cover included. Please anchor the
greenhouse carefully following the instructions in this manual. Proper anchoring, keeping the cover tight and free of snow and debris
is the responsibility of the consumer. Please read and understand the installation detail, warnings and cautions prior to beginning
installation.
DANGER:
Choose the location of your greenhouse carefully. DANGER: Keep away from electrical wires.
Check for overhead utility lines, tree branches or other structures. Check for underground pipes or
wires before you dig. DO NOT install near roof lines or other structures that could shed snow, ice or
excessive run off onto your shelter. DO NOT hang objects from the roof or support cables.
WARNING:
Risk of re. DO NOT smoke or use open ame devices (including grills, re pits, deep fryers, smokers or
lanterns) in or around the greenhouse. DO NOT store ammable liquids (gasoline, kerosene, propane,
etc.) in or around your greenhouse. Do not expose top or sides of the greenhouse to open re or other
ame source.
CAUTION:
Use CAUTION when erecting the frame.
PROPER ANCHORING AND INSTALLATION OF FRAME:
PROPER ANCHORING OF THE FRAME IS THE RESPONSIBILITY OF THE CONSUMER.
Clarke® International is not responsible for damage to the unit or the contents from acts of nature. Any greenhouse that is not
anchored securely has the potential to y away causing damage. Periodically check the anchors to ensure stability of the greenhouse.
®
Clarke
removed and stored prior to severe weather conditions. If strong winds or severe weather is forecasted in your area, we recommend
removal of the cover.
International cannot be responsible for any greenhouse that blows away. NOTE: Your greenhouse’s cover can be quickly
CARE AND CLEANING:
A tight cover ensures longer life and performance. Always maintain a tight cover. Loose fabric can accelerate deterioration of cover
fabric. Immediately remove any accumulated snow or ice from the roof structure with a broom, mop or other soft-sided instrument.
Use extreme caution when removing snow from cover- always remove from outside the structure. DO NOT use hard-edged tools or
instruments like rakes or shovels to remove snow. This could result in punctures to the cover. DO NOT use bleach or harsh abrasive
products to clean the fabric cover. Cover is easily cleaned with mild soap and water.
Page 2
12/20/11 70650
05_70650_0A
Page 3
8' x 6' x 6'6" Organic Growers Greenhouse - Parts List - Model # PGG68 3503514

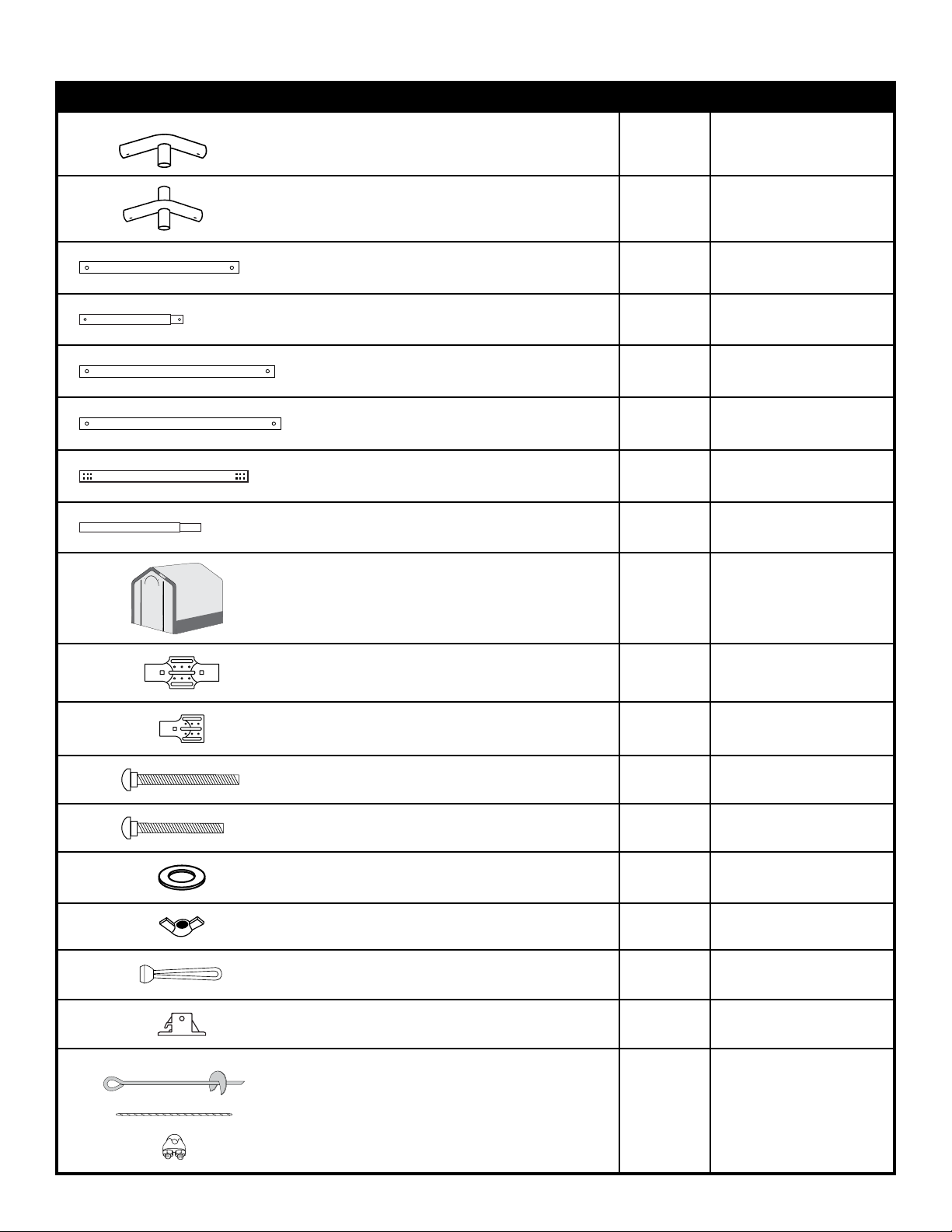

Description of Parts:
3-Way Frame Connectors
4-Way Frame Connectors
34.4 in. Poles
22.2 in. Upright Poles
45.7 in. Roof Rails
46.1 in. Cover Rails
40.7 in. Side Vent Rails
27.9 in. Side Vent Rails
Quantity Part #
6
3
12
6
6
4
2
4
802860
802861
802864
802862
802868
802695
802866
802867
Cover
4-Way Cover Rail Half-Clamps
3-Way Cover Rail Half-Clamps
Bolts
Bolts
Washer
Wing Nut
Bungee Cords
Foot Plates - Grey
1
1
/
4
/
4
x 1
x 1
1
/
4
1
in.
/
4
7
/
5
/
in.
8
8
in.
in.
1
4
8
36
14
8
50
12
6
803094
13201
13202
03032
10115
01011
07000
10066
802916
15 in. Anchors
Cable - 24 in. Length
Cable Clamps
NOTE: 15 inch anchors are available from our spare parts
department. Please quote Part No. 10014
Page 3
4
4
4
10014
801138
10016
05_70650_0A
Page 4

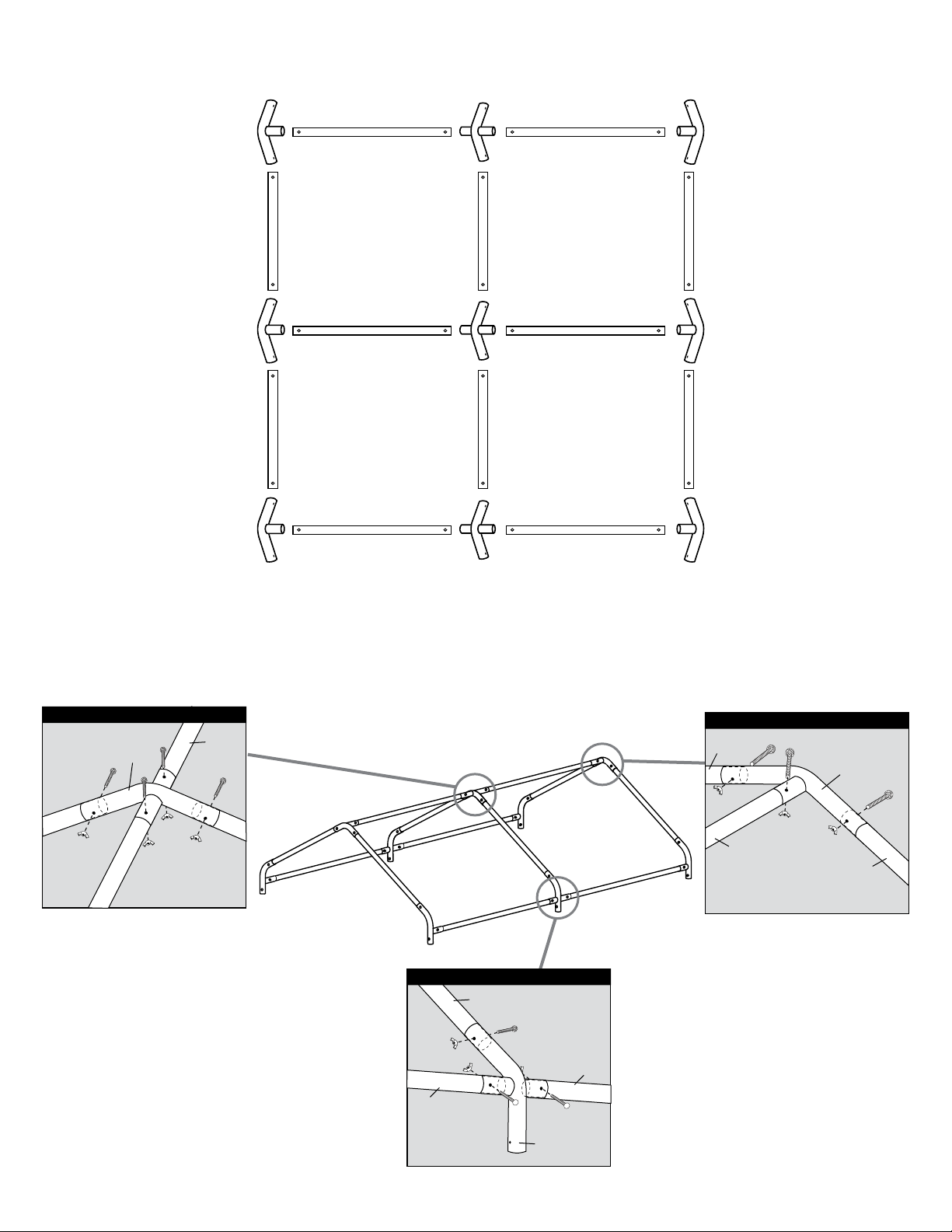

1. LAY OUT ROOF FRAME
802860 802860
802861
802868 802868
802864802864
802860 802860
802864802864
802861
802864802864
802868 802868
802860 802860
802861
802868 802868
2. ASSEMBLE ROOF FRAME
4-Way Connections
802868
802861
03032
07000
Use 03032 bolts and 07000 wingnuts as shown.
802864
07000
802868
4-Way Connection
802864
03032
03032
07000
802868
03032
07000
802868
3-Way Connections
03032
802860
03032
07000
802864
Page 4
802861
05_70650_0A
Page 5

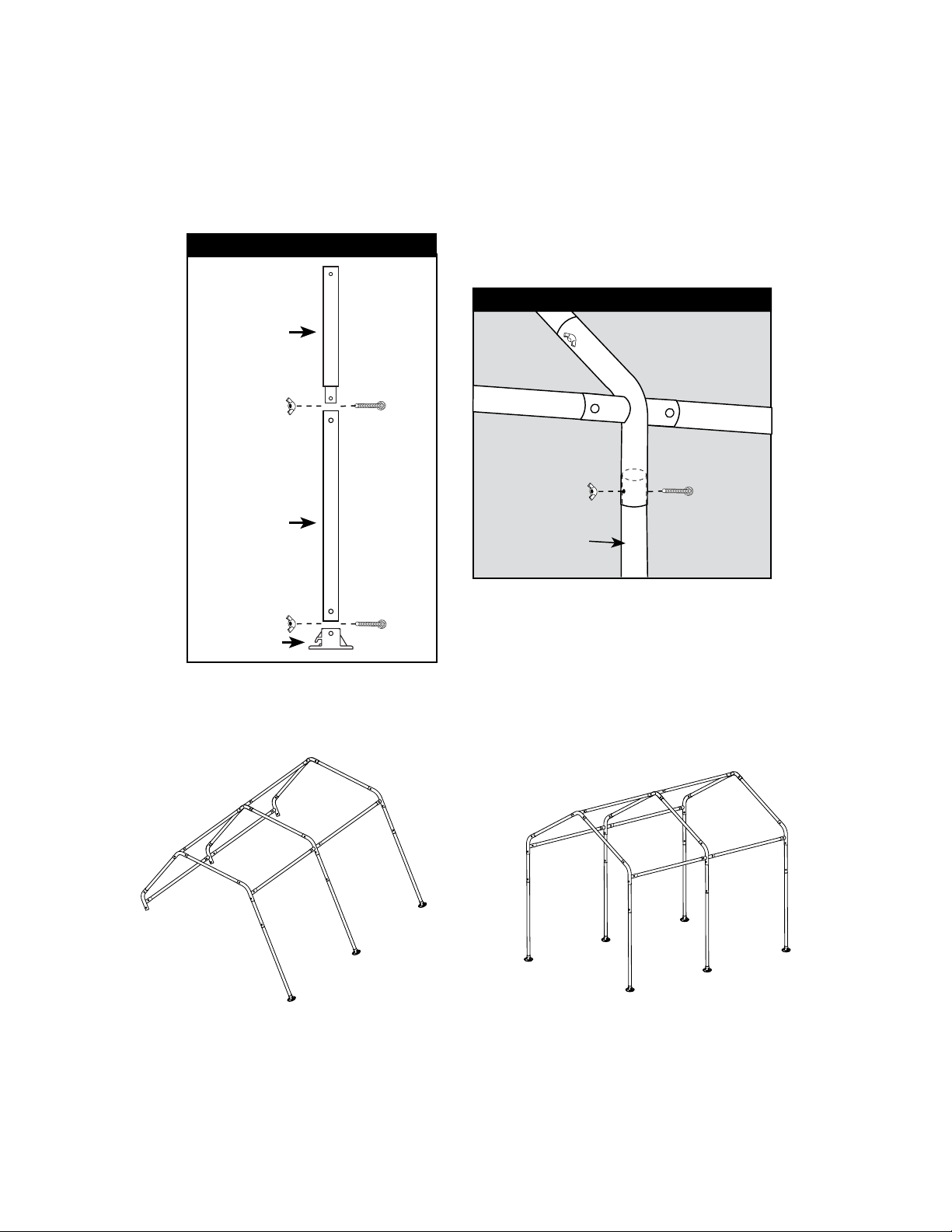

3. ASSEMBLE LEGS & ATTACH TO ROOF FRAME Use bolts as shown in illustrations.
A. Assemble each of the 6 legs.
B. Attach legs with 1-7/8 inch bolts (#03032) on one side of roof frame, letting the other side of roof frame rest
on the ground.
C. Attach remaining legs with bolts to opposite side of roof frame.
Leg Assembly
A
Attach Legs to Roof Frame
802862
07000
802864
07000
802916
10115
03032
07000
Assembled
Leg
B
03032
B
Page 5
C
05_70650_0A
Page 6
4. ASSEMBLE COVER RAILS
A. Place a cover rail (802695) between each leg and secure them with cover clamps as shown below.
NOTE:
Loosely HAND-TIGHTEN
these connections.
B. Slide the cover rails so they are approximately 8 inches up from the ground.
Middle Rib Cross Rail Clamps
802864
802695
07000
End Rib Cross Rail Clamps
13201
01011
802864
13202
10115
802695
10115
802695
01011
07000

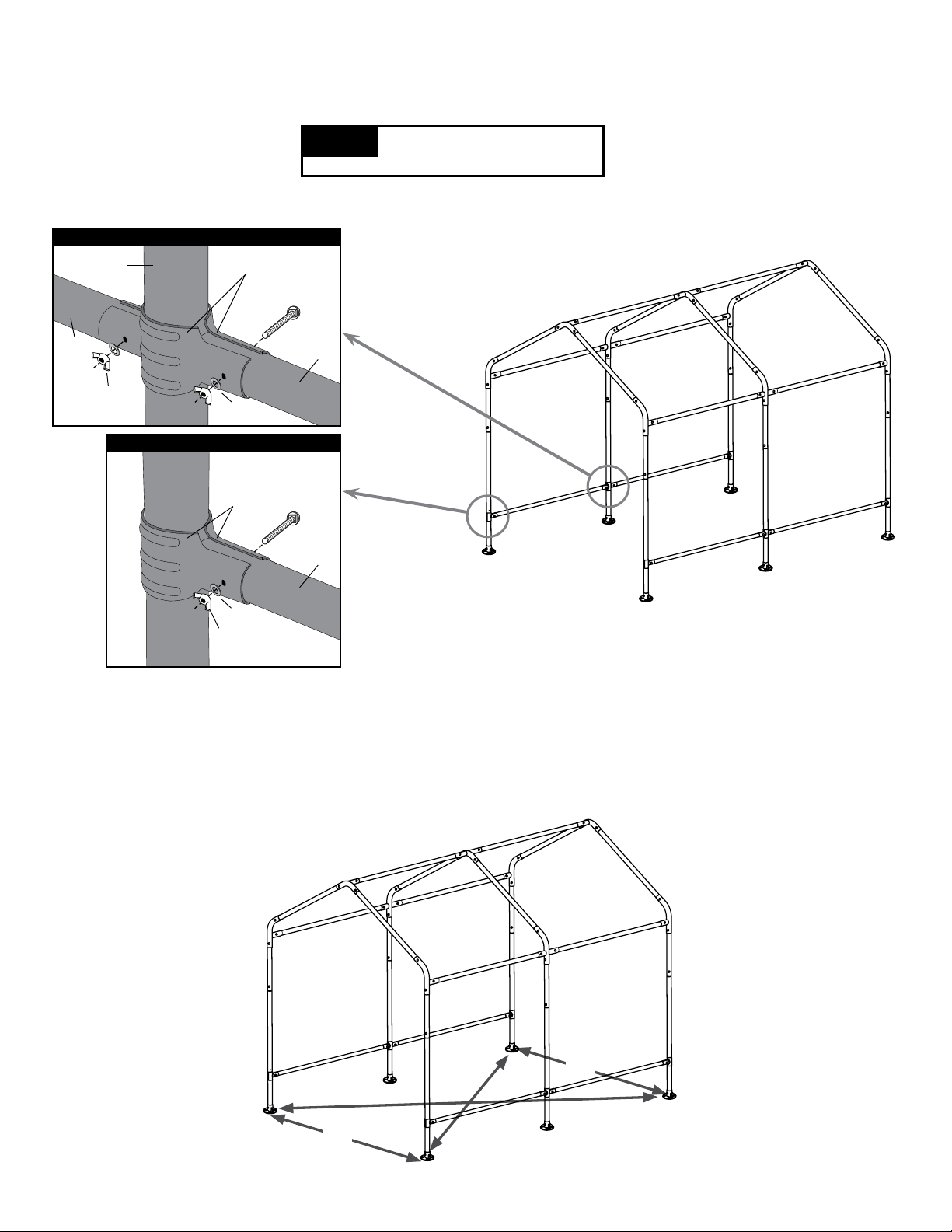

5. SQUARING UP THE FRAME
A. Place frame in its nal location, which needs to be as at and level as possible.
B. Measure across opposite corners. These distances must be equal to within 1 inch.
C. Check that the front and rear of the frame measures 6 feet in width
6ft.
Page 6
6ft.
05_70650_0A
Page 7
6. INSTALLING COVER AND COVER RAILS
A. Your greenhouse cover comes in one complete piece. You may nd it easier to t the cover over the frame by
partially opening the door zippers.
B. Pull cover over the frame, making sure to center cover on frame. There should be an equal amount of over-
hang at all four corners.

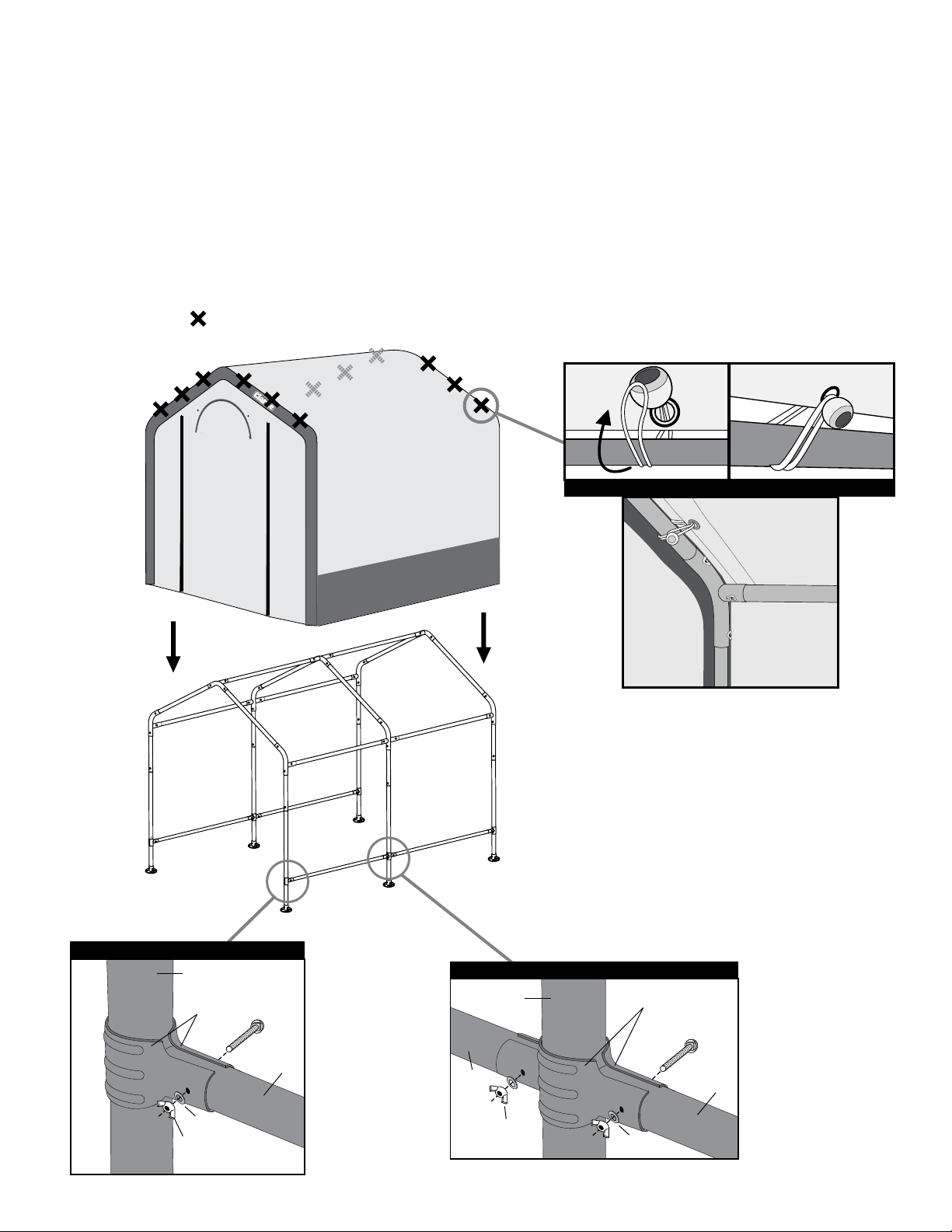

C. Inside the greenhouse, place a bungee cord fastener through each grommet hole and loop around the pipe of
the roof frame. Secure elastic around ball.
D. Disassemble cover rails and slide them through the fabric pockets at each leg. Reattach with clamps to each
leg. Repeat this on other side. Push down on cover rails to tighten cover, before tightening bolts completely.
E. Check and tighten Cover Rails monthly to ensure the cover is tight.
= Bungee fastener locations
A
Inside View of Cover
C
B
End Rib Cross Rail Clamps
802864
13202
10115
802695
D
802695
Middle Rib Cross Rail Clamps
802864
13201
10115
802695
01011
07000
Page 7
07000
01011
05_70650_0A
Page 8

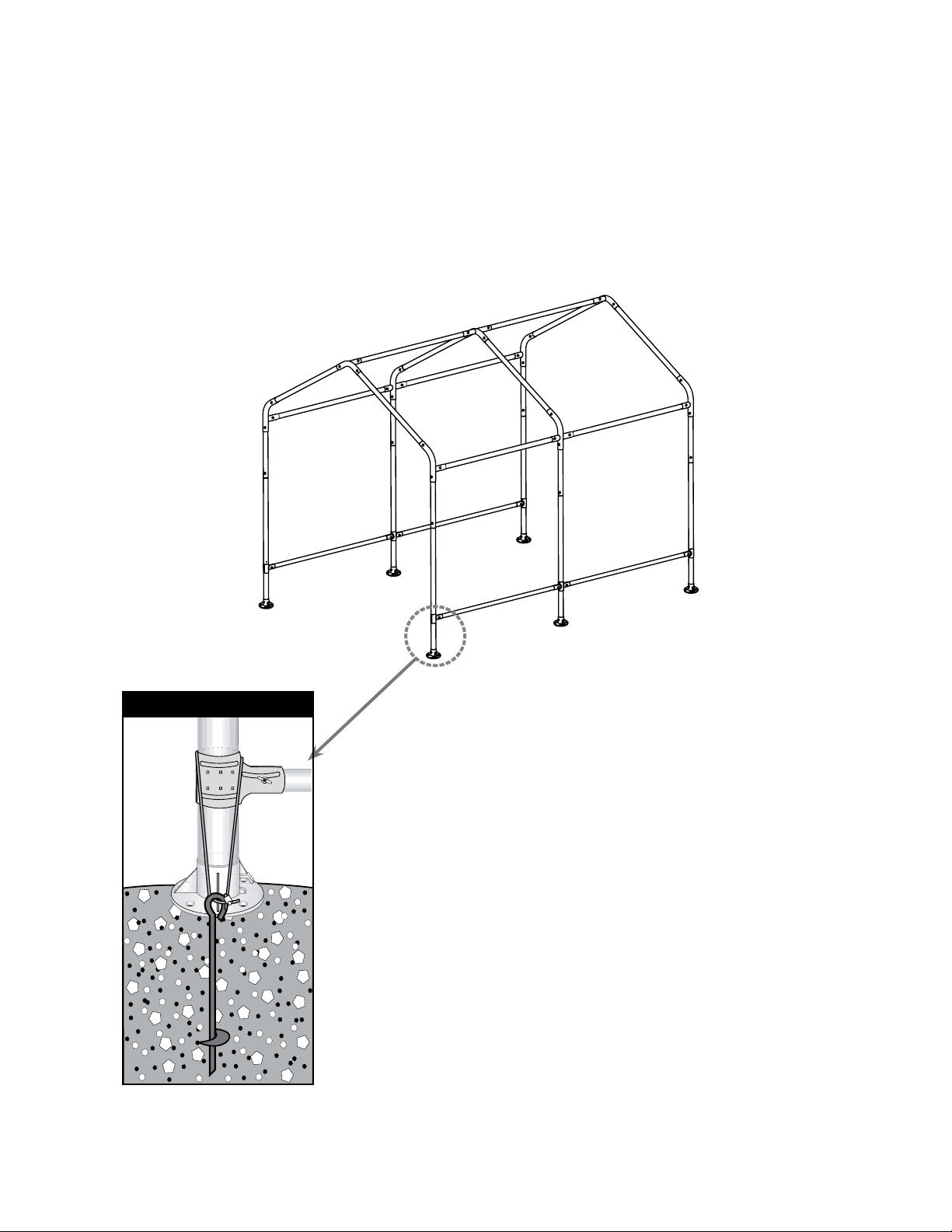

7. PROPERLY ANCHOR FRAME
Your unit comes with 4 Anchors.
A. Anchors must be placed inside shelter at the corners of the shelter. Insert a ¾-inch pipe or steel rod,
through the eyelet of the auger and screw the anchor into the ground until the eyelet is sticking out of the
ground by 1 to 2 inches so it can be anchored to the legs.
If ground is too hard, dig a hole with a shovel or post hole tool. Optional: Place auger in hole and ll with cement.
B. Thread cable provided through the eyelets of the Anchor as indicated in gure. Secure the cable with the
clamps provided.
Corner Anchors
WARNING:
Serious injury to persons or property could result if cover is
installed and shelter is not anchored and is left unattended.
Shelter must be securely anchored before use.
Page 8
05_70650_0A
Page 9
8. INSTALLING AND USING SIDE VENT RAILS
A. Assemble rails for the side vents as shown below. Bolts are not used for these connections.
B. Insert assembled vent rails into pockets at the bottom of the vent covers on each side.
C. To open side vents, roll green vent covers upward and use the straps and clips to secure them in place.
A
802867 802867802866
B
C
Page 9
05_70650_0A
Page 10

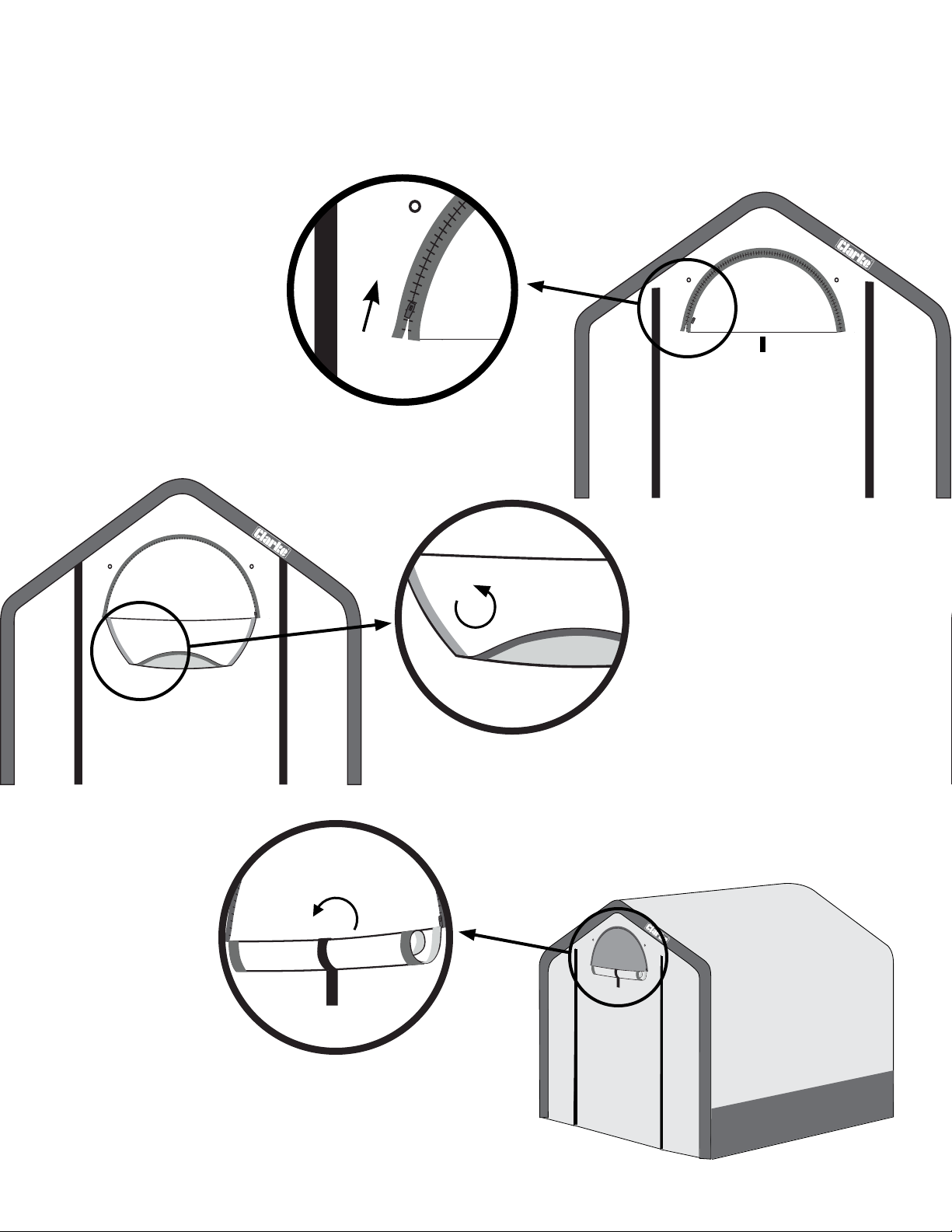

9. USING THE END PANEL VENTS
A. To open vents, completely unzip the semicircular zipper.
B. Roll the vent cover upward.
C. Use the hook-and-loop strap to secure the vent cover in a rolled position.
A.
C.
B.
Page 10
05_70650_0A
