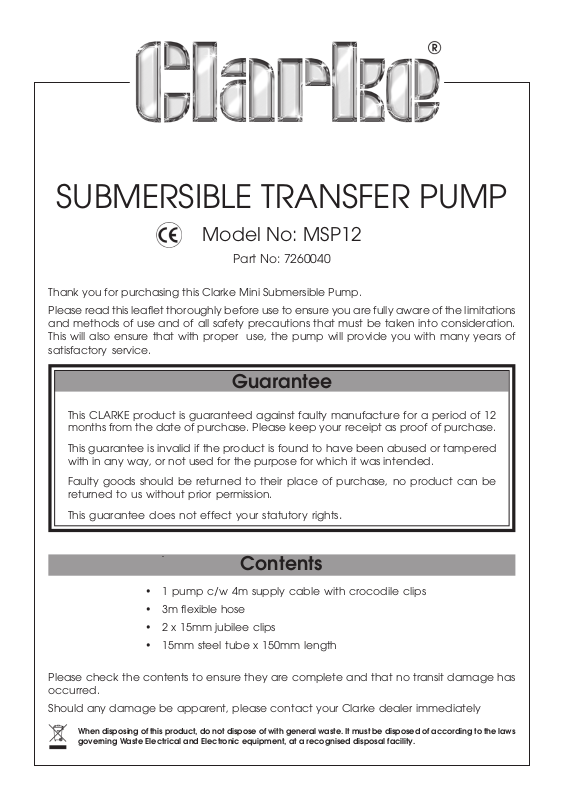

Clarke MSP 12, 7260040 User guide

SUBMERSIBLE TRANSFER PUMP

Model No: MSP12

Part No: 7260040

Thank you for purchasing this Clarke Mini Submersible Pump.

Please read this leaflet thoroughly before use to ensure you are fully aware of the limitations
and methods of use and of all safety precautions that must be taken into consideration.
This will also ensure that with proper use, the pump will provide you with many years of
satisfactory service.

Guarantee

This CLARKE product is guaranteed against faulty manufacture for a period of 12
months from the date of purchase. Please keep your receipt as proof of purchase.

This guarantee is invalid if the product is found to have been abused or tampered
with in any way, or not used for the purpose for which it was intended.

Faulty goods should be returned to their place of purchase, no product can be
returned to us without prior permission.

This guarantee does not effect your statutory rights.

Contents

• 1 pump c/w 4m supply cable with crocodile clips

• 3m flexible hose

• 2 x 15mm jubilee clips

• 15mm steel tube x 150mm length

Please check the contents to ensure they are complete and that no transit damage has
occurred.

Should any damage be apparent, please contact your Clarke dealer immediately

When disposing of this product, do not dispose of with general waste. It must be disposed of according to the laws
governing Waste Electrical and Electronic equipment, at a recognised disposal facility.

Limitations of Use

This pump is ONLY for use with the following:

• Clean water or water with small solids in suspension (dirty water).

• Diesel fuel

• Paraffin

DO NOT use this pump for pumping:

• Slurry

• Sceptic Tanks

• Sandy water

• WARNING: DO NOT USE FOR PUMPING PETROL

Safety Precautions

• ALWAY S disconnect the pump from the power supply before performing any
maintenance operations.

• ALWAY S check the power input cable before use to ensure it is perfectly serviceable.

• ALWAY S ensure the filter is clean and perfectly serviceable before use.

• NEVER run the pump dry. Minimum water depth is 30mm

• DO NOT exceed the duty cycle - see Specifications.

• DO NOT use if any part appears to be damaged. Have it repaired by your Clarke dealer.

• DO NOT use the pump for any purpose other than that for which it is intended.

• DO NOT operate the pump continuously - eg. in a fish pond or collection tank, water
feature etc.

• DO NOT use or leave the pump in freezing conditions.

• DO NOT allow uncontrolled discharge of
a container and dispose of according to all H & S regulations and local laws.

contaminated

water etc. ALWAYS collect in

Specifications

Flow Rate ..................................................... 16.5 litres/min

Min. Water Depth ...................................... 30mm

Voltage ........................................................ 12V

Current ......................................................... 4.5A DC

Pressure ........................................................ 15psi / 1 bar

Height .......................................................... 145mm

Diameter ...................................................... 53.5mm

Weight .......................................................... 0.6kg

Duty cycle ................................................... 15mins continuous in any

30 min period

Method of Operation

1. Always check to ensure the pump is in perfect working order:

- has no apparent damage

- the filter is in place and perfectly clean

- the power cable is in perfect condition

2. Attach the flexible hose to the outlet, securing with the jubilee clip supplied.

3. If required, attach the stainless steel tube to the discharge end of the flexible hose,
securing with the jubilee clip supplied.

4. Carefully lower the pump into the pit or sump etc., to be drained.

IMPORTANT, if the bottom of the pit or sump is muddy or sandy, support the pump on a
brick or something similar. DO NOT allow it to rest in the mud or sand.

5. Connect the clamps to the 12Volt battery and the pump will operate.

IMPORTANT: ALWAYS connect the red - positive clamp to the red positive terminal of the
battery FIRST, then connect the black clamp to the black - negative terminal, ensuring both
clamps are perfectly secure.

When disconnecting - ALWAYS disconnect the black - negative clamp FIRST.

Always observe the pump discharge. Should it deteriorate during use, it is probable that the
filter is becoming blocked. In this case, disconnect the pump from the battery - black terminal
first, then carefully withdraw the pump from the pit or sump etc. DO NOT yank the cable.

Unscrew the base cap and remove the filter. Either clean thoroughly or replace as necessary,
then check the impeller to ensure it is free to rotate and is not blocked.

When satisfied, replace pump in sump or pit etc., and proceed to pump once more.

When finished, ALWAYS remove the filter and clean it thoroughly, then allow it to dry.

Thoroughly clean the pump with clean water and ensure the impeller is completely free
to rotate and is free of any contaminants.

Reassemble the pump and store in a clean, dry environment.

Parts and Service

The following parts are available from your Clarke dealer:

1. End Cap Part No: MSP1201

2. Filter MSP1202

3. Cable Clamp - Red MSP1203

4. Cable Clamp - Black MSP1204

5. Flexible Hose - 4M MSP1205

For Spare Parts and Service, please contact your nearest dealer,

or CLARKE International, on one of the following numbers.

PARTS & SERVICE TEL: [phone]

PARTS & SERVICE FAX: [phone]

PARTS: [email protected]

SERVICE: [email protected]

or e-mail as follows:
