Clarke LVP 1A, 7260065 User guide

DIRTY WATER PUMP

DIRTY WATER PUMP

MODEL No: LVP1A

Part No: 7260065

OPERATION & MAINTENANCE

INSTRUCTIONS

LS1109

INTRODUCTION

• Thank you for purchasing this CLARKE dirty water pump.

• This pump is designed for pumping dirty water only, that is water containing

solids in suspension.

It is NOT designed for pumping slurry, sludge, mud or
heavily polluted water, or any water containing chemicals or other
acidic contaminants including salt water.

GUARANTEE

• This product is guaranteed against faulty manufacture for a period of 12 months.
Please keep your receipt as proof of purchase.

• This guarantee is invalid if the product is found to have been abused or tampered
with in any way, or not used for the purpose for which it was intended.

• Faulty goods should be returned to their place of purchase, no product can be
returned to us without prior permission.

• This guarantee does not effect your statutory rights.

RECOMMENDED USES

The recommended uses for this pump are:

• Drainage after flooding

• The transfer of liquids

• Drainage of containers

• Taking water from wells and shafts

Liquids that CAN be pumped:

• Dirty water - That is water containing solids in suspension,

• Swimming pool water

Note: After pumping chlorinated water or other liquids containing

additives, the pump should be rinsed with clean water.

• Soapy water

Liquids that MUST NOT be pumped are:

• Corrosive substances including salt water

• Combustible or explosive substances (petrol, thinners etc.)

• Fats, oils or salts

• Waste from toilets or urinals

• Slurry, sludge, mud or heavily polluted water, or any water containing chemicals

Note: After pumping dirty water or other liquids the pump should be

rinsed with clean water

2

CONTENTS

Introduction .................................................................................................... 2

Guarantee ..................................................................................................... 2

Recommended uses ..................................................................................... 2

Contents ......................................................................................................... 3

Specifications ................................................................................................. 3

For your own safety ....................................................................................... 4

Electrical connections .................................................................................. 5

Parts identification ........................................................................................ 6

Preparation .................................................................................................... 7

Using the pump .............................................................................................. 8

Cleaning and maintenance ...................................................................... 9

Troubleshooting.............................................................................................. 10

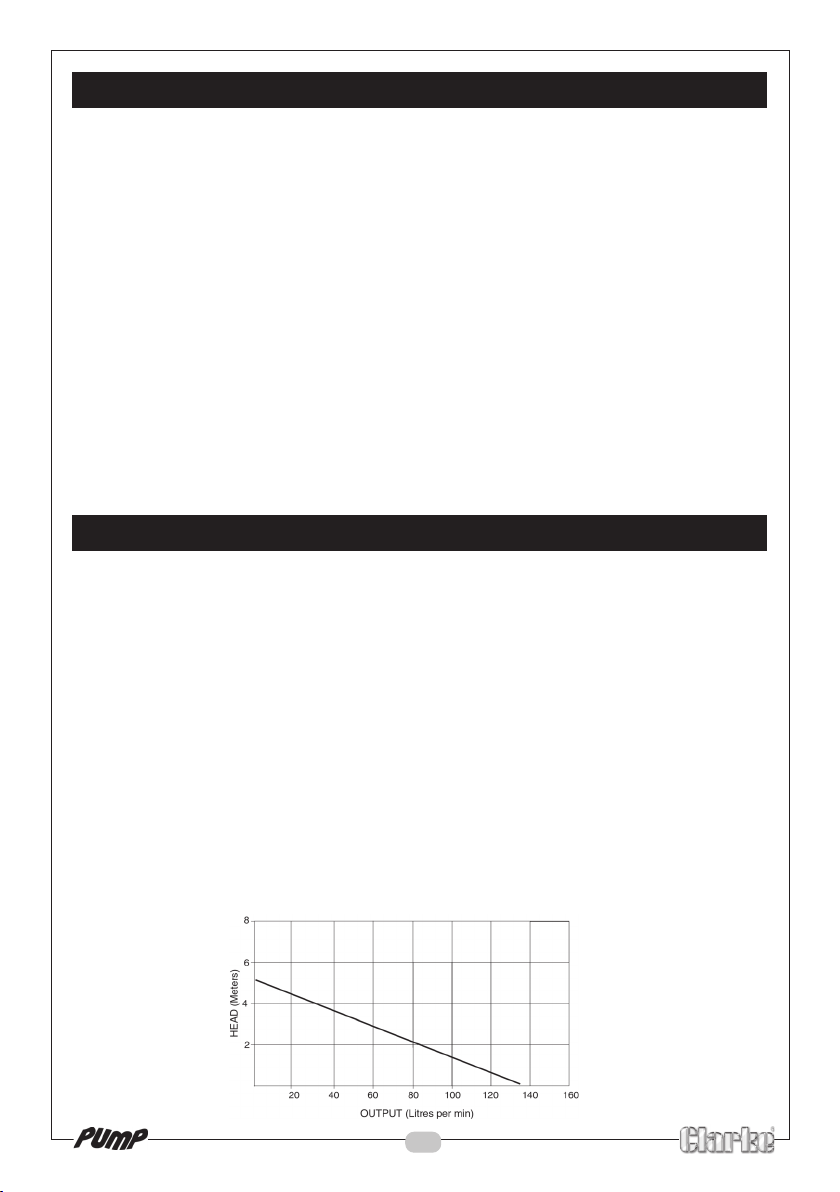

SPECIFICATIONS

Motor .......................................................... 230V 50Hz

Motor Output ............................................ 350W

Head Max .................................................. 5 m

Maximum Imersion Depth ....................... 5 m

Maximim Flow Rate .................................. 135 l/min

Outlet Size .................................................. 25 mm / 32 mm

Dimensions ( L x W x H ) ............................ 220 x 148 x 328 mm

Duty Cycle ................................................. S1

Maximum Solid Body Diameter ............... 30 mm

Part Number .............................................. 7260065

3

FOR YOUR OWN SAFETY

KEEP CHILDREN AWAY

• Do not allow children to touch the pump, cables or connections.

USE A RESIDUAL CURRENT DEVICE:

• The pump must be connected to a high sensitivity residual current device
(RCD) which has a tripping current of less than 30mA.

STORAGE

• When not in use, the pump should be stored in a dry, secure place out of the
reach of children.

WATER TEMPERATURE

• Do not use the pump if the water is liable to freeze, as this can cause damage
to the pump.

MAINS SUPPLY

• Disconnect the pump from the mains supply when not in use.

REPAIRS

• Have the pump repaired by a qualified person.

DO NOT ABUSE THE MAINS LEAD

• Never carry the pump by the mains lead.

• Never pull the mains lead to disconnect the pump from the mains socket.

• Keep the mains lead away from heat, oil and sharp edges.

• Always check the plug, mains cable and float switch cable for damage before
use. Do not use the pump if damaged. Refer to qualified service personnel for
repair.

• If you have to use an extension lead with this product, it must be designed for
outdoor use and incorporate a cable suitable for use with Class I appliances.

• Do not lower the pump using the mains lead, Always use the handle with a
rope or cord attached if necessary,.

DO NOT ABUSE THE FLOAT SWITCH

• Do not lift the pump by the mains or float switch cables.

4

ELECTRICAL CONNECTIONS

Connect the mains lead to a standard, 230 Volt (50Hz) electrical supply through an
approved 13 amp BS 1363 plug, or a suitably fused isolator switch.

WARNING! THIS APPLIANCE MUST BE EARTHED

IMPORTANT: The wires in the mains lead are coloured in accordance with

the following code:

Green & Yellow - Earth

Blue - Neutral

Brown - Live

As the colours of the flexible lead of this appliance may not correspond with the coloured
markings identifying terminals in your plug proceed as follows:

• Connect GREEN & YELLOW wire to terminal marked with a letter “E” or Earth
symbol “ ” or coloured GREEN or GREEN & YELLOW.

• Connect BROWN wire to terminal marked with a letter “L” or coloured RED.

• Connect BLUE wire to terminal marked with a letter “N” or coloured BLACK.

If this appliance is fitted with a plug which is moulded onto the electric cable (i.e. non­rewireable) please note:

1 The plug must be thrown away if it is cut from the electric cable. There is a danger of

electric shock if it is inserted into a mains power socket.

2 Never use the plug without the fuse cover fitted.

3 When replacing a detachable fuse carrier, ensure the correct replacement is used

(as indicated by marking or colour code).

4 Replacement fuse covers can be obtained from your local dealer or most electrical

stockists.

FUSE RATING

The fuse in the plug must be replaced with one of the same rating and this
replacement must be ASTA approved to BS1362.

We strongly recommend that this machine is connected to the mains supply via a
Residual Current Device (RCD)

If in any doubt, consult a qualified electrician. DO NOT attempt any repairs yourself.

5

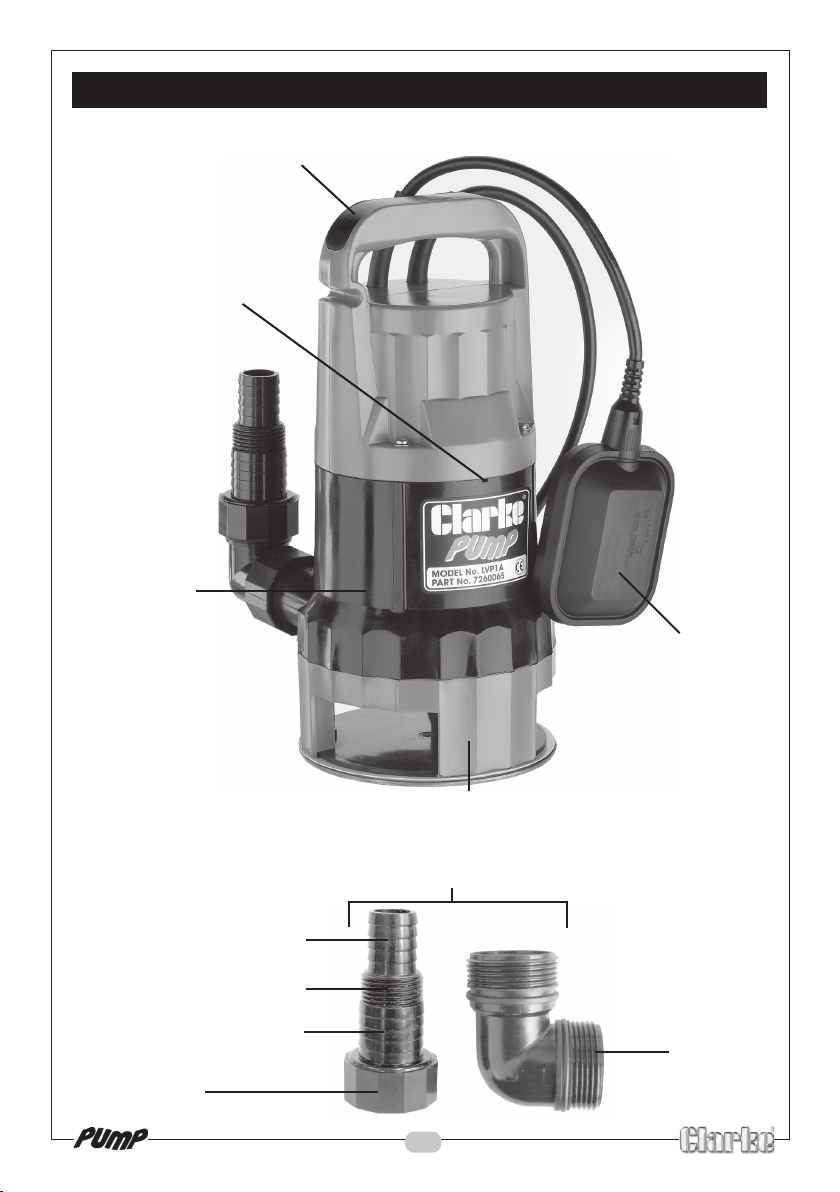

PARTS IDENTIFICATION

Handle

Air Bleed Valve

Pump

Float

Switch

Multi Hose

Adaptor

Base

May be supplied fitted to the pump

1” Hose

1” BSP

1¼” Hose

Elbow

6

PREPARATION

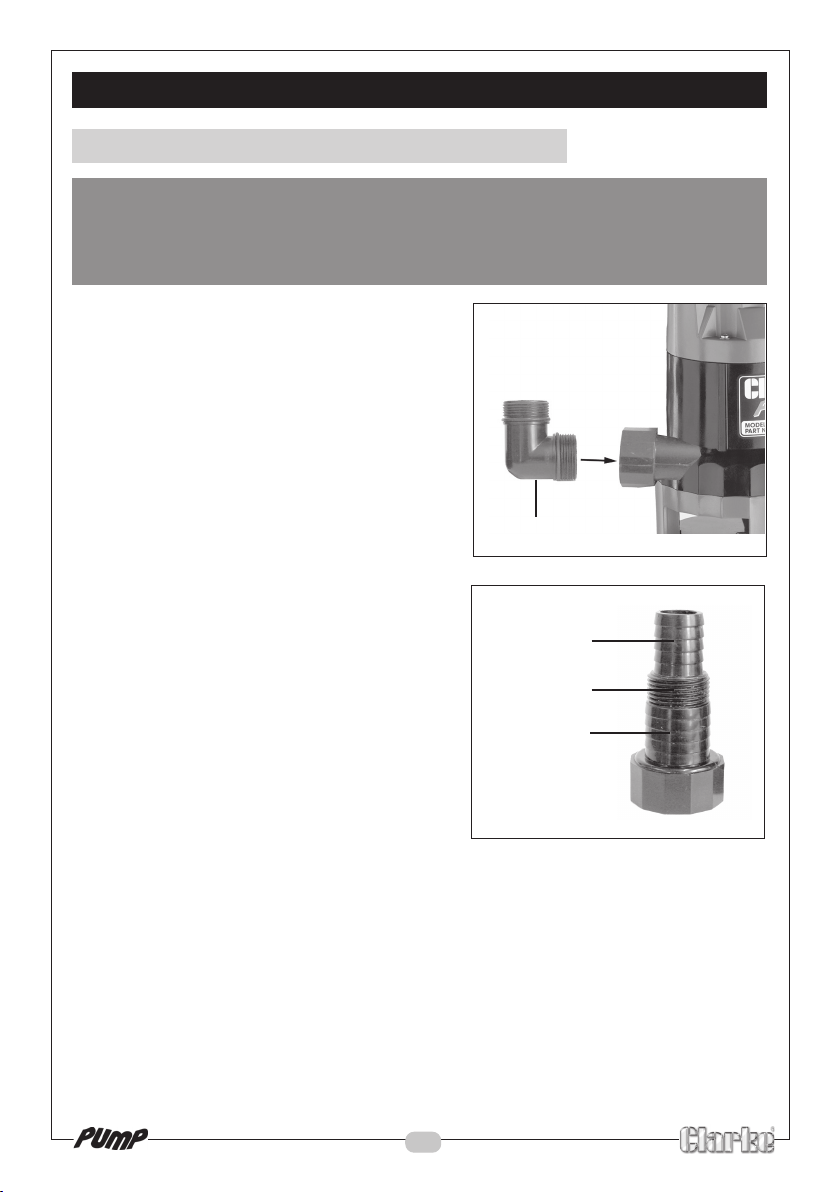

CONNECTING THE MULTI HOSE ADAPTOR

WARNING!

DISCONNECTED THE PUMP FROM THE MAINS POWER SUPPLY BEFORE

CONNECTING THE MULTI HOSE ADAPTOR

1 Fit the elbow adaptor to the pump outlet

as shown in the diagram opposite.

2 Screw the multi hose adaptor onto the

elbow,

• The multi hose adaptor is capable of
accepting 1” and 1¼” hoses and a 1”
BSB Thread.

3 Simply cut the multi hose connector to the

required size and attach a suitable hose
using with a worm drive clip.

• For maximum efficiency, we strongly
recommend that you connect a 1¼”
diameter hose to the multi hose
adapter,

• Alternatively, you may remove the multi
adapter altogether, and screw on a 1¼”
BSP hose adapter

Elbow

1” Hose

1” BSP

1¼” Hose

The pump is completely submersible, and should be placed in a vertical position, on a
solid flat surface, Placing the pump on a couple of house bricks if required.

SUITABLE HOSES, and SPARE/REPLACEMENT MULTI HOSE ADAPTERS ARE

AVAILABLE FROM YOUR CLARKE DEALER

7

USING THE PUMP

CAUTION!

CHECK THE PUMP FOR DAMAGE BEFORE USE, DO NOT USE THE PUMP IF IT IS

DAMAGED IN ANY WAY

1 Place the pump on a flat surface in the area that you want to drain.

• If there is sediment in the operating area, the pump should be placed on
house bricks, or similar.

• Ensure the pump is positioned with adequate space so that the movement of
the float switch is not restricted - recommended minimum area of 40 x 40cm

• ALWAYS raise and lower the pump using a rope attached to the lifting handle.

• Take all necessary precautions as described on page 4 before plugging in, and
switching ON.

WARNING!

NEVER CARRY THE PUMP USING THE MAINS POWER CABLE. DAMAGE TO

ELECTRICAL CABLES CAN BE DANGEROUS. ALWAYS USE THE HANDLE WHEN

MOVING THE PUMP.

2 Connect the mains plug to a high sensitivity residual current device (RCD) which

has a tripping current of less then 30mA.

3 Switch the mains power supply on,

• The pump incorporates a float switch, which automatically switches the pump
ON when the water is above a pre-determined level.

4 The pump will begin to drain water.

• As the water level falls, so will the float switch, until it stops the pump.

5 When the pumping is finished, disconnect the pump from the mains power supply

• The pump is fitted with a thermal cut out to protect the motor from
overheating. If the thermal cut out activates, the motor will automatically
switch back on when it has cooled down sufficiently.

CAUTION!

DO NOT ALLOW THE PUMP TO RUN DRY.

8

CLEANING AND MAINTENANCE

WARNING!

MAKE SURE THAT THE PUMP IS DISCONNECTED FROM THE MAINS SUPPLY

BEFORE CLEANING, OR PERFORMING ANY MAINTENANCE.

• With the exception of replacing the impeller, these pumps should require no
maintenance other than regular cleaning. If the pump starts to show signs of
wear or damage, contact your CLARKE dealer for advice.

• Do not attempt any other repairs to the pump, any other repairs must be
carried out by your CLARKE dealer, or contact the CLARKE Service Department,
on 020 8988 7400.

• Check the pump regularly to ensure the base is clear of leaves or other debris.

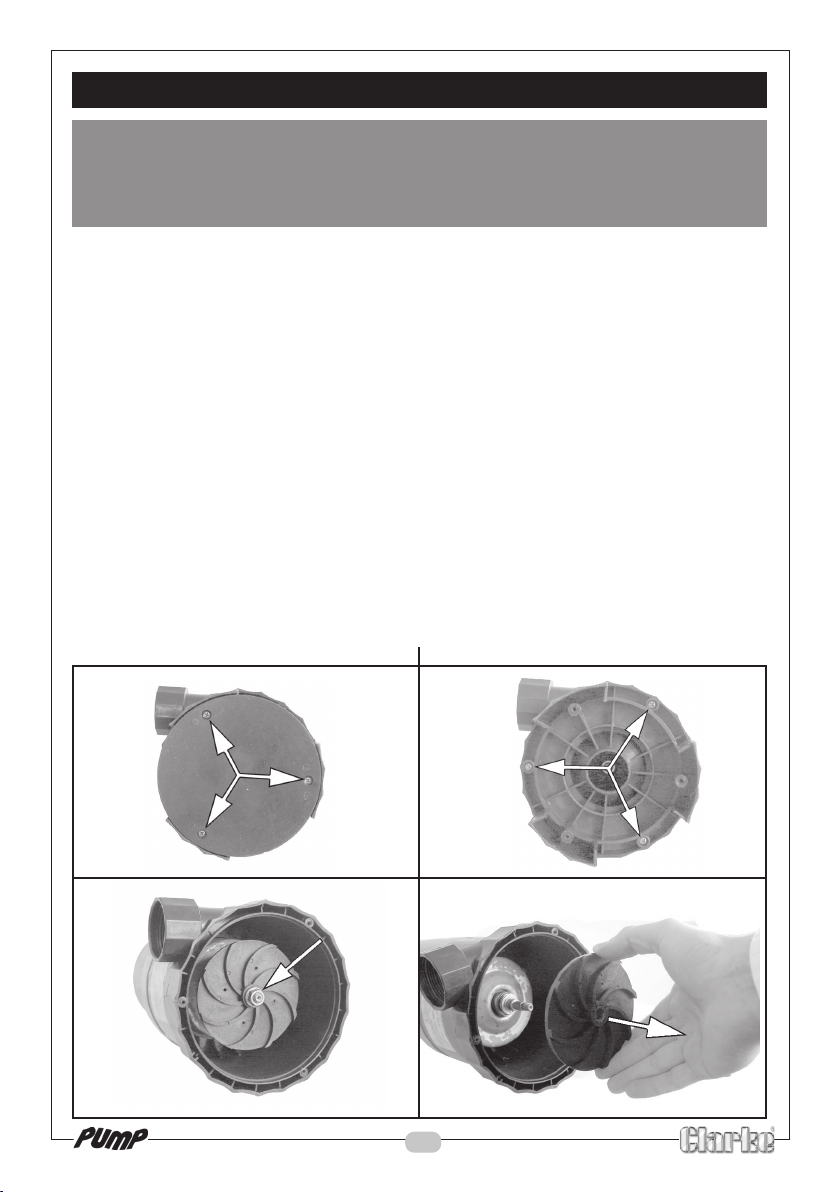

Replacing the Impeller

1 Remove the 3 screws on the base cover and pull off the base cover.

2 Remove the 3 screws from the impeller cover, and remove the impeller cover.

3 Use a 13mm spanner to remove the nut.

4 Remove the impeller from the shaft.

5 Replace with a new impeller and lock it in place using the nut removed in step 3.

6 Replace the impeller cover and then replace the base cover.

1

2

34

9

TROUBLE SHOOTING

MELBORP ESUACELBABORP

.tratstonlliwpmuP .noitisopFFOnihctiwstaolf-wolootlevelretaW

hctiwstaolF

.gnivommorfdetneverp

tontubtratslliwpmuP

.pmup

mupehtegnulP

.metsys

otstonlliwpmuP ehtotgnivommorfdetneverpebyamhctiwstaolF

.p

.noitisopnwodylluf

hctiwstaolF

.ecivdarofrelaed

.gninnurspotspmuP noitidnocsihtfI.detareposahdaolrevolamrehT

sevni,stsisrep

.dekcolbtonsiesabehttahtkcehC

orodeggolcebutegrahcsiD

)3egaptrahcnoitacificepseeS(.htiw

.

.esuacehtetagit

ro,llawedistsniagademmajebyam

daehehT.detcurtsb

ehttfilotgniyrterauoy.e.i,taergootebyam

epocotpmupehtrofecnatsidataergootretaw

.egnulpehtgniruddecudorp,pmupehtnikcolriA

tiekahsdna,elgnanata,niagap

ehtnideppartriaynaevomerotgnirewoltslihw

.rellepmIehtecalpeR-degamadebyamrellepmI

EKRALCruoytlusnoC.ytluafebyam

.nitucsahhctiwstaolfro,yrdnursahpmuP

.rellepmiehtdemmajsahtcejbongierofA

PARTS & SERVICE CONTACTS

For spare parts and service, please contact your nearest dealer,

or CLARKE International, on one of the following numbers.

PARTS & SERVICE TEL: [phone]

or e-mail as follows:

PARTS: [e-mail]

SERVICE: [e-mail]

10

DECLARATION OF CONFORMITY

This is an important document and should be retained.

We declare that this product complies with the following directives:

89/336/EEC Electromagnetic Compatibility directive, as amended.

73/23/EEC Low Voltage Equipment directive, amended by 93/68/EEC.

2002/95/EC Restriction of Hazardous substances

The Following Standards have been applied to the product:

BS EN 55014-1:2001+A1,A2

BS EN 61000-3-3:1995+A1 BS EN 61000-3-2:2000

The technical documentation required to demonstrate that the products meet the
requirements of the Low Voltage Equipment directive has been compiled and is available
for inspection by the relevant enforcement authorities.

The CE mark was first applied in: 2006

Product Description: Dirty Water Submersible Water Pump

Model number(s): LVP1A

Serial / batch Number: Current Manufacture.

Date of Issue: 01/05/2008

BS EN 55014-2:1997+A1

Signed

A.C. AIKEN

Senior Manager Clarke International.

LVP1A-RV1.doc Page 1 of 1

11
