LB5S Log Buster Stand.fm Page 1 Thursday, February 9, 2012 11:31 AM

STAND FOR LOGBUSTER 5

MODEL NO: LB5S

PART NO: 3402045

OPERATION & MAINTENANCE

INSTRUCTIONS

LS0212

LB5S Log Buster Stand.fm Page 2 Thursday, February 9, 2012 11:31 AM

INTRODUCTION

Thank you for purchasing this CLARKE Log Buster Stand.

Before attempting to use this product, please read this manual thoroughly and
follow the instructions carefully. In doing so you will ensure the safety of yourself
and that of others around you, and you can look forward to your purchase
giving you long and satisfactory service.

GUARANTEE

This product is guaranteed against faulty manufacture for a period of 12
months from the date of purchase. Please keep your receipt which will be
required as proof of purchase.

This guarantee is invalid if the product is found to have been abused or
tampered with in any way, or not used for the purpose for which it was
intended.

Faulty goods should be returned to their place of purchase, no product can
be returned to us without prior permission.

This guarantee does not effect your statutory rights.

SPECIFICATIONS

Model Number: LB5S

Part Number: 3402045

Dimensions (Stand only): 855 x 725 x 735 mm

Net Weight: 6.1 kg

2

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

LB5S Log Buster Stand.fm Page 3 Thursday, February 9, 2012 11:31 AM

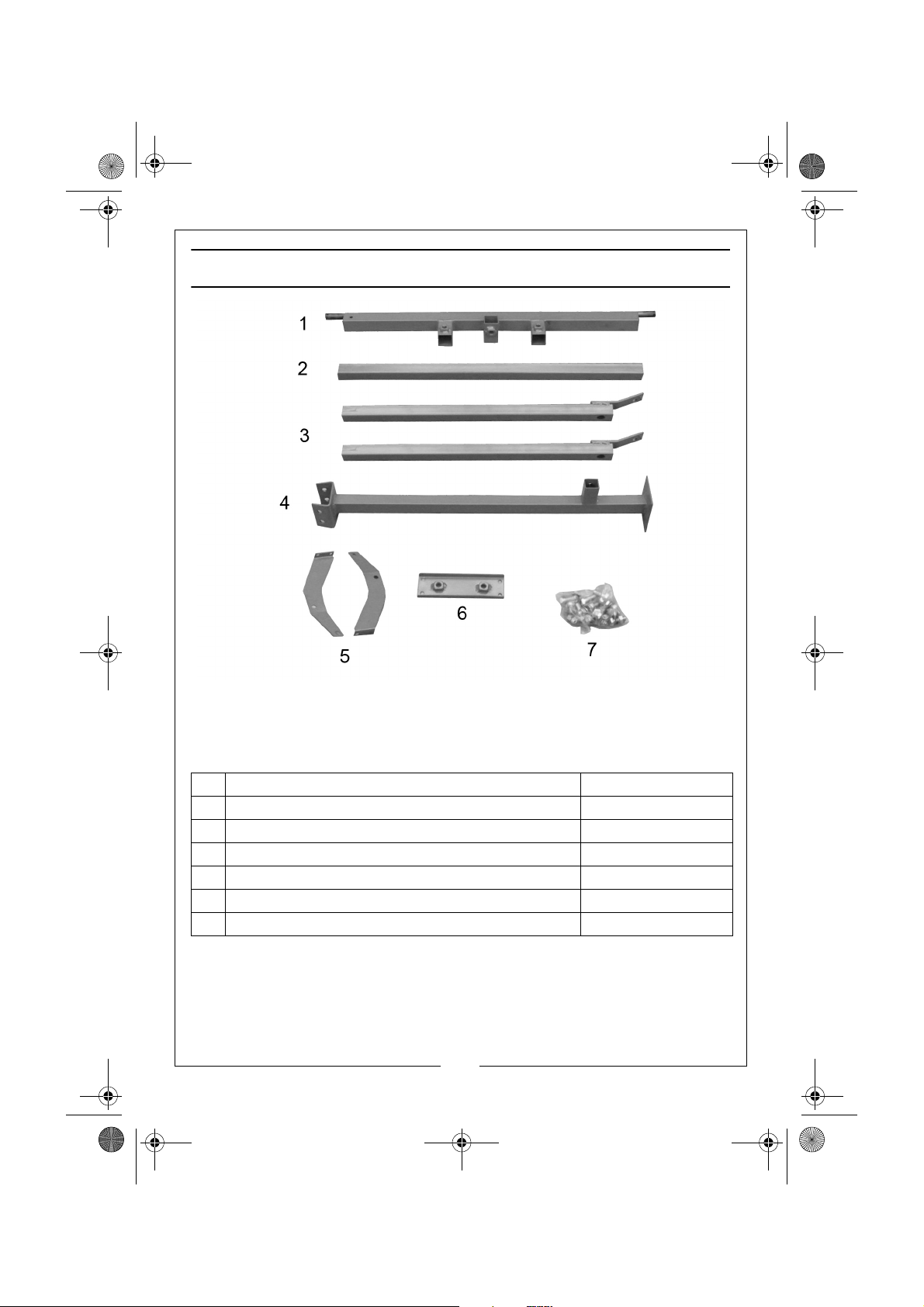

PART IDENTIFICATION

UNPACKING

The following items should be supplied in the carton. If any parts are missing or
damaged, please consult your Clarke dealer where you purchased the stand.

1 1 x Wheel support beam LGLB5S01

2 1 x Cross beam LGLB5S02

3 2 x Vertical support column LGLB5S03

4 1 x Vertical support column with bracket (front) LGLB5S04

5 2 x Motor support brackets - left and right hand LGLB5S05

6 1 x Motor support cross-member LGLB5S06

7 1 x Fixings pack LGLB5S07

3

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

LB5S Log Buster Stand.fm Page 4 Thursday, February 9, 2012 11:31 AM

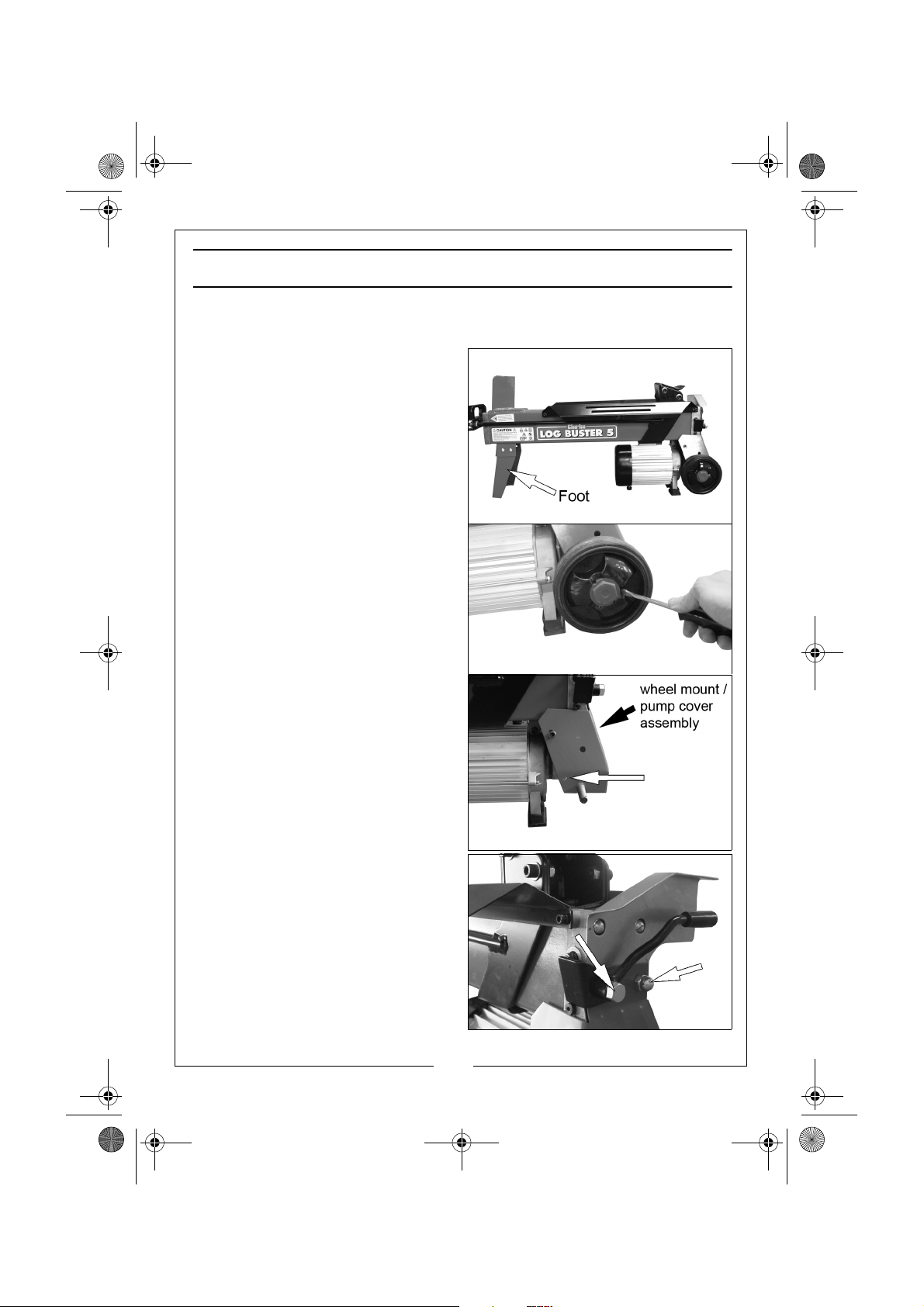

ASSEMBLY

PREPARING THE LOG BUSTER

1. Remove the 4 nuts that secure the
front foot of the log buster and
remove the foot.

2. Remove the wheel hub using a flat
screwdriver.

3. Remove the circlip and the wheel.

• The wheels, circlips and hubs will

be attached to the log buster
frame later.

4. Look at the wheel mount / pump
cover assembly on the logbuster.

• If there is a hole as shown go to

step 9.

• if not you will need to purchase

a replacement wheel mount /
pump assembly cover from your
Clarke dealer part number
3402044 and go to step 5

5. To replace the wheel mount /
pump cover assembly. remove
the safety handle and the nut next
to it (shown on the right) from the
log buster.

4

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

LB5S Log Buster Stand.fm Page 5 Thursday, February 9, 2012 11:31 AM

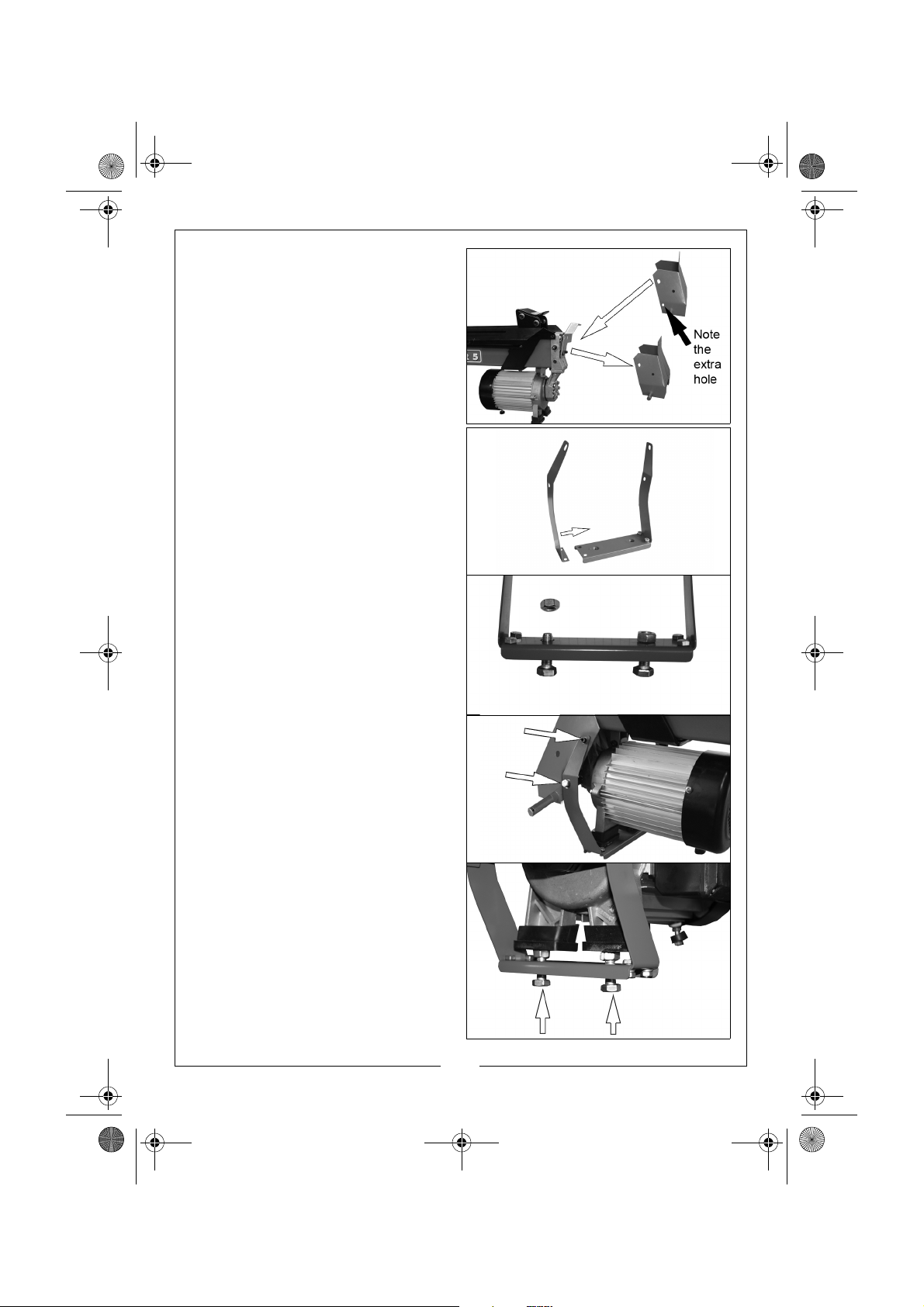

6. Remove any other nut/bolts that
are securing the wheel mount /
pump cover assembly to the log
buster.

7. Remove the wheel mount / pump
cover assembly and replace it
with the one you purchased.

8. Refit the safety handle and nuts
removed in steps 5 & 6.

9. Assemble the motor support
brackets as shown.

10. Insert the two support bolts
supplied through the bottom of
the motor support bracket and
place a lock nut on the other side.

11. Fix the motor support bracket to
the new wheel mount / pump
cover assembly using the bolts
and hexagonal screws provided.

12. Tighten the support bolts until they
touch the bottom of the motor
feet.

5

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

LB5S Log Buster Stand.fm Page 6 Thursday, February 9, 2012 11:31 AM

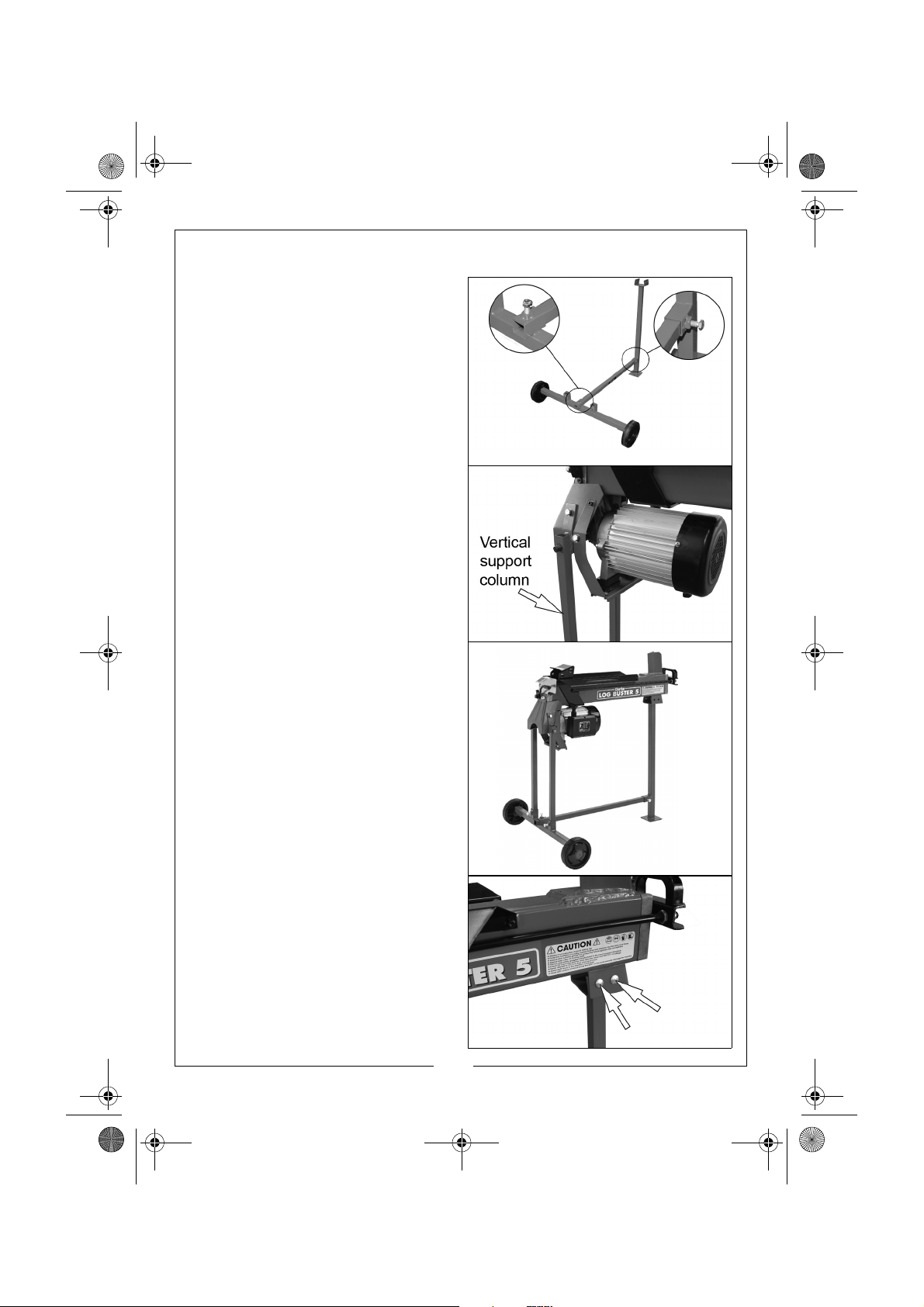

FRAME ASSEMBLY AND FIXING THE LOGBUSTER

1. Assemble the frame as shown.

2. Attach the wheels you removed
from the log buster to the log
buster stand.

3. Fix the vertical support columns to
the wheel mount / pump cover
assembly as shown.

• You may need someone to hold

the other end of the logbuster
whilst you do this.

4. Fit the logbuster to the stand as
shown.

• Make sure the vertical support

columns are inserted into the
wheel support beam correctly
and fixed in place using the
bolts provided.

5. Secure the front vertical support
column to the log buster using the
four fixings originally used to
secure the foot.

6. The logbuster is now ready for use.

6

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

LB5S Log Buster Stand.fm Page 7 Thursday, February 9, 2012 11:31 AM

MOVING THE LOG BUSTER

• Lift the log buster by the front handle before moving it.

• Only use on a firm level surface.

NOTES

7
