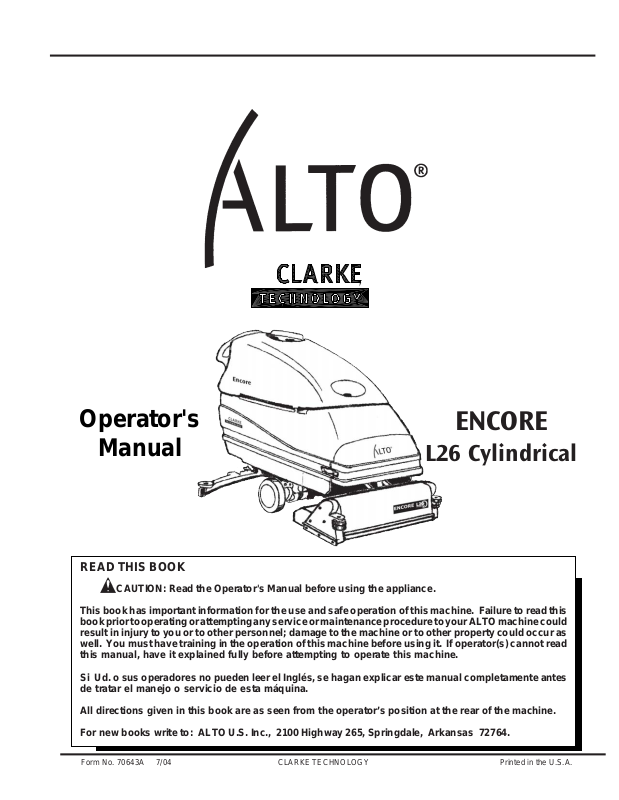

Page 1
Operator's
ENCORE
Manual
READ THIS BOOK
CAUTION: Read the Operator's Manual before using the appliance.
This book has important information for the use and safe operation of this machine. Failure to read this book prior to operating or attempting any service or maintenance procedure to your ALTO machine could result in injury to you or to other personnel; damage to the machine or to other property could occur as well. You must have training in the operation of this machine before using it. If operator(s) cannot read this manual, have it explained fully before attempting to operate this machine.
All directions given in this book are as seen from the operator’s position at the rear of the machine. For new books write to: ALTO U.S. Inc., 2100 Highway 265, Springdale, Arkansas 72764.
L26 Cylindrical
Form No. 70643A 7/04 CLARKE TECHNOLOGY Printed in the U.S.A.
Page 2
Table of Contents
Operator Safety Instructions ............................................................................................................................ 3
Introduction & Machine Specifications ............................................................................................................. 5
Procedures for Transporting Machine ............................................................................................................. 6
Symbols Used on Encore L26 Cylindrical ....................................................................................................... 8
Machine Control Panel ..................................................................................................................................... 10
Machine Controls and Features ...................................................................................................................... 11
How to Prepare the Machine for Operation...................................................................................................... 12
How to Install the Batteries ................................................................................................................ 12
Battery Maintenance........................................................................................................................... 13
How to Charge the Batteries ............................................................................................................. 14
How to Change or Rotate Brushes ................................................................................................... 15
How to Operate the Machine ............................................................................................................................ 16
How to Operate the Squeegee .......................................................................................................... 16
Filling the Solution Tank .................................................................................................................... 16
Operating the Machine....................................................................................................................... 17
How to Clean a Floor ......................................................................................................................... 17
How to Clean a Very Dirty Floor ......................................................................................................... 18
Maintenance ..................................................................................................................................................... 19
Procedures Before Work is Began .................................................................................................... 19
Procedures to Perform at the End of Work ........................................................................................20
Procedures to Perform Every Week................................................................................................... 21
Maintenance for the Squeegee .......................................................................................................... 22
How to Adjust the Squeegee ............................................................................................................. 23
How to Center or Off Set Brush Head................................................................................................ 23
How to Level the Cylindrical Brush Head .......................................................................................... 24
Accessories...................................................................................................................................................... 25
SECTION II - Parts and Service Manual
How to Correct Problems in the Machine ........................................................................................................ 28
Encore L26 Cylindrical Final Assembly Drawing ............................................................................................ 30
Parts List ............................................................................................................................................ 31
Recovery Tank Drawing ................................................................................................................................... 32
Parts List ............................................................................................................................................ 33
Solution Tank Assembly Drawing .................................................................................................................... 34
Parts List ............................................................................................................................................ 35
Rear Panel Assembly Drawing ........................................................................................................................ 36
Parts List ............................................................................................................................................ 37
Control Panel Assembly Drawing .................................................................................................................... 38
Parts List ............................................................................................................................................ 39
Squeegee Lift Assembly Drawing ................................................................................................................... 40
Parts List ............................................................................................................................................ 41
Squeegee Assembly Drawing ......................................................................................................................... 42
Parts List ............................................................................................................................................ 43
Frame Axle Assembly Drawing ........................................................................................................................ 44
Parts List ............................................................................................................................................ 45
Brush Head Assembly Drawing ...................................................................................................................... 46
Parts List ............................................................................................................................................ 47
Optional Brake Drawing and Parts List ........................................................................................................... 48
Vacuum Motor Drawing and Parts List ............................................................................................................ 49
Transaxle Drawing ........................................................................................................................................... 50
Battery Charger Drawing and Parts List ............................................................................................................. 51
Connection Diagram .......................................................................................................................................... 52
Electrical Schematic .......................................................................................................................................... 53
Page -2- CLARKE TECHNOLOGY Operator's Manual -Encore L26 Cylindrical
Page 3
OPERATOR SAFETY INSTRUCTIONS
WARNING AVERTISSEMENT ADVERTENCIA
DANGER: Failure to read and observe all DANGER statements could result in
severe bodily injury or death. Read and observe all DANGER statements found in your Owner's Manual and on your machine.
WARNING: Failure to read and observe all WARNING statements could result
in injury to you or to other personnel; property damage could occur as well. Read and observe all WARNING statements found in your Owner's Manual and on your machine.
CAUTION: Failure to read and observe all CAUTION statements could result in
damage to the machine or to other property. Read and observe all CAUTION statements found in our Owner's Manual and on your machine.
DANGER: Failure to read the Owner's Manual prior to operating or attempting any service or
maintenance procedure to your Clarke Technology machine could result in injury to you or to other personnel; damage to the machine or to other property could occur as well. You must have training in the operation of this machine before using it. If you or your operator(s) cannot read English, have this manual explained fully before attempting to operate this machine.
DANGER: Operating a machine that is not completely or fully assembled could result in injury
or property damage. Do not operate this machine unless it is completely assembled. Inspect the machine carefully before operation.
DANGER: Machines can cause an explosion when operated near flammable materials and
vapors. Do not use this machine with or near fuels, grain dust, solvents, thinners, or other flammable materials. This machine is not suitable for picking up hazardous dust. Use only commercially available floor cleaning waxes intended for machine operation.
DANGER: Lead acid batteries generate gases which can cause an explosion. Keep sparks
and flames away from batteries. Do not smoke around the machine. Charge the batteries only in an area with good ventilation. Make sure that the AC charger plug is unplugged from the wall receptacle before connecting or disconnecting the DC plug to or from the battery pack.
DANGER: Working with batteries can be dangerous! Always wear eye protection and
protective clothing when working near batteries. Remove all jewelry. Do not put tools or other metal objects across the battery terminals, or the tops of the batteries.
DANGER: Using a charger with a damaged power cord could result in an electrocution. Do
not use the charger if the power cord is damaged.
WARNING: Operating this machine from anywhere other than the back of the machine could result in
injury or damage. Operate this machine only from the rear.
WARNING: This machine is heavy. Get assistance before attempting to transport or move it. Use
two able persons to move the machine on a ramp or incline. Always move slowly. Do not turn the machine on a ramp. Do not use on surfaces having a gradient exceeding that marked on the appliance. Read the "Procedures For Transporting" in this manual before transporting as machine might topple over if not secured.
WARNING: Machines can topple over and cause injury or damage if guided over the edges of stairs or
loading docks. Stop and leave this machine only on a level surface. When you stop the machine, put all switches into their "OFF" position. Turn the key switch "OFF" and remove the key.
CLARKE TECHNOLOGY Operator's Manual - Encore L26 Cylindrical Page -3-
Page 4
WARNING: Maintenance and repairs performed by unauthorized personnel could result in damage or
injury. Maintenance and repairs must be performed by authorized Clarke Technology personnel only.
WARNING: Any alterations or modifications of this machine could result in damage to the machine or
injury to the operator or other bystanders. Alterations or modifications not authorized by the manufacturer voids any and all warranties and liabilities.
WARNING: Electrical components of this machine can "short-out" if exposed to water or moisture.
Keep the electrical components of the machine dry. Wipe the machine down after each use. This appliance is for dry use only and is not to be used or stored outdoors in wet conditions.
WARNING: Operating a machine without observing all labels and instructional information could result
in injury or damage. Read all machine labels before attempting to operate. Make sure all of the labels and instructional information are attached or fastened to the machine. Get replacement labels and decals from your Clarke Technology distributor.
WARNING: Wet floor surfaces can be slippery. Water solutions or cleaning materials used with this
type of machine can leave wet areas on the floor surface. These areas can cause a dangerous condition for the operator or other persons. Always put "Caution" signs around/near the area you are cleaning.
WARNING: Improper discharge of waste water may damage the environment and be illegal.
The United States Environmental Protection Agency has established certain regulations regarding discharge of waste water. City, state and national regulations regarding this discharge may also be in effect in your area. Understand and follow the regulations in your area. Be aware of the environment hazards of chemicals that you dispose.
WARNING: Only use the brushes provided with the appliance or those specified in the Operator's
Manual. The use of other brushes may impair safety.
CAUTION: Use of this machine to move other objects or to climb on could result in injury or damage.
Do not use this machine as a step or furniture. Do not ride on this machine.
CAUTION: Your machine warranty will be voided if anything other than genuine Clarke Technology
parts are used on your machine. Always use Clarke Technology parts for replacement.
CAUTION: This machine contains lead acid batteries. The batteries must be disposed of in an
environmentally acceptable manner.
Page -4- CLARKE TECHNOLOGY Operator's Manual -Encore L26 Cylindrical
Page 5
Introduction & Machine Specifications
Introduction & Machine Specifications
Clarke Technology’s newly designed Encore L26 Cylindrical automatic scrubber is an efficient and superior floor cleaning machine. The Encore uses two brushes to scrub and sweep a path 26 inches wide. A squeegee wipes the floor while the vacuum motor removes the dirty solution from the floor - all in one pass.
The Encore L26 Cylindrical comes complete with four - 6 volt batteries, one battery charger, two brushes and one operator’s manual.
SPECIFICATIONS:
Model Encore L26 Cylindrical
Machine Power Supply 24 Volt D.C.,
(4) 6V 250 AH Deep Cycle Batteries or (4) 6V 330 AH Deep Cycle Batteries
Pad or Brush 26" Cylindrical 2 per machine Traverse 0.5 hp (0.4 kW) Transaxle Traverse Forward Speed Variable to 250 ft./min (76 m/min) Traverse Reverse Speed Variable to 190 ft./min. (58 m/min) Battery Protection Low Voltage Motor Vacuum 3/4 HP, 3 stage, Acoustical High Efficient Tangential Solution Tank 20 Gallons (76 liters) Solution Level Calibrated level indicator on rear of machine Recovery Tank 20 Gallons (76 liters) Recovery Full Indicator Electric Shut-Off Parabolic Squeegee Swing type with breakaway feature, No tool operation feature
32 inches (81 cm) hard width with 34 inches (86 cm) flex blade width. Squeegee Operation Reverse direction on floor and 3 - position manual lever style operation Cleaning Swath 26 inch ( 66 cm) Motor, Brush (2) 0.75 HP (0,56 kW) Brush / Pad Size (2) 4 inch (10 cm) Brush Speed 1000 RPM Brush Pressure 0-100 lbs. / 0-45 kg. Brush Solution Retention Fiber Bristles Drive Wheels (2) 8 in. x 2 in. (20 cm x 5 cm) Neoprene tread Caster Dual 4 in. x 2 in. (10 cm x 5 cm) Charger 24 V D.C., 25 Amp, 115/60 or 24 V D.C., 25 Amp, 230/50 Grade Cleaning 5 Degree (6%) Length 56 inches (142 cm) Width 28 inches (71 cm) Height 43 inches (109 cm) Weight 871 lb / 395 kg Line of Sigh (from Operator Height): 68 inches (173 cm) 7.5 feet (2.3 m) Warranty Machine 3 Years, Polydur tanks- 8 years
Batteries- 18 months, pro-rated Noise 71 dBA Vibration < 2.5 m/s
2
CLARKE TECHNOLOGY Operator's Manual - Encore L26 Cylindrical Page -5-
Page 6
Procedures For Transporting
How to Put the Machine Into a Van or Truck
WARNING: This machine is heavy. Get
assistance before attempting to transport or move it. Use two able persons to move the machine on a ramp or incline. Always move slowly. Do not turn the machine on a ramp. Do not stop and leave the machine on a ramp or incline. The loading ramp must be a minimum of 32" wide.
WARNING: Machines can topple over if
guided over the edges of stairs or loading docks and cause injury or damage. Stop and leave this machine only on a level surface. When you stop the machine, put all switches into their "OFF" position.
1. Make sure the loading ramp is at least eight
(8) feet (2.5m) long and a minimum of 32" (0.8m) wide, and strong enough to support the machine.
2. Make sure the ramp is clean and dry.
3. Put the ramp in position.
4. Remove squeegee assembly, brush housing and brush or pad driver before loading. ALTO recom­mends that both the solution tank and recovery tank are empty before loading.
5. Turn key switch "ON".
Figure #1
6. Align the machine on a level surface five (5) feet (2 m) in front of the ramp.
7. Put the traverse knob at full speed.
8. Push in either one of the forward/reverse switches while pushing in the white reverse switch. Back the machine up the ramp. See figure 1.
9. Turn the key switch "OFF".
Page -6- CLARKE TECHNOLOGY Operator's Manual -Encore L26 Cylindrical
Page 7
Procedures For Transpoting (cont.)
11. Fasten the machine to the vehicle. Clarke Technology recommends a strap over the top of the machine and a strap to keep the machine from rolling forward or backwards. If this is not done, there is a possibility of the machine toppling over. Four tie down points (2 along each side of frame) are provided on machine for securing machine.
How to Remove the Machine From a Van or Truck
1. Make sure there are no obstructions in the area.
2. Make sure the unloading ramp is at least eight (8) feet (2.5m) long and a minimum of 32" (0.8m) wide, and strong enough to support the machine.
3. Make sure the ramp is clean and dry.
4. Put the ramp in position.
Figure #2
5. Unfasten the machine.
WARNING: The machine is heavy.
Make sure you use two able persons to assist in moving the machine down the ramp.
6. Turn the key switch "ON".
7. Set the traverse center knob to the slowest forward speed setting. Carefully and slowly, drive the machine to the top of the ramp and start down.
8. While pushing in the right or left forward/ reverse switch the machine will go forward. See figure 2.
9. As the machine begins to travel down the ramp, push in the forward/reverse switch to maintain a slow downward speed.
10. Replace squeegee assembly, brush housing, and brush or pad driver after machine is unloaded and ready to use.
CLARKE TECHNOLOGY Operator's Manual - Encore L26 Cylindrical Page -7-
Page 8
SYMBOLS USED ON ENCORE L26 CYLINDRICAL
Warning
Power
Solution Control
Brush Up/Down
Traverse Speed Control
Traverse Directions Forward (Traverse and Solution, and Brush Rotation)
Traverse Directions Reverse (Traverse and Solution, and Brush Rotation)
Page -8- CLARKE TECHNOLOGY Operator's Manual -Encore L26 Cylindrical
Page 9
SYMBOLS USED ON ENCORE L26 CYLINDRICAL
Warning Label with parking brake
Warning Label without parking brake
CLARKE TECHNOLOGY Operator's Manual - Encore L26 Cylindrical Page -9-
Page 10
Machine Control Panel
Key Switch (See Figure 3, Item "A")
The key switch turns "ON" the power to the control panel. "O" is "OFF" and "I" is "ON".
Forward Reverse Switch (See Figure 3, Item "B")
The forward/reverse switch turns the traverse motor "on" forward and if the brush motors are in the down position, activates the brush motors/solution control module. There is a two second delay for the pad motor to stop after releasing the switch. Either the right or the left switch can be used. Use either switch in conjunction with the white reverse switch to reverse the traverse motor. .
Battery Meter (See Figure 3, Item "C")
The battery meter indicates the relative charge on the battery pack. Do not continue to run the machine when the needle is in the "red" area. This will shorten the life of the battery pack.
Brush Pressure Meter (See Figure 3, Item "D")
The brush pressure meter indicates the relative amount of pressure the brushes are putting on the floor. To maximize run time on a battery charge, keep the needle towards the center of the green area.
Reverse Switch (See Figure 3, Item "E")
The reverse switch, when used in conjunction with one of the forward/reverse switches, causes the machine to reverse directions. The reverse speed is 70% of the forward speed.
Hour Meter (Not Illustrated) (Option)
The hour meter indicates the number of hours the machine has operated. It runs only when the brush motor is on.
Circuit Breakers
The circuit breaker reset buttons are located on the rear cover. The breakers are located as follows:
Item F - Actuator Head (5 amp) Item G - Vacuum Motor (30 amp) Item H& I - Brush Motor (25 amp)
Item J - Traverse Motor (25 amp) If a circuit breaker trips, determine which motor is not operating and turn the key switch "OFF". Wait five minutes and push the reset button back in. Turn the key switch "ON" and try again. An authorized service person should be contacted if the breaker trips again.
(See Fig 3, Items "F", "G", "H", "I" & "J")
Control Handles (See Figure 3, Item "K")
The control handles are located at the rear of the machine. They are used to guide the machine.
Solution Control Knob (See Figure 3, Item "L")
The solution control knob regulates the flow of chemi­cal solution to the floor. To increase the flow, turn knob clockwise. To decrease the flow, turn counter clockwise. Full counter clockwise is OFF and full clockwise is ON.
Traverse Speed Knob (See Figure 3, Item "M")
To increase speed, turn knob clockwise.
Brush Motor Switch (See Figure 3, Item "N")
To activate brush motor, push brush position switch to down position. Brush Motor and solution flow will activate when the traverse buttons are pushed. To shut brush motor off, hold brush position switch in up position until actuator stops.
Vacuum Motor Switch (See Figures 4 & 5, pg. 11)
To activate vacuum motor, lower squeegee handle. Handle has two positions. Lowest position is operating position and the middle position is transport to clear vacuum hose.
K
E
K
B
C
G
F
G
A
N
HIJ
M
K
B
L
D
H
Figure 3
Page -10- CLARKE TECHNOLOGY Operator's Manual -Encore L26 Cylindrical
Page 11
Machine Controls and Features
Squeegee Lift Handle, See Figures 4 and 5
The squeegee lift handle is located below the control handles in the center. It is used to raise or lower the squeegee. The vac motor is turned on when the handle is lowered to either the first or last position.
Float Shut Off, See Figure 6
The shut-off switch for the vac motor is located in the recovery tank. It automatically turns off the vac motor when the recovery tank is full. NOTE: If excessive
foaming occurs in recovery tank, defoamer must be added. Damage to vacuum motor could result from foam.
Parking Brake (Optional), See Figure 7 NOTE: Parking Brake must be used if operating machine on greater than 2% gradient.
The parking brake prevents movement of the machine.
CAUTION: Do not activate the parking brake
while the machine is moving.
The brake is located on the right hand side of the machine on the transaxle motor. Turn the key switch off or disconnect the power to the battery to apply the brake.
There is a mechanical lever located on the brake. This lever is an override. To manually release the brake, rotate the lever clockwise. To return the brake to normal or to apply the brake, rotate the lever up counter clockwise.
NOTE: If the lever is left in the override position, the brake will not function with the key switch, and the machine will not operate.
Figure 4
Figure 5
Figure 7
CLARKE TECHNOLOGY Operator's Manual - Encore L26 Cylindrical Page -11-
Figure 6
Page 12
How To Prepare the Machine For Operation
How To Install The Batteries
The Encore machines uses either two 12-volt batteries or four - 6 volt batteries. The batteries are located in the battery compartment under the recovery tank.
To install the batteries, follow this procedure:
1. Turn machine off. Set brake (if equipped).
2. Make sure recovery tank is empty.
3. Tip up the recovery tank until it locks in the full open position. See figure 8A.
CAUTION: Before raising the tank, be sure
tank is empty.
NOTE: There is an intermediate position available
for holding the recovery tank open for charging batteries. See figure 8B.
WARNING: Do not operate or perform mainte-
nance on the machine while the recovery tank is in the intermediate position. The tank can be acciden­tally bumped and it may slam shut.
4. Place the batteries in the tray as shown in figure 8C.
WARNING: The batteries are heavy. Lifting
batteries without help could result in an injury. Get help to lift the batter­ies.
WARNING: Working with batteries can be
dangerous. Always wear eye protection and protective clothing when working near batteries. NO SMOKING!
5. Connect the cables between batteries and install long battery cable assembly as indicated. See figure 8C.
6. Join the connector from the battery pack to the connector on the control panel. See figure 9.
Figure 8A
Figure 8B
7. Close recovery tank by pulling up on the latch arm and then slowly lowering the tank.
NOTE: Charge the batteries before using the
machine.
Figure 9
Page -12- CLARKE TECHNOLOGY Operator's Manual -Encore L26 Cylindrical
Figure 8C
Page 13
How To Prepare the Machine For Operation
Battery Maintenance
The electrical power to operate the machine comes from the storage batteries. Storage batteries need preventative maintenance.
WARNING: Working with batteries can
be dangerous. Always wear eye protection and protective clothing when working near batteries. NO SMOKING!
To maintain the batteries in good condition, follow these instructions:
1. Keep the electrolyte at the correct level. The correct level is between 1/4" (1/2 cm) below the bottom of the tube in each cell and above the tops of the plates. Check the level of the electro­lyte each time you charge the batteries. See figure 10.
NOTE: Check the level of electrolyte prior to charging the batteries. Be sure the plates in each cell are covered with electrolyte before charging. Do not top off the cells prior to charging the battery. Electrolyte expands during charging. As a result, the electrolyte could overflow from the cells. Always top off the cells with distilled water after charging.
Correct Level
Figure 10
CAUTION: Irreversible damage will occur to
the batteries if electrolyte does not cover the plates. Keep the electrolyte at the correct level.
CAUTION: Machine damage and discharge
across the tops of the batteries can occur if the batteries are over filled. Do not fill the batteries up to the bottom of the tube in each cell. Wipe any acid from the machine or the tops of the batter­ies. Never add acid to a battery after installation.
CAUTION: Batteries must be refilled with
distilled water only. Do not use tap water as it may contain contaminants that will damage batteries.
2. Keep the tops of the batteries clean and dry. Keep the terminals and connectors clean. To clean the top of the batteries, use a damp cloth with a weak solution of ammonia or bicarbonate of soda solution. To clean the terminals and connectors, use a terminal and connector cleaning tool. Do not allow ammonia or bicar­bonate of soda to get into batteries.
Figure 11
3. Keep the batteries charged.
4. To drain battery compartment: (See figure 11) a. Always wear protective eye protection and
protective clothing.
b. Add a weak solution of ammonia or bicarbon-
ate of soda solution to battery compartment to
neutralize any spilled acid. c . Pull drain hose out from under transaxle. d. Place hand behind flange and open valve. e. When empty, close valve. f. Replace valve and drain hose on top of
transaxle. g. Neutralize any acid spills with ammonia or
bicarbonate of soda.
CLARKE TECHNOLOGY Operator's Manual - Encore L26 Cylindrical Page -13-
Page 14
How To Prepare the Machine For Operation
How To Charge The Batteries
WARNING: Charging the batteries in an area
without adequate ventilation could result in an explosion. To prevent an explosion, charge the batteries only in an area with good ventilation.
WARNING: Lead acid batteries generate gases
which could explode. Keep sparks and flames away from batteries. NO SMOKING!
WARNING: Failure to disconnect the AC plug
from the wall receptacle before connecting or disconnecting the DC connector on the charger could result in an explosion. Always disconnect the AC plug from the wall receptacle before connecting or disconnecting the DC connector on the charger.
To charge the batteries, follow this procedure:
1. Put the charger on a flat surface. Make sure the vents on the sides are at least two inches away from walls and other objects. Make sure there are no objects near the vents on the bottom of the charger.
Figure 12
2. When key is off, brake is activated. Make sure key is off.
3. Before charging the batteries the battery compartment needs to be vented. To vent compartment, tip up the recovery tank until it locks in either of the two open positions. See figure 12. To close the tank, pull up on the latch arm and then slowly lower the tank to the closed position.
CAUTION: Before raising tank, be sure tank is
empty.
NOTE: There is an intermediate position available
for holding the recovery tank open for charging batteries. See figure 13.
WARNING:Do not operate or perform
maintenance on the machine while the recovery tank is in the intermediate position. The tank can be accidentally bumped and it may slam shut.
To place the tank in the intermediate position, pull up on the latch arm while raising the recovery tank until it slips into the knotch area of arm. While pulling up on the latch arm,carefully lower the recovery tank making sure it is securely locked into place. See figure 13. To release the latch arm, tip the recovery tank up slightly while pushing down on the latch arm and then slowly lower the tank.
Figure 13
Page -14- CLARKE TECHNOLOGY Operator's Manual -Encore L26 Cylindrical
Page 15
How To Prepare the Machine For Operation
4. Disconnect the battery pack connector from the control
housing connector. See figure 14A.
5. Connect the DC connector on the charger to the battery
pack connector. See figure 14B.
6. Connect the charger to a properly grounded single phase
(3-wire) wall receptacle having the input voltage, fre­quency, and ampere capacity specified on the nameplate of the charger.
For more information on the use of the charger, read the instructions supplied with the charger.
How To Change or Rotate Brushes
To install or rotate brushes on the machine, follow this procedure:
1. Turn the key switch "ON".
2. Raise the brush head by pressing and holding the brush
switch until brush head is in full up position,
3. Turn the key switch "OFF" and remove the key.
4. Go to the front of the machine and remove thumb screw from
brush door (figure 15).
Figure 14A
5. Lower door approximately ½ inch and slide door and bearing
assembly off shaft (figure 16).
6. Remove brush spacer and brush by sliding off of brush shaft
(figure 17).
7. Rotate brush or replace.
8. Slide brush on shaft and rotate slowly until drive pins are
lined up with brush slots. Push brush all the way in.
9. Install brush spacer on shaft.
10. Slide brush door bearing assembly on shaft.
11. Raise door and install thumb screw.
DANGER: Operating a machine that is not completely
or fully assembled could result in injury or property damage. Do not operate this machine unless it is completely assembled. Inspect the machine carefully before operation.
Figure 14B
Figure 15
Figure 17
CLARKE TECHNOLOGY Operator's Manual - Encore L26 Cylindrical Page -15-
Figure 16
Page 16
How To Operate The Machine
DANGER: Operating a machine that is not
completely or fully assembled could result in injury or property damage. Do not operate this machine unless it is completely assembled. Inspect the
machine carefully before operation.
How To Operate The Squeegee
The squeegee wipes the floor while the vacuum motor removes the dirty solution from the floor. Use your hand to lower or raise the squeegee handle. To operate the squeegee, follow this procedure:
1. To lower the squeegee and start the vacuum motor, move the squeegee lever to the right and down. See figure 18.
2. To raise the squeegee, lift the squeegee lever up. See figure 19.
NOTE: The center position lets the vacuum motor continue to run with the squeegee off the floor to avoid drips and also allows you to back up the machine.
How To Fill The Solution Tank
The solution tank can be filled in the front or through the clear drain hose at the rear of the machine (See figure
20). To fill the solution tank follow this procedure:
Figure 18
1. Add a cleaning chemical to the solution tank. For the correct amount of chemical, follow the directions shown on the container.
2. Fill the solution tank with water. When filling machine in the front with a hose, position hose inside the fill screen as shown in figure 20A.
When filling machine from the rear, position clear drain hose against bracket and insert hose as shown in figure 20B Solution level can be viewed from the back of the machine.
WARNING: Water solutions or cleaning materials
used with this type of machine can leave wet areas on the floor surface. These areas can cause a dangerous condition for the operator or other persons. Always put CAUTION signs near the area you are cleaning.
WARNING: Machines can ignite flammable
materials and vapors. Do not use with or near flammables such as gasoline, grain dust, solvents and thinners. Only use a cleaning concentration recommended by the chemical manufacturer.
Figure 19
Figure 20A
WARNING: Clarke Technology recommends a
maximum water temperature of 120
o
(49
C).
Page -16- CLARKE TECHNOLOGY Operator's Manual -Encore L26 Cylindrical
o
F
Figure 20
Page 17
How To Operate The Machine
Operating The Machine NOTE: Put the machine in the lowest traverse speed
setting. Use the machine in an area that has no furniture or objects until you can do the following:
1. Move the machine in a straight direction, forward and
backward.
2. Stop the machine safely.
3. Turn the machine both left and right and return to a straight
direction.
To move the machine, follow this procedure:
1. Release the parking brake (if equipped with
machine).
2. Turn the key switch to the "ON" position
3. Raise the brush to the highest setting.
Figure 20B
4. Raise the squeegee.
5. When either the left or right forward/reverse switches
(figure 21, item A) are pushed in, the machine will go forward.
6. Control the speed of traverse by using the traverse speed
control knob (figure 21, Item C).
7. To stop, release the forward/reverse switch.
8. To reverse the machine, push in the white reverse switch
(figure 21 item B) and either the right or left forward/ reverse switch (figure 21 item A) at the same time.
9. To stop, release the forward/reverse switch.
10. To turn the machine, push the rear of the machine to the side.
11. When you stop the machine, turn the key switch "OFF", remove the key and set the parking brake (if equipped).
How To Clean A Floor
WARNING: Water solutions or cleaning materials
used with this type of machine can leave wet areas on the floor surfaces. These areas can cause a dangerous condition for the operator or other persons. Always put CAUTION signs near the area you are cleaning.
B
A
C
A
Figure 21
To clean a floor follow this procedure:
1. Set the parking brake (if equipped with machine.)
2. Put the water and a cleaning chemical in the clean solution tank.
3. Release the parking brake (if equipped with machine.)
4. Turn the key switch "ON".
5. Lower the squeegee.
6. Activate the brush switch until correct pressure is achieved.
CLARKE TECHNOLOGY Operator's Manual - Encore L26 Cylindrical Page -17-
Page 18
How To Operate The Machine (cont)
WARNING: This machine is capable of maximum
head pressure with worn brushes. With this feature, there is the possibility of exceeding the recommended brush pressure on new brushes. either create reoccurring circuit breaker tripping or the possibility of lost traction and control. The brush switch should be activated to accomplish only enough brush pressure for the job. This will allow longer battery life and cleaning time.
NOTE: Keep the machine moving when the brushes are
rotating on the floor. Pre-wet brushes or keep light pressure on brushes until solution flow is adequate to keep brushes from scratching the floor.
To pre-wet brushes you should first turn the speed knob to the lowest setting. Then lower brushes until brushes are just touching the floor. Activate the forward/reverse switch to start motor and solution flow.
7. Turn the solution knob to the right to activate the flow of solution. Adjust the flow of clean solution to the flow desired.
This will
8. Move the machine across the floor in the forward direction.
9. Make a 180° turn.
NOTE: When you make more passes across the floor, let the brush clean approximately 2 inches (5 cm) of the area already cleaned by the brush.
NOTE: During most cleaning procedures, apply and remove the solution in one operation.
How To Clean A Very Dirty Floor
To clean a very dirty floor, follow this procedure:
1. Apply solution to the floor.
2. Do not lower the squeegee. This will keep the vacuum motor off.
3. Lower the brush or pad and scrub the floor.
4. Scrub the floor again with additional solution and lower the squeegee.
5. Pick up all the solution with the squeegee.
Page -18- CLARKE TECHNOLOGY Operator's Manual -Encore L26 Cylindrical
Page 19
Maintenance
WARNING: Maintenance and repairs must be
done by authorized personnel only.
WARNING: Always empty the solution tank and
recovery tank before doing any maintenance.
WARNING: Keep all fasteners tight.
These Maintenance Procedures Must Be Done Every Day
Keep the machine clean, it will need fewer repairs and have longer life.
Do These Procedures When You Begin Your Work Period
Figure 22
1. Turn off key switch.
2. Disconnect AC power from battery charger (fol­low charger instructions).
2. Disconnect the plug on the battery charger from the battery pack connector.
3. Join the connector from the batteries to the control panel cable connection. See figure 22.
4. Make sure the Screen filter over the vacuum motor is clean and in position. See figure 24.
5. Make sure the recovery tank lid is on correctly. See figure 23, Item A.
6. Make sure the valve on the recovery drain hose is clean. Tightly close the valve.
7. Make sure the brushes are in position and in­stalled correctly.
8. Make sure brush housings and skirts are in position on the brush head.
A
Figure 23
9. Check the installation of the squeegee and squeegee hose.
10. Make sure the solution drain / level indicator hose is secure on the storage mount on the rear of the machine.
Figure 24
CLARKE TECHNOLOGY Operator's Manual - Encore L26 Cylindrical Page -19-
Page 20
Maintenance
Do These Procedures When You End Your Work
1. Drain the solution tank (Figure 25) and the recovery tank (Figure 26). To drain the tanks , follow this procedure:
a. Turn the key switch “OFF”. b. Remove the drain hose from the back of the
machine. c. Put the end of the hose over a drain or bucket. d. Recovery Tank:
1.) Turn the valve handle to the left. Pull the handle out to open the drain (Figure 27).
NOTE: Have the opening in the side of the valve away from you when you open the valve.
2.) To open the valve completely, turn the handle to the right. Pull the handle out of valve (Figure 28).
Solution Tank:
When hose is lowered to water level, water will flow.
2. Flush the tanks. To flush the tanks, put clean water in the tank through the opening on top of the tank.
3. If a tank or drain hose has an obstruction, use a pressure water hose to flush the tank or hose. Put the water hose into the drain hose.
Figure 25
Figure 26
Figure 27
4. Leave the tanks and the recovery drain valve open to dry in the air.
5. Check the squeegee blade. Use a cloth to clean the squeegee blade. If the squeegee blade is damaged or worn, turn or replace the blade.
6. Check and clean the solution lid gasket. Use a mild cleaning solution and rinse the parts in clean water.
7. The debris tray needs to be emptied regulary to prevent over flow. To remove the debris tray from the machine, follow this procedure (see figure 29):
a. Go to the left side of the machine, to the rear of the
cylindrical brush head.
b. Grab the end of the tray with the left hand and the
center of the tray with the right hand.
c. Lift center of tray with right hand and slide tray out
with left hand.
d. Empty tray and clean before sliding tray back in.
Make sure upper and lower slides are engaged.
Figure 28
Figure 29
Page -20- CLARKE TECHNOLOGY Operator's Manual -Encore L26 Cylindrical
Page 21
Maintenance
8. Check the batteries and if necessary add distlled water after charging. The correct level is within 1/4 inch (1/2 cm) of the bottom of the tube in each cell.
CAUTION: Tap water may contain contami-
nants that will damage batteries. Batteries must be refilled with DISTILLED WATER ONLY.
WARNING: Lead acid batteries generate gases
which can cause an explosion. NO SMOKING. Always wear eye protection and protective clothing when working near batteries.
9. Use a clean cloth and wipe the surface of the machine.
10. Charge the batteries. See the instruction in the section of this book called “How To Charge The Batteries”.
Maintenance Procedures To Be Done Every Week:
WARNING: Maintenance and repairs must be done
by authorized personnel only. Always empty the solution tank and the recovery tank before doing any maintenance. Keep all fasteners tight.
WARNING: Always wear eye protection and
protective clothing when working near batteries. Do not put tools or other metal objects across the battery terminals or the tops of the batteries.
CAUTION: To prevent damage to the machine, and
discharge across the tops of the batteries, do not fill the batteries above the bottom of the tube in each cell. Wipe any acid from the machine or the tops of the batteries. Do not add acid to battery after installation.
NOTE: Always turn off key switch before servicing the
machine.
Figure 30
Figure 31
WARNING: Always wear eye protection and
protective clothing when working near batteries. NO SMOKING!
1. To inspect batteries, tip up recovery tank until it locks in the full open position. See figure 30. To close the tank, pull up on the latch arm and then slowly lower the tank to the closed position.
CAUTION: Before raising the tank, be sure tank is
empty.
NOTE: There is an intermediate position available for holding
the recovery tank open for charging batteries. See figure 31.
CLARKE TECHNOLOGY Operator's Manual - Encore L26 Cylindrical Page -21-
Page 22
Maintenance
WARNING: Do not operate or perform
maintenance on the machine while the recovery tank is in the intermediate position. The tank can be accidentally bumped and it may slam shut.
2. Disconnect the batteries. Use a cloth and a solution of ammonia or bicarbonate of soda to wipe the top of the batteries. Clean the battery terminals. Reconnect the batteries.
3. Check the hoses for leaks, obstructions and other damage.
Figure 32
4. Use a grease gun to lubricate the dual casters. See figure 32.
5. Check the brush drive belts for proper tension. Belts must be tensioned properly to prevent slipping. To tighten the belts, follow this procedure:
a. Remove belt cover by removing screws. b. Loosen the 2 screws on either side of the motor
pulley.
c. Use a small prybar or large screwdriver to pry the
motor upward to acheive correct belt tension. Pry on the motor close to where the motor contacts the brush head casting (see figure 33, A).
d. Hold tension and tighten 2 screws (see figure 33,
B).
e. Replace belt cover.
Maintenance For The Squeegee
To remove the squeegee, follow this procedure:
1. Remove the squeegee assembly by loosening the two
knobs that attach the squeegee to the machine. Pull the squeegee assembly off. See figure 34.
2. Inspect the squeegee blade.
A
B
Figure 33
Figure 34
3. If the blade is worn, turn the blade so that a new edge
is in the wiping position.
4. Reinstall squeegee assembly on the machine.
Page -22- CLARKE TECHNOLOGY Operator's Manual -Encore L26 Cylindrical
Page 23
Maintenance cont.
How To Adjust The Squeegee
The following adjustments are set at the factory, however they may require slight adjustment.
Adjusting Squeegee Tilt:
The tilt of the squeegee causes the rear blade to raise up in the center or on the ends, depending on which direction the tilt is changed. For tilt adjustment, refer to figure 35. Loosen left and right screw "X". In order to bring the blades down in the center, tip "Y" down. To bring both ends down, tip "Y" up. Make very small adjustments and try it until a uniform flare is achieved.
Adjusting Squeegee Blades:
When properly installed the front blade should be ap­proximately 0.06" (1.5mm) above the rear blade. See figure 36.
WARNING: Maintenance and repairs must be
done by authorized personnel only.
WARNING: Electrical repairs must be done by
authorized personnel only.
Consult your Clarke Technology Authorized Service Person to do the service procedures.
Use only genuine Clarke Technology parts.
How to Center or Offset the Brush Head
The brush head on the Encore L26 can be centered or offset 1 inch to the right side of the machine. To center or offset the brush head, follow this procedure:
Recommended tools: 3/8" drive rachet, 3" extension and 9/16" socket.
CAUTION: Before offsetting the brush head, be
sure that the recovery tank is empty of solution. Follow the instructions on page 20 on how to drain the recov­ery tank.
REAR BLADE
Figure 35
0.06 (1.5 mm)
Figure 36
1. Turn the key switch "ON".
2. Raise the brush head by pressing and holding the brush switch until the brush head is in its full up position.
3. Turn the key switch "OFF" and remove the key.
4. Tip up the recovery tank until it locks in the full open position.
5. Go to the front of the machine and unlatch the front cover and swing cover open.
CLARKE TECHNOLOGY Operator's Manual - Encore L26 Cylindrical Page -23-
Page 24
Maintenance cont.
6. Locate the four mounting studs on the brush head bracket. See figure 37. The top two mounting nuts can be accessed through the top of the solution tank. The lower two can be accessed through the front. Loosen the four mounting nuts 2 to 3 turns counterclockwise. NOTE: Do not remove mounting nuts.
7. The brush head assembly can slide to the right side by one inch or placed back into the center. Slide the brush head assembly all the way to the ends of the slots for the desired position. This insures that the head operates straight up and down.
1
2
3
8. After repositioning the brush head, tighten nuts securely to approximately 236 inch-lbs.
9. Close the front cover.
10. Close the recovery tank.
How to Level the Cylindrical Brush Head
The brush head on the Encore L26 is level when shipped from the factory. If during use it becomes necessary to re­level the head from side to side, follow this procedure:
1. Move the machine to a level area of the floor surface.
2. Turn key switch "OFF".
3. Lossen the 4 mounting nuts shown in figure 37, by following steps in the procedure above (How to Center or Offset the Brush Head).
4. Turn the key switch on and lower the head, until the full weight of the head is on the floor.
5. Turn the key switch "OFF".
4
Figure 37
6. After determining the brush head is level with the floor, tighten nuts securely to approximately 236 inch-lbs.
7. Close front cover and recovery tank.
Page -24- CLARKE TECHNOLOGY Operator's Manual -Encore L26 Cylindrical
Page 25
ACCESSORIES
Description Part No.
Power Wand System Kit 10150A Clarke Care Kit 146 07A 39" Squeegee Assembly 100 68A 32" Squeege Assembly 101 29A Poly Dur Protectant 504 78 A Kit, Grease Gun 554 20 A Kit, Low Voltage Shut-Off 140 97A Brake Kit Assembly "L" 1007 2A Accessory Bag 30070A Hour Meter Kit 1065 6A Hard Caster Assembly 509 68A Kit, Solution Fill 1017 7A
Clarke Technology
Encore L26 Cylindrical
Accessories - 3/02
Brushes:
Size Description Part No. Used For
26" Polyproplene 30176A General Scrubbing Hard Floors 26" Clean Grit 301 78A 26" Super Grit 301 79A 26" Nylon Soft 3017 7A
Squeegee Blades: Description 39" Assembly
Blade, Rear - Gum Rubber 30069A Blade, Rear - Nitrile Solid 30082A Blade, Rear - Ribbed Orange 30086A Blade, Front - Ribbed Natural 30091A Blade, Front - Slit Grout 30080A Blade, Front - Ribbed Orange 30084A
CLARKE TECHNOLOGY Operator's Manual - Encore L26 Cylindrical Page -25-
Page 26
NOTES
Page -26- CLARKE TECHNOLOGY Operator's Manual -Encore L26 Cylindrical
Page 27
ENCORE
L26 Cylindrical
Section II
Parts and Service Manual
(70643A)
CLARKE TECHNOLOGY Operator's Manual - Encore L26 Cylindrical Page -27-
Page 28
HOW TO CORRECT PROBLEMS IN THE MACHINE
PROBLEM CAUSE ACTION
There is no solution flow.
The solution flow does not stop.
The machine does not remove all the water from the floor.
The solution tank is empty. The solution valve is closed. There is an obstruction in the solution hose
or filter. The solution valve or electric wiring is
damaged. The solution module is defective. The solution valve is open. The solution valve or wiring is damaged. The solution valve is dirty There is a damaged seat and washer in the
solution valve. The solution module is defective. The squeegee is up. The squeegee tilt is not correct. The recovery tank is full. The screen filter is dirty.
Fill the solution tank. Open the solution valve.
Remove the obstruction from the hose or filter.
Repair or replace the valve or the electric wiring.
Replace solution module Close or Clean the solution valve. Repair or replace the valve and the wiring. Clean the solution valve. Replace the seat and washer.
Replace solution module. Lower the squeegee. To adjust See Figure 11, page 23. Drain the recovery tank. Clean the screen filter.
The batteries do not give the normal running time.
There is an obstruction or damage in the squeegee, squeegee hose or standpipe.
The vacuum motor is not running.
The squeegee hose is disconnected, or damaged
The squeegee blade is damaged, worn, or incorrectly installed.
The gaskets on the cover of the recovery tank are damaged.
The battery terminals are dirty or damaged.
The electrolyte level is too low.
The batteries are not fully charged. The charger is damaged.
The battery is defective. The batteries are disconnected.
Remove the obstruction or repair the damage.
Check for tripped breaker. Have an authorized service person make repairs.
Check and connect hose.
Turn or replace the squeegee blade. Correctly install the squeegee blade.
Replace the gaskets.
Clean the terminals and connectors. Replace the damaged cables. Charge the batteries.
Add distilled water to each cell and charge the batteries.
Charge the batteries for a full 16 hour charge. Have an authorized service person repair the
charger. Check voltage of each cell while discharging. Connect the batteries.
Brush is in heavy scrub setting.
Page -28- CLARKE TECHNOLOGY Operator's Manual -Encore L26 Cylindrical
Adjust Pressure.
Page 29
PROBLEM CAUSE ACTION
The cleaning is not even. The scrub brush or pad is worn.
There is damage to the brush assembly, caster or the solution valve.
The brush motor is not running
The solution level is low.
The machine does not run. The machine loses power.
Key or switch is off. Batteries are unplugged.
Battery terminals are dirty. Batteries are discharged
Replace the scrub brush or pad. Have an authorized service person make
the needed repairs.
Check for tripped breaker. Reset. Check for loose connections.
Fill the solution tank. NOTE: If the problem continues consult an
authorized service person. Reset the circuit breaker. Turn key or switch on. Check the battery connections.
Check battery gauge and recharge NOTE: If the problem continues consult an authorized service person.
CLARKE TECHNOLOGY Operator's Manual - Encore L26 Cylindrical Page -29-
Page 30
NOTES
Page 31
ALTO® PRODUCT SUPPORT BRANCHES
U. S. A. Locations European Locations
CORPORATE OFFICE
ALTO U.S. Inc., St. Louis, Missouri
16253 Swingley Ridge Road, Suite 200 Chesterfield, Missouri 63017-1725
PRODUCTION FACILITIES
ALTO U.S. Inc., Springdale, Arkansas
2100 Highway 265 Springdale, Arkansas 72764 (479) 750-1000
Customer Service - 1-800-253-0367 Technical Service - 1-800-356-7274
ALTO U.S. Inc., Bowling Green, Ohio 43402
1100 Haskins Road
SERVICE FACILITIES
ALTO U.S. Inc., Elk Grove, Illinois 60007
2280 Elmhurst Road (847) 956-7900
ALTO U.S. Inc., Denver, Colorado 80204
1955 West 13th Ave. (303) 623-4367
ALTO U.S. Inc., Houston, Texas 77040
7215 North Gessner Road 713-937-7717
PRODUCTION FACILITIES
ALTO Danmark A/S, Aalborg
Blytaekkervej 2 DK-9000 Aalborg +45 72 18 21 00
ALTO Danmark A/S, Hadsund
Industrikvarteret DK-9560 Hadsund +45 72 18 21 00
SALES SUBSIDIARIES
ALTO Canada Ltd., Rexdale Ontario
24 Constellation Ct. (416) 675-5830
ALTO Overseas Inc., Sydney (Australia)
1B/8 Resolution Drive Caringbah NSW 2229 +61 2 9524 6122
ALTO Cleaning Systems Asia Pte Ltd., Singapore
No. 17 Link Road Singapore 619034 +65 268 1006
ALTO Deutschland GmbH, Bellenberg (Germany)
Guido-Oberdorfer-Straße 2-8 89287 Bellenberg +49 0180 5 37 37 37
SERVICE AND SALES FACILITY
ALTO U.S. Inc., Madison Heights, Michigan 48071-0158
29815 John R. (810) 544-6300
ALTO U.S. Inc., Marietta, Georgia 30066
1455 Canton Road (770) 973-5225
SALES AND DISTRIBUTION CENTER
ALTO U.S. Inc., Secaucus, New Jersey 07094
74 Henry Street (201) 864-5503
CLARKE TECHNOLOGY
AMERICAN SANDERS TECHNOLOGY
A.L. COOK TECHNOLOGY
Customer Service Headquarters and Factory
2100 Highway 265
Springdale, Arkansas 72764
(479) 750-1000
Technical Service
1-800-356-7274
ALTO Cleaning Systems (UK) Ltd., Penrith
Gilwilly Industrial Estate Penrith Cumbria CA11 9BN +44 1768 868 995
ALTO France S.A. Strasbourg
B.P. 44, 4 Place d’Ostwald F-67036 Strasbourg Cedex 2 +33 3 8828 8400
ALTO Nederland B.V.
Postbus 65 3370 AB Hardinxveld-Giessendam The Netherlands +31 184 677 200
ALTO Sverige AB, Molndal (Sweden)
Aminogatan 18 Box 4029 S-431 04 Molndal +46 31 706 73 00
ALTO Norge A/S, Oslo (Norway)
Bjornerudveien 24 N-1266 +47 2275 1770
Page 32
CLARKE TECHNOLOGY LIMITED U.S. W ARRANTY
This Clarke Technology Industrial/Commercial Product is warranted to be free from defects in materials and workman­ship under normal use and service for a period of three years from the date of purchase, when operated and maintained in accordance with Clarke Technology's Maintenance and Operations instructions. Motors must be inspected for carbon motor brush wear at six-month intervals by an authorized Clarke Technology repair station. Failure to comply with the six­month inspection requirement or failure to replace worn motor brushes identified during the inspection will void the warranty on the motors. Cost of the six-month inspection and replacement of carbon motor brushes is the responsibility of the purchaser. In the event of a warranty claim on the motors, proof of inspection and any required motor brush replacement must be provided.
This warranty is extended only to the original purchaser for use of the product. It does not cover normal wear parts such as electrical cable, rubber parts, hoses and motor brushes.
Clarke Technology's liability under this warranty is limited to repair of the product and/or replacement of parts and is given to purchaser in lieu of all other remedies, including INCIDENTAL AND CONSEQUENTIAL DAMAGES.
THERE ARE NO EXPRESS W ARRANTIES OTHER THAN THOSE SPECIFIED HEREIN. THERE ARE NO WARRANTIES WHICH EXTEND BEYOND THE DESCRIPTION OF THE F ACE HEREOF . NO WARRANTIES, INCLUDING BUT NOT LIMITED TO WAR­RANTY OF MERCHANT ABILITY, SHALL BE IMPLIED. A warranty registration card is provided with your Clarke Technology product. Return the card to assist Clarke Technology in providing the performance you expect from your new floor machine.
If a difficulty develops with the product, you should: a) Contact the nearest authorized Clarke Technology repair location or contact the Clarke Technology Service Operations Department, 2100 Highway 265, Springdale, Arkansas 72764, for the nearest authorized Clarke Technology repair location. Only these locations are authorized to make repairs to the product under this warranty. (b) Return the product to the nearest Clarke Technology repair location. Transportation charges to and from the repair location must be prepaid by the purchaser. Clarke Technology will repair the product and/or replace any defective parts with out charge within a reasonable time after reciept of the product. ALTO U.S. Inc., 2100 Highway 265, Springdale, Arkansas 72764.
BA TTER Y WARRANTY
In addition to the items above, any original equipment Clarke Technology Battery which becomes unserviceable under normal use within a period of ninety (90) days from date of sale to the original user will be repaired or replaced with one of equal specification at our option, F.O.B. any authorized Clarke Technology Sales or Service Branch, with no charge to the user, except transportation costs. After expiration of the above ninety (90) day period, any battery which fails under normal use will be adjusted to the original user with a new battery of equal specification on an eighteen (18) months pro rate basis from the date of purchase. Adjustment will be determined using the then current list price, plus transportation costs.
Warranty is rendered null and void if battery is not kept filled to the proper level with DISTILLED WATER.
CLARKE TECHNOLOGY: POLYDUR® AUTOMATIC SCRUBBER
SOLUTION AND RECOVERY TANK
EIGHT-YEAR U.S. GUARANTEE
Y our new Clarke Technology Encore L26 has polydur Solution and Recovery T anks. Polydur is a rotationally molded, low­density linear polyethylene that won't crack or dent, and withstands most corrosives and temperature extremes. Clarke T echnology backs up your Polydur tanks with an eight-year guarantee. If a tank breaks or leaks under normal use within eight years of the date of purchase, it will be replaced free.
CLARKE TECHNOLOGY UNIBODY FRAME
EIGHT-YEAR U.S. WARRANTY
Clarke T echnology warranties the frame of the Encore L26 for a period of eight years against defect s in materials and workman­ship under normal use and service.
CLARKE TECHNOLOGY reserves the right to make changes or improvements to its machine without notice.
Always use genuine ClarkeTechnology Parts for repair.
CLARKE TECHNOLOGY
2100 Highway 265
Springdale, Arkansas, 72764
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
