Clarke Jumpstart 1000, Jumpstart 1224, 6240040, 6240045 User guide

JUMPSTART

MODEL NO: JS1000, JS1010 & JS1224

PART NO: 6240040, 6240035 & 6240045

OPERATING & MAINTENANCE

INSTRUCTIONS

ORIGINAL INSTRUCTIONS GC1116

INTRODUCTION

Thank you for purchasing this CLARKE Jumpstart.

Before attempting to use this product, please read this manual thoroughly and
follow the instructions carefully. In doing so you will ensure the safety of yourself
and that of others around you, and you can look forward to your purchase
giving you long and satisfactory service.

Please keep these instructions in a safe place for future reference.

GUARANTEE

This product is guaranteed against faulty manufacture for a period of 12
months from the date of purchase. Please keep your receipt which will be
required as proof of purchase.

This guarantee is invalid if the product is found to have been abused or
tampered with in any way, or not used for the purpose for which it was
intended.

Faulty goods should be returned to their place of purchase, no product can
be returned to us without prior permission.

This guarantee does not effect your statutory rights.

ENVIRONMENTAL RECYCLING POLICY

Through purchase of this product, the customer is taking on the
obligation to deal with the WEEE in accordance with the WEEE
regulations in relation to the treatment, recycling & recovery and
environmentally sound disposal of the WEEE.

In effect, this means that this product must not be disposed of with general
household waste. It must be disposed of according to the laws governing
Waste Electrical and Electronic Equipment (WEEE) at a recognised disposal
facility.

2

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

GENERAL SAFETY RULES

1. Always ensure when jumpstarting that there is air circulating around the
machine.

2. Never allow the negative and positive leads on this unit, to touch each
other or to touch the same metal object.

3. Although the jumpstart is water resistant and may be used outdoors, DO
NOT leave it exposed to the elements. Avoid direct sunlight, direct heat,
rain/moisture etc.

4. The Jumpstart JS1000 and JS1010 are designed for use with 12V systems
while the JS1224 can be used with either 12 or 24V systems.

5. Do not operate the jumpstart if any of the cables are damaged. Consult
your Clarke dealer for repair or replacement of the parts.

6. Do not operate the jumpstart if the case is damaged. Consult your Clarke
dealer or a qualified person for inspection and repair.

7. Ensure the vehicle battery posts and battery clamps are perfectly clean
before use.

8. When connecting the jumpstart leads to a battery, ensure the ON/OFF
switch is OFF, and ALWAYS connect the RED, (positive’+’) output conductor
to the UNEARTHED (+) battery terminal FIRST, then connect the BLACK,
(negative) conductor to a suitable earthing point on the chassis, well away
from any fuel lines.

9. To prevent battery overheating and consequent damage, do not exceed
our recommendations for duration of jump starting.

10. ALWAYS wear suitable protective clothing and eye protection when
working with lead acid batteries.

11. The jumpstart is NOT designed to be used as a replacement for a vehicle
battery.

12. DO NOT attempt to BOOST CHARGE the jumpstart’s sealed battery.

13. Never allow the battery to become completely discharged.

14. Never jump start the engine whilst the jumpstart is being charged.

15. Never allow the cables to become wrapped around the operator or any
other person.

16. Never attempt any repairs yourself. If you have a problem with the
machine contact your local CLARKE dealer.

17. Always keep body and clothing dry. Never work in damp area without
adequate insulation against electric shock.

3

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

18. Always store the jumpstarter out of reach of children.

19. Always wear safety glasses when working with lead acid batteries.

20. If splashed by battery acid, immediately flush the area of the splash with
clean water. If a burning sensation is felt or any blistering occurs, seek
medical help.

21. If acid comes into contact with the eyes, flush the eyes with clean water
continuously and seek medical help.

WARNING: ALL LEAD ACID BATTERIES GENERATE HYDROGEN GAS
DURING NORMAL OPERATION. THIS PROCESS INCREASES DURING A
PERIOD OF RAPID DISCHARGE, SUCH AS WHEN USING FOR JUMP ­STARTING.

WARNING: HYDROGEN GAS AND BATTERY ACID (SULPHURIC ACID) CAN
BE: EXPLOSIVE, CORROSIVE TO SKIN, EYES AND HAIR, DAMAGING TO
CLOTHING AND METALS, FLAMMABLE, POISONOUS TO BREATHE

ELECTRICAL SYMBOLS DISPLAYED

The meanings of the safety markings and symbols which may be displayed on
this product are shown below.

Class II appliance without an earth connection

Always read instructions before use

Electrical hazard due to exposed live terminals

Chemical Hazard from battery acid

4

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

ELECTRICAL CONNECTIONS

This product is provided with a 13 amp, 230 volt (50Hz), charging adaptor for
connection to a standard, domestic electrical supply. Should the plug need
changing at any time, ensure that a plug of identical specification is used.

This product is of double insulated design. No earth conductor is
provided.

No earth conductor is provided. The two wires in the mains lead should be
wired up in accordance with the following colour code:

Blue — Neutral

Brown — Live

Connect the BROWN coloured cable to the plug terminal marked a letter “L”.

Connect the BLUE coloured cable to the plug terminal marked a letter “N”.

If the battery charger for this appliance is fitted with a plug which is moulded
on to the electric cable (i.e. non-rewireable) please note:

1. The plug must be thrown away if it is cut from the electric cable. There is a
danger of electric shock if it is subsequently inserted into a socket outlet.

2. Never use the plug without the fuse cover fitted.

3. Should you wish to replace the fuse cover, ensure that the correct
replacement is used (as indicated by marking or colour code).

4. Replacement fuse covers can be obtained from your local Clarke dealer
or most electrical stockists.

FUSE RATING

The fuse in the plug must be replaced with one of the same rating and this
replacement must be ASTA approved to BS1362.

If in any doubt, consult a qualified electrician. DO NOT attempt any electrical
repairs yourself.

5

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

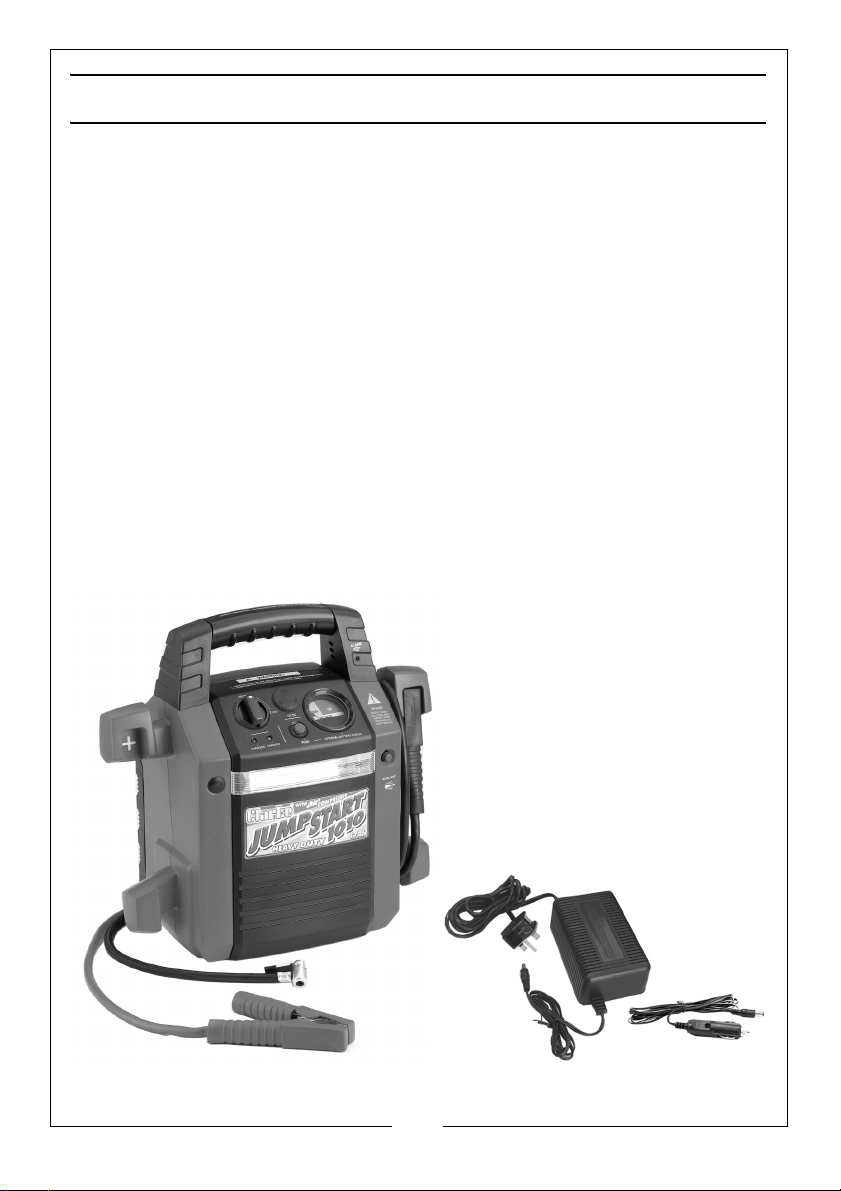

COMPONENT IDENTIFICATION

The JS1000, JS1010 and JS1224 are a range of rechargable power supplies
which can be used to start a car in the event of a flat battery. The units can
also be used to power electrical appliances via a cigar lighter type socket
using the adaptor supplied.

• The JS1010 model also incorporates a compressor, which can be

used for inflating car tyres/dinghies/lilos etc by connecting the air
hose/adaptor contained within the side compartment.

• The JS1224 model can be switched to either 12 V or 24 V, depending

on the battery being boosted.

Unpack and lay out the components, checking against the following list. Any
damage or deficiency should be reported to your CLARKE dealer.

1. Jumpstart

2. 230V/AC charging unit

3. Operators manual (this document)

4. 3 x Air connectors (JS1010 only- stored inside compartment door).

5. 12V DC adaptor cable/connector)

6

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

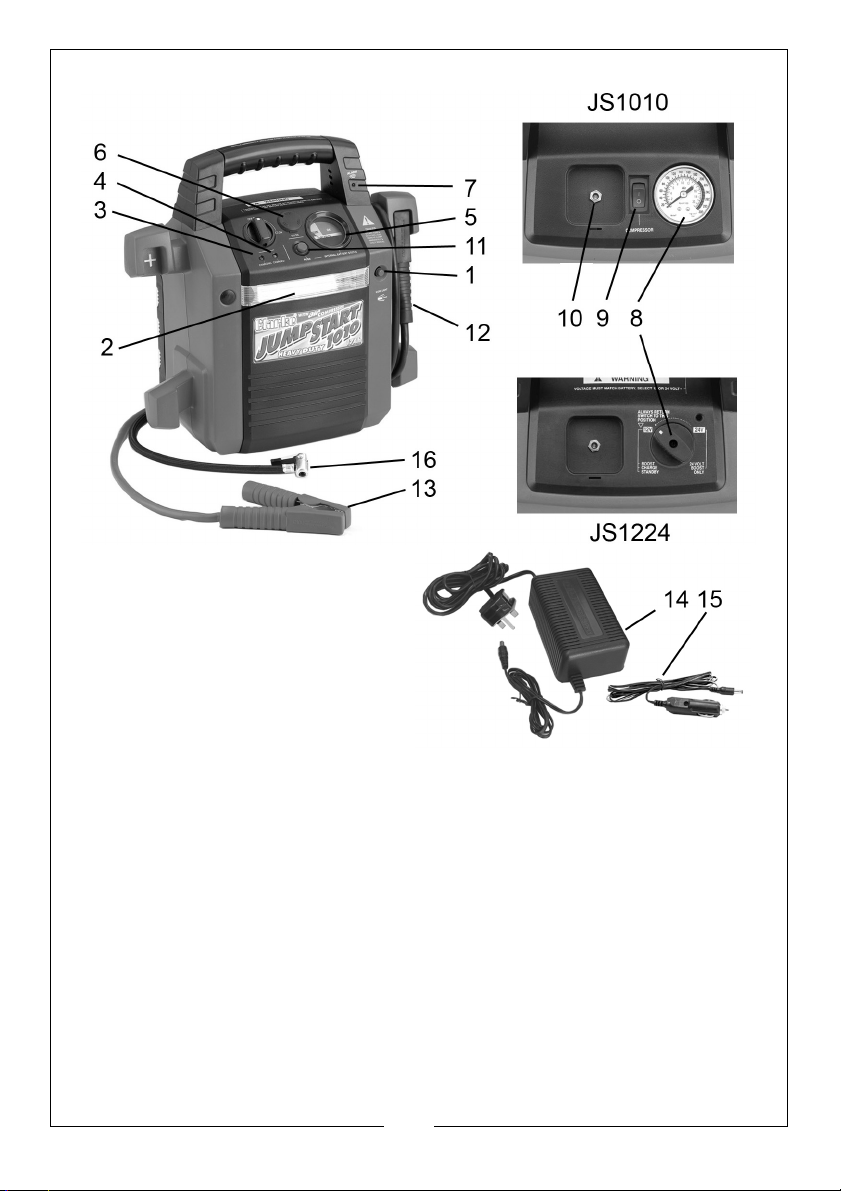

1. Work Light ON/OFF switch

2. Lamp/work light

3. Red LED (charging)

4. Green LED (charged)

5. Battery condition gauge

6. 12V DC socket connection

7. Alert LED (incorrect polarity alarm)

8. Compressed air pressure gauge (JS1010 models only) or 12/24V Selector
(JS1224 models only):

9. Air Compressor On/Off switch (JS1010 only)

10. 12V charging jack socket

11. Test pushbutton

12. Negative (-) battery connection lead

13. Positive (+) battery connection lead

14. 230V mains charging adaptor

15. 12V DC adaptor lead with jack plug

16. Compressed air hose with connector (JS1010 models only)

7

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

INITIAL BATTERY CHARGING

1. Charge your jumpstart battery before using it for the first time.

2. Recharge the jumpstart battery after every occasion of use if possible, and
thereafter, at least every 30 days.

3. Always avoid leaving your jumpstart in a state of discharge.

FOLLOW THE ABOVE POINTS TO ENSURE MAXIMUM LIFE FROM THE BATTERY.

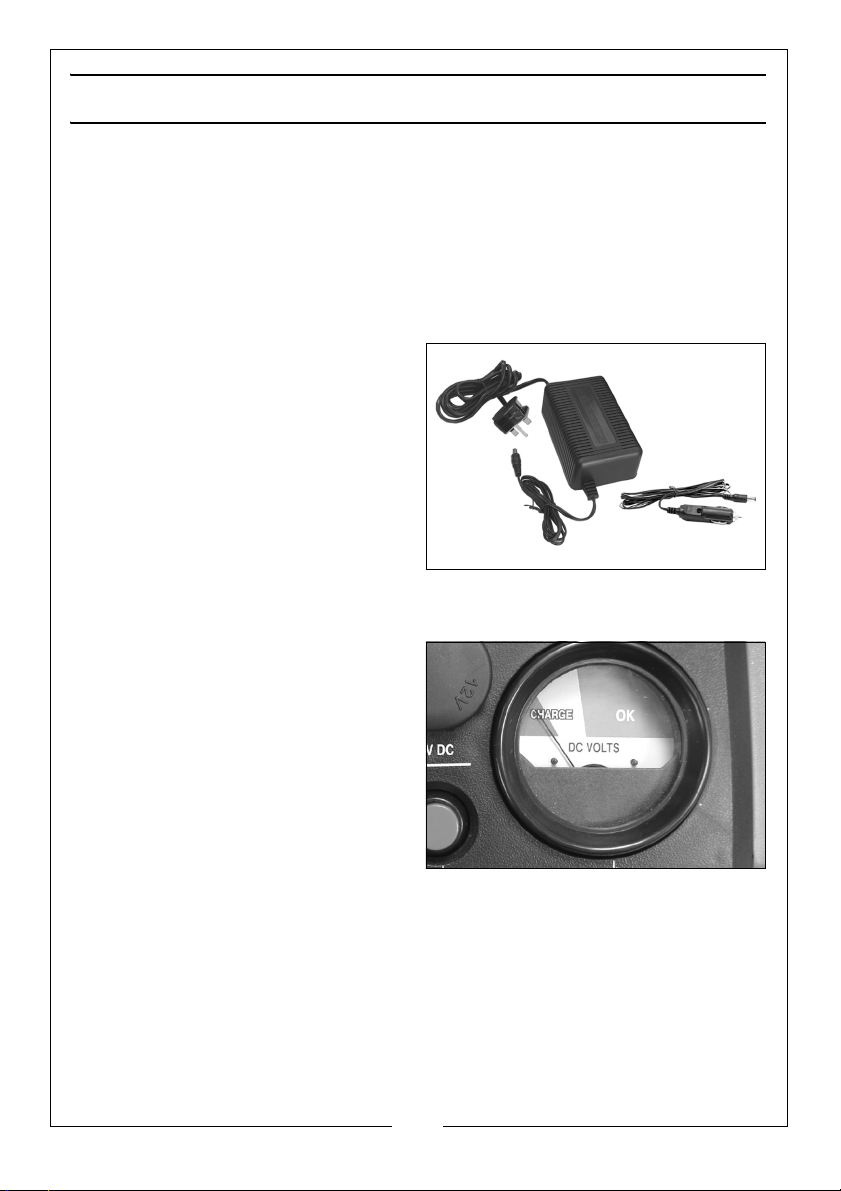

Two means of charging the battery are provided:

1. Via a mains electricity supply,
using the mains adaptor, shown in
Fig 1.

2. Via a 12V vehicle supply using the
cigarette lighter adapter with
cable and plug provided, shown.

NOTE: Using a 12V vehicle supply,

the battery will not charge to
maximum, but only to
approx. 50% of its capacity.

CHARGING USING THE MAINS ADAPTOR

1. Set the On/Off switch to the Off
position and the Voltage Selection
switch to the 12V position.

2. Plug the cable into the socket at
the rear of the unit, then plug the
adaptor into the mains supply
and switch on.

• The red CHARGING light on the

jumpstart will come on to
indicate charging is in progress.

3. It is best to charge the jumpstart until the green CHARGED light comes on.

• To ensure maximum battery life, it is desirable to charge the unit after

each occasion of use and recommended to recharge after every
30 days.

NOTE: Pressing the ‘TEST’ button with the charger disconnected will cause

the needle on the battery condition gauge shown above, to
register the state of charge of the battery.

8

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

Turn the unit on and a beep will be heard, indicating that there is power to the
booster clamps.

CHARGING USING THE 12V ADAPTOR

1. Plug the jack plug into the charging socket at the rear of the unit, then into
the cigarette lighter socket on the vehicle and start the engine. The red
LED on the jumpstart to indicate that charging is in progress.

2. Continue to charge until the “Internal Battery Status” gauge registers ‘OK’
when the ‘TEST’ button is pressed, WITH THE CHARGING CURRENT
DISCONNECTED. i.e. disconnect the cigarette lighter adapter from the
socket on the vehicle before pressing the Test Button.

NOTE: We recommend that you use this system only when necessary, as

prolonged use will reduce the life expectancy of the battery, due
to the fact that this method can only charge the battery to
approx. 50% of its capacity.

NOTE: For maximum battery life, we strongly recommend that you

maintain the battery in a fully charged state at all times.

NOTE: If charging does not take place, check the green LED on the

adapter. Ensure all connections are clean and free of grease etc.

OPERATION

WARNING: FAILURE TO FOLLOW THE INSTRUCTIONS BELOW AND THE
SAFETY INSTRUCTIONS ON PAGE 4, MAY RESULT IN PERSONAL INJURY,
DAMAGE TO THE VEHICLE, OR THE POSSIBILITY OF AN EXPLOSION

Always carry out the following preliminary checks before connecting the
Jumpstart to the car battery:

• Ensure the vehicle ignition and ALL ancillary equipment - lighting,

radio etc, is switched off.

• Ensure the vehicle battery is rated at 12V and is not damaged in any

way. If the battery is rated at 24V, the JS1224 jumpstart will be
suitable when the selector switch is set to 24V.

• Ensure the battery terminals are clean and the clamps are firm and

secure.

• Remove any vehicle battery filler plugs and check electrolyte level.

If necessary, top up with distilled water.

When completely satisfied, proceed as follows:

9

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

1. Turn the vehicle ignition off before connecting the booster cables.

2. Take great care not to touch the red positive (+) clamp against the black
negative (-) clamp.

3. Ensure the area is well ventilated.

4. Ensure the ON/OFF switch is in the OFF position.

5. Connect the red positive (+) clamp to the positive (+) battery terminal first.
Take care the clamp does not contact any moving parts or fuel lines.

6. Connect the black negative (-) clamp to a suitable earthing point on the
vehicle chassis.

7. Switch the unit on. An intermittent beep should be heard, indicating there
is power to the cables. If the audible signal becomes louder and steadier, a
polarity error is indicted. Disconnect the booster clamps immediately.
Reverse the connections to the battery terminals and the audible signal
should return to a beep.

8. Select either 12 or 24 V as required if using the JS1224 jumpstart.

9. Turn the ON/OFF switch to the ON position.

10. Turn the ignition key on for a maximum of 6 seconds and the vehicle should
start. If the vehicle does not start after a few seconds, switch off and wait
for at least 3 minutes to prevent damage to the jumpstarter due to
overheating before trying again. After this cooling off period, it is safe to
resume trying to start the vehicle.

11. Once the vehicle has started, turn the jumpstart ON/OFF switch OFF.

12. Disconnect the black negative (-) clamp first, then disconnect the red
positive (+) clamp.

13. After use, always wrap the cables around the post on the side of the
jumpstart body and clip the clamps into their positions on the clamp posts.

14. In the case of the JS1224 Jumpstart, always return the 12V/24V selector to
the OFF position after use.

15. After use, always recharge the jumpstart as described on page 12.

16. Regularly check the charge level of the battery by pressing the TEST push­button on the front panel.

WARNING: IT IS POSSIBLE THAT SOME ELECTRONIC EQUIPMENT COULD BE
DAMAGED BY JUMP STARTING. ALWAYS CHECK WITH THE CAR
MANUFACTURER’S HANDBOOK TO DETERMINE WHAT PRECAUTIONS IF
ANY SHOULD BE TAKEN.

10

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

RECHARGING

Recharge the unit following each period of use. The unit must be charged at
least every 3 months but it is recommended that a ‘top-up’ charge is desirable
after every 30 days.

NOTE: Failure to do so will result in possible damage to the internal

battery and result in poor performance from partial failure to
operate due to the poor condition of the battery.

1. Insert the charger lead into the charging jack socket at the rear of the unit

2. Connect the mains adaptor to the mains outlet.

3. In the case of the JS1224, the 12V/OFF/24V selector switch must always be
set to the 12V position while charging in this way, otherwise the charge will
not be received by both batteries.

4. Check that the red CHARGING light illuminates and remains on during the
charging process.

• When the internal battery is fully charged, the green CHARGED light

will come on automatically.

5. The unit can now be unplugged for further use or storage, or it can be left
plugged in indefinitely so as to use its internal control to maintain the
optimum battery charge level.

6. Alternatively, charge the unit from the 12-volt outlet in the vehicle by
plugging one end of the DC charging cable into the jump start charging
socket and the other end into the running vehicle’s cigarette lighter.

CHARGE STATUS

When pressing the battery test button, the battery level can be shown at a
High Charge status. This does not necessarily indicate that the battery is fully
charged.

To be at the fully charged level, the green FULL CHARGE light on the front
panel will turn on during the charging process, indicating Full Charge status.

11

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

USING THE AIR COMPRESSOR (JS1010 ONLY)

WARNING: THE AIR COMPRESSOR GAUGE ON THIS PRODUCT IS FOR
GUIDANCE ONLY. IT IS IMPORTANT YOU CHECK YOUR TYRE PRESSURE ON
AN APPROVED GAUGE.

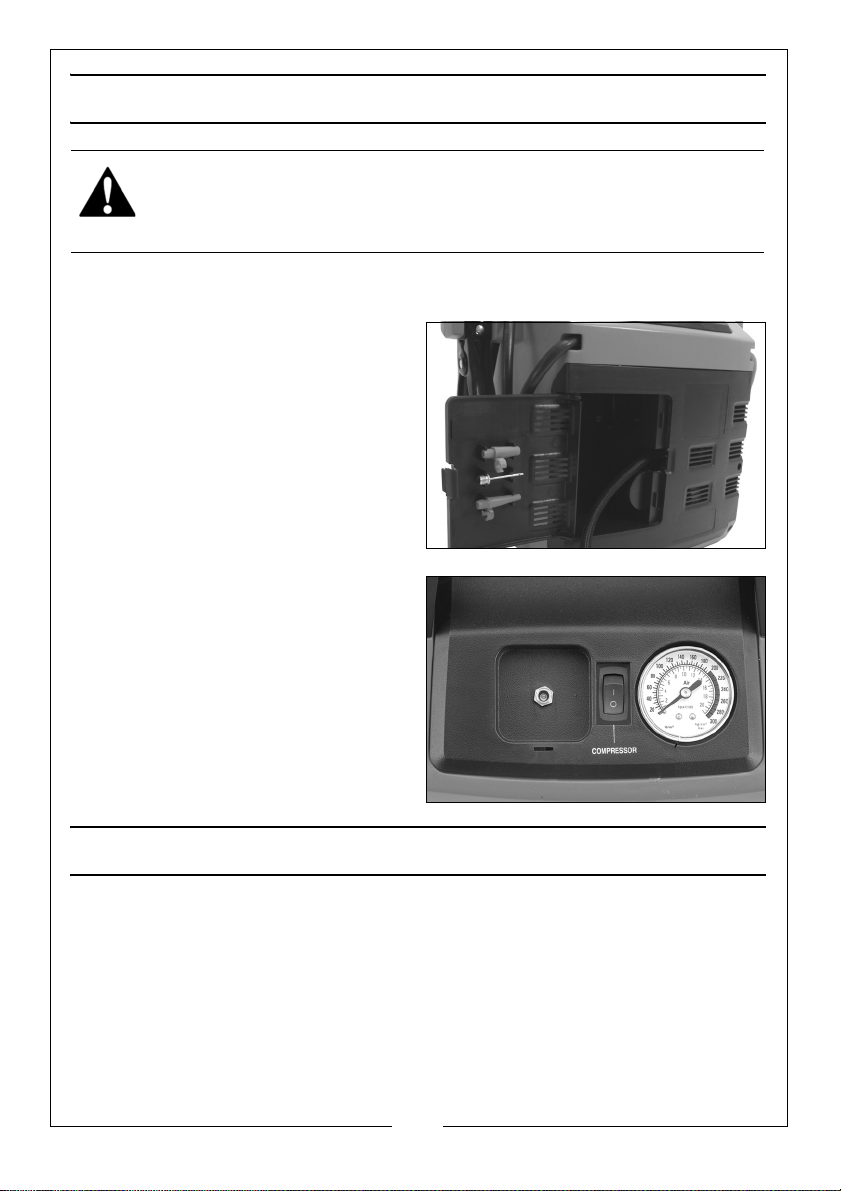

The outlet hose from the compressor is housed inside the storage compartment
at the rear of the machine.

1. Extend the hose inside the access
door are a selection of 3 adaptors
for different uses.

2. Switch the air compressor on with
the rocker switch on the top of the
jumpstart. The air pressure will be
indicated by the gauge adjacent
to the switch. Pump up the tyre to
the required pressure.

3. Switch off the compressor before
disconnecting the air hose and
coiling it back in the storage
compartment.

MAINTENANCE

Always inspect the jumpstart before use to ensure the cables are in perfect
condition and the clamps are clean and free from corrosion.

Keep the unit clean by wiping with a dry cloth. DO NOT use solvents as a
cleaning agent.

Keep the unit at HIGH or FULL CHARGE status at all times. Refer to the
“RECHARGING“ section on page 11.

12

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

Always turn the jumpstart OFF during storage and store the unit in an upright
position, away from direct sunlight, moisture or sources of extreme heat or
cold.

NEVER attempt any repair unless your are a qualified technician. If you have a
problem with the machine contact your local Clarke dealer.

Your Clarke jumpstart has been designed to give long and trouble free service.
If, however, having followed the instructions in this booklet carefully, you
encounter problems, take the unit to your local Clarke dealer.

TECHNICAL SPECIFICATION

Item Specification

Model JS1000 JS1010 JS1224

Part No 6240040 6240035 6240045

Weight 9 kg 9 kg 16 kg

Dimensions 210 x 390 x 375 210 x 380 x 370 210 x 390 x 375

Insulation Class Class II

Input Power Supply 12V DC / 1A / 12W 12V DC / 3A / 36W

Max Output Current Starting 400A

Peak 900A

Starting 1000A@12V
Peak 2000A@12V

Starting 500A@12V
Peak 1000A@24V

Output Power 180W

Battery Type Sealed lead-acid

Lighter Socket output 12V DC /15A

Operating temperature

Estimated engine start­ing capacity

Working lamp LED, 3V/0.3W (non-replacable)

Max compressor pres­sure

12V/17AH

-20/40

Up to 3.0litres (diesel)
Up to 3.0litres (petrol)

300 psi

O

2 x sealed Sealed
lead-acid
12V/22AH

C

Up to 3.0litres (diesel)
Up to 6.0litres (petrol)

Please note that the details and specifications contained herein, are correct at
the time of going to print. However, CLARKE International reserve the right to
change specifications at any time without prior notice.

13

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

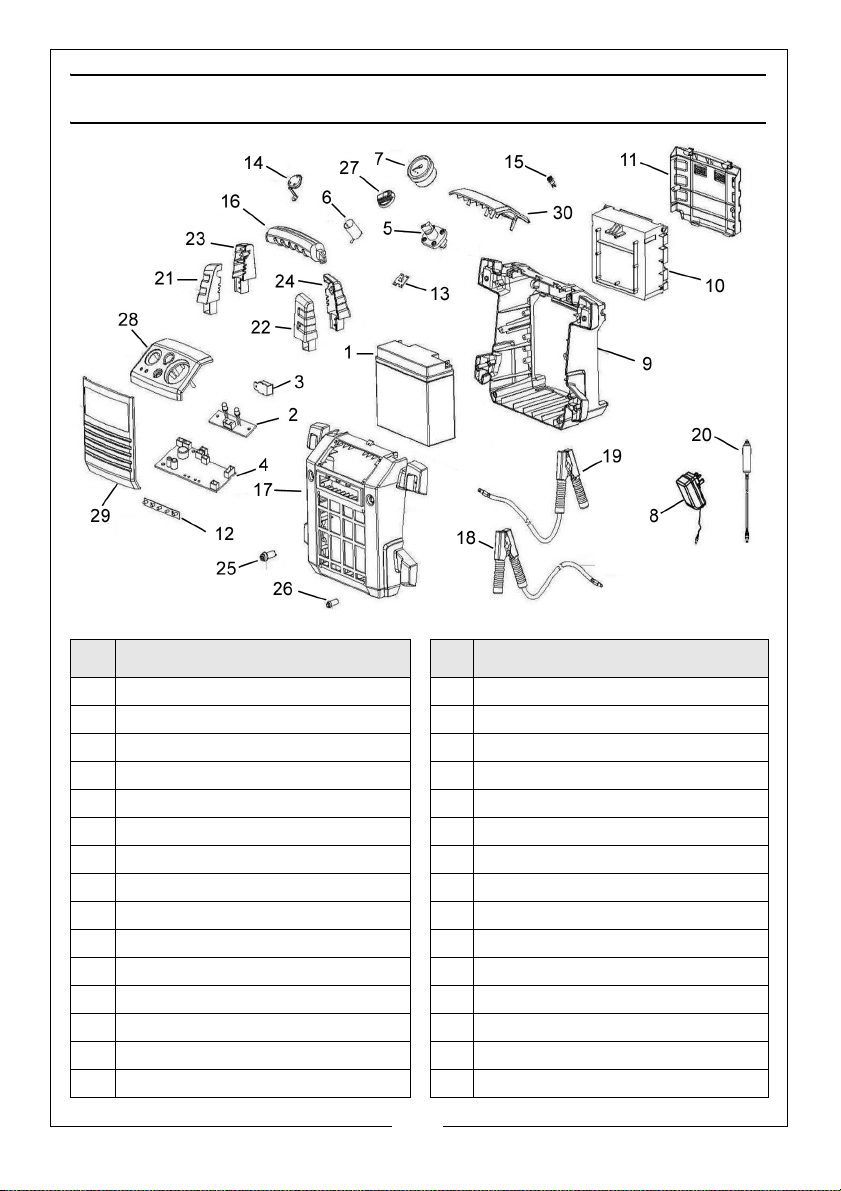

COMPONENT PARTS JS1000

No Description No Description

1 12V-17AH Battery 16 Main Handle

2 Light Indication PCB 17 Front Housing

3 15A Circuit Breaker 18 Positive Battery Lead

4 Main Charging PCB 19 Negative Battery Lead

5On/Off Switch 20Power Cable

6 Adaptor Negative Electrode 21 Handle Upright (L/F)

7 Voltage Meter 22 Handle Upright (R/F)

8 Charging Adaptor 23 Handle Upright (L/R)

9 Rear Housing 24 Handle Upright (R/R)

10 Storage Compartment 25 Test Button

11 Rear Middle Housing 26 Worklight Switch

12 LED Fixing Board 27 On/Off Switch Cap

13 Adaptor Positive Electrode 28 Upper Front Panel

14 Socket Dust Cover 29 Front Case Panel

15 Charging Socket 30 Rear Panel

14

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

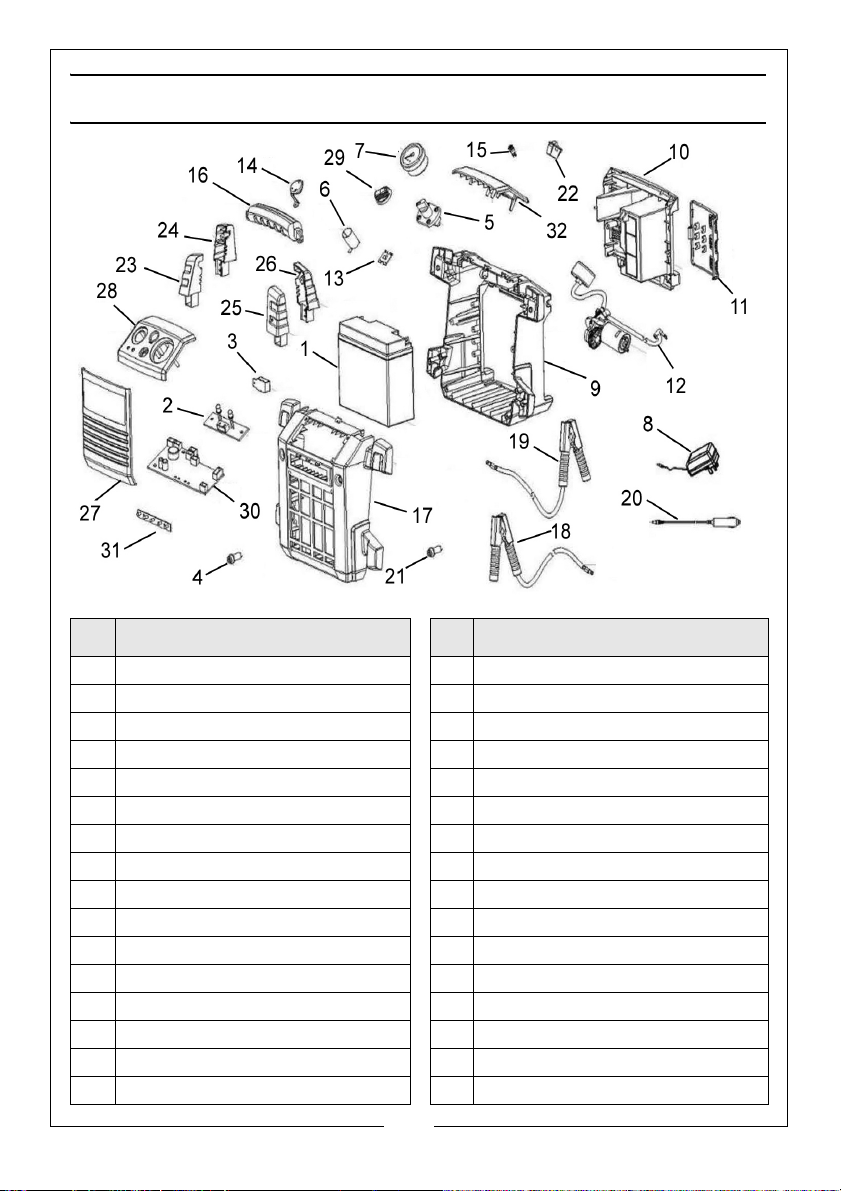

COMPONENT PARTS JS1010

No Description No Description

1 12V-17AH Battery 17 Front Housing

2 Light Indication PCB 18 Positive Battery Lead/clamp

3 Circuit Breaker 19 Negative Battery Lead/clamp

4 Voltage Test Switch 20 DC Adaptor Cable

5 On/Off Switch 21 Worklight Switch

6 Adaptor Negative Electrode 22 Pump Rocker Switch

7 DC Voltage Meter 23 Handle Upright (L/F)

8 Charging Adaptor 24 Handle Upright (R/F)

9 Rear Housing 25 Handle Upright (L/R)

10 Air Hose Compartment 26 Handle Upright (R/R)

11 Housing Side Door 27 Casing Front

12 Compressed Air Pump 28 Front Panel

13 Adaptor Positive Electrode 29 On/Off Switch Cap

14 Socket Dust Cover 30 Main Charging PCB

15 Charging Socket 31 LED Fixed Board

16 Main Handle 32 Rear Case Panel

15

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

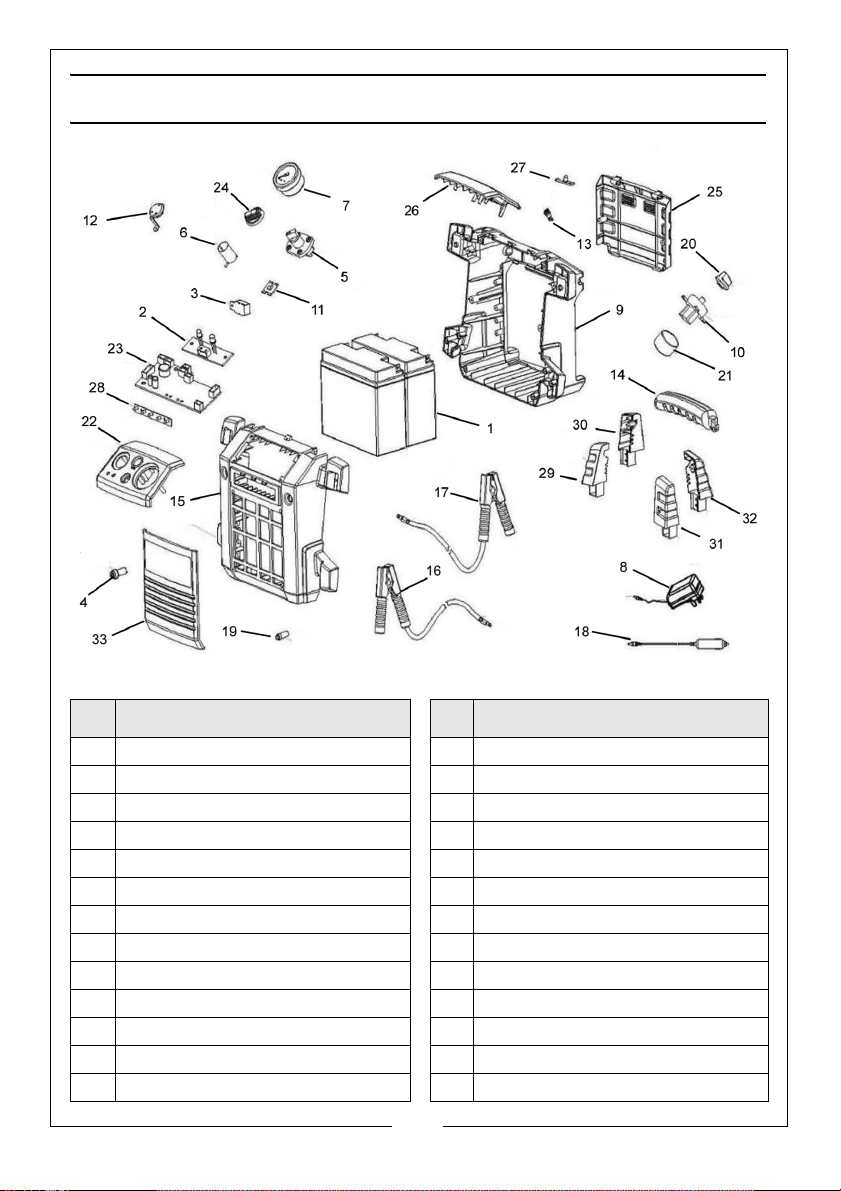

COMPONENT PARTS JS1224

No Description No Description

1 12V-22AH Battery 18 DC Adaptor Cable

2 Light Indication PCB 19 Worklight Switch

3 Circuit Breaker 20 Switch Cap

4 Test Button 21 Switch Holder

5 On/Off Switch 22 Upper Front Panel

6 Cigarette Lighter Socket 23 Main Charging PCB

7 DC Voltage Meter 24 On/Off Switch Cap

8 Charging Adaptor 25 Rear Casing Panel

9 Rear Housing 26 Rear Upper Panel

10 12V/24V Selector Switch 27 24V Indication PCB

11 Positive Electrode of socket 28 LED Worklight Panel

12 Socket Dust Cover 29 Handle Upright (L/F)

13 Charging Socket 30 Handle Upright (R/F)

16

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

No Description No Description

14 Main Handle 31 Handle Upright (L/R)

15 Front Housing 32 Handle Upright (R/R)

16 Positive Battery Lead 33 Front Cover

17 Negative Battery Lead

IMPORTANT: When requesting component parts for these products, please
refer to the pre-fix GRBMZ/JS1000/01 onwards. as applicable.

17

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

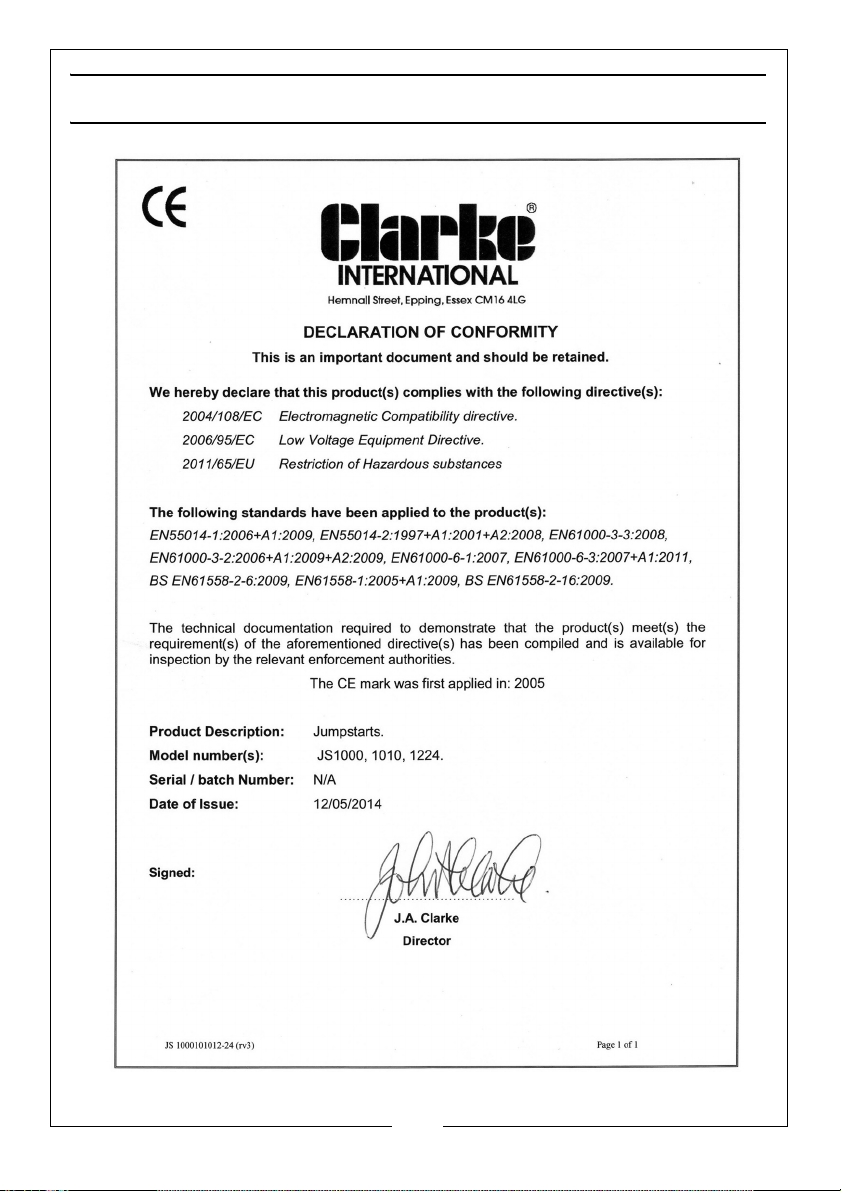

DECLARATION OF CONFORMITY

18

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

NOTES

___________________________________________________________________________

___________________________________________________________________________

___________________________________________________________________________

___________________________________________________________________________

___________________________________________________________________________

___________________________________________________________________________

___________________________________________________________________________

___________________________________________________________________________

___________________________________________________________________________

___________________________________________________________________________

___________________________________________________________________________

___________________________________________________________________________

___________________________________________________________________________

___________________________________________________________________________

19

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
