Clarke JSMSI1350 User guide

SODIUM ION JUMPSTARTER

MODEL NO: JSMSI1350

PART NO: 6240046

OPERATING & MAINTENANCE

INSTRUCTIONS

ORIGINAL INSTRUCTIONS DL0925

INTRODUCTION

Thank you for purchasing this CLARKE Sodium Ion Jump-starter. Before attempting to
use this product, please read this manual thoroughly and follow the instructions
carefully. In doing so you will ensure the safety of yourself and that of others around
you and you can look forward to your purchase giving you long and satisfactory
service. Please keep these instructions in a safe place for future reference.

SPECIFICATIONS

Item Specification

Weight 1.86kg (without bag), 2.17kg (with bag)

Size (L x W x H) 216mm x 186mm x 54mm (without bag)

Max Output Current Starting 550A, Peak 1350A

Max. Output Voltage (open circuit) 16.5V

Max. Charge/Upper Limit Voltage 17V

Input Voltage/Current 5V/9V/12V/15V/20V / 3A

Battery Type Sealed Sodium Ion, 27500 mAh (80Wh)

Output Power Supply 1 x QC3.0 USB-A, 1 x 5V/2.4A USB-A,

1 x PD60W USB-C, 1 x 15V/10A 5521 DC,
1 x 12V Jumpstarter Clamp Port

Estimated engine starting capacity Up to 3 litres (diesel) or 6 litres (petrol)

Lifetime 4000+ cycles

Full charging time Approx 1.5 hours

Operating Temperatures Charge: -20°C ~ 60°C

Discharge: -40°C ~ 80°C
Storage: -20°C ~ 40°C

Transport Hazard Class UN 3552 - Sodium Ion Battery Contained

Work Light 3 Mode 12 x LED (Light, Flash, SOS),

2.8-3.2V, 700mA

Ingress Protection IP20

Please note that the details and specifications contained herein, are correct at the
time of going to print. However, CLARKE International reserve the right to change
specifications at any time without prior notice.

2

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

GENERAL SAFETY

WARNING: ALL LEAD ACID BATTERIES GENERATE HYDROGEN GAS
DURING NORMAL OPERATION. THIS PROCESS INCREASES DURING
A PERIOD OF RAPID DISCHARGE.

WARNING: HYDROGEN GAS AND BATTERY ACID (SULPHURIC ACID)
CAN BE EXPLOSIVE, CORROSIVE TO SKIN, EYES AND HAIR,
DAMAGING TO CLOTHING AND METALS, FLAMMABLE, POISONOUS
TO BREATHE.

1. DO NOT leave the device exposed to the elements. Avoid direct sunlight, direct
heat, rain/moisture etc.

2. The device must only be used indoors or completely protected from the rain.
This also applies to any device being powered by the jumpstarter.

3. DO NOT operate the device if any of the cables are damaged. Consult your
CLARKE dealer for repair or replacement of the parts.

4. DO NOT operate the device if the case is damaged. Consult your CLARKE dealer
or a qualified person for inspection and repair.

5. To prevent the battery from overheating and consequent damage, DO NOT
exceed our recommendations for the duration of jump starting.

6. The unit is NOT designed to be used as a replacement for a vehicle battery.

7. NEVER allow the battery to become completely discharged.

8. NEVER jump start the engine whilst the unit is being charged.

9. NEVER attempt any repairs yourself. If you have a problem with the jumpstarter
contact your local CLARKE dealer.

10. ALWAYS keep your body and clothing dry. NEVER work in a damp area without
adequate insulation against electric shock.

11. ALWAYS wear safety glasses when working with lead acid batteries.

12. If splashed by battery acid, immediately flush the area of the splash with clean
water. If a burning sensation is felt or any blistering occurs, seek medical help.

13. If battery acid comes into contact with the eyes, flush the eyes with clean water
continuously and seek medical help.

14. ALWAYS ensure that there is air circulating around the unit when in use.

15. When not in use, store in a safe dry place out of reach of children.

16. NEVER allow the jumpstart leads, to touch each other or to touch the same
metal object when installed on the jumpstarter.

3

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

17. Ensure the vehicle battery posts and battery clamps are perfectly clean before
use.

18. Connect the red clamp to the unearthed battery terminal first, (this is usually the
positive (+ve) terminal and coloured RED); then connect the black clamp to the
earthed battery terminal, (this is usually the negative (-ve) terminal and coloured
BLACK).

19. Only use this jumpstarter on lead acid batteries.

SYMBOLS

Read the instruction
manual

Wear Protective Gloves DO NOT incinerate

Indoor use only Harmful to aquatic life

Warning: Battery
Charging

Wear Eye Protection

Warning: Risk of
electrical shock

ENVIRONMENTAL RECYCLING POLICY

Through purchase of this product, the customer is taking on the obligation
to deal with the WEEE in accordance with the WEEE regulations in relation
to the treatment, recycling & recovery and environmentally sound disposal
of the WEEE.

In effect, this means that this product must not be disposed of with general
household waste but in accordance with the laws governing Waste Electrical and
Electronic Equipment (WEEE) at a recognised disposal facility.

4

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

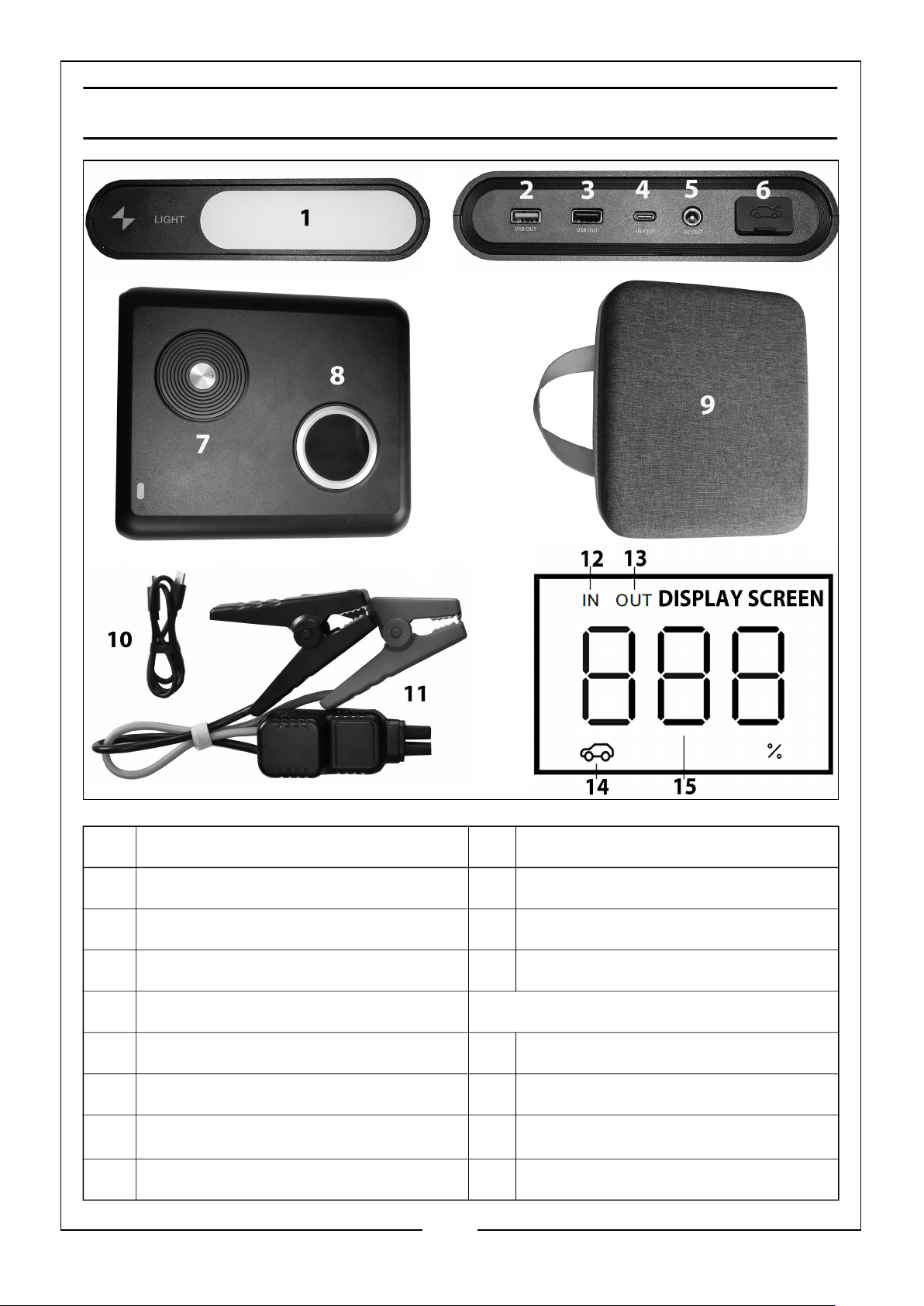

OVERVIEW

NO DESCRIPTION NO DESCRIPTION

1 Worklight 9 Storage Bag

2 QC3.0 USB-A Output Port 10 USB-C to USB-C Cable

3 5V, 2.4A USB-A Output Port 11 Jumpstarter Cable

4 PD60W USB-C Input/Output Port Display Screen

5 5521 15V, 10A DC Output Port 12 Input Mode

6 12V Vehicle Starter Cable Port 13 Output Mode

7 Power Button 14

8 Digital Display Screen 15 Percentage of Battery Power

5

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

Current Voltage ≥ 12V

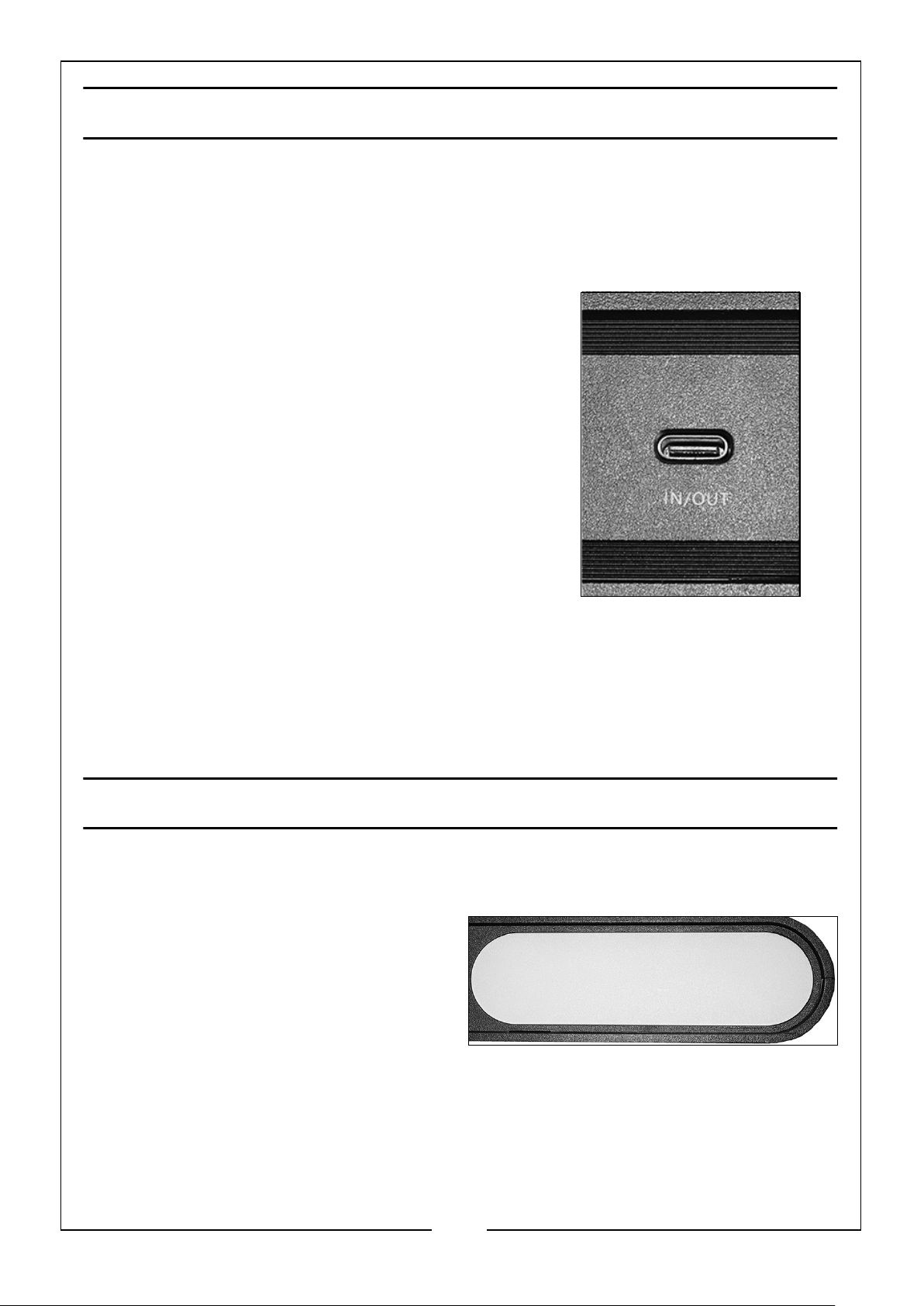

CHARGING THE DEVICE

CHARGING

You can charge the jumpstarter using:

• The 12V DC USB car adapter.

• A device with a USB output socket.

1. Plug the USB-C charging cable into the

jumpstarter PD60W input port and the other end
in to a suitable car adapter socket, or into any
other suitable power source.

• If you are using a car adapter socket it is
recommended that you start the engine.

• If no suitable USB-C power socket or power
source is available a USB-A to USB-C cable (not
supplied) can be used instead.

2. Disconnect the charger when fully charged.

TO GET THE MAXIMUM LIFE FROM THE BATTERY

• Charge the jumpstarter before first use.

• Charge the jumpstarter at least every 3 months and after each use

• DO NOT leave in a state of discharge.

OPERATION

WORKLIGHT

1. Press and hold the POWER button for
2 seconds to turn the jumpstarter on.

2. Then double press the POWER
button to turn the worklight on.

3. Press the POWER button again to put
the worklight into a Morse code S-O-S pattern.

4. Press the POWER button again to put the worklight into a fast flashing pattern.

5. Press the POWER button again to turn the worklight off.

6

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

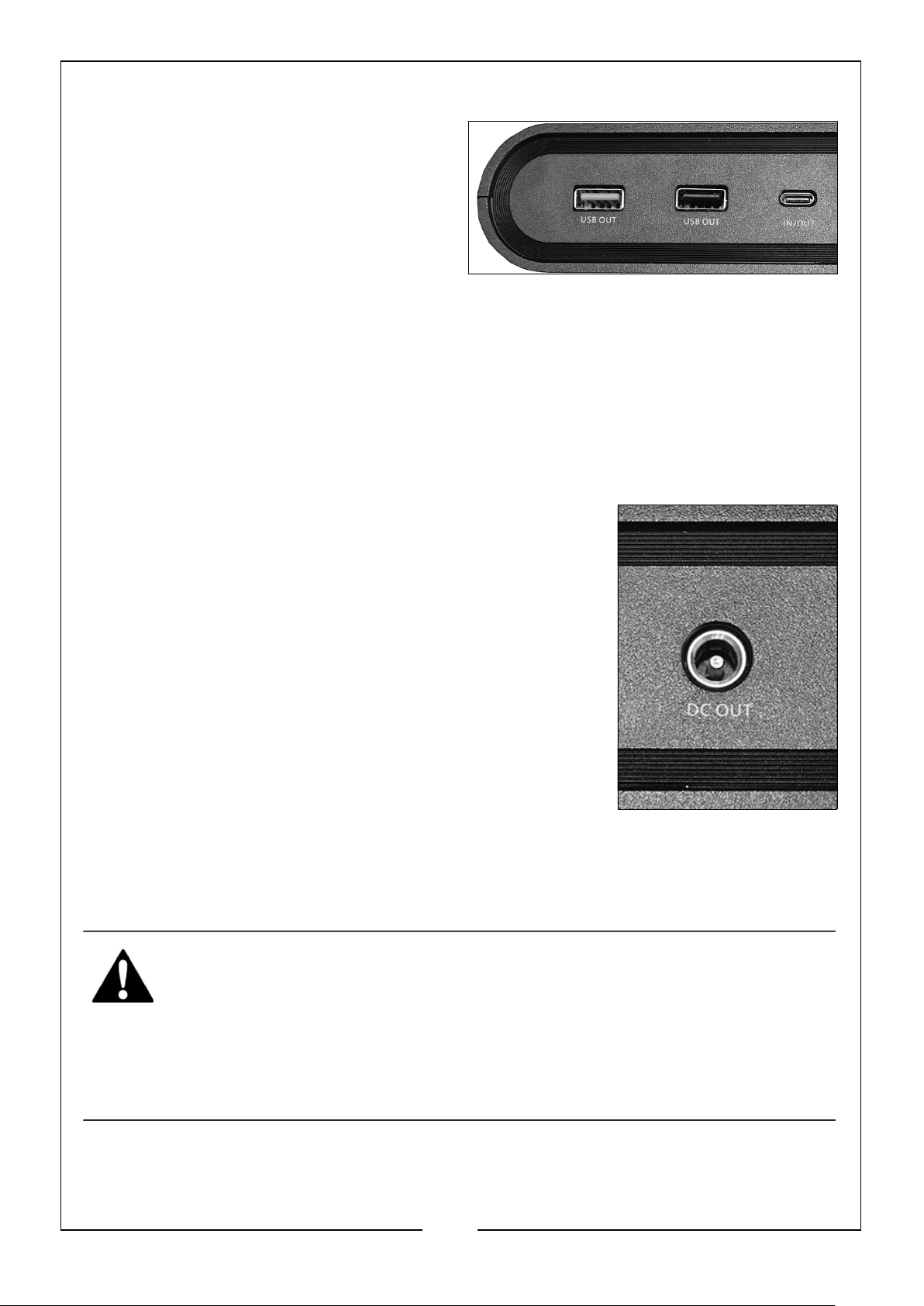

CHARGING ELECTRONIC PRODUCTS

The jumpstarter has two USB-A ports (1
x QC3.0 quick charge port & 1 x 5V/2.4A
standard port) and one USB-C port.

1. Connect one end of a charging cable
(USB-C to USB-C or USB-A to USB-C)
to the corresponding output port of
the jumpstarter.

2. Connect the other end of the cable to your device(s).

3. If using a USB-C to USB-C cable, the jumpstarter will automatically start charging
your device; if using a USB-A to USB-C cable (not supplied), press and hold the
POWER button for 2 seconds to turn the jumpstarter on, then the jumpstarter will
start to charge your device(s).

RUNNING/CHARGING VIA DC PORT

1. Verify the jumpstarter is fully charged. Recharge if
needed.

2. Make sure the appliance has a maximum voltage of 15V
and is turned off.

3. Connect the appliance into the DC outlet 5521 socket
(5.5 x 2.1mm).

4. Turn on the appliance.

5. When finished, turn off and unplug the appliance.

6. Recharge the jump starter.

• A mobile phone may typically take one hour to

recharge.

• The jumpstarter will power off automatically when no load is found.

JUMP STARTING A VEHICLE

WARNING: IT IS POSSIBLE THAT SOME ELECTRONIC EQUIPMENT
COULD BE DAMAGED BY JUMP STARTING. ALWAYS CHECK WITH
THE CAR MANUFACTURER’S HANDBOOK TO DETERMINE WHAT
PRECAUTIONS IF ANY SHOULD BE TAKEN.

WARNING: FAILURE TO FOLLOW THE INSTRUCTIONS BELOW AND
THE SAFETY INSTRUCTIONS ON PAGES 3-4 MAY RESULT IN
PERSONAL INJURY, DAMAGE TO THE VEHICLE OR BATTERY.

7

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

CAUTION: TO AVOID DAMAGE TO THE VEHICLE'S ELECTRICAL SYSTEM, DO
NOT USE THE JUMP STARTER ON A VEHICLE THAT HAS NO BATTERY
INSTALLED.

CAUTION: DO NOT TOUCH POSTIVE AND NEGATIVE BATTERY CLAMPS
TOGETHER.

NOTE: This device will not jumpstart a vehicle if the battery is very low.

NOTE: Ensure that the jumpstarter is at least 80% charged before you attempt

to jumpstart.

CONNECTING THE JUMPER CABLE TO THE JUMPSTARTER

1. Lift the rubber plug and insert the
jumpstarter cable connector into the vehicle

starter cable port.

• The LEDs on the smart cable will indicate

the units internal battery voltage status
and the display symbols will flash.

CONNECTING THE START LEADS TO THE VEHICLE BATTERY

ALWAYS carry out the following preliminary checks before connecting the jump-start

to the car battery:

• Switch off the vehicle ignition and all ancillary equipment (lighting, radio etc.)

• Ensure the vehicle battery is rated at 12V and not damaged in any way.

• Ensure the area is well ventilated.

• Make sure that the battery terminals are clean and the clamps are firm and

secure.

• If fitted, remove any vehicle battery filler plugs and check the electrolyte

level. If necessary, top up with distilled water.

• Verify the jump starter is fully charged and recharge if needed.

1. Connect the red positive (+) clamp to the positive (+) battery terminal first. Take
care the clamps DO NOT touch any moving parts or fuel lines.

2. Connect the black clamp to the earthed battery terminal, (this is usually the
negative (-ve) terminal and coloured BLACK) or to a suitable earthing point on the
vehicle chassis ensuring the connections are firm and secure. Consult the vehicle
manual for correct connection position.

8

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

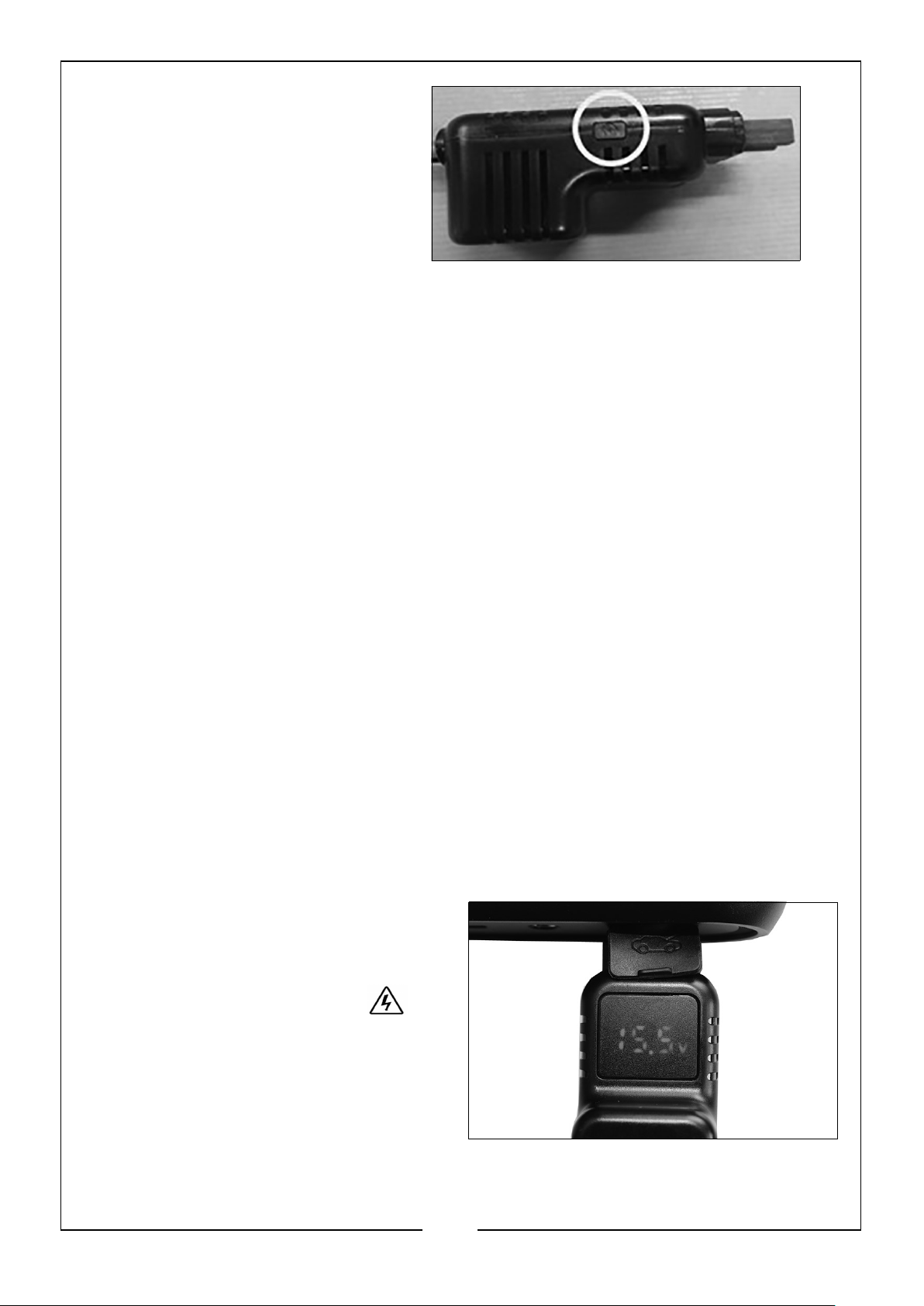

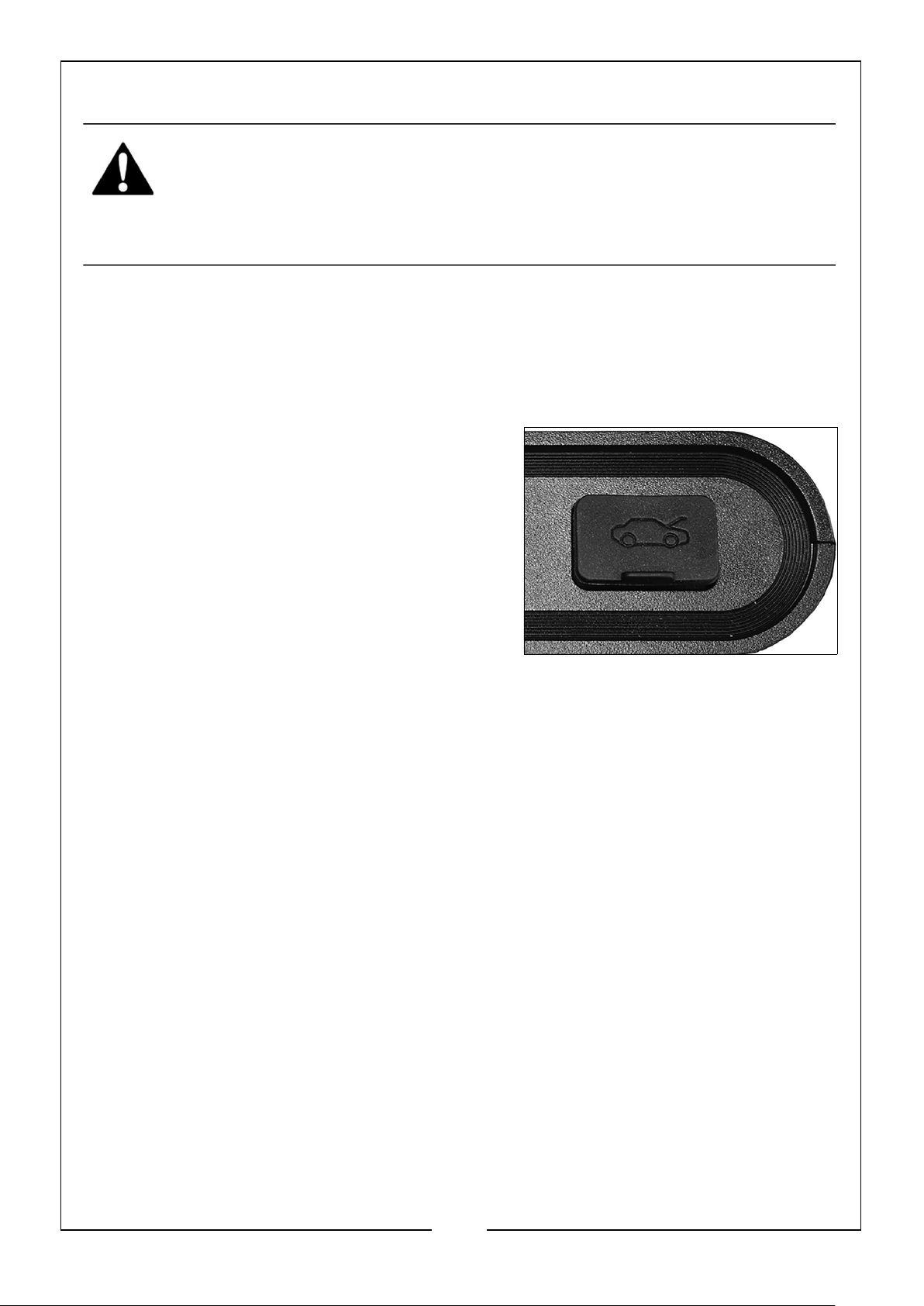

NOTE: If the battery fails to be

detected (due to low
voltage), then the cable
has an override switch
available, this is on the side
as shown. When this is
pressed the output of

15.6V becomes available
on the crocodile clamps even if a battery is not present.

THIS FUNCTION SHOULD BE USED WITH CAUTION.

STARTING THE ENGINE

1. Switch or press the vehicle ignition to ‘start’. If the engine does not start, SWITCH
OFF the ignition and wait for at least 30 seconds before trying again.

2. If the vehicle does not start after 3 attempts, investigate any problems with the
vehicle systems before re-trying.

3. Once the engine is running, disconnect the earthed (-) clamp FIRST i.e. that
connected to the chassis or Negative (-) terminal etc, then disconnect the Positive
(+) clamp from the battery terminal. You should remove the connections

within 30 seconds of starting the vehicle.

4. Leave the vehicle engine running for a while to let the alternator recharge the
battery.

• Take great care not to touch the red positive (+) clamp against the black

negative (-) clamp when connected to the jumpstarter.

5. Leave the jumpstarter for 30 minutes before re-charging following jumpstarting a
vehicle.

• If the battery is allowed to remain in a discharged state its life may be

reduced.

• The jumpstarter will power off automatically when no load is found.

WARNINGS AND ISSUES

1. When the clamps are connected to
the vehicle battery (the battery

voltage must be ≥ 8V), the
symbol lights up and displays the
current vehicle battery voltage.

2. When the clamps are only connected
to the jumpstarter:

• The current voltage is displayed

on the cable display and the upper small symbols cycle from left to right,
indicating the voltage of the jumpstarter is suitable for starting.

9

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

• The characters will display on the cable display, the buzzer beeps

long or symbol lights up, the buzzer beeps every second, indicating
the voltage of the jumpstarter is not suitable for starting. Charging of
jumpstarter needed.

• When the symbol flashes, the buzzer beeps a long alarm this

indicates the relay is sticking. The alarm beeps once a second, this
indicates that the temperature is abnormal.

3. When the jumpstarter and vehicle battery are correctly connected, the cable
displays the current battery voltage indicating the vehicle is energized and can be
started.

4. When starting the vehicle, if the symbol lights up on the cable display with
the symbol flashing, the buzzer beeps every second, this indicates that
the temperature is abnormal.

5. When the clamps are connected to the jumpstarter, if only the current voltage is
displayed and the cable display, DO NOT let the clamps come into contact with
each other.

6. When the clamps are connected to the jumpstarter, if only the current voltage is
displayed and the cable display, DO NOT connect the clamps to the wrong
terminals.

CARE & MAINTENANCE

Always ensure the cables & clamps are in good condition and the clamps are clean
and corrosion free. If damaged they should be replaced. Keep the unit clean by
wiping with a dry cloth. DO NOT use solvents as a cleaning agent.

Keep the unit fully charged at all times and store away from direct sunlight, moisture
or sources of extreme heat or cold.

NEVER attempt any repair unless you are a qualified technician. Your jump-start has
been designed to give long and trouble free service. If, however, having followed the
instructions in this booklet carefully, you encounter problems, take the unit to your
local CLARKE dealer.

10

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

DECLARATIONS OF CONFORMITY

11

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
