Operator's

26B

Manual

READ THIS BOOK

This book has important information for the use and safe operation of this machine. Failure to read this book prior to operating or attempting any service or maintenance procedure to your Clarke machine could result in injury to you or to other personnel; damage to the machine or to other property could occur as well. You must have training in the operation of this machine before using it. If your operator(s) cannot read English, have this manual explained fully before attempting to operate this machine.

Si Ud. o sus operadores no pueden leer el Inglés, se hagan explicar este manual completamente antes de tratar el manejo o servicio de esta máquina.

All directions given in this book are as seen from the operator’s position at the rear of the machine.

For new books write to: Clarke®, 2100 Highway 265, Springdale, Arkansas 72764.

Form No. 70249B 5/06 Clarke® Printed in the U.S.A.

Page 2

CONTENTS OF THIS BOOK

Operator Safety Instructions .................................................................................. 3

Introduction and Machine Specifications..................................................................5

Transporting the Machine ........................................................................................6

Machine Controls ....................................................................................................7

How to Prepare the Machine for Operation ..............................................................10

Machine Operating Instructions ...............................................................................14

Maintenance Instructions ........................................................................................17

SECTION II PARTS AND SERVICE

How to Correct Problems in the Machine.................................................................20

Recovery Tank and Hose Assembly ........................................................................21

Handle Assembly ....................................................................................................22

Rear Panel Assembly..............................................................................................2 3

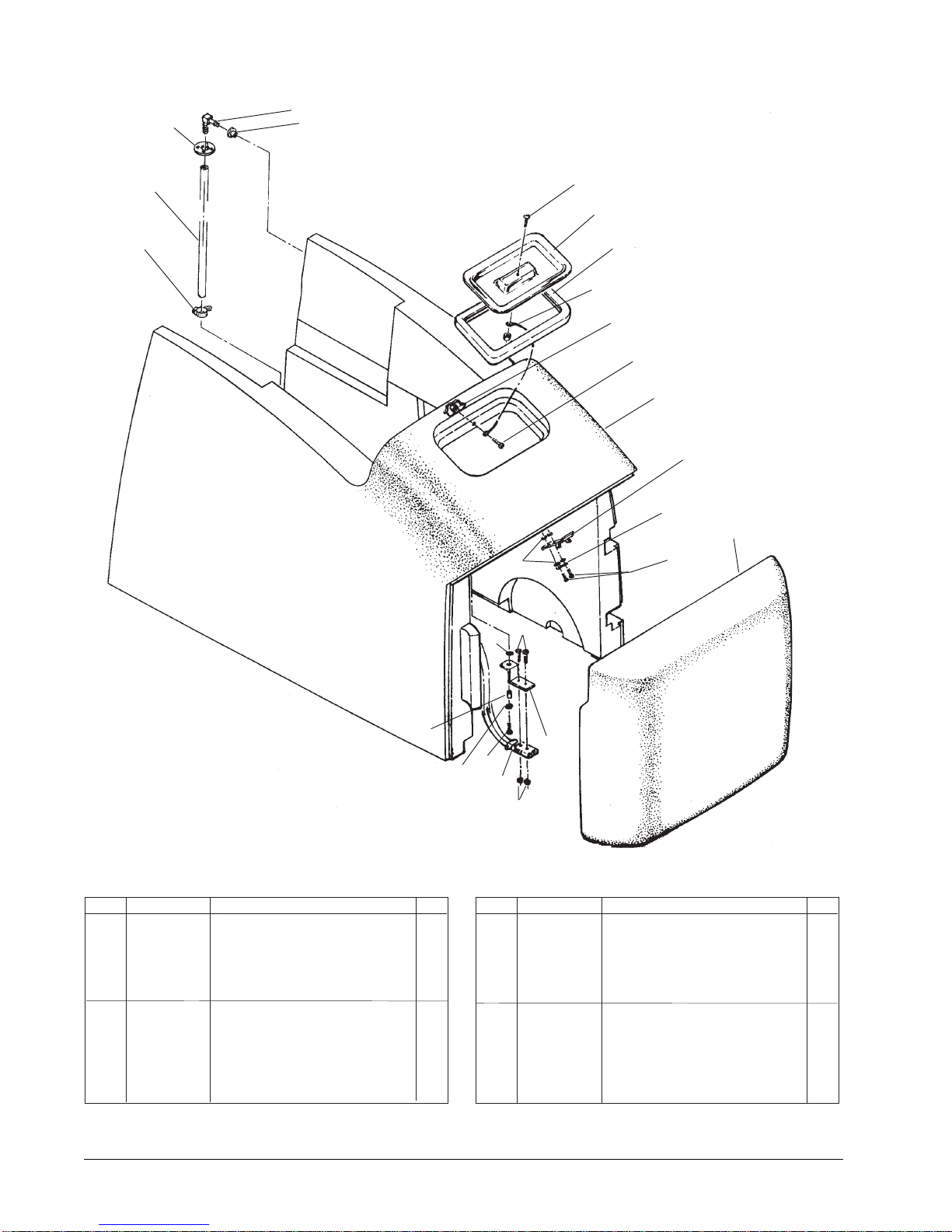

Solution Tank Assembly..........................................................................................24

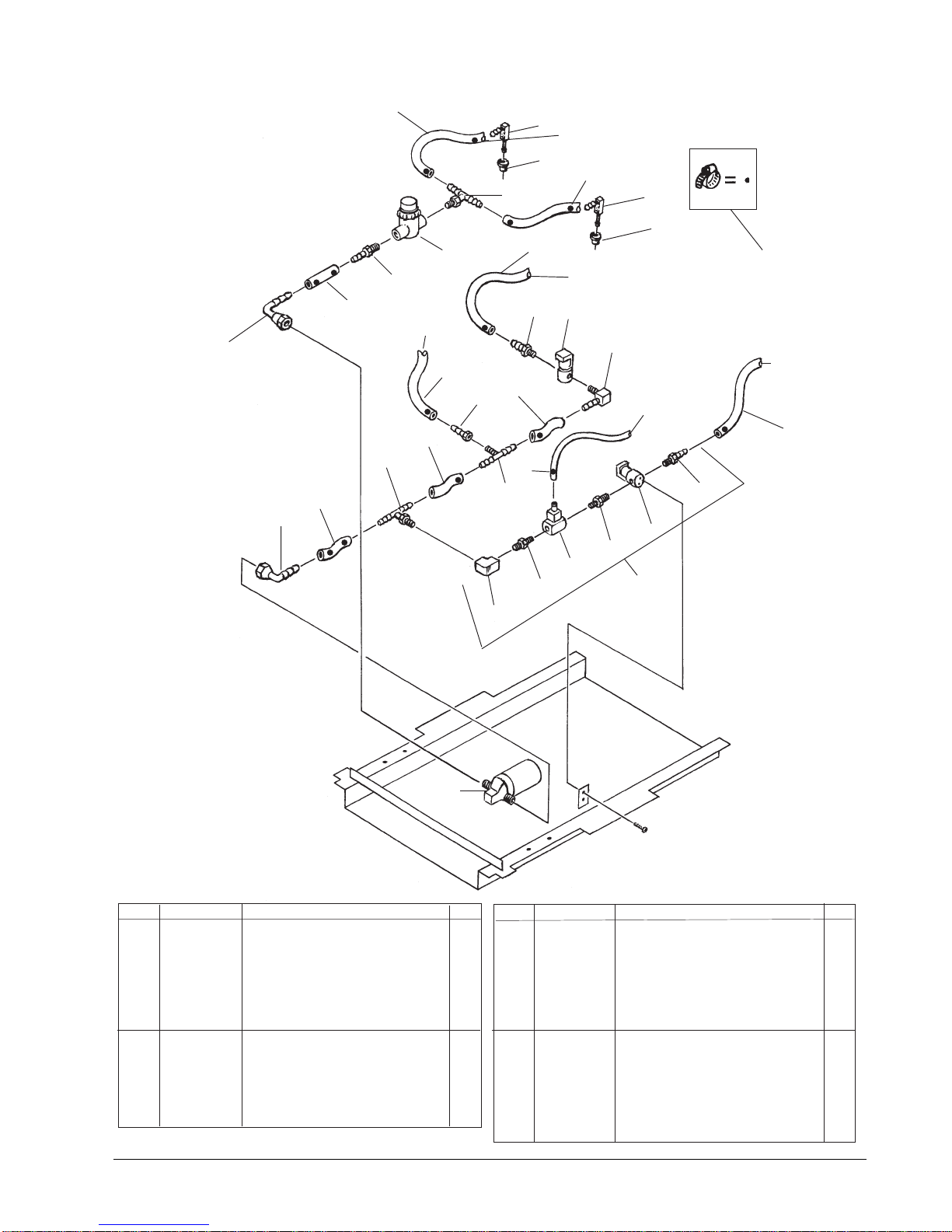

Solution Delivery System ........................................................................................25

Frame Assembly.....................................................................................................26

Battery Tray ............................................................................................................27

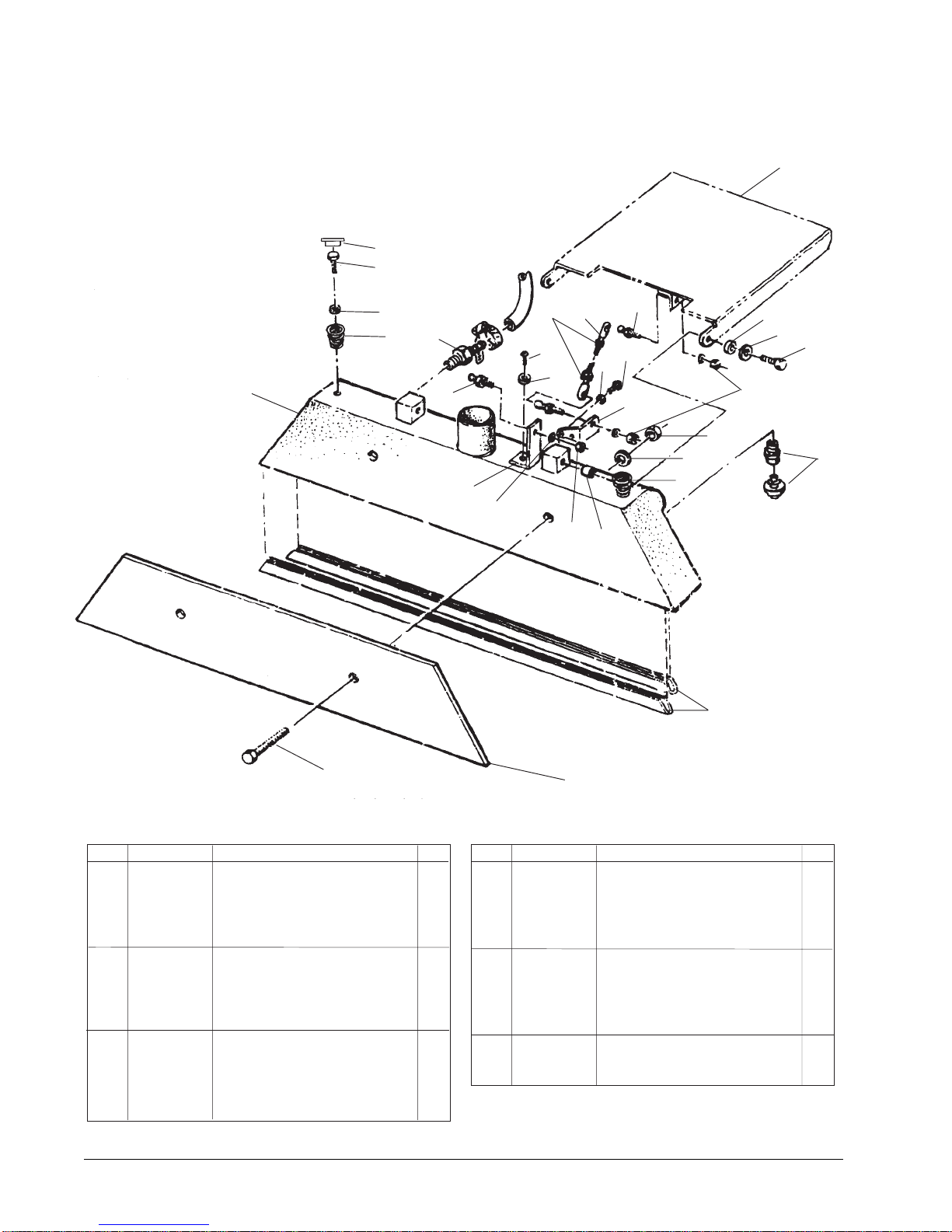

Recovery Tool Assembly .........................................................................................28

Brush Assembly......................................................................................................29

Transaxle Parts List ................................................................................................30

Vac Motor Assembly...............................................................................................31

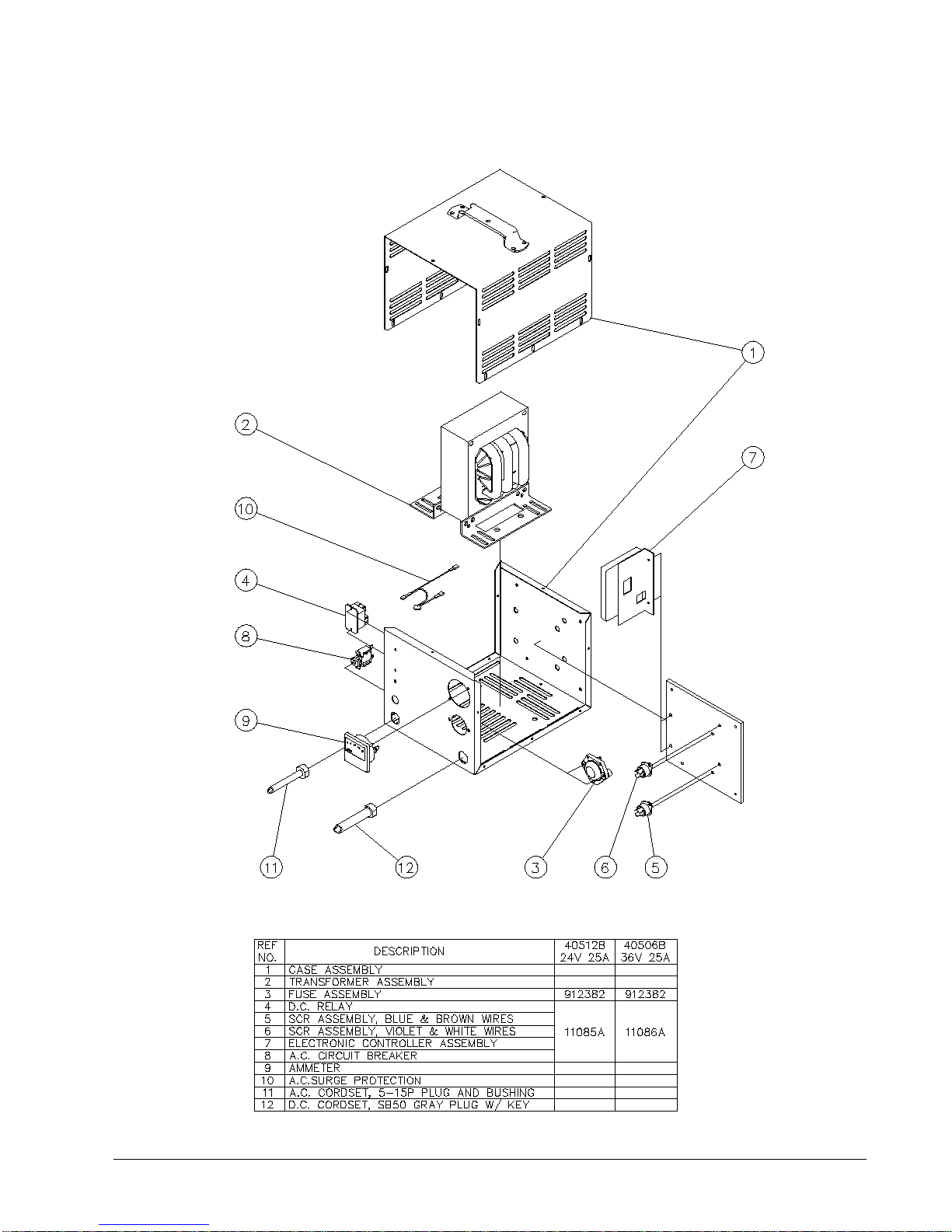

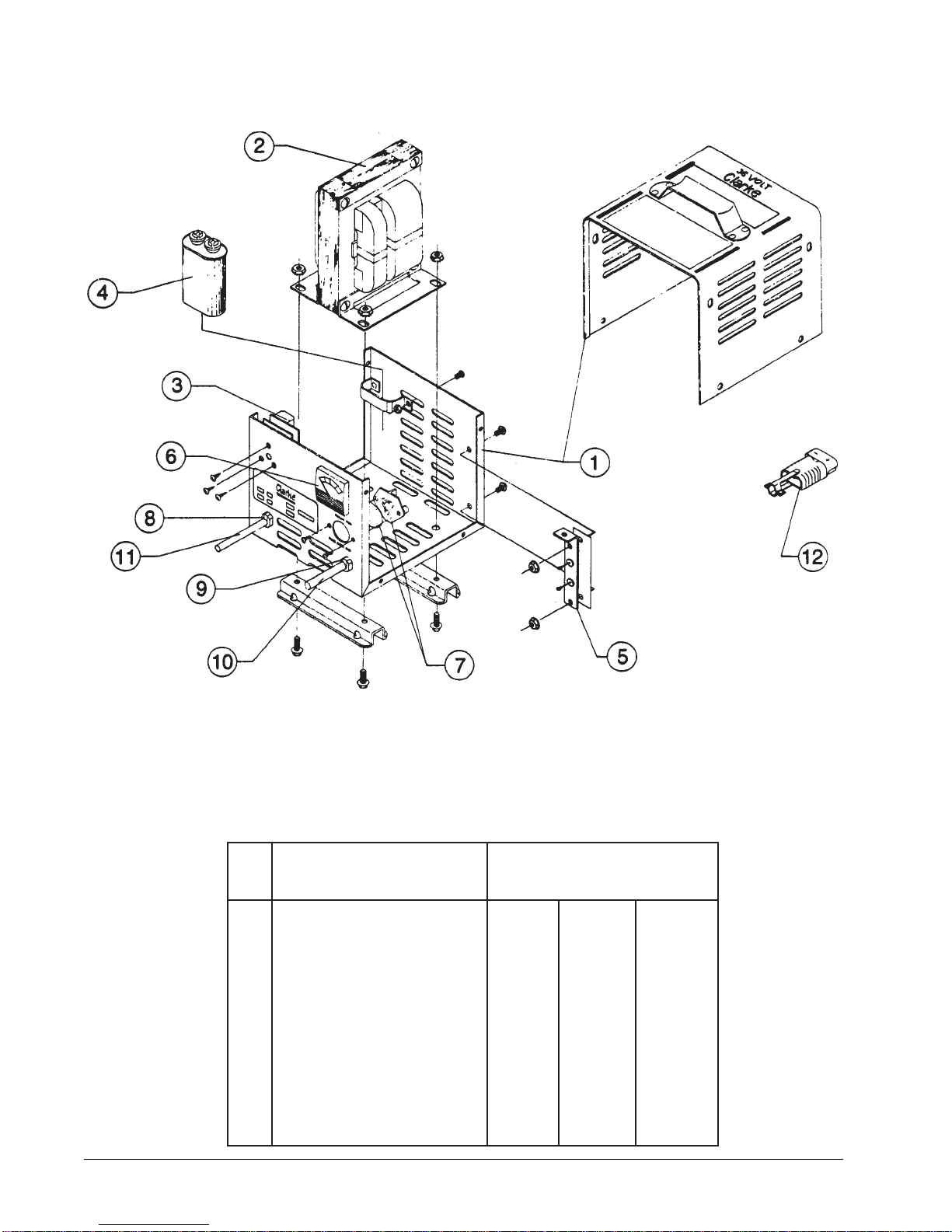

Battery Charger (40506A, 40507A, 40505A) ............................................................32

Battery Charger (40512B, 40506B) ..........................................................................33

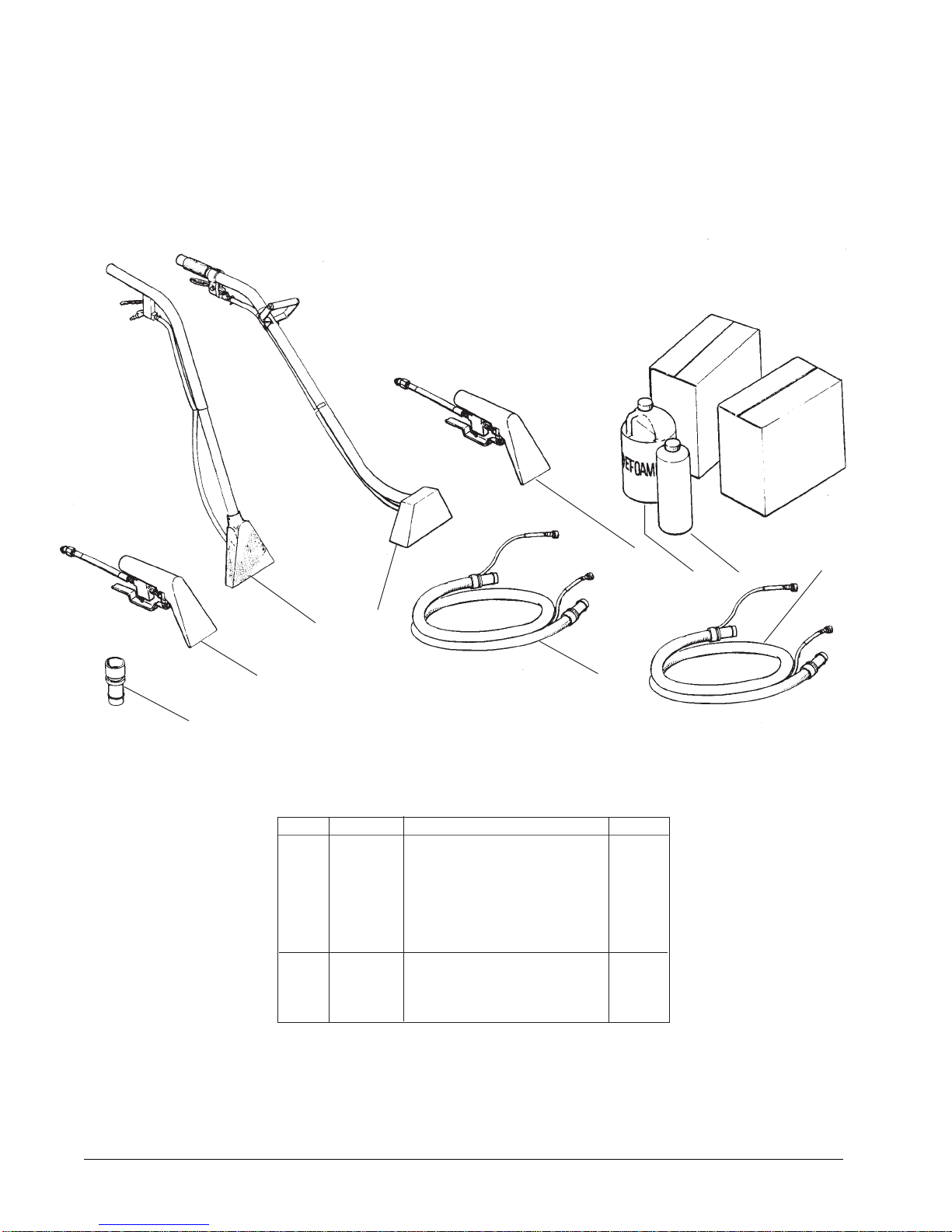

Available Accessories .............................................................................................34

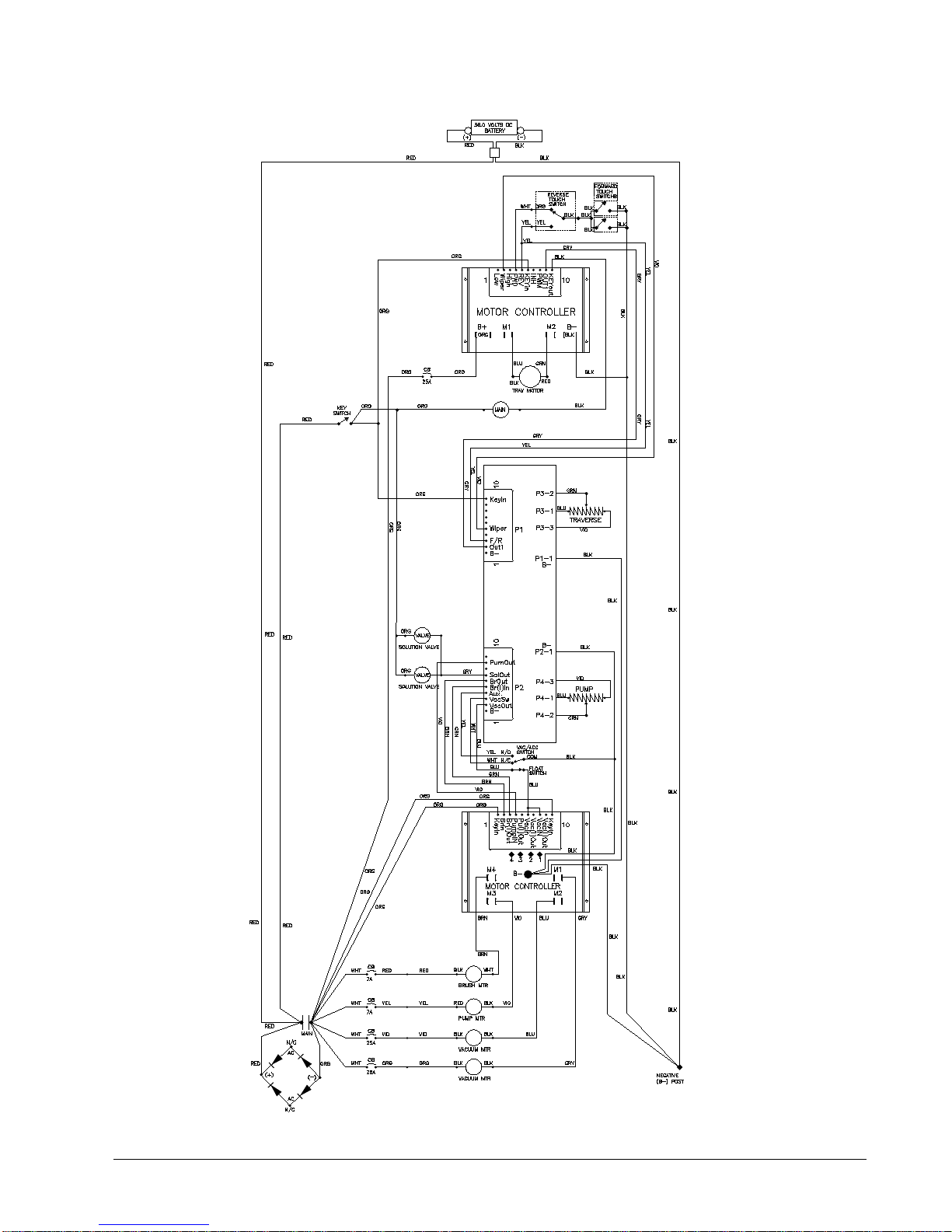

Wiring Schematic....................................................................................................35

Connection Diagram ................................................................................................36

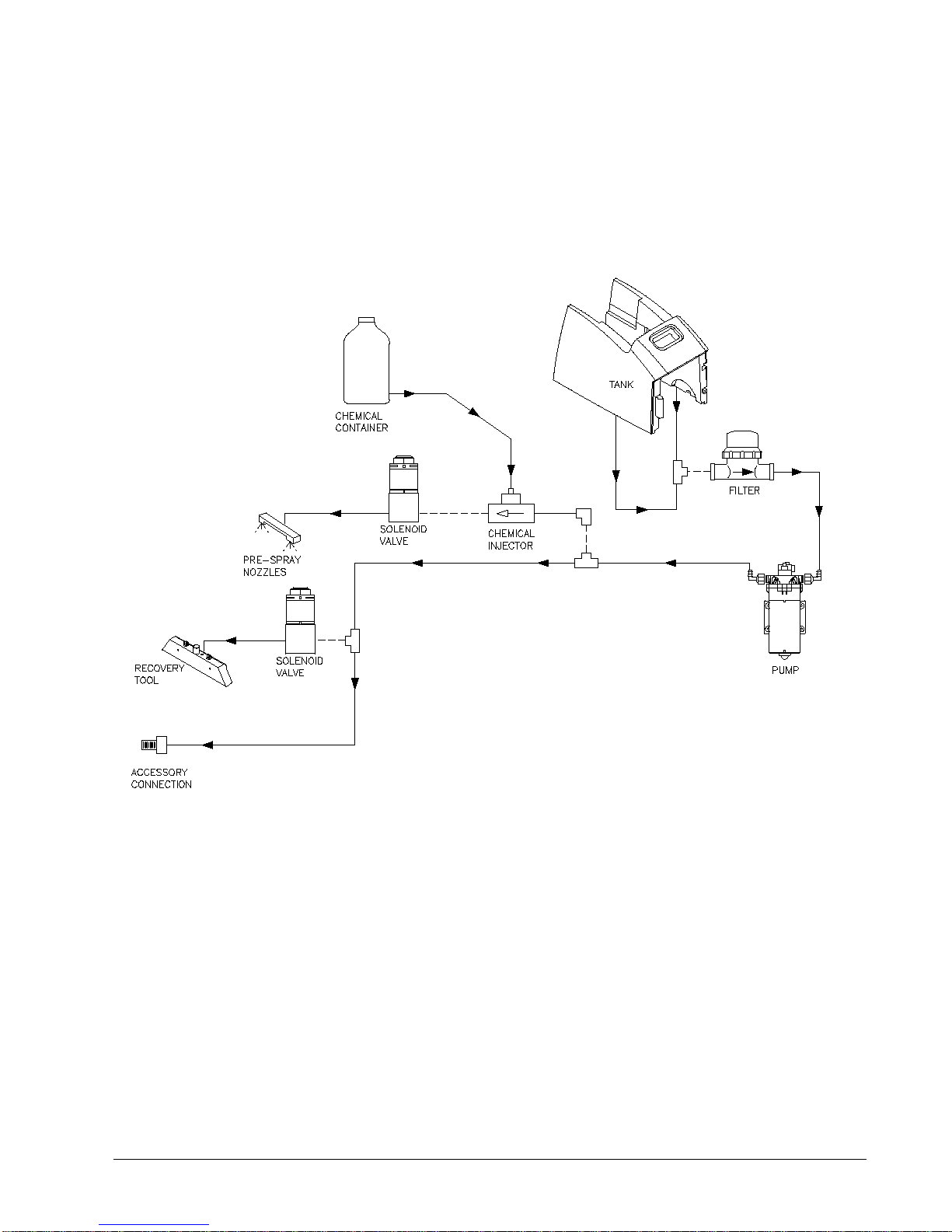

Flow Diagram ..........................................................................................................37

Page -2- Clarke® Operator's Manual IMAGE 26B

Page 3

OPERATOR SAFETY INSTRUCTIONS

WARNING AVERTISSEMENT ADVERTENCIA

DANG ER : Failure to read and observe all DANGER statements could result in

severe bodily injury or death. Read and observe all DANGER statements found in your Owner's Manual and on your machine.

WARNING: Failure to read and observe all WARNING statements could result

in injury to you or to other personnel; property damage could occur as well. Read and observe all WARNING statements found in your Owner's Manual and on your machine.

CAUTION: Failure to read and observe all CAUTION statements could result in

damage to the machine or to other property. Read and observe all CAUTION statements found in our Owner's Manual and on your machine.

DANGER: Failure to read the Owner's Manual prior to operating or attempting any service or

maintenance procedure to your Clarke machine could result in injury to you or to other personnel; damage to the machine or to other property could occur as well. You must have training in the operation of this machine before using it. If your operator(s) cannot read English, have this manual explained fully before attempting to operate this machine.

DANGER: Operating a machine that is not completely or fully assembled could result in injury

or property damage. Do not operate this machine until it is completely assembled. Inspect the machine carefully before operation.

DANGER: Machines can cause an explosion when operated near flammable materials and

vapors. Do not use this machine with or near fuels, grain dust, solvents, thinners, or other flammable materials. This machine is not suitable for picking up hazardous dust.

DANGER: Lead acid batteries generate gases which can cause an explosion. Keep sparks

and flames away from batteries. Do not smoke around the machine. Charge the batteries only in an area with good ventilation. Make sure that the AC charger plug is unplugged from the wall receptacle before connecting or disconnecting the DC plug to or from the battery pack.

DANGER: Working with batteries can be dangerous! Always wear eye protection and

protective clothing when working near batteries. Remove all jewelry. Do not put tools or other metal objects across the battery terminals, or the tops of the batteries.

DANGER: Using a charger with a damaged power cord could result in an electrocution. Do

not use the charger if the power cord is damaged.

WARNING: Operating this machine from anywhere other than the back of the machine could result in

injury or damage. Operate this machine only from the rear.

WARNING: This machine is heavy. Get assistance before attempting to transport or move it. Use

two able persons to move the machine on a ramp or incline. Always move slowly. Do not turn the machine on a ramp. If operating machine on a gradient over 2%, do not stop, turn or park. Read the "Procedures For Transporting" in this manual before transporting as machine might topple over if not strapped.

WARNING: Machines can topple over if guided over the edges of stairs or loading docks and cause

injury or damage. Stop and leave this machine only on a level surface. When you stop the machine, put all switches into their "OFF" position.

Clarke

Operator's Manual IMAGE 26B Page -3-

Page 4

WARNING: This machine is not equipped with a parking brake. Never leave the machine unattended.

For added safety, always place a chock in front of and behind the drive wheel.

WARNING: Maintenance and repairs performed by unauthorized personnel could result in damage or

injury. Maintenance and repairs must be performed by authorized Clarke personnel only.

WARNING: Any alterations or modifications of this machine could result in damage to the machine or

injury to the operator or other bystanders. Alterations or modifications not authorized by the manufacturer voids any and all warranties and liabilities.

WARNING: Electrical components of this machine can "short-out" if exposed to water or moisture.

Keep the electrical components of the machine dry. Wipe the machine down after each use. For storage, keep the machine in a dry building.

WARNING: Operating a machine without observing all labels and instructional information could result

in injury or damage. Read all machine labels before attempting to operate. Make sure all of the labels and instructional information are attached or fastened to the machine. Get replacement labels and decals from your Clarke distributor.

WARNING: Wet floor surfaces can be slippery. Water solutions or cleaning materials used with this

type of machine can leave wet areas on the floor surface. These areas can cause a dangerous condition for the operator or other persons. Always put "Caution" signs around/near the area you are cleaning.

WARNING: Improper discharge of waste water may damage the environment and be illegal.

The United States Environmental Protection Agency has established certain regulations regarding discharge of waste water. Also, city and state regulations regarding this discharge my be in effect in your area. Understand and follow the regulations in your area. Be aware of the environment hazards of chemicals that you dispose.

WARNING: Using water that is above 140°F can damage the machine. Do not use water where the

temperature is above 140°F.

WARNING: To avoid personal injury to operators or bystanders, do not operate machine at full

traverse speed down inclines. Machine is heavy and can cause personnel injury and property damage.

CAUTION: Your machine warranty will be voided if anything other than genuine Clarke parts are used

on your machine. Always use Clarke parts for replacement.

CAUTION: Use of this machine to move other objects or to climb on could result in injury or damage.

Do not use this machine as a step or furniture. Do not ride on this machine.

CAUTION: Carpet damage can occur if carpet has not adequately dried before traffic resumes. Stay

off the carpet until it is dry.

Page -4- Clarke® Operator's Manual IMAGE 26B

Page 5

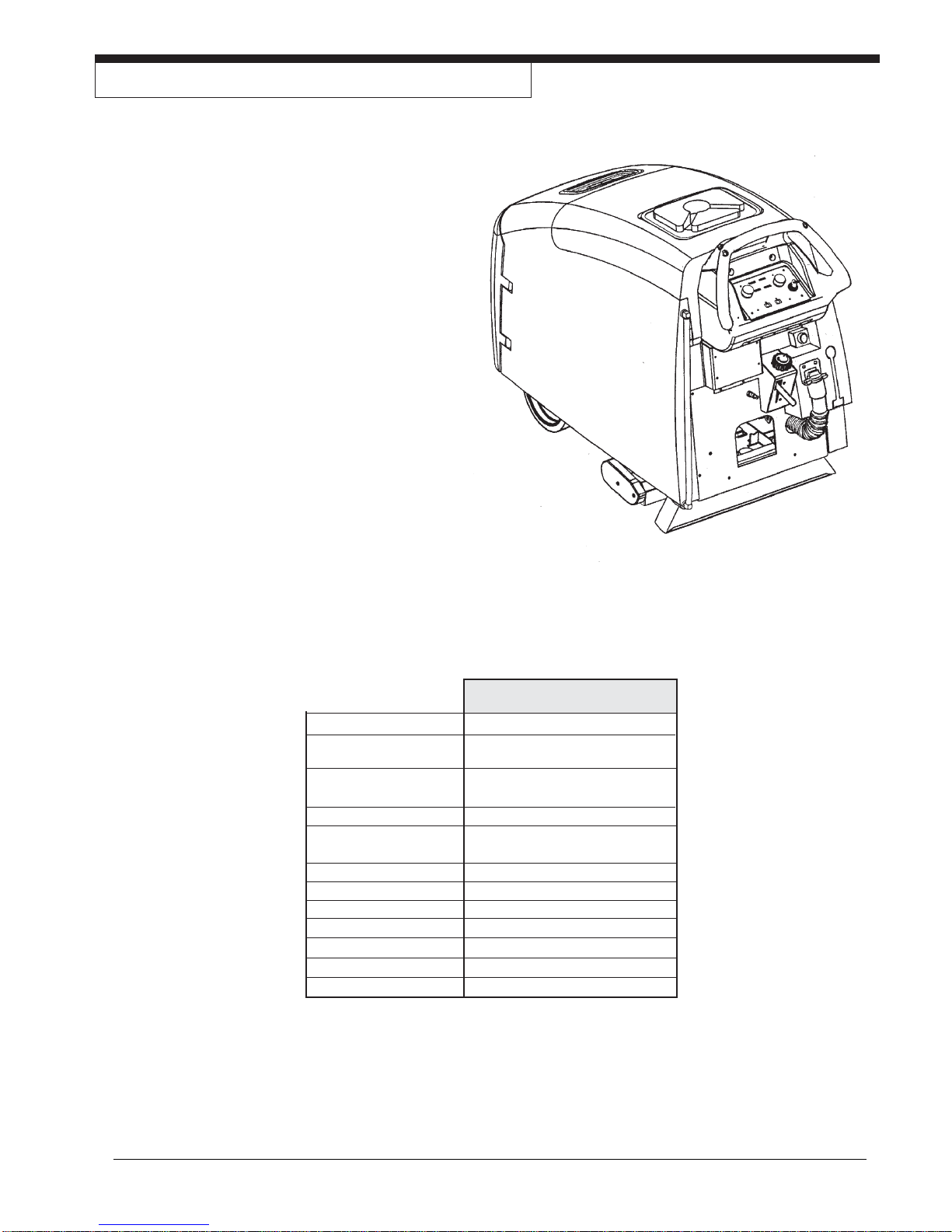

INTRODUCTION AND MACHINE SPECIFICATIONS

The IMAGE 26B is a one-piece, self-propelled carpet extractor designed for cleaning carpet. The machine applies cleaning solution to the carpet and then removes the dirty solution and soil with a recovery tool.

Features:

 Easy to Operate  Interex cleaning system.  Brush pressure gauge.  Variable speed transaxle (forward and reverse)  Adjustable brush pressure.  Adjustable traverse speed.  Rugged 10-gauge mainframe.  Large capacity, compact size.  Easy access for serviceability.  Large recovery tank opening for easy cleaning.  Smooth 10", non marking, tread-less drive wheels.  Accessory tool connection.  No fatigue, dead man switch mounted on control handle.  Dual tangential discharge vac motors  Circuit breaker protection for traverse, brush, pump and vac motors.  Automatic shut-off when recovery tank is full.  Adjustable bypass pump.  Solution level indicator.  Low voltage battery protection (solution and brush stop when low voltage condition occurs)

IMAGE 26B, 36V

Solution Pump 100 psi Adjustable By-pass Solution Tank 30 Gallon Capacity Recovery Tank 30 Gallon Capacity Water Lift 76" Functional WL 150/CFM Vacuum 2 Tangential discharge,

three-stage motors

Batteries 3 12V 195AH Batteries Spray Jets Quick Change Nozzles Brush Size 4" x 23" Dimensions 48" x 26" x 43" Weight (w/batteries) 650 lbs. Shipping Weight 922 lbs. Dimensions 56" x 28" x 46" (41.7 cu. ft.)

Clarke

Operator's Manual IMAGE 26B Page -5-

Page 6

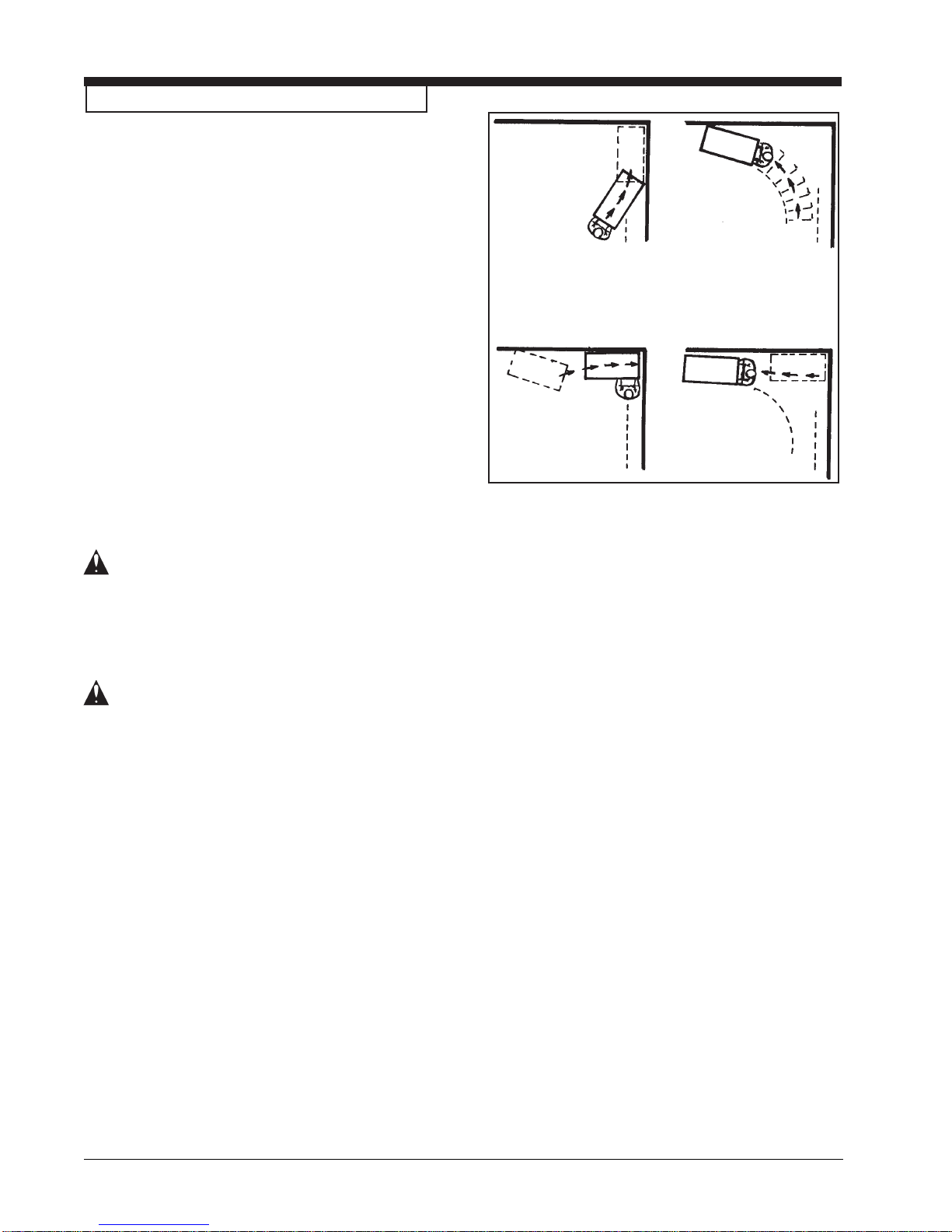

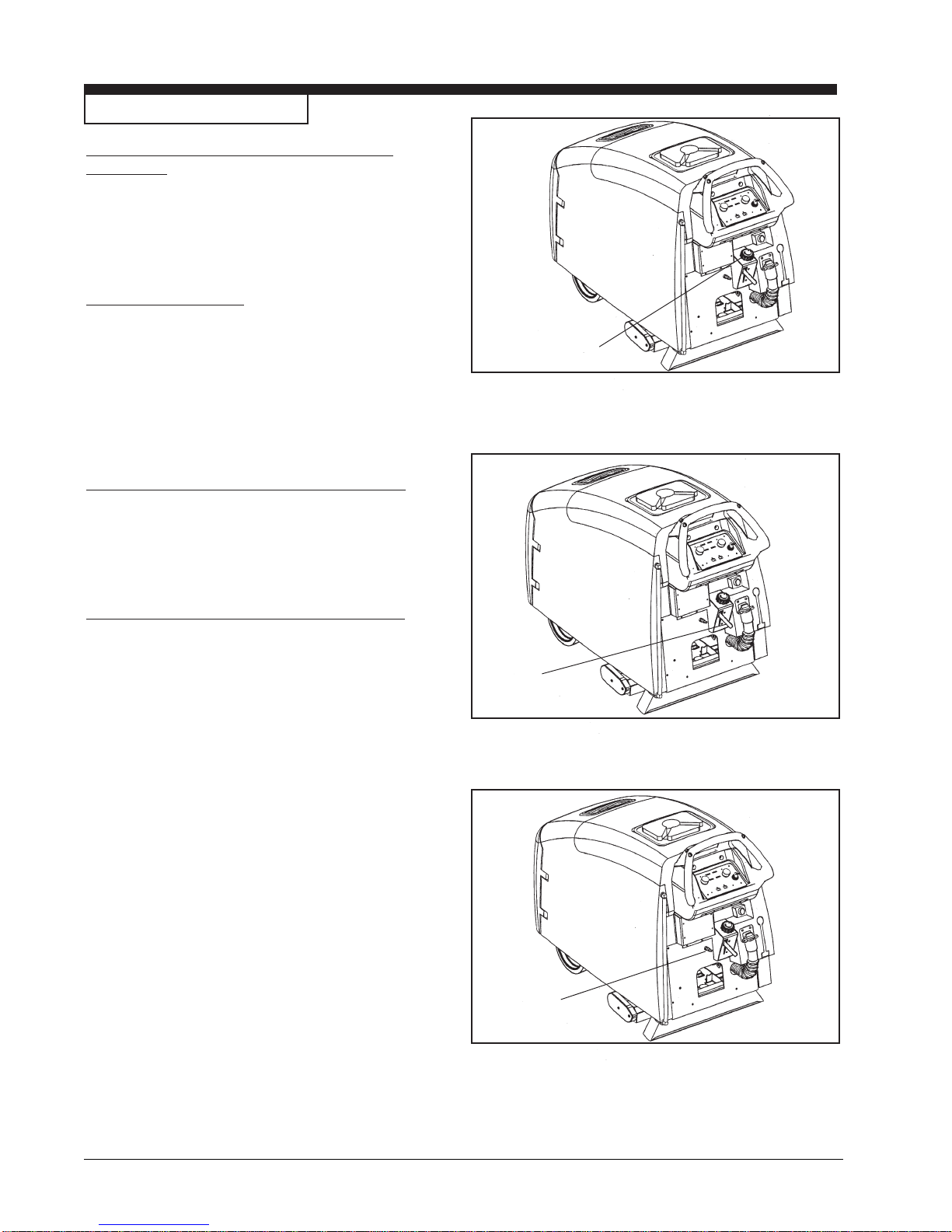

TRANSPORTING THE MACHINE

How to Put the Machine in a Van or Truck

WARNING: The machine is heavy. Make

sure you use two able persons to help assist the machine up the ramp.

1. Make sure the loading ramp is no less than eight feet long and strong enough to support the machine.

2. Make sure the ramp is clean and dry.

3. Secure the ramp in position.

4. Lift the brush assembly into an upright position.

5. Align the machine on a level surface ten feet in front of the ramp.

6. Push the machine to the top of the ramp.

7. Tie down the machine.

How to Remove the Machine From A Van Or Truck

1. Make sure there are no obstructions in the area.

2. Make sure the unloading ramp is no less than eight feet long and strong enough to support the machine.

3. Make sure the ramp is clean and dry.

4. Secure the ramp in position.

5. Untie the machine.

WARNING: The machine is heavy. Make

sure you use two able persons to assist the machine down the ramp.

6. Assisting the machine down the ramp, position yourself to maintain a slow downward speed.

Page -6- Clarke® Operator's Manual IMAGE 26B

Page 7

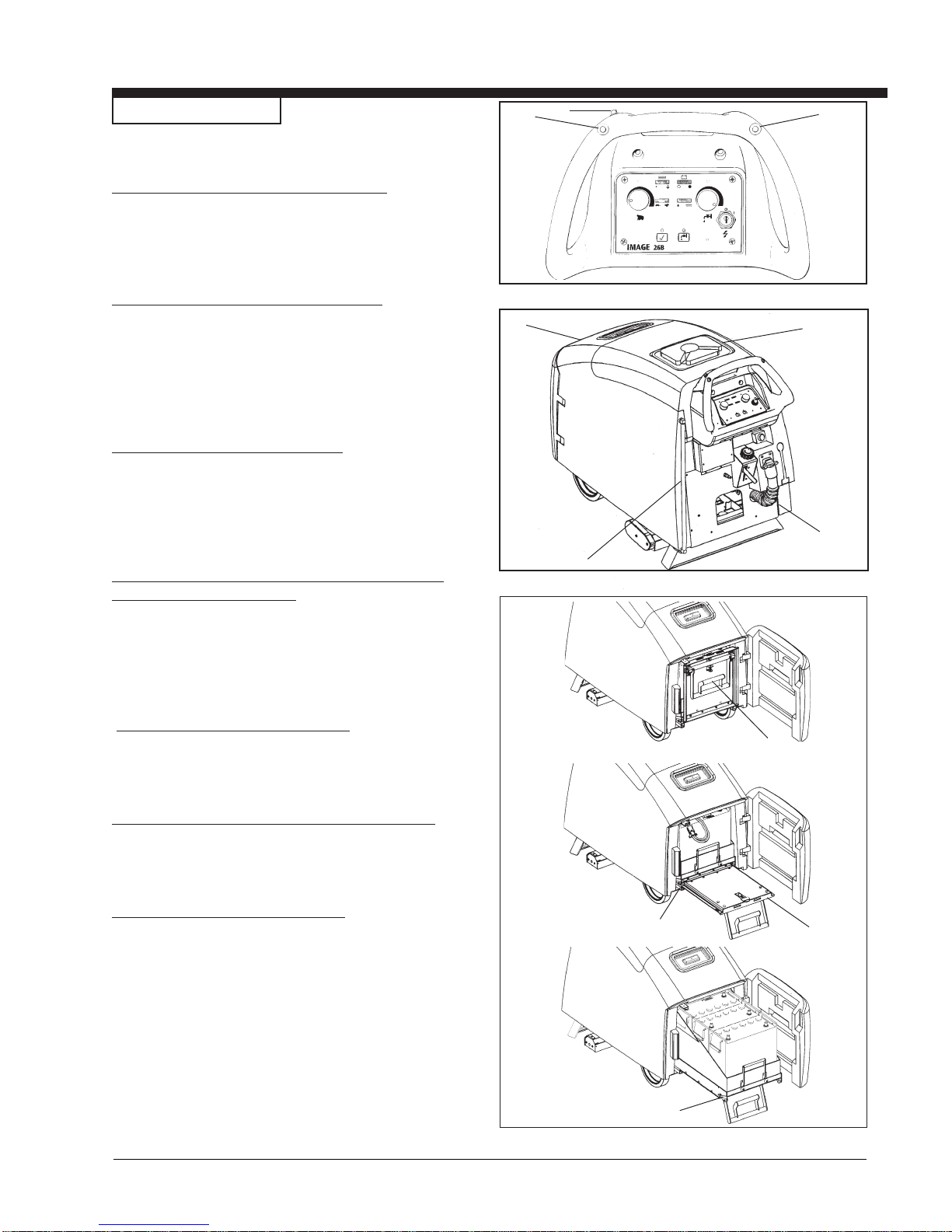

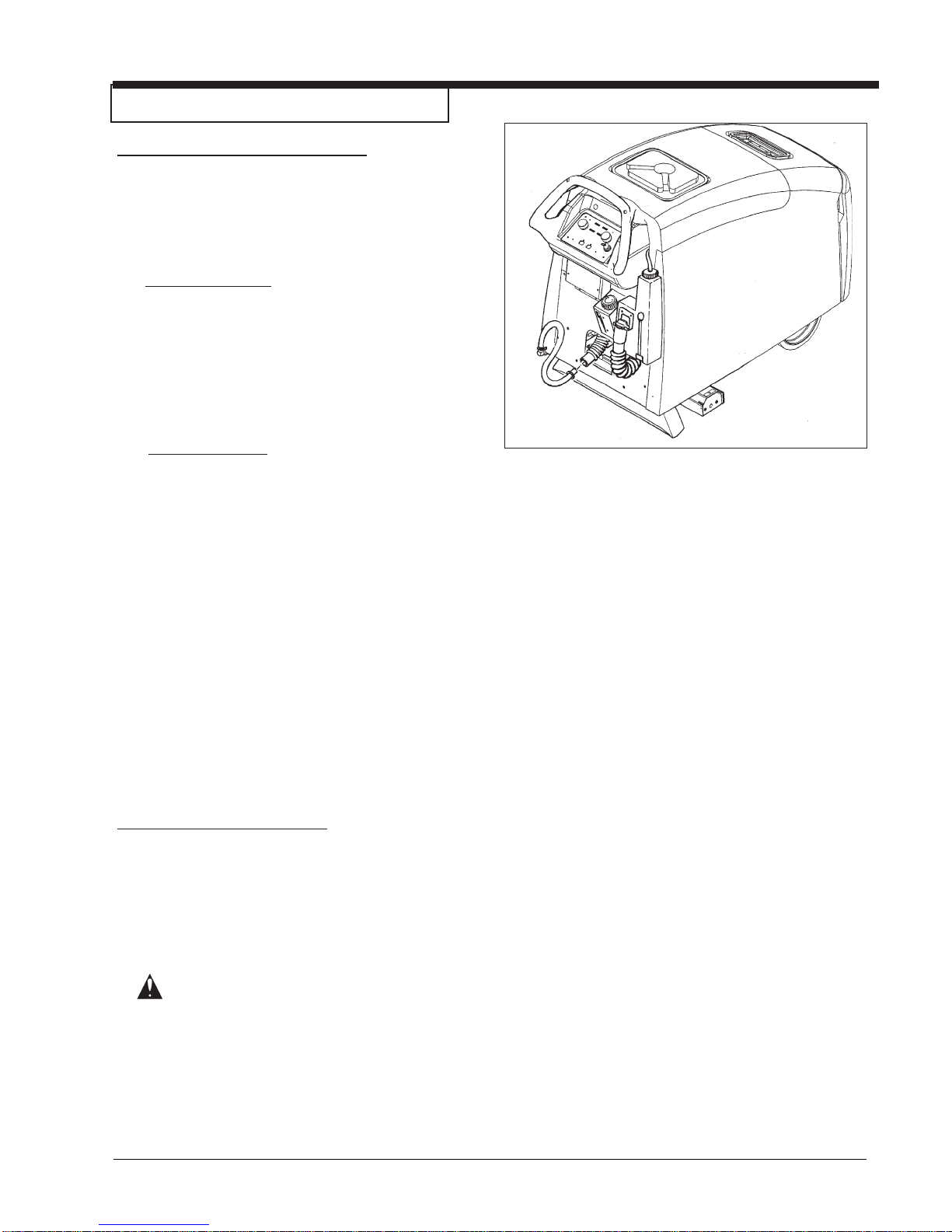

THE CONTROLS

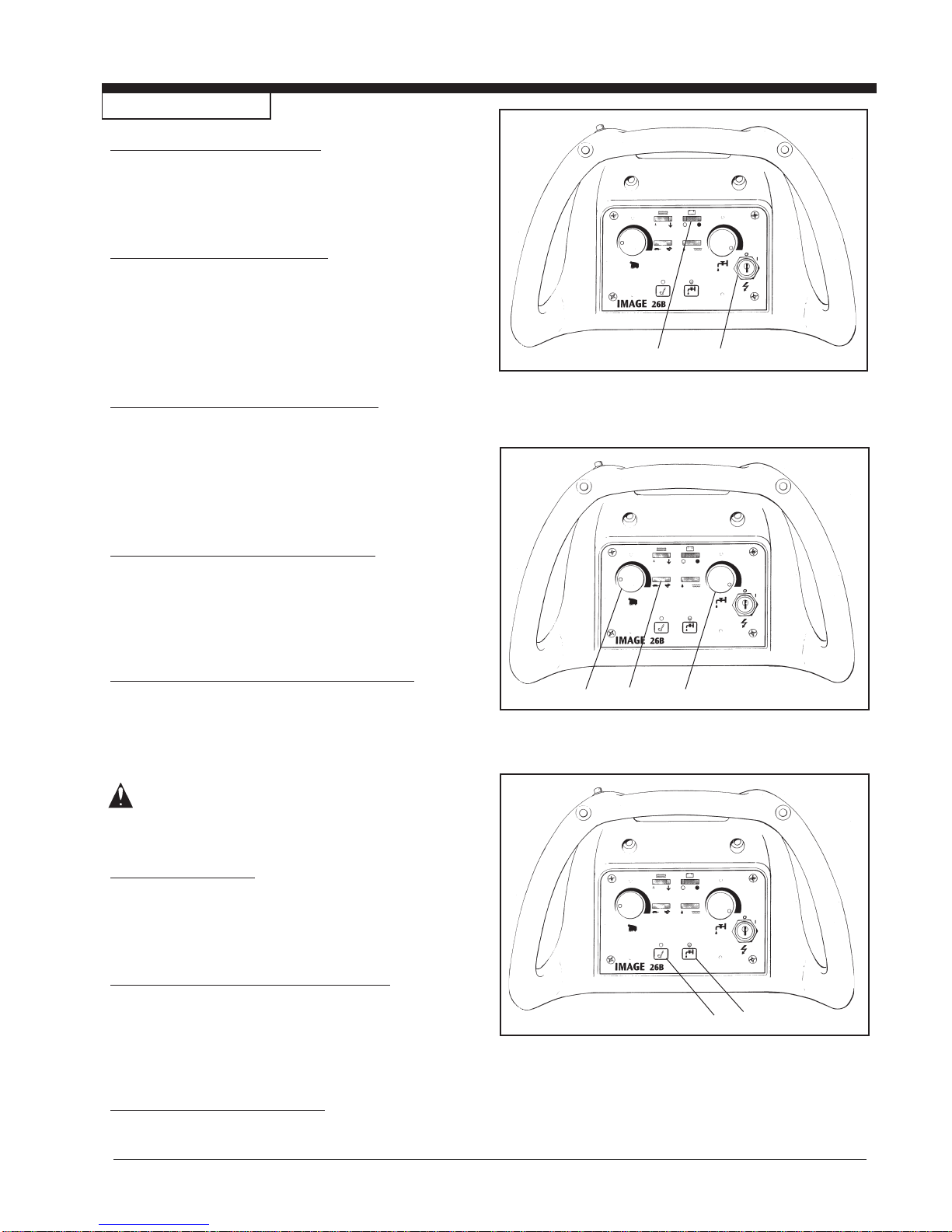

Key Switch (See figure 1, A)

The key switch is located on the control panel.

The key switch must be on before any function of the machine will work. Turn to "O"

for OFF and "I" for ON.

Battery Meter (See figure 1,B)

The battery meter indicates the relative charge on the battery pack. Do not continue to run the machine when the meter is in "red" area. This will shorten the life of the battery. NOTE: Low voltage will shut off solution and brush functions. Recover remaining solution and return to charge station.

The Traverse Knob (See figure 2, A)

The traverse knob is located on the left side of the control panel. The traverse knob controls the speed of the machine. For faster speeds, turn the knob to the right. For slower speeds, turn the knob to the left. Light bars indicate traverse speed. Twenty feet per minute is optimum cleaning speed.

The Traverse Meter (See figure 2, B)

The lights on the meter indicate the cleaning range. Speeds in the 1 to 10 light range indicate cleaning speeds for various conditions. Speeds above those indicated by the tenth light are used only for traversing to dumping, filling or charging locations.

Variable Pump Pressure (See figure 2, C)

The control knob is located on the right side of the control panel. The control knob can be adjusted clockwise to increase flow and pressure or counterclockwise to decrease flow and pressure. If streaking occurs increase pressure setting.

WARNING: Do not operate the pump if the

solution tank is empty. Damage to the pump could occur.

Figure 1

Figure 2

The Vacuum Switch

The vacuum switch is activated by the recovery tool lift handle. The vacuum motors are switched on when the tool is lowered. The vac motors are switched off after a 10 second delay when the tool is raised.

Accessory Vac Switch (See figure 3,A)

The accessory vac switch is located on the lower left side of the control panel. This switch turns on the vac motors when the recovery tool is raised. This allows the use of accessory tools when connected to the recovery hose.

Pump Switch (See figure 3,B)

The pump switch allows the pump to be turned off when solution application is not required.

Clarke

Operator's Manual IMAGE 26B Page -7-

Figure 3

Page 8

THE CONTROLS (cont.)

The Brush Adjustment Control Knob (See figure 4, A)

The brush lift control knob is located at the rear of the machine. The knob is adjustable for many types of carpet. This setting need not be adjusted between uses. The settings are retained.

Brush Pressure Meter

The brush pressure meter indicates the relative amount of pressure the brush is putting on the floor. To maximize run time on a battery charge, keep the light bars towards the center of the green area. To avoid damage to the brush motors, do not run the machine in the "red" area.

The Recovery Tool Handle (See figure 5, A)

The recovery tool handle is located on the back of the machine. This handle lowers the recovery tool and brush.

Figure 4

Accessory Hose Connector (See figure 6, A)

The accessory hose connector is used to hook-up optional auxiliary floor tools and to redirect the solution flow. Use hose coupler (P.N. 30108A) to connect accessory hose to recovery shoe hose.

Figure 5

Page -8- Clarke® Operator's Manual IMAGE 26B

Figure 6

Page 9

THE CONTROLS

The Traverse Switch (See figure 7, A)

The traverse switch is located on the control handle. Light pressure with the thumb or hand activates the traverse for forward movement.

The Reverse Switch (See figure 7, B)

The reverse switch is the white button located on top of the handle. Reverse traverse is achieved by simultaneously pressing the traverse and reverse buttons.

Solution Tank (See figure 8, A)

The solution tank is top center of the machine. The solution tank fill opening is located in the center of the tank at the front of the machine.

Solution Tank Drain Hose and Solution Level Indicator (See figure 8,B)

The solution drain hose is on the lower left at the back of the machine. To drain, pull the clear hose free of the top hosebarb and lay the hose into drain. Reconnect when finished.

.Recovery Tank (See figure 8, C) The recovery tank is mounted in the rear center position on the machine.

Figure 7

Figure 8

Recovery Tank Drain Hose (See figure 8, D)

The recovery drain hose is located at the center right at the back of the machine.

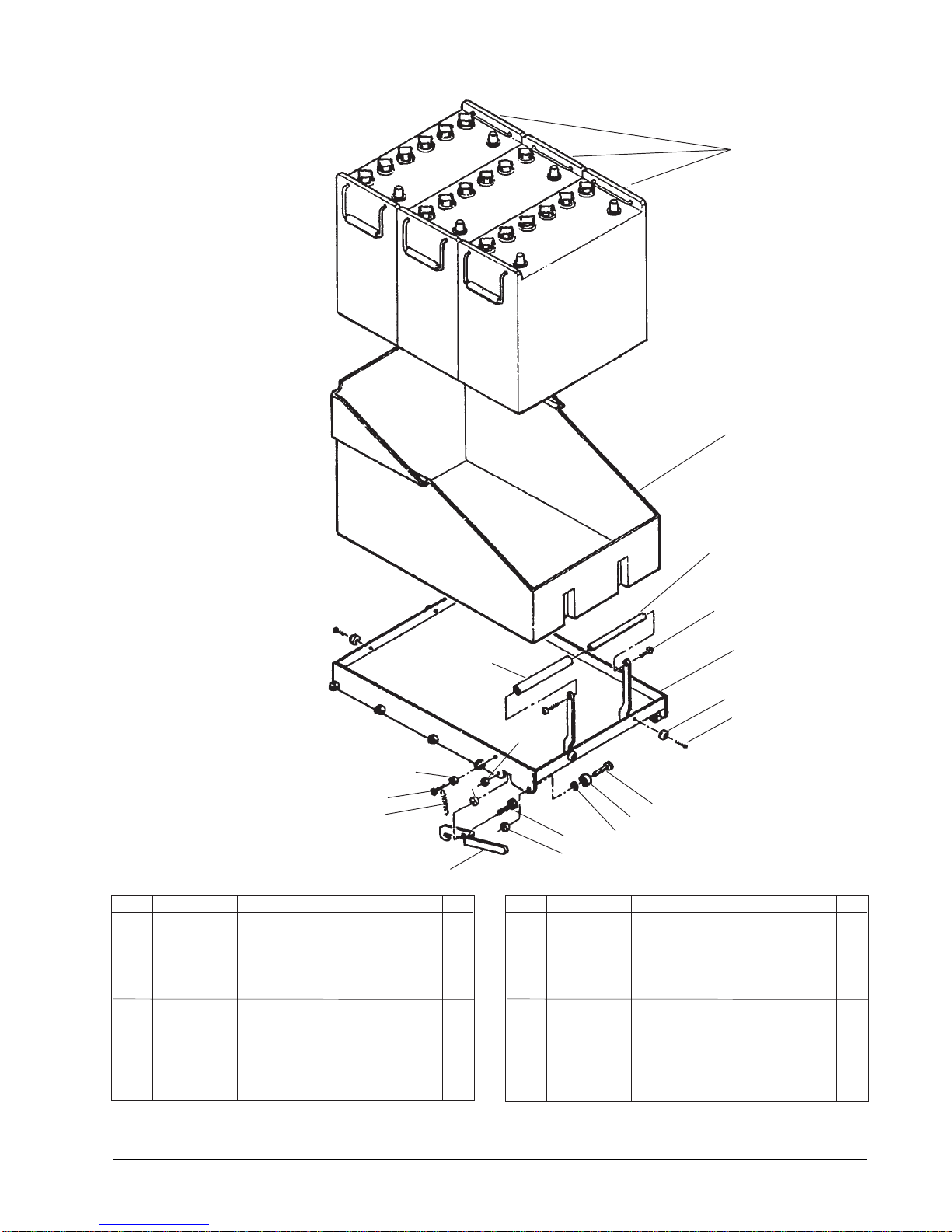

Battery Tray (See figure 9, A-C))

The battery tray must be pulled out of the machine on the front bridge in order to change batteries or check electrolyte. To lower bridge, grasp handle and pull up firmly to insure handle is extended fully (A). Lower bridge (B). Release lever on left side of battery tray (C) and pull tray out slowly until latch arm engages in slot on bridge (D) . To return battery tray to operating position, release lever and slide tray back into machine until lever engages in frame. Raise and latch bridge. Close front.

Clarke

Operator's Manual IMAGE 26B Page -9-

Figure 8

Page 10

HOW TO PREPARE THE MACHINE FOR OPERATION

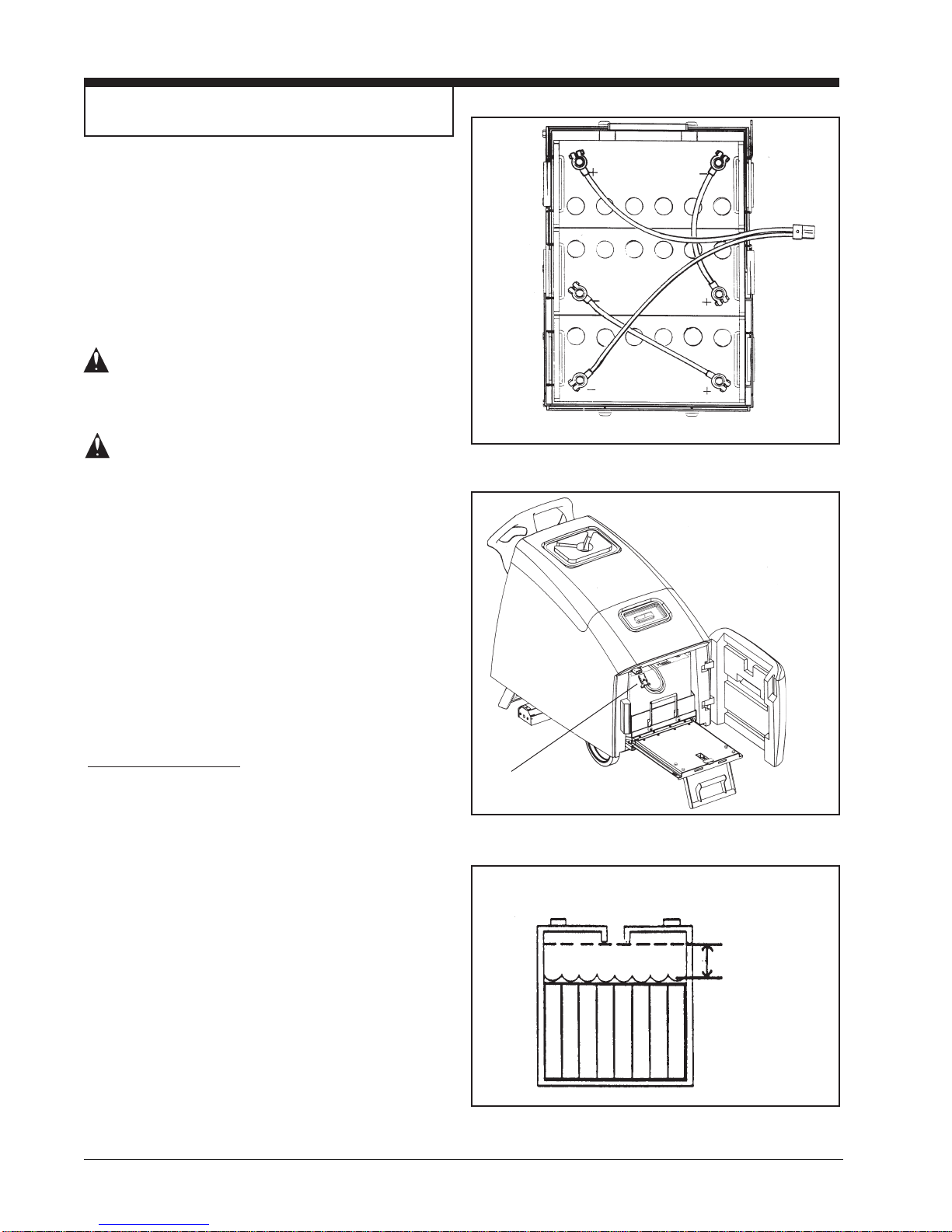

The Image 26B uses three 12-Volt batteries. The batteries are located on a battery tray that can be accessed by opening the front cover and lowering the front bridge. To install the batteries, follow this procedure:

1. Turn key switch off.

2. Make sure both tanks are empty.

3. Place the batteries in the battery tray as shown in figure 10.

WARNING: Lifting batteries without help could

result in an injury. Get help to lift the batteries. The batteries are heavy.

WARNING: Working with batteries can be

dangerous. Always wear eye protection and protective clothing when working near batteries. NO SMOKING!

4. Connect the battery cables between batteries and install long battery cable assembly as indicated. See figure 10.

5. Join the connector from the battery pack to the connector on the front of the machine. Raise and latch front bridge and close front cover. See figure 11, A.

NOTE: Charge the batteries before using the machine.

Battery Maintenance

The electrical power to operate the machine comes from the storage batteries. Storage batteries need preventative maintenance.

To maintain the batteries in good condition, follow these instructions:

Figure 10

Figure 11

1. Keep the electrolyte at the correct level. The correct level is between 1/4" below the bottom of the tube in each cell and above the tops of the plates. Check the level of the electrolyte each time you charge the batteries. See figure 12.

NOTE: Check the level of electrolyte prior to charging

the batteries. Be sure the plates in each cell are covered with electrolyte. Do not top off the cells prior to charging the battery. Electrolyte expands during charging. As a result, the electrolyte could overflow form the cells. Always top off the cells with distilled water after charging.

Page -10- Clarke® Operator's Manual IMAGE 26B

Correct fill level

Figure 12

Page 11

HOW TO PREPARE THE MACHINE FOR OPERATION

CAUTION: Irreversible damage will occur to

the batteries if the electrolyte level does not cover the plates. Keep the electrolyte at the correct level.

CAUTION: Machine damage and discharge

across the tops of the batteries can occur if the batteries are filled above the bottom of the tube in each cell. Do not fill the batteries up to the bottom of the tube in each cell. Wipe any acid from the machine or the tops of the batteries. Never add acid to a battery after installation.

CAUTION: Tap water may contain contami-

nants that will damage batteries. Batteries must be re-filled with distilled water only.

2. Keep the tops of the batteries clean and dry. Keep the terminals and connectors clean. To clean the top of the batteries, use a damp cloth with a weak solution. To clean the terminals and connectors, use a terminal and connector cleaning tool. Do not allow ammonia or bicarbonate of soda to get into batteries.

3. Keep the batteries charged.

How to Charge the Batteries

WARNING: Charging the batteries in an area

without adequate ventilation could result in an explosion. To prevent an explosion, charge the batteries only in an area with good ventilation.

WARNING: Lead acid batteries generate

gases which could explode. Keep sparks and flames away from batteries. NO SMOKING!

WARNING: Failure to disconnect the AC

plug from the wall receptacle before connecting or disconnecting the DC connector on the charger could result in an explosion. Always disconnect the AC plug from the wall receptacle before connecting or disconnecting the DC connector on the charger.

Clarke

Operator's Manual IMAGE 26B Page -11-

Page 12

HOW TO PREPARE THE MACHINE FOR OPERATION

To charge the batteries, follow this procedure:

1. Put the charger on a flat surface. Make sure the vents on the side are at least two inches away from walls and other objects. Make sure there are no objects near the vents on the bottom of the charger.

2. Make sure the key switch is in the "OFF" position.

3. Disconnect the battery pack connector from the control housing connector. See figure 13, A.

4. Connect the DC connector on the charger to the battery pack connector. See figure 14.

5. Connect the charger to a properly grounded single phase (3-wire) wall receptacle having the voltage, frequency, and ampere capacity specified on the nameplate of the charger.

For more instruction on the use of the charger, read the instruction book supplied with the charger.

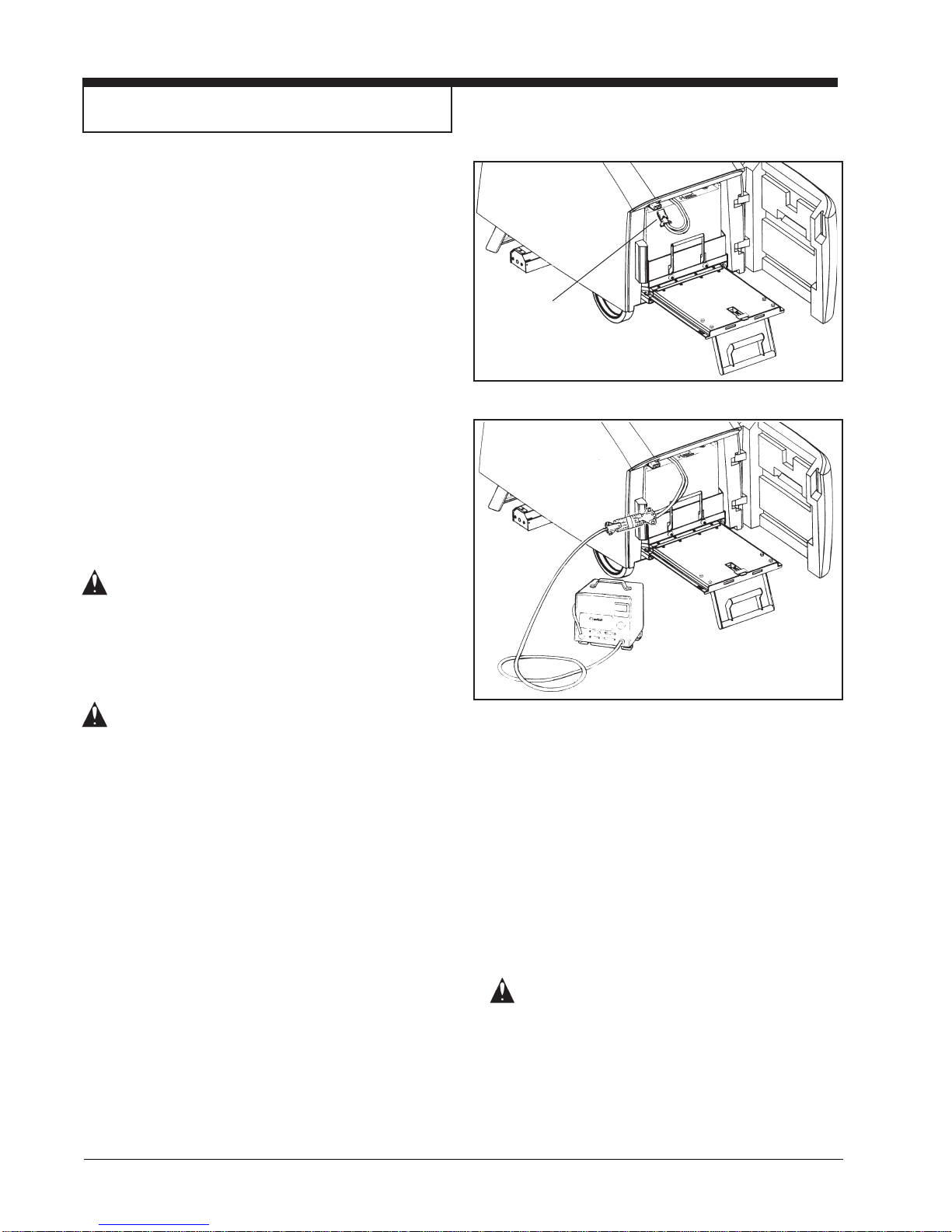

Figure 13

DANGER: Failure to read the operator’s

manual before operating this machine could result in injury to you or to other personnel, damage to the machine or to other property as well.

CAUTION: The antifreeze solution that is

shipped in your machine will damage carpet. Flush the antifreeze solution from the system before using the machine.

Your new machine has been shipped with antifreeze solution in the machine's system. This antifreeze must be flushed out prior to using the machine the first time.

To flush the antifreeze solution follow this procedure:

1. Move machine to a non-carpeted area with a floor drain.

2.Position the machine over the drain.

NOTE: Drive wheels must be lifted off the

ground for this step.

3.Add a minimum of five (5) gallons of clean water to the solution tank.

NOTE: Do not use water that is hotter than 140°F.

Figure 14

4. Turn the key switch to the "ON" position.

5. Press either of the traverse switches to activate spray.

6. Allow the solution to run through the machine over the floor drain until the solution tank is empty.

CAUTION: Cleaning solution in the

machine and tools can leak onto the carpet and cause light spots or stains. Do not leave the extractor or other cleaning machines or tools on the carpet when not in use.

Page -12- Clarke® Operator's Manual IMAGE 26B

Page 13

MACHINE OPERATING INSTRUCTIONS

DANGER: Failure to read the operator’s

manual before operating this machine could result in injury to you or to other personnel, damage to the machine or to other property as well.

CAUTION: Pump damage can occur if the

pump is operated without water in the solution tank. Do not activate the pump if the solution tank is empty.

1. Put water and cleaning solution into the solution tank. Clarke recommends using Clarkare

Extractor Concentrate as a cleaning solution. For every gallon of water, add between two and ten ounces of Clarkare

. The amount of cleaning

solution used depends on the condition of the carpet.

4 8 12

Start

Finish

10 6 2

Figure 15a

DANGER: Electrocution could occur if

machine is connected to an electrical outlet that is not properly wired or grounded. Always use a 3-wire electrical system connected to electrical ground. For maximum protection, use a circuit that is protected by a ground fault circuit interrupter (GFCI). Consult your electrical contractor.

2. Make sure battery pack is plugged into machine.

3. Turn the key switch to the "ON" position.

4. Turn the traverse speed control to the desired position.

5. Turn pump pressure knob to desired setting.

6. Lower the recovery tool.

7. Apply pressure to either traverse switch on the control handle.

8. Adjust the brush to the proper carpet height setting.

9. Guiding the machine by the control handle, move across the floor in the forward direction.

10. Follow the path sequence.

10 7 6 5 4 3 2 1

Finish

Start

Figure 15b

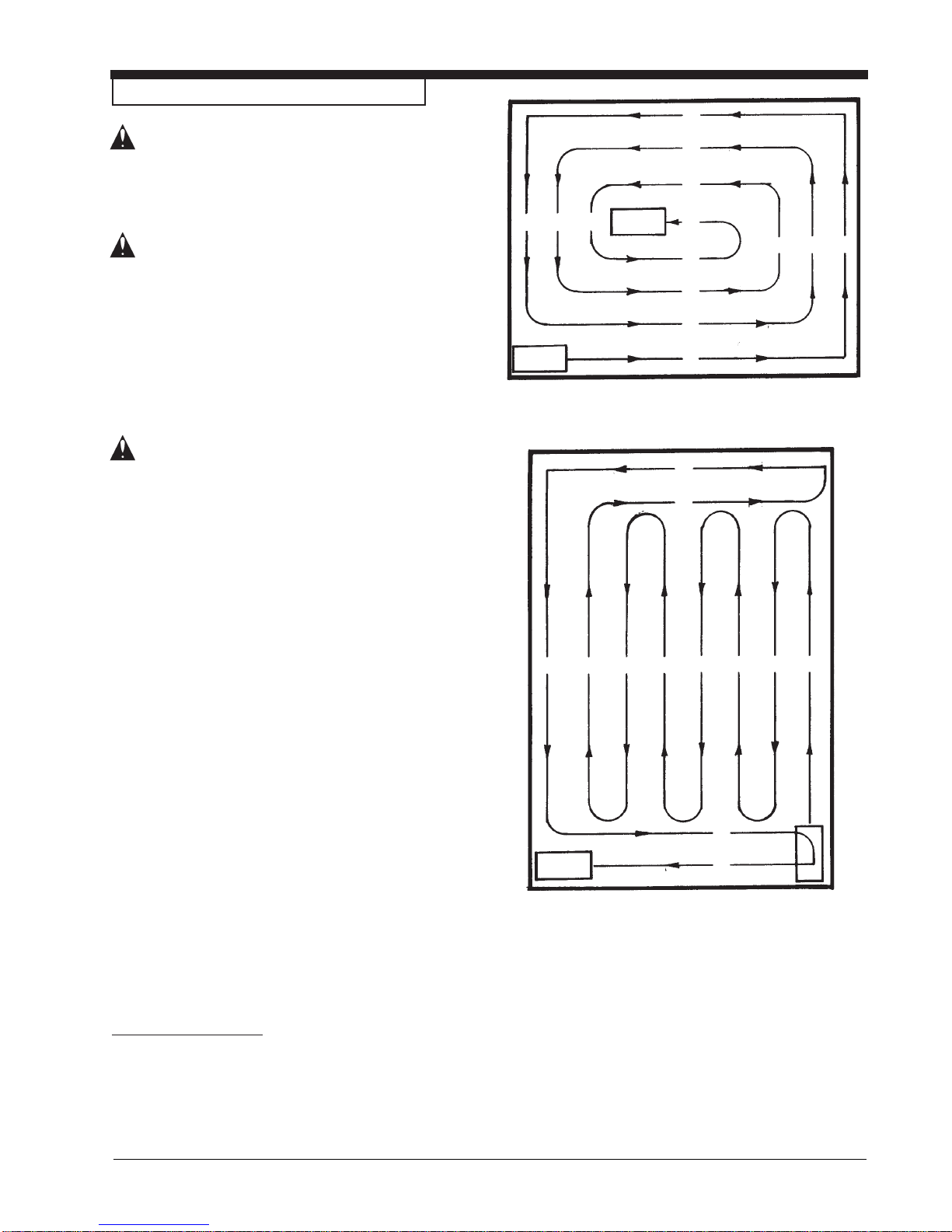

NOTE: By properly planning the cleaning pattern, a

minimum number of turns will need to be made. See figures 15a and 15b.

Low Voltage Condition: NOTE: Verify battery condition under use. If batteries

are discharged, pump and brush motor will not function. Vacuum and traverse contiue to allow water recovery and ability to return to charging station.

Clarke

Operator's Manual IMAGE 26B Page -13-

Page 14

MACHINE OPERATING INSTRUCTIONS

11. When cleaning in a corner, raise the brush, maneuver the machine as illustrated in figure 16. Lower the recovery tool and proceed with cleaning.

NOTE: If the extractor removes an excess amount of foam from the carpet, add a defoamer such as Clarkare ® Defoamer Concentrate to the recovery tank. The amount needed will vary according to the amount of detergent already in the carpet.

To stop the machine follow these procedures:

1. Release pressure from the traverse switch on the control handle.

2. Raise the recovery tool handle to the “storage” position.

3. After a 10 second delay to allow all dirty solution to reach the recovery tank, the vacuum motors will automatically shut off.

WARNING: Failure to turn all switches to

the “OFF” position could result in injury or machine damage. Always position all of the switches into their "OFF" position when not in use.

Figure 16

WARNING: Machine can roll if left parked

or unattended on an un-level surface and cause damage or injury. This machine is not equipped with a parking brake. Never leave the machine unattended. For added safety, always place a chock in front of and behind the drive wheel.

Page -14- Clarke® Operator's Manual IMAGE 26B

Page 15

MACHINE OPERATING INSTRUCTIONS

After Each Use of the Machine

1. Turn main power switch to off position.

2. Drain and rinse out the recovery and the solution tank following this procedure:

For Recovery Tank

a. Position the machine close to a floor drain or an

appropriately sized bucket or container.

b. Remove the hose from the fitting on the back of

the machine. c. Put the end of the hose over a drain or bucket. d. Twist drain plug cap to release and drain tank.

For Solution Tank a. Remove clear hose from top connector. b. Position in appropriate container or floor drain. c. Drain tank.

NOTE: Draining process can be expedited by removing vac hose from recovery tool and inserting solution drain hose. Start vac motor after inserting hose. (See figure 17)

Figure 17

NOTE: Make sure to drain both the recovery tank and the solution tank.

3. Use a clean dry cloth to wipe out both tanks and the recovery tool, both inside and out.

4. Leave the tanks and drain hoses open to dry in the air.

5. Inspect and clean the filter screen between the solution tank and pump.

After Cleaning the Carpet

1. Do not walk or place heavy objects on the carpet for at least four hours or until the carpet is dry to the touch.

2. Vacuum right after the carpet is dry and vacuum at least once a week, or as often as needed.

CAUTION: You are responsible for Operator

error. Clarke will not be held liable for damage to the carpet or for poor results because of the operator's errors.

3. To speed drying time of the carpet try a Clarke Direct Air carpet dryer.

Clarke

Operator's Manual IMAGE 26B Page -15-

Page 16

MAINTENANCE

WARNING: Machine damage or injury could

occur if maintenance and repairs are performed by unauthorized personnel. Maintenance and repairs must be done by authorized personnel only. Use only genuine Clarke parts.

NOTE: For maintenance of optional tools, read the

manual that is supplied with the tools.

Always empty the solution and recovery tanks before performing any maintenance to the machine.

After Each Use of the Machine

1. To prevent damage to the valves and to the jets, flush one gallon of clean water through the solution system.

2. If the auxiliary tools have been used, be sure to flush them out with clean water.

3. Turn main power switch to off position.

4. Drain and rinse out the recovery tank.

5. Use a dry cloth to wipe the recovery tank, and the tools both inside and out.

6. Inspect and clean the filter screen in the inlet hose to the pump.

How to Prevent Freezing Temperature Damage

To prevent damage from freezing temperatures, follow this procedure:

1. Remove any solution remaining in the solution tank.

2. Make sure that the machine and the pump are completely dry.

3. Make sure the machine is at room temperature before using it.

Electrical NOTE: For electrical repairs, return this machine to a

Clarke authorized repair center.

Page -16- Clarke® Operator's Manual IMAGE 26B

Page 17

MAINTENANCE

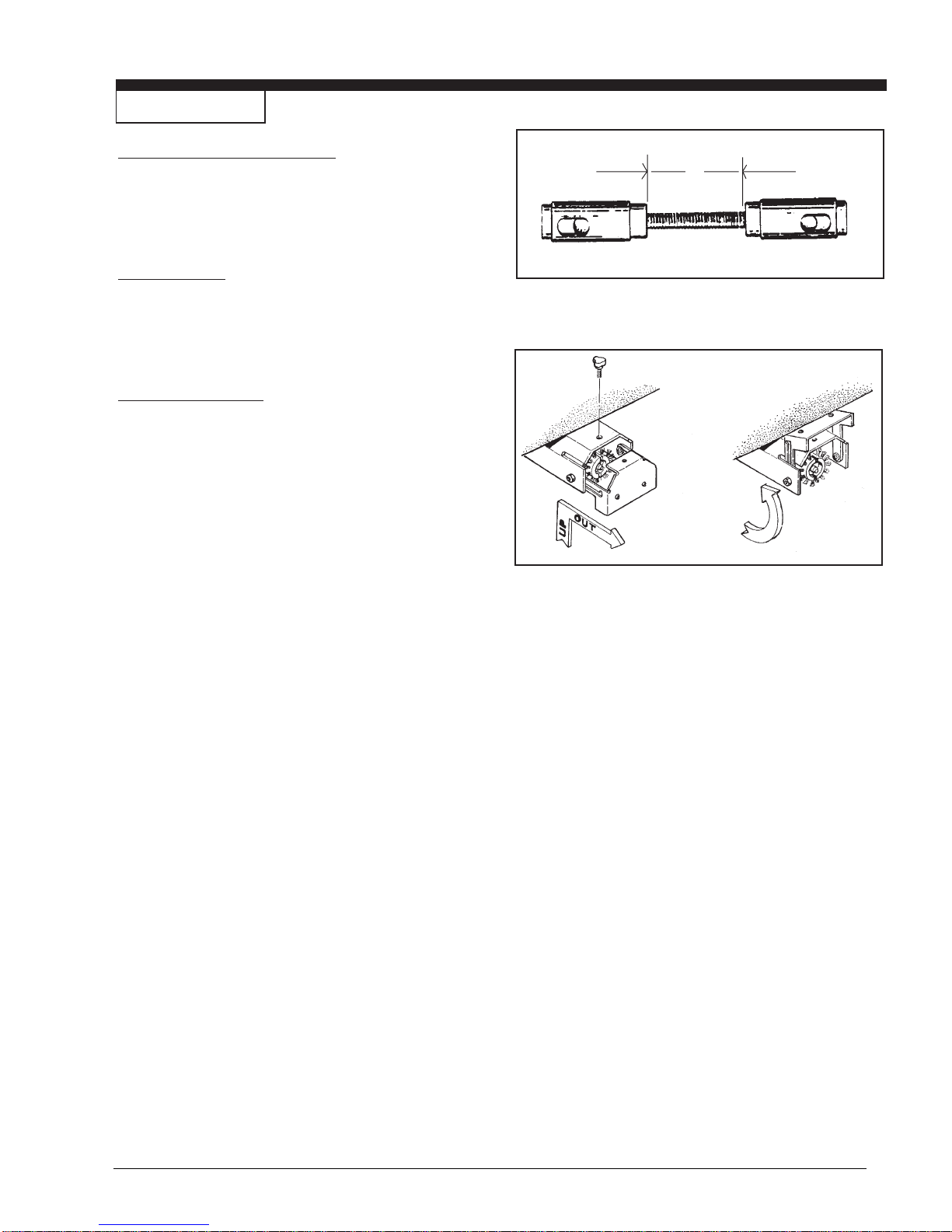

Recovery Tool (See figure 18)

The recovery tool is factory adjusted for optimum performance. If further adjustment is necessary, remove adjustment assembly. Loosen locknuts and lengthen or shorten dimension "A" as required.

Vacuum Motor

This machine has a vacuum motor that uses carbon brushes. The carbon brushes in the motor must be checked every three months, or every 500 hours of operation, whichever comes first.

Changing the Brush

The machine comes with one brush (PN 30167A):

1. Black - for everyday, routine carpet maintenance (Part No. 30167A). This brush is supplied with the machine.

2. Black with white bristles on end - for heavyduty restoration carpet cleaning (Part No. 30166A). This brush must be purchased separately.

Figure 18

Figure 19

These brushes are reversible. After bristles are worn reverse the direction the brush was placed on the machine.

To change the brush follow this procedure:

(The brush can be changed or rotated by using the quick change brush door, see figure 19.)

1. Remove clamping knob.

2. Raise brush housing door approximately ¼ inch and pull out.

3. Swing door up to remove brush.

4. Remove the spacer and brush from the brush housing.

5. Place brush onto the shaft. Slide brush in and rotate until the pins catch. Slide spacer onto shaft.

6. Swing door down and slide onto shaft.

7. Replace clamping knob.

Clarke

Operator's Manual IMAGE 26B Page -17-

Page 18

MAINTENANCE

Nozzles

To remove the nozzles to clean or change nozzles, follow this procedure:

Recovery Tool

1. Grasp the nozzle cap assembly and twist counterclockwise to remove assembly from the spray bar.

2. Pull the nozzle out of the cap.

3. Clean or replace the nozzle.

4. Replace nozzle back into cap.

5. Twist nozzle cap assembly back onto the spray bar.

Brush Housing

1. Grasp spray bar and push towards brush motor to compress spring.

2. Swing out end of spray bar to remove it.

3. Pull nozzle assembly out to side of machine.

4. Firmly push nozzle in and turn 1/4 turn.

5. Pull nozzle out.

6. Clean and replace into nozzle assembly.

7. Replace nozzle assembly in brush housing.

Page -18- Clarke® Operator's Manual IMAGE 26B

Page 19

IMAGE 26B

Section II

Parts and Service Manual

Clarke

Operator's Manual IMAGE 26B Page -19-

(70249B)

Page 20

How to Correct Problems in the Machine

Problem

The machine does not move. The Power switch is off. Turn on the "Power" switch.

The traverse switch is defective. Contact an authorized Clarke

There is no solution flow. Solution control dial in wrong position. Turn dial to position for more flow.

The solution tank is empty. Fill the solution tank. There is an obstruction in the Remove the obstruction from the hose

solution hose or filter. or filter. Solenoid is defective. Contact an authorized Clarke

Pump is defective. Contact an authorized Clarke

Batteries are too low. Charge unit.

The machine doesn't extract The recovery tank is full. Drain the recovery tank. solution from the floor.

The recovery tool is not Lower and/or adjust the tool. resting on the floor.

Filter screen plugged Clean screen and replace.

Cause

service person

Service person

Service person.

Action

The cleaning is not even. The brush is worn. Replace the brush.

There is damage to the brush Contact an authorized Clarke

service person.

Uneven or no spray from nozzles. Dirty or plugged spray nozzles. Clean the spray assembly or nozzles.

Water leaks from the spray Debris in the check valve. Contact an authorized Clarke nozzles with the pump "OFF".

There is no suction. The vac motor is not running. Turn vac motor switch on.

module or spray assembly. Service person.

The solution level is low. Fill the solution tank. Batteries are too low. Recharge batteries.

Worn spray nozzles. Replace spray assembly or nozzles.

service person.

Defective check valve. Contact an authorized Clarke

service person.

Vacuum hose obstruction. Remove the obstruction. Vac hose damaged. Replace the hose. The dome gasket worn or damaged. Replace the gasket. Motor brushes are worn. Replace motor brushes. Loose motor connection. Contact an authorized Clarke

service person.

Vac motor switch defective. Contact an authorized Clarke

Brush does not run or runs Batteries are too low. Charge Batteries. intermittently.

Page -20- Clarke® Operator's Manual IMAGE 26B

service person.

Page 21

Clarke

Image 26B

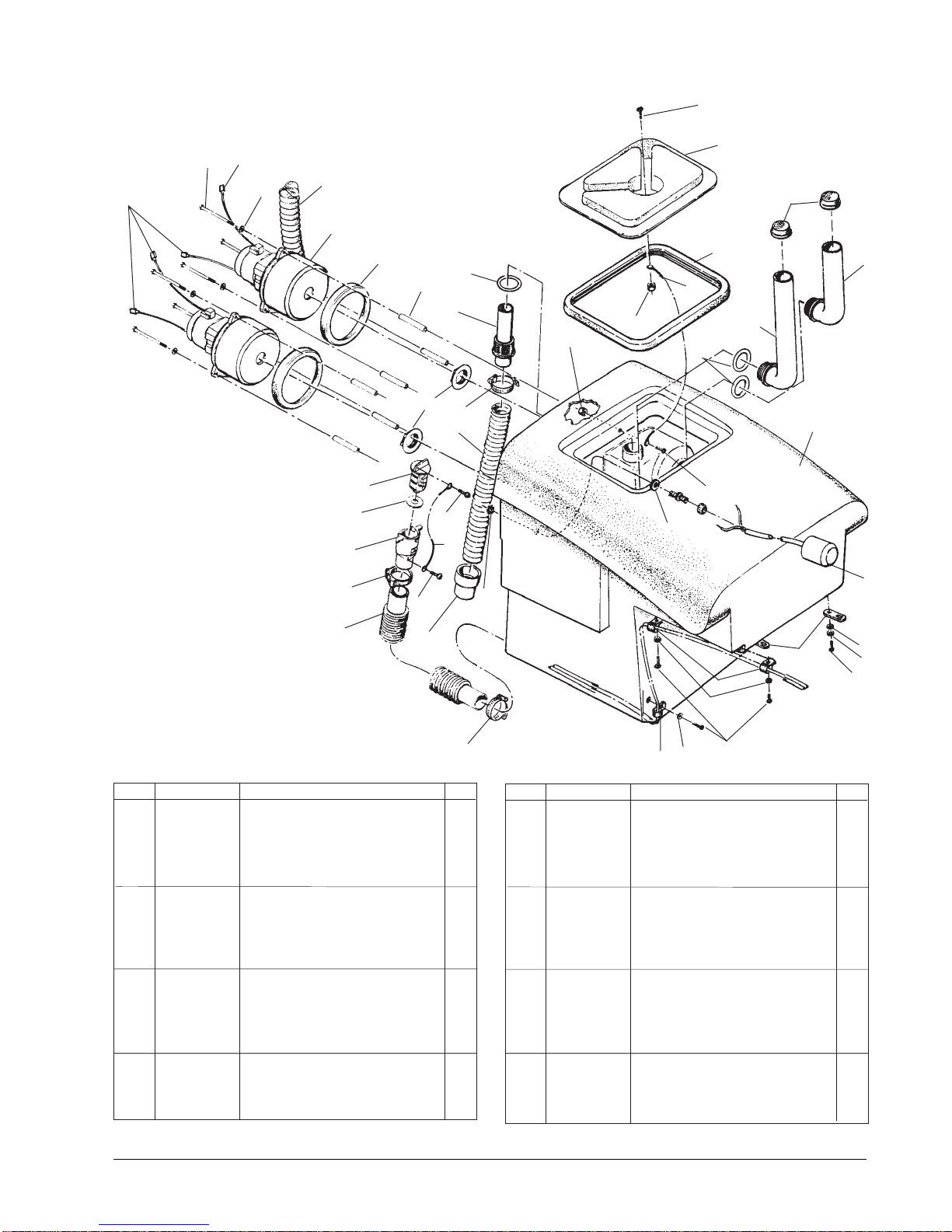

Recovery Tank and Hose Assembly Drawing and Parts List 8/03

Ref Part No. Description Qty

1 980657 Lock Washer 4 2 36204B Lid, Recovery 1 3 58069A Strainer, Recovery Tank 2 4 39339B Standtube, Vac 1 5 39340B Standtube, Vac 1 6 837304 O-Ring 3 7 34265A Gasket, Recovery Lid 1 8 38020A Strap 1 9 81110A Nut, 10-24 ESNA 2 10 962666 Screw, 10-24 x 5/8 Pan SS 2 11 30183A Tank, Recovery 1 12 47419A Switch, Float 1 13 98465A Clamp, Battery Cable 3 14 85806A Screw, ¼-20 x ½ 7 15 65716A Solution/Recovery Bracket 2 16 872010 Clamp, Hose 2 17 51863A Cuff 1 18 82100A Nut, Lock 1 19 962943 Screw, 8-18 x ½ PH 1

Clarke

Operator's Manual IMAGE 26B Page -21-

Ref Part No. Description Qty

20 30415A Hose, Drain 1 21 832002 Clamp, Drain Valve 1 22 839401 Valve, Drain 1 23 833407 Gasket, Drain 1 24 833901 Drain Valve Handle 1 25 52206A Chain 1 26 962987 Screw 1 27 30011A Hose, Shoe to Tank 1 28 920797 Nut 2 29 30010A Adapter Asm. , Vac 1 30 58533A Spacer, Vac Motor 6 31 643418 Gasket, Vac Motor 2 32 45019A Vac Motor 2 33 87026A Washer, Flat ¼ 6 34 85728A Screw, ¼-20 x 4 6 35 30448A Hose, Vac Exhaust 1 36 59877A Washer, O-Ring 1 37 47905A Terminal 4 38 980646 Washer 7

Page 22

Clarke

Image 26B

Handle Assembly Drawing and Parts List 8/03

Ref Part No. Description Qty

1 34813A Handle 1 2 980645 Washer, 3/8 Flat 2 3 962522 Screw, 3/8 -16 x 2 2 4 962968 Screw, 10-24 x ½ 4 5 85313C Screw, 6-32 x 3/8 4 6 55502A Knob 2 7 77368A Label, Control Panel 1 8 66257A Panel, Control 1 9 44309A Module, Control 1 10 53077B Switch, Forward 2 11 40158A Switch, Reverse 1 12 47380A Switch, Key 1 14 41438B Circuit Breaker, 7A (br. motor) 2 15 41422B Circuit Breaker, 25A (vac/tr mtr) 3 16 41161A Control Motor, Quad 1 17 40190B Harness, Wiring 1 18 962430 Screw, ¼-20 x ½ 3

Ref Part No. Description Qty

19 980657 Washer, ¼ Lock 4 20 980646 Washer, ¼ Flat 5 21 64247A Plate, Retaining 1 22 40006A Harness, Wire 1 23 962350 Screw, 10-32 x ½ 5 24 61687A Weldment, Handle Cont 1 25 854849 Insulator 1 26 83302A Stud, ¼-20 1 27 41801A Contactor 36V 1 28 920208 Nut 1 29 47905A Terminal 6 30 40005B Harness, Wire 1 31 912287 Rectifier 1 32 81102A Nut, Nylock 2 33 30033A Gasket, Handle 1 34 30032A Gasket, Control Panel 1 35 Page 23 (see item #35) 2

Page -22- Clarke® Operator's Manual IMAGE 26B

Page 23

Clarke

Image 26B

Rear Panel Assembly and Parts List 8/03

2 1

19 14

Ref Part No. Description Qty

1 51535A Bushing,

2 61685A Control, Brush Height 1 3 980645 Washer, Flat 4 86207A Screw, Set

/8 x 3/4 1

/8 3

/8 -16 x 1 1 5 55537A Knob, Brush Pressure 1 6 85395A Screw, ¼-20 x ½ 12 7 69196A Top Rear Panel 1 8 737140 Quick Disconnect 1 9 64521A Hinge, Rear Panel 1 10 962980 Screw, 6-32 x

/8 2 11 47374A Switch, Straight Lever 1 12 920056 Nut, 6-32 ESNA 2 13 69386A Rear Panel 1 14 68796A Wear Plate 1 15 697501 Reducer, ¼NPT16 55167A Hosebarb,

/8NPT 1

/8 x ¼ 1 17 39102A Trim, Frame 1 18 65448A Brush Lift 1 19 81102A Nut, ¼-20 ESNA 6 20 65449A Link, Brush Lift 1 21 87618A Washer, Flat

/8 Nylon 5 22 608210 Spacer 1 23 60467A Arm, Brush Lift 1 24 60052A Retainer, Drain Valve 1 25 438360 Spring, Adjustor 1 26 980692 Washer, Flat 27 65447A Lift, Recovery Tool 1 28 80028A Bolt, Shoulder

/16 SS 3

/16 x 1 1

29 64490A Handle 1

47A 47B 47C

Ref Part No. Description Qty

30 64906A Handle, Recovery Tool Lift 1 31 980666 Washer, Starlock 32 85389A Screw,

/8 -16 x 5/8 1

33 85806A Screw, ¼-20 x

/8 1

/4 3 34 87026A Washer, Flat ¼ 2 35 85700A Screw, ¼ x 20 x 1 2 36 41160B Control, Motor 1 37 85390A Screw, ¼" 1 38 30021A Trim, Frame 39 98465A Clamp, Insulated 1 40 857345 Snap Ring 1 41 962430 Screw 1 42 50249A Spacer 4 43 30089A Tank, Chemical 1 44 51209A Pin, Chemical Jug 1 45 51210A Knob, Chemical Tank 1 46 80134A Fitting, Swivel 1 47 10224A Cap Assembly (incl. 47A-C) 1 47A 52333A Hosebarb 1 47B 30090B Cap, Chemical Jug 1 47C 52419A Tip, Lt. Blue Metering 2 oz/gal

52828A Tip, Tan Metering 1 oz/gal 52829A Tip, Orange Metering 1.5 oz/gal

52831A Tip, Pink Metering 3 oz/gal 48 962968 Screw 4 49 81110A Nut 4 50 722021 Hose Clamp 1 NI 77366A Label 1 NI 77367A Label 1

Clarke

Operator's Manual IMAGE 26B Page -23-

Page 24

Clarke

Image 26B

Solution Tank Assembly Drawing and Parts List 10/02

Ref Part No. Description Qty

1 722030 Clamp, Hose #6 1 2 55189A Elbow, ½ 2 3 31242A Bushing, ½ Fitting 2 4 34256A Gasket 1 5 832322 Cover, Solution Tank 1 6 38020A Chain 1 7 81110A Nut, 10-24 ESNA 2 8 962666 Screw, 10-24 x 5/8 Pan SS 2 9 38820A Tank, Solution 1 10 65506A Latch, Bridge 1 11 980646 Washer, ¼ Flat 4

Page -24- Clarke® Operator's Manual IMAGE 26B

Ref Part No. Description Qty

12 980657 Washer, ¼ Lock 2 13 85806A Screws, ¼-20 x 3/4 3 14 32416A Cover, Front 1 15 61537A Bracket, Bat Plug 1 16 608210 Spacer 1 17 87618A Nylon Washer 2 18 41162A Cable, Asm. Console 1 19 962212 Screw 2 20 920056 Nut 2 21 30463A Hose 1 22 60218A Plug, Drain 1

Page 25

Clarke

Image 26B

Plumbing Detail Drawing and Parts List 3/04

From fresh

water tank

From fresh

water tank

4 a, b, c

accessory

To rinse jets

connector

To pre-spray jets

From chemical jug

7 7a

Ref Part No. Description Qty

1 69404A Hose 9" 1 2 35147A Hose 3 59016A Tee, Branch 3 4 53050A Strainer, Bowl 1 4a 58061B Strainer, Screen 1 4b 54369A Gasket, viton 1 4c 90018A Bowl, Filter 1 5 170030 Hosebarb 6 694112 Hose 3 7 45950A Pump 1 7a 52418A Head Replacement, Pump 1 8 35148A Hose 1 10 53639A Elbow 1

/8 14" 2

/8-¼ NPT 3

Ref Part No. Description Qty

11 851144 Adaptor 1 12 51207A Injector 1 13 50248A Clamp, Hose 11 14 59623A Valve, Solution 2 15 30425A Hose 1 16 51518A Bushing, Hose 2 17 35168A Hose 1 18 51526A Elbow 2 19 697501 Reducer, ¼ to 20 10229A Injector Asm. (incl. 5, 10, 11, 12, 1

14 & 19) 21 55167A Hosebarb 1 22 732870 Elbow 1 23 722021 Hose Clamp 1

/8 1

Clarke

Operator's Manual IMAGE 26B Page -25-

Page 26

Clarke

Image 26B

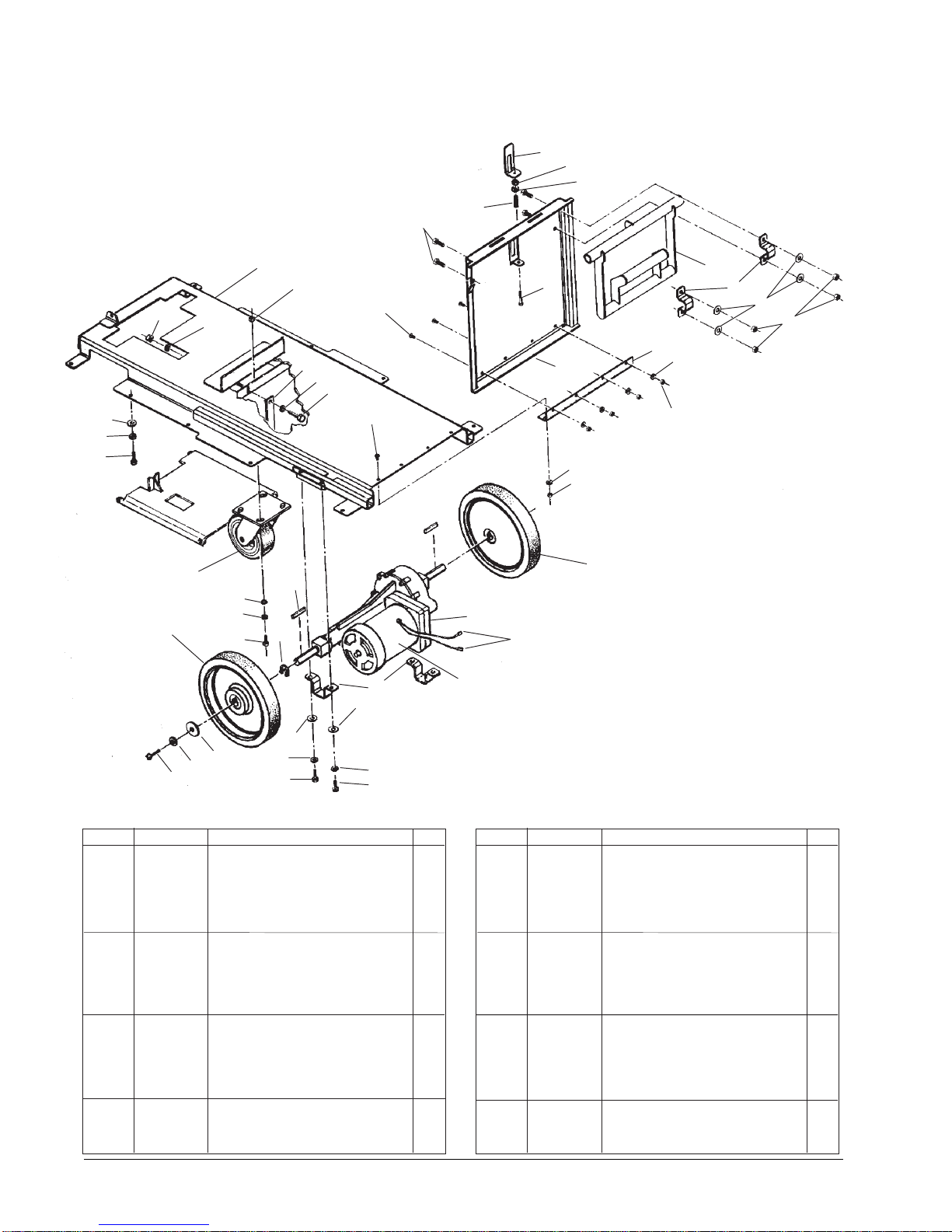

Frame Assembly Drawing and Parts List 6/04

16, A,B,C,D

Ref Part No. Description Qty

1 65979B Frame 1 2 85806A Screw, ¼-20x 3/4 19 3 85811A Screw, 5/16-18 6 4 58614A Spring 1 5 65507A Latch, Bridge 1 6 920208 Nut, ¼-20 9 7 85701A Screw, ¼-20 x 1½ 1 8 64907A Handle 1 9 62450A Clamp, Handle 2 10 980651 Washer, Flat 5/16 4 11 920110 Nut, 5/16-18 4 12 87026A Washer, Flat ¼ 20 13 55013A Hinge 1 14 61539A Bridge 1 15 69206A Wheels 2 16 50008C Transaxle 1 16A 52660A Coupler, Transaxle 1 16B 50252A Mount, Transaxle 1

Page -26- Clarke® Operator's Manual IMAGE 26B

19 20

Ref Part No. Description Qty

16C 50251A Motor, Brush 4 16D 50250B Motor, Transaxle 1 17 62435A Clamp, Transaxle 2 18 980645 Washer, Flat 3/8 SS 4 19 170883 Washer, Lock 3/8 4 20 85822A Screw, 3/8-16 x 7/8 8 21 980657 Washer, Lock ¼ 18 22 980205 Washer 2 23 57423A Snap Ring 2 24 80507A Key 2 25 899769 Casters 1 26 920260 Nut 4 27 980646 Washer 1 28 53087A Strap, Static 1 29 81104A Nut, ¼-20 SS 1 30 980652 Washer, Lock 5/16 2 31 47905A Terminal 2 32 Page 30 Transaxle Parts ref.

Page 27

Clarke

Image 26B

Battery Tray Assembly Drawing and Parts List 10/02

Ref Part No. Description Qty

1 871334 Battery, 195 AH 3 2 39008B Tray, Battery 1 3 54936A Handle, Grip 1 4 85376A Screw, ¼-20 x 5/8 2 5 60001A Battery Tray 1 6 51609A Bumper 4 7 962350 Screw, 10-32 x ½ 1 8 962986 Screw 1 0 9 902648 Bearing 10 10 980651 Washer 1 0 11 920160 Nut 10

12 11

Ref Part No. Description Qty

12 962495 Screw 1 13 61434A Arm, Battery Tray 1 14 668311 Spring 1 15 920224 Nut, Hex 10-32 1 16 81102A Nut, ¼-20 ESNA 1 17 34705A Hose, Clear 6" 1 18 962929 Screw 4 19 61435A Bushing 1 N I 41217A Cable, 16" 2 N I 40532A Cable Asm., Battery 1 NI 40506A Charger, 36VDC 1

Clarke

Operator's Manual IMAGE 26B Page -27-

Page 28

Clarke

Image 26B

Recovery Tool Assembly Drawing and Parts List 4/03

Form # 13005A

7 24

Ref Part No. Description Qty

1 66816A Recovery Lift 1

2 87618A Washer, 3/8 Flat Nylon 2 3 980646 Washer, Flat ¼ 2 4 85806A Screw, ¼-20 x .75 2 5 81306A Nut, Hex 5/16-24 5 6 920110 Nut, 5/16 ESNA 2 7 980651 Washer, Flat 5/16 4 8 58612A Spring 1 9 608210 Spacer 2 10 67619A Shoe, Recovery Tool 2 11 68808A Weight, Recovery Tool 1 12 85615A Screw, 5/16 -18 x 1¼ 2 13 27201A Shoe, Recovery 1 14 61541A Bracket, Recovery Lift 1 15 980652 Lockwasher 3

*Optional Accessory

Page -28- Clarke® Operator's Manual IMAGE 26B

Ref Part No. Description Qty

16 65980A Mount, Ball Joint 1 17 962798 Screw, 10-24 x ½ SS 2 18 980982 Washer, Flat #10 2 19 50546A Ball-Joint 3 20 67164A Rod, Recovery Tool Adj. 1 21 170883 Washer, Lock 3/8 1 22 962288 Screw, 3/8-16 x 1 1 23 170030 Hosebarb, 3/8-¼ NPT 1 24 50240A Spring 1 25 85395A Screw, ¼-20 x .50 2 26 30517A Bushing 2 27 51320A Nozzle, Rinse 4 27a 52549A Nozzle, Rinse Plastic 4

Page 29

Clarke

Image 26B

Brush Assembly Drawing and Parts List 8/04

Ref Part No. Description Qty

1 80041A Bolt, Shoulder 2 3 44310A Motor, Brush 1 3a 40832A Brush, Carbon 2 4 732870 Elbow, 3/8 1 5 56365A Nipple, Brass 4" 2 6 53639A Elbow, Brass ¼ NPT 2 7 51369A Tee, Brass ¼ NPT 1 8 51370A Nozzle, Pre-Spray 3 8a 52550A Nozzle, Pre-Spray Plastic 3 9 53426A Spring 1 10 980982 Washer, Flat #10 1 11 85393A Screw, 10-32 x ¼ 1 12 61542B Brush Housing 1 13 81102A Nut, ¼-20 ESNA 4 14 53399A Bearing Asm. 2 15 58548A Spacer, Brush Door 2 16 81109A Nut, 8-32 ESNA 2 17 55518A Knob, Clamping 1 18 60089A Door, Brush End 1

Clarke

Operator's Manual IMAGE 26B Page -29-

Ref Part No. Description Qty

19 38708A Spacer, Brush End 1 20 962027 Screw, 8-32 x 21 67481A Shaft, Brush 1 22 50436A Pin, Brush Drive 2 23 915082 Key 1 24 30167A Brush, Maintenance 1 24a 30166A Brush, Restoration 1 25 57247A Pulley, Brush 1 26 50928A Belt 1 27 30029A Cover, Belt 1 28 85395A Screw, ¼-20 x .50 2 29 57268A Pulley, Motor 1 30 58517A Spacer, Motor 1 31 980646 Washer, Flat 2 32 920110 Nut 2 33 85390A Screw, ¼-20 x 1¼ 4 34 920208 Nut, Hex ¼-20 2 35 980614 Washer, Lock 2 36 10220A Bar Asm., Pre-Spray (incl. 4, 5, 1

6, 7 & 8)

/8 2

Page 30

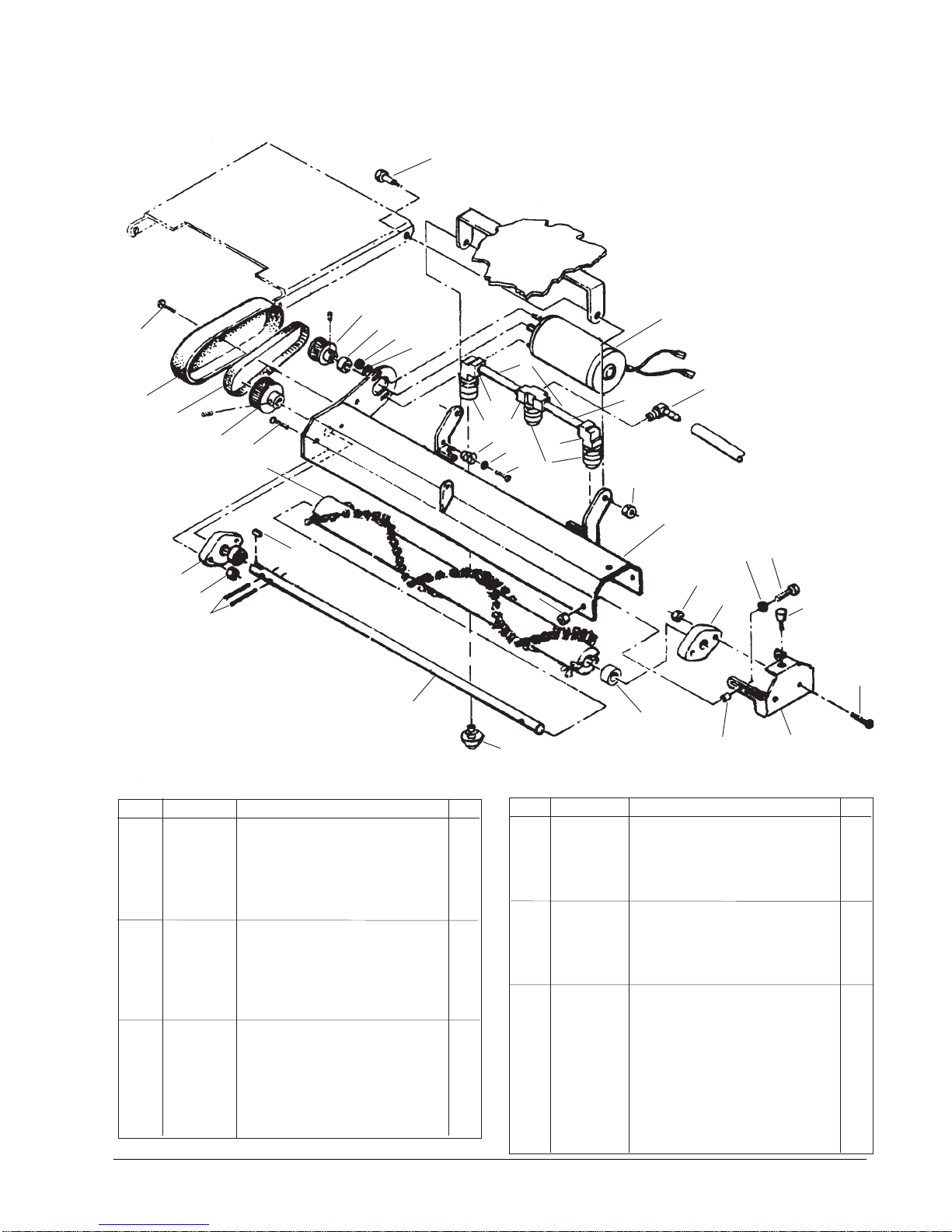

Clarke

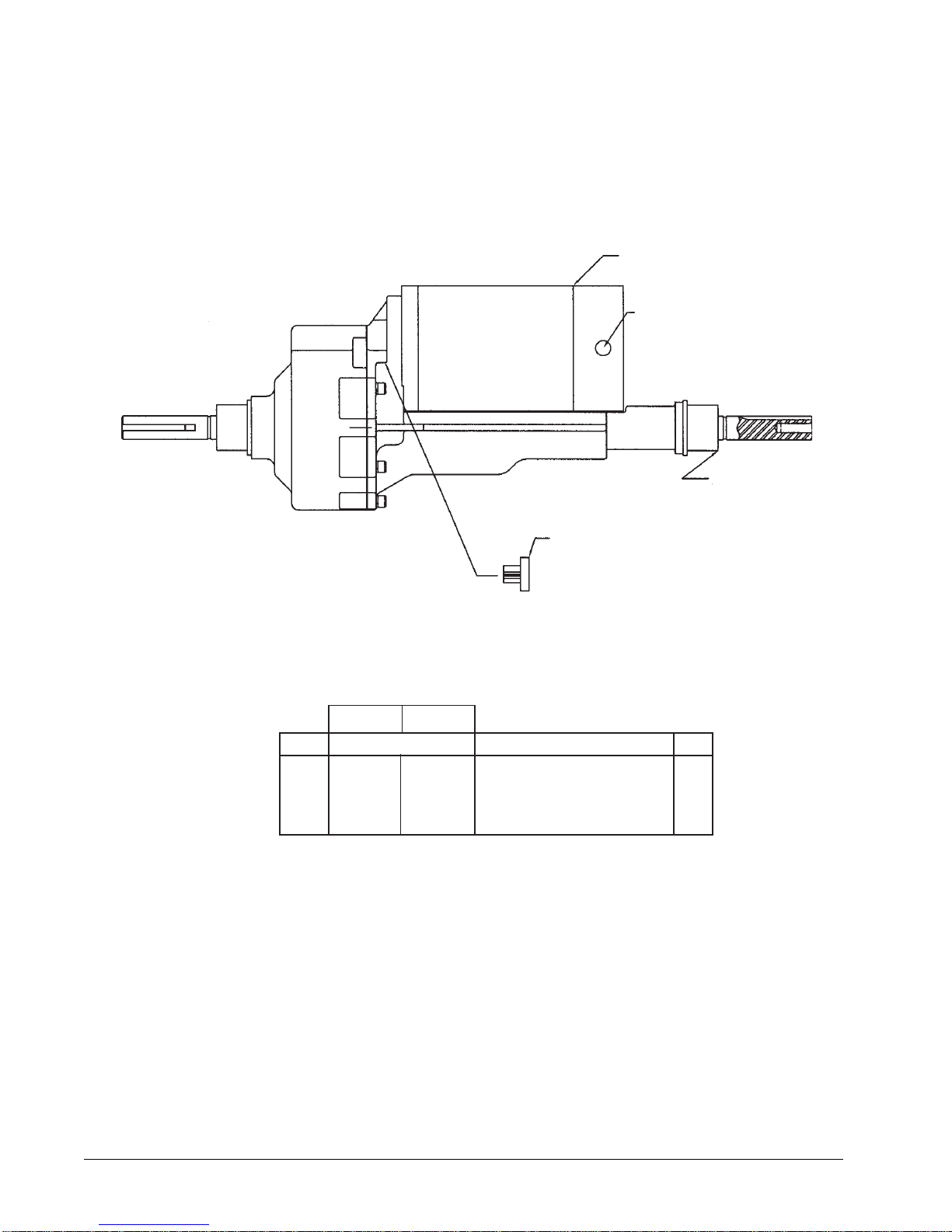

Transaxle Parts List 4/03

Image 26B

50008C 50008B

Ref # Part No. Description Qty

1 50983A 52660A Coupler, Transaxle 1 2 51056A 50252A Mount, Transaxle 1 3 40628A 50251A Brush, Carbon 1 4 40627A 50250B Motor, Transaxle 1

Page -30- Clarke® Operator's Manual IMAGE 26B

Page 31

Clarke

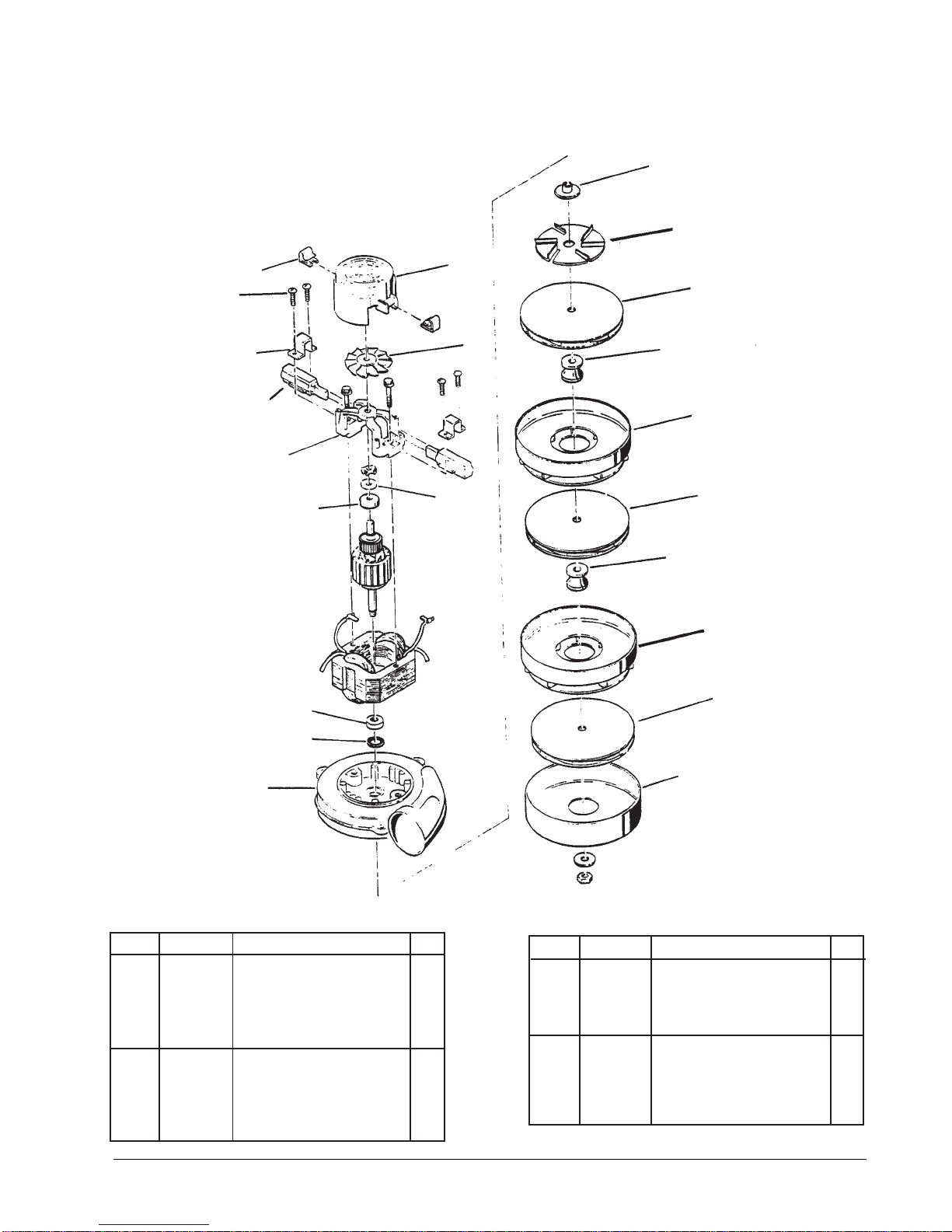

Vac Motor Assembly #45019A 10/02

Image 26B

Ref # Part No. Description Qty

1 5 1913A Clip (optional) 2 2 54809A Housing 1 3 53905A Fan 1 4 85 3 0 3 A Screw - 8-32 x 3/8 4 5 4 083 0A Carbon Brushes 2 6 51914A Clamp 2 7 5 061 8A Bracket 1 8 53100A Disc 1 9 902679 Bearing - Ball 1 10 902648 Bearing - ball, radial 1

Clarke

Operator's Manual IMAGE 26B Page -31-

Ref # Part No. Description Qty

1 1 59803A Washer - neoprene 1 1 2 5 06 1 0 A Bracket and shell 1 13 5850 1A Spacer 1 1 4 53 914 A Fan - Rotating 3 15 658201 Spacer 2 1 6 53 90 8A Fan - Stationary 1 17 658506 Shell 1 1 8 5 399 5A Fan, Air Seal 1 1 9 539 96A Fan, Stationary 1

Page 32

Clarke

Image 26B

36 Volt Battery Charger (40506A, 40507A, 40505A) 10/02

WARNING: All electrical repairs must be performed by qualified personnel only.

PARTS LIST FOR BATTERY CHARGERS

40506A - 36 Volt D.C., 25A, 115 Volt A.C., 60 Hz 40505A - 36 Volt D.C., 25A, 230 Volt A.C., 50 Hz 40507A - 36 Volt D.C., 25A, 230 Volt A.C., 60 Hz

Charger Model Number

40506A 40507A 40505A

Ref # Description Part # Part # Part #

1 Charger Case 42503A 42504A 51959A 2 Transformer 48400A 48412A 48401A 3 Electronic Timer Kit 41102A 41103A 41103A 4 Capacitor,

6 Mfd., 660 V.A.C.

912132 912132 912132 5 Heat Sink Assembly 912212 912212 912212 6 Ammeter 40200A 40200A 40200A 7 Fuse Assembly 912382 912382 912382 8 Strain Relief, A.C. Cord 837525 837525 837525 9 Strain Relief, D.C. Cord 747553 747553 747553 10 D.C. Cord Assembly 51973A 51973A 51973A 11 A.C. Cord Assembly 51974A 908947 908947 12 D.C. Plug 911185 911185 911185

D.C. Plug Lock Key 795020 795020 795020

Page -32- Clarke® Operator's Manual IMAGE 26B

Page 33

Clarke

Image 26B

Battery Charger (40512B & 40506B) Drawing and Parts List 5/06

WARNING: All electrical repairs must be performed by qualified personnel only.

Clarke

Operator's Manual IMAGE 26B Page -33-

Page 34

Clarke

Image 26B

Available Accessories 8/03

1**

Ref Part No. Description Qty

1 30108A Adaptor, 2" to 1½ 1 2 59231A RM-4P Tool Assembly 1 3 59230A RM-8P Tool Assembly 1 4 59229A RM-12M Tool Assembly 1 5 59232A Hide-A- Hose 10' 1 6 59228A RM-4M Tool Assembly 1 7 398426 Defoamer *1 case 8 398425 Extractor, Concentrate *1 case 9 55183A Hide-A-Hose 20' 1 NI 55173A 4" Tool & Hose Assembly 1 NI 04130C Deluxe Carpet Dryer 1

* 12, 1 quart bottles **Required to use any accessory

Page -34- Clarke® Operator's Manual IMAGE 26B

Page 35

Clarke

Image 26B

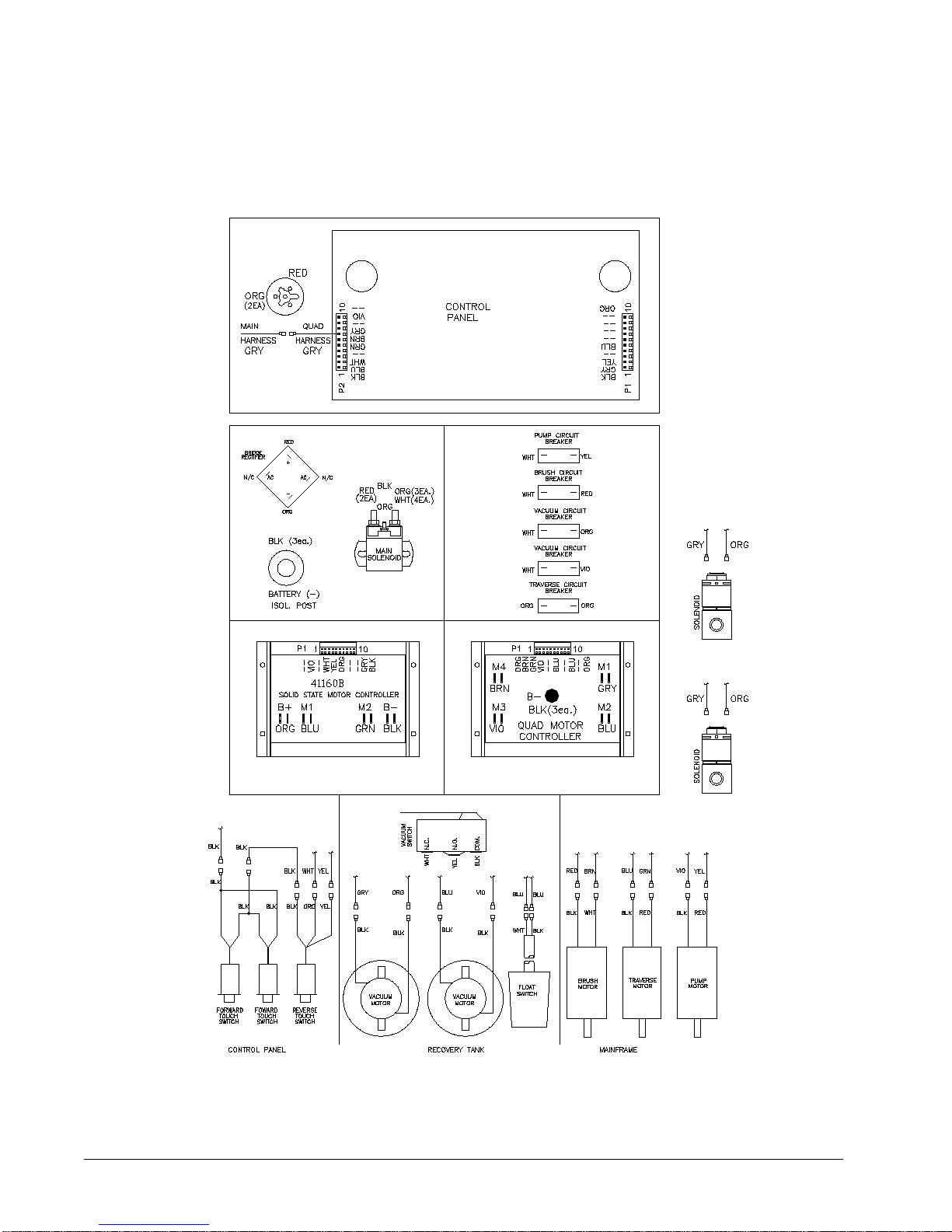

Wiring Schematic 10/02

Clarke

Operator's Manual IMAGE 26B Page -35-

Page 36

Clarke

Image 26B

Connection Diagram 10/02

Page -36- Clarke® Operator's Manual IMAGE 26B

Page 37

Clarke

Image 26B

Flow Dagram 10/02

Clarke

Operator's Manual IMAGE 26B Page -37-

Page 38

NOTES

Page -38- Clarke® Operator's Manual IMAGE 26B

Page 39

CLARKE PRODUCT SUPPORT BRANCHES

U. S. A. Locations European Locations

CORPO PRODUCTION FACILITIES

Clarke

, Springdale, Arkansas

2100 Highway 265 Springdale, Arkansas 72764 (479) 750-1000

Customer Service - 1-800-253-0367 Technical Service - 1-800-356-7274

American Lincoln®, Bowling Green, Ohio 43402

1100 Haskins Road

SERVICE FACILITIES

Clarke®, Elk Grove, Illinois 60007

2280 Elmhurst Road (847) 956-7900

Clarke®, Denver, Colorado 80204

1955 West 13th Ave. (303) 623-4367

Clarke®, Houston, Texas 77040

7215 North Gessner Road 713-937-7717

PRODUCTION FACILITIES

ALTO Danmark A/S, Aalborg

Blytaekkervej 2 DK-9000 Aalborg +45 72 18 21 00

ALTO Danmark A/S, Hadsund

Industrikvarteret DK-9560 Hadsund +45 72 18 21 00

SALES SUBSIDIARIES

ALTO US - Canada, Ontario (Canada)

4080 B Sladeview Crescent Unit 1 Mississauga, Ontario L5L 5Y5 (905) 569 0266

ALTO Overseas Inc., Sydney (Australia)

1B/8 Resolution Drive Caringbah NSW 2229 +61 2 9524 6122

ALTO Cleaning Systems Asia Pte Ltd., Singapore

No. 17 Link Road Singapore 619034 +65 268 1006

SERVICE AND SALES FACILITY

ALTO Deutschland GmbH, Bellenberg (Germany)

Guido-Oberdorfer-Straße 2-8

American Lincoln® / Clarke, Madison Heights,

Michigan 48071-0158 29815 John R. (810) 544-6300

American Lincoln® / Clarke, Marietta, Georgia 30066

1455 Canton Road

89287 Bellenberg +49 0180 5 37 37 37

ALTO Cleaning Systems (UK) Ltd., Penrith

Gilwilly Industrial Estate Penrith Cumbria CA11 9BN +44 1768 868 995

(770) 973-5225

ALTO France S.A. Strasbourg

B.P. 44, 4 Place d’Ostwald F-67036 Strasbourg Cedex 2 +33 3 8828 8400

Clarke

Clarke American Sanders

A.L. Cook

Customer Service Headquarters and Factory

2100 Highway 265

Springdale, Arkansas 72764

(479) 750-1000

ALTO Nederland B.V.

Postbus 65 3370 AB Hardinxveld-Giessendam The Netherlands +31 184 677 200

ALTO Sverige AB, Molndal (Sweden)

Aminogatan 18 Box 4029 S-431 04 Molndal +46 31 706 73 00

Technical Service

1-800-356-7274

ALTO Norge A/S, Oslo (Norway)

Bjornerudveien 24 N-1266 +47 2275 1770

Clarke

Operator's Manual IMAGE 26B Page -39-

Page 40

Clarke

This Clarke Industrial/Commercial Product is warranted to be free from defects in materials and workmanship under normal use and service for a period of one year from the date of purchase, when operated and maintained in accordance with Clarke Maintenance and Operations instructions.

This warranty is extended only to the original purchaser for use of the product. It does not cover normal wear parts such as electrical cable, rubber parts, hoses and motor brushes.

If difficulty develops with the product, you should: a). Contact the nearest authorized Clarke repair location or contact the Clarke Service Operations Department, 2100 Highway 265, Springdale, Arkansas 72764, for the nearest authorized Clarke repair location. Only these locations are authorized to make repairs to the product under this warranty. b). Return the product to the nearest Clarke repair location. Transportation charges to and from the repair location must be prepaid by the purchaser. c). Clarke will repair the product and or replace any defective parts without charge within a reasonable time after receipt of the product.

Clarke's liability under this warranty is limited to repair of the product and/or replacement of parts and is given to purchaser in lieu of all other remedies, including INCIDENT AL AND CONSEQUENTIAL DAMAGES.

THERE ARE NO EXPRESS WARRANTIES OTHER THAN THOSE SPECIFIED HEREIN. THERE ARE NO WARRANTIES WHICH EXTEND BEYOND THE DESCRIPTION OF THE F ACE HEREOF . NO WARRANTIES, INCLUDING BUT NOT LIMITED TO WARRANTY OF MERCHANTABILITY, SHALL BE IMPLIED. A warranty registration card is provided with your Clarke product. Return the card to assist Clarke in providing the performance you expect from your new floor machine.

Clarke

, 2100 Highway 265, Springdale, Arkansas 72764.

LIMITED U.S. WARRANTY

Clarke

POLYDUR

TANK

EIGHT-YEAR GUARANTEE

Your new Image Carpet Extractor has a polydur Solution and Recovery Tanks. Polydur is a rotationally molded, lowdensity linear polyethylene that won't crack or dent, and withstands most corrosives and temperature extremes. Clarke backs up your Polydur tanks with an eight-year guarantee. If a tank breaks, cracks or leaks under normal use within eight years of the date of purchase, it will be replaced free.

Clarke reserves the right to make

changes or improvements to its machine without notice.

Always use genuine Clarke Parts for repair.

2100 Highway 265

Springdale, Arkansas, 72764
