Page 1
WARNING: Do not use the generator without reading this manual
INVERTER GENERATOR
MODEL NO: IG2000D
PART NO: 8877116
OPERATION & MAINTENANCE
INSTRUCTIONS
ORIGINAL INSTRUCTIONS DL0922 REV 1
Page 2
INTRODUCTION
Before you use this product, read this manual and follow the instructions
carefully. In doing so you will ensure the safety of yourself and others around
you, and you can also expect your purchase to give you a long and
satisfactory service.
GUARANTEE
This product is guaranteed against faulty manufacture for a period of 12
months from the date of purchase. Please keep your receipt which will be
required as proof of purchase.
This guarantee is invalid if the product is tampered with in any way, or not used
for the purpose for which it was intended.
Faulty goods should be returned to their place of purchase, no product can
be returned to us without prior permission. This guarantee does not effect your
statutory rights.
ENVIRONMENTAL PROTECTION
Recycle unwanted materials instead of disposing of them as waste.
All tools, accessories and packaging should be sorted and taken to
a recycling centre for disposed in a manner compatible with the
environment.
By purchasing this product, the customer is taking on the obligation to deal
with its safe disposal in accordance with the Waste Electrical and Electronic
Equipment (WEEE).
In effect, this means that this product must not be disposed of with general
household waste. It must be disposed of according to the laws governing
Waste Electrical and Electronic Equipment (WEEE) at a recognised disposal
facility. If disposing of this product or any damaged components, do not
dispose of with general waste. This product contains valuable raw materials.
Metal products should be taken to your local civic amenity site for recycling of
metal products.
2
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 3
GENERAL SAFETY RULES
WARNING: EXHAUST FUMES CAN BE EXTREMELY DANGEROUS IF INHALED
WORK AREA
• ALWAYS use in a well ventilated area.
• ALWAYS position the exhaust outlet away from people.
• Read these safety instructions before using the equipment.
• Keep children away from the generator.
POSITIONING THE GENERATOR
1. Keep the generator at least 1 m (3 ft.) from buildings or other equipment, or
the engine may overheat.
2. Place the generator on a solid, flat surface.
3. Make sure the surrounding area is free from any material that could burn or
be damaged by heat.
4. NEVER move or tilt the generator whilst it is switched on.
FIRE PREVENTION
1. ALWAYS switch the engine OFF when refuelling.
2. ALWAYS refuel in a well ventilated area.
3. NEVER overfill the tank, only fill to the level specified.
4. NEVER smoke whilst refuelling and avoid smoking or using a naked flame
near the generator.
5. NEVER start the engine if there is spilled fuel. Any spillage must be wiped
clean and the generator allowed to dry before attempting to start the
engine.
PREVENTION OF ELECTRIC SHOCK
1. NEVER use the generator in wet conditions unless it is well protected/
covered. Under these conditions, adequate ventilation MUST be provided.
2. NEVER operate the generator with wet hands.
3. NEVER use water or any other liquids to clean the generator.
3
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 4
4. Make sure you ground (earth) the generator.
ADDITIONAL SAFETY RULES FOR GENERATORS
1. ALWAYS make sure the applied load does not exceed the generator rating.
Overloading the generator is dangerous and could cause serious
damage.
2. ALWAYS
3. ALWAYS allow the generator to reach operating speed before connecting
a load.
4. NEVER allow the generator to run out of fuel when a load is connected.
5. NEVER transport the generator with fuel in the tank.
6. NEVER connect the generator to a commercial or residential power supply;
e.g. ring main.
7. NEVER allow the generator air vents to become blocked.
disconnect the generator when carrying out any maintenance.

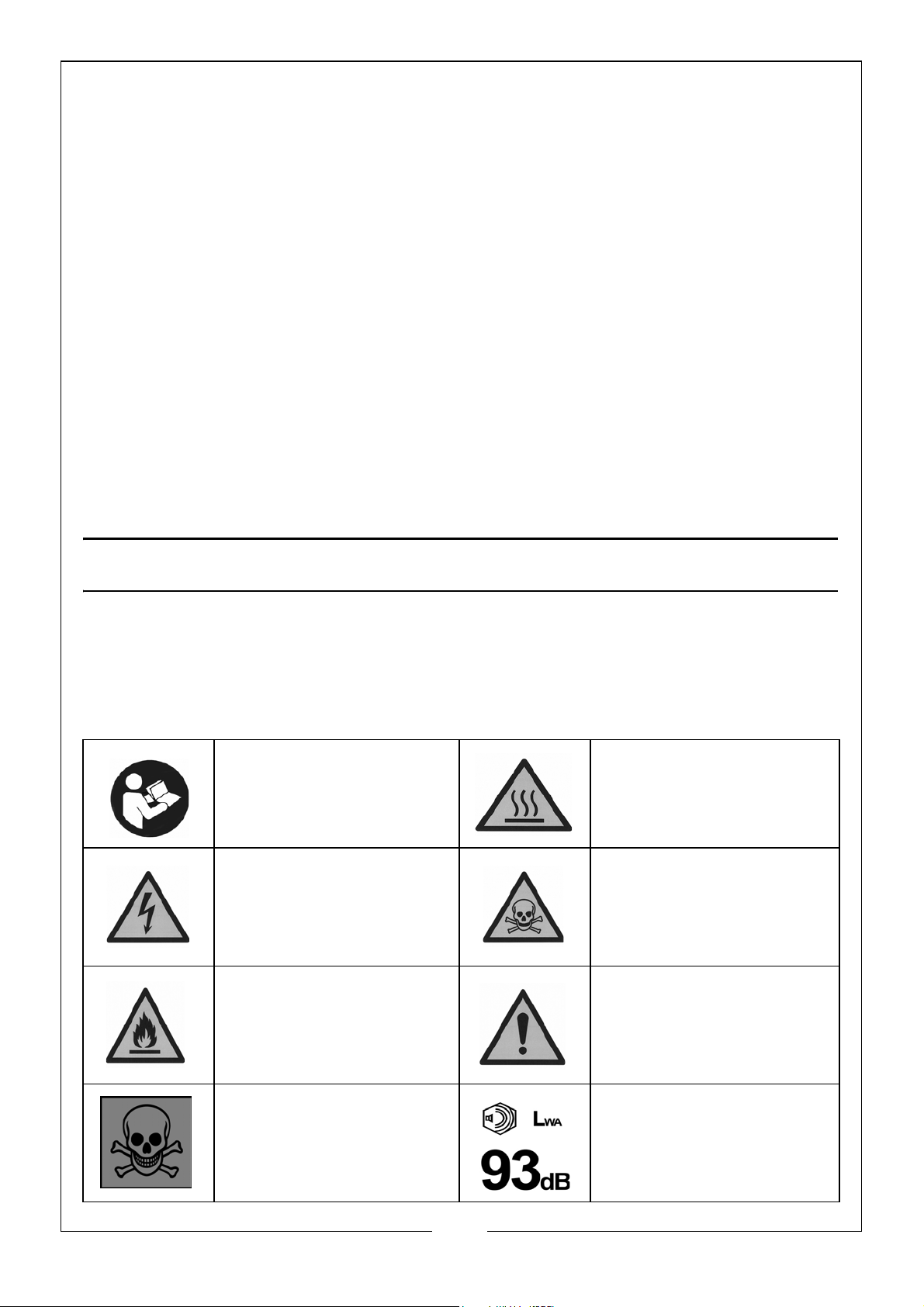

SAFETY SYMBOLS
The following safety symbols are shown on the product or it’s packaging.
Please read all of the safety and operating instructions carefully before using
this product.
Read instruction
manual before use.
Dangerous Voltage Poisonous fumes - Do
Flammable Caution - The user
Poisonous fumes- do
not use the generator in
an enclosed space.
Hot surface - Do not
touch
not use the generator in
an enclosed space.
should be aware of a
general hazard.
This product produces
high noise levels during
operation. Ear
protection is advised.
4
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 5

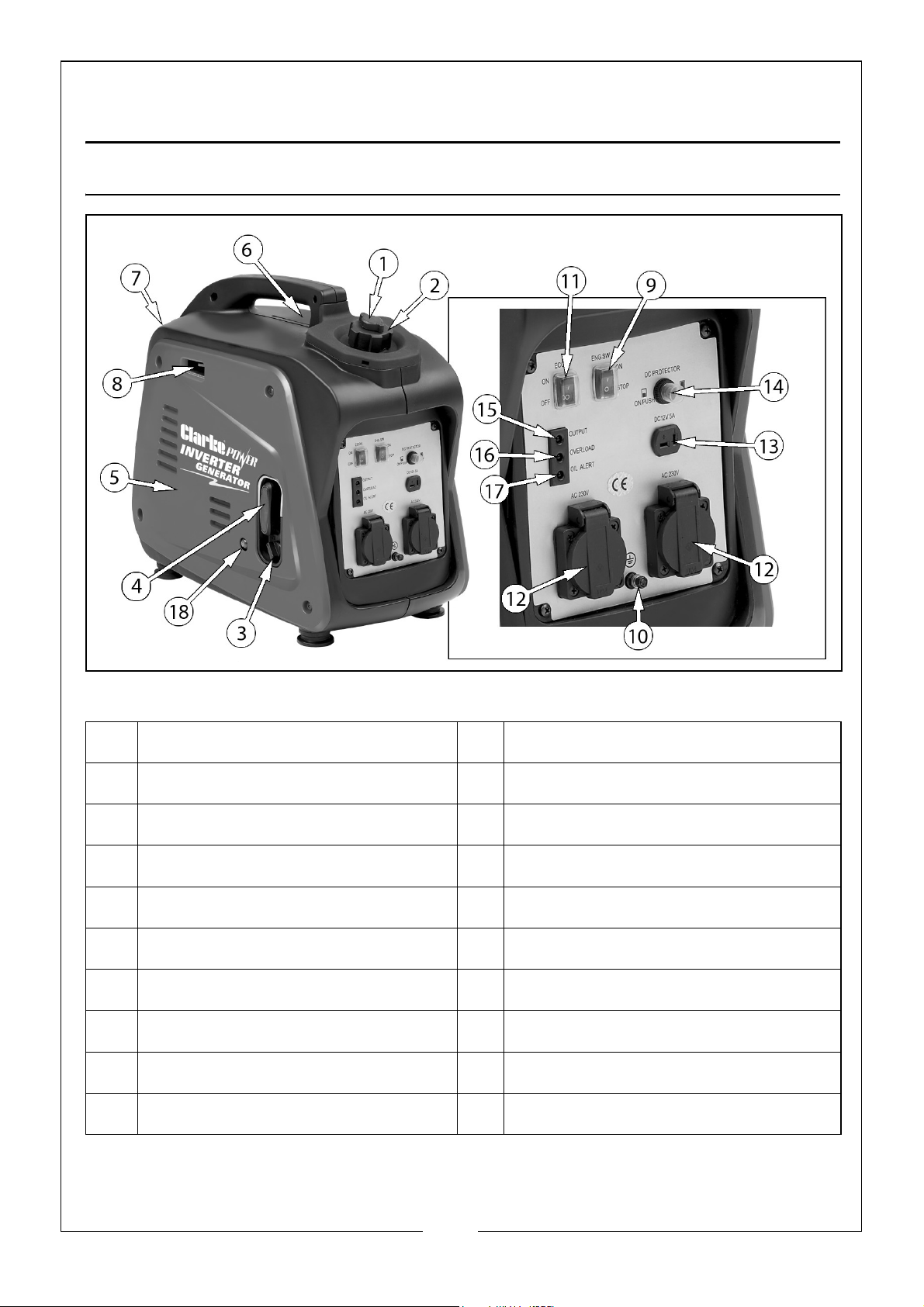

GENERATOR OVERVIEW - TBA
NO DESCRIPTION NO DESCRIPTION
1 Air Vent Knob 10 Earthing Point
2 Fuel Cap 11 Economy Control Switch
3 Fuel Valve Knob 12 AC Socket
4 Starting Handle 13 DC Socket
5 Side Maintenance Cover 14 DC Circuit Breaker
6 Top Maintenance Cover 15 Output Indicator
7 Muffler 16 Overload Indicator
8Choke 17Oil Alarm Indicator
9 Engine ON/OFF Switch 18 Primer Bulb
5
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 6
After removing the generator from its packaging, check that it has not been
damaged in transit. Report any damage immediately to the dealer where the
item was purchased.
UNPACKING AND ASSEMBLY
Unpack your generator and check the following items are present. Should
there be any missing or damaged during transit contact your CLARKE dealer.
1 x 1800 Watt Inverter Generator 1 x 12 Volt Connecting Lead Assembly
1 x Spark Plug Box Spanner 1 x Instruction manual
1 x Cross-head Screwdriver
BEFORE USING THE GENERATOR
IMPORTANT: Generators should ALWAYS be earthed. Make sure you earth
the generator.
Before using your generator check that:
• The generator is in good condition and free from any damage.
• The generator is clean and free from fuel or oil spillage.
• The generator is correctly located for use (see page 3).
• There is no leakage.
NOTE:
To avoid accidental spillage of fuel, always use a funnel to fill the
fuel tank. If fuel is spilled it must be removed from the unit before
attempting to start the engine.
EARTHING
WARNING: IT IS ADVISABLE TO PROPERLY EARTH YOUR GENERATOR
BEFORE STARTING USING A WIRE AND A SMALL METAL EARTH SPIKE. THE
WIRE AND EARTH SPIKE ARE NOT SUPPLIED WITH THE UNIT.
An earth spike and cable can be purchased at your local camping supplier,
or alternatively an earth spike can be made, and it is suggested you get
advice from a qualified electrician.
To make a spike use a copper tube or copper rod 12mm diameter, a minimum
length of 200mm and with an M6 machine screw one end.
6
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 7
The cable used should be a maximum length of 1 metre and a minimum of
1.0mm
2
to carry a 10amp load.

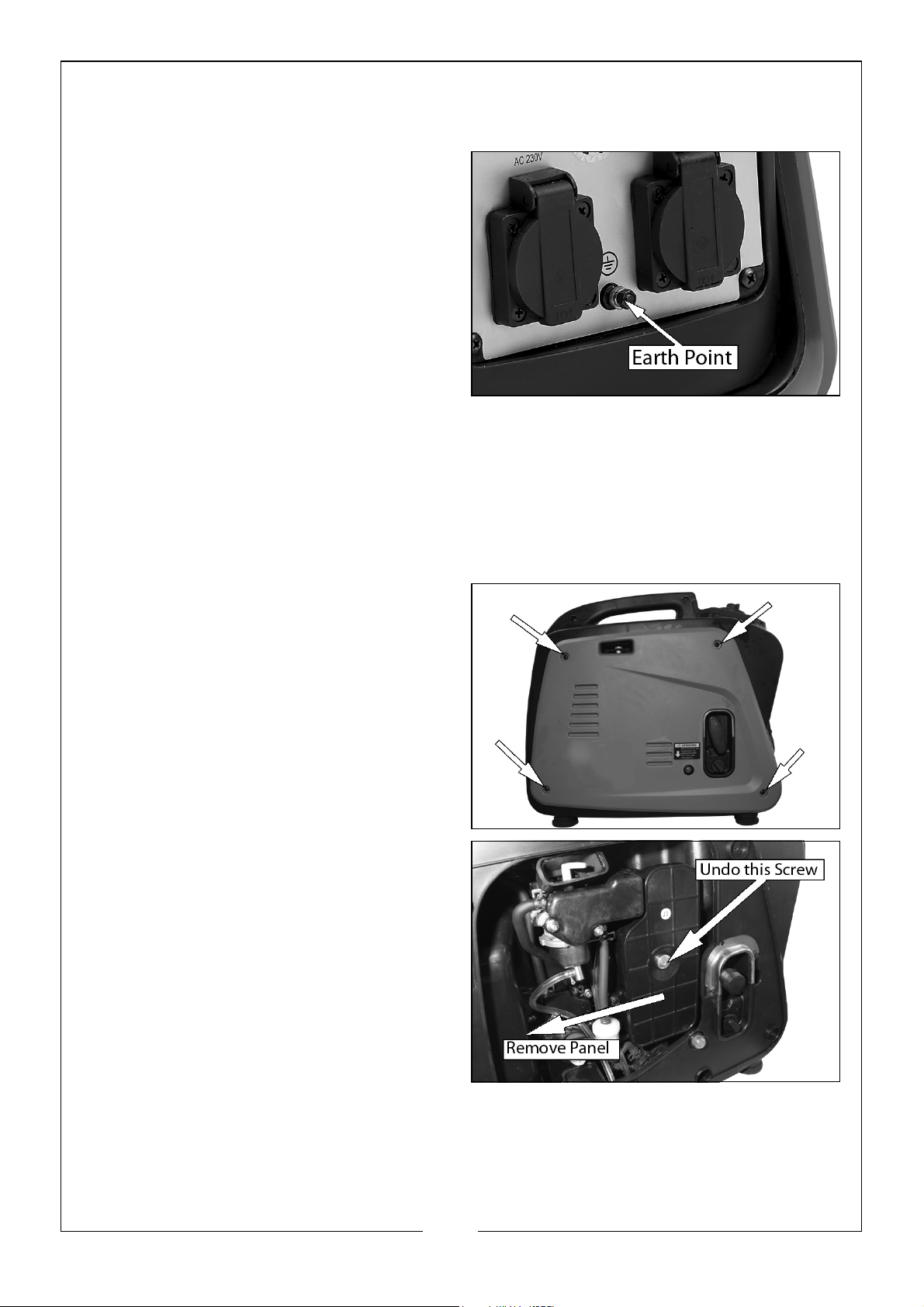

Attach the cable to the generator at
the earth point (shown on the right).
Connect the other end to the spike
between a flat washer and the
copper rod with a lock washer under
the head of the M6 machine screw in
a similar fashion to the earth point
screw on the generator.
When pushing the spike into the
ground the generator must not be
running and it is suggested that the spike is pushed into the ground by at least
100 mm.
Earthing of generators is covered in BS7430:2011. If you have any doubts
about this subject consult a qualified electrician.
CHECKING THE AIR FILTER

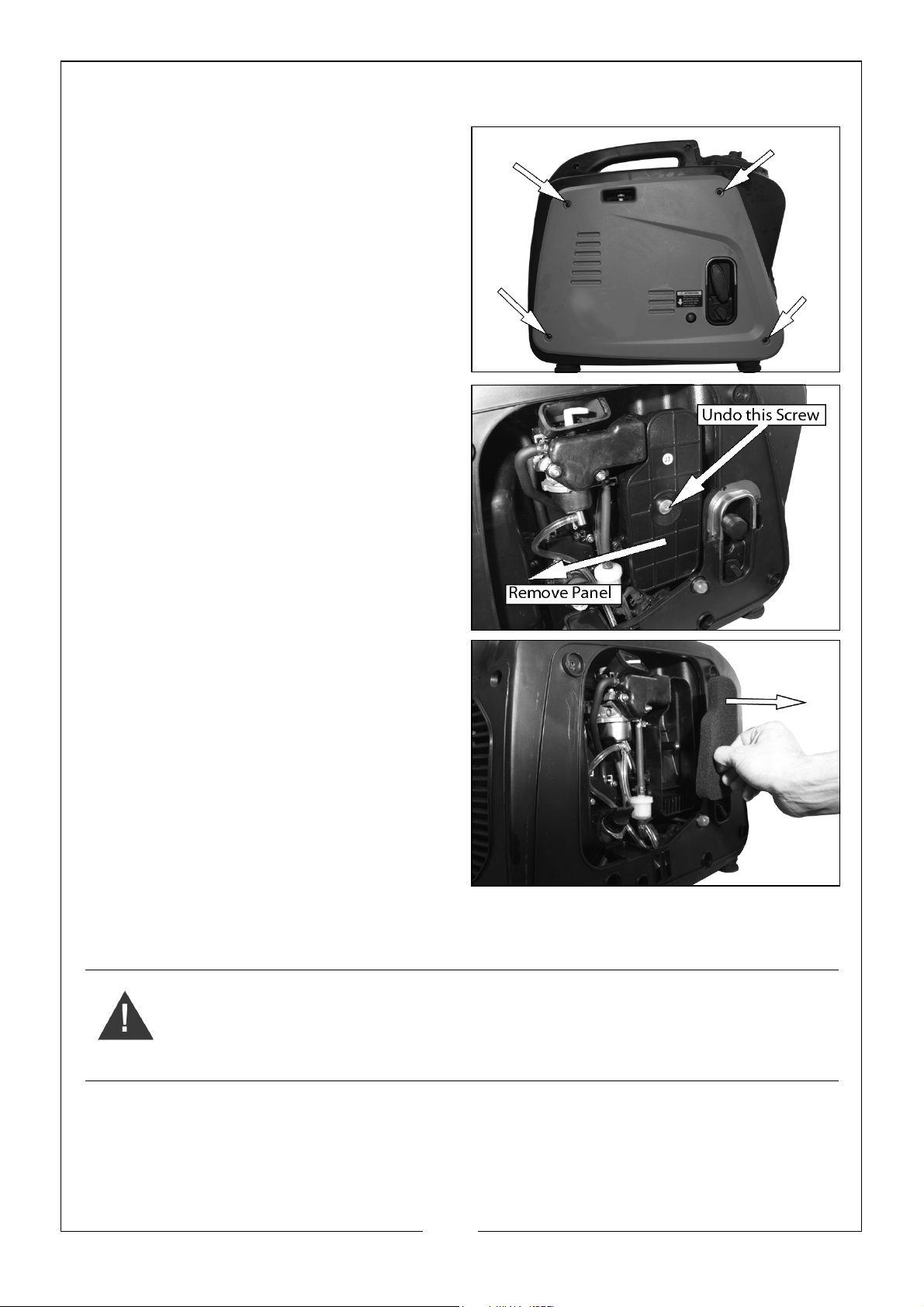

1. Remove the side maintenance
panel.
2. Remove the air filter cover screw
shown on the right.
3. Slide out the air filter panel.
7
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 8

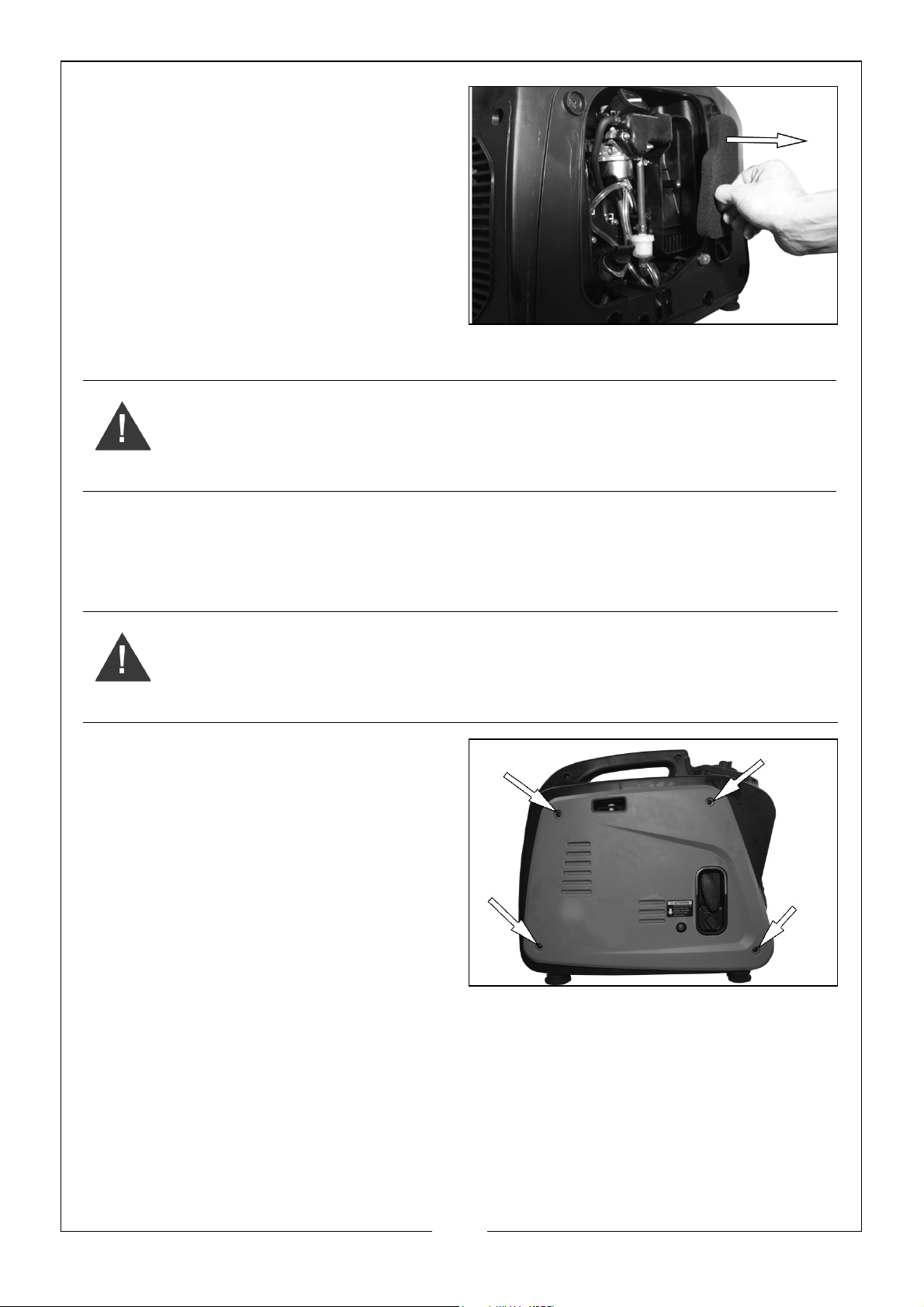

4. Remove the air filter element.
5. If the air filter is damaged contact
the CLARKE spare parts
department for a replacement.
• If the filter is dirty, wash it in a
solution of warm water and
mild detergent and rinse
thoroughly. Leave the filter to
dry completely. Once it is dry
immerse the filter in clean
engine oil and squeeze the filter to remove excess oil.
WARNING: DO NOT USE FLAMMABLE SOLVENTS OR PETROL TO CLEAN THE
AIR FILTER.
6. Replace the filter into its original position and replace and secure the air
filter cover then replace the side maintenance panel.
CHECKING THE ENGINE OIL LEVEL
WARNING: YOUR GENERATOR MAY NOT BE SUPPLIED WITH OIL. ALWAYS
ENSURE THAT THERE IS SUFFICIENT OIL BEFORE USE.
WARNING: TO CARRY OUT THIS CHECK, THE ENGINE MUST BE OFF.

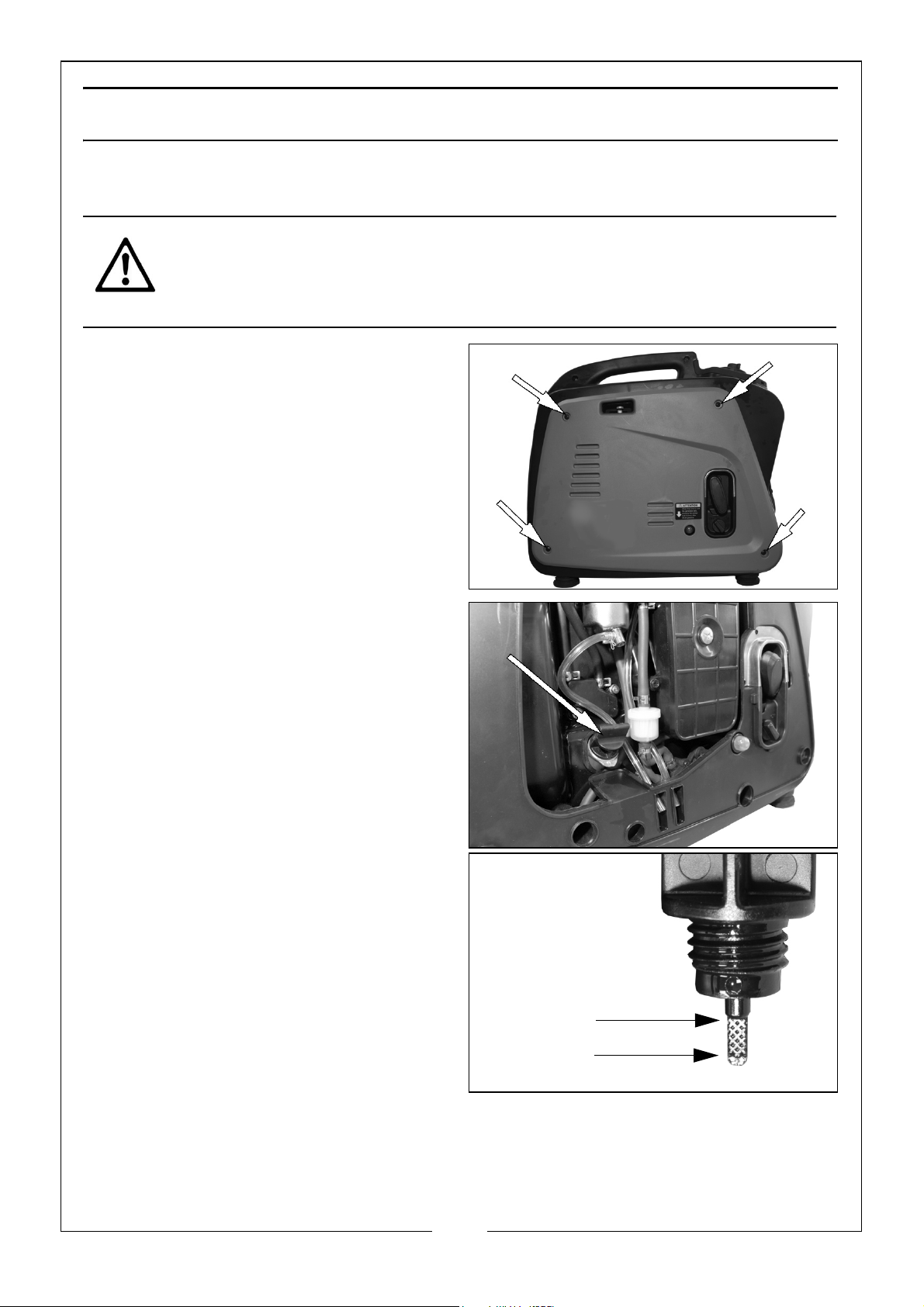

1. Place the generator on a level
surface and check the oil level as
follows.
2. Remove the side maintenance
panel.
8
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 9

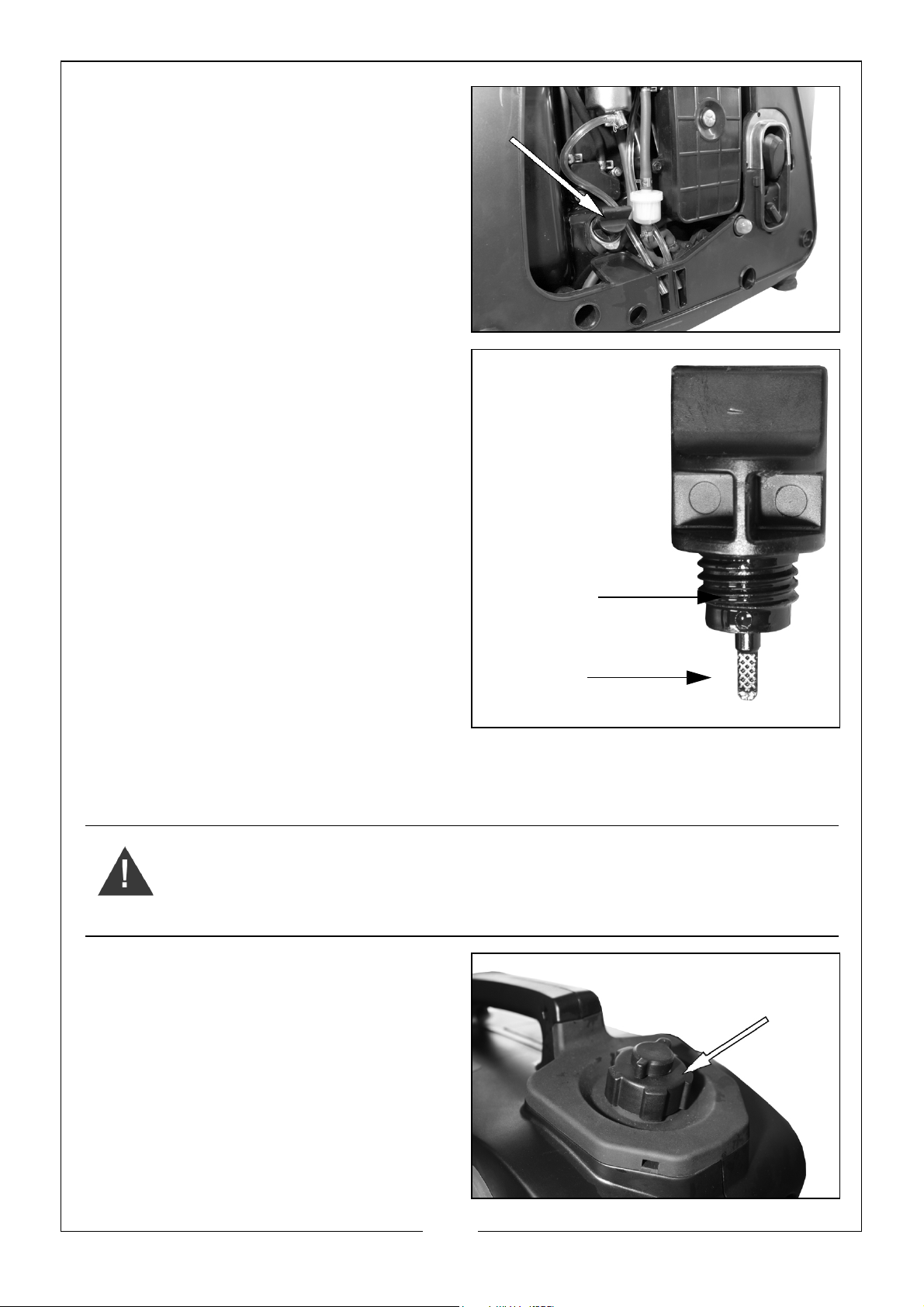

3. Turn the oil filler cap anti-
Max Level
Min. Level
clockwise and remove from the oil
reservoir, wipe the dipstick with a
clean cloth.
4. Insert the dipstick back into the oil
filler tube and then remove it
again.
5. If the oil is below the Min. level on
the dipstick, top up the oil
reservoir with fresh oil.
• Do not fill above the max level
mark (0.52 litres)
• We recommend the use of
SAE30 oil in this generator.
(CLARKE part number 3050852)
• Do not tilt the generator when
adding engine oil. This could
result in overfilling and damage
to the engine.
6. Replace the oil filler cap.
7. Replace the left side
maintenance panel.
CHECK THE FUEL LEVEL
WARNING: MAKE SURE THERE IS FUEL IN THE TANK WHEN USING THE
GENERATOR. RUNNING OUT OF FUEL OR STOPPING THE ENGINE
SUDDENLY WITH A LOAD CONNECTED COULD CAUSE SERIOUS DAMAGE.
1. To check the fuel level, open the
fuel filler cap.
2. Slowly add fuel to the fuel tank
(maximum 4.1 litres)
• Do not overfill the fuel tank.
3. Replace the fuel filler cap
securely.
9
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 10
WARNING: FUEL IS HIGHLY FLAMMABLE AND POISONOUS.
WARNING: SEE GENERAL SFETY RULES ON PAGE 4 AND READ THEM
CAREFULLY BEFORE REFUELING.
WARNING: DO NOT FILL ABOVE THE TOP OF THE FUEL FILTER OR IT MAY
OVERFLOW WHEN THE FUEL HEATS UP AND EXPANDS.
WARNING: WIPE UP ANY SPILLED FUEL IMMEDIATELY.
WARNING: AFTER REFUELING, MAKE SURE THE FUEL FILLER CAP IS
TIGHTENED SECURELY.
RECOMMENDED FUEL
Your generator has been designed to use regular unleaded petrol with a
octane number of 86 or higher.
USING YOUR GENERATOR

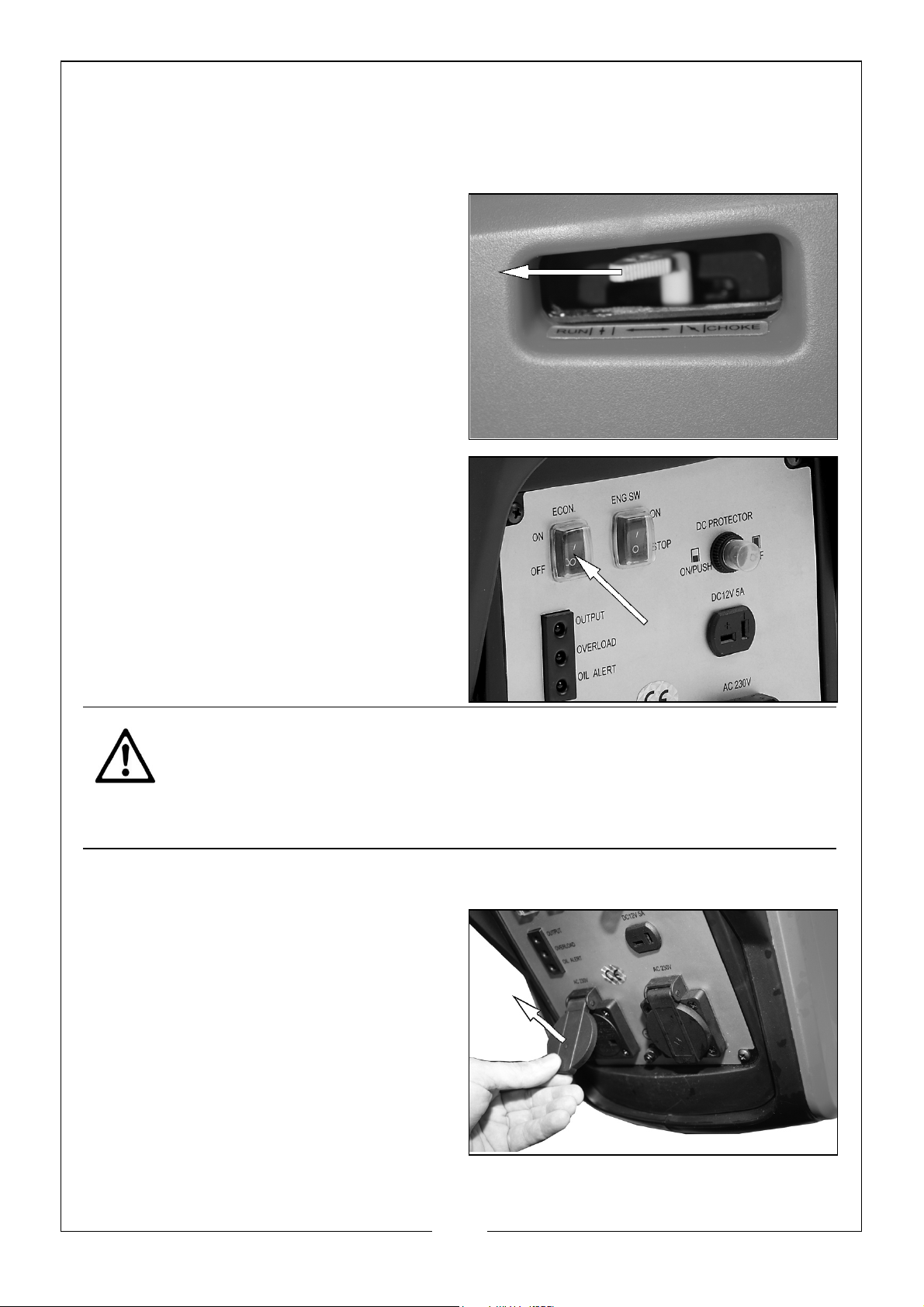

STARTING THE ENGINE

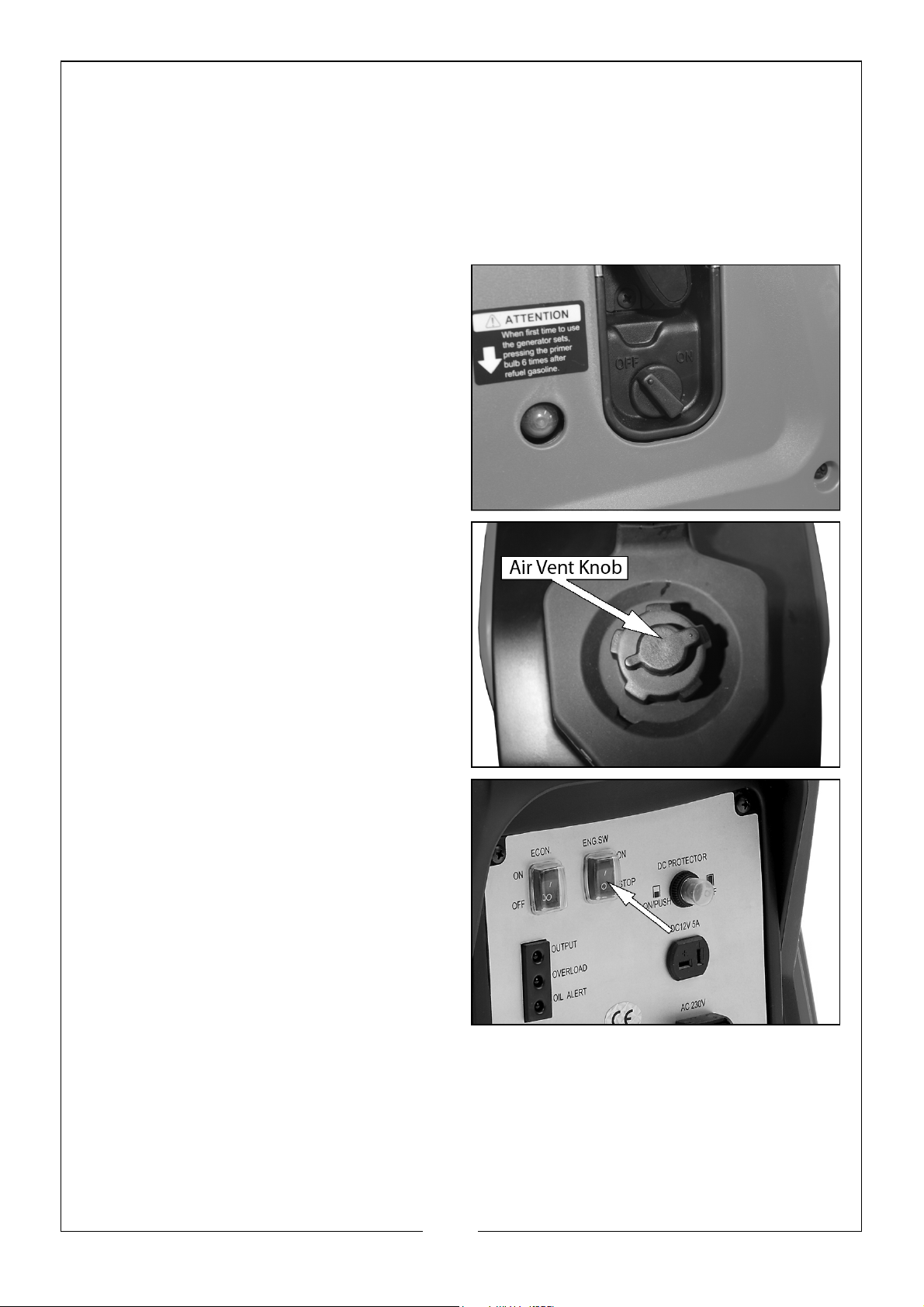

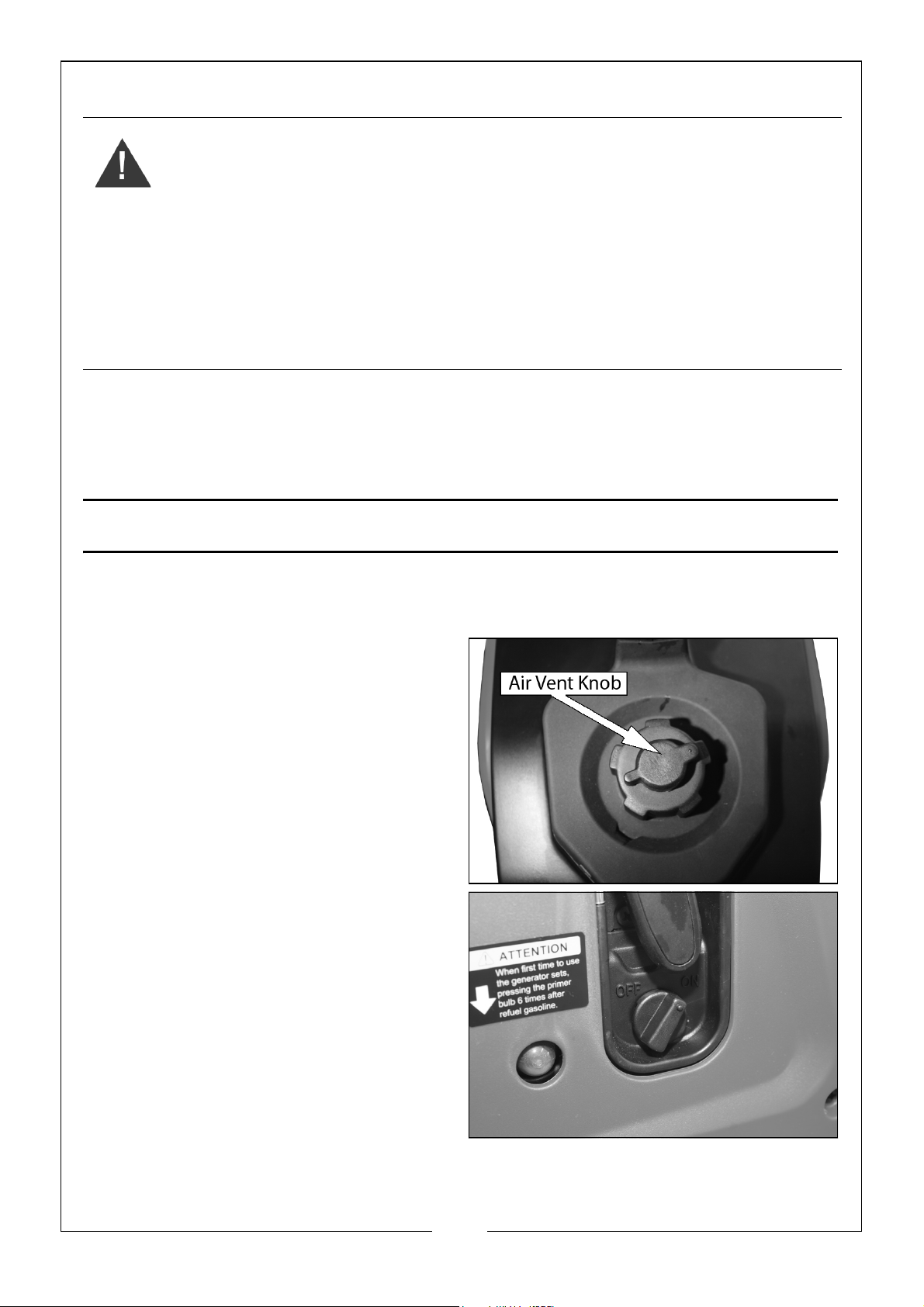

1. Remove all connections from the
AC sockets.
2. Hold the fuel tank cap so that it
will not move, and turn the air
vent knob to the ‘open’ position.
3. Turn fuel valve to the ON position
(pointing right).
10
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 11

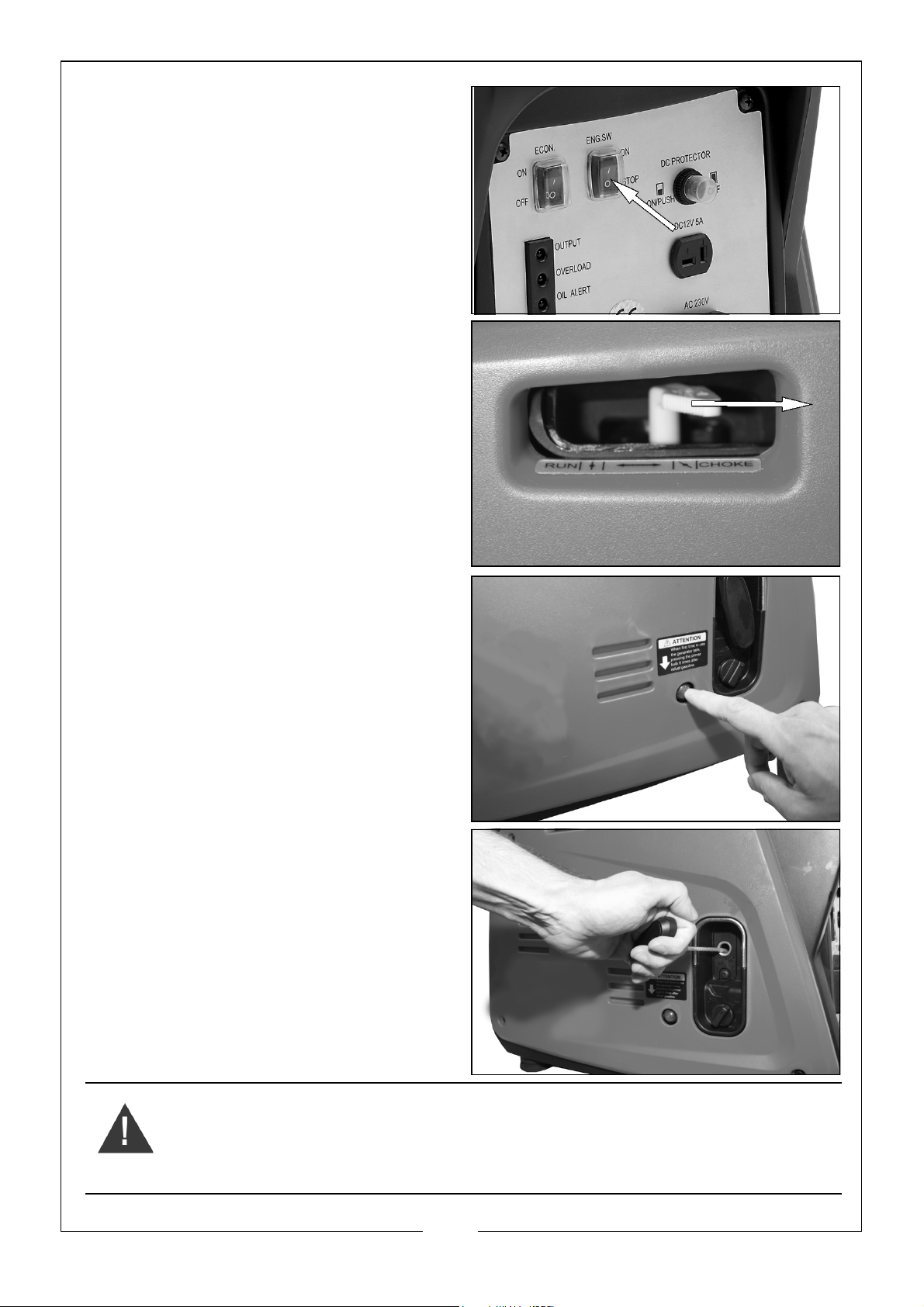

4. Set the engine switch to ‘ON’.
5. Move the choke lever to the right,
to the ‘Choke’ position.
6. If this is the first time you are using
the generator or if the generator
had run out of fuel the last time
you used it, pump the primer bulb
a minimum of 6 times to introduce
fuel into the carburetter.
7. Hold the generator handle firmly
and pull the starting handle lightly
until you start to feel resistance
and then pull up sharply to start
the engine.
NOTE: You may have to do this
more than once.
.
WARNING: ONCE THE GENERATOR HAS STARTED, RELEASE THE STARTING
HANDLE SLOWLY TO AVOID INJURY/DAMAGE AS IT WHIPS BACK.
11
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 12
NOTE: When you first start the generator, the overload indicator may light
up for a few seconds, this is normal. If the overload indicator is still
lit after 5 seconds, stop the engine and contact your CLARKE
dealer.
8. Once the engine has warmed up,
move the choke lever to the left,
to the “run” position.

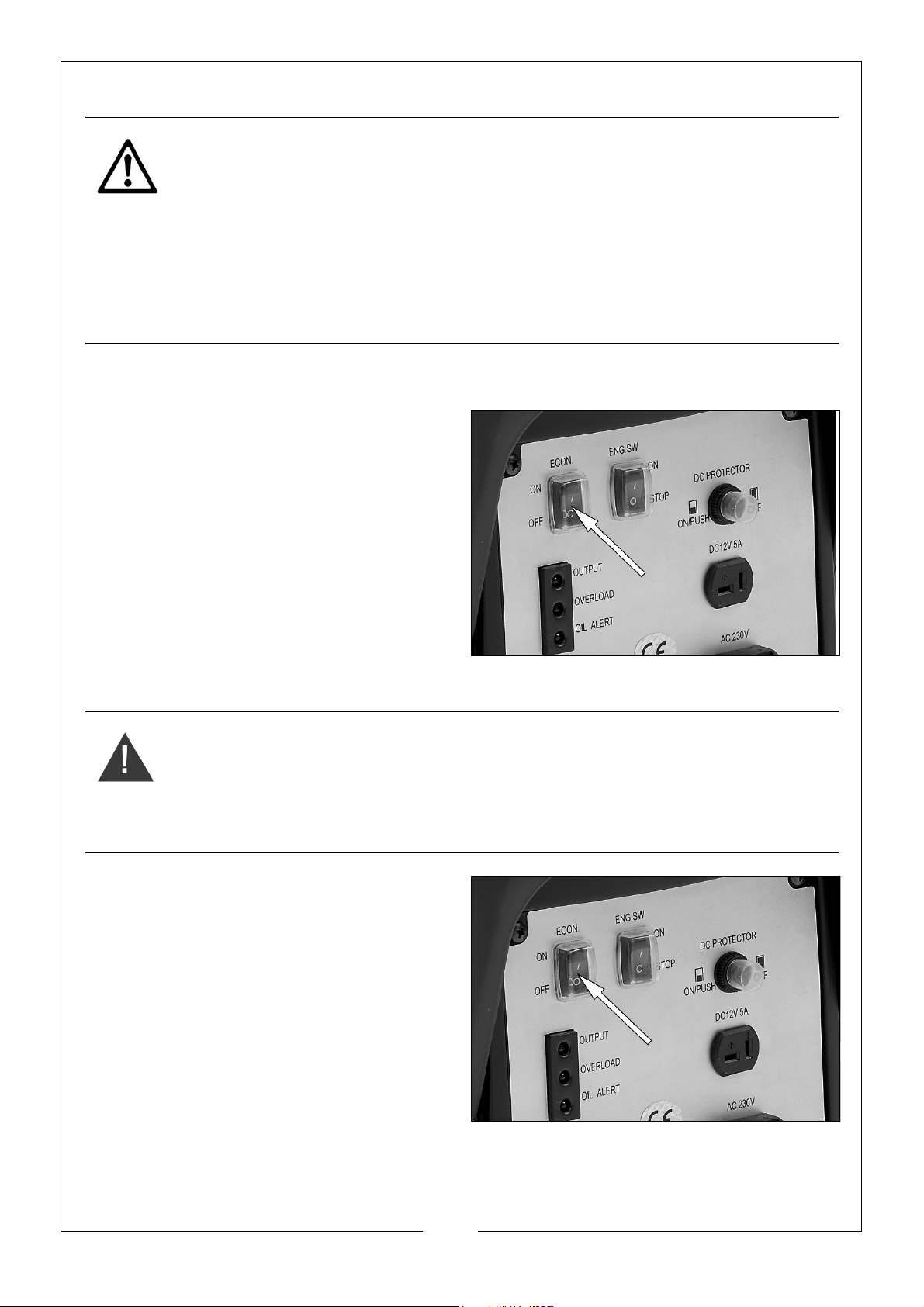

ECONOMY SWITCH
ON:
Recommended to minimize fuel
consumption and further reduce
noise levels when no load is applied
to the generator. Engine speed varies
with the load.
OFF:
The smart throttle system does not
operate.
CAUTION: THE ECONOMY CONTROL DOES NOT WORK EFFECTIVELY IF
THE ELECTRICAL APPLIANCE REQUIRES ‘BURSTS’ OF POWER.
CAUTION: TURN THE ECONOMY CONTROL FEATURE OFF WHEN
CONNECTING HIGH LOAD APPLIANCES OR WHEN CONNECTING TO THE
DC OUTPUT.
CONNECTING ELECTRICAL DEVICES
The generator can supply both 230V
AC and 12V DC.
AC POWER
1. Start the engine. See pages 11-13.
2. Make sure the appliance is turned
off before connecting it to the
generator.
3. Connect the appliance (max
load 1800W) to the generator.
12
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 13
CAUTION: MAKE SURE THAT THE APPLIANCE BEING CONNECTED IS IN
GOOD WORKING ORDER, IF IT BEGINS TO ACT ABNORMALLY OR STOPS
SUDDENLY, DISCONNECT IT FROM THE GENERATOR
CAUTION: MAKE SURE THE APPLIANCE DOES NOT EXCEED THE MAXIMUM
RATED LOAD FOR THE GENERATOR.
CAUTION: ANY DEVICE WHICH CONTAINS AN INDUCTIVE LOAD E.G.
DEVICES THAT CONTAIN A MOTOR MAY REQUIRE MORE CURRENT ON
STARTUP.
DC POWER
1. Set the economy control switch to
‘OFF’.
2. Start the generator. See page 10.
3. Make sure the appliance is turned
off before connecting it to the
generator.
4. Connect the 12V applience(max
5A) to the generator.
DC POWER (TOPPING UP CAR BATTERIES)
WARNING: FOR YOUR SAFETY PERFORM THE FOLLOWING INSTRUCTIONS
IN THE ORDER SHOWN.
WARNING: YOU SHOULD ONLY USE THIS GENERATOR TO ‘TOP UP’ THE
BATTERY, ALSO TRYING TO CHARGE A COMPLETELY FLAT BATTERY MAY
CAUSE THE FUSE TO BLOW.
1. Set the economy control switch to
'OFF'.
2. Start the generator. See page 10.
3. Connect the battery charging
leads to the battery.
• Make sure you clamp the red
wire to the positive (+) terminal
and the black wire to the
negative (-) terminal of the
battery.
4. Connect the battery charging leads to the generator.
13
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 14
• The battery will begin to charge
5. Monitor the voltage across the battery regularly during charging and
disconnect the battery when the voltage reaches 14.4 volts.
CAUTION: WHEN DISCONNECTING THE BATTERY, ALWAYS DISCONNECT
THE NEGATIVE LEAD FIRST.

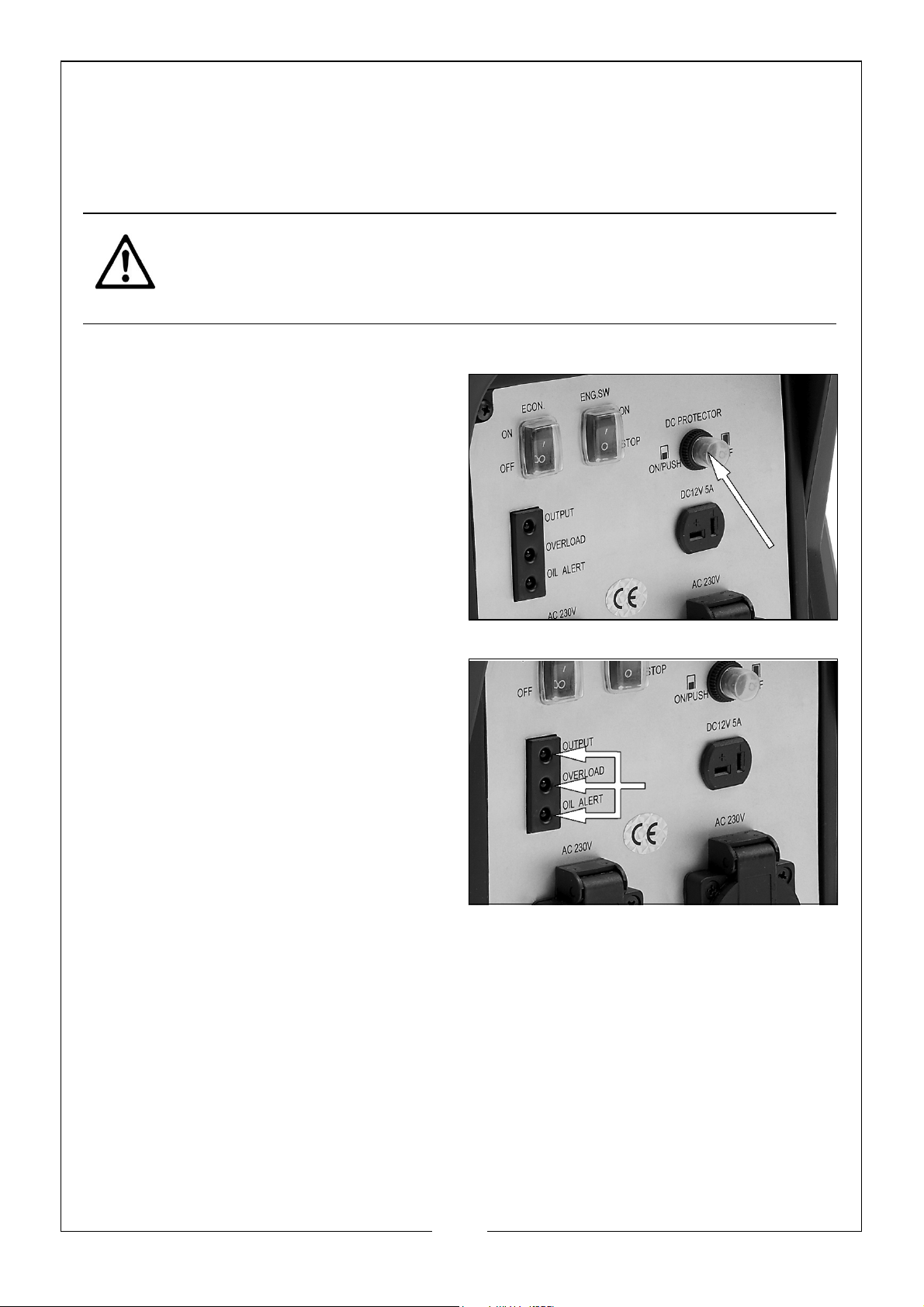

DC OVER LOAD PROTECTOR
If the DC overload protector
activates, wait for a few minutes and
then press the reset button shown on
the right.
INDICATOR LIGHTS
OUTPUT
The output indicator (Green) will
remain on during normal operation.
OVERLOAD
The overload indicator (Red) will light
up if there is an overload or a short
circuit in the connected appliance.
If this happens, proceed as follows:
1. Turn off any connected electrical
devices and stop the engine.
2. Reduce the total wattage of
connected electric devices to
within the rated output of the
generator.
3. Check air inlet and around the control unit. If any blockages are found,
remove them.
4. After checking, restart the engine.
OIL ALERT
The oil alert indicator (Red) will light up when the oil level is low.
• To add oil, follow the instructions on page 11.
14
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 15
SHUTTING DOWN THE GENERATOR
To stop the generator in an emergency simply set the engine switch to ‘OFF’.
NOTE: Turn off any electric devices.
NOTE: Set the economy control switch to the ‘0’ (OFF) position.
1. Disconnect any electric devices.
2. Turn the fuel valve knob to “OFF”
(pointing left).
3. Turn the air vent knob to the
‘Close’ position.
4. Set the engine switch to the “0”
(OFF) position.
15
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 16
MAINTENANCE
Max Level
Min. Level
ENGINE OIL (EVERY 20 HOURS OF USE)
CAUTION: PROLONGED EXPOSURE TO USED ENGINE OIL IS DANGEROUS,
ALWAYS WASH YOUR HANDS THOROUGHLY AFTER HANDLING USED
ENGINE OIL.
1. Remove the maintenance panel
shown on the right.
2. Turn the oil filler cap anticlockwise and remove from the oil
tank.
3. Tilt the generator to allow the oil
to drain out of the oil reservoir into
a suitable container.
NOTE: You may need assistance
with this step as the
generator is heavy.
4. Fill the oil reservoir with fresh oil.
• Do not fill above the max level
mark (0.52 litres)
• We recommend the use of
SAE30 oil in this generator.
(CLARKE part number 3050852)
5. Replace the oil filler cap and
maintenance panel.
ENVIRONMENTAL PROTECTION
One of the most damaging sources of pollution is oil. Do not throw away used
engine oil in with your domestic waste or down drains and sinks. Place it in a
leak proof container and dispose of it according to local regulations.
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
16
Page 17
AIR FILTER (EVERY 50 HOURS OF USE)
1. Remove the maintenance panel
shown on the right.
2. Remove the air filter cover screw.
3. Remove the air filter panel.
4. Remove the air filter element.
5. If the air filter is damaged contact
the CLARKE spare parts
department for a replacement.
• If the filter is dirty, wash it in a
solution of warm water and
mild detergent and then rinse
thoroughly.
• Leave the filter to dry
completely, once it is dry
immerse the filter in clean engine oil and squeeze the filter to
remove excess oil.
WARNING: DO NOT USE FLAMMABLE SOLVENTS OR PETROL TO CLEAN THE
AIR FILTER.
6. Replace the filter into its original position and replace and secure the air
filter cover.
17
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 18

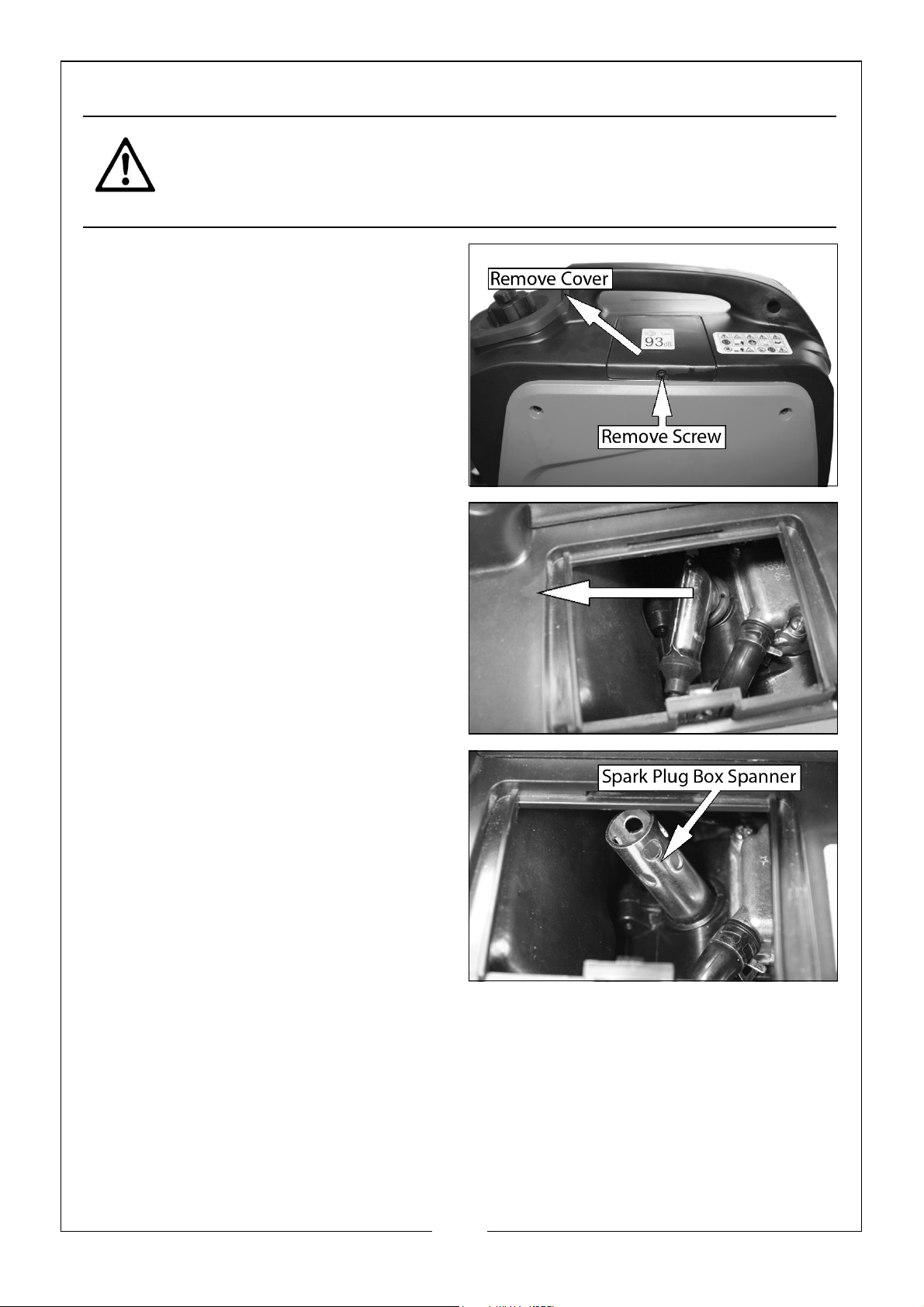

SPARK PLUG (EVERY 50 HOURS OF USE)
CAUTION: ALLOW THE ENGINE TO COOL BEFORE REMOVING THE SPARK
PLUG.
1. Remove the top maintenance
panel.
2. Remove the spark plug cap from
the spark plug.
3. Fit the spark plug box spanner
over the spark plug as shown.
18
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 19

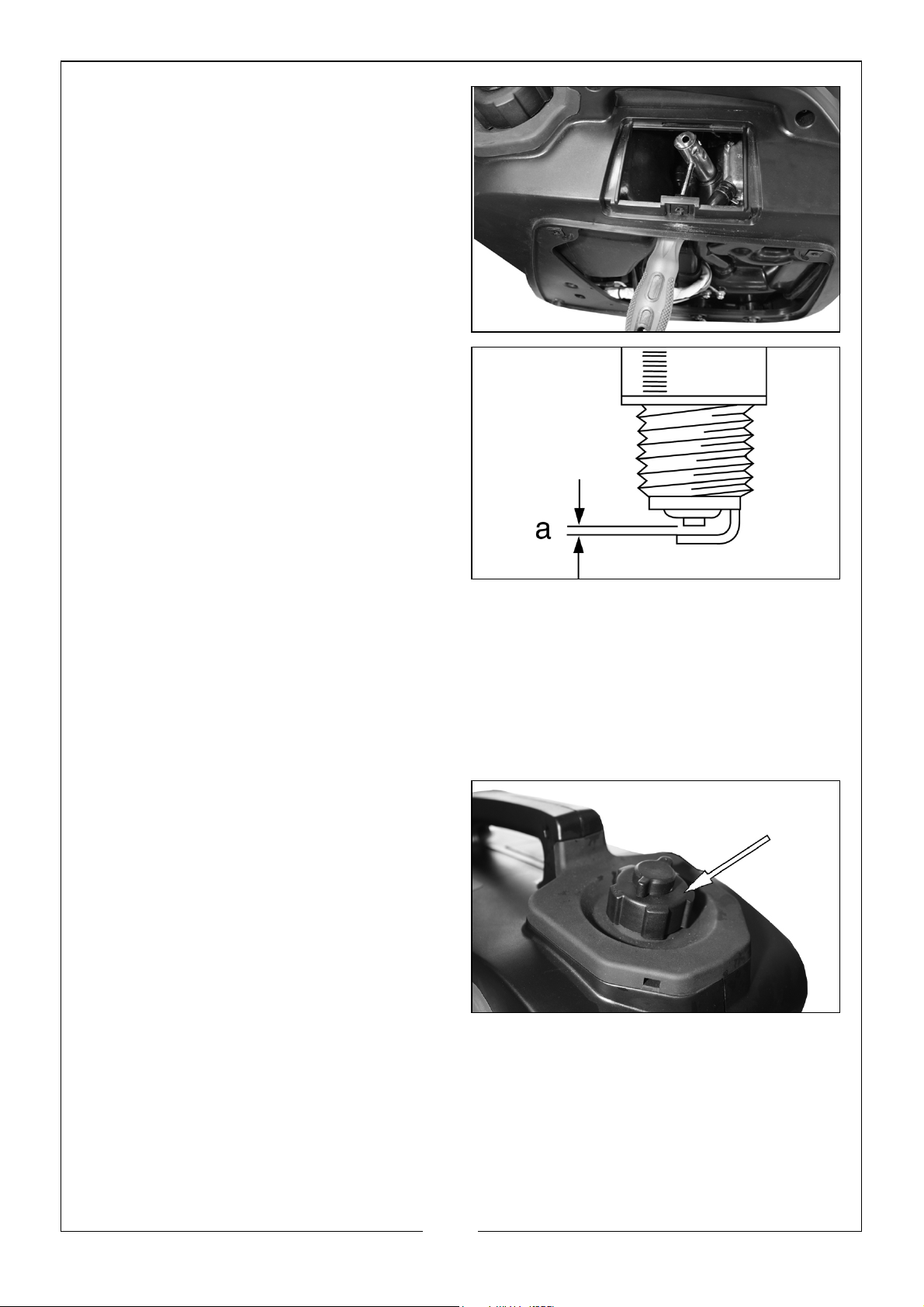

4. Remove the side panel and use
the screwdriver supplied to turn
the spark plug box spanner as
shown.
5. When the spark plug has been
removed, check for discoloration
and use a wire brush to remove
any carbon build up.
6. Check the spark plug gap (a) with
a feeler gauge, it should be
between 0.6 and 0.7 mm.
•Adjust if necessary.
7. Check the overall condition of the
spark plug and replace if
damaged.
NOTE: Spark plugs are available
from CLARKE Spare Parts
department 020 8988 7400.
8. Reinstall the spark plug and replace the spark plug cap and top panel.
FUEL TANK FILTER (EVERY 100 HOURS OF USE OR EVERY 6 MONTHS)
Just inside the fuel tank is a fuel filter, check this filter periodically and remove
any contaminants which may have accumulated.
1. Remove the fuel tank cap.
2. Lift out the filter inside.
19
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 20

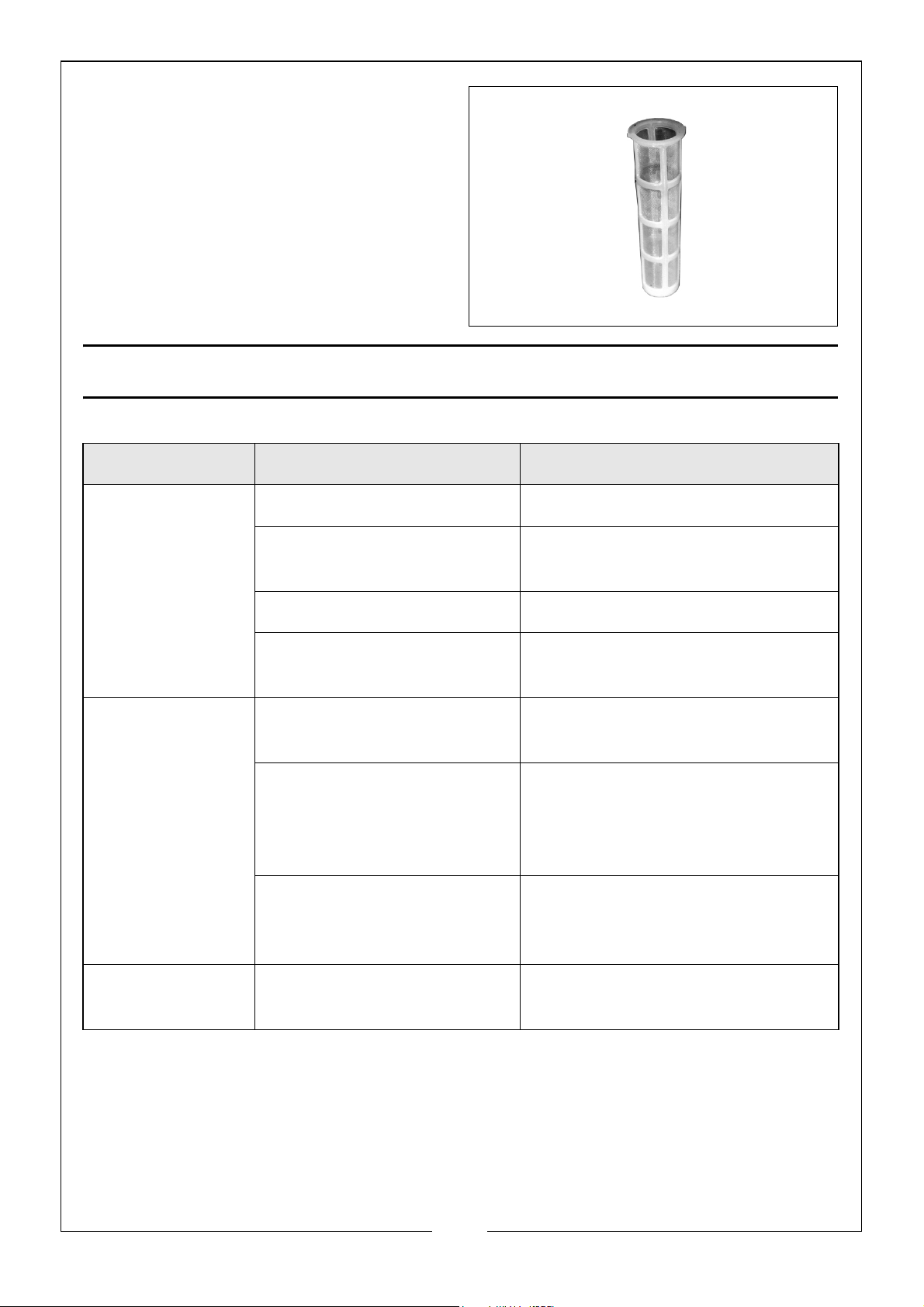

3. Clean the filter with solvent. If the
filter is damaged, contact CLARKE
Spare Parts department 020 8988
7400 for a replacement.
4. Replace the filter and fuel tank
cap.
TROUBLESHOOTING
PROBLEM CAUSE SOLUTION
The generator
fails to start
The generator
fails to generate
electricity
Engine switch is off. Set the engine switch to ‘on’.
Not enough oil in the
generator.
No fuel Add more fuel, See page 12.
Spark plug not working
correctly.
The device you are trying
to power is faulty.
The overload indicator is
on.
(DC supply only) The DC
Overload protector has
activated.
Add more oil, See page 11.
Change the spark plug, See
page 21.
Make sure the device you want
to power is working properly.
Remove the appliance
immediately, do not connect
any appliance that requires
more than 800W.
Press the reset button. See
page 17.
The generator is
difficult to start
If this does not solve your problem, please contact the CLARKE service
department. see below.
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
The air filter is dirty. Clean the air filter. See page 20.
20
Page 21
SPECIFICATIONS
Engine Engine Model SY152F-4
Type Petrol
Displacement (cc) 99
Ignition type C.D.I
Fuel tank capacity (L) 4.1
Maximum run time at 3/4 load (h) 4.5
Engine oil capacity (L) 0.52
Guaranteed sound power (LWA dB) 93 dB
Generator Rated Frequency (Hz) 50
Rated AC Voltage (V) 230
Rated Output Power: (Continuous) (W) 1700
Maximum Rated Output Power (W) 1800
Output Type Modified Sine Wave
Rated DC Voltage (V) 12
Rated DC Current (A) 5
Rated AC Output Current (A) 7.39
Rated Power Factor 1
Performance Class G1
Quality Class A
IP Rating IP23M
Dimensions Length (mm) 488
Width (mm) 285
Height (mm) 463
Unpacked Weight (kg) 19.35
21
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 22

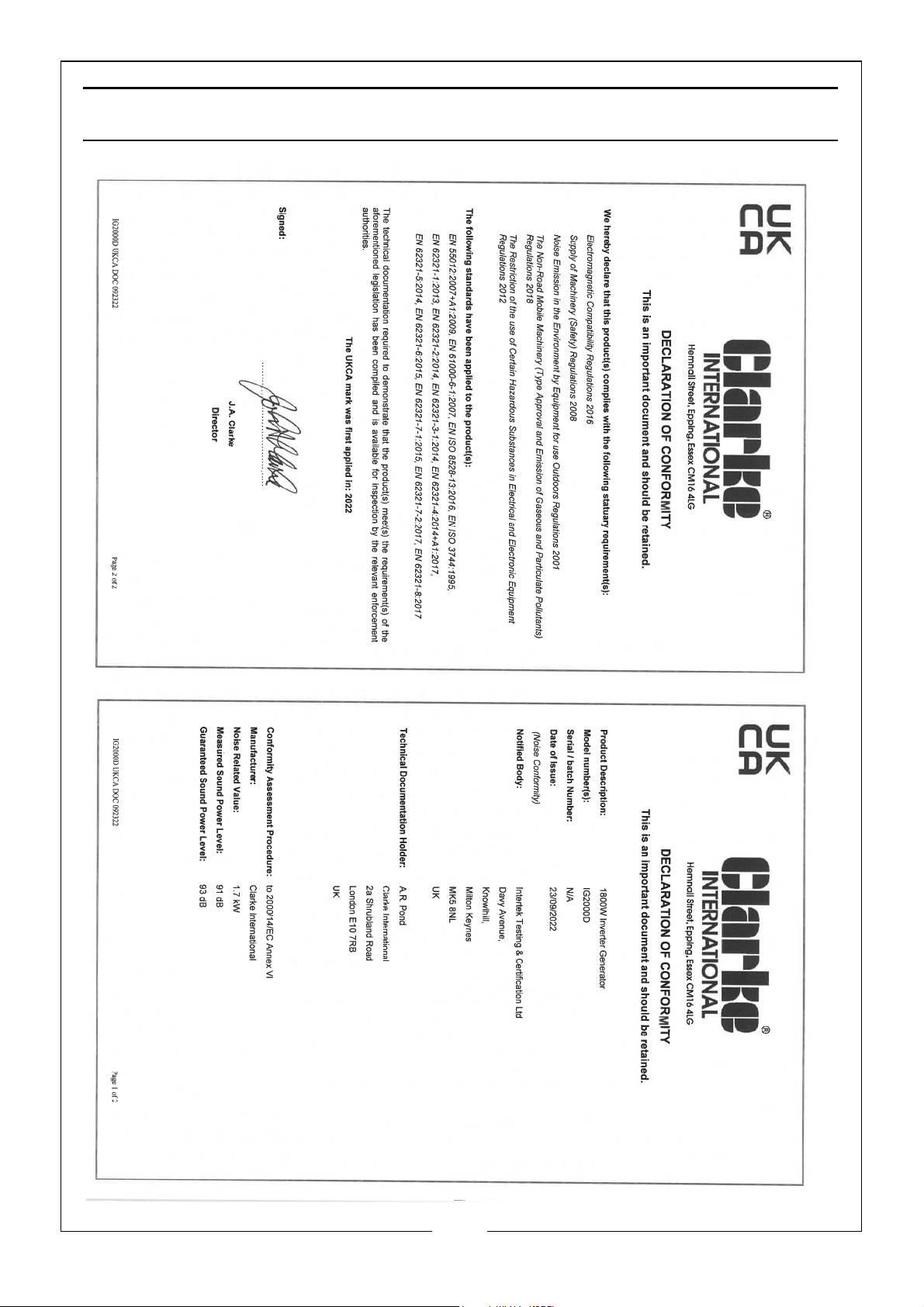

DECLARATION OF CONFORMITY - UKCA
22
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 23
DECLARATION OF CONFORMITY - UKCA
23
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 24
Loading...
