Clarke ELS 145, ELS 145R, ELS 160R, 7320612, 7320617 User guide

COLD WATER WASHER

COLD WATER WASHER

Model Nos. ELS145, 145R & ELS160R

Part Nos. 7320612, 7320617 & 7320622

OPERATING & MAINTENANCE

INSTRUCTIONS

0108

SPECIFICATIONS

ELS145 & 145R

Motor

Power Rating

Fuse Rating

Noise Level - Guaranteed

Max. Pump Pressure

Water Flow Rate

Detergent tank Capacity

Dimensions

Wei ght

Please note that the details and specifications contained herein are correct at the time of going to print.

However CLARKE International reserve the right to change specifications at any time without prior

notice. Always consult the machines data plate

230V 50Hz

2500W

l3Amps

91dBL

WA

140bar

8 L/min

3litres

465x515x930mm

25kg/26kg

ELS160R

230V 50hz

2700W

l3Amps

94dBL

WA

150bar

8.7L/min

3litres

465x515x930mm

29kg

PARTS & SERVICE CONTACTS

For Spare Parts and Service, please contact your nearest dealer,

or CLARKE International, on one of the following numbers.

PARTS & SERVICE TEL: [phone]

PARTS & SERVICE FAX: [phone]

or e-mail as follows:

PARTS: [e-mail]

SERVICE: [e-mail]

© Copyright, Clarke International, December, 2003. All rights reserved.

When disposing of this product, do not dispose of with general waste. It must be disposed of according to the laws
governing Waste Electrical and Electronic equipment, at a recognised disposal facility.

2

Thank you for purchasing this CLARKE COLD WATER WASHER.

This machine is a lightweight, portable, high pressure power washer, designed for
general DIY and LIGHT INDUSTRIAL use.

These washers are ideal for cleaning greasy engines, garden furniture or removing
oil spots from driveways/patios etc.

The washer comprises an electric motor, pump, a high pressure hose with a trigger
and lance, and provision for use with foam or cleaning agents. On model ELS145R
and 160R, the high pressure hose is mounted on a reel, at the back of the machine,
to provide easy and convenient storage.

Before attempting to use your washer, please read this instruction manual
thoroughly and carefully follow all instructions. By doing so you will ensure the
safety of yourself and that of others around you, and you also can look forward to
the washer giving you long and satisfactory service.

GUARANTEE

This CLARKE product is guaranteed against faulty manufacture for a period of 12
months from the dote of purchase. Please keep your receipt as proof of purchase.

This guarantee is invalid if the product is found to have been abused or tampered
with in any way, or not used for the purpose for which it was intended.

Faulty goods should be returned to their place of purchase, no product can be
returned to us without prior permission. This guarantee does not effect your statutory
rights.

CONTENTS Page

Specifications ............................................................................. 2

Parts and Servicing Contacts ................................................... 2

Safety Precautions ..................................................................... 4

Electrical Connections .............................................................. 5

Assembly and Preparation for use ........................................... 6

Operation ................................................................................... 7

Chemical Injection Facility ....................................................... 9

Shutting Down the Machine ..................................................... 9

Maintenance ........................................................................... 10

Troubleshooting ........................................................................ 11

Parts List and Diagram ...................................................... 12 - 20

Accessories ............................................................................... 21

Declaration of Conformity ...................................................... 22

3

SAFETY PRECAUTIONS

WARNING

Water at high pressure can be dangerous and may cause severe

damage to persons or property if subject to misuse.

NEVER allow anyone to operate this equipment unless they are

thoroughly reliable, and completely familiar with the safety precautions.

1. Never direct the spray jet at any person or animal.

2. Never hold a finger over the high pressure nozzle.

3. Never direct the spray jet at the machine itself or any other electrical
equipment.

4. After use, and before disconnecting hoses, release the pressure in the high
pressure hose by operating the trigger. Do not attempt to disconnect any
hose or coupling with pressure still in the hose.

5. Never operate the machine with the covers removed.

6. Do not, attempt any electrical or mechanical repair. If you have a problem
with your machine contact your local dealer or Clarke Customer Services
Dept., tel: [phone]

7. Never supply any liquid other than water to the water inlet.

8. Use only chemical cleaning agents (detergents) approved for power washing
when using the chemical injection facility.

9. Never use the chemical injection facility to introduce solvents eg. paint
thinners, petrol, oil, etc.

10. Do not operate the machine whilst standing on ladders: use a platform tower

or scaffolding.

11. Children should NOT be allowed to use the machine.

12. You should always wear the appropriate protective clothing and non-slip
shoes when operating this machine. We also recommend the use of safety
goggles for any application where loose particles of stone or grit etc. may be
blown around by the high pressure spray.

13. When not in use, disconnect from the electrical supply and disconnect the
hoses from the machine, ensuring they are drained of water. Store in a dry,
frost free environment. Failing this, ensure the pump is filled with anti freeze.
(See Maintenance).

14. Disconnect from the mains supply before carrying out any maintenance or
servicing.

15. Never pull the washer by the power cable, or yank the cable to disconnect it
from the socket. Keep the cable away from heat, oil or sharp edges.

4

ELECTRICAL CONNECTIONS

WARNING: THIS MACHINE MUST BE EARTHED.

This product is provided with a standard 13 amp, 230 volt (50Hz). BS 1363 plug, for
connection to a standard, domestic electrical supply. Should the plug need
changing at any time, ensure that a plug of identical specification is used.

IMPORTANT: The wires in the mains lead should be wired up in accordance with
the following colour code:

Green & Yellow - Earth

Blue - Neutral

Brown - Live

As the colours of the wires in the mains lead may not correspond with the coloured
markings identifying the terminals in your plug, proceed as follows:

• Connect the GREEN & YELLOW cord to terminal marked with a letter “E” or

Earth symbol “ ”

• Connect BROWN cord to plug terminal marked letter “L”

• Connect BLUE cord to plug terminal marked letter “N”

We recommend that this machine is connected to the mains supply through a
Residual Current Device (RCD).

FUSE RATING

The fuse in the plug for this appliance must be rated at 13 amps

IMPORTANT:

If this appliance is fitted with a plug which is moulded onto the electric cable (i.e
non-rewirable):

1. The plug must be thrown away if it is cut from the electric cable. There is a

danger of electric shock if it is subsequently inserted into a socket outlet.

2. Never use the plug without the fuse cover fitted.

3. Should you wish to replace a detachable fuse carrier, ensure that the correct

replacement is used (as indicated by marking or colour code).

4. Replacement fuse covers can be obtained from your local dealer or most

electrical stockists.

EXTENSION CABLES

If an extension cable is used, always ensure it is fully unwound. When used outdoors,
ensure the extension cable is specifically designed for outdoor use.

The maximum extension length is 25 metres. Ensure that the wire sizes in the cable
are at least 2.5mm2 in cross section. As a general rule, the extension cable must
be thicker than the cable supplied with the washer.

IF IN DOUBT, CONSULT A QUALIFIED ELECTRICIAN...Do not attempt any repairs yourself.

5

ASSEMBLY AND PREPARATION

The machine is supplied fully assembled except as detailed below.

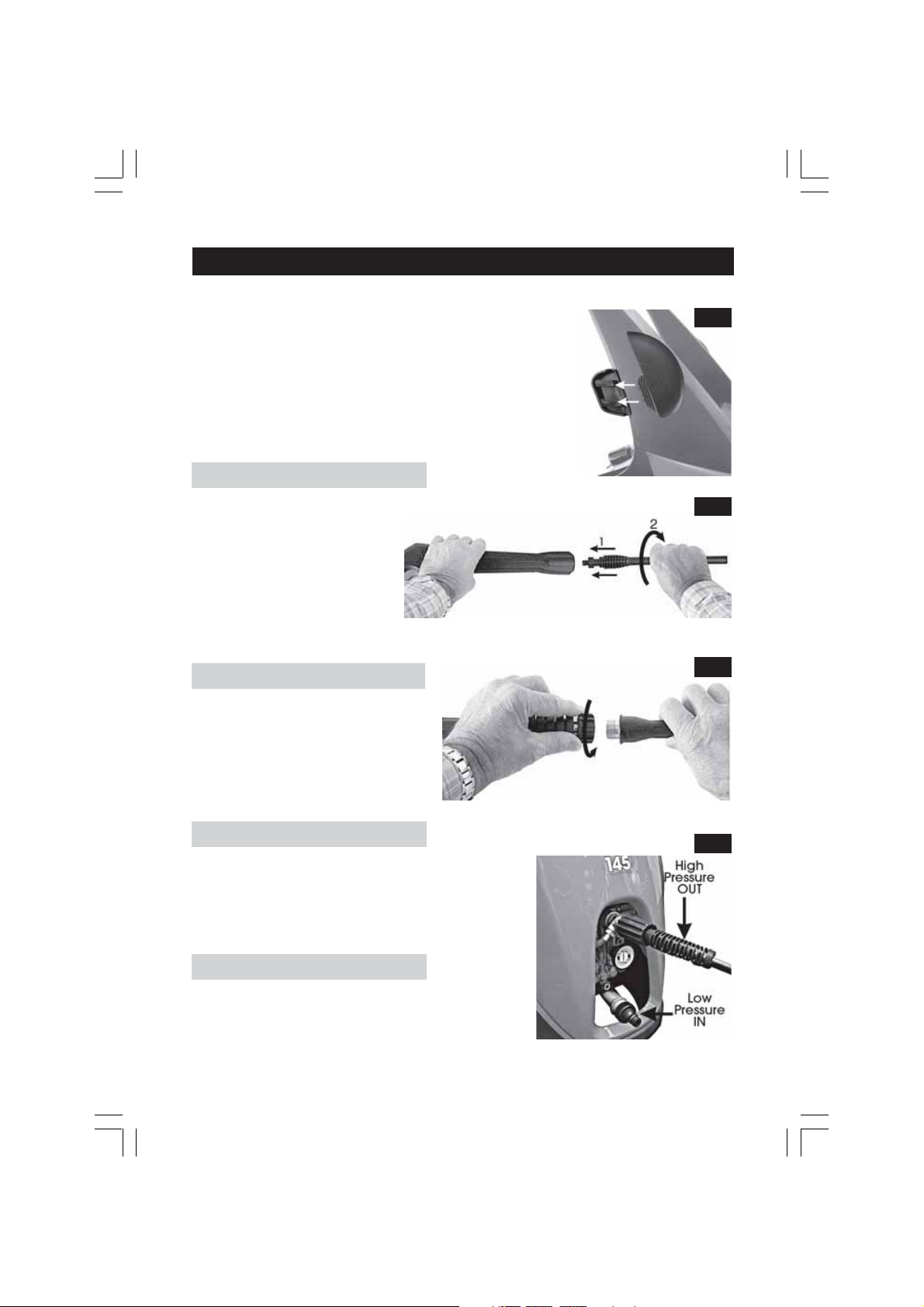

Attach the cable and hose storage brackets by sliding
them into place on either side of the handle assembly,
as shown in Fig.1.

Model ELS145 &145R

The lance is in two sections,
the high pressure hose being
integral with the lance
handle and trigger assembly.

Assemble by slotting the
spigot end of the lance into
the handle assembly. Push in
firmly and twist to lock it in
position as shown in Fig. 2.

Model ELS160R

The Lance is also in two sections,
and assembled by screwing the two
halves together as shown in Fig. 3.
The high pressure hose is screwed
to the adapter, just forward of the
trigger assembly

Fig.1

Fig.2

Fig.3

Models ELS145R &160R

The hoses to the 145R and 160R are attached to
the Reel

Model 160R requires the hose to be screwed into
the lance - just forward of the trigger assembly.
Take care not to cross thread the fine threads.

Model ELS145

Screw the loose end of the high pressure hose
from the Lance, into the high pressure outlet at
the front of the machine, shown in Fig. 4.

6

Fig.4

ALL Models

The low pressure water inlet, shown in Fig. 3, carries a 3/4” BSP thread.

A 3/4” BSP adapter with a 1/2” hose connector is provided, so that a suitable
hose (not supplied), may be attached. You may use a either a worm drive clip
(not supplied), or a snap-on type connector, commonly available from most
hardware or DIY stores, to attach the hose, the other end of which should be
connected to your water supply.

We recommend that you connect to a supply of CLEAN WATER ONLY.

ELS145

Fig.5

ELS145R & ELS160R

OPERATION

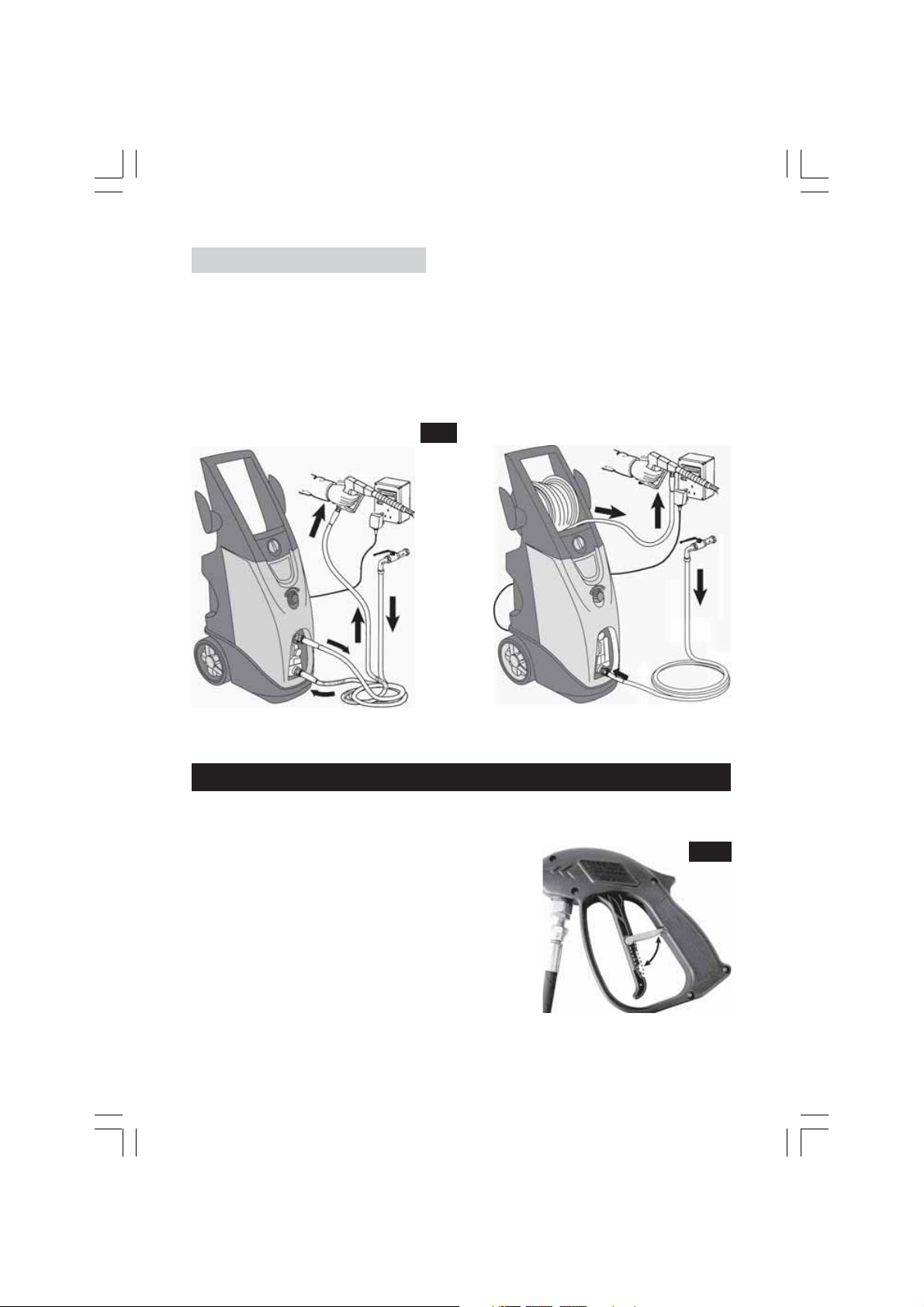

Make certain the PUMP ON/OFF switch which is located on the front panel, is set
to the OFF position - marked ‘O’.

Connect the plug to the mains supply preferably
via a Residual Current Device.

Turn the water tap fully on.

When starting, you should always adopt the
following procedure:

1. In order to ease the starting process, and to
prevent the possibility of blown fuses, pull the
trigger on the lance - it may be necessary to
release the safety latch, please see Fig. 6.

Fig. 6

7

2. Hold the trigger in that position whilst switching the pump ON, and allow the
pump to run for a few moments to develop full pressure

3. You may release the trigger once full pressure is developed. In doing so the
pump will stop, and will start again as soon as the trigger is pressed once more.

NOTE: For the reasons given above, it is recommended that you ALWAYS set the
jet to its LOW PRESSURE setting before switching ON. This is achieved as follows:

ELS 145 & 145R

Water pressure is regulated by turning the adjuster at the nozzle end of the lance,
(as shown by the arrows on the ferrule), ANTICLOCKWISE to INCREASE pressure
and CLOCKWISE to DECREASE, (looking from the handle end).

Fig.7

If you desire a fan spray, turn the nozzle fully anticlockwise - for a high pressure
pencil jet, turn it fully clockwise.

ELS 160R

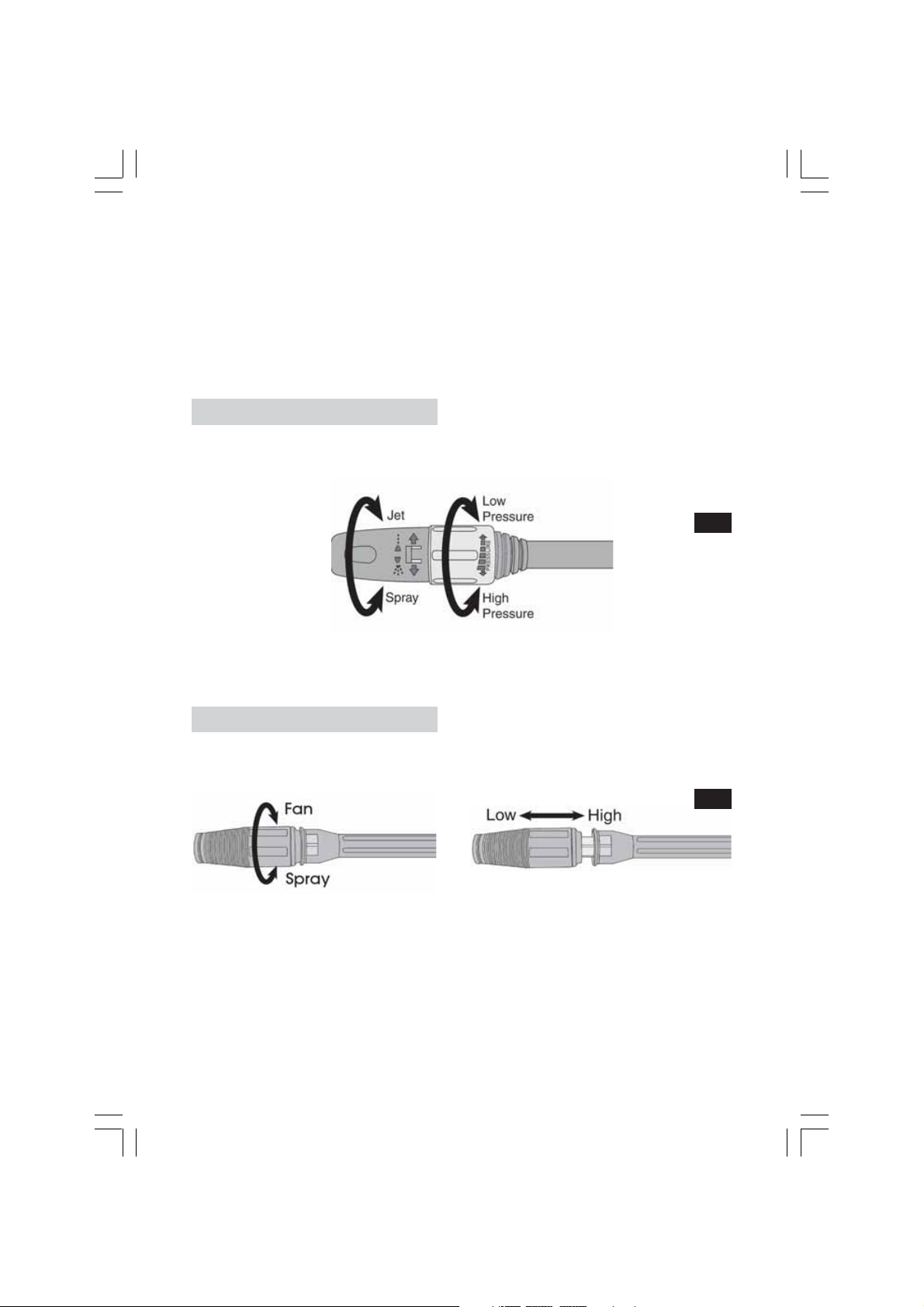

As illustrated in Fig. 8, pull the nozzle IN for high pressure and OUT for low pressure.
Additionally, turn the nozzle, as indicated, to change from jet to fan spray.

Fig.8

In the event that you switch the machine OFF, but intend to continue with its use
after a few minutes or so, DO NOT depress the trigger, but set the safety latch to
prevent it from being accidentally pulled. This will ease and assist the subsequent
restarting of the motor as pressures will remain equalised on either side of the
pump, thereby reducing the load on the motor when restarting.

NEVER attempt to run the machine with water supply disconnected or turned off.

It is recommended that whenever possible, a screen or partition be erected
between the washer and the wash area, to prevent accidental spraying of the
machine. Any moisture entering the machine could cause serious damage.

8

CAUTION

Ensure the operator is aware that when the trigger is pulled, water at high

pressure can cause the lance to kick - it should therefore be held firmly.

In addition, care must be taken to ensure that the nozzle is NOT aimed at

an area where the water jet will cause damage, i.e. away from people,

animals, windows - greenhouses etc., and be aware that splash back

could also cause damage if the jet is trained on a nearby wall etc.

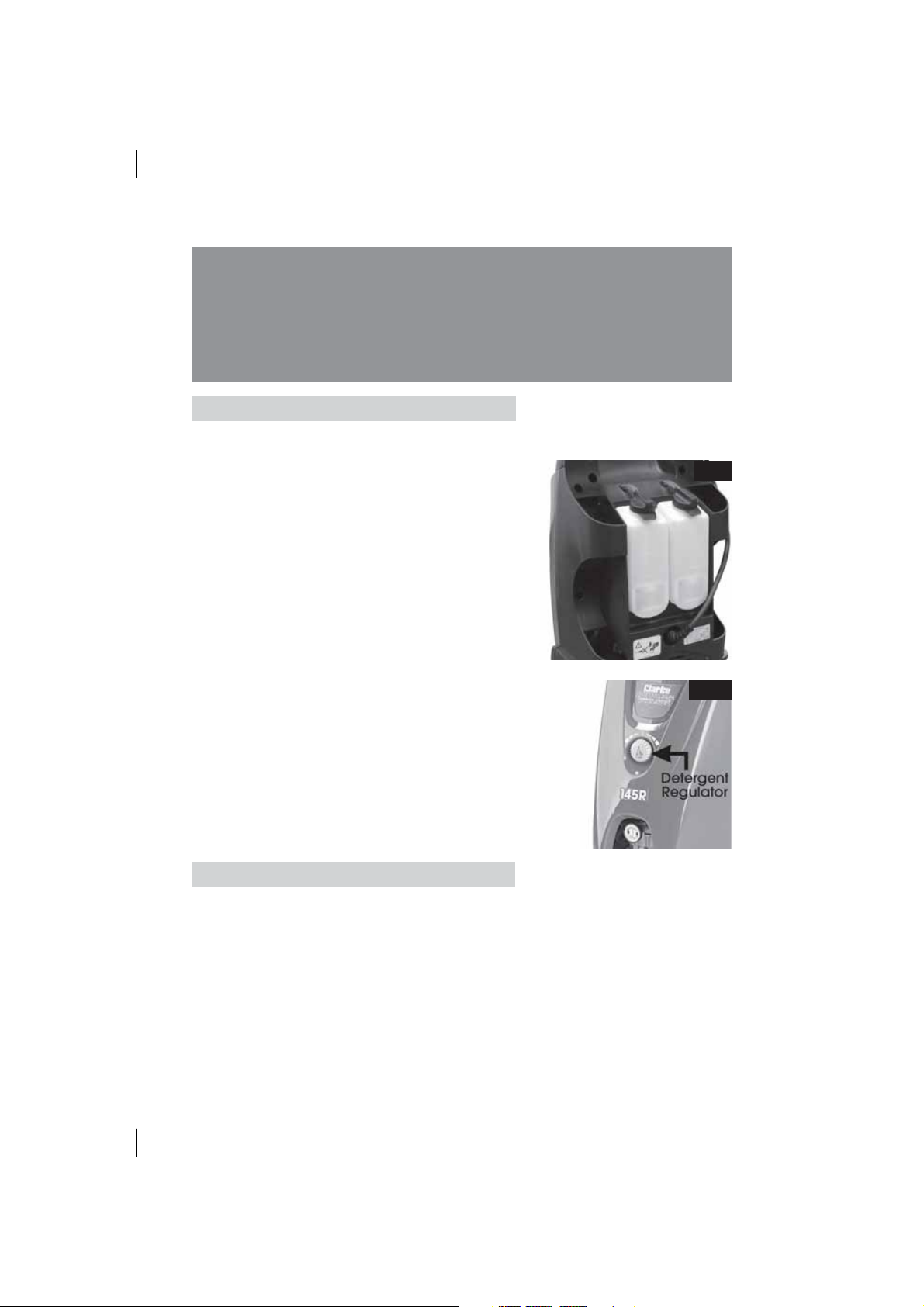

CHEMICAL INJECTION FACILITY

IMPORTANT: The chemical injection facility will ONLY operate at LOW pressure.

If you intend to use the chemical injection facility,
fill the detergent tanks at thr rear of the unit, shown
in Fig.9, with the requisite detergent.

The amount of detergent that enters the system
may be regulated by turning the knob on the front
of the unit shown in Fig. 10.

Note that two tanks are provided so that a
detergent/cleaner may be used in one and a wax/
shampoo in the other, for example.

By turning the regulator knob to the left - the medium
in the left tank (looking from the front) will be used, and
turning to the right-will use the right tank

Max. provides a mixture strength of approx.
15:1...Min-approx. 1000:1.

Use ONLY those detergents specifically designed for use
with Power Washers. We recommend the use of CLARKE
Traffic Film Remover, which is a powerful low foaming
agent for car cleaning, patio cleaning etc., or CLARKE
Wash & Wax, both available from your CLARKE dealer.

IMPORTANT: Ensure you read and comply with the
manufacturers instructions regarding the use of chemical
detergents.

Fig.9

Fig.10

SHUTTING DOWN THE MACHINE

If the chemical injection facility has been used, turn the pressure adjuster on the
end of the lance to HIGH pressure, and allow the pump to run for a minute or so
until the water being ejected is foam free, then switch OFF the pump.

Disconnect from the mains electrical supply, and turn OFF the water supply ­disconnect where appropriate.

IMPORTANT:
ALWAYS operate the lance trigger once more to ensure there is no pressure in the

high pressure hose. NEVER disconnect the high pressure hose without first pulling
the trigger.

9

MAINTENANCE

WARNIN G:

Ensure the plug is removed from the socket before carrying out any

adjustment, servicing or maintenance.

AFTER EACH USE

When using chemical detergents, always ensure the system is thoroughly flushed
out after use as described above.

Ensure the hoses and power cable are coiled and properly stowed. DO NOT allow
them to be left casually, in a heap. This invites damage and will cause rapid
deterioration.

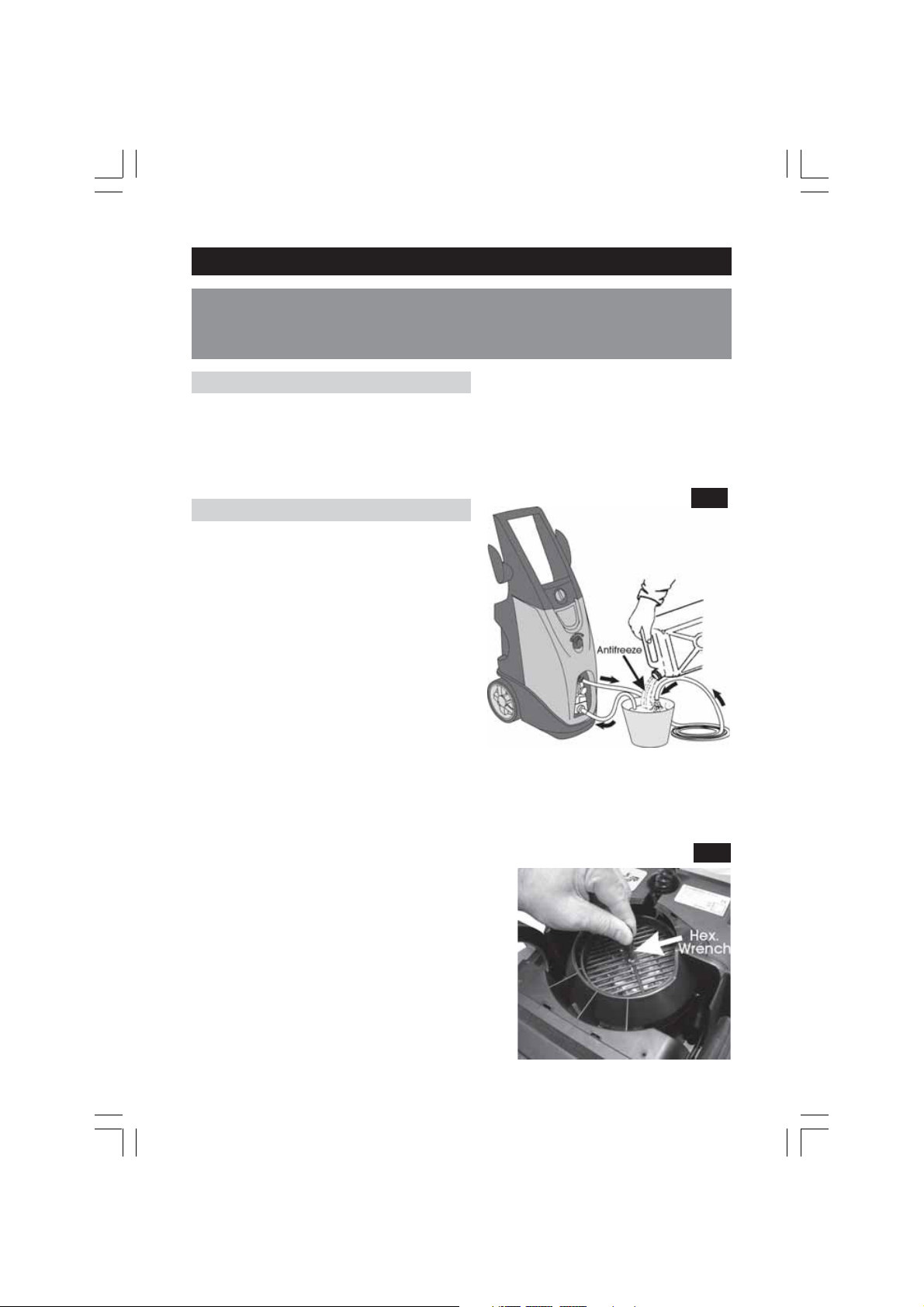

STORAGE

Store the Washer in a vertical position,

preferably under cover, protected from
the elements.

If there is a danger of freezing, the pump
should be filled with antifreeze by inserting
the inlet and outlet hoses into a bucket of
antifreeze as shown in fig. 7.

Start the machine and allow the antifreeze
to circulate. After a short time stop the
machine using the procedure outlined on
page 9, and store the machine with the
antifreeze still within the pump body.

NOTE:
If you experience difficulty in starting the motor following a long period of storage, it is possible that
the seals within the pump have dried out and are gripping the pistons. This problem may be
alleviated by storing the machine with antifreeze within the pump body, as described above.

If the seals are stuck however, disconnect the machine from the electrical and water
supply’s, and proceed to free them as follows:

Remove the lower rear cover by unscrewing the
four securing screws, to reveal the motor cover.

On the top of the motor is a circular plastic grill,
covering the motors’ fan. In its’ centre is a hole,
through which can be seen the head of a hex.
socket head screw.

Insert a hex. wrench (not supplied), through the
hole, into the screw head, as shown in Fig.8, and
turn the motor a turn or two to free it. It should
now be possible to start in the normal way.

Fig.7

Fig.8

10

TROUBLE SHOOTING

FAULT

Pressure drop

Pressure fluctuations
or pressure drop

Oil leak

Motor does not start
when switched on*

CAUSE

1. Air in system

2. Worn high pressure nozzle.

3. Pressure regulator
incorrectly set

1. No water

2. Water supply hose too
long/too small diameter

3. No water due to clogged
inlet filter

Worn seals

1. Plug is not connected
properly.

2. Mains fuse tripped/blown

REMEDY

1. Bleed system by quickly
operating trigger several
times. If necessary
operate the machine
briefly without the high
pressure hose connected.

2. Renew nozzle

3. Set to required working
pressure by turning press.
adjuster. (see p8.)

1. Turn on water tap

2. Use min. 1/2” dia. water
supply hose

3. Clean water filter

Contact your CLARKE Dealer

1. Check plug and lead and
have them replaced by a
qualified electrician if
necessary

2. Renew fuse or reset.

Motor hums when
trigger operated
and does not start

Motor cuts out ­trigger open

Additives are not
being supplied

* If the washer is switched OFF and then switched back ON, when there is still pressure in the pump
(i.e. without operating the trigger), the pump will not start until such time that the trigger is pulled.

1. Mains voltage too low

2. Incorrect dia cable
resulting in voltage drop

1. Motor protection switch
has been activated due
to overheating or motor
overload.

2. Nozzle partly clogged

1. Additive container empty

2. Lance not correctly set

11

1. Have electrical
connection checked

2. Use correct dia. cable

1. Ensure supply voltage and
unit voltage are equal.
Switch off and allow to cool
for at least three minutes

2. Clean using the supplied
nozzle cleaning needle

1. Fill additive container

2. Put lance on low pressure
setting

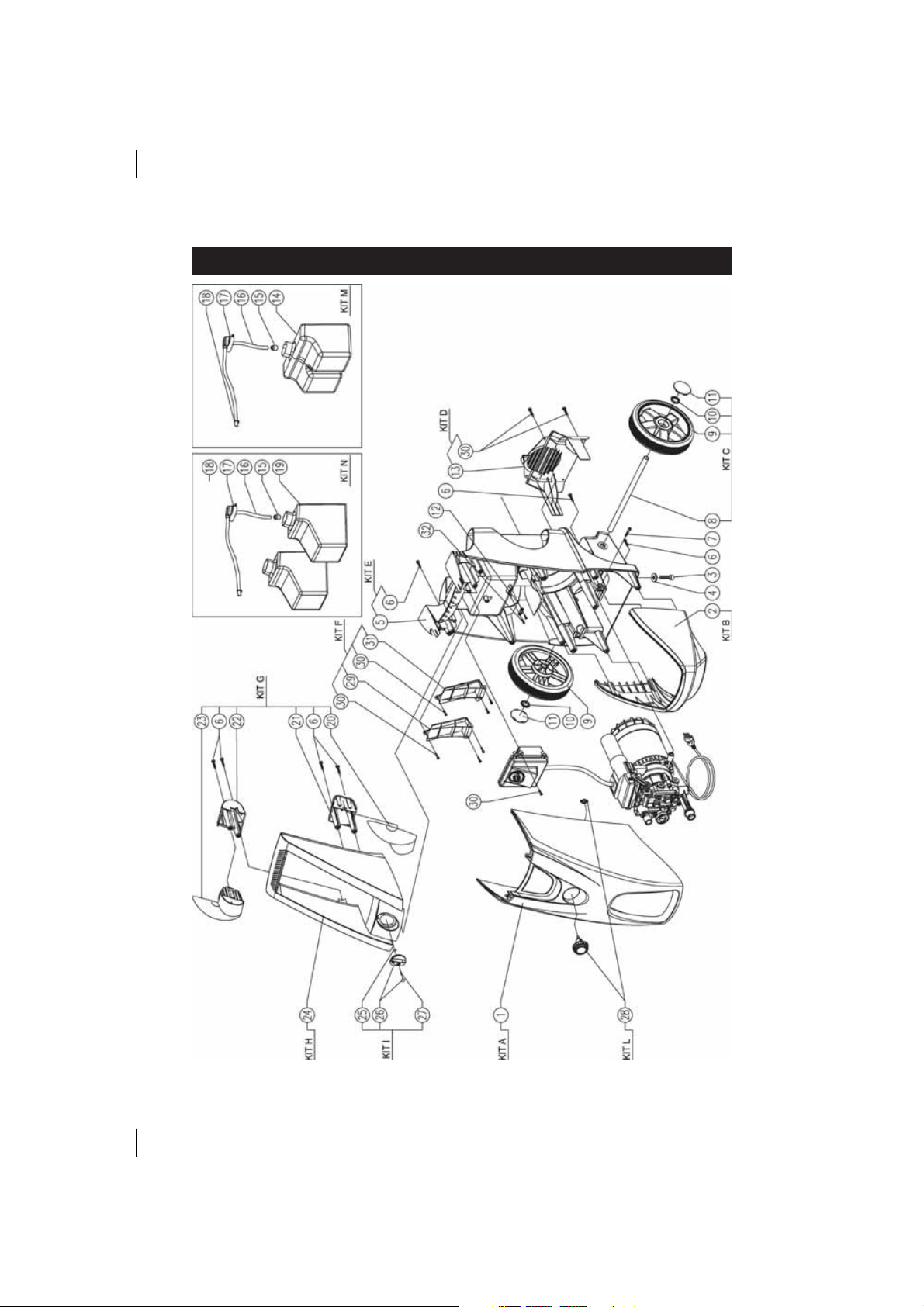

PARTS DIAGRAM - ELS145

12

PARTS LIST - ELS145

KIT NO. KIT ITEM DESCRIPTION QTY PART NO.

KTRI93635 A 1 Front Cover 1 MPVR92126

KTRI93502 B 2 Lower Front Cover 1 MPVR92120

B6 Screw 4 VTVT80745

KTRI93503 C 8 Axle 1 LAFN92146

C 9 Wheel 2 RTRT91967

C 10 Locking Washer 2 VTRS60945

C 11 End Cap 2 MPVR91970

KTRI93504 D 13 Motor Cover 1 MPVR92355

D30 Screw 4 VTVT67350

KTRI93505 E 5 Rear Cover 1 MPVR92122

E6 Screw 4 VTVT80745

KTRI93506 F 29 Small Cover RH 1 MPVR93244

F 30 Screw 6 VTVT67350

F 31 Small Cover LH 1 MPVR93245

KTRI93507 G 6 Screw 2 VTVT80745

G 20 Plastic Bracket - Cable/ Hose LH 1 MPVR92117

G 21 Plastic Bracket LH 1 MPVR92113

G 22 Plastic Bracket RH 1 MPVR92114

G 23 Plastic Bracket - Cable/ Hose RH 1 MPVR92116

KTRI93623 H 24 Handle Assembly 1 MPVR92477

KTRI93509 I 25 O-Ring 1 GUGO01060

I 26 ON/OFF Switch 1 MPVR91917

I27 Screw 1 VTVT92473

KTRI93524 L 28 Regulator Knob 1 RCGR93688

KTRI93525 M 15 Filter 1 MPVR60422

M 16 Plastic Tube 0.9 - TBBP04917

M 17 Filler Cap 1 MPVR91923

M 18 Connector 2 FSVR72803

M 19 Container 2 MPVR92131

3 Screw 1 VTVT29810

4 Washer 1 VTRS00512

6 Screw 2 VTVT80745

12 Clamp 1 MPVR60495

30 Screw 4 VTVT67350

32 Screw 2 VTVT62978

13

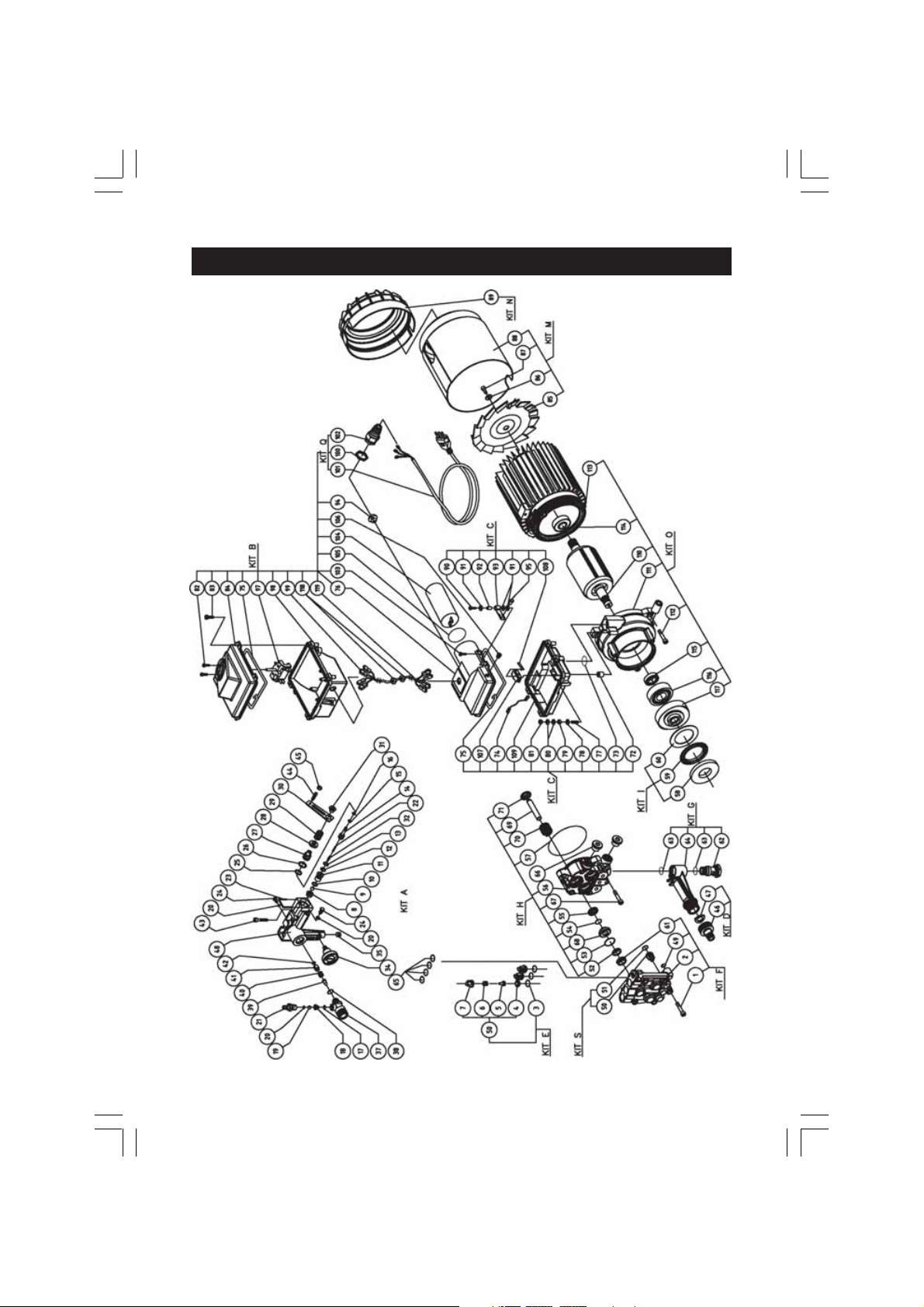

PUMP AND MOTOR PARTS - ELS145

14

PUMP AND MOTOR PARTS LIST - ELS 145

Please note that parts are available in kit form only

KIT Part No. Description Item Nos:

A KTRI93402 MANIFOLD KIT 8-32, 34, 35, 37-45,48 & 65

B KTRI93582 CONTROL BOARD KIT 75,76, 82-84, 94, 97-106, 118, & 119

C KTRI93404 CONTROL BOARD KIT 72, 73, 79-81, 90-93, 95, 107, 109

D KTRI82810 QUICK SOCKET KIT 46, 47

E KTRI82808 SMALL VALVE KIT 3-7, 50

F KTRI93991 HEAD KIT 1, 2, 49, 61

G KTRI93406 INTAKE CONNECT.KIT 62-64

H KTRI94268 CRANKCASE 53-57, 66-71

I KTRI82812 ROLLER BEARING KIT 58-60

M KTRI82834 CONVEYOR KIT 85-88

N KTRI93409 CONVEYOR KIT 89

O KTRI93408 MOTOR KIT 110-117

Q KTRI83880 CABLE KIT 100-102

S KTRI83170 SMALL VALVE KIT 50-51

PARTS & SERVICE CONTACTS

For Spare Parts and Service, please contact your nearest dealer,

or CLARKE International, on one of the following numbers.

PARTS & SERVICE TEL: [phone]

PARTS & SERVICE FAX: [phone]

or e-mail as follows:

PARTS: [e-mail]

SERVICE: [e-mail]

15

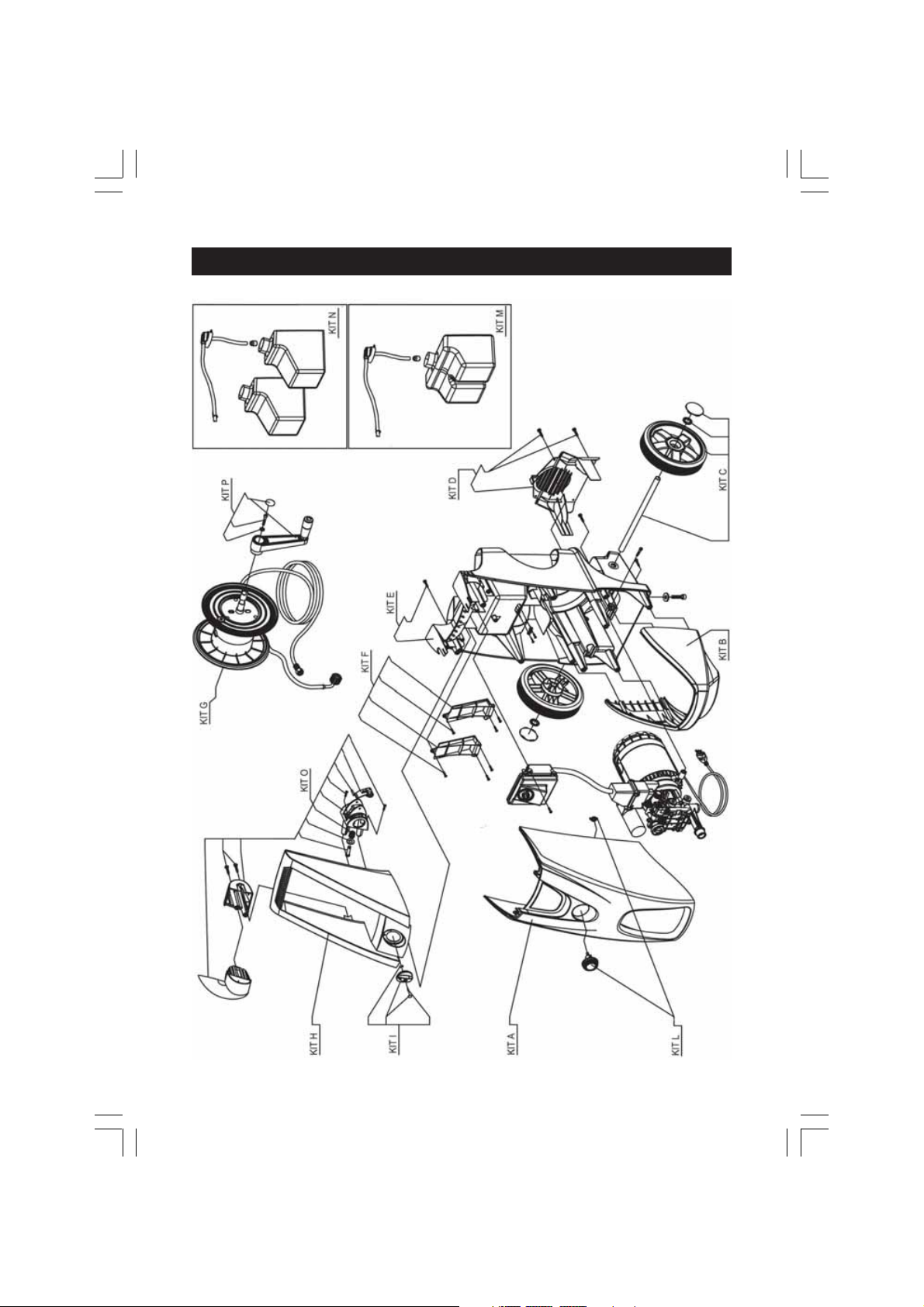

PARTS DIAGRAM - ELS145R - 160R

16

PARTS LIST - ELS145R - 160R

KIT NO: KIT ITEM DESCRIPTION QTY PART NO:

3 Screw 1 VTVT90541
3 Screw (ELS145R) 1 VTVT29810
4 Washer 1 VTRS63242
4 Screw (ELS145R) 1 VTRS00512
6 Screw 6 VTVT80745

7 Screw 2 VTVT01573
12 Clamp 1 MPVR60495
30 Screw 3 VTVT67350

KTRI93635 A 1 Front Cove 1 MPVR92126
KTRI93502 B 2 Lower Front Cover 1 MPVR92120

KTRI93503 C 8 Axle 1 LAFN92146

C 9 Wheel 2 RTRT91967
C 10 Locking Washer 2 VTRS60945
C 11 End Cap 2 MPVR91970

KTRI93504 D 13 Rear Motor Cover 1 MPVR92355

D 30 Screw 4 VTVT67350

KTRI93505 E 5 Rear Cover 1 MPVR92122

KTRI93506 F 29 Small Cover RH 1 MPVR93244

KTRI93526 G 37 Hose Reel Assembly 1 AVTB93807

G 37 Hose Reel Assembly (ELS145R) 1 AVTB93800
KTRI93623 H 24 Handle Assembly 1 MPVR92477
KTRI93509 I 25 O-Ring 1 GUGO01060

KTRI93524 L 28 Regulation Knob 1 RCGR93688
KTRI93525 N 15 Filter 1 MPVR60422

N 16 Plastic Tube 1.5 - TBBP04917

N 17 Filler Cap 2 MPVR91923

N 18 Connector 2 FSVR72803

N 19 Container 2 MPVR92131
KTRI93522 O 6 Screw 2 VTVT80745

O 6 Screw 2 VTVT80745

O 20 Clip 1 MPVR92108

O 21 Pin 1 VTVR92465

O 22 Plastic Bracket 1 MPVR92112

O 23 Cable Tidy 1 MPVR92116

O 33 Bracket 1 MPVR92118

O 34 Bolt 1 MLML92466

O 35 Valve 1 LAFN40163

O 36 Pin 1 RCDS92467
KTRI93527 P 39 Screw 1 VTVT67352

32 Screw 2 VTVT62978

B 6 Screw 4 VTVT80745

E 6 Screw 4 VTVT80745

F 30 Screw 6 VTVT67350
F 31 Small Cover LH 1 MPVR93245

I 26 ON/OFF Switch 1 MPVR91917
I 27 Screw 1 VTVT92473

P 39 Screw (ELS145R) 1 VTVT01573
P 14 Washer 1 VTRS63232
P 38 End Cap 1 MPVR92147

17

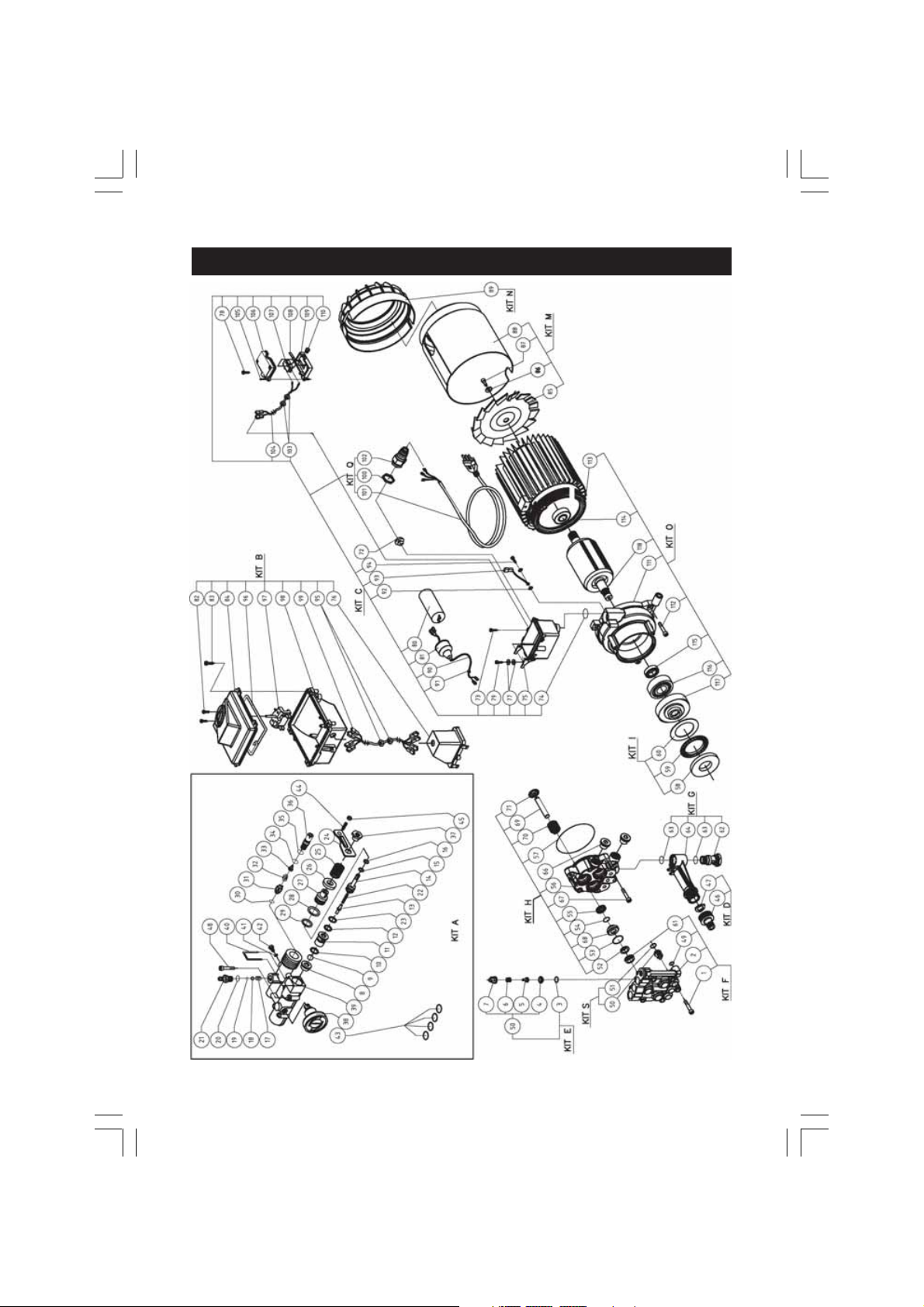

PUMP AND MOTOR PARTS - ELS145R & ELS160R

18

PUMP AND MOTOR PARTS LIST - ELS145R & 160R

Please note that parts are available in kit form only

ELS45R

Kit Part No. Description Item Nos:

A KTRI94076 MANIFOLD KIT 8-45, 48

B KTRI93529 CONTROL BOARD KIT 76, 82-84, 95-99

C KTRI93583 CONTROL BOARD KIT 72-81, 90-94, 100-107, 109-110

D KTRI82810 QUICK RELEASE COUPLING 46-47

E KTRI82808 VALVE KIT 3 -7, 50

F KTRI93991 HEAD KIT 1-2, 42, 60

G KTRI93406 INTAKE CONNECTION KIT 62-64

H KTRI94268 CRANKCASE 53-57, 66-71

I KTRI82812 ROLLER BEARING KIT 58-60

M KTRI82834 FAN & HOUSING 85-88

N KTRI93409 END COVER 89

O KTRI93408 MOTOR KIT 111-118

Q KTRI83880 CABLE KIT 100-0102

S KTRI83170 VALVE KIT 50-51

ELS160R

Kit Part No. Description Item Nos:

A KTRI93549 MANIFOLD 8-45, 48

B KTRI93529 CONTROL BOARD KIT 76 82-84, 95-98

C KTRI93996 CONTROL BOARD 72-75, 77-80, 91-94, 100-107, 109,110

D KTRI82810 QUICK RELEASE COUPLING 46, 47

E KTRI82808 VALVE KIT 3-7, 50

F KTRI93405 HEAD KIT 1-2, 49, 61

G KTRI93406 INTAKE CONNECTIOON KIT 62-64

H KTRI93407 CRANKCASE 53-57, 66-71

I KTRI82812 ROLLER BEARING KIT 58-60

M KTRI93544 FAN & HOUSING 85-86, 88

N KTRI93409 END COVER 89

K KTRI93545 MOTOR KIT 111-118

Q KTRI83880 CABLE KIT 100-102

S KTRI83170 VALVE KIT 50-51

19

ELS145 LANCE ELS145R & 160R LANCE

PARTS LIST

Item Description Part No.

1 Frame FPELS14001
2 Cover FPELS14002
3 ON/OFF switch box compl. FPELS14003
4 Motor w/Pump Assy. (ELS145) FPELS14004
4 Motor w/Pump Assy. (ELS160R) FPELS15004
5 Hydraulic cut out FPELS14005
6 High Press. Hose w/Gun assy. (ELS145) FPELS14006
6 High Press. Hose w/Gun assy. 10M (ELS145R/160R) FPELS140R06
6 High Press. Hose w/Gun assy. (ELS160) FPELS15006
7 Lance (ELS145 FPELS14007
7 Lance (ELS160) FPELS15007
8 Mains Cable complete FPELS14008
9 Hose Reel complete FPELS14009

10 Connecting Hose FPELS14010

20

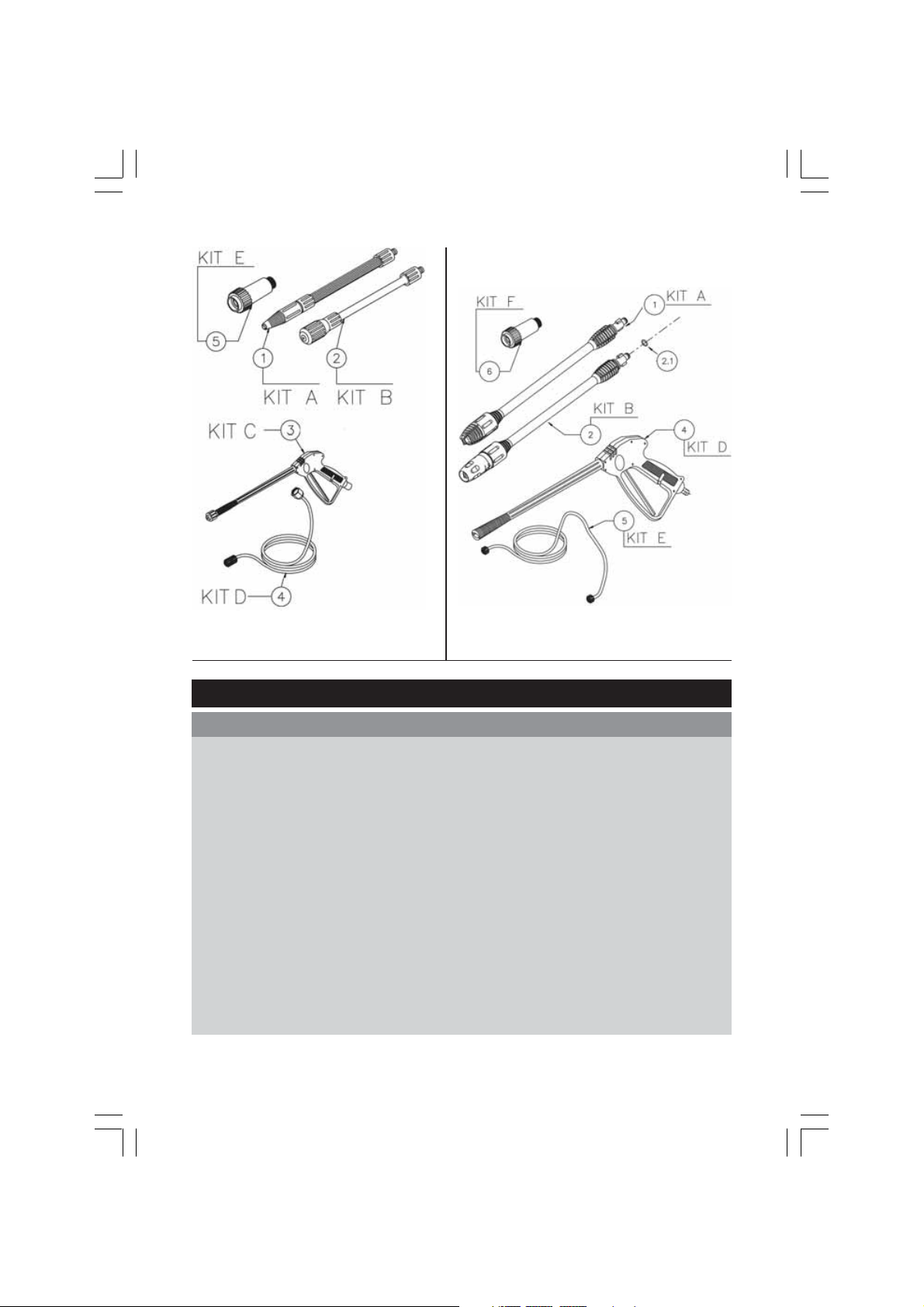

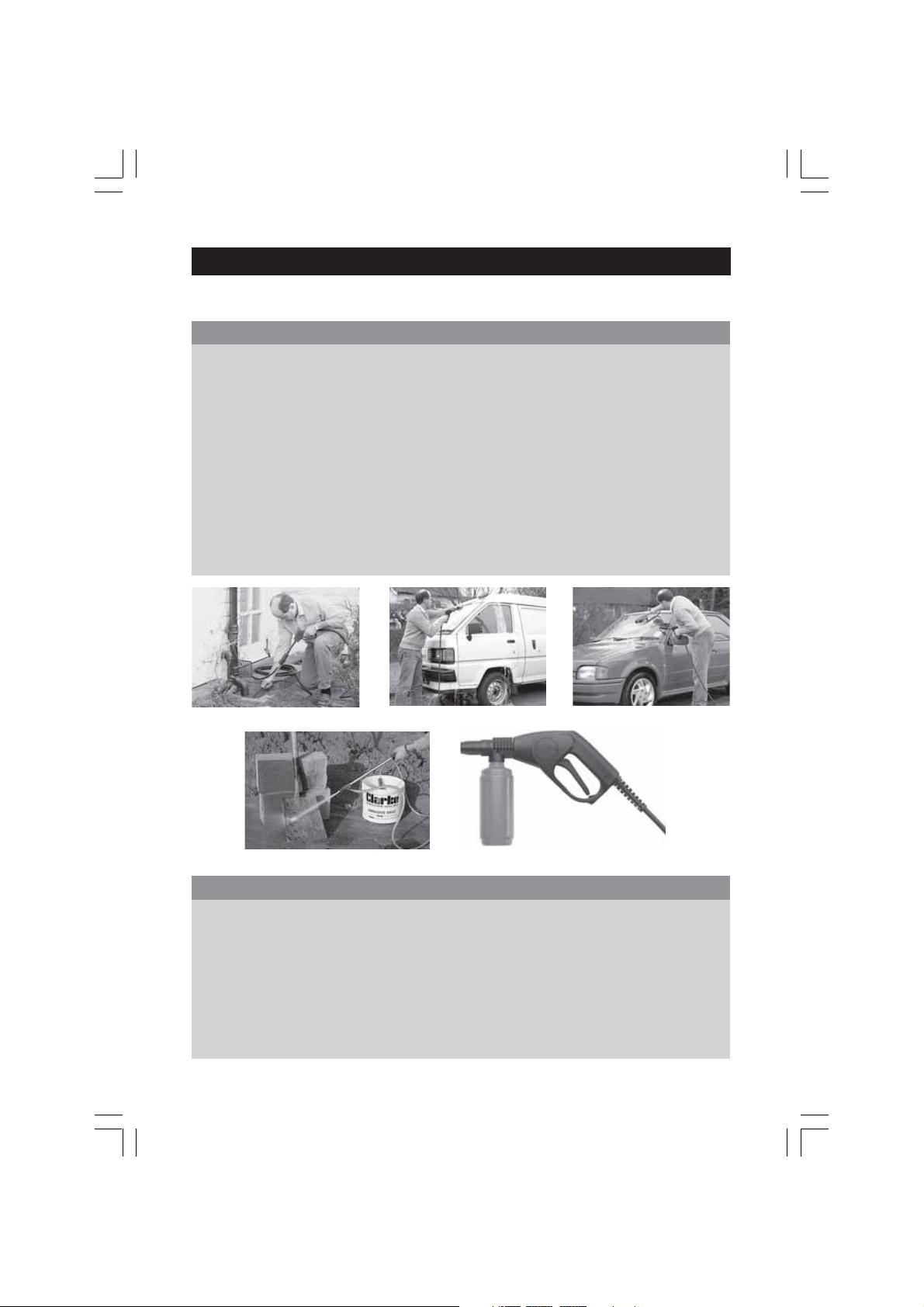

ACCESSORIES

A range of accessories designed for use with your washer are available from your CLARKE
dealer, as follows:

ELS145/145R

Rotary Brush ........................................................ 7310010

Turbo Nozzle ....................................................... 7310000

Car Brush ............................................................. 7310020

Water Sandblaster ............................................. 7310015

Drain Cleaner ..................................................... 7310025

Foam Lance with Detergent Bottle ................. 7310118

Traffic Film Remover 5 litre concentrate ......... 3050821

Traffic Film Remover 25 litre concentrate ....... 3050820

Wash ‘n Wax 5 litre ............................................. 3050815

Sand for Sandblaster ......................................... 7320005

Drain Cleaner Rotary Brush Car Brush

Part No.

ELS160R

Sand Blaster Foam Lance w/Detergent Bottle

Part No.

Rotary Brush ........................................................ 7310107

Water Sandblaster ............................................. 7310108

Drain Cleaner ..................................................... 7310109

Traffic Film Remover 5 litre ................................ 3050821

Traffic Film Remover 25 litre .............................. 3050820

Wash ‘n’ Wax 5 litre............................................ 3050815

Sand for Sandblaster ......................................... 7320005

21

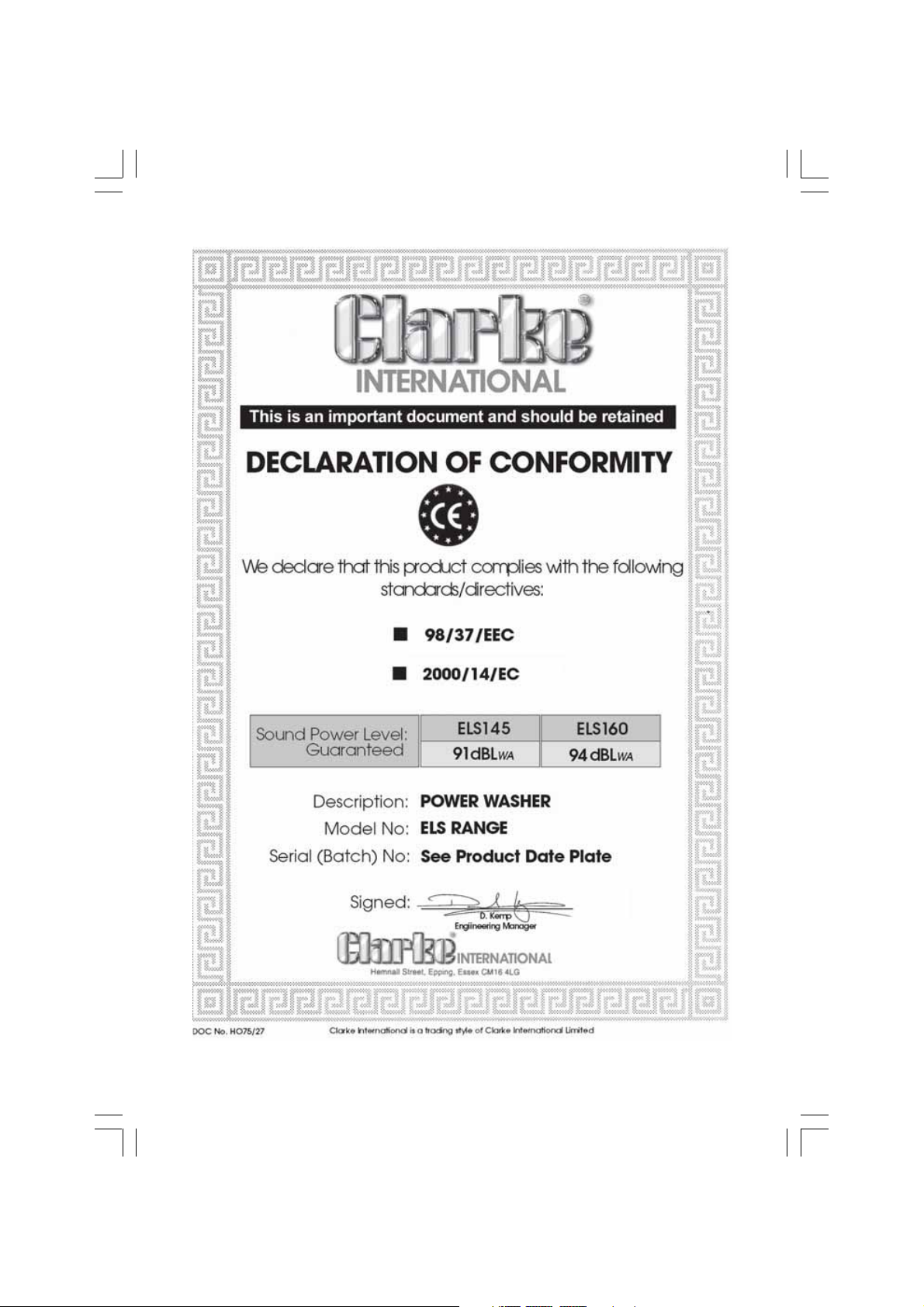

22
