Clarke DWS 180, 3400400 User guide

HAND HELD DRYWALL SANDER

MODEL NO: DWS180

PART NO: 3400400

OPERATION & MAINTENANCE

INSTRUCTIONS

DL0222 REV2

INTRODUCTION

Thank you for purchasing this CLARKE 180mm Hand Held Drywall Sander,
which is designed for drywall and ceiling sanding use only.

Read all safety warnings, instructions, illustrations and specifications provided
with this power tool. In doing so you will ensure the safety of yourself and that
of others around you, and you can look forward to your purchase giving you
long and satisfactory service. Failure to follow all instructions listed may result in
electric shock, fire and/or serious injury.

GUARANTEE

This product is guaranteed against faulty manufacture for a period of 12
months from the date of purchase. Please keep your receipt which will be
required as proof of purchase.

This guarantee is invalid if the product is found to have been abused or
tampered with in any way, or not used for the purpose for which it was
intended.

Faulty goods should be returned to their place of purchase, no product can
be returned to us without prior permission.

This guarantee does not effect your statutory rights.

ENVIRONMENTAL RECYCLING POLICY

Through purchase of this product, the customer is taking on the
obligation to deal with the WEEE in accordance with the WEEE
regulations in relation to the treatment, recycling & recovery and
environmentally sound disposal of the WEEE.

In effect, this means that this product must not be disposed of with general
household waste. It must be disposed of according to the laws governing
Waste Electrical and Electronic Equipment (WEEE) at a recognised disposal
facility.

2

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

SPECIFICATION

Electrical Supply 230V 50Hz 1 ph

Power rating 710 Watt

Fuse rating 13 Amp

No Load Speed (variable) 1200 - 2500 rpm

Net Weight 2.45 kg

Disc Sanding Size 190 mm

Sanding Discs Aluminium Oxide (P80, P100, P120, P150,

P180, P240)

Vibration Emissions

LED Light 3.8 Watt

IP Rating IP20

Dust Extract Diameter 32mm(Internal), 38mm(External)

Sound Power 88 dB Lwa (Uncertainty Factor, K: 3 dB)

4.09 m/s

2

/ uncertainty value (k) =1.5 m/s

SAFETY SYMBOLS

Read instruction
manual before use

Class 2 Double
Insulated

Wear dust mask

Wear ear defenders

2

WEEE Directive Wear safety glasses

3

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

SAFETY PRECAUTIONS

WARNING: READ ALL INSTRUCTIONS. FAILURE TO FOLLOW ALL
INSTRUCTIONS LISTED BELOW MAY RESULT IN ELECTRIC SHOCK, FIRE AND/
OR SERIOUS INJURY. THE TERM “POWER TOOL” IN ALL WARNINGS LISTED
BELOW REFERS TO YOUR HAND HELD DRYWALL SANDER.

1) WORK AREA SAFETY

a. Keep work area clean and well lit. Dark areas invite accidents.

b. Keep children and bystanders away while operating a power tool.

Distractions can cause you to lose control.

2) ELECTRICAL SAFETY

a. Power tool plugs must match the power outlet. NEVER modify the plug

in any way. DO NOT use any adapter plugs with earthed (grounded)
power tools. Unmodified plugs and matching power outlets will reduce
risk of electric shock.

b. Avoid body contact with earthed or grounded surfaces, such as pipes,

radiators, ranges and refrigerators. There is an increased risk of electric
shock if your body is earthed or grounded.

c. DO NOT expose power tools to rain or wet conditions. Water entering a

power tool will increase the risk of electric shock.

d. DO NOT abuse the cable. NEVER use the cable for carrying, pulling or

unplugging the power tool. Keep cable away from heat, oil, sharp
edges or moving parts. Damaged or entangled cables increase the risk
of electric shock.

e. When operating a power tool outdoors, use an extension lead suitable

for outdoor use. Use of a cable suitable for outdoor use reduces the risk
of electric shock.

f. If operating a power tool in a damp location is unavoidable, use a

residual current device (RCD) protected supply. Use of an RCD reduces
the risk of electric shock.

3) PERSONAL SAFETY

a. Stay alert, watch what you are doing and use common sense when

operating a power tool. DO NOT use a power tool while you are tired or
under the influence of drugs, alcohol or medication. A moment of
inattention while operating power tools may result in serious personal
injury.

b. Use personal protective equipment. ALWAYS wear eye protection.

Protective equipment such as dust mask, non-skid safety shoes, hard

4

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

hat, or hearing protection used for appropriate conditions will reduce
personal injuries.

c. Prevent unintentional starting. Ensure the trigger is in the off-position

before connecting to power source, picking up or carrying the tool.
Carrying power tools with your finger on the trigger or energising power
tools that have the switch on invites accidents.

d. Remove any adjusting key or wrench before turning the power tool on.

A wrench or a key left attached to a rotating part of the power tool
may result in personal injury.

e. DO NOT overreach. Keep proper footing and balance at all times. This

enables better control of the power tool in unexpected situations.

f. Dress properly. DO NOT wear loose clothing or jewellery. Keep your hair,

clothing and gloves away from moving parts. Loose clothes, jewellery or
long hair can be caught in moving parts.

g. If devices are provided for the connection of dust extraction and

collection facilities, ensure these are connected and properly used. Use
of dust collection can reduce dust-related hazards.

4) POWER TOOL USE AND CARE

a. DO NOT force the power tool. Use the correct power tool for your

application. The correct power tool will do the job better and safer at
the rate for which it was designed.

b. DO NOT use the power tool if the switch does not turn it on and off. Any

power tool that cannot be controlled with the switch is dangerous and
must be repaired.

c. Disconnect the plug from the power source before making any

adjustments, changing accessories, or storing power tools. Such
preventive safety measures reduce the risk of starting the power tool
accidentally.

d. Store idle power tools out of the reach of children and DO NOT allow

persons unfamiliar with the power tool or these instructions to operate
the power tool. Power tools are dangerous in the hands of untrained
users.

e. Maintain power tools. Check for misalignment or binding of moving

parts, breakage of parts and any other condition that may affect the
power tool's operation. If damaged, have the power tool repaired
before use. Many accidents are caused by poorly maintained power
tools.

f. Keep cutting tools sharp and clean. Properly maintained cutting tools

with sharp cutting edges are less likely to bind and are easier to control.

g. Use the power tool, and accessories in accordance with these

instructions, taking into account the working conditions and the work to

5

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

be performed. Use of the power tool for operations different from those
intended could result in a hazardous situation.

5) SERVICE

a. Have your power tool serviced by a qualified repair person using only

identical replacement parts. This will ensure that the safety of the power
tool is maintained.

6) DUST EXTRACTION

a) The drywall sander is provided with a dust extraction facility. Please
note however, that this does not preclude the user from wearing a face
mask to prevent the inhalation of dust particles. All safety wear must be
worn.

SAFETY INSTRUCTIONS FOR KICKBACK

WARNING: KICKBACK IS A SUDDEN REACTION TO A PINCHED OR
SNAGGED ROTATING WHEEL, BACKING PAD, BRUSH OR ANY OTHER
ACCESSORY. PINCHING OR SNAGGING CAUSES RAPID STALLING OF THE
ROTATING ACCESSORY WHICH IN TURN CAUSES THE UNCONTROLLED
POWER TOOL TO BE FORCED IN THE DIRECTION OPPOSITE OF THE
ACCESSORY'S ROTATION AT THE POINT OF THE BINDING.

WARNING: KICKBACK IS THE RESULT OF POWER TOOL MISUSE AND/OR
INCORRECT OPERATING PROCEDURES OR CONDITIONS AND CAN BE
AVOIDED BY TAKING PROPER PRECAUTIONS AS GIVEN BELOW.

1. Maintain a firm grip on the power tool and position your body and arm to
allow you to resist kickback forces. Always use the auxiliary handle, if
provided, for maximum control over kickback or torque reaction during
start-up. The operator can control torque reactions or kickback forces, if
proper precautions are taken.

2. NEVER place your hand near the sanding pad. It may kickback over your
hand.

3. DO NOT position your body in the area where power tool will move if
kickback occurs. Kickback will propel the tool in the direction opposite to
the sanding pads movement at the point of snagging.

4. Use special care when working corners, sharp edges etc. Avoid bouncing
and snagging the sanding pad. Corners, sharp edges or bouncing have a
tendency to snag the rotating accessory and cause loss of control or
kickback.

6

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

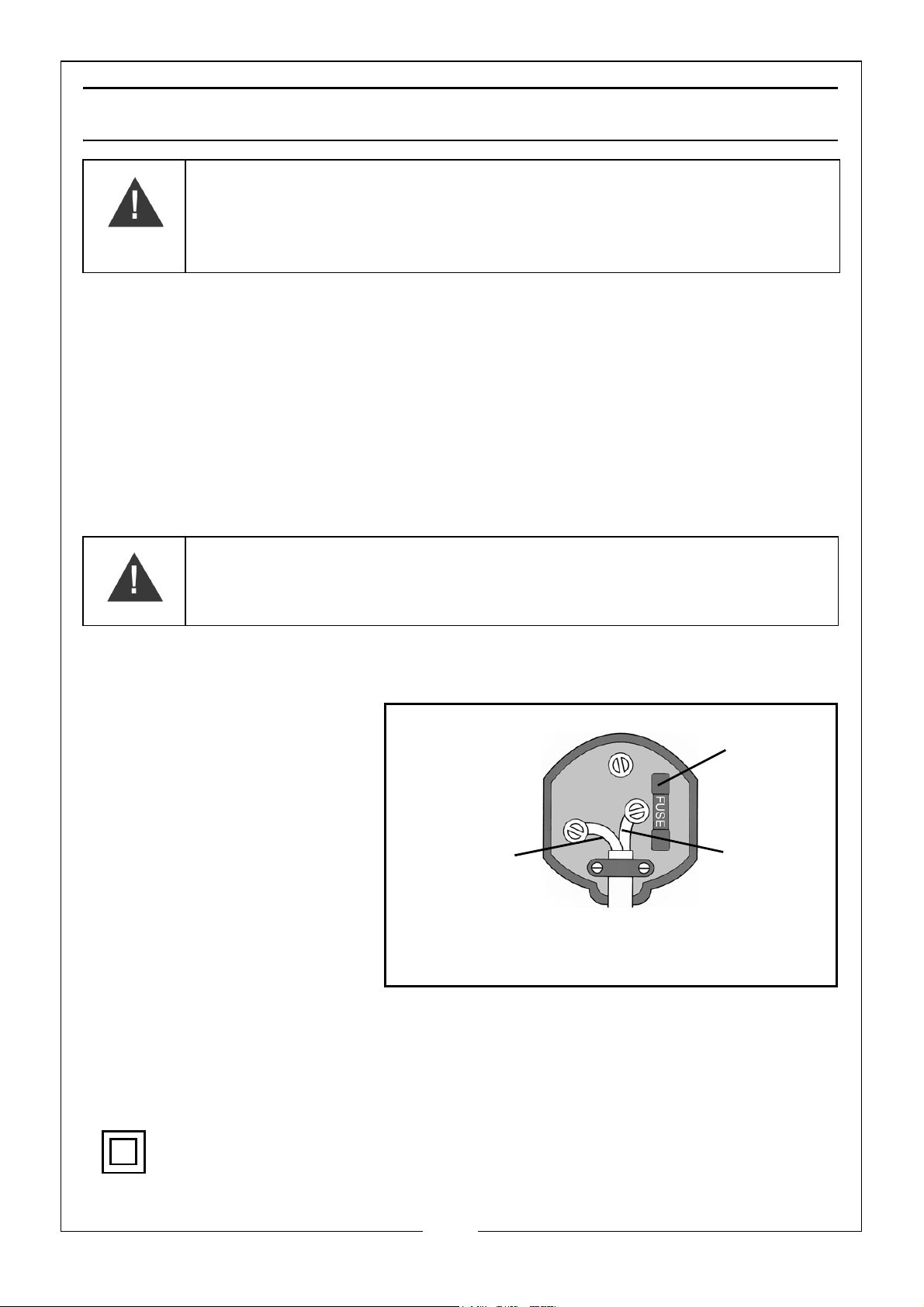

ELECTRICAL CONNECTIONS

Plug must be BS1363/A approved.

Always fit

Ensure that the outer sheath of

Neutral

(Blue)

Live

(Brown)

a 13 Amp

the cable is firmly held by the clamp

fuse

WARNING: READ THESE ELECTRICAL SAFETY INSTRUCTIONS
THOROUGHLY BEFORE CONNECTING THE PRODUCT TO THE MAINS
SUPPLY.

Before switching the product on, make sure that the voltage of your electricity
supply is the same as that indicated on the rating plate. Connecting it to any
other power source may cause damage.

If it is necessary to change the fuse in the plug, the fuse cover must be refitted.
If the fuse cover becomes lost or damaged, the plug must not be used until a
suitable replacement is obtained.

If the plug has to be changed due to damage, a replacement should be
fitted, following the wiring instructions shown below. The old plug must be
disposed of as insertion into a mains socket could cause an electrical hazard.

WARNING: THE WIRES IN THE POWER CABLE OF THIS PRODUCT ARE
COLOURED IN ACCORDANCE WITH THE FOLLOWING CODE:
BLUE = NEUTRAL BROWN = LIVE

If the colours of the wires in the power cable of this product do not correspond
with the markings on the terminals of your plug, proceed as follows.

•The Blue coloured wire

must be connected to
the terminal which is
marked N or coloured
Black.

•The Brown coloured

wire must be
connected to the
terminal which is
marked L or coloured

Red.

We strongly recommend that
this machine is connected to the mains supply via a Residual Current Device
(RCD)

If in any doubt, consult a qualified electrician. DO NOT attempt any repairs
yourself.

This symbol indicates that this is a Class II product, and does not require
an earth connection.

7

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

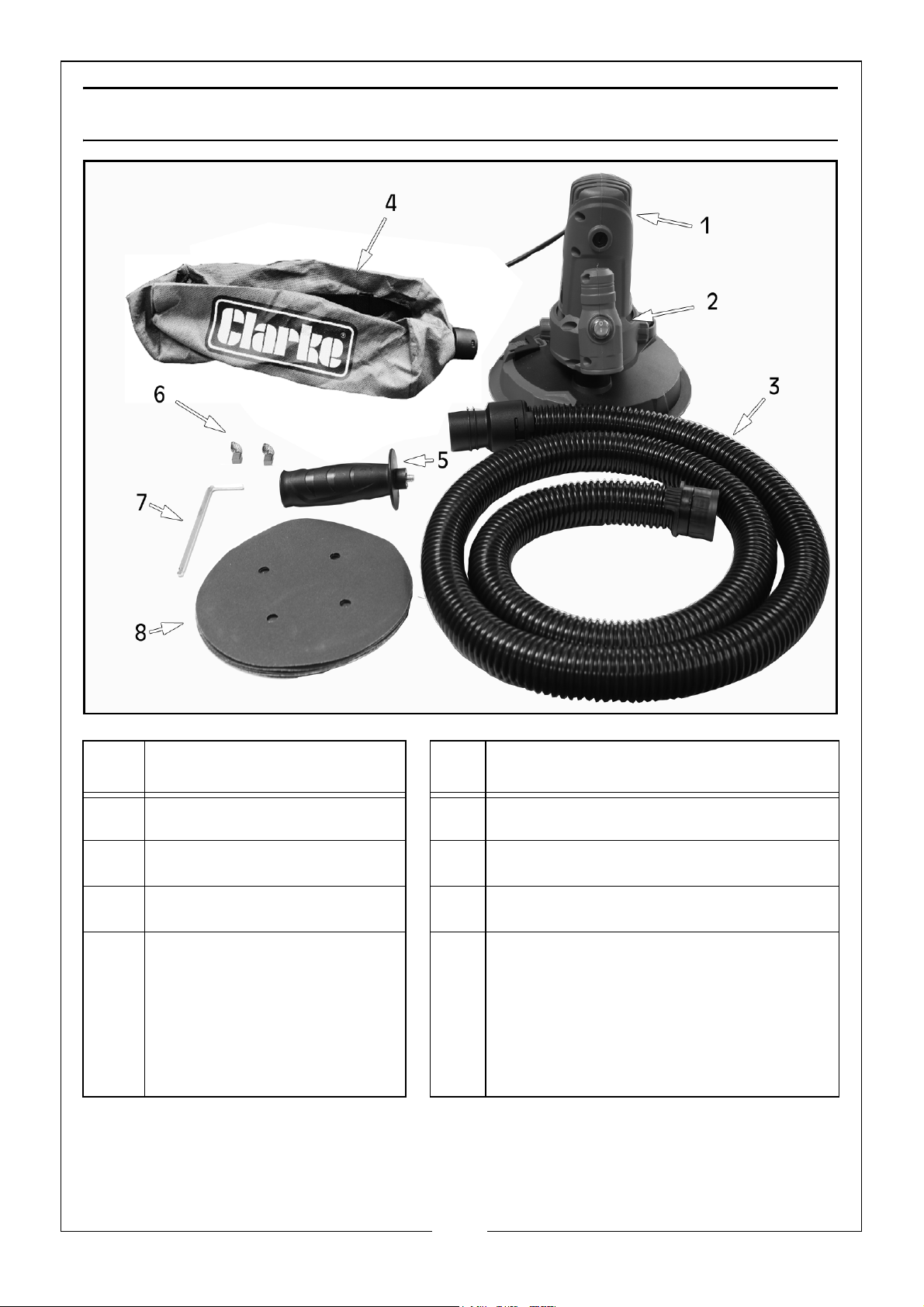

PRODUCT OVERVIEW

NO DESCRIPTION NO DESCRIPTION

1 Sander 5 Auxiliary Handle

2 LED Light 6 2 x Carbon Brushes

3 2m Dust Extraction Hose 7 S5 Allen Key

4 Dust Bag 8 1 x P80 sanding disc

1 x P100 sanding disc
1 x P120 sanding disc
1 x P150 sanding disc
1 x P180 sanding disc
1 x P240 sanding disc

8

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

PREPARATION AND USE

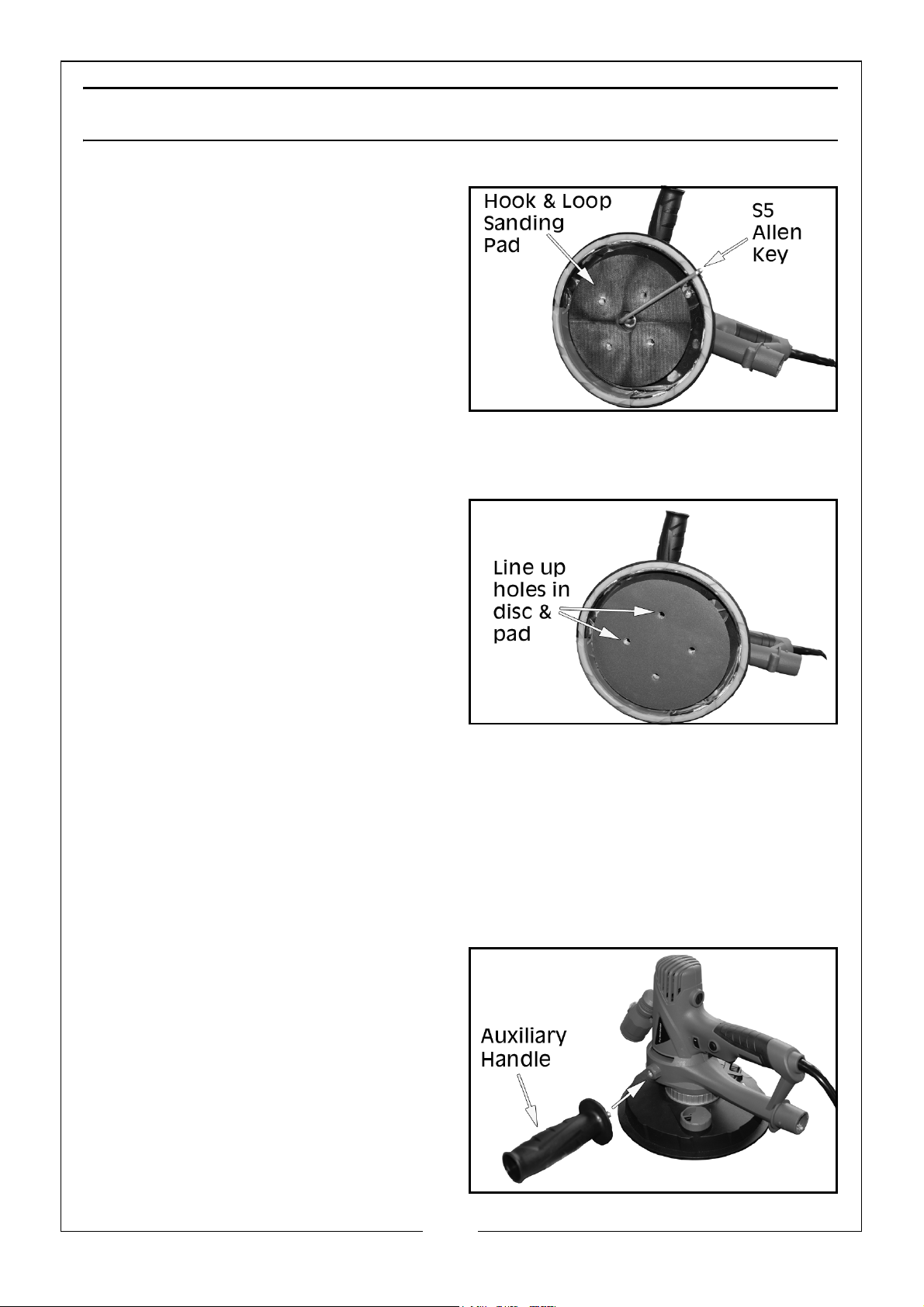

FITTING A SANDING PAD

1. Ensure the sander is switched off
and the plug is removed from the
socket.

2. Remove the sanding disc.

3. Place the allen key in the
hexagon hole in the centre of the
sanding pad and rotate
clockwise to remove disc

4. Place replacement sanding pad and tighten allen key anticlockwise.

FITTING THE SANDING DISC

1. Ensure the sander is switched off
and the plug is removed from the
socket.

2. Select the sanding disc to be
used.

• This MUST be the correct 4 hole

190mm diameter disc with
hook and loop backing.

3. Line up the holes in the disc with those on the sanding pad.

• This is necessary for dust extraction purposes.

4. Press the disc firmly onto the pad to secure it using the hook & loop
backing.

FITTING THE AUXILIARY HANDLE

1. Screw handle into the side of the
sander, as shown.

2. There are equivalent screw holes
on both sides of the sander,
depending on personal grip
preferences.

9

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

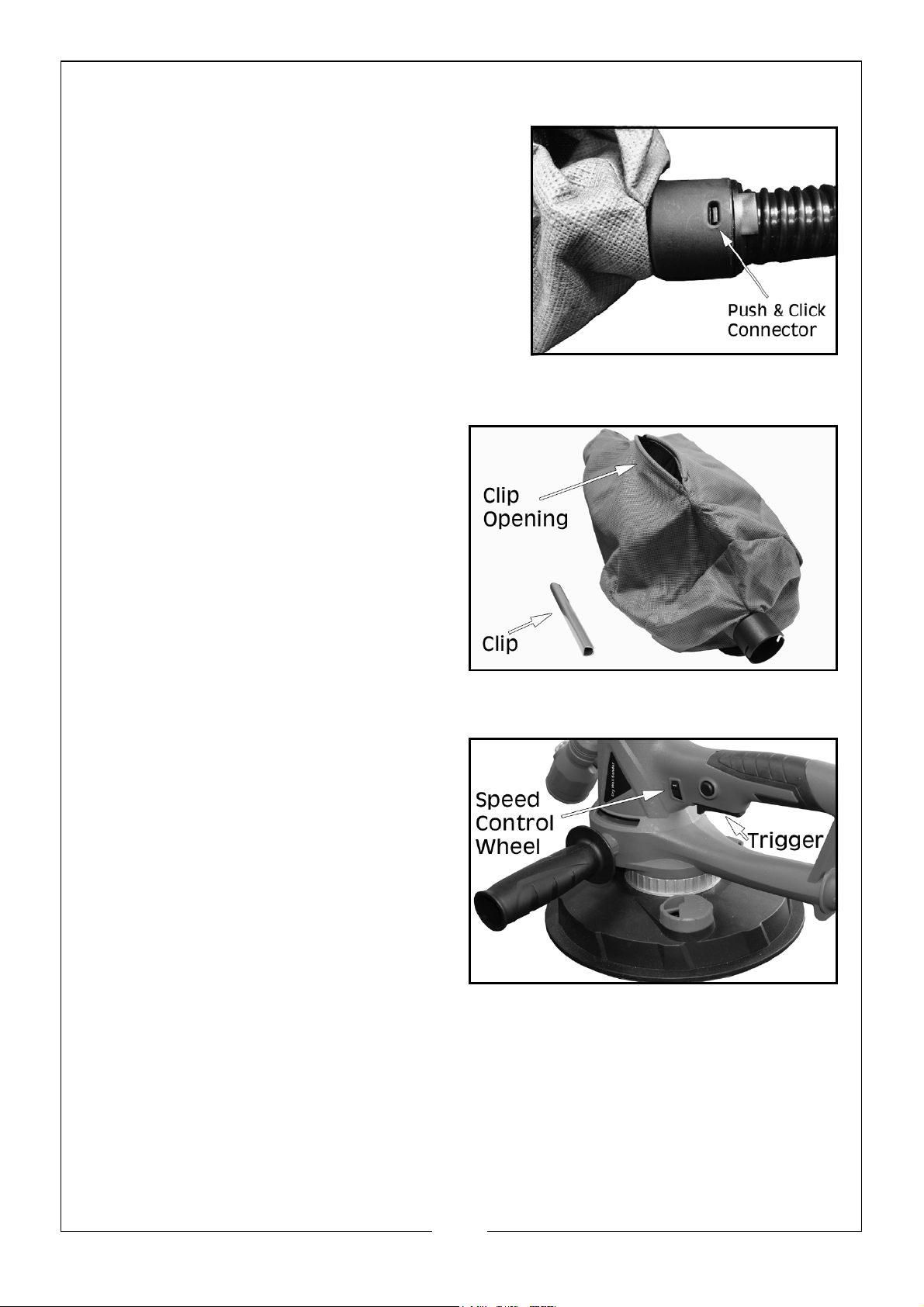

DUST COLLECTION

1. Ensure the sander is switched off.

2. Connect hose onto the dust extract port
on the underside of the sander trigger
handle.

3. Connect opposite end of hose onto dust
collection bag.

NOTE: The dust bag must be emptied

regularly:- do not wait until it is
completely full.

The dust bag is emptied as follows.

1. Ensure the sander is switched off.

2. Gently squeeze the push & click
connector to remove the dust
bag from the hose.

3. Take the dust bag to the dustbin
and slide the clip off the bag,
empty the bag into the bin.

4. Reassemble the dust bag and clip
and fit back on to the hose.

OPERATION

1. Plug into the mains socket and
switch on,

2. Set speed of sander, see page 11

3. Place the sanding disc on the
workpiece.

• Hold the sander firmly with both

hands.

4. Squeeze the trigger.

• Allow to get up to speed

before working gently across the workpiece until smooth.

5. Release the trigger.

• Wait until the motor has stopped fully before putting the sander

down.

10

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

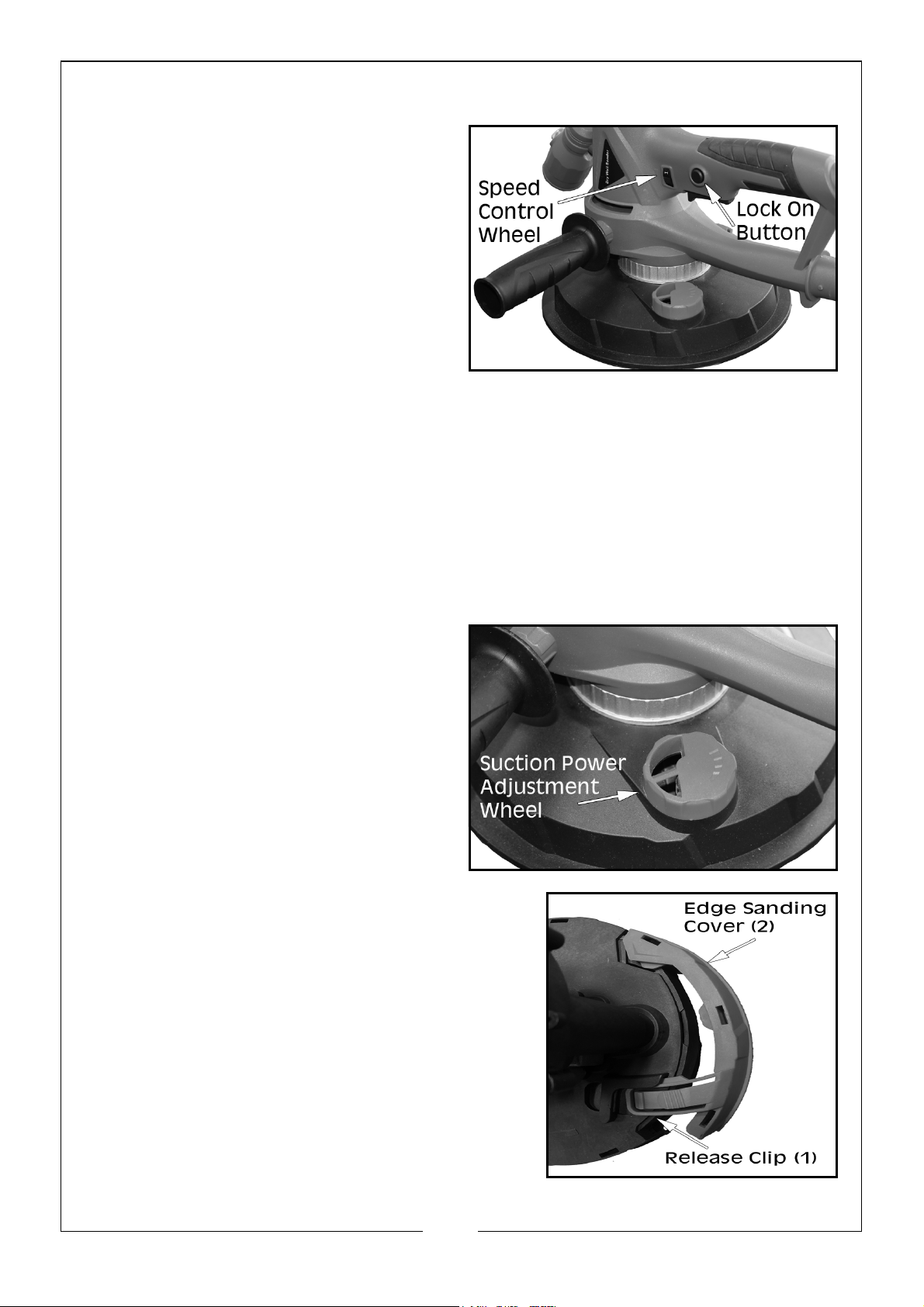

SPEED CONTROL SETTINGS

To control the speed, turn the knob
located on the trigger in the direction
marked.

1 = 1200 rpm

2 = 1500 rpm

3 = 1800 rpm

4 = 2100 rpm

5 = 2500 rpm

LOCK ON FEATURE

For continuous sanding:

1. Squeeze the trigger and then press the LOCK ON button.

• The sander will continue to run even if the trigger is released.

2. To release the lock on feature, squeeze the trigger again.

SUCTION POWER ADJUSTMENT

1. Turn the suction power adjustment
wheel to suit, based on the
sanders speed setting

• The faster the sander speed,

the more open the suction
power adjustment wheel
should be.

EDGE/CORNER SANDING

If there is a need to sand edges or corners of
walls.

1. Press down on the release clip

2. Pull edge sanding cover away from main
sander body

This will give access to 1/4 of the sanding disc
edge for rounding edges and corners.

11

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

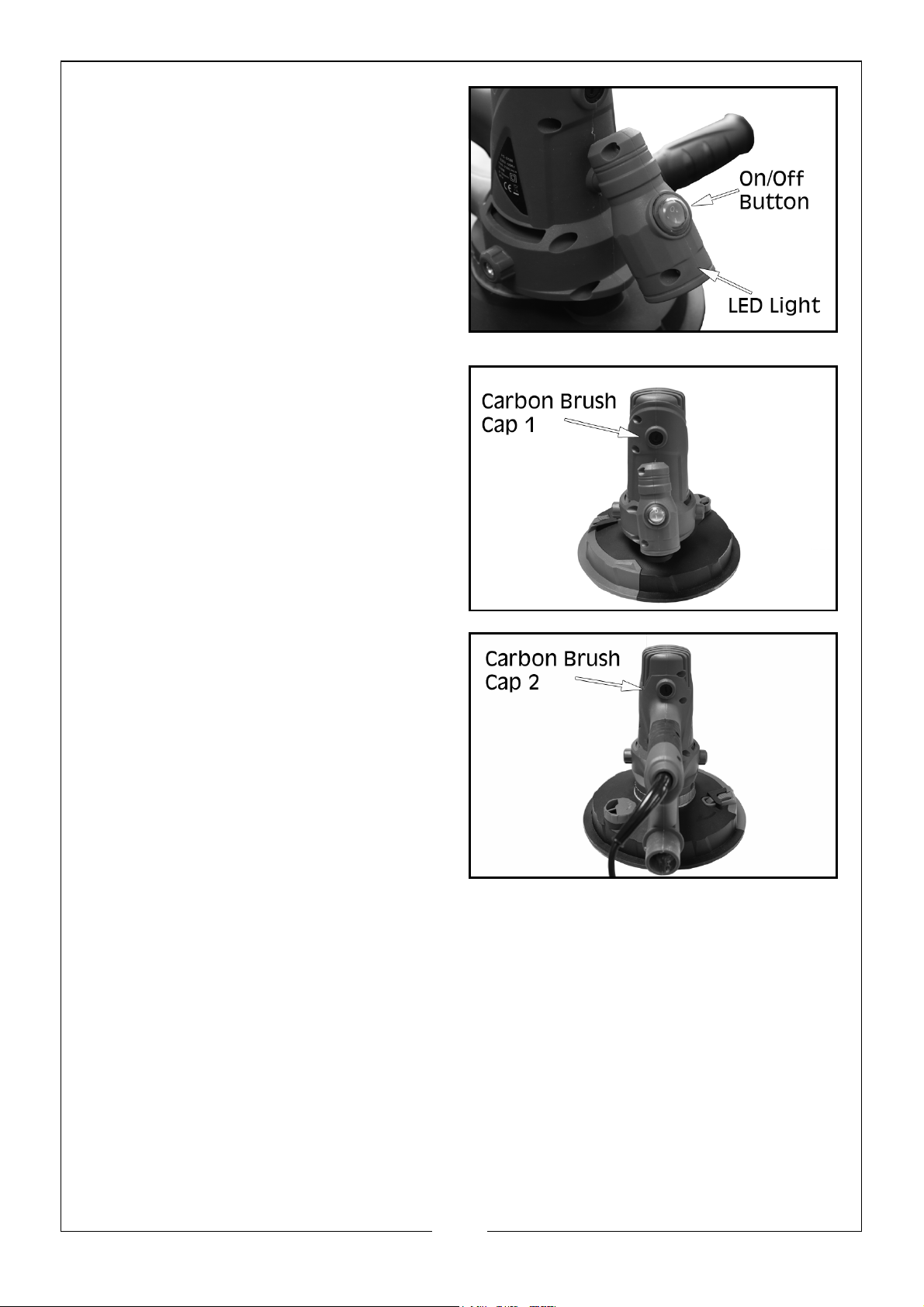

LED LIGHT

1. Adjust light to appropriate angle

2. The light has an independent On/
Off button.

REPLACING CARBON BRUSHES

Both carbon brushes need replacing
once either have less than 6mm
length of carbon remaining.

1. Ensure the sander is switched off
and the plug is removed from the
socket.

2. Unscrew the plastic caps (1&2)
found towards the rear of the
motor housing on both sides. Be
careful as the caps are spring
loaded.

3. Withdraw the brush with its spring.

4. If replacement is necessary,
renew the brush and replace the
cap.

5. Ensure the cap screws back freely

12

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

MAINTENANCE

MAINTENANCE

• ALWAYS inspect the sander before use and ensure it is in working

condition.

• Ensure all air vents are clear. (Use vacuum cleaner to clean the

machine where possible).

• Check the power cable to ensure it is sound and free from cracks,

bare wires etc. Avoid using solvents when cleaning plastic parts,
(most plastics are susceptible to damage from the various types of
commercial solvents).

13

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

TROUBLESHOOTING

PROBLEM CAUSE REMEDY

Sander is
overheating.

Excessive
Sparking.

Sander does
not switch
on.

Dust is not
extracted.

The machine is blocked
with dust.

Worn brushes. This problem is easily remedied but

Blown fuse in plug.
Faulty power supply

The dust bag is full or the
dust extractor flue is
blocked.

Clean the ventilation holes.
Wipe the exterior with a dry cloth.

you should consult your CLARKE
dealer for parts and advice.

Check power supply. If the fuse is
sound or blows repeatedly, consult
your CLARKE dealer.

Remove and empty the bag, also
clear any blockage.

14

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

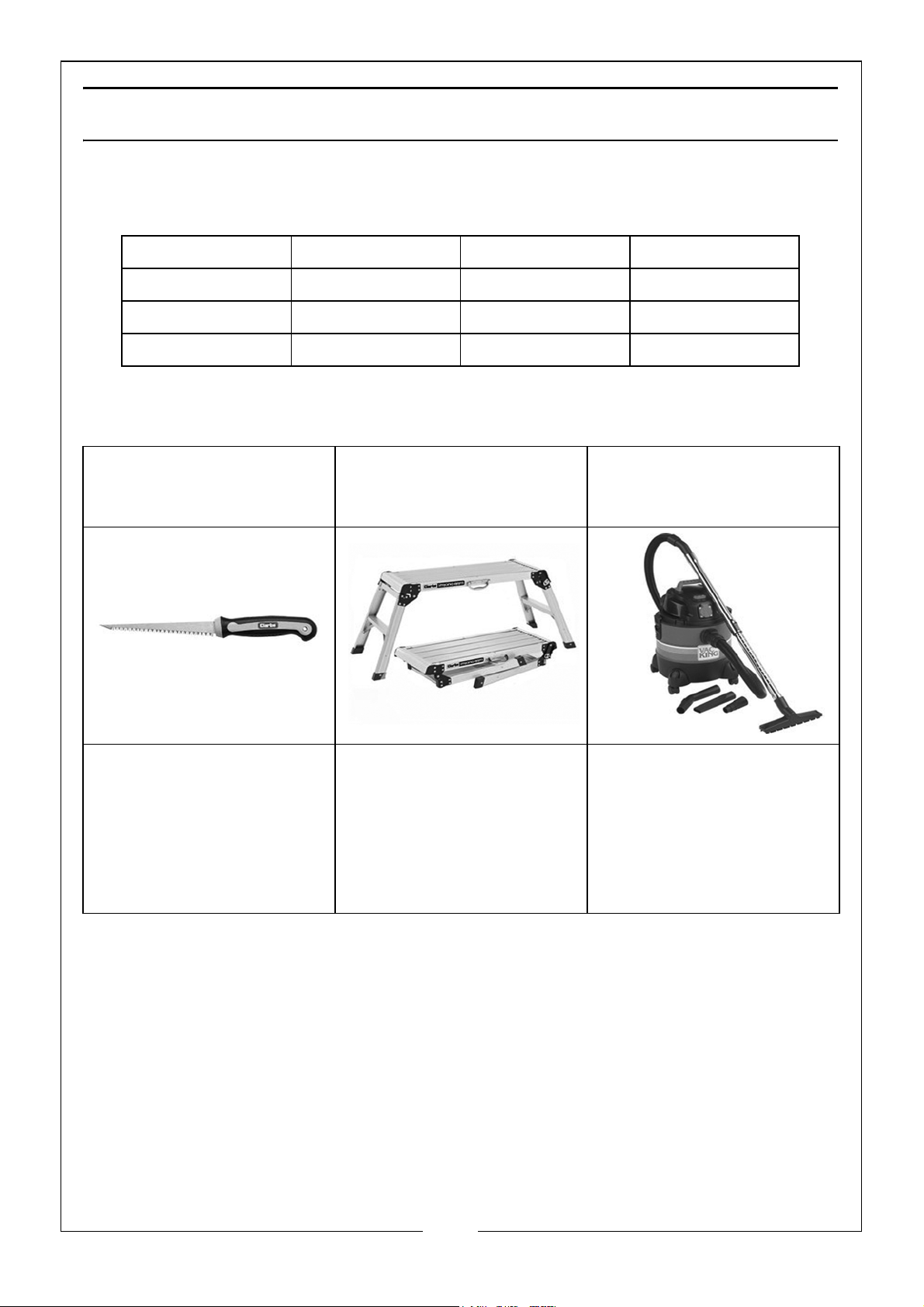

REPLACEMENT DISCS & ACCESSORIES

REPLACEMENT DISCS

GRIT SIZE PART NUMBER GRIT SIZE PART NUMBER

P60 (Pack of 5) 6502146 P150 (Pack of 5) 6502149

P80 (Pack of 5) 6502147 P180 (Pack of 5) 6502150

P120 (Pack of 5) 6502148 P240 9Pack of 5) 6502151

ACCESSORIES

6 1/2” Wall & Plaster
Board Saw - CHT525

•170mm, 8 TPI Blade

•Tapered blade &
comfort grip handle

•Part No. 1801525

Multipurpose Aluminium

Work Platform - AWP-2

•Max Safe working
Load: 150kg

•Dimensions (LWH):
1100mm x 415mm x
490mm

•Part No. 3500890

Vac King Wet & Dry

Vac u u m Cleane r -

CVAC20PR2

•Powerful 1400W, 230V
Motor

•Dry Capacity 13L, Wet
Capacity 10L

•Part No. 6471127

15

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

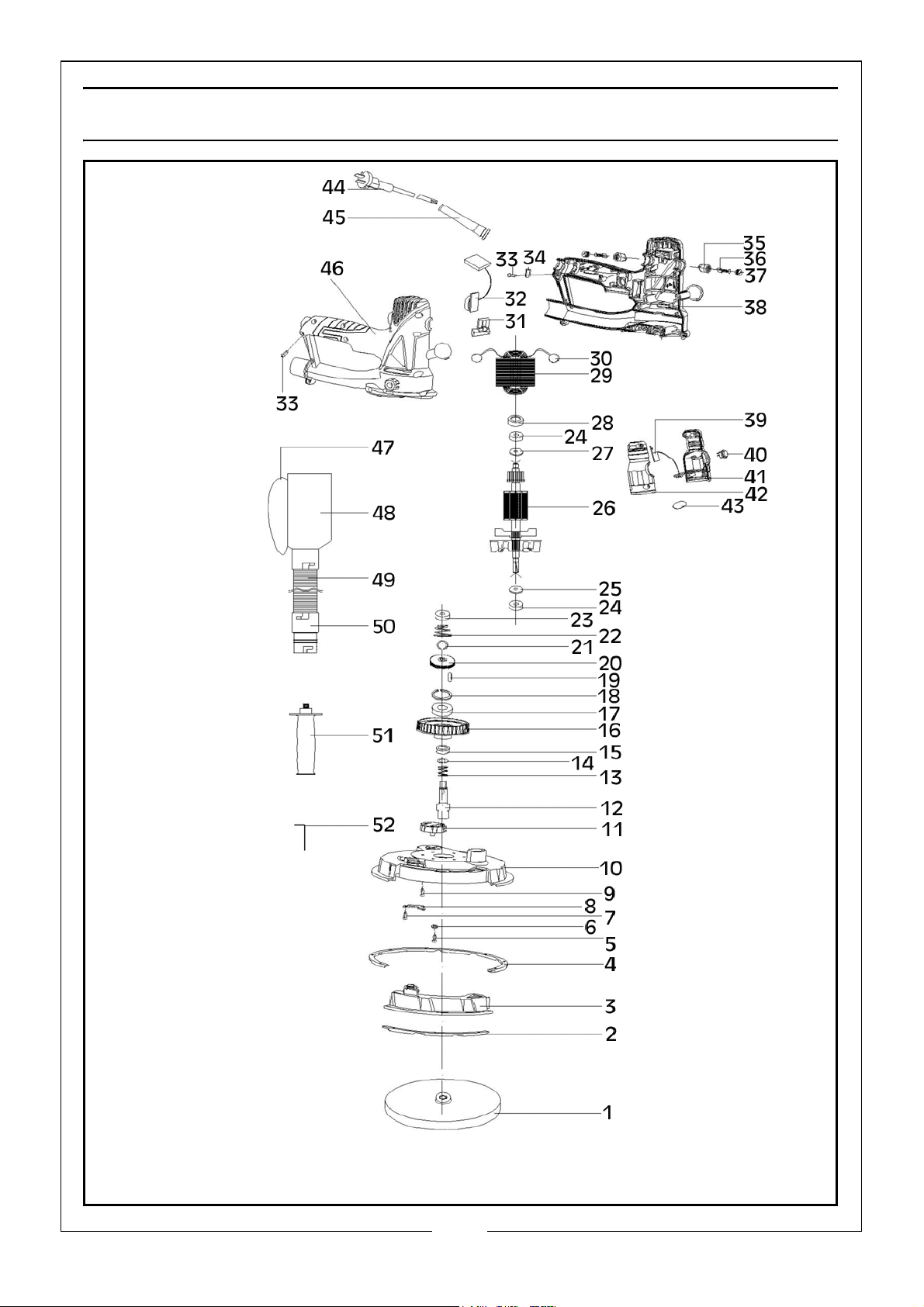

PARTS DIAGRAM

16

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

PARTS LIST

ID DESCRIPTION ID DESCRIPTION

01 Hook & Loop Disc 180 27 O15 x O8 x 0.5 Gasket

02 Small Half Circle Wearing Ring 28 608 Bearing Cover

03 Side Cover 29 Stator

04 Big Half Circle Wearing Ring 30 Tension Spring

05 ST4 x 10 with Cushion 31 Master Switch

06 M4 Spacer 32 Governor

07 ST3 x 10 with Sharp End and

Cushion

08 Bonnet 34 Tension Disc

09 BT4 * 25 Self Tapping Screw 35 Brush Holder

10 Disc Cover 36 Carbon Brush

11 Suction Regulating Wheel 37 Carbon Brush Cover

12 Output Shaft 38 Left Motor Housing

13 Coil Spring 39 0.33Uf LED Circuit Board

14 O18 x O10 x 0.2 Gasket 40 Light On/Off Switch

15 O24.2 x O18 x 3 Oil Seal 41 Left LED Light Housing

16 Aluminium Front Cover 42 Right LED Light Housing

17 DU6000 Bearing 43 LED Light Lense

18 O26 Clamp Spring for Hole 44 Cable Assembly

19 3 x 3 x 8 Square Key 45 Cable Protective Sleeve

20 Big Gear Wheel 46 Right Motor Housing

33 BT4 x 14 Self Tapping Screw

21 O10 Steel Cable Baffle Ring 47 Dust Bag Carrying Strap

22 Conical Spring 48 Dust Bag

23 608-2Z Bearing 49 Dust Extraction Hose

24 608-2RS Bearing 50 Dust Extraction Hose Connector

25 O20 x O10 x 5 Oil Seal 51 Auxiliary Handle

26 Armature 52 S5 Hexagon Allen Key

When requesting spare parts, please quote the reference DWS180 followed by
the number listed.

17

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

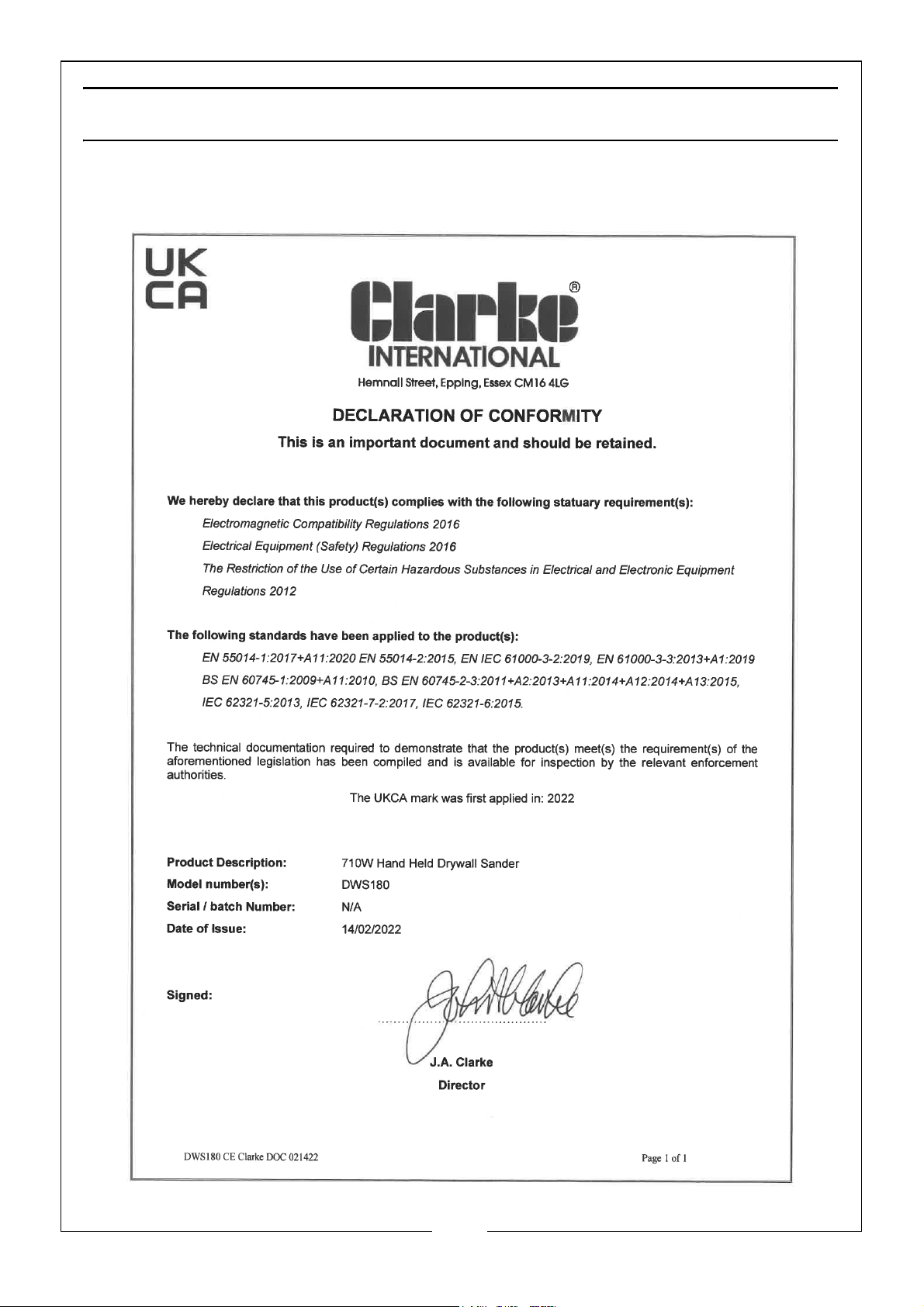

DECLARATION OF CONFORMITY - UKCA

18

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

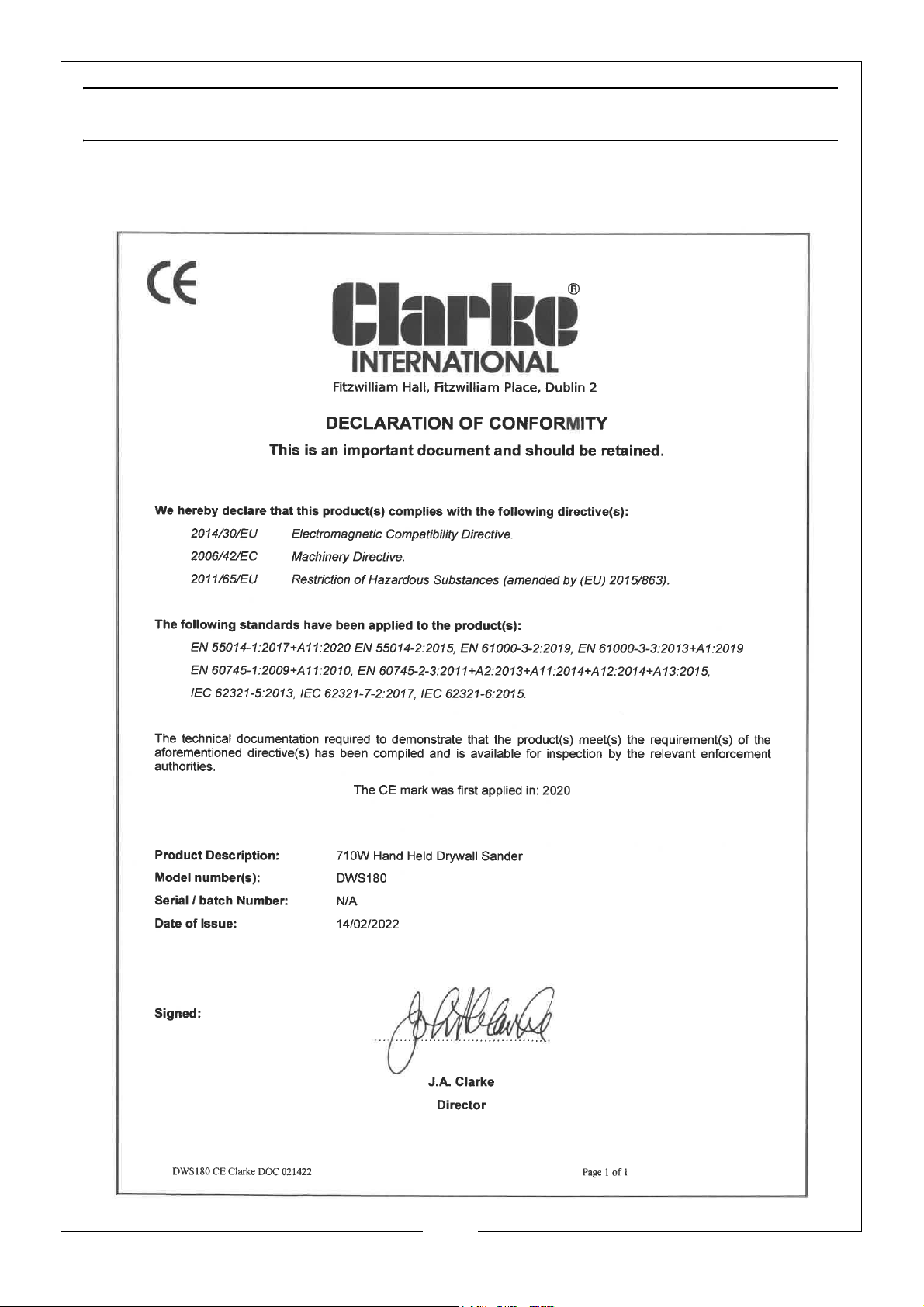

DECLARATION OF CONFORMITY - CE

19

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
