Page 1
ENGINE DRIVEN 2” DIESEL PUMP
MODEL NO: DW50
PART NO: 7230170
FULL PARTS LIST AND DIAGRAMS
LS0817 ISS 1
Page 2
EXPLODED DIAGRAMS AND PARTS LIST
FIG 1 - CRANKCASE ASSEMBLY
NUMBER DESCRIPTION PART NUMBER
1 SEAL PLUG M16×16 ZG1102600510001
2 WASHER Ø16.5×Ø22.5×1.8 ZG3804508300001
3 CRANKCASE ZG1108102080001
4 PIN 8×16 ZG3806001690001
5 OLL FILLER CAP ASSEMBLY, ZG1106900510001
6 BEARING 6203 ZG3806300020001
7 SEAL ZG3808407920001
8 OIL SEAL 35×52×7 ZG3806503370001
9 BEARING PLATE ZG1302400040001
10 FLANGE BOLT, M8×16 ZG380140040000
2
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 3
FIG 2 - CRANKCASE COVER
NUMBER DESCRIPTION PART NUMBER
1 FLANGE BOLT, M8×35 ZG3801400510005
2 OIL SEAL 30×46×8 ZG3806503360001
3 SEAL PLUG 1/8-27NPTF ZG1102600530001
4 OIL FILLER ASSEMBLY ZG1502900210001
5 OLL FILLER CAP ASSEMBLY ZG1106900510001
6 BOLT M12×16 ZG3800702880001
7 WASHER Ø12×Ø20×2 ZG3804505160001
8 COMPRESS SPRING ZG3811505140001
9 BALL ZG3806400160001
10 CRANKCASE COVER ZG1108200640001
11 OIL PUMP ZG1500100680001
12 BEARING 6203 ZG3806300020001
13 PIPE INLET OIL ZG3807801230001
14 OIL PUMP PLATE ZG1500400290001
15 FLANGE BOLT, M6×20 ZG3801400030005
16 GOVERNOR GEAR ASSEMBLY ZG1717500180001
17 CRANKCASE GASKET, COVER ZG1108300420001
3
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 4
FIG 3 - CYLINDER HEAD ASSEMBLY
NUMBER DESCRIPTION PART NUMBER
1 FLANGE BOLT, M6×25 ZG3801401020004
2 CYLINDER HEAD COVER COMP ZG1202200400001
3 CYLINDER GASKET, HEAD COVER ZG1202500310001
4 HEAD BOLT, M10×1.25×90 ZG3801405960001
5 CYLINDER HEAD COMP ZG1200805280001
6 CYLINDER GASKET ZG1201501530001
CYLINDER GASKET ZG1201501900001
CYLINDER GASKET ZG1201501910001
7 PIN 4×12 ZG3806001670001
8 FLANGE BOLT, M8×20 ZG3801400040004
9 LIFTING EYE ZG1205500050001
4
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 5
FIG 4 - CONNECTING RODS AND CRANKSHAFT
NUMBER DESCRIPTION PART NUMBER
1 RING SET ZG1300701380001
2 PISTON PIN CLIP ZG3805600920001
3 PISTON ZG1300301570001
4 PISTON PIN ZG1300600580001
5 CONN ROD ASSEMBLY ZG1301500830001
6 CRANK PIN SHELL ZG1102800070001
7 CRANKSHAFT COMP.(A) ZG1302904520001
8 BALANCE SHAFT ZG1304300180001
9 WASHER Ø13×Ø38×3.5 ZG3804507020001
10 BOLT M12×12.5×35 ZG3801404570001
5
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 6
FIG 5 - VALVE TRAIN
NUMBER DESCRIPTION PART NUMBER
1 INTAKE ROCKER ARM ASSEMBLY ZG1404500420001
2 EXHAUST ROCKER ARM ASSEMBLY ZG1404500430001
3 VALVE CAP EXHAUST ZG1403200070001
4 SEAT, VALVE ZG1403800360001
5 VALVE LOCK CLAMP ZG1403900260001
6 VALVE SPRING ZG1403400350001
7 VALVE STEM SEAL ZG1404000220001
8 VALVE SEAT BOTTOM ZG1403600140001
9 VALVE KIT ZG5005500400001
10 CAMSHAFT COMP ZG1400201450001
11 GUIDE VALVE PLATE ZG1407200080001
12 PUSH ROD COMP ZG1406700240001
13 TAPPET VALVE ZG1406900200001
6
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 7
FIG 6 - PULLSTART ASSEMBLY
NUMBER DESCRIPTION PART NUMBER
1 FAN ZG1601800270001
2 FAN PLATE ZG6608800020001
3 CUP STARTER ZG1935900190001
4 WASHER Ø13×Ø38×3.5 ZG3804507020001
5 BOLT M12×12.5×35 ZG3801404570001
6 SEAL ZG3808407580001
7 PULLSTART ASSEMBLY ZG1934901560001
8 WASHER Ø6×Ø18×1.2 ZG3804508280001
9 FLANGE BOLT, M6×30 ZG3801400950005
10 FLYWHEEL ZG2700202270001
7
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 8
FIG 7 - AIR CLEANER
NUMBER DESCRIPTION PART NUMBER
1 STUD M8×47 ZG3801801490001
2 GASKET ZG1830000010001
3 AIR CLEANER ASSEMBLY ZG1800205340001
4 PAPER ELEMENTS ZG1801302170001
5 NUT M8 ZG3803700740002
8
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 9
FIG 8 - MUFFLER
NUMBER DESCRIPTION PART NUMBER
1 FLANGE BOLT, M6×25 ZG3801401020004
2 WASHER Ø6×Ø18×1.2 ZG3804508280001
3 AIR CONDUCTION COVER ZG1601900510001
4 NUT M8 ZG3803400050005
5 STUD M8×34 ZG3801800980001
6 MUFFLER GASKET ZG1806600640001
7 FLANGE BOLT, M8×20 ZG3801400040004
8 MUFFLER ZG1805712990001
9
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 10
FIG 9 - FUEL SYSTEM
NUMBER DESCRIPTION PART NUMBER
1 FUEL FILTER ZG1700100300001
2 FUEL SEAL ZG6603100190001
3 CAP ZG1708700890001
4 FUEL TANK ZG1705008000001
5 FUEL TAP SEAL ZG1710200320001
6 FUEL TAP ASSEMBLY ZG1709800920001
7 FLANGE NUT, M6 ZG3803700660001
8 LATHE DOG COMP.Ø13 ZG3809601980001
9 TUBE ZG3807504860001
10 FLANGE BOLT, M8×20 ZG3801400040004
11 FUEL TANK BRACKET ZG3015600170001
12 RUBBER BUSH ZG1707001410001
13 SEAL PLUG M12×1.25×14 ZG1102600560001
14 WASHER Ø12.5×Ø20×2 ZG3804509160001
10
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 11
15 HOSE CLIP ZG3809601700002
16 TUBE ZG3807504870001
17 STUD M6×54 ZG3801801380001
18 PLATE INJECTOR ZG1741800010001
19 INJECTOR ZG1730100040001
20 WASHER Ø8×Ø16.5×0.5 ZG3804508290001
21 TUBE ZG3807504710001
22 STUD M6×38 ZG3801801370001
23 STUD M6×38 ZG3801801450001
24 FUEL PUMPPLATE ZG1741600010001
25 FUEL PUMP GASKET ZG1741700010001
26 FUEL PUMP ZG1741300010001
27 FUEL PUMP GASKET ZG1741400010001
FUEL PUMP GASKET ZG1741400010002
FUEL PUMP GASKET ZG1741400010003
28 FUEL FILTER ZG1707200100001
29 FUEL TANK SUPPORT ZG3015600160001
30 FLANGE BOLT, M8×40 ZG3801400050006
11
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 12
FIG 10 - GOVERNOR SYSTEM
NUMBER DESCRIPTION PART NUMBER
1 FLANGE BOLT, M6×14 ZG3801402150003
2 KNOB CONTROL ZG171340029T270
3 NON- METAL HEXAGON NUTS M6 ZG3803500080001
4 CONTROL ASSEMBLY ZG1715800190001
5 FUEL STOP ASSEMBLY ZG1742300010001
6 TORSIONAL SPRING ZG3811601500001
7 SPRING ZG3811404780001
8 GOVERNOR SPRING ZG1716000420001
9 OIL SEAL 8×14×5 ZG3806503770001
10 WASHER Ø8.5×Ø15.8×2 ZG3804505920001
11 FORK ZG1945300050001
12
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 13

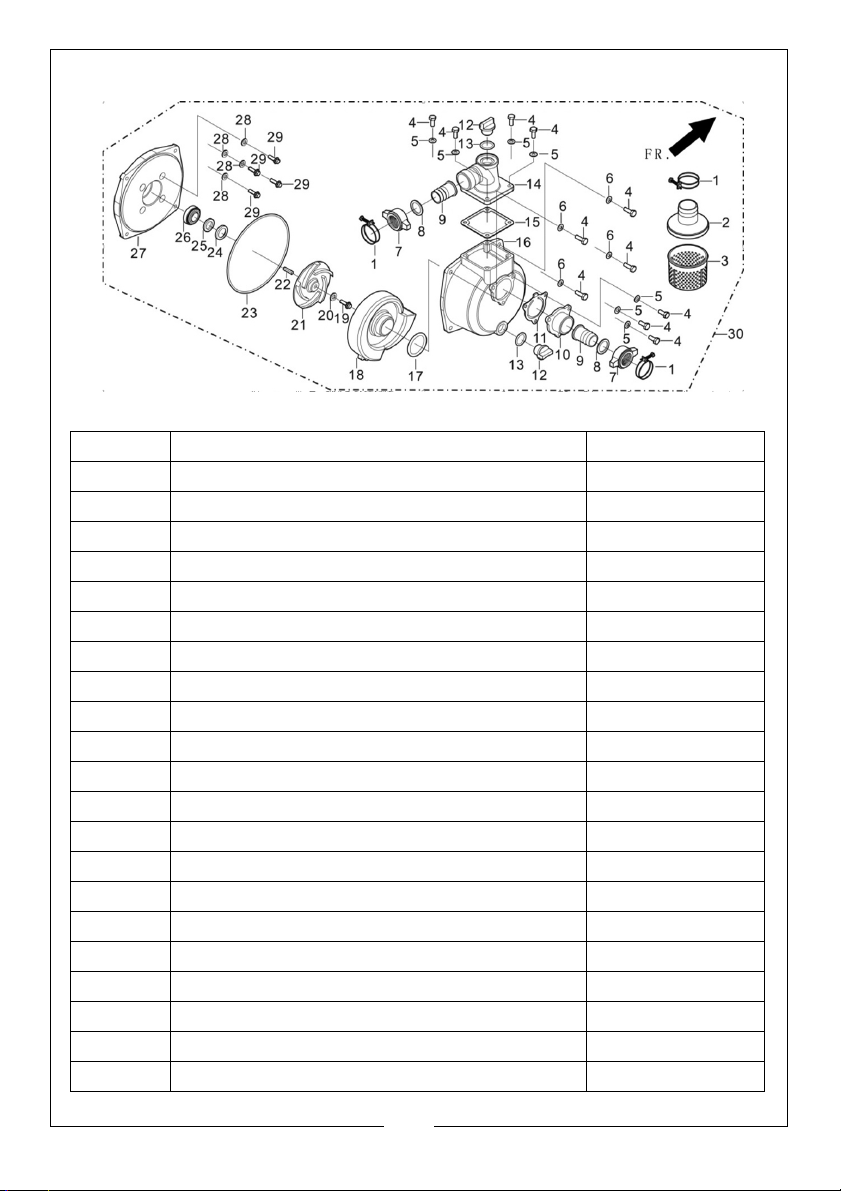

FIG 11 - PUMP
NUMBER DESCRIPTION PART NUMBER
1 HOOP ASSY, HOSE ZG70400V010110
2 COVER, FILTER ZG70113V010110
3 FILTER ZG70114V010110
4 BOLT ZG90001082501
5 WASHER ZG90409V010110
6 WASHER ZG90408080001
7 PIPE CONNECTING FLANGE ZG70115V010110
8 JOINT WASHER ZG70118V010110
9 CONNECTOR ZG70117V010110
10 INLET, WATER ZG70116V010210
11 GASKET? INLET WATER ZG70109V010110
12 PLUG, THREAD ZG70107V010110
13 WASHER, SCREW PLUG ZG70122V010110
14 OUTLET? WATER ZG70108V010210
15 GASKET? OUTLET ZG70109V010110
16 PUMP BODY ZG70105V010110
17 RIGN?WHORL CASE SEALING ZG70104V010110
18 CASE, WHORL ZG70103V010110
19 BOLT ZG90001V010110
20 WASHER ZG90409V010110
21 IMPELLER, WATER PUMP ZG70102V010210
13
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 14
22 KEY ZG90522V010110
23 CUSHION, WATER PUMP JOINT ZG70119V010110
24 IMPELLER SEAL ZG70125V010110
25 SEAL,PORCELAIN ZG70309V010110
26 SEAL ASSY, MECHANISM ZG70300V010110
27 JOINT, WATER PUMP ZG70118V010210
28 WASHER ZG90409V010110
28 BOLT ZG90001V010210
30 PUMP ASSY, WATER ZG70100V011410
14
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 15
FIG 12 - FRAME
NUMBER DESCRIPTION PART NUMBER
1 FRAME COMPLETE ZG3007204230001
2 RIGHT BOTTOM RUBBER,L=15 ZG3007900060001
3 RIGHT BOTTOM RUBBER ZG3007900020001
4 FLANGE NUT ZG3803700070004
5 FLANGE BOLT ZG3801401260004
6 RUBBER SETTING ZG3008000350001
7 BRACKET ZG3462800050001
8 FLANGE BOLT ZG3801400400005
9 FLANGE NUT ZG3803700770001
10 PROTECTIVE DIAPHRAGM ZG3803700120003
15
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
