Clarke DMD 66, 6470645 User guide

DEHUMIDIFIER

DEHUMIDIFIER

MODEL NO: DMD66

PART No: 6470636

OPERATION & MAINTENANCE

INSTRUCTIONS

0807

2

11

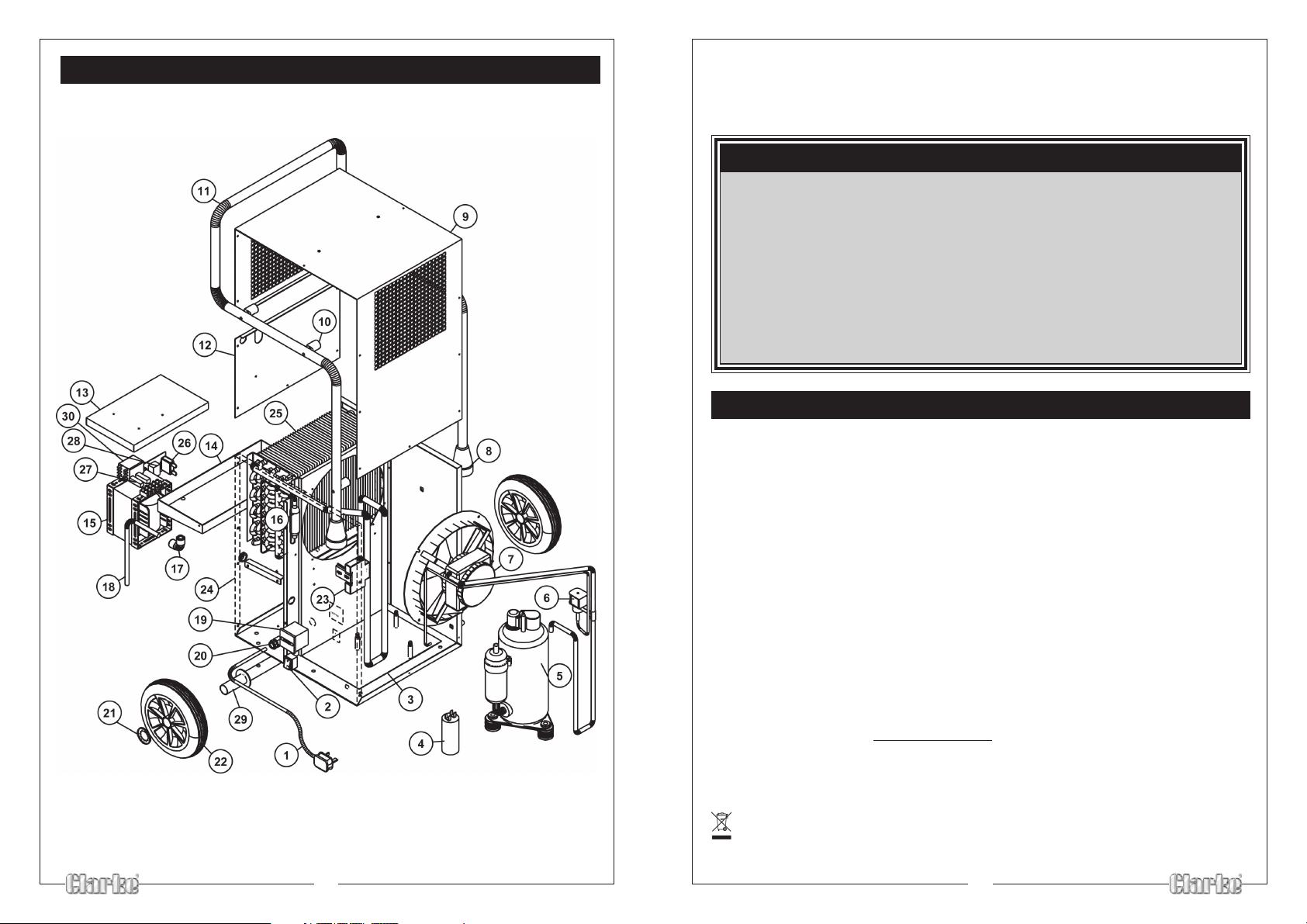

Parts Diagram

Thank you for purchasing this CLARKE Dehumidifier.

Before attempting to use the machine, please read this manual thoroughly and follow the
instructions carefully. In doing so you will ensure the safety of yourself and that of others
around you, and you can look forward to the unit giving you long and satisfactory service.

CLARKE GUARANTEE

This CLARKE product is guaranteed against faulty manufacture for a pe­riod of 12 months from the date of purchase. Please keep your receipt as
proof of purchase.

This guarantee is invalid if the product is found to have been abused or
tampered with in any way, or not used for the purpose for which it was
intended.

Faulty goods should be returned to their place of purchase, no product
can be returned to us without prior permission.

This guarantee does not effect your statutory rights.

Specifications

Model No: ........................................................................................... DMD 66

Part No: ............................................................................................... 6470645

Voltage: ....................................................... 230 &110/115 Volt 1Phase 50Hz

Fuse Rating: .................... See Product Data Plate (13A-230v & 16A-110v)

Running Current: .................................................. 3.5A (230v) & 7.3A (110v)

Refrigerant: .................................................................................. R417A (R59)

Temperature Range: ...................................................................... 5º to 35ºC

Weight: ...................................................................................................... 44Kg

Dimensions: ..................................... 770mm (H) x 565mm (W) x 460mm (D)

Max Motor Wattage When Running: ................................................... 820W

Max Extraction Rate: ............................................................. 60 litres (24 hrs)

10

The DMD66 is equipped with a manually operated dual voltage selector switch.

The DMD66 is designed for INTERNAL USE ONLY.

Extension leads, if used, should be; correctly rated for the inductive load, fully unwound,
loosely coiled and never run through water or over sharp edges, this applies equally to the
mains lead on the dehumidifier.

Do not dispose of with general household waste. It must be disposed of according to law, at a
properly recognised disposal facility

Please note that the details and specifications contained herein, are correct at the time of going to print. However,

CLARKE International reserve the right to change specifications at any time without prior notice.

3

Safety Precautions

WARNING:

As with all machinery, there are certain hazards involved with their operation and

use. Exercising respect and caution will considerably lessen the risk of personal

injury. However, if normal safety precautions are overlooked or ignored, personal

Care must be taken when handling water near electricity as there is risk of electric

Always

Always

Always

Always

Always

Always

Always

Never

Never

Never

Never

Never

Never

injury to the operator or damage to property, may result.

WARNING!

Read these safety instructions before using the equipment.

transport, store and operate this equipment in an
upright position DO NOT lay the unit down.

leave the unit to stand for 15 minutes minimum before
switching on if it has been tilted or moved from an
upright position i.e. after transportation or cleaning.

allow a gap of 300mm around the unit to allow
air to circulate.

ensure that the air inlet and outlet areas are
clear.

remove the mains plug from the mains supply before
carrying out any maintenance.

switch off, unplug and drain any water from the
dehumidifier before moving.

switch the electrical supply off and disconnect from
the mains, when not in use.

use the unit near heaters or other sources of heat.

place anything on the top of this unit, and never
obstruct the air intake/exhaust grills.

pour or spray water on the unit.

use solvent cleaners or other flammable liquids
to clean the unit.

pull out the plug to stop or start the machine. Use
the ON/OFF switch on the side of the unit.

pull on the mains cable to pull the plug from the
socket or to move the machine

Parts List

Item Part No Description Qty

1 EL020113 Mains Cable 1

2 EL030103 Push Button Switch 1
3 BW020362 Chassis 1
4 EL030303 Capacitor 1
5 FR010115 Compressor 1
6 FR010404 Solenoid Coil 1
7 FA040210 Fan Assembly 1
8 ME040523 Frame Bung 1
9 BW020370 Upper Case 1
10 ME040520 Saddle Washer 1
11 BW040325 Handle 1
12 BW020359 Front Panel 1
13 BW020363 Transformer Cover 1
14 BW020371 Drip Tray 1
15 EL030602 Transformer 1
16 FR020302 Filter Drier 1
17 ME040129 Right Angle Coupling 1
18 ME040131 Condensate Tube 1
19 EL030511 Hour Clock 1
20 ME040207 Cable Gland 1
21 FI060405 Star Washer 2
22 ME010102 Wheels 2
23 EL030510 Timer 1
24 BW020352 Lower Case 1
25 FR030309 CD/DX Coil 1
26 EL010210 Circuit Breaker 10Amp 1
27 EL030906 Resistor 1
28 EL030123 Voltage Selector Switch 1
29 BW040322 Axle 1

30 EL030209 Switching Relay 1

PARTS & SERVICE TEL: [phone]

or e-mail as follows:

PARTS: [email protected]

SERVICE: [email protected]

4

9

Troubleshooting

If your dehumidifier fails to operate correctly, check the information below before contacting
your Clarke dealer for assistance.

PROBLEM PROBABLE CAUSE REMEDY

Unit fails to operate. Power failure. Check the unit is plugged into

Poor drying
performance.

Dehumidifier in automatic
defrost mode.

Coils Dirty.

Air intake/exhaust grills
obstructed.

Temperature outside of
specified operating range.

the correct power supply &
switched ON.

Check breaker. Reset if
necessary.

Check plug fuse (13amp).
Replace if necessary.

Normal ~ wait 15mins and
check drying again.

Clean coils, using compressed
air if available.

Remove obstruction, check
min clearance around unit, re­site if necessary.

Check the environment
temperature ~ if too low,
switch unit OFF and add heat
to area.

If temp is too high, switch the
unit Off and wait for
temperature to drop.

Electrical Connections

The DMD66 is fitted with a Manual Dual Voltage Selection Switch, and can be connected
into a standard 16amp 110V, or 13amp 230V supply once the correct plug has been fitted.
To reduce the risk of shock, it is recommended to use a suitable RCD (residual current
device).

230 Volt Mode

Connect the mains lead to a standard, 230 Volt (50Hz) electrical supply through an ap­proved 13 amp BS 1363 plug, or a suitably fused isolator switch.

WARNING! THIS APPLIANCE MUST BE EARTHED

IMPORTANT: Wires in the mains lead are coloured in accordance with the following code:

Green & Yellow .......... Earth

Blue .............................. Neutral

Brown .......................... Live

As the colours of the flexible lead of this appliance may not correspond with the coloured
markings identifying terminals in your plug, or your mains supply, proceed as follows:

• Connect GREEN & YELLOW coloured cord to plug terminal marked with a
letter “E” or Earth symbol “ ” or coloured GREEN or GREEN & YELLOW.

• Connect BROWN cord to terminal marked with a letter “L” or coloured RED.

• Connect BLUE cord to terminal marked with a letter “N” or coloured BLACK.

Fuse Rating

Water leaking.

Compressor stops
running.

Blocked drain hose.

Water receptacle full and
overflowing.

Drain hose higher than the
outlet port.

Unit has been moved without
draining the inner drip tray.

Unit iced up.

Input voltage too low.

Circuit breaker operated due
to excess current or
temperature.

8

Clear blockage.

Check level and empty if
required.

Adjust the hose level, check
the water flows.

Ensure the drip tray is empty
before moving the unit.

Dehumidifier run below min
temperature.

Check voltage.

Switch the unit OFF, wait 15mins
before switching back ON.

The fuse in the plug must be replaced with one of the same rating (13amp) and this re­placement must be ASTA approved to BS1362.

110 Volt Mode

These models must be connected to a protected 110V supply, through a suitably ap­proved BS4343/IEC309-2 connector. On no account must a 230V, 13amp (BS1363) plug be
used.

NOTE: If a portable 110V transformer is used, make sure it has a rated capacity sufficient to
take the load of the unit.

In the event that the unit is hard wired into the electrical system, it must be carried out in
accordance with IEE regulations.

WARNING!

IF YOU ARE IN ANY DOUBT ABOUT ELECTRICAL CONNECTIONS, CONSULT A

QUALIFIED ELECTRICIAN.

NEVER ATTEMPT ELECTRICAL REPAIRS YOURSELF.

5

Installation

Maintenance

Little installation is required other than siting the dehumidifier on a firm, flat and level surface,
selecting the power supply voltage and setting the unit selector switch accordingly,
connecting to the main electric supply and choosing the method of disposing of collected
water.

Please note, that the drip tray is not removable

Please note also, that it is perfectly safe to locate
this model in an area with standing water, provided
the water is less that 2” deep.

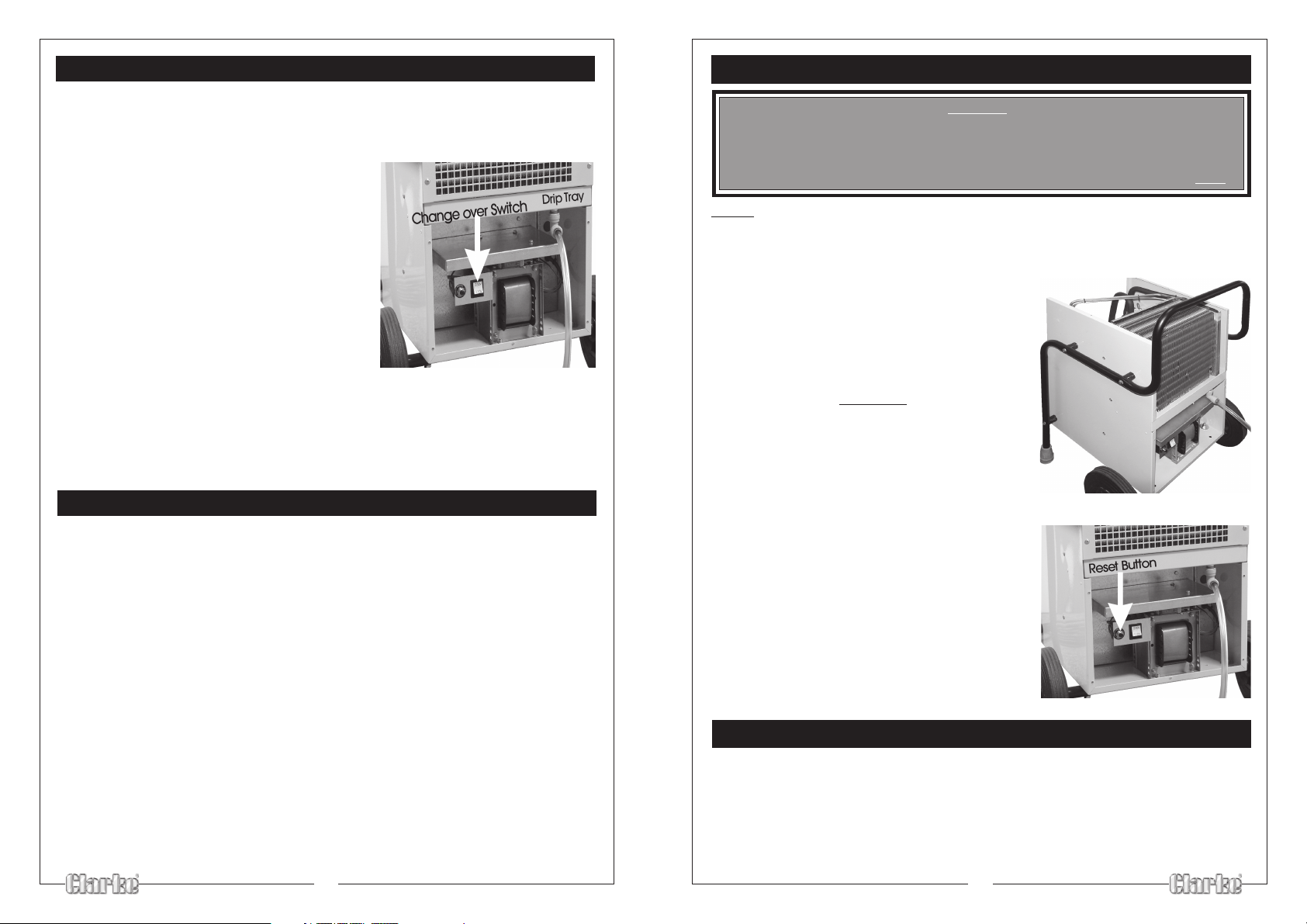

The voltage selector switch - shown in the illustration
opposite, is accessed by removing the bottom rear
panel (5 screws) at the rear of the dehumidifier. It is
factory set to select 230V.

This equipment is designed to work in temperatures
between 5ºC & 35ºC, Never operate in temperatures
below 5ºC or above 35ºC. If the temperature in the
room rises above 35ºC, switch the unit OFF. Failure
to switch OFF could cause the compressor to
overheat, resulting in premature failure.

If used in temperatures below 5ºC, the coil may frost up and no water will be produced
until the defrost cycle commences.

NOTE: if using an extension lead, ensure it is correctly rated for the inductive load, fully
unwound and never run through water or over sharp edges.

Operation

Never attempt to use the dehumidifier for anything other than it’s intended purpose.

The DMD66 is fitted with an electronic hour run counter which is not resettable. Before
switching the dehumidifier ON, take a note of the hours run counter to assist with monitoring
the amount of time the unit is run.

After moving the dehumidifier into the location to be used, allow the unit to stand for 15
minutes before switching it on.

Ensure all doors and windows are closed and the area sealed where possible, this aids in
speeding up the dehumidification/drying process.

Plug the unit into the power supply and switch the supply ON.

Switch the unit ON by depressing the ON/OFF switch marked I/O, I= ON, O=OFF. The ON/
OFF switch is located next to the hour counter.

The dehumidifier is now running, allow a minimum of 10mins for it to begin dehumidifying/
drying.

The water collected can be drained automatically using the hose connected to the drip
tray drain. Ensure the hose is kept below the level of the drain, otherwise flooding of the unit
will occur.

Drain condensate into a suitable container ( builders bucket or similar). It is important to keep
an eye on the water level in the bucket and empty regularly to prevent it from overflowing.

6

WARNING

FAILURE TO CARRY OUT ROUTINE MAINTENANCE WILL AFFECT HE MACHINE

PERFORMANCE AND RESULTING IN PREMATURE FAILURE, THIS COULD ALSO INVALIDATE

MAINTENANCE ACTIVITIES MUST ALWAYS BE CARRIED OUT BY QUALIFIED PERSONNEL ONLY

ALWAYS disconnect the unit from the power supply before carrying out any maintenance activities.

This dehumidifiers is fairly maintenance free, only requiring periodic cleaning. All internal
parts are sealed and lubricated for the life of the unit.

The cooling coils require cleaning at least once a month, more often if the unit is used in
dusty environments.

Remove all 13 cover securing screws and pull off the cover.
Clean the inside of the unit by carefully blowing out

any dust using compressed air at low pressure.
Pay particular attention to the fan blade and motor,

ensure the motor spins freely.
Reassemble the unit in the reverse order.

IMPORTANT
When carrying out maintenance activities, precautions to
ensure the safety of yourself and that of others around you
must be considered, i.e. choose a location where it is safe
to use compressed air to blow the unit out ensuring you
wear the necessary safety equipment, especially safety
glasses and ear defenders..

THE WARRANTY.

Covers removed

THERMAL OVERLOAD

The DMD66 transformer is protected with an internal 10
amp resettable circuit breaker - see Illustration opposite.
The breaker is accessed by removing the bottom panel
(5 screws) at the rear of the dehumidifier.

In the event the circuit breaker operates and shuts the
unit down, investigate the cause and rectify. Then reset
the device, by pushing the button in.

Please note also, that if the unit is plugged into a 230V
supply, when the changeover switch is set to 110V,
the circuit breaker will operate.

Re-set as described above, once the changeover
switch is set to 230V.

Storage

Switch OFF the power supply and disconnect from the main electrical supply by removing
the plug from the socket.

The unit should not be moved for at least 15 minutes after switching off. Always ensure the
drip tray is clean and dry before storing.

If the storage period is expected to be prolonged, remove the top cover as described
above, and blow out the coils and internal parts. Ensure the coils are clean and dry before
replacing the cover. Ensure the unit is kept upright at all times.

7
