DEHUMIDIFIER
DEHUMIDIFIER
MODEL NO: DMD65
PART No: 6470636
OPERATION & MAINTENANCE
INSTRUCTIONS
0307
Page 2
Do not dispose of with general household waste. It must be disposed of according to law, at a
properly recognised disposal facility
Please note that the details and specifications contained herein, are correct at the time of going to print. However,
CLARKE International reserve the right to change specifications at any time without prior notice.
-1-
-10-
Page 3
Maintenance
FAILURE TO CARRY OUT ROUTINE MAINTENANCE WILL AFFECT
THE MACHINE PERFORMANCE AND RESULTING IN PREMATURE
FAILURE, THIS COULD ALSO INVALIDATE THE WARRANTY.
WARNING
Thank you for purchasing this CLARKE Dehumidifier.
Before attempting to use the machine, please read this manual thoroughly and follow the
instructions carefully. In doing so you will ensure the safety of yourself and that of others
around you, and you can look forward to the unit giving you long and satisfactory service.
CLARKE GUARANTEE
MAINTENANCE ACTIVITIES MUST ALWAYS BE
CARRIED OUT BY QUALIFIED PERSONNEL ONLY
ALWAYS disconnect the unit from the power supply before carrying out any maintenance
activities.
These dehumidifiers are fairly maintenance free, only requiring periodic cleaning. All internal
parts sealed and lubricated for the life of the unit.
The front face of the cooling coil requires cleaning at least once a month, more often if the
unit is used in dusty environments.
Loosen and remove all cover securing screws (12off),
with a shakeproof washer and MUST, be fitted when reassembling the unit.
ON/OFF switch and the hour counter at the white harness connector to completely remove
the top cover.
The plastic drip tray can be cleaned using a clean dry soft cloth, DO NOT use harmful
chemicals or cleaning agents. To access the drip tray, remove the tray retaining screws,
two at the front and two at the rear then lower the tray assembly.
Clean the inside of the unit by carefully blowing out any dust using compressed air.
Pay particular attention to the fan blade and motor, ensure the motor spins freely.
Reassemble the unit in the reverse order.
IMPORTANT
When carrying out maintenance activities, precautions to ensure the safety of yourself and
that of others around you must be considered, i.e. choose a location where it is safe to use
compressed air to blow the unit out.
Any necessary safety equipment, especially safety glasses and ear defenders must be worn.
NOTE: at least 1 cover screw is fitted
Disconnect the
Storage
This CLARKE product is guaranteed against faulty manufacture for a period of 12 months from the date of purchase. Please keep your receipt as
proof of purchase.
This guarantee is invalid if the product is found to have been abused or
tampered with in any way, or not used for the purpose for which it was
intended.
Faulty goods should be returned to their place of purchase, no product
can be returned to us without prior permission.
This guarantee does not effect your statutory rights.
Specifications
Model No: ............................................................................................ DMD 65
Part No: ............................................................................................... 6470636
Voltage: ....................................................... 230 &110/115 Volt 1Phase 50Hz
Fuse Rating: .................... See Product Data Plate (13A-230v & 16A-110v)
Running Current: .................................................. 3.5A (230v) & 7.3A (110v)
Refrigerant: .................................................................................. R417A (R59)
Temperature Range: ...................................................................... 5º to 35ºC
Weight: ...................................................................................................... 44Kg
Dimensions: ..................................... 740mm (H) x 540mm (W) x 510mm (D)
Max Motor Wattage When Running: ................................................... 820W
Max Extraction Rate: ............................................................. 60 litres (24 hrs)
Switch OFF the power supply and disconnect from the main electrical supply by removing
the plug from the socket.
Allow any accumulated moisture in the drip tray to drain away before moving the unit.
Ideally the unit should not be moved for at least 15 minutes after switching off.
Ensure the unit is kept upright at all times.
-9-
The DMD65 is equipped with a manually operated dual voltage selector switch as standard.
The DMD65 is designed for INTERNAL USE ONLY.
Extension leads, if used, should be; correctly rated for the inductive load, fully unwound,
loosely coiled and never run through water or over sharp edges, this applies equally to the
mains lead on the dehumidifier.
-2-
Page 4
Safety Precautions
WARNING:
As with all machinery, there are certain hazards involved with their operation and
use. Exercising respect and caution will considerably lessen the risk of personal injury.
However, if normal safety precautions are overlooked or ignored, personal injury to
the operator or damage to property, may result.

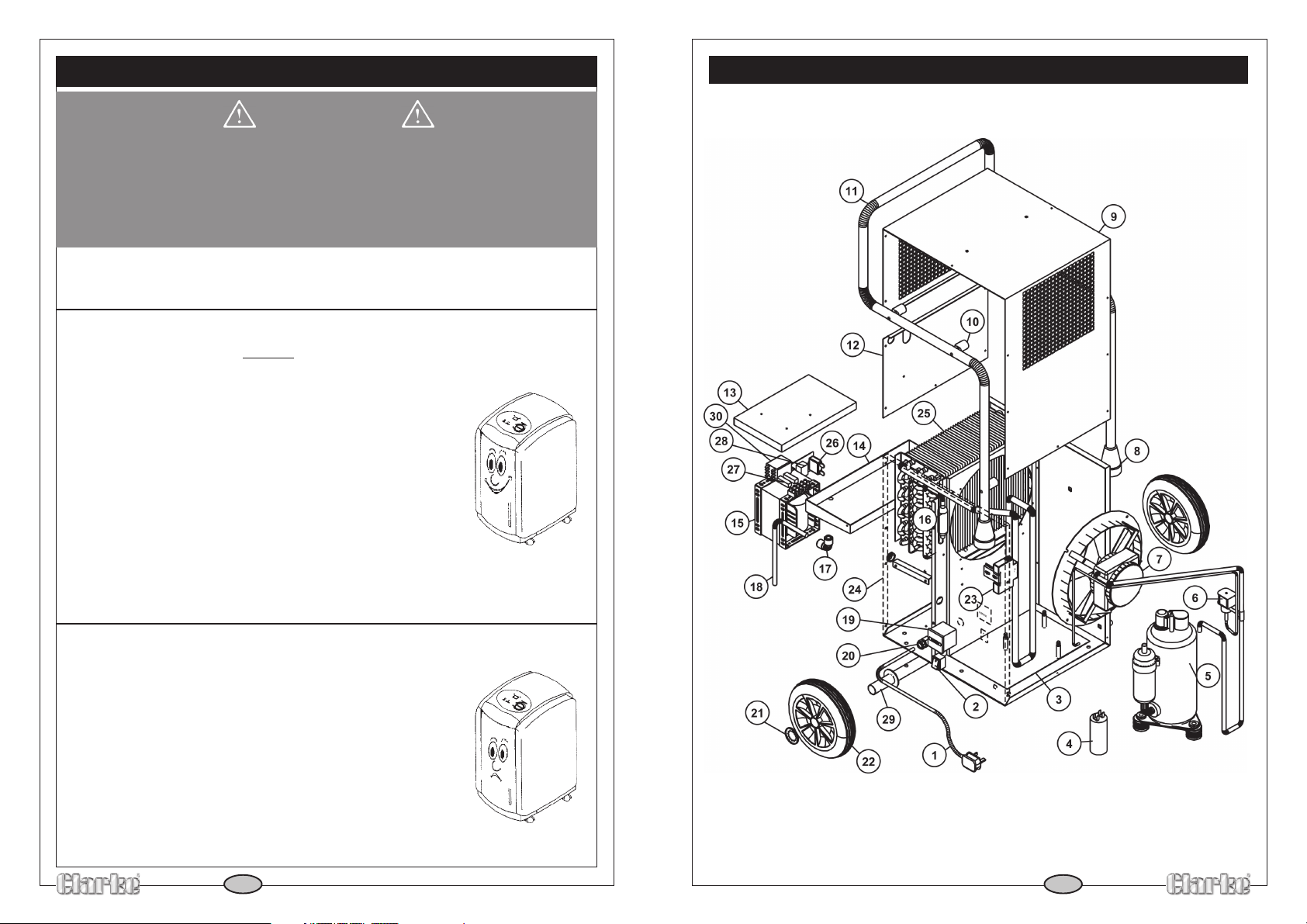

Parts Diagram
Care must be taken when handling water near electricity as there is risk of electric
Always
Always
Always
Always
Always
Always
Always
Never
WARNING!
use the unit near heaters or other sources of heat.
Read these safety instructions before using the equipment.
transport, store and operate this equipment in an
upright position DO NOT lay the unit down.
leave the unit to stand for 15 minutes minimum before
switching on if it has been tilted or moved from an
upright position i.e. after transportation or cleaning.
allow a gap of 300mm around the unit to allow
air to circulate.
ensure that the air inlet and outlet areas are
clear.
remove the mains plug from the mains supply before
carrying out any maintenance.
switch off, unplug and drain any water from the
dehumidifier before moving.
switch the electrical supply off and disconnect from
the mains, when not in use.
shock
Never
Never
Never
Never
Never
place anything on the top of this unit, and never
obstruct the air intake/exhaust grills.
pour or spray water on the unit.
use solvent cleaners or other flammable liquids
to clean the unit.
pull out the plug to stop or start the machine. Use
the ON/OFF switch on the side of the unit.
pull on the mains cable to pull the plug from the
socket or to move the machine
-3- -8-
Page 5
Parts List
Electrical Connections
Item Part No Description Qty
1 EL020113 Mains Cable 1
2 EL030103 Push Button Switch 1
3 BW020362 Chassis 1
4 EL030303 Capacitor 1
5 FR010115 Compressor 1
6 FR010404 Solenoid Coil 1
7 FA040210 Fan Assembly 1
8 ME040523 Frame Bung 1
9 BW020370 Upper Case 1
10 ME040520 Saddle Washer 1
11 BW040325 Handle 1
12 BW020359 Front Panel 1
13 BW020363 Transformer Cover 1
14 BW020371 Drip Tray 1
15 EL030602 Transformer 1
16 FR020302 Filter Drier 1
17 ME040129 Right Angle Coupling 1
18 ME040131 Condensate Tube 1
19 EL030511 Hour Clock 1
20 ME040207 Cable Gland 1
21 FI060405 Star Washer 2
22 ME010102 Wheel s 2
23 EL030510 Timer 1
24 BW020352 Lower Case 1
25 FR030309 CD/DX Coil 1
26 EL010210 Circuit Breaker 1
27 EL030906 Resistor 1
28 EL030123 Voltage Selector Switch 1
29 BW040322 Axle 1
30 EL030209 Switching Relay 1
The DMD65 is fitted with a Manual Dual Voltage Selection Switch, and can be connected
into a standard 16amp 110v, or 13amp 230v supply once the correct plug has been fitted.
To reduce the risk of shock, it is recommended to use a suitable RCD (residual current
device).
230 Volt Mode
Connect the mains lead to a standard, 230 Volt (50Hz) electrical supply through an approved 13 amp BS 1363 plug, or a suitably fused isolator switch.
WARNING! THIS APPLIANCE MUST BE EARTHED
IMPORTANT: Wires in the mains lead are coloured in accordance with the following code:
Green & Yellow .......... Earth
Blue .............................. Neutral
Brown .......................... Live
As the colours of the flexible lead of this appliance may not correspond with the coloured
markings identifying terminals in your plug, or your mains supply, proceed as follows:
• Connect GREEN & YELLOW coloured cord to plug terminal marked with a
letter “E” or Earth symbol “ ” or coloured GREEN or GREEN & YELLOW.
• Connect BROWN cord to terminal marked with a letter “L” or coloured RED.
• Connect BLUE cord to terminal marked with a letter “N” or coloured BLACK.
Fuse Rating
The fuse in the plug must be replaced with one of the same rating (13amp) and this replacement must be ASTA approved to BS1362.
110 Volt Mode
These models must be connected to a protected 110V supply, through a suitably approved
BS4343/IEC309-2 connector, . On no account must a 230V, 13amp (BS1363) plug be used.
NOTE: If a portable 110V transformer is used, make sure it has a rated capacity sufficient to
take the load of the unit.
In the event that the unit is hard wired into the electrical system, it must be carried out in
accordance with IEE regulations.
PARTS & SERVICE TEL: 020 8988 7400
or e-mail as follows:
PARTS: [email protected]
SERVICE: [email protected]
-7-
WARNING!
IF YOU ARE IN ANY DOUBT ABOUT ELECTRICAL CONNECTIONS, CONSULT A
QUALIFIED ELECTRICIAN.
NEVER ATTEMPT ELECTRICAL REPAIRS YOURSELF.
-4-
Page 6
Installation
Troubleshooting
Little installation is required other than siting the dehumidifier on a firm, flat and level surface,
selecting the power supply voltage and setting the unit selector switch accordingly,
connecting to the main electric supply and choosing the method of disposing of collected
water.
The voltage selector switch is accessed by removing the bottom panel (4 screws) at the
rear of the dehumidifier.
MUST, be fitted when refitting the cover.
This equipment is designed to work in temperatures between 5ºC & 35ºC , Never operate in
temperatures below 5ºC or above 35ºC. If the temperature in the room rises above 35ºC,
switch the unit OFF. Failure to switch OFF could cause the compressor to overheat, resulting
in premature failure.
If used in temperatures below 5ºC, the coil may frost up and no water will be produced until
the defrost cycle commences.
NOTE: if using an extension lead, ensure it is correctly rated for the inductive load, fully
unwound and never run through water or over sharp edges.
NOTE: at least 1 cover screw is fitted with a shakeproof washer and
Operation
Never attempt to use the dehumidifier for anything other than it’s intended purpose.
The DMD65 is fitted with an electronic hour run counter which is not resettable. Before
switching the dehumidifier ON, take a note of the hours run counter to assist with monitoring
the amount of time the unit is run.
After moving the dehumidifier into the location to be used, allow the unit to stand for 15
minutes before switching it on.
Ensure all doors and windows are closed and the area sealed where possible, this aids to
speed the dehumidification/drying process.
Plug the unit into the power supply and switch the supply ON.
Switch the unit ON by depressing the ON/OFF switch marked I/O, I= ON, O=OFF. The ON/
OFF switch is located next to the hour counter.
The dehumidifier is now running, allow a minimum of 10mins for it to begin dehumidifying/
drying.
The water collected can be drained automatically using a suitable length of hose (not
supplied) connected to the outlet port, ensure the hose is kept below the outlet port for its
entire length, otherwise flooding of the unit will occur.
Alternatively the collected water can be drained into a suitable container ( builders bucket
or similar). It is important to keep an eye on the water level in the bucket and empty regularly
to prevent it from overflowing.
When emptying the bucket, either turn the unit OFF, or replace full bucket with an empty
one.
-5-
If your dehumidifier fails to operate correctly, check the information below before contacting
your Clarke dealer for assistance.
PROBLEM PROBABLE CAUSE REMEDY
Unit fails to operate. Power failure. Check the unit is plugged into
Poor drying
performance.
Water leaking.
Compressor stops
running.
Note: The DMD65 transformet is protected with an internal 10amp resettable circuit
breaker, the breaker is accessed by removing the bottom panel (4 screws) at the rear of
the dehumidifier. NOTE: at least1 cover screw is fitted with a shakeproof washer and MUST,
be fitted when refitting the cover.
Dehumidifier in automatic
defrost mode.
Coils Dirty.
Air intake/exhaust grills
obstructed.
Temperature outside of
specified operating range.
Blocked drain hose.
Water receptacle full and
overflowing.
Receptacle not under outlet
port.
Drain hose higher than the
outlet port.
Unit has been moved without
draining the inner drip tray.
Unit iced up.
Input voltage too low.
Klixon operated due to
excess current or
temperature.
the correct power supply &
switched ON.
Check breaker. Reset if
necessary.
Check plug fuse (13amp).
Replace if necessary.
Normal ~ wait 15mins and
check drying again.
Clean coils, using compressed
air if available.
Remove obstruction, check
min clearance around unit, resite if necessary.
Check the environment
temperature ~ if too low,
switch unit OFF and add heat
to area.
If temp is too high, switch the
unit Off and wait for
temperature to drop.
Clear blockage.
Check level and empty if
required.
Move the water receptacle.
Adjust the hose level, check
the water flows.
Ensure the drip tray is empty
before moving the unit.
Dehumidifier run below min
temperature.
Check voltage.
Switch the unit OFF, wait 15mins
before switching back ON.
-6-
Loading...
